High-Efficiency P Beam Forming Solution for Warehouse, Supermarket and Storage Systems
The Shelf P Beam Production Line is designed for manufacturing P-type beams used in shelf and storage systems. P beams can be widely applied in warehouses, supermarkets, shopping centers and other commercial storage and merchandise display environments.

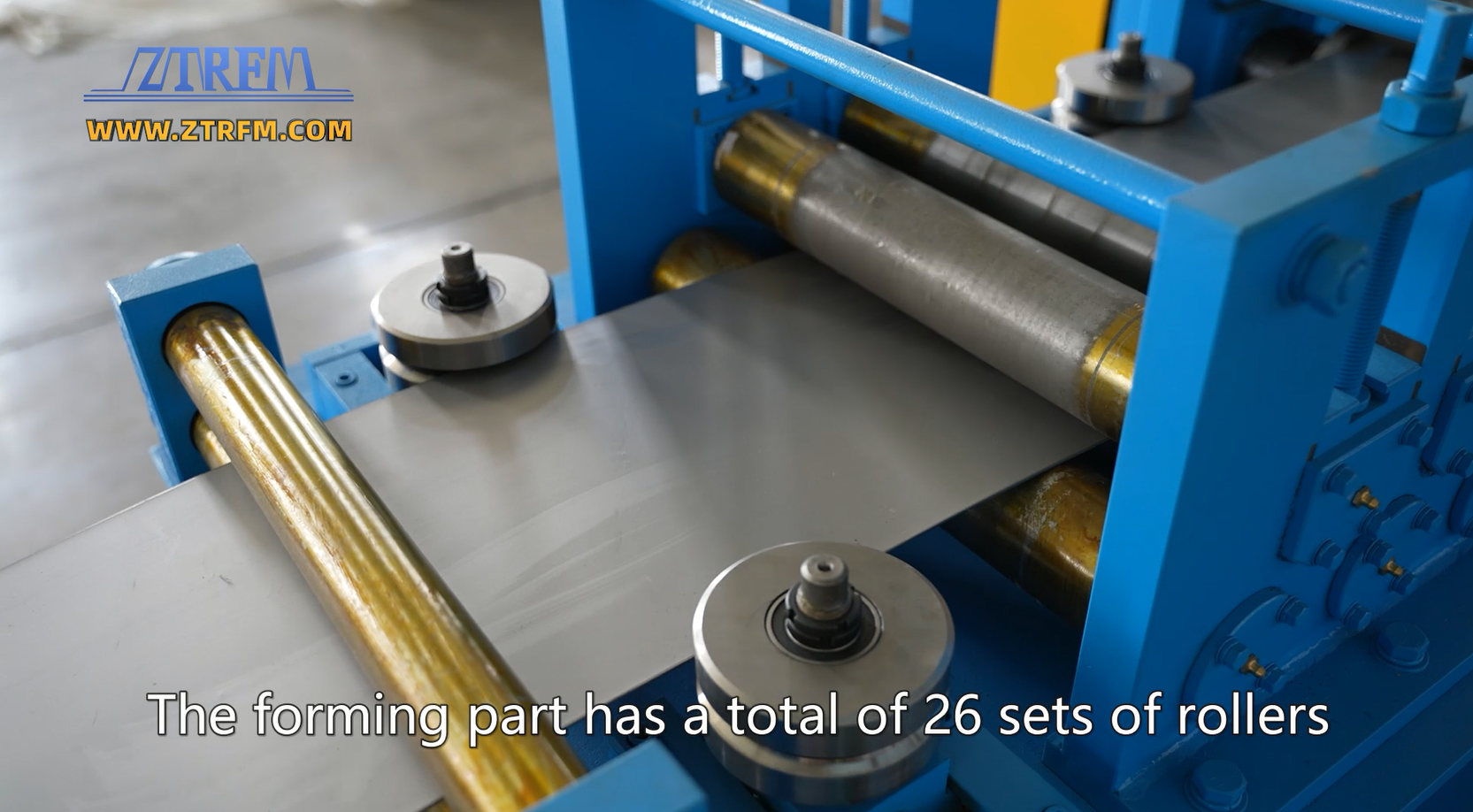

Forming section equipped with 26 sets of rollers.
Multiple specifications can be achieved by replacing six roller sets.
Integrated argon arc welding spot-welding operation.
One production line can manufacture different P beam specifications. The forming section contains 26 roller sets, and model changes can be achieved by replacing six roller sets and making corresponding adjustments.
Two sets of argon arc welding equipment are integrated into the production process for spot-welding operations, helping create a continuous production workflow.
A high-speed burrless cutting saw is used for cutting the formed P beam components, providing an efficient cutting solution for continuous production.
The argon arc welding system, cutting saw and discharge rack are connected through servo tracking. The system moves together with the forming equipment to support continuous operation.
A continuous production workflow designed around forming, welding, cutting and discharge.
Raw material enters the production line.
26 roller sets gradually form the P beam profile.
Two welding sets perform integrated spot-welding operations.
The high-speed cutting saw tracks the production line.
Finished P beams are transferred to the discharge rack.
| Item | Configuration |
|---|---|
| Machine Type | Shelf P Beam Production Line |
| Forming Section | 26 Roller Sets |
| Specification Change | Replace 6 roller sets and adjust the corresponding forming components |
| Welding System | 2 Sets Argon Arc Welding Spot-Welding System |
| Cutting System | High-Speed Burrless Cutting Saw |
| Tracking System | Servo Tracking Connection |
| Discharge System | Servo-Connected Discharge Rack |
| Application | Warehouses, Supermarkets, Shopping Centers and Storage Systems |
P beams can be used as components in warehouse storage and shelving systems, supporting organized storage and merchandise placement.
Suitable for shelf structures used for merchandise display and placement in supermarkets.
Designed for P-type beam components used in commercial storage and merchandise display applications.
One line can support the production of multiple P beam specifications.
Two argon arc welding sets are integrated into the production workflow.
High-speed burrless cutting saw supports efficient component cutting.
Servo tracking connects welding, cutting and discharge operations.
Different shelf and storage projects may require different P beam specifications. The production line can be configured according to the required product profiles and production requirements.
