Roller Shutter Door Roll Forming Machine：Automatic Slat Line

Description:Buy automatic roller shutter door roll forming machine for galvanized steel & aluminum slats. PLC control, 10–30 m/min, custom profiles, CE option.

Roller Shutter Door Roll Forming Machine

The roller shutter door roll forming machine is a continuous cold-roll production line that turns steel or aluminum coils into interlocking shutter door slats in one pass. It is built for door manufacturers who need stable profile accuracy, fast changeover between slat designs, and low labor cost per meter.

A standard line covers decoiling, guiding, roll forming, hydraulic cutting, and auto stacking. With PLC control and customizable roller sets, the same machine can produce Australian-style, European-style, or perforated shutter slats by changing drawings and partial tooling.



Why Buyers Choose This Shutter Door Making Machine

One-line automation​ – from coil to cut-length slats without secondary pressing

Profile flexibility​ – 40/60/80 mm slat width, oval hole, reinforced rib, bottom bar options

Material compatible​ – PPGI, GI, aluminum, stainless option for 0.3–1.2 mm thickness

Export-ready build​ – 380V/3Ph/50Hz standard, voltage customizable, CE/ISO available

Low running cost​ – chain or gearbox drive, hardened 45# chrome rollers, Cr12 cutting blade

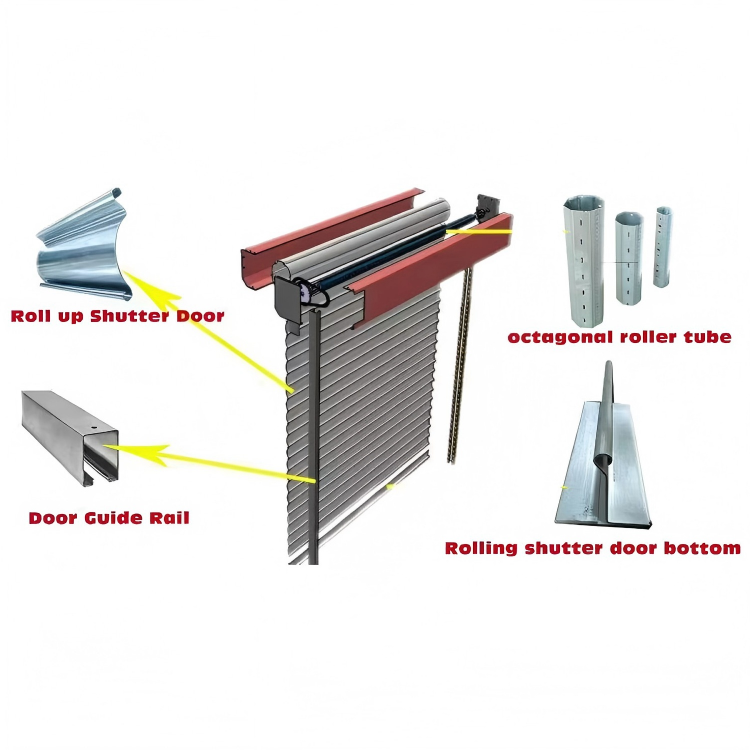

Typical Applications

This rolling shutter forming machine is used in factories producing:

Commercial shopfront roller shutters

Industrial warehouse and fire-rated rolling doors

Residential garage and window security grilles

Wind-resistant shutter doors for coastal markets

Parking lot barriers and storage unit doors



Technical Specifications (Customizable)

Item	Common Configuration
Raw material	PPGI, Galvanized steel, Aluminum coil
Material thickness	0.3 – 1.2 mm (model dependent)
Slat width	40 / 60 / 80 mm or per drawing
Forming stations	10–24 stations
Roller material	45# steel, chrome plated 0.05 mm
Shaft diameter	40 – 55 mm, 40Cr / 45#
Driving mode	1 inch chain or gearbox
Main motor	4 – 7.5 kW
Hydraulic power	3 – 5.5 kW
Cutting type	Hydraulic stop-cut, Cr12MoV blade
Control system	PLC + touch screen (Delta / Siemens option)
Line speed	10 – 30 m/min
Voltage	380V/3Ph/50Hz or customized
Machine weight	Approx. 1.5 – 2.5 ton

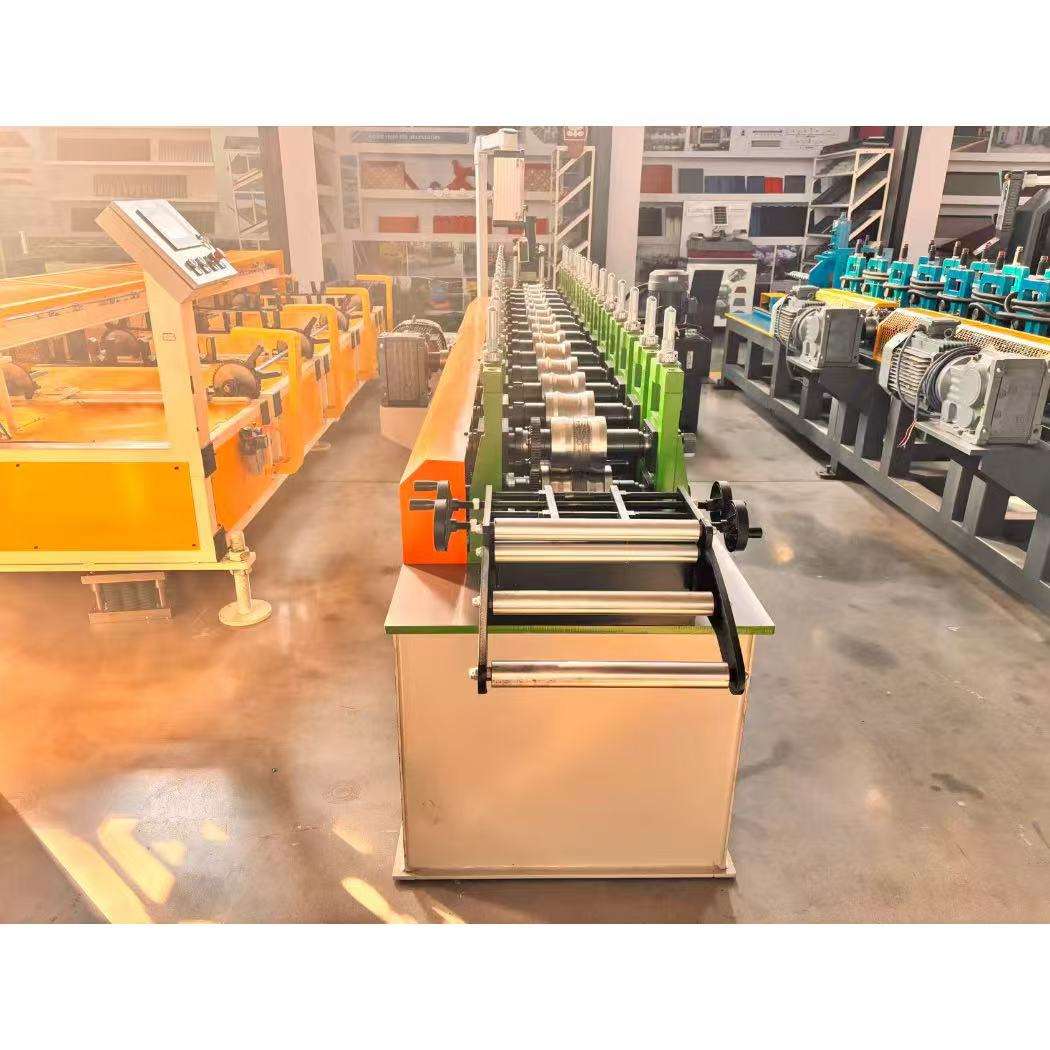

How The Production Line Works

Hydraulic/Manual Decoiler​ – holds 3–5 ton coil, keeps tension stable



Feeding & Leveling Guide​ – prevents edge wave and misalignment

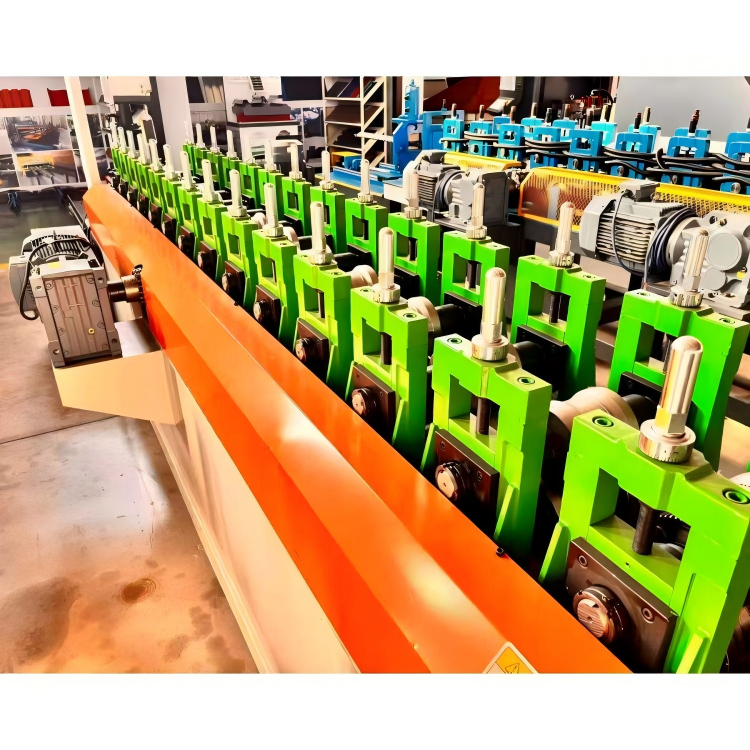

Main Roll Forming Machine​ – progressive rollers shape the slat section



Punching Unit (optional)​ – holes for ventilation or lock assembly



PLC Control Cabinet​ – sets length, quantity, speed, auto cut trigger

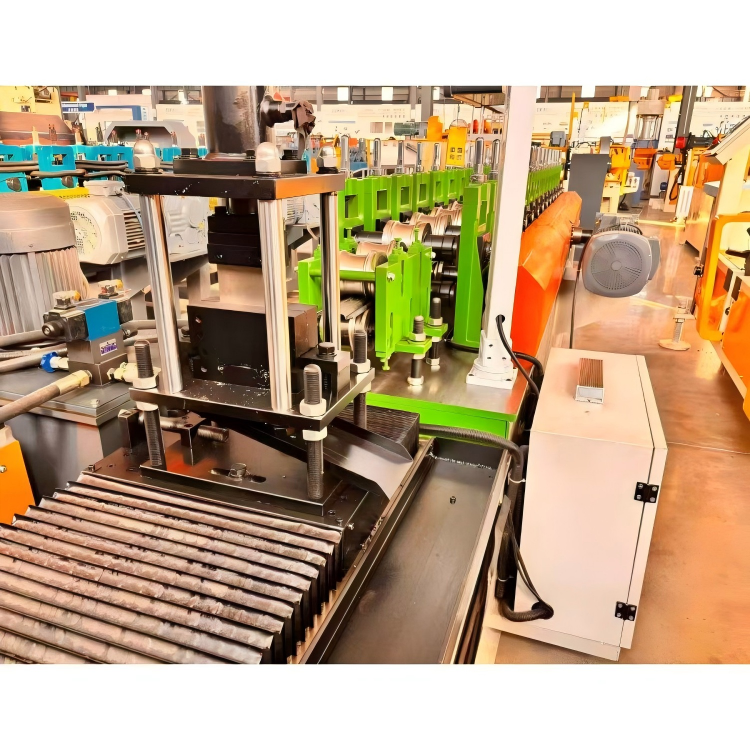

Hydraulic Cutting​ – fixed-length cut with ±1 mm tolerance



Output Table / Auto Stacker​ – collects finished slats for packing



Configuration Options For Export Markets



Standard economy line​ – manual decoiler, chain drive, 8–15 m/min



Mid-range line​ – hydraulic decoiler, gearbox drive, 15–20 m/min



High-speed line​ – servo feeding, rapid die change, 25–30 m/min



Add-ons​ – perforation roller, foam-filled slat set, auto bundle strapping



We export to Southeast Asia, Middle East, Africa, South America, and Eastern Europe. Voltage, container loading, and manual language (English/Spanish/French/Arabic) can be adapted before production.



Packaging & After-Sales

Packing: plastic film + steel frame, fits 20ft container



Lead time: 30–45 working days after deposit



Warranty: 12 months on main components



Support: pre-installation video, online commissioning, spare parts kit



Engineer service: overseas installation available on request



FAQ

Q: Can one machine make different slat sizes?

A: It can make several widths by changing roller cassettes or adjusting spacers. Fully different profiles need separate roller sets.

Q: What coil thickness is best for shutter slats?

A: Most buyers use 0.4–0.6 mm for residential and 0.7–1.0 mm for industrial wind-resistant doors.

Q: Do you provide the shutter door drawing?

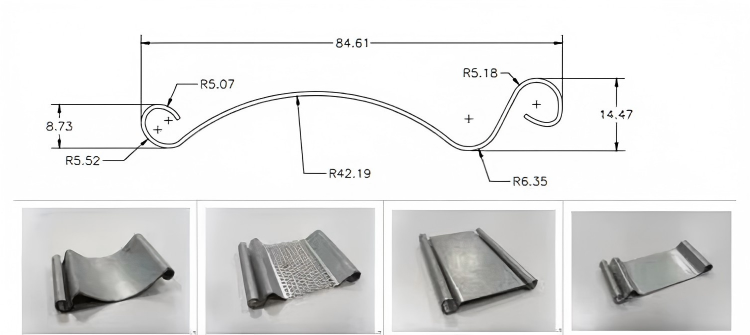

A: Yes, we can supply popular 40/60/80 mm slat drawings, or copy your existing sample.

Q: Is PLC in English?

A: Default is Chinese-English bilingual; Spanish/French/Arabic interface can be pre-installed.
