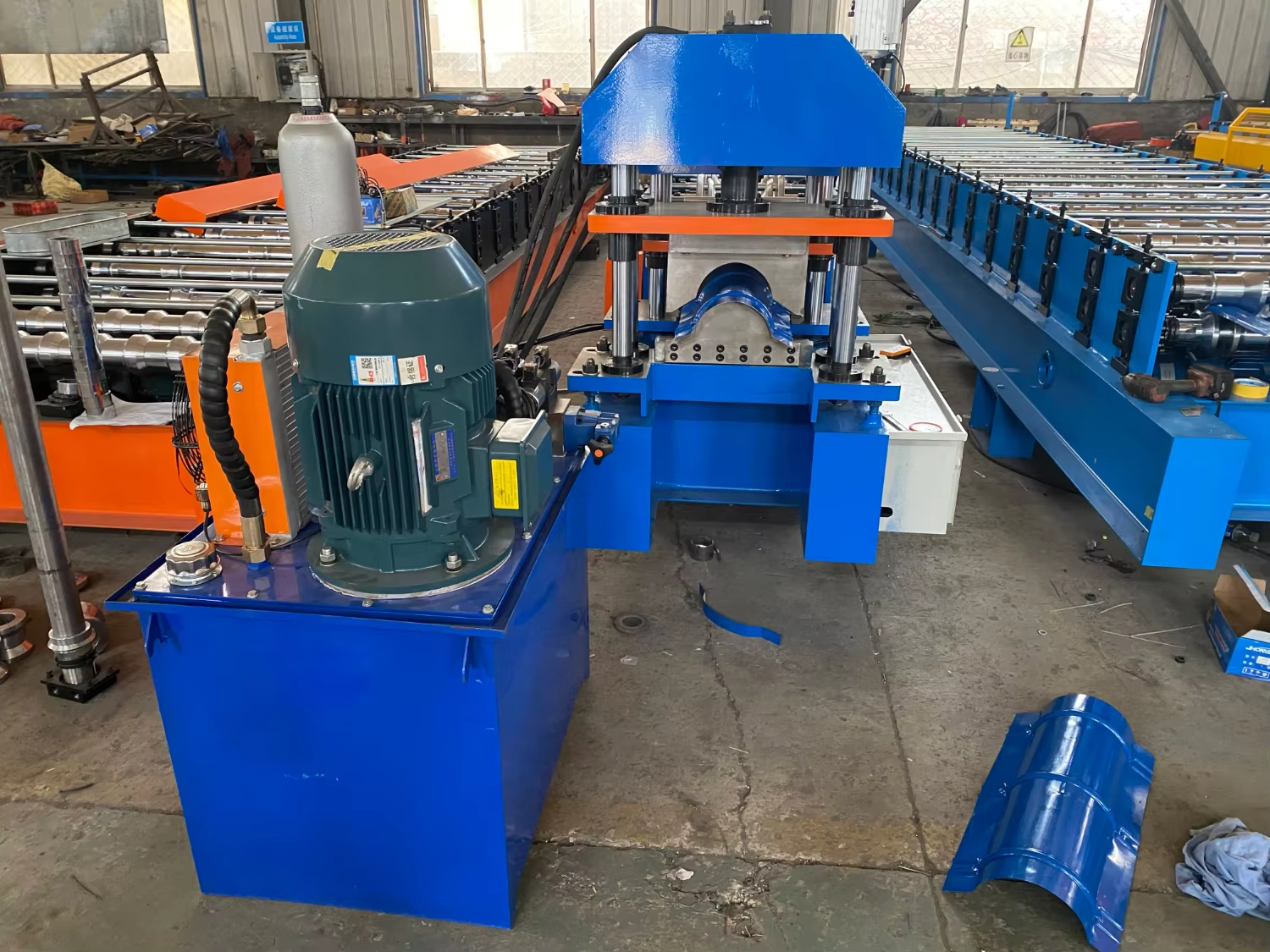

Automatic Ridge Cap Roll Forming Machine for Metal Roofing

Product Overview

The ZHONGTUO Ridge Cap Roll Forming Machine is a professional cold roll forming solution designed for manufacturing high-quality metal roof ridge caps used in industrial, commercial, and residential roofing systems.

Ridge caps are important components of metal roofing structures. Installed along the ridge where two roof slopes meet, they help cover the roof joint, protect against water penetration, and provide a neat, finished appearance.

As the global demand for durable metal roofing materials continues to grow, manufacturers increasingly require efficient equipment capable of producing consistent roofing accessories with reliable dimensional accuracy.

The ZHONGTUO Automatic Ridge Cap Roll Forming Machine is developed to meet these requirements through precision forming technology, automatic production control, robust mechanical construction, and flexible customization options.

The machine processes suitable metal coils into finished ridge cap profiles through a continuous cold forming process. Its automated operating system helps manufacturers improve production consistency, reduce repetitive manual operations, and meet different roofing project requirements.

Whether supplying roofing accessories for steel structure workshops, commercial properties, residential buildings, or light steel construction, ZHONGTUO provides customized ridge cap manufacturing solutions to support efficient production.

What Is a Metal Roof Ridge Cap?

A metal roof ridge cap is a specially shaped roofing accessory installed along the highest horizontal joint of a pitched roof.

Its main purpose is to cover the connection between two roof slopes, helping protect the roof assembly from rainwater intrusion while improving the overall appearance of the roofing system.

Metal ridge caps are widely used with corrugated roofing sheets, trapezoidal roof panels, metal roof tiles, and other compatible metal roofing materials.

Depending on the roofing design, ridge caps may be manufactured in different shapes, widths, angles, and surface finishes.

Proper ridge cap selection and installation are important for maintaining the weather resistance and durability of a metal roofing system.

The required ridge cap geometry must be matched to the roofing profile, roof angle, overlap arrangement, and installation requirements.

Wide Range of Applications

Main Features of the Ridge Cap Roll Forming Machine

Precision Roll Forming System

The forming system consists of multiple roller stations arranged sequentially along the production direction.

As the metal strip passes through each station, it is gradually formed into the specified ridge cap profile.

This progressive forming method helps maintain product consistency and supports continuous manufacturing.

Automatic Cutting System

The automatic cutting system processes the formed ridge caps according to the required product length.

Customized cutting dies are designed to match the finished profile geometry, helping maintain suitable cutting quality.

The referenced configuration uses Cr12MoV cutting tooling for durability during repeated production cycles.

PLC Control System

The PLC control system allows operators to manage automatic production settings conveniently.

Production length and quantity can be configured according to the required order specifications.

The control arrangement can be customized to meet different operating preferences and electrical requirements.

Heavy-Duty Machine Frame

The main forming equipment uses a reinforced steel structure to support the roller stations and transmission components.

A stable machine base helps maintain alignment and reliable operation throughout the forming process.

Customized Forming Rollers

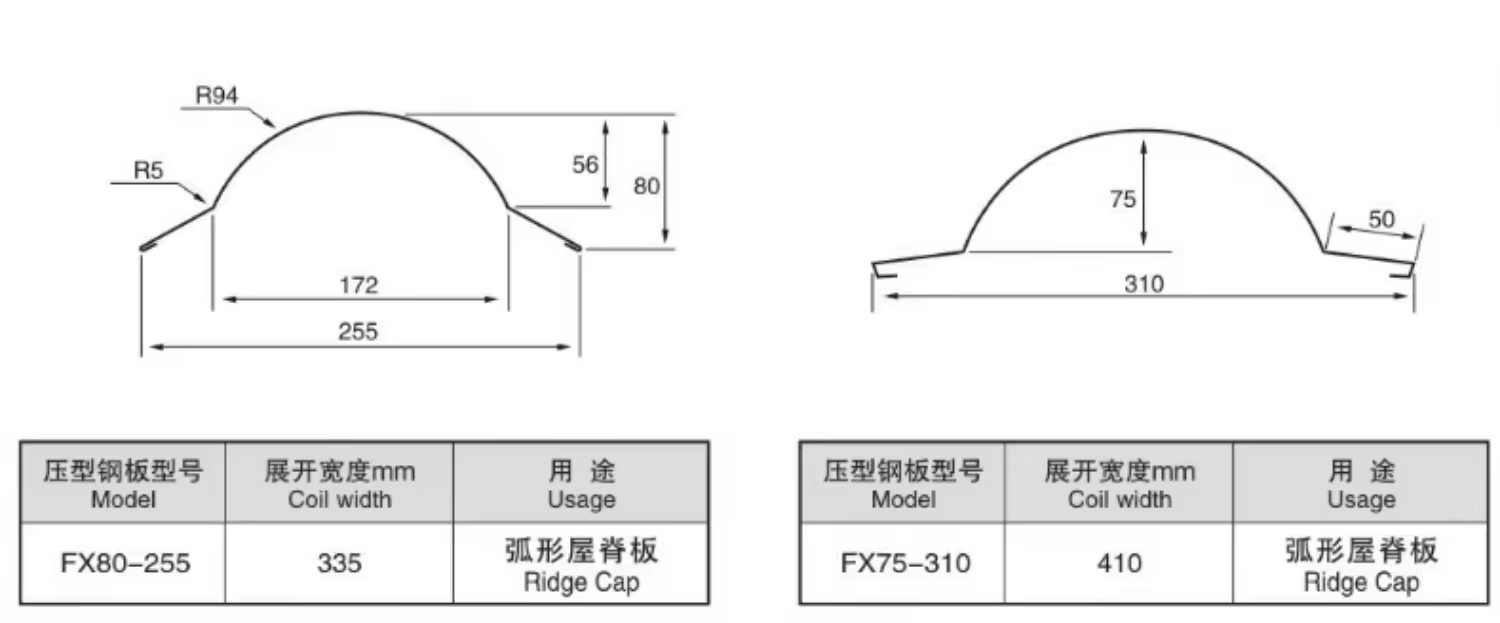

Forming rollers are designed according to the required ridge cap drawing and material specifications.

Different roller configurations can be developed for various roofing accessory designs.

Hydraulic Power System

The hydraulic system supplies power to the configured hydraulic operations, including the cutting process where applicable.

Appropriate hydraulic control helps maintain reliable equipment performance.

Finished Product Collection

After forming and cutting, completed ridge caps are discharged for inspection, collection, and packaging.

Receiving tables or additional collection equipment can be configured according to production requirements.

Custom Ridge Cap Manufacturing Solutions

ZHONGTUO understands that metal roofing specifications vary between countries, manufacturers, and construction projects.

Different customers may require various ridge cap widths, roof angles, decorative shapes, overlap structures, and material specifications.

To meet these requirements, ZHONGTUO provides customized ridge cap roll forming solutions based on customer-supplied drawings.

Our engineering team can evaluate the required product shape, material properties, production capacity, and factory operating conditions.

Available customization options include forming roller design, cutting tooling, equipment layout, electrical configuration, control system options, and auxiliary production equipment.

Customers can provide their required ridge cap drawings and material specifications for technical evaluation.

Why Choose ZHONGTUO?

Professional Equipment Engineering

Our technical team evaluates customer profile drawings and production specifications to develop suitable machine configurations.

OEM and ODM Manufacturing

We provide customized roll forming solutions for different product designs, manufacturing requirements, and regional markets.

Factory Testing

Equipment can be tested and adjusted before shipment according to the agreed production requirements.

Technical Assistance

Operating guidance, installation support, and commissioning assistance can be arranged according to the project agreement.

After-Sales Support

We provide technical communication and after-sales assistance to support machine operation and maintenance.

Frequently Asked Questions

Q1: What is a Ridge Cap Roll Forming Machine?

A Ridge Cap Roll Forming Machine is industrial equipment designed to manufacture metal roof ridge caps through a cold roll forming process. It gradually shapes metal strip into the required ridge cap profile.

Q2: What roofing applications are suitable for the finished ridge caps?

Finished ridge caps can be used in compatible industrial, commercial, residential, and light steel roofing systems.

Q3: Can the machine produce different ridge cap designs?

Yes. ZHONGTUO can customize the forming rollers and machine configuration according to customer profile drawings. Different designs may require different tooling.

Q4: Is automatic cutting available?

Yes. The described machine configuration includes an automatic cutting system designed according to the required ridge cap profile.

Q5: Can the machine process different metal materials?

Material compatibility depends on the metal grade, thickness, coating, and required profile geometry. These details should be confirmed before machine design.

Q6: Is the machine easy to operate?

The machine is designed for convenient operation, with automatic control functions that simplify production settings and routine manufacturing.

Q7: Can the electrical configuration be customized?

Yes. Electrical components and power supply configurations can be customized according to the customer's requirements.

Q8: Does ZHONGTUO provide a warranty?

The referenced machine includes a one-year warranty, subject to the agreed warranty conditions.

Q9: Can we order a machine based on our own ridge cap drawings?

Yes. Customers can provide product drawings, material specifications, and manufacturing requirements for a customized equipment proposal.

Q10: Does ZHONGTUO provide technical support after delivery?

Yes. Technical guidance and after-sales support are available according to the project agreement.
