Automatic Multi-Size Steel Shelf Pallet Racking Roll Forming Machine Production Line for South Africa ZTRFM+≤ 30 KW+10 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

Automatic Multi-Size Steel Shelf Pallet Racking Roll Forming Machine Production Line for South Africa ZTRFM+≤ 30 KW+10 m/min

Name: Automatic Multi-Size Steel Shelf Pallet Racking Roll Forming Machine Production Line for South Africa ZTRFM+≤ 30 KW+10 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT85497344

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM

Power(W):

≤ 30 KW

Production Capacity:

10 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Roll Forming Machine
Tile Type
Steel
Voltage
380 V
Rolling Thinckness
0.4-0.7mm
Feeding Width
410mm 510mm 610mm 710mm

Product Description

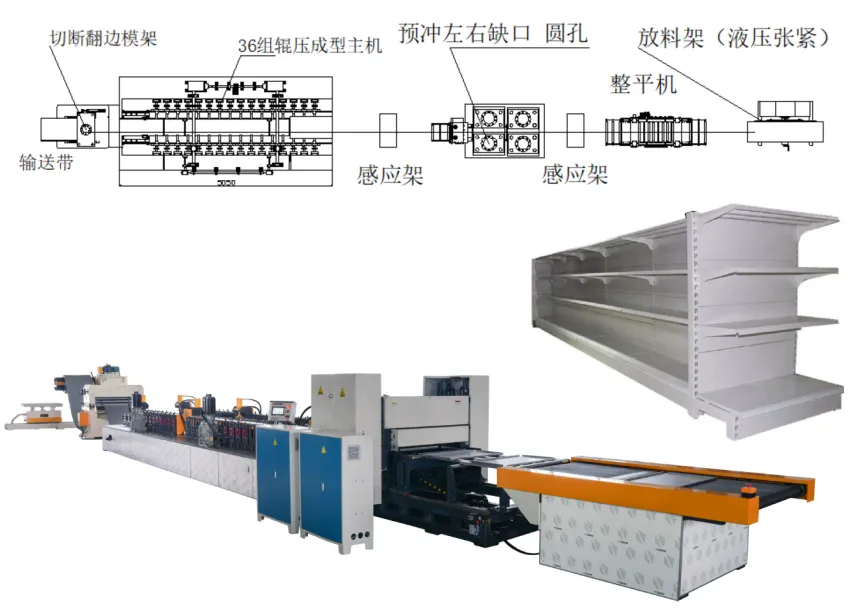

Automatic Multi-Size Steel Shelf Pallet Racking Roll Forming Machine Production Line for South Africa

SPECIFICATIONS & EQUIPMENT Automatic roll forming and cutting with Inverter, PLC, HMI Automatic programmable length settings via the touch panel Customize design

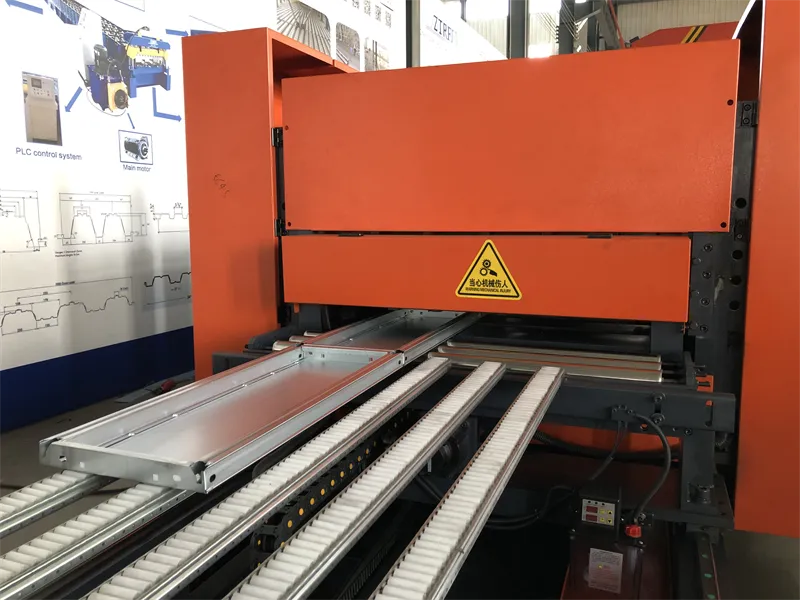

Supermarket Storage Rack Panel Roll Forming Machine
ZTRFM specializes in designing and manufacturing advanced metal forming equipment, incorporating cutting-edge, patented technologies for companies producing shelf and pallet racking systems. Their roll forming equipment and systems are commonly used to produce pallet rack uprights, step beams, and steel shelving. These components are typically manufactured by both OEM producers and job shop manufacturers.
For businesses that currently form components using press brakes in small volumes, ZTRFM's solutions provide an efficient pathway to transition to roll forming, offering significant productivity improvements. With extensive engineering expertise, ZTRFM delivers flexible solutions tailored to meet the precise tolerances required for modern shelf and pallet rack applications.

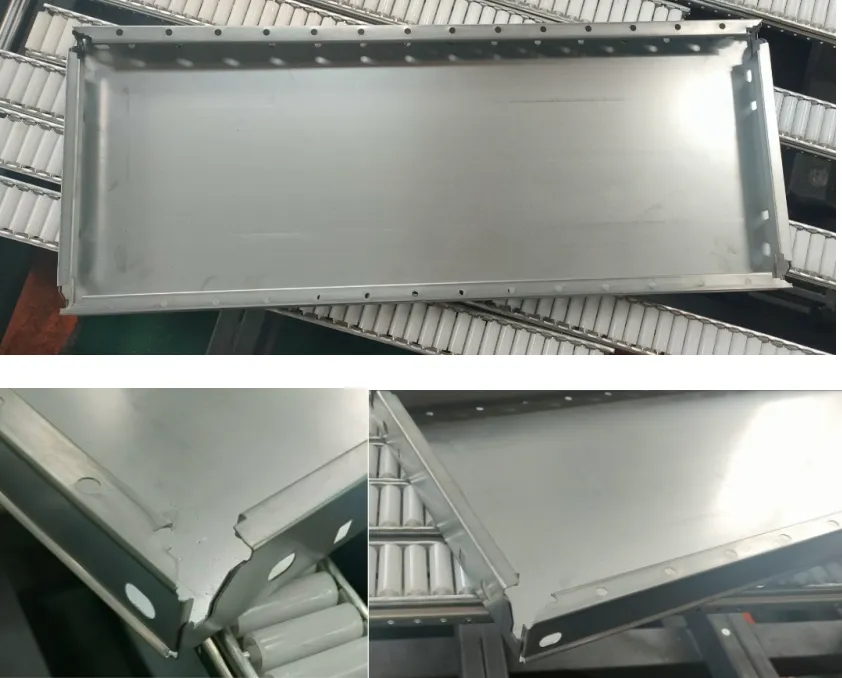

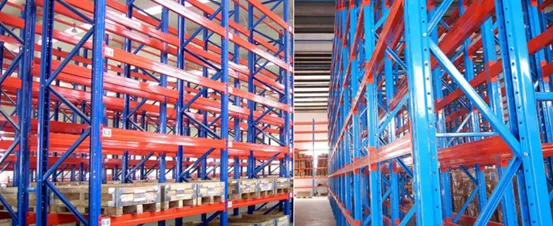

This machine‘’s finished product and application for your reference

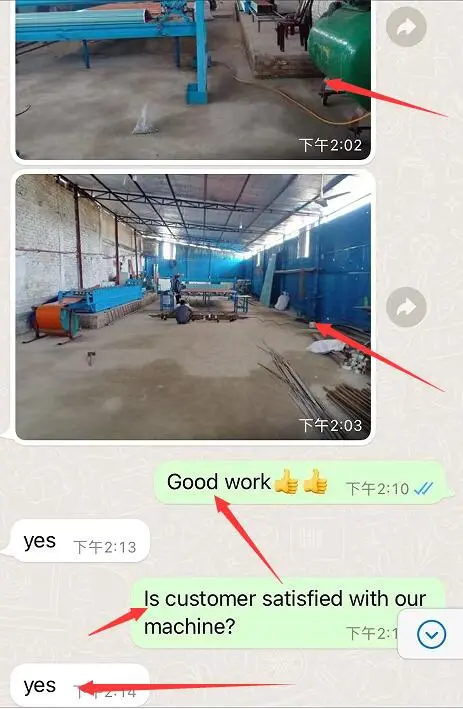

How customer say about us?

Steel Shelf Pallet Racking Roll Forming Machine
1.Formed Material	PPGI,GI,AI		Thickness:0.4-0.7mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		20 rows(As your requirement)
		Diameter of shaft		50mm solid shaft
		Material of rollers		Cr12MoV,with vacuum heat treatment,twice tempering,hardness HRC55-58
		Machine body frame		350 H steel
		Drive		Gear transmission
		Dimension(LWH)		customize
		Weight		15T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	10-20m/min		The speed depends on the shape of the tile and the thickness of the material.

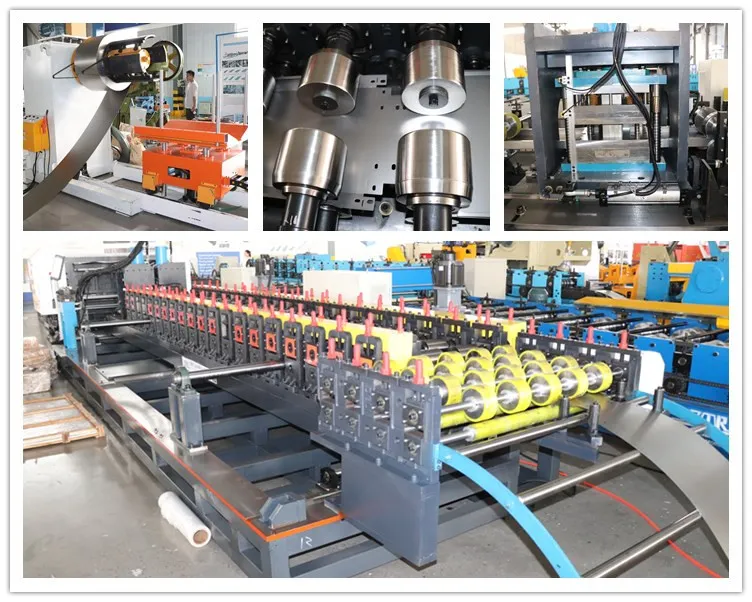

Products Display

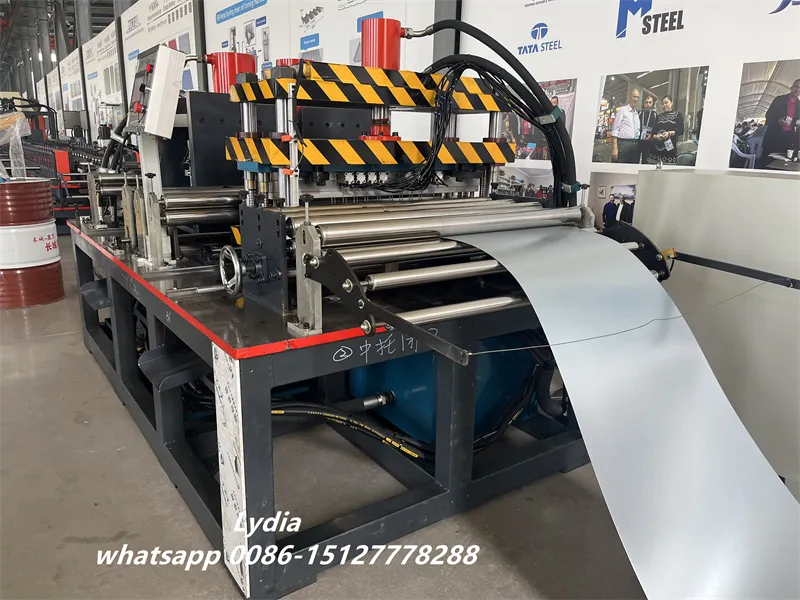

Feeding device

With hydraulic pre-cutting,and handwheels for adjust for feeding material.

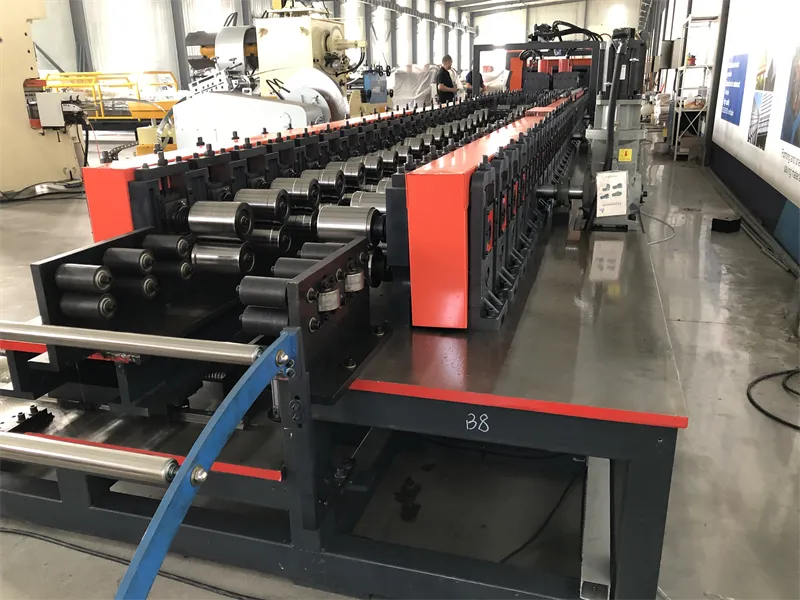

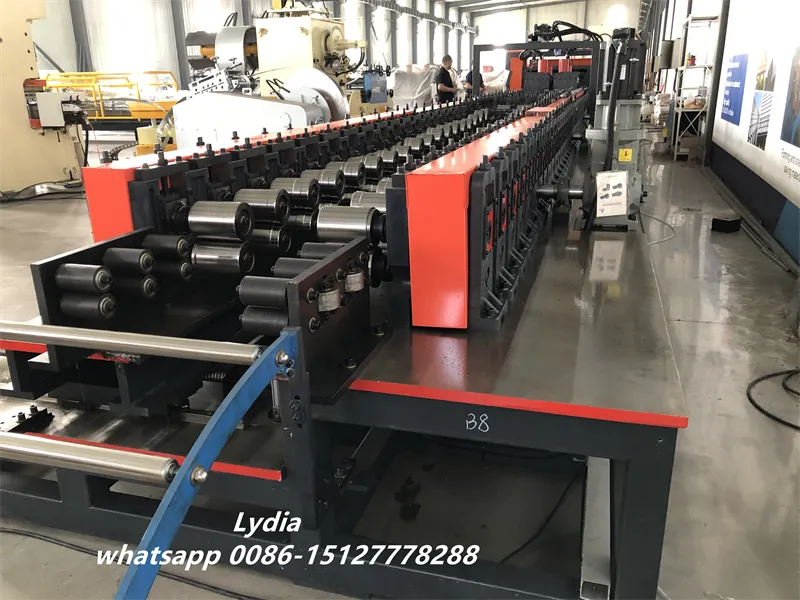

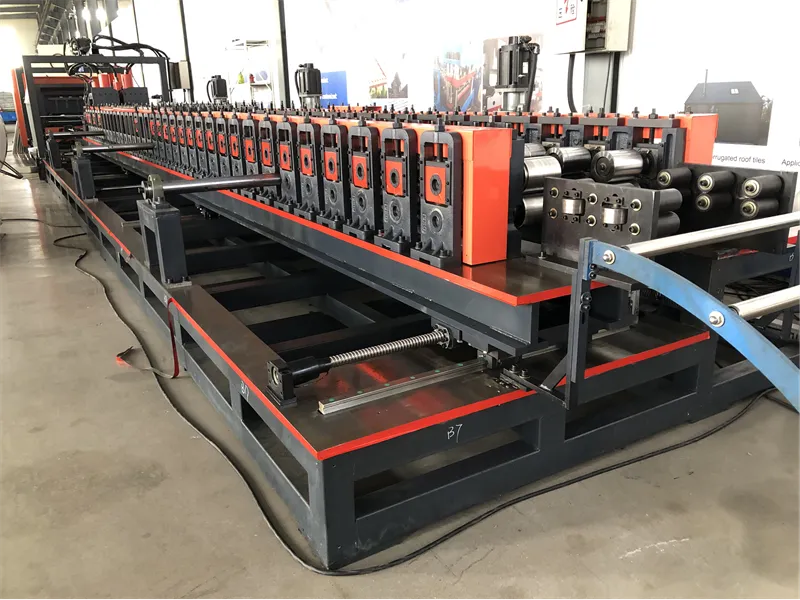

Roll forming device

rollers after thick chromed and quenched for good hardness.

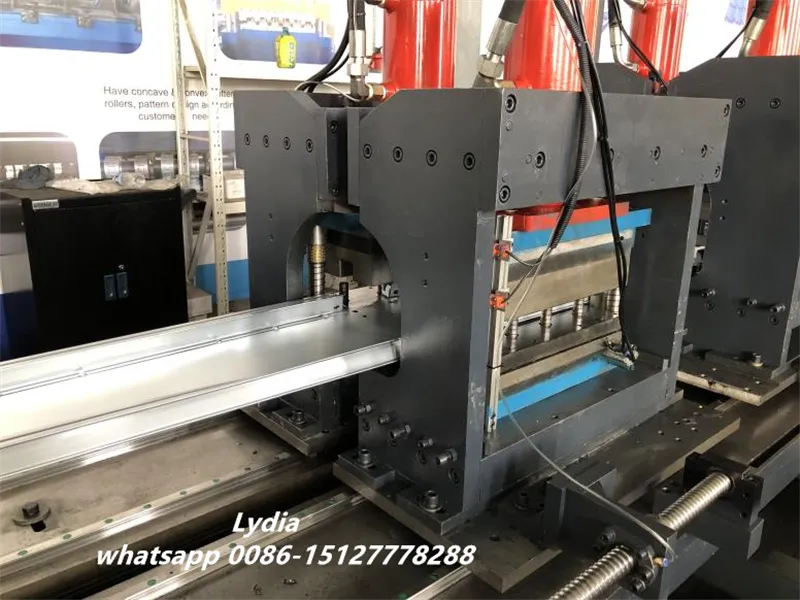

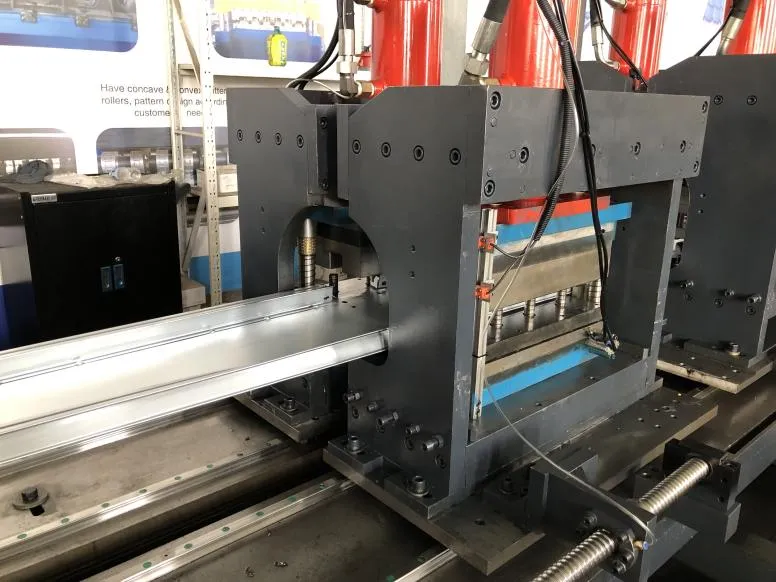

High precision Hydraulic cutting device

Gear and chain drive

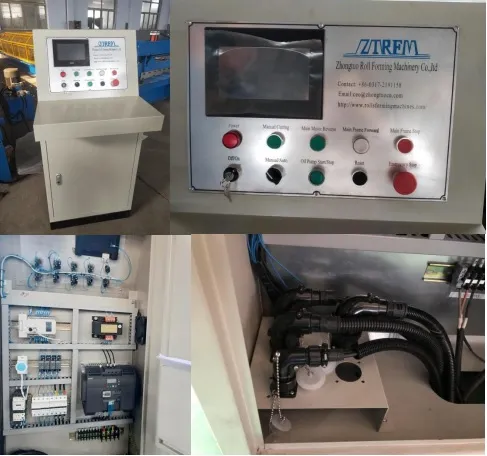

PLC control cabinet

Adopted Aviation plug for buyer easy installation,touch screen for easy adjust.

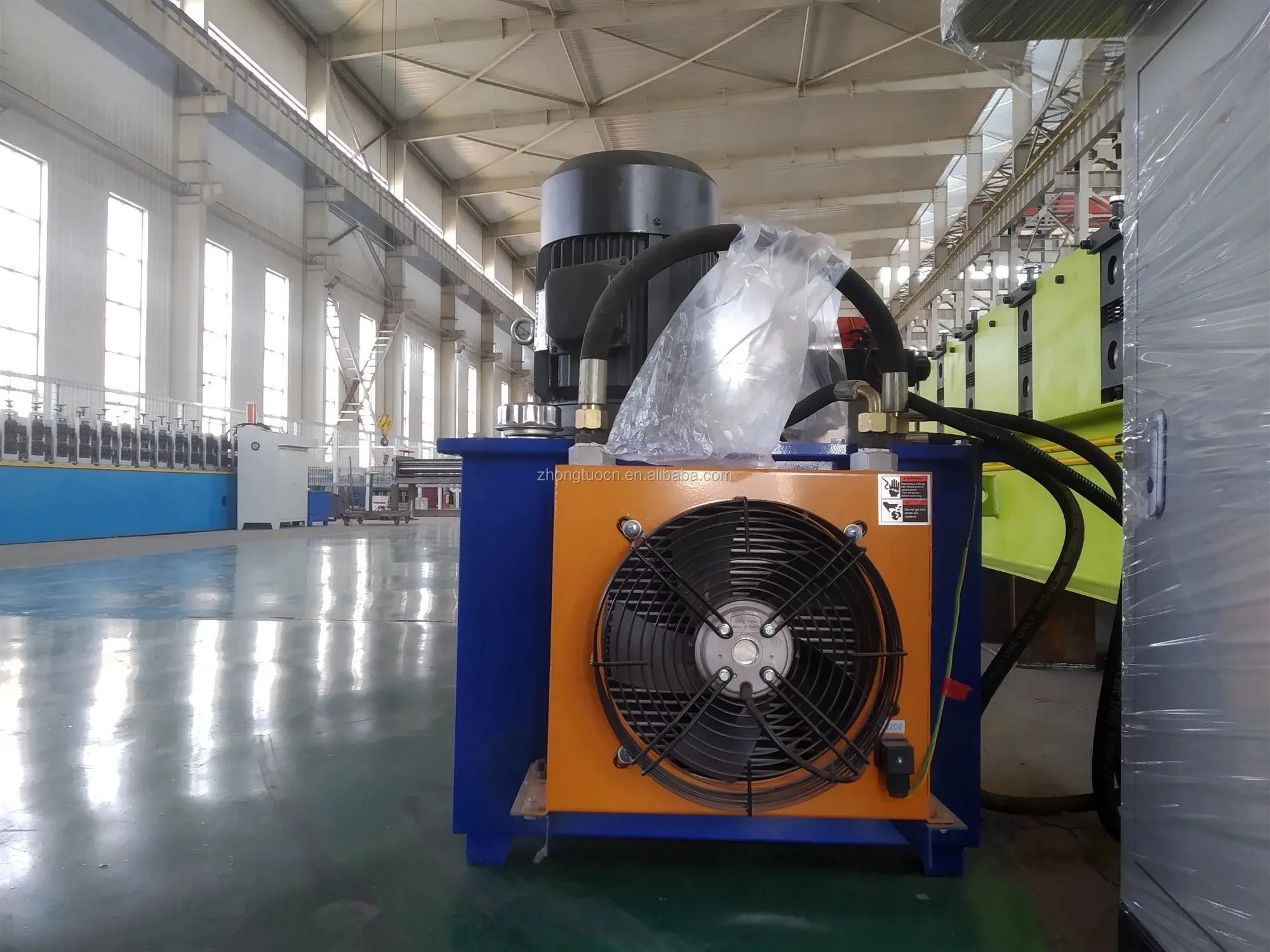

Hydraulic station

With cooling fun for long service time.
