Automatic Metal Roof Ridge Cap Roll Forming Machine Automatic Stepped Roof Ridge Cap Roll Forming Line (30 m/min)

Overview

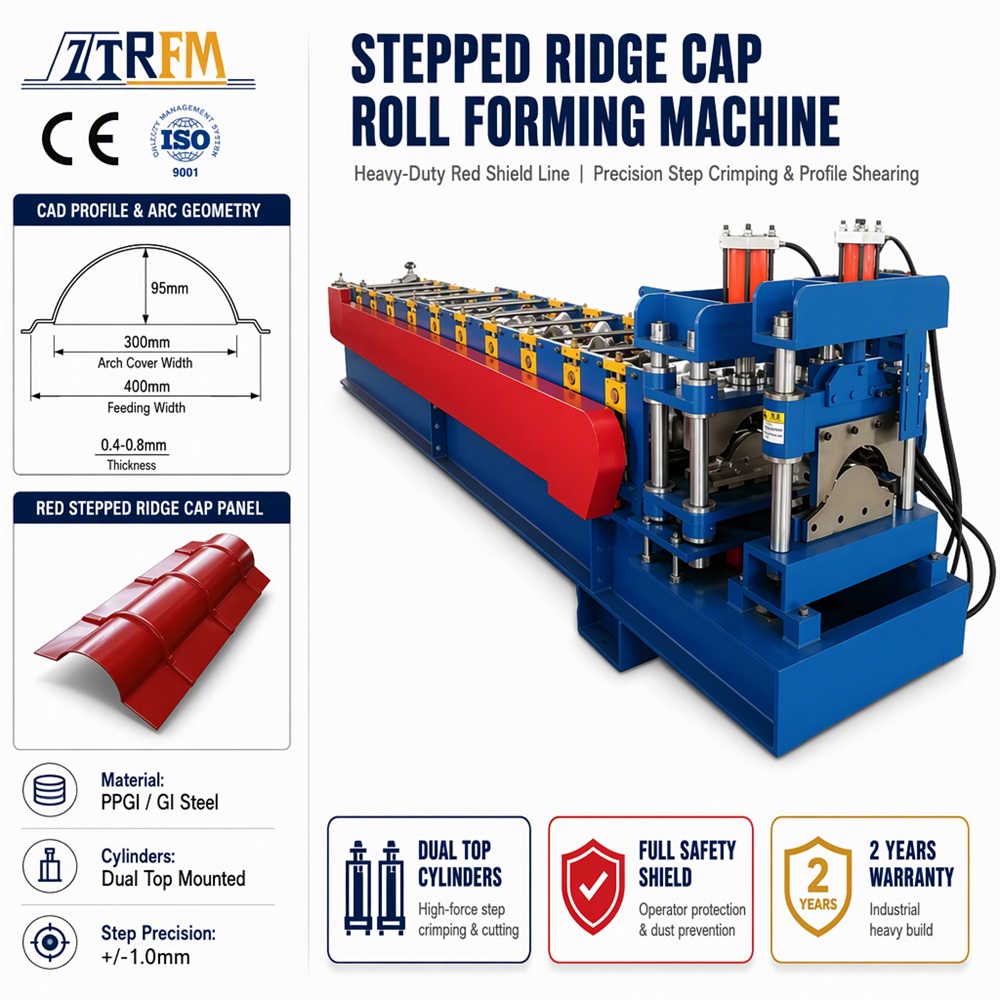

Automatic stepped metal roof ridge cap roll forming machine with dual top hydraulic cylinders, red protective safety shield, CAD profile geometry, and crimson red stepped ridge cap panel sample

The Automatic Cold Roll Forming Machine for Metal Roof Ridge Cap with Stepping Press and PLC Control is a specialized manufacturing line engineered for the precision fabrication of stepped barrel-arc ridge caps, roof apex flashings, and sidewall water-diverting trims used in residential, commercial, and industrial metal roofing systems. By integrating progressive cold roll forming with an automated high-tonnage hydraulic step crimping and contour profile shearing mechanism, the machine converts pre-painted galvanized steel (PPGI), galvalume (PPGL), and hot-dip galvanized coils (0.4–0.8 mm thickness) into decorative, weather-tight stepped ridge caps with architectural appeal.

Constructed on a heavy welded 350H structural steel bed weighing 4,500 kg, the machine utilizes precision CNC-machined, hard chrome-plated barrel-arc rollers mounted on heavy solid No.45 forged steel shafts to progressively form the curved crown without surface wrinkling or paint scuffing. Operating at continuous roll forming speeds up to 30 m/min powered by a 5.5 kW high-torque motor, the line incorporates dual top-mounted hydraulic cylinders for precision step pressing (+/-1.0 mm accuracy) and zero-burr profile shear-off, fully governed by an industrial PLC color touchscreen console.

• Dual top-mounted hydraulic cylinders performing synchronized high-force step crimping and profile shearing
• Precision barrel-arc profile dimensions: 95 mm arch height, 300 mm cover width, 400 mm coil feeding width
• Programmable step pitch (crimp spacing) from 150 mm to 250 mm with 12 mm crimping depth
• Mirror hard chrome-plated forming rollers ensuring scratch-free, wrinkle-free smooth arc contouring
• Solid No.45 high-grade forged steel shafts delivering rigidity and zero deflection during continuous forming
• Automated imported PLC control system with color touchscreen HMI and optical encoder feedback
• Complete protective safety shields for operator safety; certified to CE and ISO9001 quality standards

Key Features

• Hydraulic Step Press & Profile Shear Integration. Combines a high-pressure hydraulic stepping press with a contour cut-off blade on 4 precision guide pillars, ensuring tight step geometry and clean, burr-free end cuts that interlock flawlessly on the roof peak.
• Progressive Arc Roll Forming. Specialized barrel-arc forming stands curve the flat coil gradually through sequential passes, preventing metal stretch, wrinkling, or micro-cracking in the color-coated organic paint film.
• Mirror Hard Chrome-Plated Rollers. Tooling rollers are turned on CNC lathes and electroplated with 0.05 mm hard chrome, providing a mirror-like finish that eliminates coil abrasion and extends roller life.
• High-Strength Cr12MoV Stepping & Shearing Dies. Both the stepping press dies and contour cutting blades are forged from certified Cr12MoV die steel, vacuum heat-treated to HRC 58–62 for exceptional wear resistance.
• Programmable Step Spacing & Depth. Operators can set step pitch (150–250 mm) and panel lengths directly on the touch screen, allowing custom stepping intervals to match diverse corrugated or glazed tile roof modularities.
• Full Operator Protective Shielding. Equipped with heavy-duty red protective side covers and emergency interlocks, shielding mechanical chains and gears while preventing workshop dust contamination.
• Rugged 4,500 kg Structural Foundation. Welded 350H structural channel chassis with heavy gusset plates dampens vibration during hydraulic pressing, ensuring decades of reliable production.

Technical Specifications

Machine Structure & Forming Stations

The automated production process begins at the decoiler and manual feeding guide, leading pre-painted or galvanized coil strip into the precision roll forming bed. Across successive stations, CNC-machined barrel-arc chrome rollers gradually curve the flat strip into a continuous arched cap with side mounting flanges. Upon reaching the hydraulic station, the dual top-mounted hydraulic cylinders press the periodic 12 mm decorative steps into the crown and subsequently shear the panel to exact programmed lengths with the matching contour blade.

Precision barrel-arc progressive roll forming stations with mirror hard chrome-plated rollers, solid forged shafts, and heavy blue frame stands

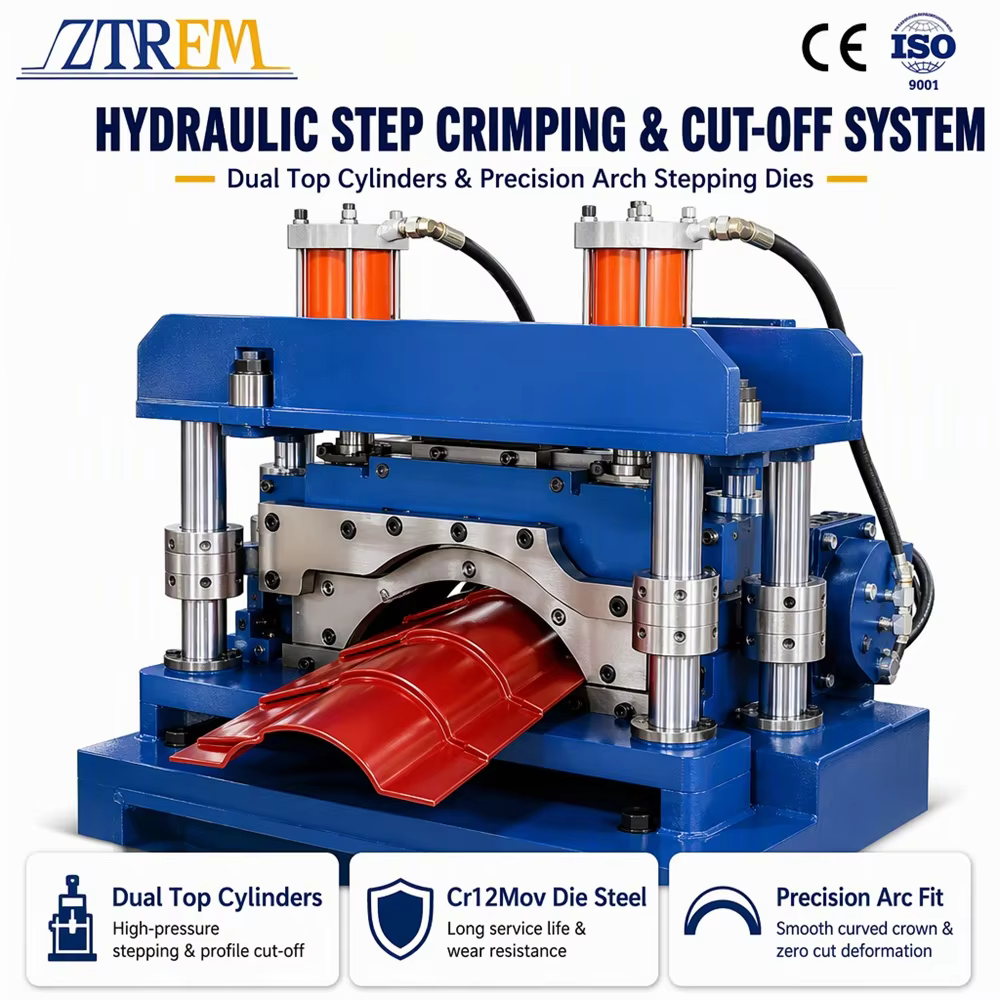

Hydraulic step crimping and cut-off system with dual top cylinders, 4 precision guide pillars, and Cr12MoV contour stepping/shearing die

Profile CAD & Step Geometry

The stepped ridge cap profile is engineered with a rounded central barrel arch flanked by dual 20 mm lateral resting flanges. Periodic transverse crimp steps (12 mm depth) provide both architectural character resembling traditional barrel tiles and structural rigidity that resists wind uplift and snow loads.

Stepped ridge cap profile CAD blueprint showing 95mm arch height, 300mm cover width, 400mm feeding width, and 150-250mm adjustable step pitch with finished red sample

Architectural Applications

Stepped ridge caps manufactured by this roll former provide essential waterproofing and aesthetic completion across various metal roofing assemblies:

• Roof Apex Ridge Enclosure. Installed along the high-point peak of gabled roofs to seal the junction between opposing roofing sheets against wind-driven rain and snow penetration.
• Sidewall & Parapet Flashing. Adapted with customized side flanges to create seamless, leak-proof transition flashing along parapet walls, dormers, and clerestory steps.
• Villa & Residential Glazed Tile Roofs. The stepped profile matches the modular pitch of glazed steel tile panels, delivering an authentic clay-tile appearance with lightweight steel durability.
• Industrial Warehouses & Commercial Sheds. Provides rugged weather resistance and long service life on pre-engineered steel buildings, agricultural sheds, and logistics centers.

Architectural building envelope diagram demonstrating ridge cap (ridge unit), sidewall flashing, barge board, and roofing sheet placement on steel warehouse

Quality & Certifications

Each machine is manufactured under strict ISO9001 certified quality control systems and conforms fully with European CE Machinery Directive regulations. Prior to export packaging, every unit undergoes continuous workshop trial rolling with actual painted steel coil to verify step depth accuracy, profile curvature, and hydraulic system stability.

Official international CE Machinery Directive compliance documents and ISO9001 certified manufacturing credentials gallery

Customization Options

Packaging & Delivery

The metal roof ridge cap roll forming machine is thoroughly prepared for international containerized maritime shipment. Precision mirror-chrome rollers, stepping dies, and solid shafts are coated with industrial anti-rust grease and wrapped with durable waterproof protective film. The 4,500 kg machine chassis and standalone hydraulic power unit are firmly lashed inside a 20-foot or 40-foot shipping container with heavy-gauge steel cables and hardwood chocks, ensuring arrival in pristine operational condition.
