Automatic Light Steel Frame Roll Forming Machine for Drywall Stud and Track Customized

High-Speed Stud & Track Drywall C/U Channel Roll Forming Machine

The Galvanized Metal Stud and Track Wall Framing Profile Roll Forming Machine is a high-efficiency production system designed for manufacturing metal stud and track profiles used in drywall partitions and suspended ceiling frameworks.

The machine supports continuous automated production with accurate profile dimensions, clean edges and stable forming performance. It is suitable for GI and PPGI steel coils and can be widely used by construction contractors, building material manufacturers and interior system manufacturers.

---

Typical Applications

The machine is designed for producing metal framing profiles commonly used in:

• Drywall partition systems
• Suspended ceiling systems
• Interior wall framing
• Light steel framing systems
• Commercial building interiors
• Residential construction
• Building material production factories

---

Main Machine Components

3 Ton Manual Decoiler

The machine can be equipped with a 3-ton manual or automatic decoiler according to production requirements.

• Type: Passive
• Loading Capacity: 3 Tons
• Maximum Coil Width: 400 mm
• Coil Inner Diameter: 450–550 mm

Roll Forming Section

The forming section uses a stable molding frame structure with bolted support construction. The design helps improve roller stability and maintain profile forming accuracy during continuous production.

• Roller Stations: 12 Stations
• Transmission: Gear-driven dual-motor system
• Raw Material: GI / PPGI Steel
• Material Thickness: 0.5–1.3 mm

Servo Tracking Cutting

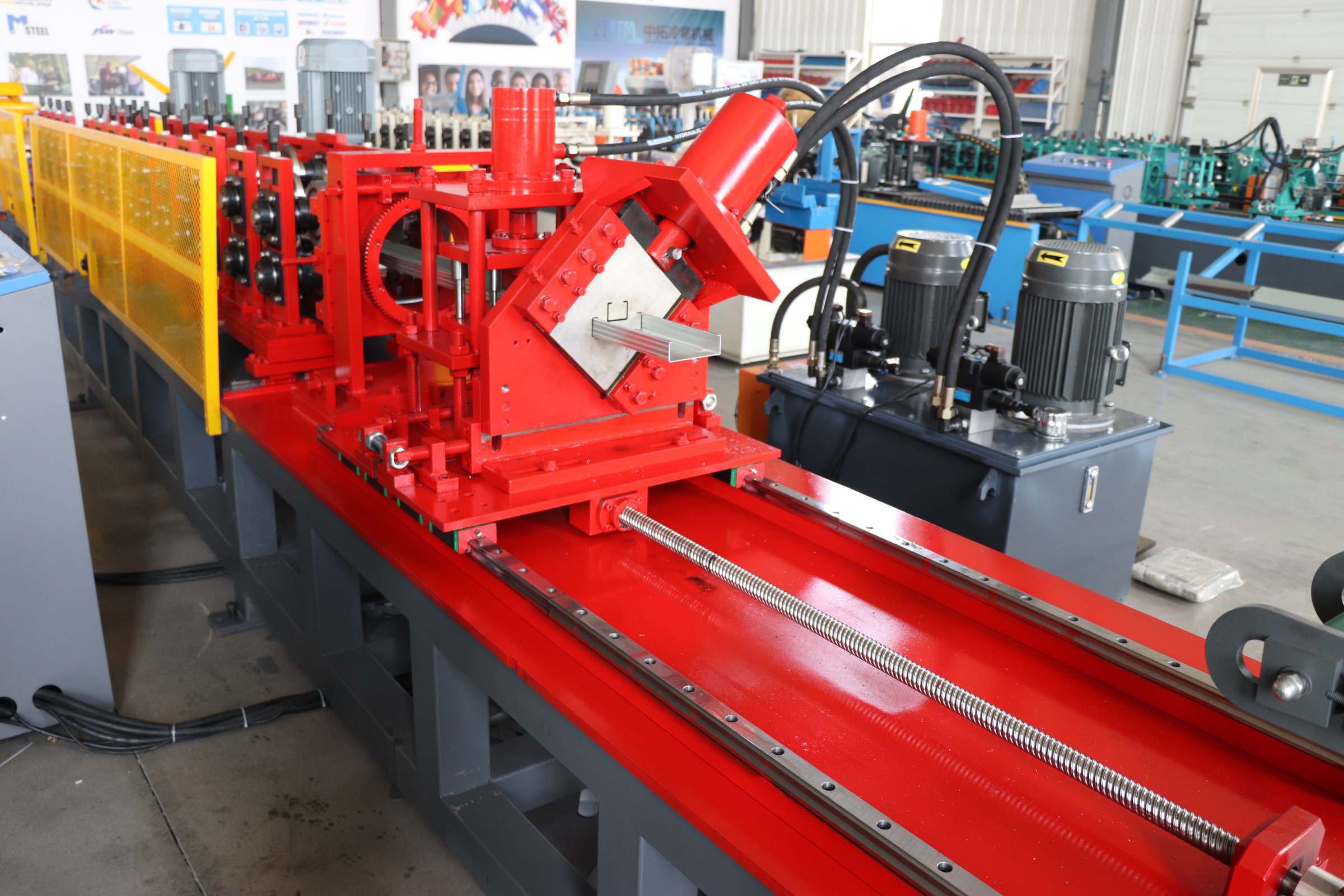

The servo-driven tracking cutting system is designed for high-speed production. The cutting unit tracks the moving profile, allowing the machine to shear without stopping.

• Cutting Type: Tracking Cutting
• Blade Material: G-Cr12
• Servo Motor: Yes
• Approximate Cutting Life: 500,000 Times

Straightening Head

The straightening head improves the straightness of the finished channel and helps deliver more consistent profiles after roll forming.

Automatic Palletizing System

A full automatic palletizing system is available as an option for customers requiring high-volume production and reduced manual product handling.

---

Flexible Multi-Profile Production

Zhongtuo roll forming equipment can be configured to produce different stud and track sizes. The machine supports electro-mechanical adjustment for different profile widths and flange heights.

According to production requirements, different material gauges and lip sizes can be configured to meet applicable product standards.

Changeover Time: 20 minutes or less for supported profile configurations.

---

Technical Specifications

Item	Specification
Machine Type	Stud & Track Drywall C/U Channel Roll Forming Machine
Raw Material	GI / PPGI Steel
Material Thickness	0.5–1.3 mm
Roller Stations	12 Stations
Transmission	Gear-driven Dual-motor System
Total Power	13 kW
Voltage	380 V
Machine Weight	Approx. 6000 kg
Decoiler	3 Ton Manual or Automatic
Maximum Coil Width	400 mm
Coil Inner Diameter	450–550 mm
Cutting System	Servo Tracking Cutting
Blade Material	G-Cr12
Cutting Life	Approx. 500,000 Times
Control System	PLC Control System
Core Components	PLC, Engine, Motor, Pump
Brand	ZTRFM / Zhongtuo

---

Service & Warranty

The machine is supplied with a 2-year warranty. Zhongtuo provides technical support for machine installation, operation and production requirements.

Before production, customers can confirm profile drawings and technical requirements to ensure that the machine configuration matches the required finished product.

---

Request a Customized Stud & Track Roll Forming Solution

Looking for a high-speed machine for drywall stud and track production?

Send us your profile drawing, material thickness, required profile width, production speed and desired automation level. Our engineering team can recommend a suitable roll forming solution based on your requirements.

Contact Zhongtuo today for machine configuration, quotation and production solution.
