Automatic Light Steel Frame Roll Forming Machine for CD UD CW Profiles 0.3–0.6 mm (Customized available)

The Fully Automatic Drywall Stud and Track Roll Forming Machine is a high-performance steel profile production line designed for manufacturing metal studs, U tracks, ceiling channels, and partition framing profiles. It is widely used in drywall construction, interior partition systems, light gauge steel framing, and prefabricated building projects.

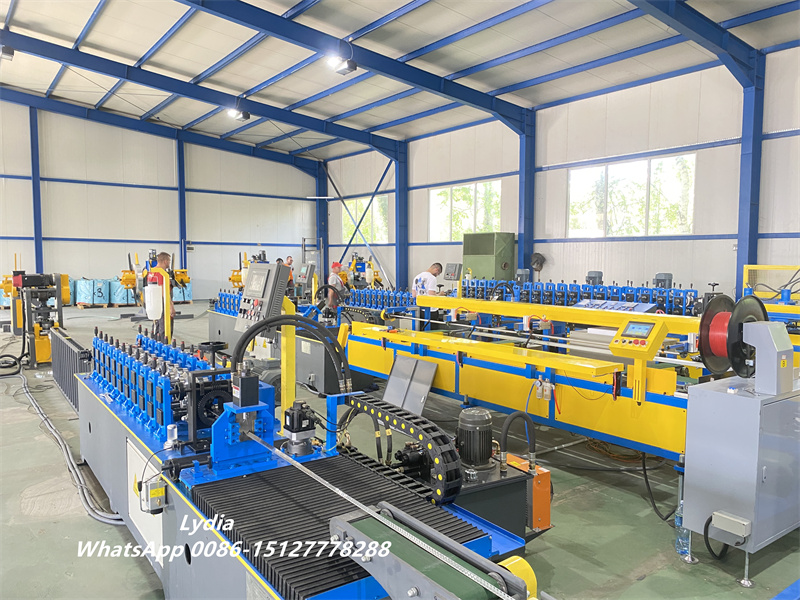

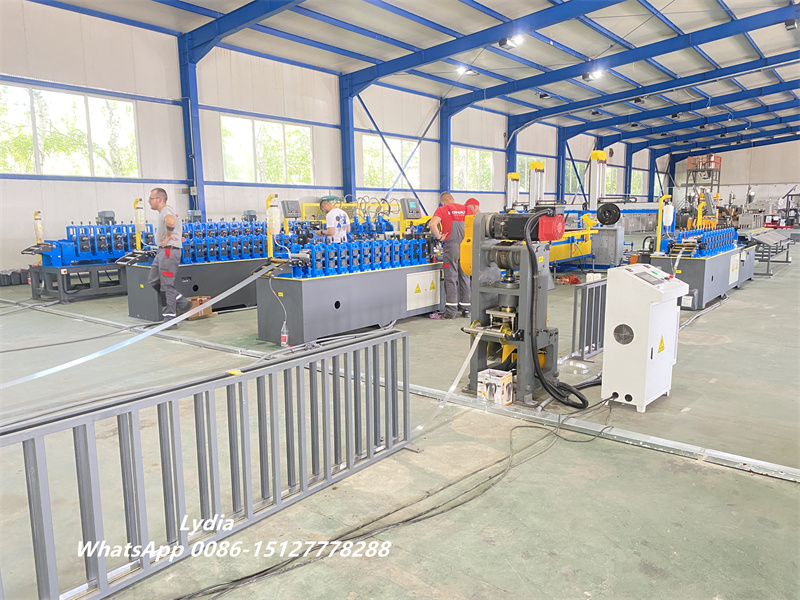

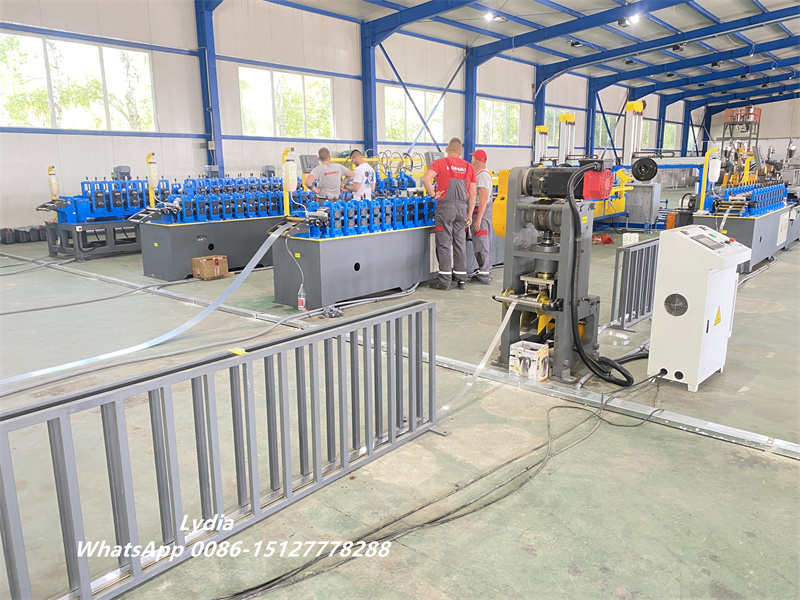

By integrating decoiling, straightening, servo feeding, roll forming, punching, flying cutting, conveying, and automatic stacking, the production line provides a complete solution for continuous steel framing profile manufacturing.

With automatic size adjustment and intelligent PLC control, manufacturers can efficiently produce multiple profile specifications while reducing setup time, labor requirements, and material waste.

Advanced Production Line for Metal Stud and Track Profiles

Drywall construction requires framing profiles with accurate dimensions, consistent shape, clean punching holes, and reliable mechanical strength. The metal stud and track forming machine is developed to meet these requirements through a highly automated manufacturing process.

The production line uses galvanized or coated steel coils as raw material. The coil passes through the decoiler and leveling unit before entering the servo feeding system. The material is then precisely formed through multiple roll forming stations to create the required stud or track profile.

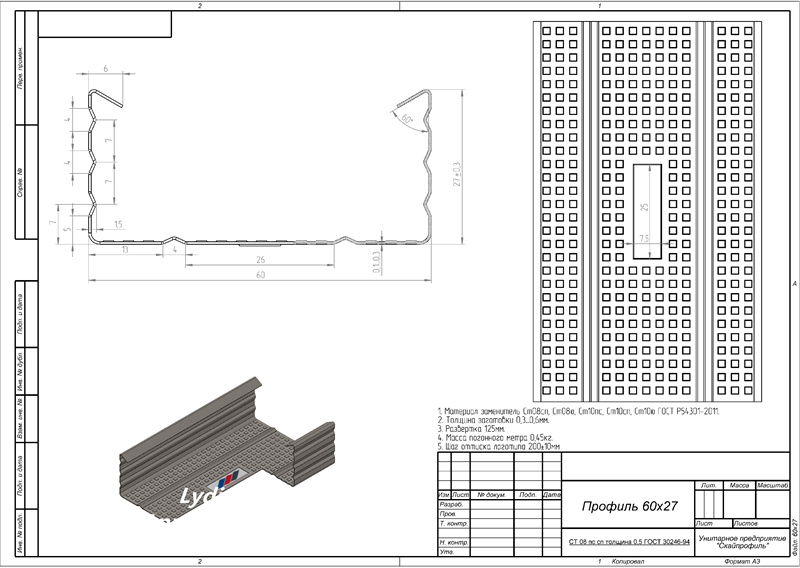

According to the customer's profile drawings, the machine can be equipped with customized punching units for holes, slots, service openings, and connection patterns.

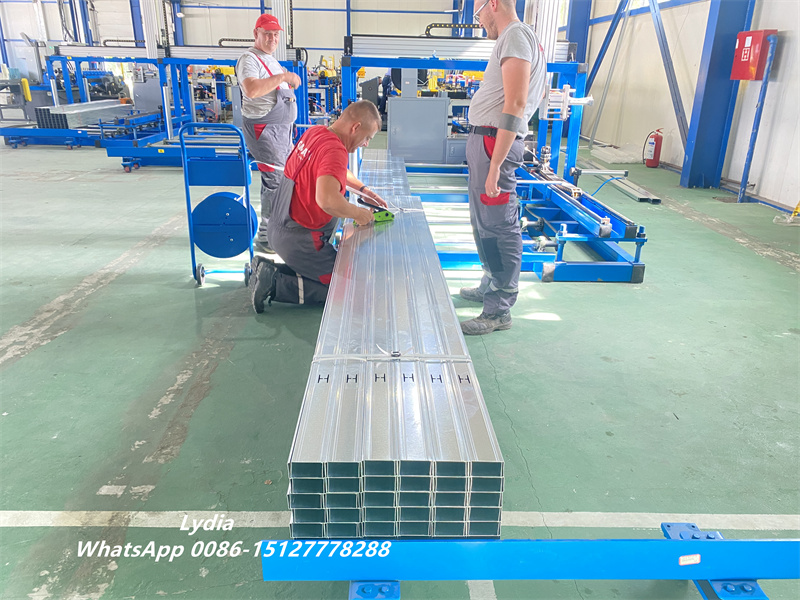

After forming and punching, the flying cutting system cuts the profiles to the preset length without requiring the complete line to stop. Finished profiles are subsequently transferred to the automatic stacking system for organized collection and packaging.

This continuous production process makes the equipment suitable for manufacturers handling large-volume drywall profile production.

Flexible Manufacturing for Multiple Steel Framing Profiles

One of the major advantages of this metal framing roll forming machine is its ability to manufacture different types of drywall profiles.

Depending on the required configuration, the line can produce:

• CD ceiling channels

• UD ceiling tracks

• CW metal studs

• UW metal tracks

For projects requiring multiple profile dimensions, the machine can incorporate an automatic size adjustment system. This allows operators to change production specifications through the control interface instead of performing frequent manual roller adjustments.

As a result, manufacturers can improve equipment utilization and reduce downtime when switching between different framing profiles.

Intelligent Automation and Precise Profile Forming

The automatic drywall profile roll forming machine combines precision mechanical components with an intelligent electrical control system.

A PLC-based control system manages important production parameters, including:

• Profile length

• Production quantity

• Punching position

• Cutting operation

• Profile specification

• Line speed

• Automatic stacking

The servo feeding unit provides accurate material positioning before the steel enters the forming section. Precision-machined rollers gradually shape the strip without causing unnecessary surface damage.

For continuous production, the flying shear system performs online cutting according to the preset length. This helps maintain production speed while achieving consistent finished-profile dimensions.

The automatic stacking and bundling system further reduces manual material handling and improves the overall workflow of the steel stud and track production line.

Key Technical Specifications

Parameter	Specification
Machine Type	Automatic Drywall Stud & Track Roll Forming Machine
Raw Material	Galvanized Steel / Pre-painted Steel / Coated Steel
Applicable Profiles	CD / UD / CW / UW
Material Thickness	0.3–0.6 mm
Finished Length	3000 ± 3 mm
Punching	Automatic Customized Punching
Cutting System	Flying Shear Cutting
Control System	PLC + Touch Screen
Feeding System	Servo Feeding
Roller Material	GCr15 Hardened Steel
Roller Treatment	Chrome Coating
Machine Frame	Heavy-Duty Welded Steel Structure
Stacking	Automatic Stacking & Palletizing
Machine Dimensions	Approx. 25 m × 2.3 m
Size Adjustment	Automatic / Customized
Drive System	Gearbox Drive / Servo Drive Optional

Specifications can be customized according to the customer's profile drawings, material specifications, production speed, and punching requirements.

Why Choose an Automatic Metal Stud Machine?

For professional drywall profile manufacturers, automation can provide significant advantages compared with conventional manual or semi-automatic production equipment.

High Production Efficiency

The continuous roll forming process allows steel coils to be transformed into finished framing profiles with minimal interruption. Flying cutting and automatic stacking further improve production efficiency.

Multiple Profile Specifications

The equipment can be configured for different stud and track sizes, making it suitable for manufacturers serving multiple construction markets.

Reduced Labor Requirements

Automatic feeding, punching, cutting, conveying, and stacking reduce the amount of manual intervention required during production.

Consistent Product Quality

Precision forming rollers and servo-controlled feeding help maintain stable dimensions and consistent profile geometry throughout the production process.

Customized Punching Patterns

Punching units can be designed according to customer drawings, allowing manufacturers to produce profiles with specific holes, slots, and connection openings.

Easy Operation

The PLC touch-screen interface provides centralized control of production parameters and makes it easier for operators to monitor the forming line.

Applications of Drywall Steel Framing Profiles

The profiles produced by this drywall stud and track machine are widely used in modern building construction.

Typical applications include:

• Residential interior partitions

• Commercial office partitions

• Prefabricated buildings

• Light gauge steel houses

• Drywall framing systems

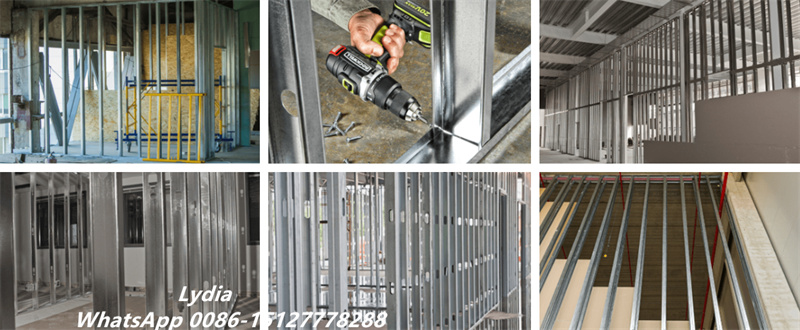

CW/UW profiles are commonly used for partition wall framing, while CD/UD profiles are widely applied in ceiling framing systems. By producing these components automatically, manufacturers can supply construction projects with accurately sized and consistently formed steel framing materials.

Complete Solution for Drywall Profile Manufacturing

The Fully Automatic Drywall Stud and Track Roll Forming Machine provides manufacturers with an integrated solution from steel coil processing to finished profile stacking.

Its combination of automatic feeding, precision roll forming, customized punching, flying cutting, PLC control, and automatic palletizing makes it suitable for high-volume production environments.

Whether producing metal studs, drywall tracks, ceiling channels, or customized light gauge steel profiles, the production line can be configured according to specific profile drawings and manufacturing requirements.

For manufacturers looking to expand their drywall framing product range, improve production efficiency, and reduce manual handling, this automatic roll forming solution offers a flexible and scalable option.
