Automatic KR24 Portable Standing Seam Roof Roll Forming Machine KR24

Overview

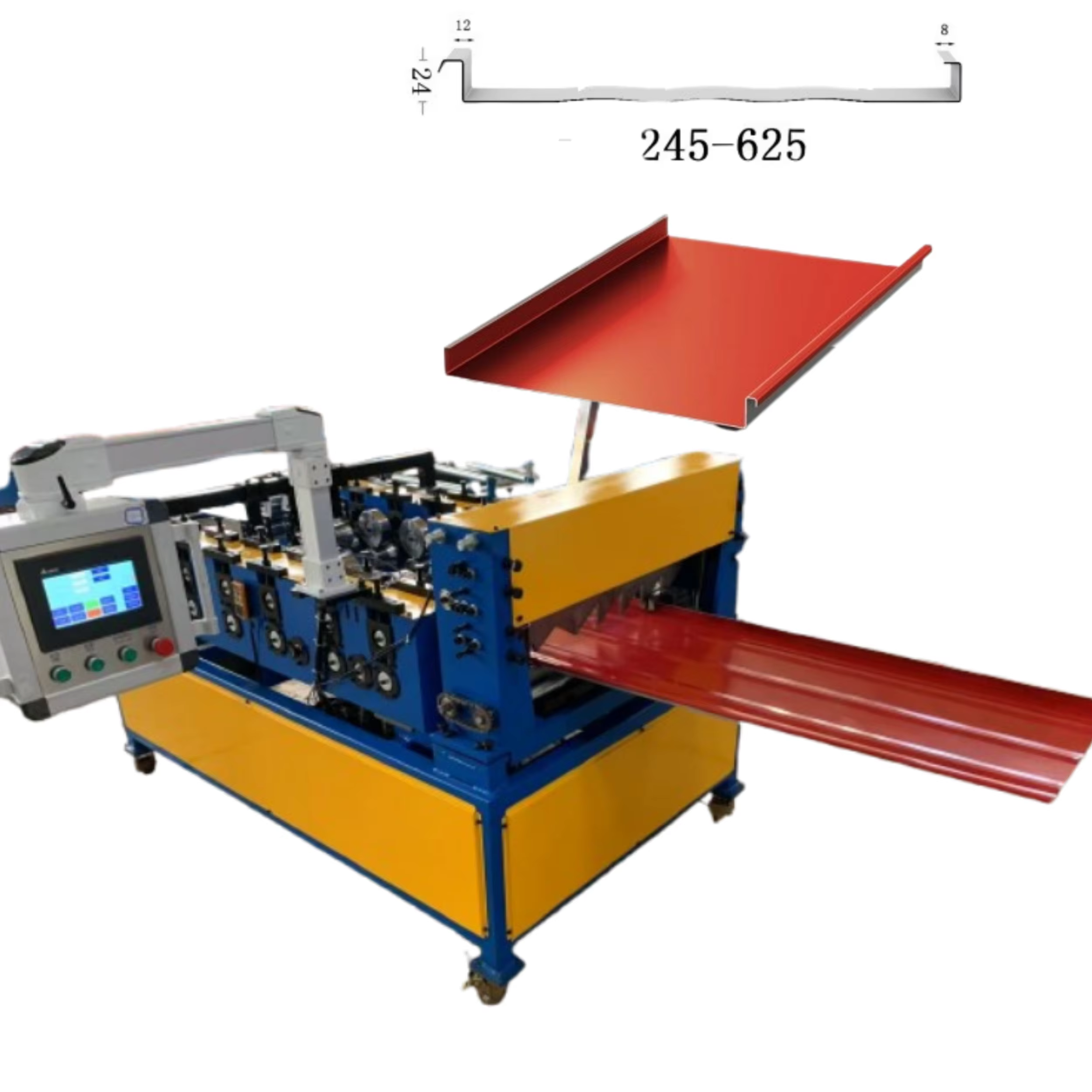

White background view of the KR24 portable standing seam roll forming machine

The KR24 is a portable standing seam roll forming machine built for producing standing seam roof and wall panels directly at the job site. A single mobile unit carries the forming stations, the PLC control cabinet and the cutting section on caster wheels, so panels can be formed close to where they are installed instead of being transported as finished profiles.

The machine runs on a 5.5 kW motor with a forming speed of up to 30 m/min, accepts feed widths from 245 mm to 625 mm and works galvanized steel from 0.3 mm to 0.6 mm. An electric seaming machine and manual seaming tools are supplied together with the unit so that the standing seam can be closed immediately after forming.

• Portable single-unit design on casters for on-site panel production
• Forming speed up to 30 m/min with multiple speed settings
• Feed width adjustable from 245 mm to 625 mm
• PLC control system with touch screen and imported-brand controller
• Voltage options 220 V, 380 V and 440 V
• CE, BV, STV and ISO certification

Key Features

• On-site forming. The complete forming line is mounted on one mobile frame, so standing seam panels are produced on the building site and handling of long finished profiles is reduced.
• Adjustable working range. Feed width is adjustable between 245 mm and 625 mm, covering a wide range of standing seam panel widths with one machine.
• PLC control. A PLC control system with touch screen and imported-brand controller manages forming and cutting, and the operating parameters are stored in the controller.
• Hardened forming tooling. Rollers are 45# steel with chrome plating, shafts are 45# steel with heat treatment, and the cutting blade is Cr12Mov steel.
• Rigid machine frame. The forming section is built on a 350H steel frame with 3 sets of adjustable strength ribs.
• Seaming tools included. An electric seaming machine and manual seaming tools are supplied so the seam can be closed and locked after forming.
• Multi-voltage build. Available for 220 V, 380 V and 440 V power supplies to suit different site conditions.

Technical Specifications

Item	Specification
Model	KR24 portable standing seam machine
Machine type	Roll forming machine
Application	Standing seam roof and wall panels
Suitable material	Galvanized steel
Rolling thickness	0.3–0.6 mm
Material thickness	0.3–0.8 mm galvanized steel
Feeding width	245–625 mm
Forming speed	30 m/min
Motor power	5.5 kW
Voltage	220 V / 380 V / 440 V
Control system	PLC with touch screen (imported brand)
Roller material	45# steel, chrome plated
Shaft material	45# steel, heat treatment
Cutting blade material	Cr12Mov steel
Frame	350H steel frame
Strength ribs	3 sets of adjustable rollers
Core components	Motor, gearbox, pump, bearing, gear, chain
Supplied accessories	Electric seaming machine and manual seaming tools
Weight	1500 kg
Warranty	1 year
Certification	CE, BV, STV, ISO
Machinery test report	Provided
Video outgoing-inspection	Provided
Place of origin	Hebei, China

Machine Structure

The forming section carries multiple roller stations in two parallel rows, driven by chains and sprockets. Roller pressure and panel width are set with the black adjustment bolts on the top plates and the handwheel on the side, so one machine can be reset to a different standing seam width between projects.

Forming roller stations and width adjustment of the KR24 standing seam machine

The discharge end combines the cutting section with the PLC control cabinet mounted on a swing arm. The panel profile is cut to length at the exit, and all operating parameters are entered on the touch screen. A caster-mounted base and the swing-arm control cabinet keep the unit manoeuvrable in confined site areas.

Cutting section and PLC control cabinet on swing arm of the KR24 standing seam machine

Applications

The KR24 is used for standing seam metal roofing and wall cladding on industrial buildings, warehouses, workshops and light steel structures. Because the machine is portable, it is also used for repair and extension work where the panels have to be formed close to the building envelope.

KR24 machine forming a standing seam panel in a metal fabrication workshop

Finished standing seam panel formed by the machine

Customization Options

Item	Option
Voltage	220 V / 380 V / 440 V
Packaging	Customized packaging available
Logo / graphic design	Customized logo and graphic marking available
Customization scope	Drawing-based, sample-based and full customization

Certifications

The machine is supplied with CE certification together with BV, STV and ISO documentation. A machinery test report and a video outgoing-inspection record are provided with the shipment.

CE certificate set supplied with the machine

Packing & Delivery

Item	Detail
Selling unit	1 set
Packing	Wooden box packing, LCL shipping
Package size	200 × 130 × 150 cm
Gross weight	1500 kg
Supply scope	Machine, electric seaming machine, manual seaming tools
Lead time	45 days for 1 set; 60 days for 2 sets; further quantities to be negotiated

FAQ

What material can the machine form?

Galvanized steel from 0.3 mm to 0.6 mm rolling thickness, with material thickness specified up to 0.8 mm galvanized steel, and feed widths between 245 mm and 625 mm.

Which power supply is required?

The machine is built for 220 V, 380 V or 440 V. The voltage is confirmed before production, and it can also be customized.

Are the seaming tools included?

Yes. An electric seaming machine and manual seaming tools are supplied together with the roll forming machine.

How is the machine packed and shipped?

Standard packing is a wooden box, with LCL shipping. Package size is 200 × 130 × 150 cm and gross weight is 1500 kg.

What is the delivery lead time?

45 days for one set and 60 days for two sets. For larger quantities the lead time is confirmed with the order.

What documentation is supplied?

A machinery test report and a video outgoing-inspection record are provided, together with CE certification and BV, STV and ISO documents. The machine carries a 1-year warranty.
