Automatic Hat Shaped Purlin Roll Forming Machine for Steel Production High Percision

Hat Shaped Purlin Roll Forming Machine：Automatic Omega Purlin Forming Equipment

Description:A high-quality hat shaped purlin roll forming machine is the core automated cold forming equipment for producing hat channel steel, omega purlins, ceiling furring channels, and light steel keels. Widely used in building construction, photovoltaic support systems, interior decoration, and steel structure engineering, our automatic hat steel forming machine solves common production pain points including low precision, unstable molding, easy surface scratching, and high manual cost in traditional profile processing. Designed for medium and large-scale continuous production, this omega purlin roll former delivers stable output, consistent dimensional tolerance, and minimal maintenance, helping global metal processing manufacturers improve product qualification rates and overall production efficiency.

What Is a Hat Shaped Steel Roll Forming Machine

The hat shaped steel roll forming machine is a specialized cold roll forming device that processes continuous steel coils into standard hat-section profiles through multi-stage gradual rolling molding. Different from ordinary single-bending equipment, it adopts progressive cold bending technology to complete flattening, feeding, repeated rolling forming, punching, and fixed-length cutting in one continuous workflow. The whole production process requires no secondary processing, realizing fully automated one-stop production.

This equipment is suitable for processing multiple raw materials such as galvanized steel, hot-dip galvanized steel, PPGI color steel, and aluminum steel. Finished hat steel profiles are lightweight, high-strength, and structurally stable, which are indispensable auxiliary profiles for modern steel structure buildings and new energy supporting projects. It is also known as omega purlin forming machine due to its similar omega cross-section structure, widely recognized in the international steel profile processing market.

Core Advantages of Automatic Hat Steel Forming Machine

Our hat shaped steel forming machine abandons ordinary lightweight frame design and adopts integral welded heavy-duty steel frame. The overall structure is rigid and durable, avoiding frame deformation and equipment vibration during long-term high-speed operation, which effectively guarantees long-term molding accuracy. All main load-bearing parts are thickened and reinforced, adapting to 24-hour uninterrupted industrial production and greatly extending the service life of the whole machine.

The forming roller is the key component that determines profile quality. We adopt high-hardness Cr12MoV tool steel for all rollers, with overall vacuum heat treatment and hard chrome plating treatment. The roller hardness reaches HRC 60-62, featuring excellent wear resistance, scratch resistance and corrosion resistance. It can stably roll various high-hardness steel strips for a long time without profile deformation or surface scratches, ensuring smooth and flat surface of finished hat steel products.

In terms of control system, the equipment is equipped with an upgraded industrial PLC intelligent control system, with independent human-machine touch screen operation interface. All production parameters including feeding speed, forming dimensions, punching spacing and cutting length can be preset digitally. The system supports one-key start, automatic fault alarm and data memory function. After one parameter setting, mass production can be realized continuously, effectively reducing dependence on skilled workers and lowering enterprise labor costs.

Accurate Specifications and Flexible Customization

To meet the diversified profile demands of different regional engineering standards, our hat shaped steel roll forming machine supports flexible specification adjustment and full personalized customization. The equipment can process raw material thickness ranging from 0.5mm to 3.5mm, covering thin-walled decorative hat steel and thickened structural omega purlins. The feeding width and finished product height and width can be adjusted within the conventional processing range, and special non-standard profile sizes can be customized according to customer drawings.

Matched with high-precision servo fixed-length cutting system and hydraulic power unit, the cutting tolerance of finished profiles is strictly controlled within ±1mm. The incision is flat and burr-free without secondary trimming, which greatly improves product uniformity and appearance quality. The production speed is adjustable from 15m/min to 50m/min, balancing high precision and high efficiency, and can freely switch between small-batch customized production and large-batch standardized mass production.

Wide Application of Finished Hat Steel Profiles

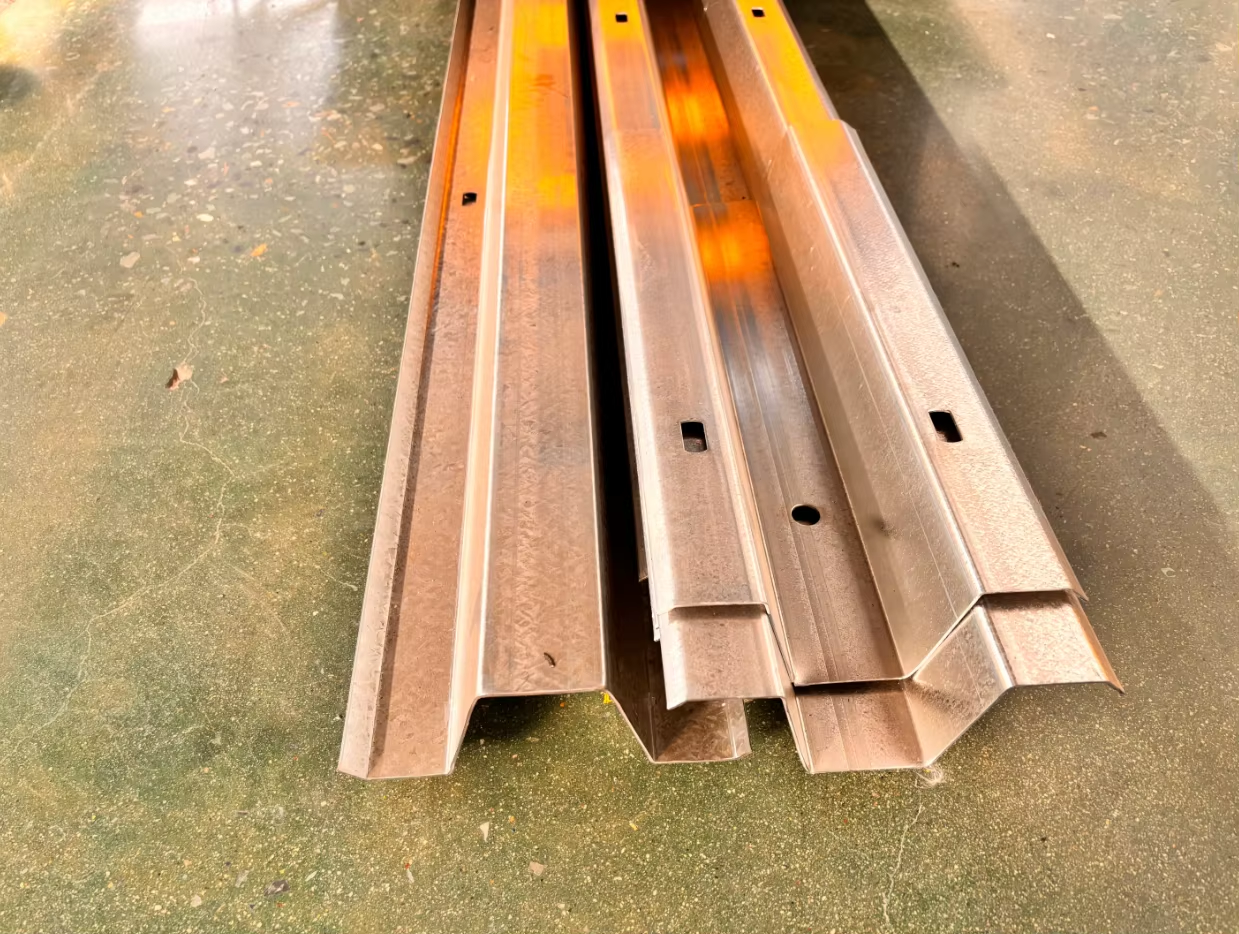

Profiles produced by our hat shaped steel roll forming machine have outstanding structural performance and diverse application scenarios, covering construction, new energy, transportation and mechanical manufacturing industries. In architectural decoration, hat steel furring channels and partition keels are widely used for ceiling suspension and wall stabilization of office buildings, shopping malls, factories and residential buildings, with light weight and strong bearing capacity.

In the photovoltaic industry, customized omega purlins serve as important supporting materials for solar panel mounting systems. With strong wind resistance, compression resistance and corrosion resistance, they adapt to outdoor complex environmental conditions and are favored by global photovoltaic engineering contractors. In addition, the finished profiles are also commonly used in container reinforcement, mechanical equipment brackets, and temporary building steel structures, with extremely high market practicability and demand.

Reliable Quality and Complete After-Sales Service

All our hat shaped steel roll forming machines are manufactured in strict accordance with international industrial standards. Each equipment will pass multiple strict tests including no-load debugging, full-load operation test, precision calibration and aging test before delivery, to ensure stable operation and qualified precision. We support OEM and ODM customized services, and can optimize equipment structure, functional configuration and production parameters according to customer’s local market conditions and production needs.

We provide full-cycle professional after-sales support for global customers, including factory pre-sales technical consultation, production scheme design, on-site installation and commissioning, operator technical training, and long-term remote after-sales service. In case of equipment operation problems, our technical team can provide rapid response solutions to ensure normal and stable production of customer factories. Choosing our high-efficiency and high-precision omega purlin forming machine is a reliable guarantee to improve your product competitiveness and market profit margin.

FAQ

Q1: What materials can the hat shaped steel forming machine process?

A: This machine is compatible with galvanized steel, hot-dip galvanized steel, PPGI color coated steel, aluminum zinc plated steel and aluminum strips, meeting the processing needs of different engineering scenarios.

Q2: Is the equipment suitable for novice operation?

A: Yes. The machine adopts fully automatic intelligent control with simple operation procedures. We provide professional operation training and detailed operation manuals, enabling novice workers to master production skills quickly.

Q3: Can non-standard hat steel profiles be customized?

A: We support full personalized customization of non-standard profiles. According to customer’s drawings and parameter requirements, we can adjust forming stations, roller sizes and production parameters to produce exclusive profile equipment.
