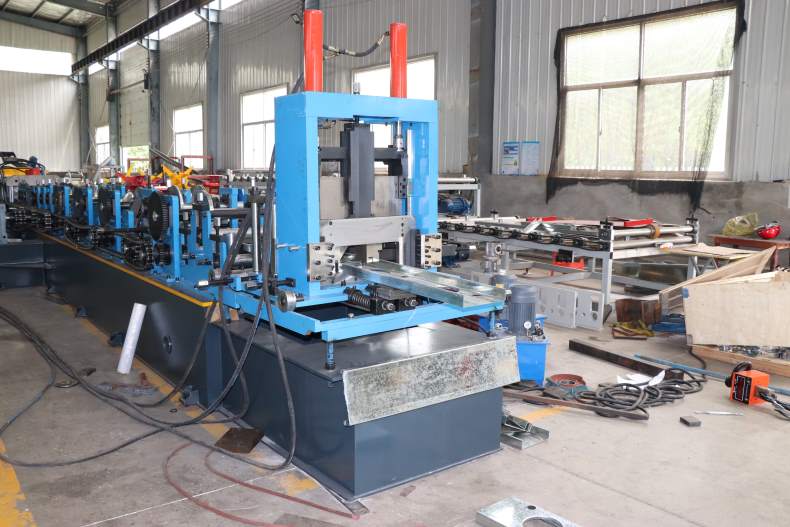

Automatic Grout Keel Roll Forming & Punching Production Line

The Grout Keel Roll Forming Machine is an automatic metal profile production line designed for continuous forming, cutting, conveying, punching, and discharging of grout keel profiles.

The complete line integrates roll forming, automatic length cutting, mechanical conveying, automatic feeding to the punching press, punching, and finished-product discharge, enabling continuous production with minimal manual intervention.

The machine is designed according to the customer's profile drawing and is suitable for processing 0.55 mm G2 Z275 galvanized steel coil, with finished product lengths from 1 to 6 meters.



Complete Automatic Production Process

Decoiling → Roll Forming → Cut to Length → Automatic Conveying → Mechanical Feeding → Punching → Automatic Discharging

The production line is designed for automatic operation, reducing manual handling between individual production stages and improving the continuity of the manufacturing process.

1. Technical Specification:

Machine Type	Grout Keel Roll Forming Machine
Production Line	Roll Forming + Cutting + Conveying + Punching + Discharging
Material	G2 Z275 Galvanized Steel Coil
Material Thickness	0.55 mm
Finished Length	1–6 m
Forming Stations	17 Stations
Roller Material	Cr12
Shaft Diameter	70 mm
Main Motor	11 kW + 11 kW
Transmission	Chain Drive
Cutting Method	Stop-to-Cut
Punching Press	80 Ton Yangli
Punching Dies	6 Sets
Automatic Discharge Rack	6 m

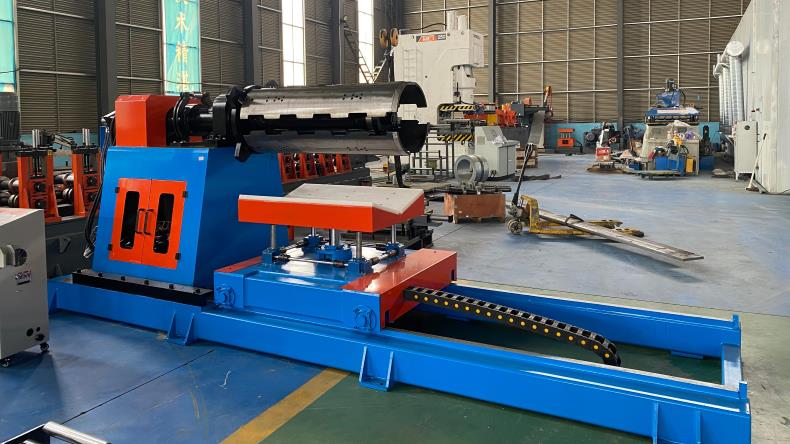

2. Hydraulic Decoiling

The production line can be equipped with a 4-ton vertical hydraulic decoiler.

Maximum coil width: 400 mm
Coil inner diameter: 508 mm
Maximum coil outer diameter: 1350 mm
Hydraulic expansion
Motorized forward and backward movement
Brake system
4 coil retaining plates

The decoiler provides stable material feeding for the subsequent roll forming process.

 3. Fully Automatic Production
The complete production line connects forming, cutting, conveying, feeding, punching, and discharging processes into one automated workflow. The specified process is designed for automatic operation without manual intervention between these stages.

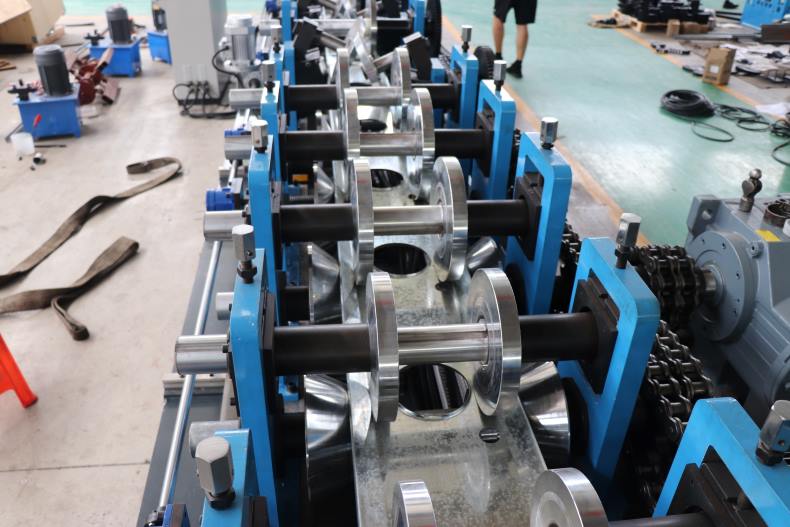

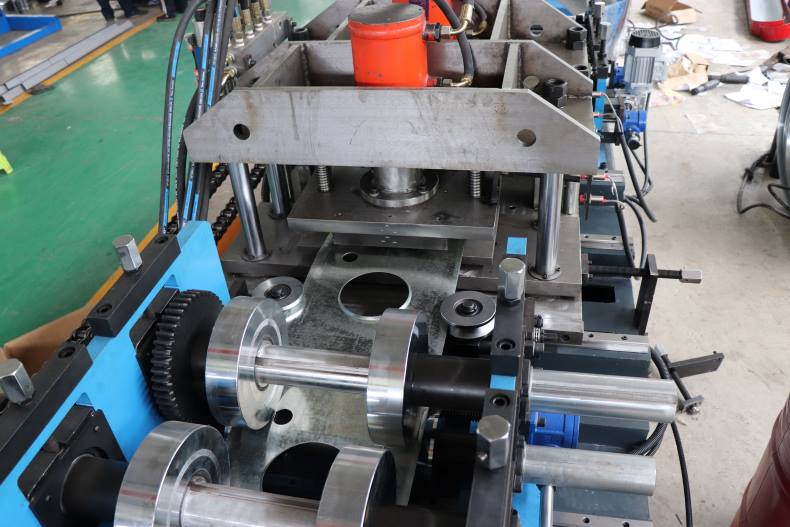

4. 17-Station Roll Forming System
The roll forming section uses 17 forming stations, with Cr12 forming rollers and 70 mm diameter treated shafts for stable and accurate profile forming.

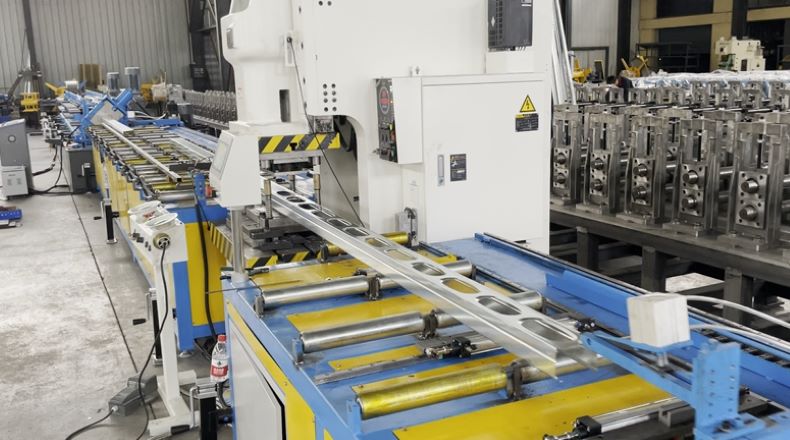

5. Integrated Punching Solution
The forming machine is integrated with an 80-ton punching press and 6 sets of dies, providing a complete forming-and-punching solution for the specified grout keel profile.

6. Flexible Profile Configuration
The waist-height section can be configured with or without the required dimpled pattern, depending on the customer's production requirements.

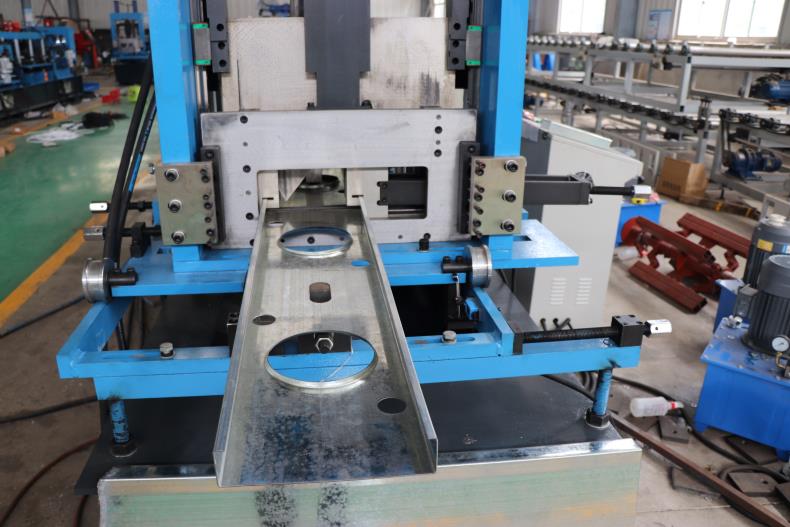

7. Automatic Length Cutting

After roll forming, the profile is automatically cut according to the programmed length.

The specified finished-product length range is 1–6 meters, allowing the production line to handle different project requirements.

8.Automatic Conveying & Feeding

After cutting, the formed grout keel profiles are automatically conveyed to the punching section.

A mechanical feeding system transfers the profiles into the punching press, reducing manual material handling and connecting the forming and punching processes into one continuous production workflow.

9. Electrical & Control System
The machine adopts a centralized PLC control system for automatic production management.

Control system configuration:
Delta PLC
Delta touch screen
Schneider low-voltage electrical components
Omron counter
PLC with 12 reserved circuits
Portable control cabinet
PLC-connected safety sensors
Chinese / English operating language

The control system is designed to coordinate the forming, cutting, conveying, feeding, punching, and other production processes.

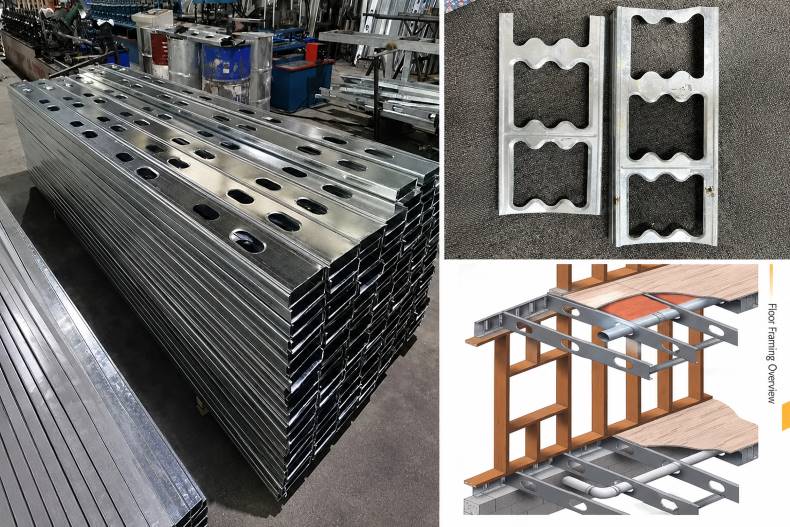

Customized Grout Keel Production Solution

Every grout keel profile can have different dimensions, punching patterns, hole positions, and forming requirements.

Zhongtuo can design the roll forming and punching system according to the customer's profile drawings, material specifications, finished length, and punching requirements.

For customized projects, customers can provide PDF or CAD profile drawings for machine design and production confirmation. The supplied project itself was based on a customer-confirmed profile drawing and specified galvanized coil material.

Grout Keel Roll Forming Machine — Complete Automatic Solution

Roll Forming + Cut to Length + Automatic Conveying + Mechanical Feeding + Punching + Automatic Discharging

A complete solution for manufacturers looking to produce customized grout keel profiles continuously and efficiently from galvanized steel coils.
