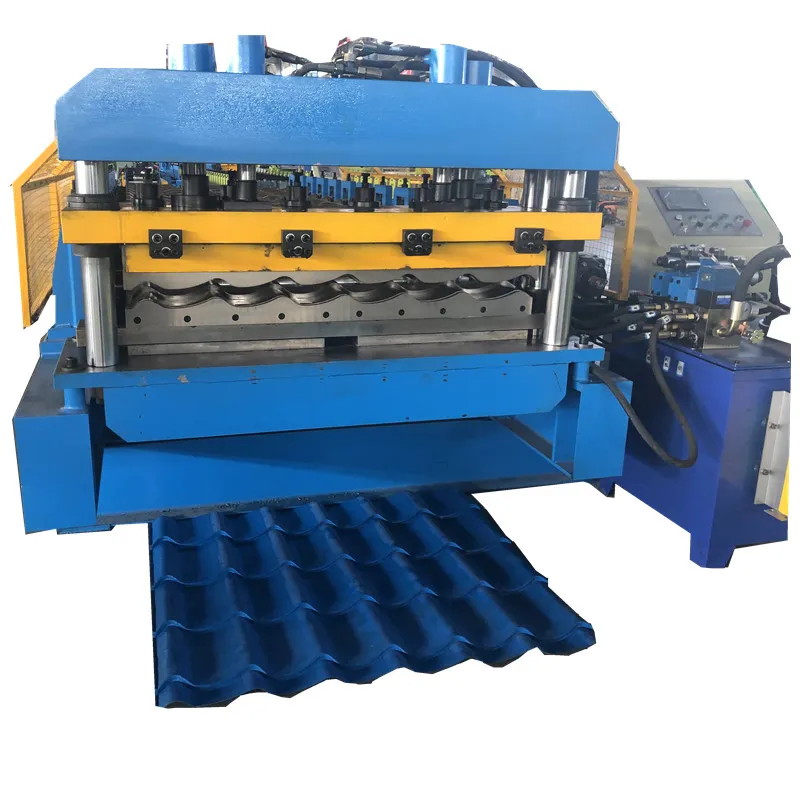

Automatic Glazed Tile Roofing Sheet Machine Color Steel Aluminum Sheet Making Forming Motor Siemens PLC Controlled Remote Glazed tile roofing sheet machine+7.5kw+15 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

Automatic Glazed Tile Roofing Sheet Machine Color Steel Aluminum Sheet Making Forming Motor Siemens PLC Controlled Remote Glazed tile roofing sheet machine+7.5kw+15 m/min

Name: Automatic Glazed Tile Roofing Sheet Machine Color Steel Aluminum Sheet Making Forming Motor Siemens PLC Controlled Remote Glazed tile roofing sheet machine+7.5kw+15 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT52984235

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

Glazed tile roofing sheet machine

Power(W):

7.5kw

Production Capacity:

15 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380V 50Hz 3phases or as your requirement
Rolling Thinckness
0.3-0.8mm
Feeding Width
840-1250mm

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

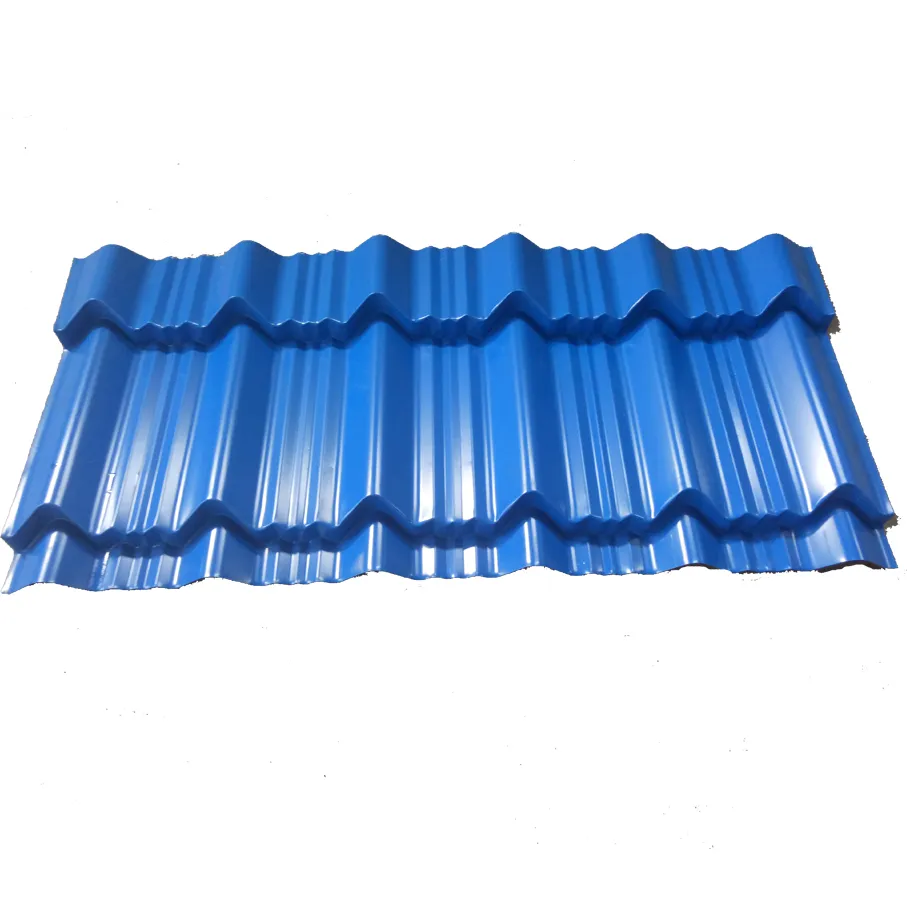

Glazed tile roofing sheet machine

Glazed tile roofing sheet machine is a kind of cold bending molding machine specially used for producing antique glazed color steel tiles, which is characterized by combining the classical aesthetics of traditional glazed tiles with the advanced nature of modern color steel technology.

The glazed tiles advantages 1.Unique appearance:

it retains the elegant shape and classical aesthetics of traditional glazed tiles, and also incorporates the exquisite craftsmanship of modern color steel technology. 2.Light weight and high strength:

the unit mass is light, only 1/10 of the traditional ceramic tile, but the strength is significantly higher than the ceramic tile, with strong wind resistance and weather resistance. 3.Corrosion resistance:

special materials and anti-corrosion coating are used to prolong the service life of the products. 4.Waterproof and fireproof:

reasonable structural design, no gap connection on the slope, excellent waterproof performance; the substrate is non-combustible and has excellent fireproof performance. 5.Convenient installation:

the glazed tiles produced by the equipment can provide complete sets of roofing system solutions, easy and fast installation, reducing construction intensity and cost.

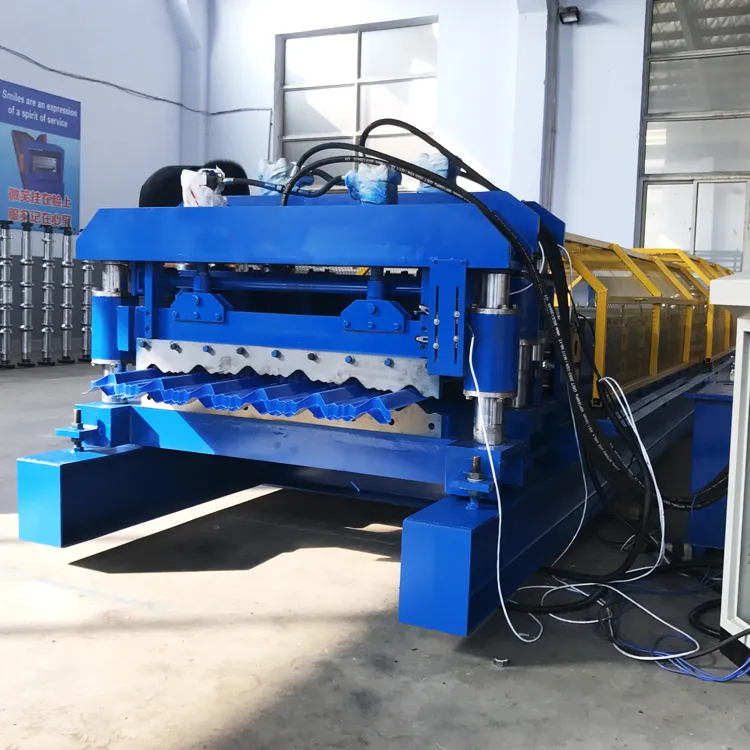

Main roll forming machine
Machine frame	350mm H beam structure, with 18mm welded steel middle support plate.
Material of rollers	High grade 45# forged steel
Material of rollers		Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Forming stations	Upper layer 15 rows
Forming stations		Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision.
Diameter of shafts	Φ80mm solid
Material of shafts	High grade 45#,with heat treatment
Forming speed	0-15m/min
voltage	380V/50HZ/3P (as requested)
Transmission way	By 1 inch chain (double chains)
Main motor	4KW
Cutting blade material	Gcr12 quenched treatment
Cutting type	hydraulic post cutting
Driving method	By pillar type Cylinder

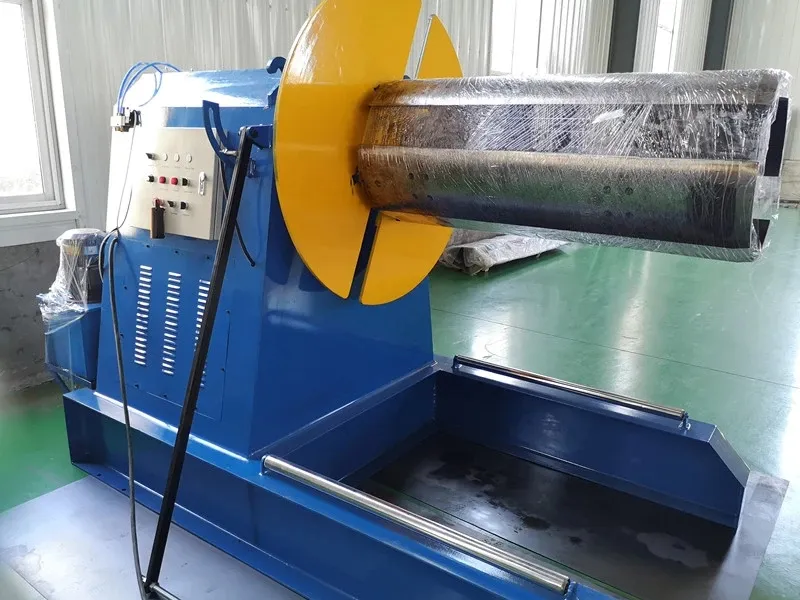

Hydraulic Decoiler

1.Automatic working

2.Hydraulic expansion
3.With press arm to keep the coil from loosing
4.With braking system and speed sensor to match the speed with other machines

5.Saving labor

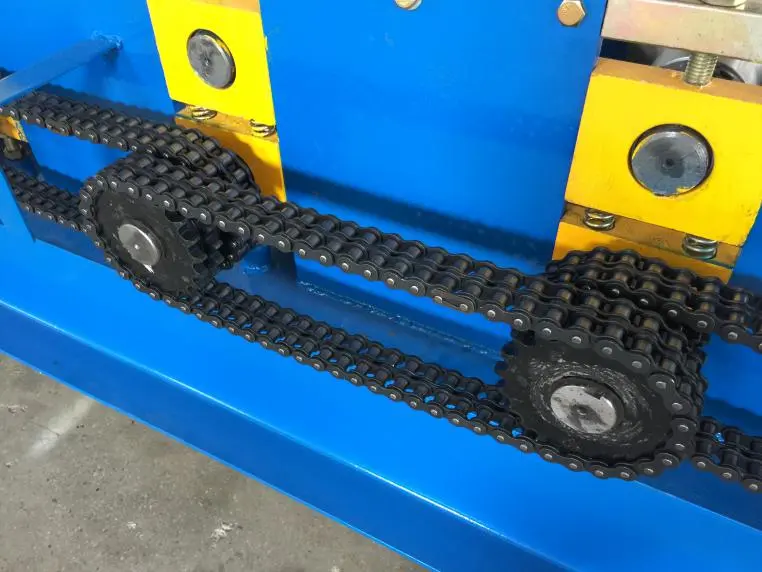

Transportation

1.Double chains transmission,ensure the high speed of the machine

2.Our machine add tension device, can tighten up chains, add using life.

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

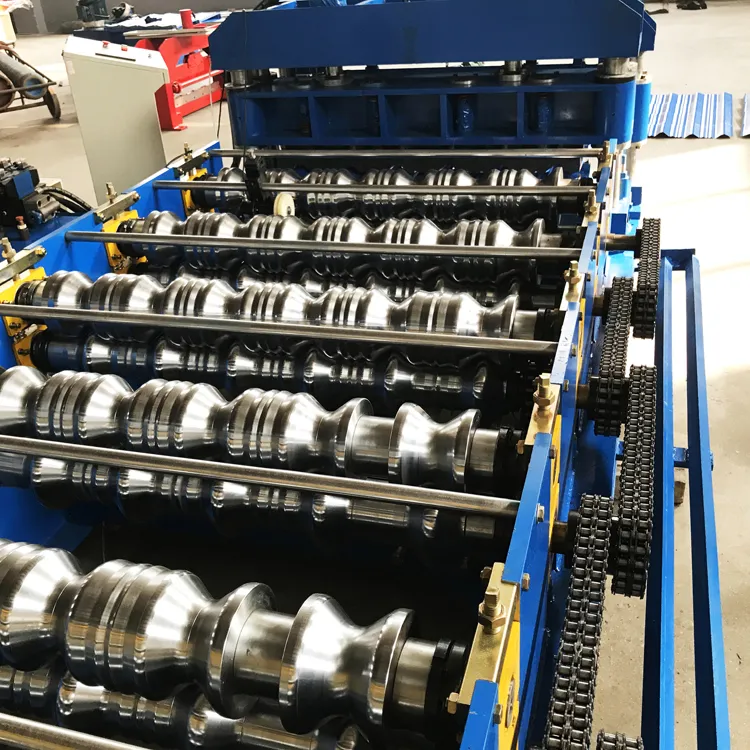

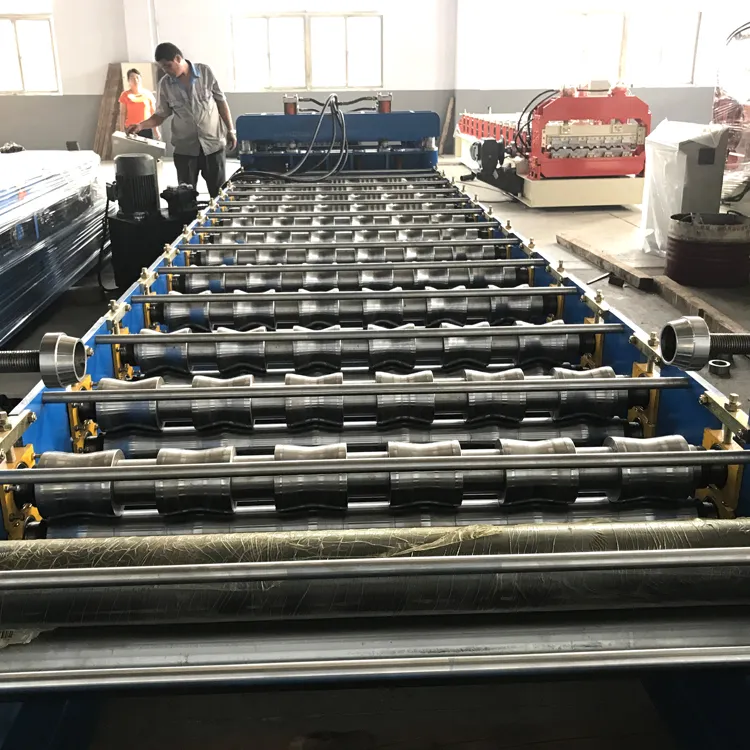

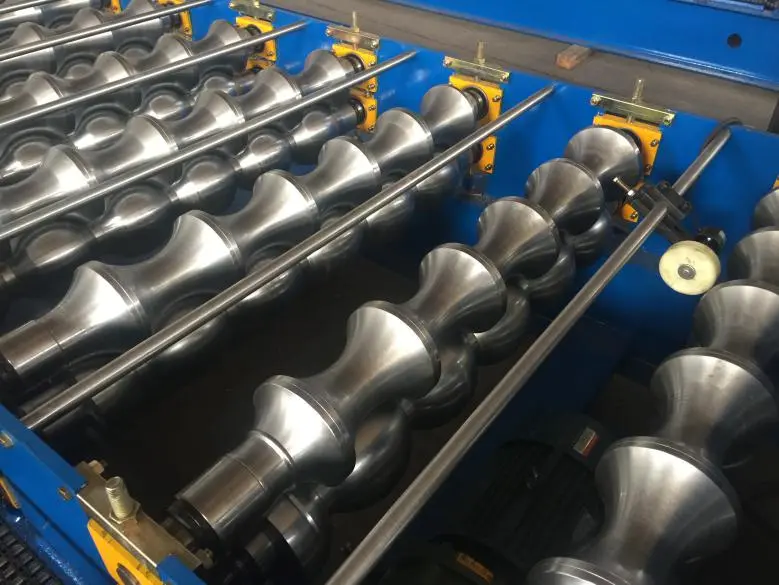

Rollers and shaft

1.Surface with chromed treatment
2.Material:45# steel

3.Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion,anti corrosion increase of service life

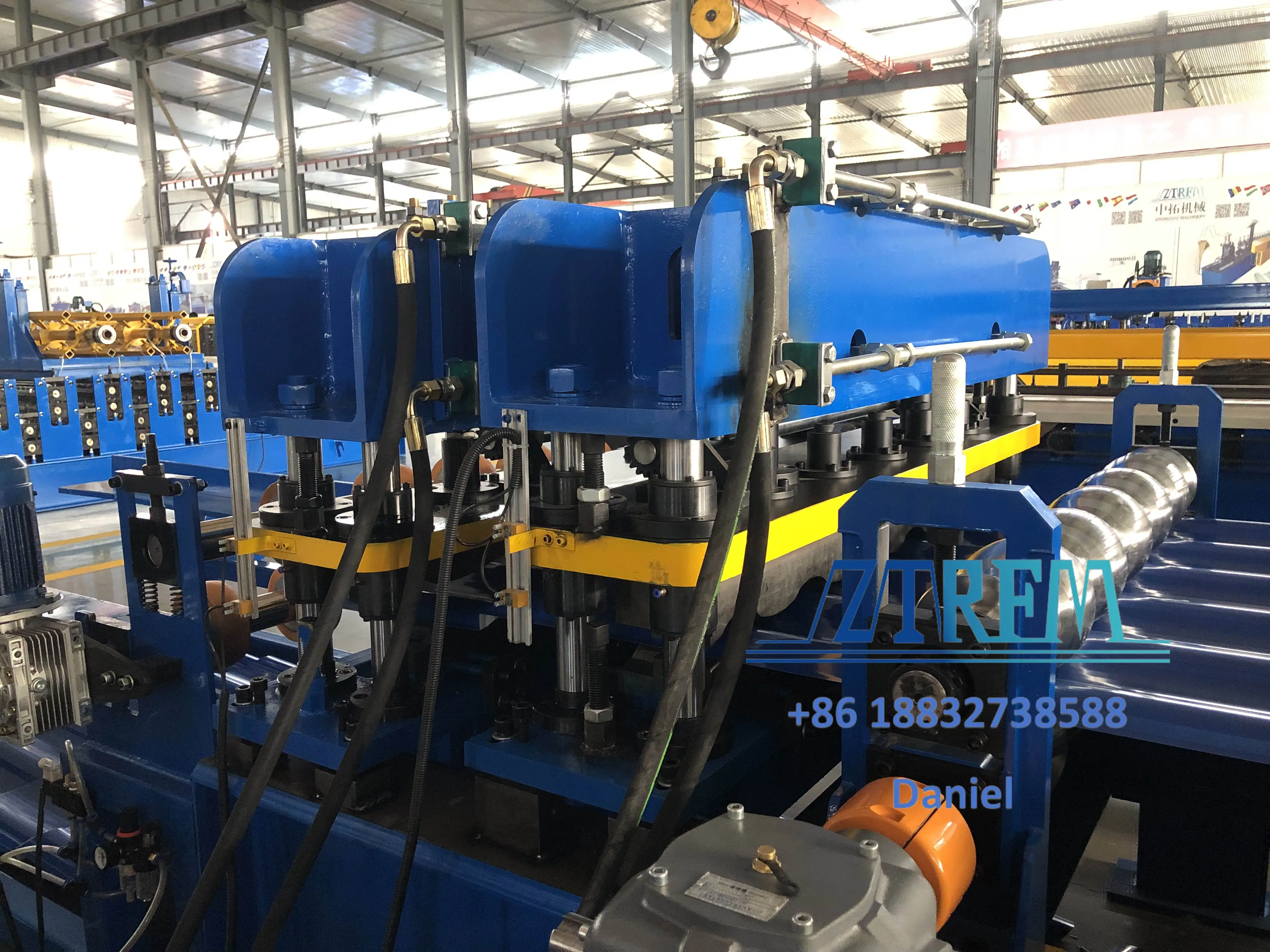

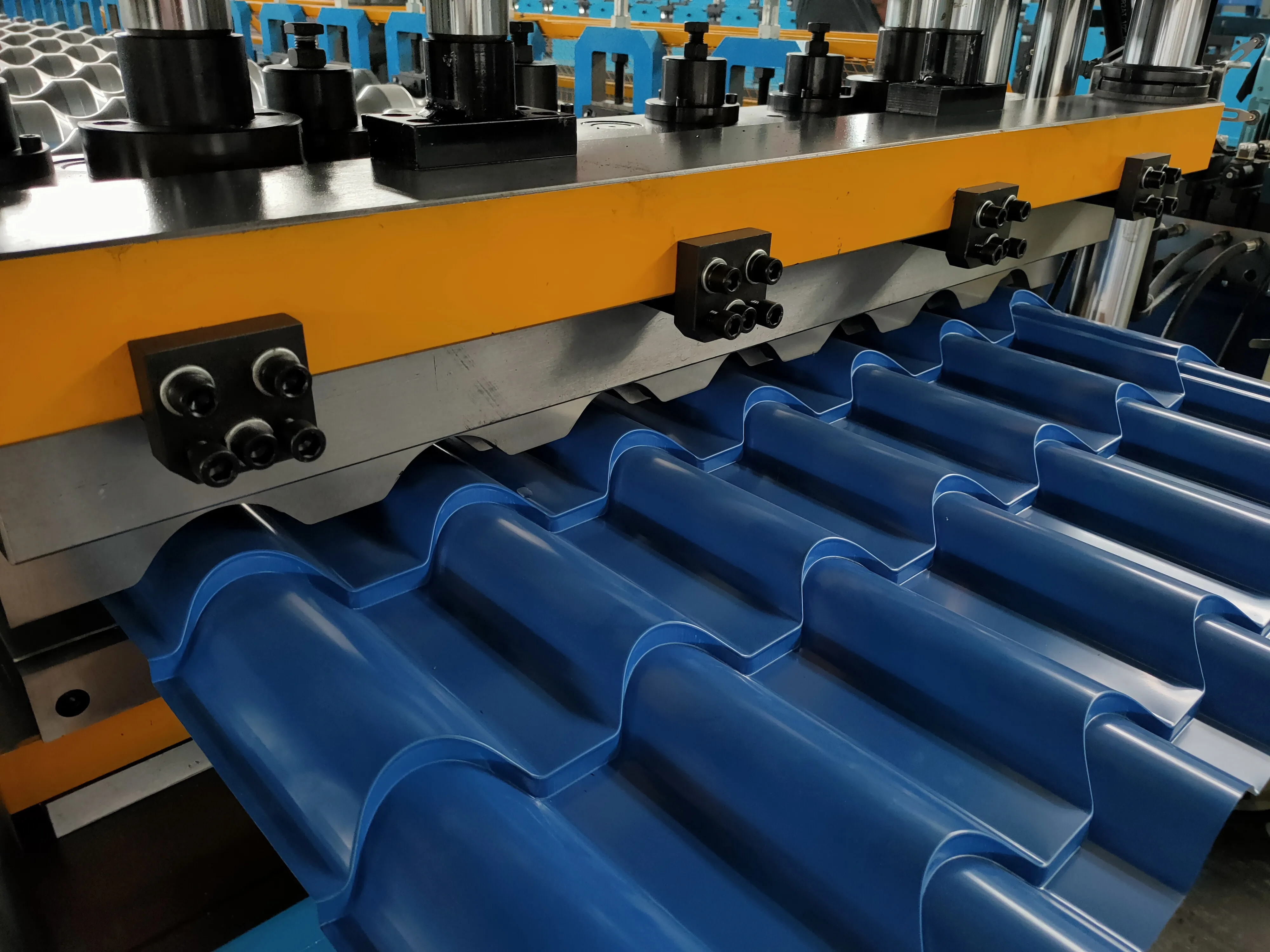

lace shearing cutting system

1.Fully automated knuckle pressing

2. Fully automated cut of products

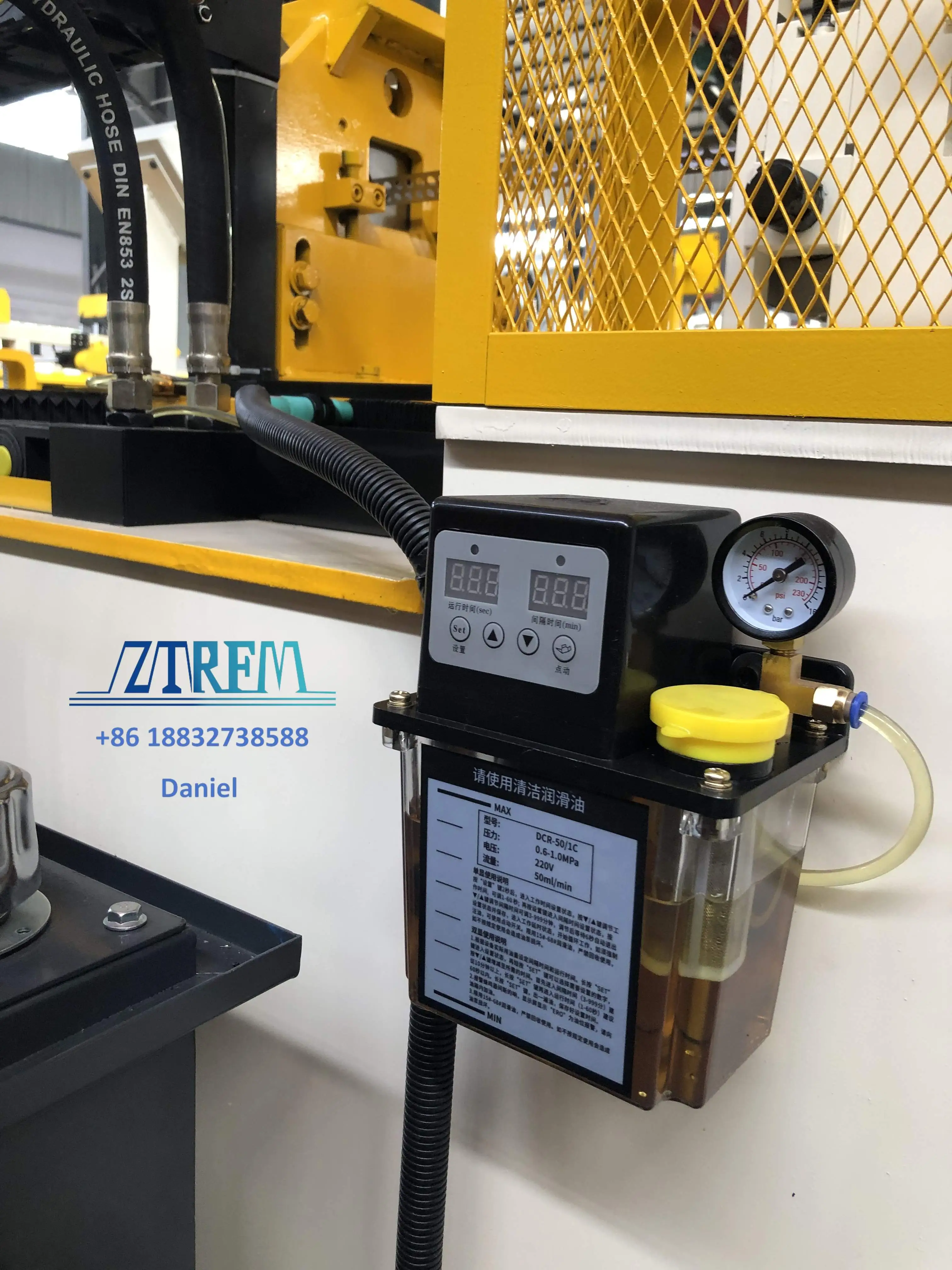

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

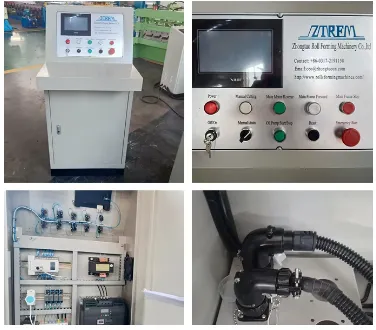

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

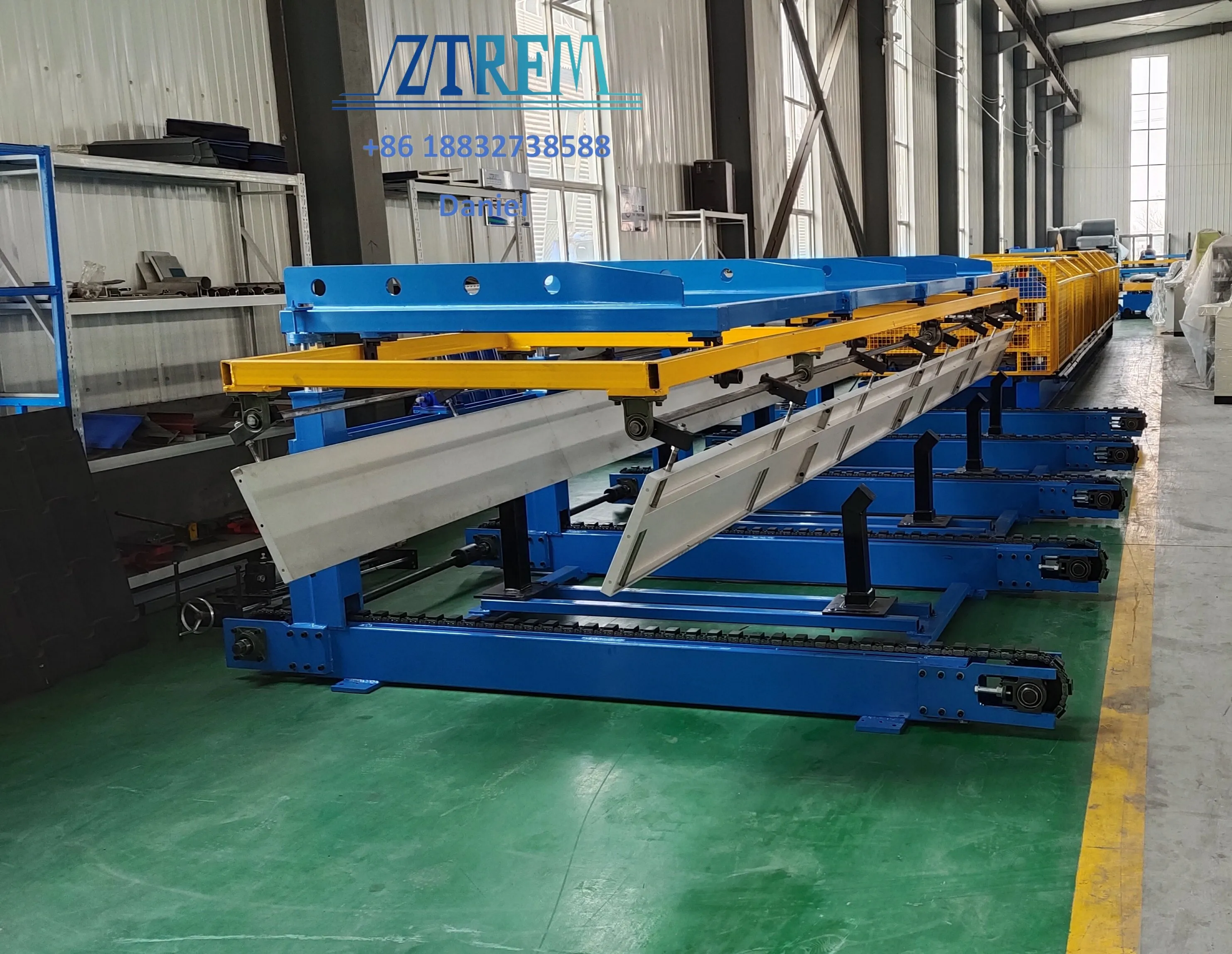

Automatic Stacker

1. Saving manpower 2. Can improve productivity 3. Equipped with rubber wheels and nylon pads to better protect the finished product.

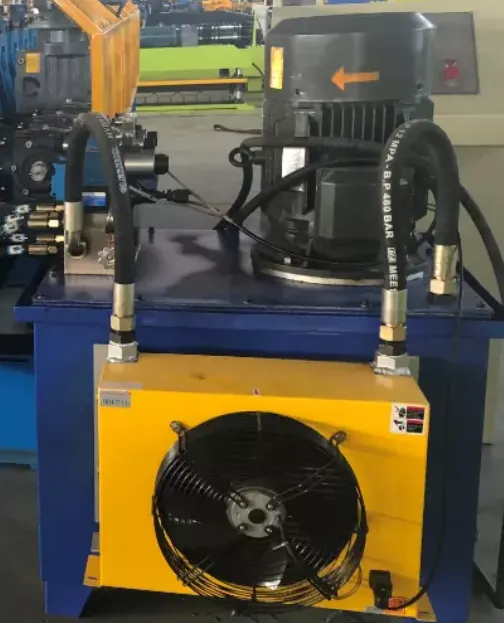

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

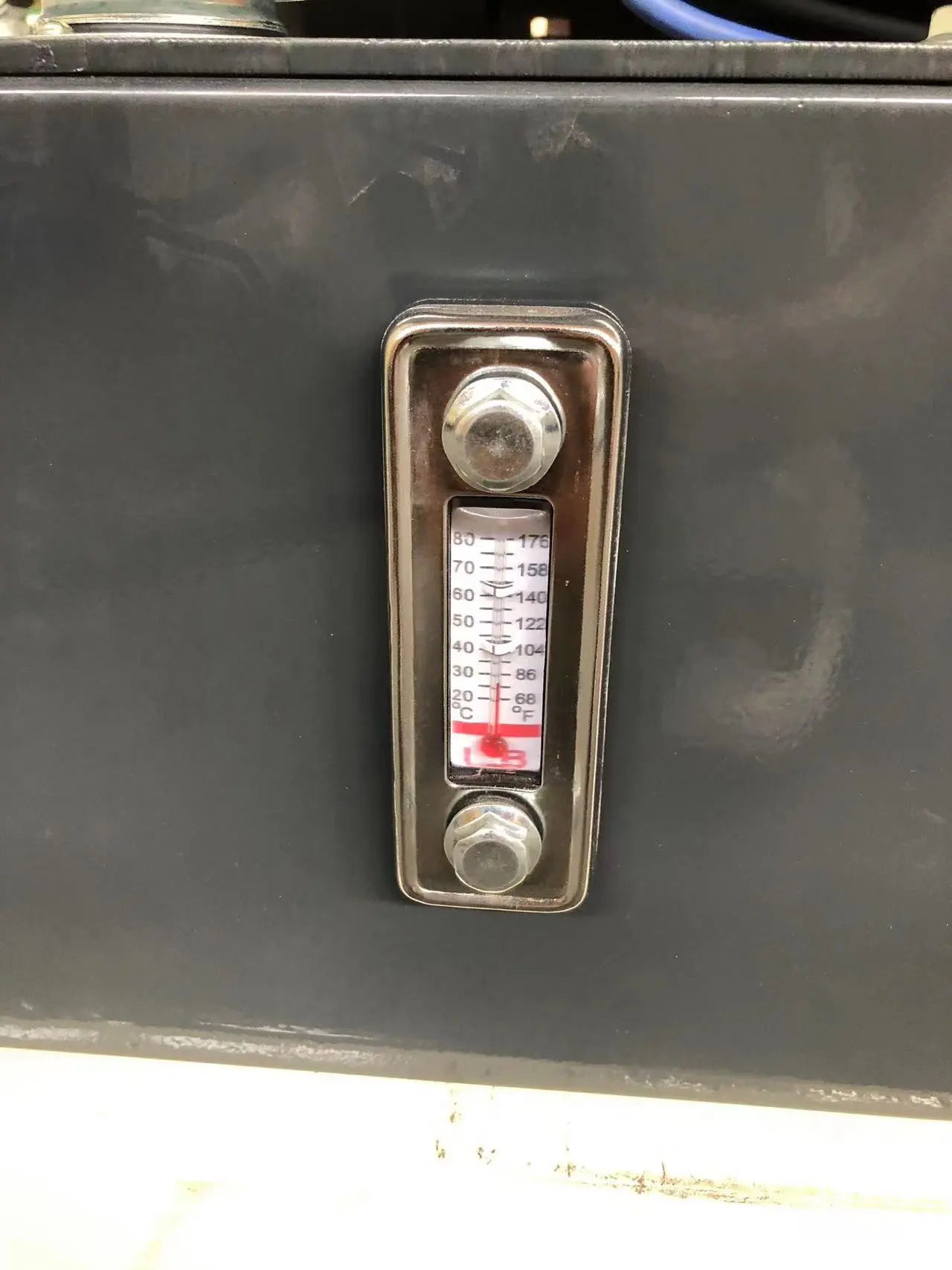

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

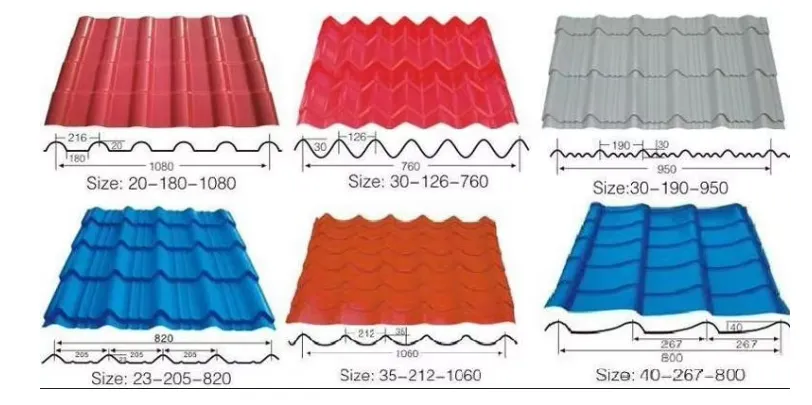

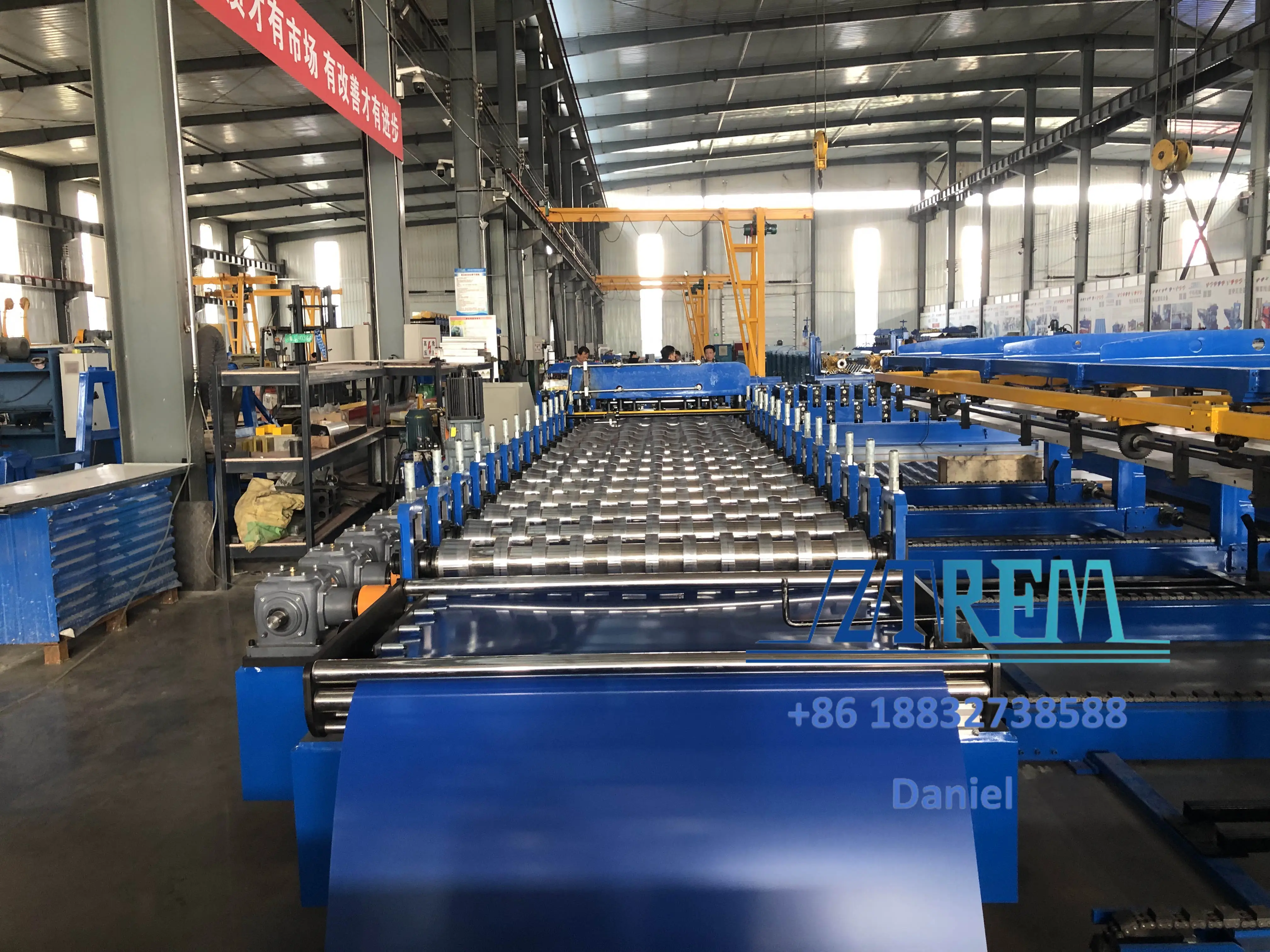

Product display

Application

Exhibition

Certification

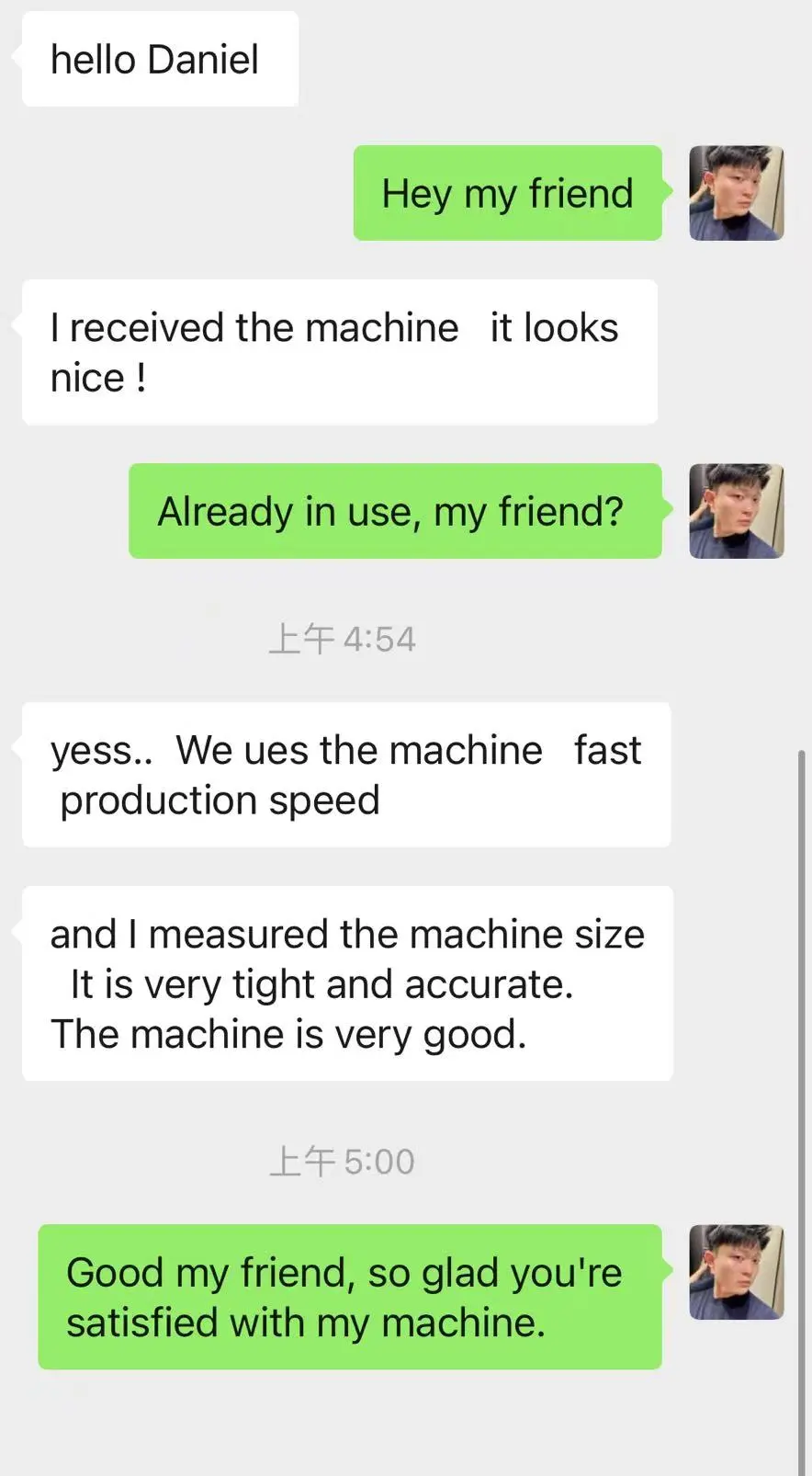

Customer Photos
