Glazed Tile Roll Forming Machine: The Complete Solution for Premium Roofing Production

Are you looking for a reliable, high-speed, and precise glazed tile roll forming machine​ to elevate your construction material business? Whether you are upgrading your production line or starting a new manufacturing facility, choosing the right equipment is critical to ensuring product quality, reducing labor costs, and maximizing ROI.

As a professional roll forming machine manufacturer with years of export experience, we provide turnkey solutions tailored to your specific profile drawings, raw materials, and local voltage standards. This guide covers everything you need to know about our glazed tile making machine—from technical specifications and key features to why global buyers trust our equipment.

What Is a Glazed Tile Roll Forming Machine?

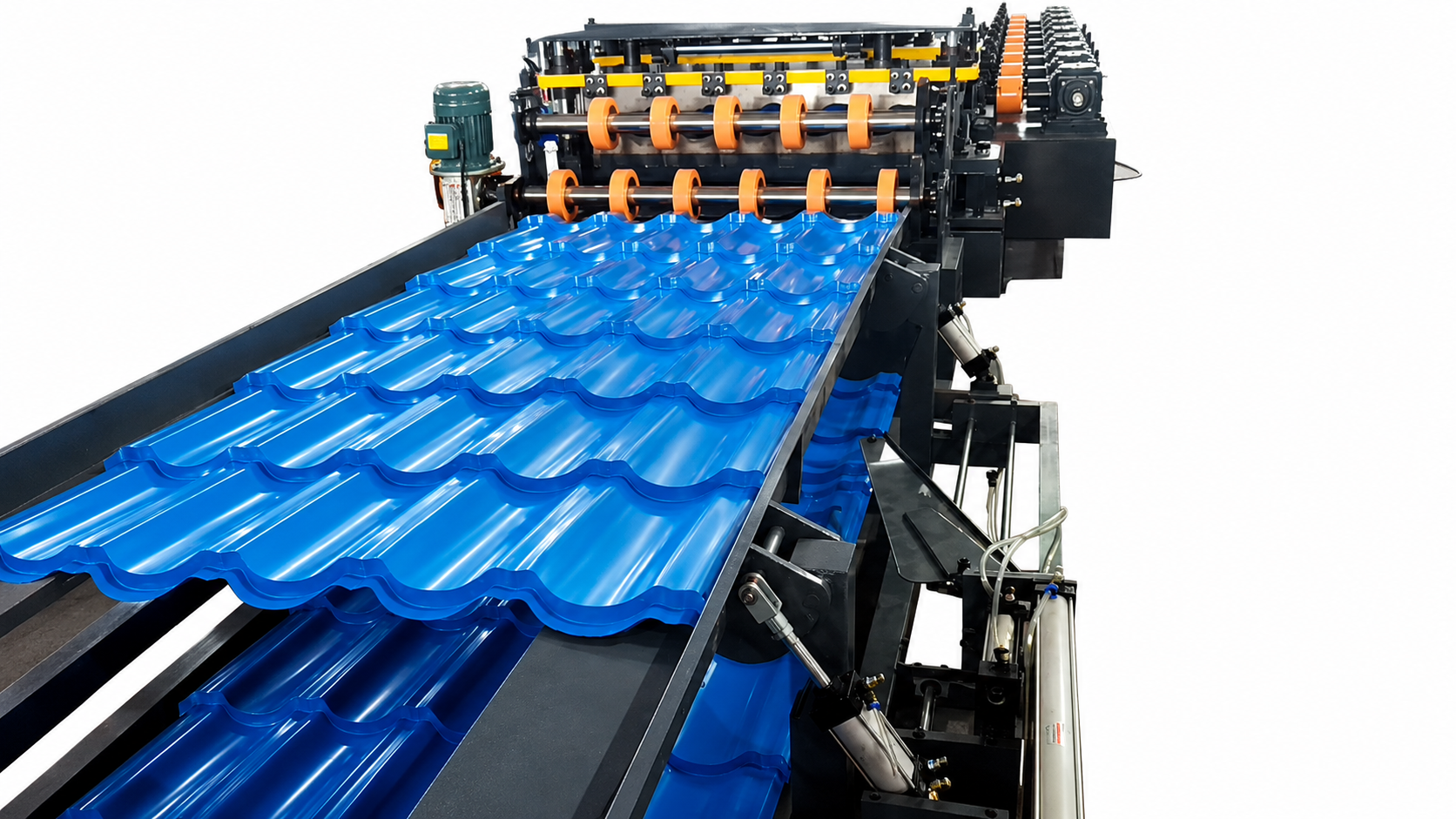

A glazed tile roll forming machine is an automated production line designed to manufacture metal glazed roof tiles from color-coated steel, galvanized steel, or aluminum coils. Unlike traditional roof panels, glazed step tiles feature a beautiful classical appearance, high strength, and excellent waterproof performance, widely used in villas, hotels, industrial parks, and residential buildings.

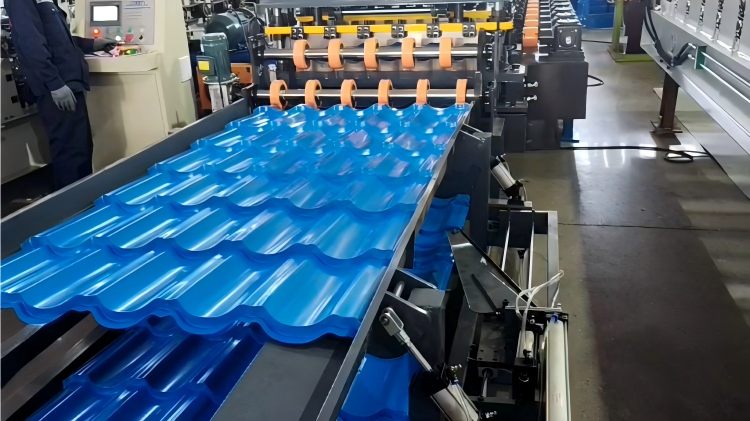

The production process typically includes decoiling, guiding, roll forming, hydraulic pressing (step shaping), cutting to length, and automatic stacking—all controlled by a PLC system for uninterrupted 24/7 operation.

Key Features & Competitive Advantages

Our automatic glazed tile forming machine stands out in the global market due to its robust engineering and user-centric design:

High Precision Forming: Equipped with Cr12mov cutting blades and GCr15 roller materials with hard chrome plating (0.05mm thickness), ensuring smooth surface finish without scratching the coating.

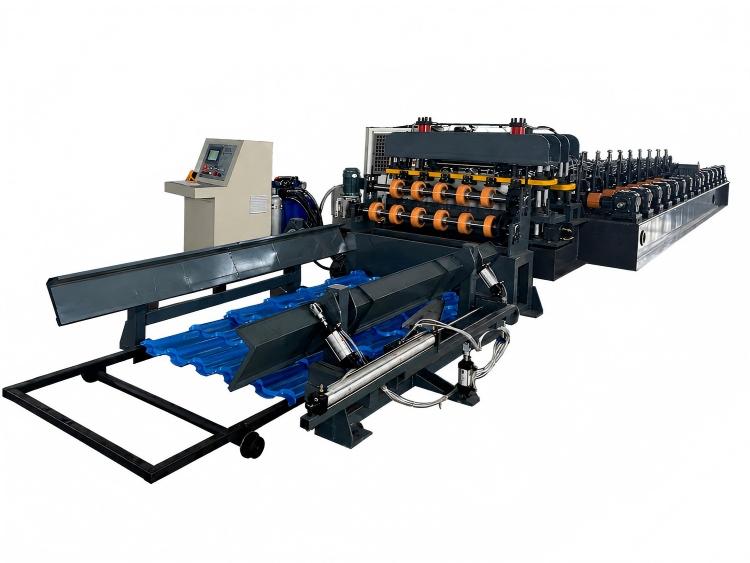

Intelligent PLC Control System: Mitsubishi or Siemens PLC with touch screen interface allows easy parameter setting, length adjustment, and production speed control.

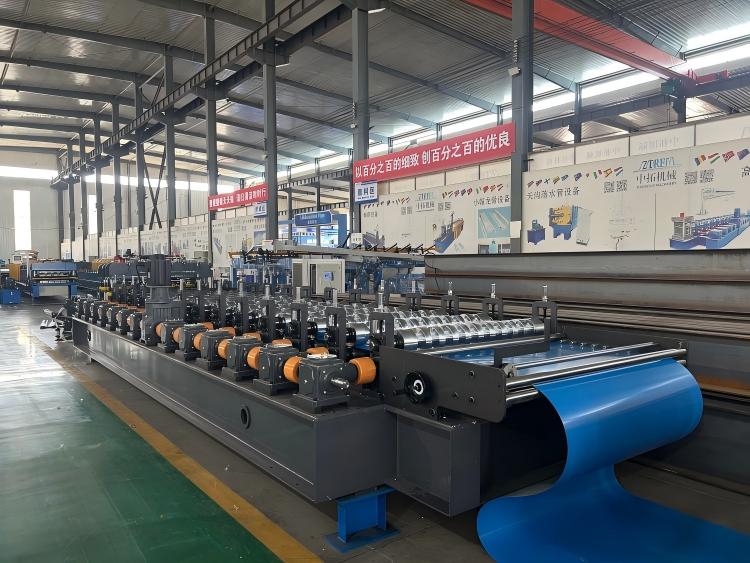

Heavy-Duty Frame Structure: The main frame uses high-grade H-beam steel after welding and milling treatment, guaranteeing no deformation under long-term high-load operation.

Customizable Profiles: We support OEM/ODM services. Just send us your CAD drawing or sample, and we will customize the roller sets and pressing molds accordingly.

Global Compliance & Safety: All machines are CE certified and follow European quality standards. Safety covers and emergency stop buttons are installed for operator protection.

Cost-Effective Production: Forming speed ranges from 8–15 m/min (depending on step depth), requiring only 1–2 operators, significantly lowering your labor expenses.

Technical Parameters (Standard Model Reference)

Item	Specification
Raw Material	PPGI, GI, Aluminum Coil (Yield Strength ≤235MPa)
Material Thickness	0.3 – 0.8 mm (Customizable)
Coil Width	1000 mm / 1200 mm / 1220 mm
Forming Speed	8 – 12 m/min (Step pressing mode)
Roller Material	45# forged steel with chrome plating
Shaft Diameter	Φ70 – Φ80 mm solid steel
Main Motor Power	5.5 kW – 7.5 kW
Hydraulic Station Power	3 kW – 5.5 kW
Control System	PLC (Mitsubishi/Siemens) + Inverter (Delta)
Cutting Type	Hydraulic post-cutting with Cr12MoV blade
Voltage	380V / 50Hz / 3Phase (Customized available)
Machine Weight	Approx. 4.5 – 6.5 Tons



Why Choose Us as Your Machine Supplier?

In the competitive B2B machinery market, trust and service matter as much as the equipment itself. Here is what sets us apart:

Factory Direct Pricing: No middlemen, transparent quotes.

Strict Quality Inspection:​ Every machine undergoes a test run before shipment. We provide test videos and photos.

Comprehensive After-Sales Support: Lifetime technical consultation, 24-hour response, English manual, and remote video guidance for installation. Overseas engineer dispatch is available if needed.

Fast Delivery & Safe Packaging: Standard machines in stock; customized ones delivered in 30–45 days. Anti-rust oil, plastic film, and steel pallet packaging ensure safe ocean freight.

Proven Global Track Record: Our machines have been exported to over 30 countries including the USA, Brazil, Saudi Arabia, Indonesia, Nigeria, and Russia.

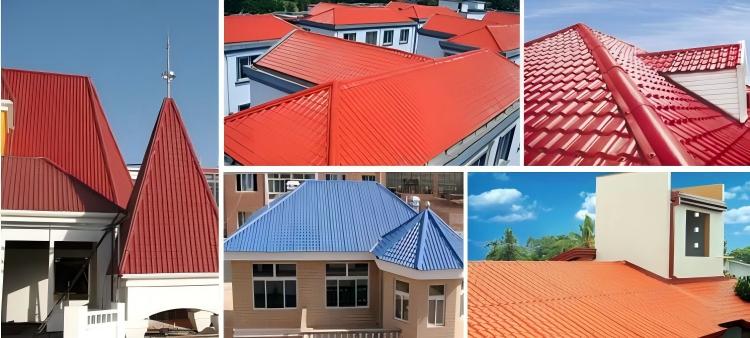

Applications of Finished Glazed Tiles

The metal glazed tiles produced by our machine are not only aesthetically pleasing but also highly functional:

Residential villas and townhouses

Commercial complexes and shopping malls

Hotels, resorts, and cultural tourism projects

Industrial plants and warehouse roofing

Renovation of old building rooftops (flat-to-slope projects)
