    Automatic Garage Rolling Shutter Making Machine Roller Shutter Slat Forming Machine rolling shutter making machine+20M/MIN+DEPENDS

    $***/ Set
    Min. Order:1 Set

    Coupons: More >

    You can log in to view more discounted prices.Login Now

    Price:
    $***
    Quantity:
    1Set

    Order CodeZT86854006
    Shipping:
    Delivery to:
    • Select country
    • 中国
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antarctica
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bonaire, Saint Eustatius and Saba
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cabo Verde
    • Cambodia
    • Cameroon
    • Canada
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Cook Islands
    • Costa Rica
    • Croatia
    • Cuba
    • Curacao
    • Cyprus
    • Czechia
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • Dominican Republic
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Eswatini
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and McDonald Islands
    • Honduras
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Ivory Coast
    • Jamaica
    • Japan
    • Jersey
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Libya
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • North Korea
    • North Macedonia
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestinian Territory
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Republic of the Congo
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthelemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • Samoa
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Serbia and Montenegro
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and the South Sandwich Islands
    • South Korea
    • South Sudan
    • Spain
    • Sri Lanka
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Sweden
    • Switzerland
    • Syria
    • Tajikistan
    • Tanzania
    • Thailand
    • The Netherlands
    • Timor Leste
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • U.S. Virgin Islands
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • Uzbekistan
    • Vanuatu
    • Vatican
    • Venezuela
    • Vietnam
    • Wallis and Futuna
    • Western Sahara
    • Yemen
    • Zambia
    • Zimbabwe
    • Select province
    • Select city

    Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

    Specification:

    Model Number:
    rolling shutter making machine
    Production Capacity:
    20M/MIN
    Max. Working Width:
    DEPENDS
    Payment:
    Transaction Protection:
    • Secure payments
    • Money-back protection
    • 24/7 support
    • Data privacy
    ZT86854006
    Quantity:
    -
    +
    Add to CartBuy Now
    • Product Details
    • Reviews(0)
    • Technical Specifications

      • Voltage
        220/380/440V
      • Power(W)
        3000
      • Applicable Material
        Carbon Steel, Aluminum

      Automatic garage rolling shutter making machine roller shutter slat forming machine

       The safety performance of the rolling shutter door is verygood, and it has a very good function of setting up the theft prevention.

      It is widely used in the production enterpriseorin the workshop.There are three types of rolling shutter strip.




      1. Specifications of rolling shutter slat making machine

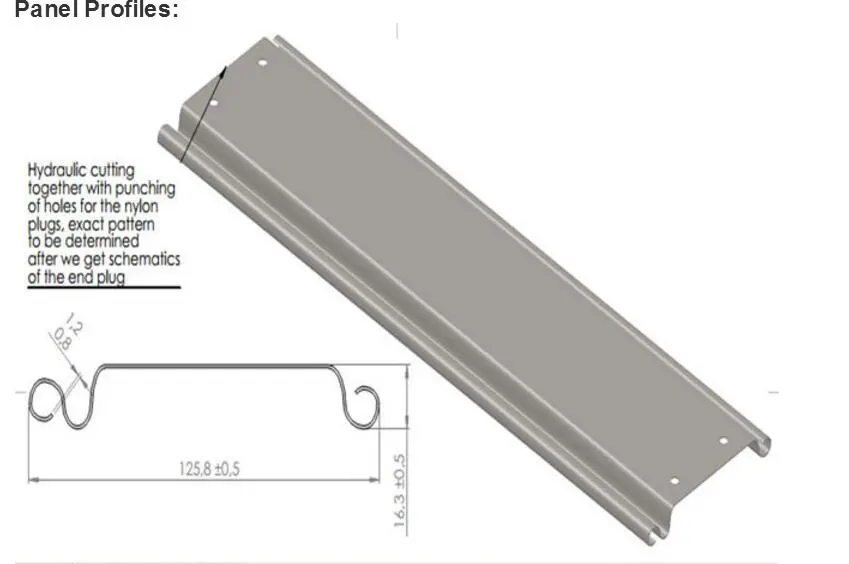

      Take the following drawing for example, there are two holes on the shutter slat,

      our rolling shutter strip making machine adopts punching two holes and cutting at the same time.



      technical parameters of rolling shutter slat making machine

      1 suitable material   galvanized steel
      2 product size 85 mm (depends on customer's request)
      3 feeding width depends on the product profile
      4 rolling station 14 stations
      5 diameter of rolling shaft 50 mm
      6 motor power 5.5 kw
      7 PLC brand  Delta
      8 working speed 20 m/min
      9

      cutting length

      +/- 1mm
      10 material of roller Cr12
      11 main frame steel plate welded
      12 voltage 220/380/440V-50HZ-3Phase
      13 weight 2.2 tons to 4 tons
      14 cutting way hydraulic tracking cutting

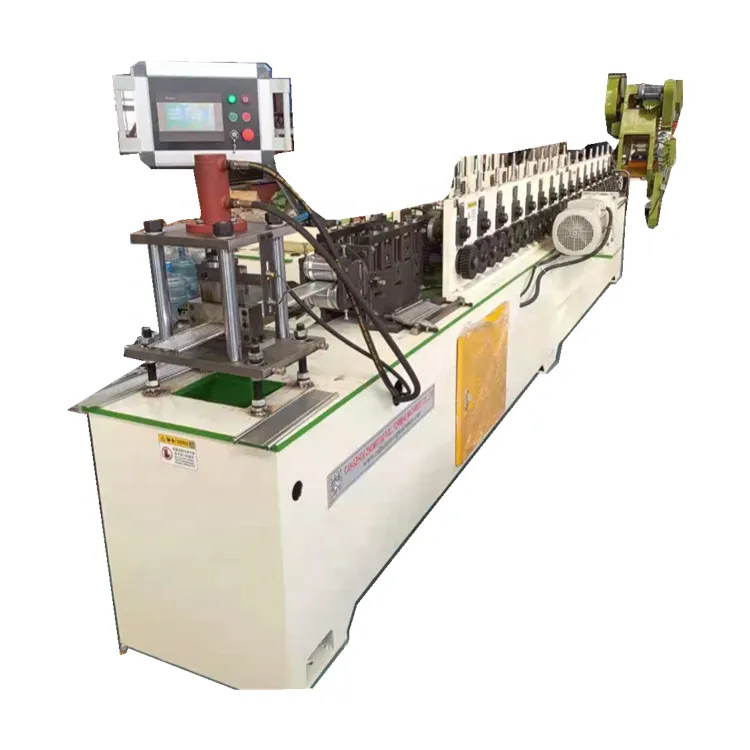

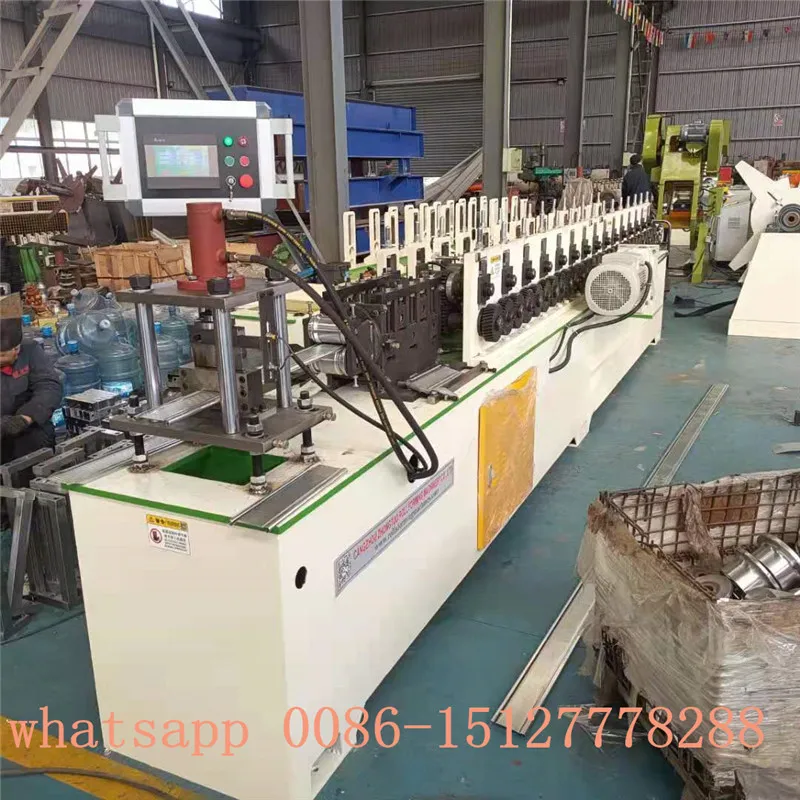

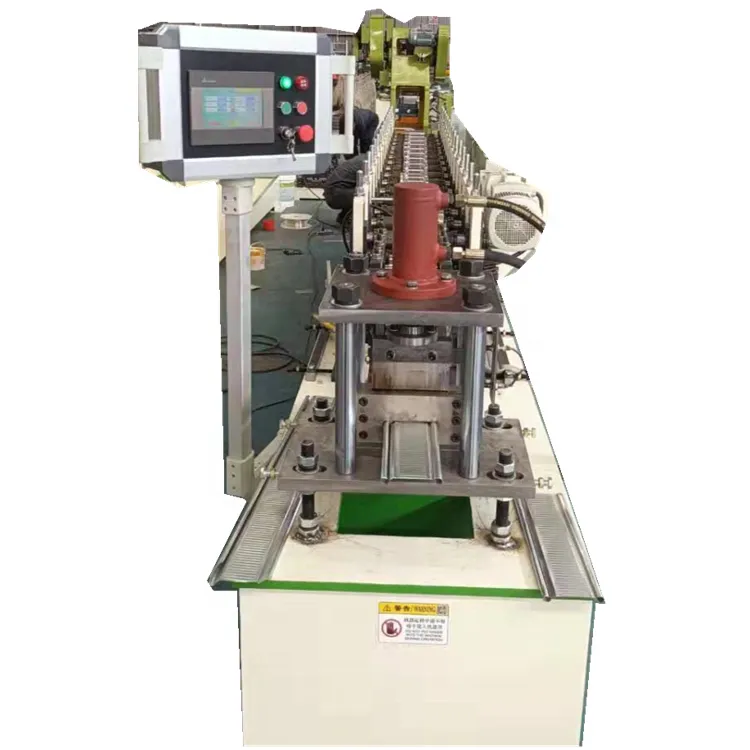

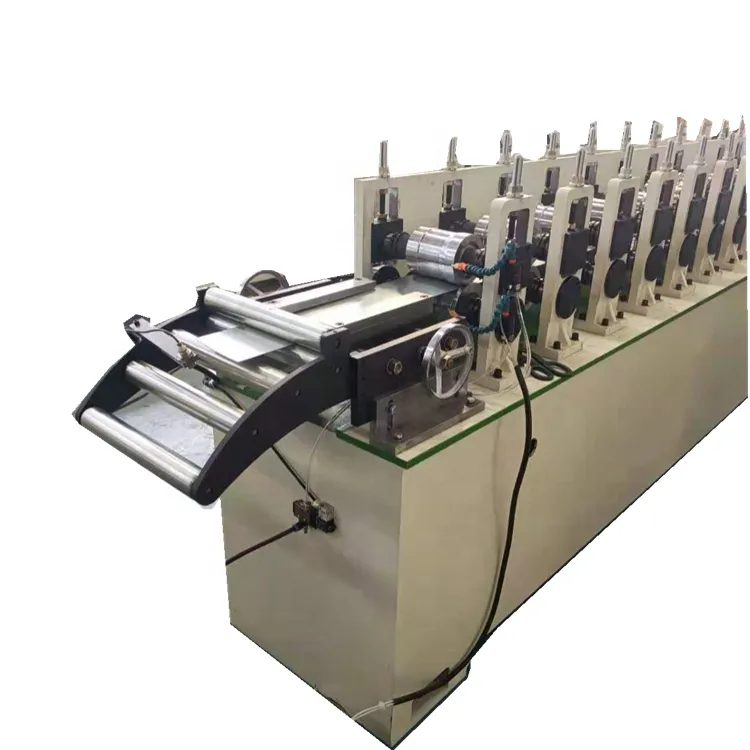

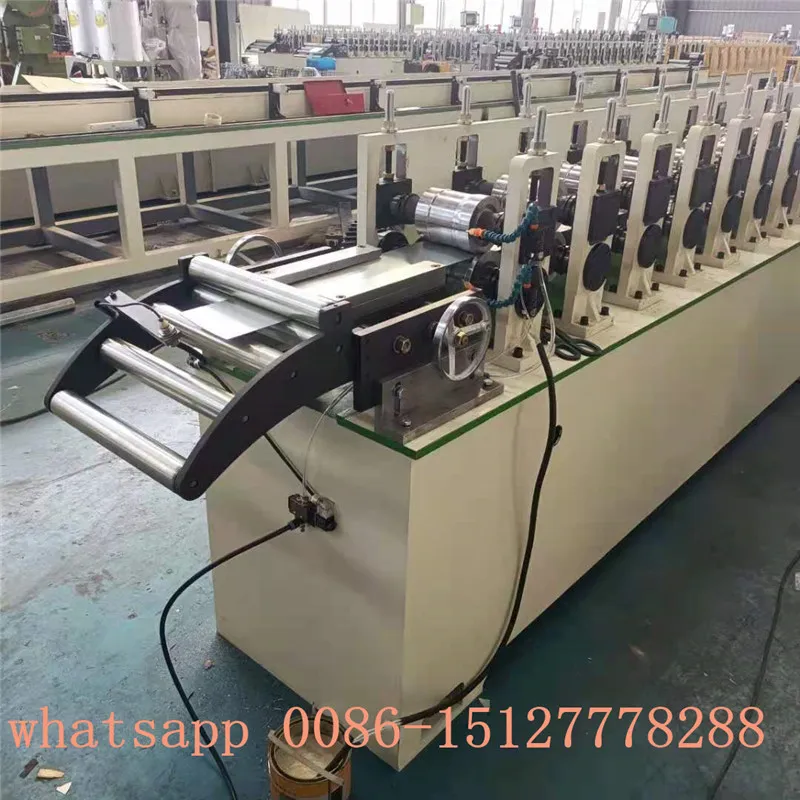

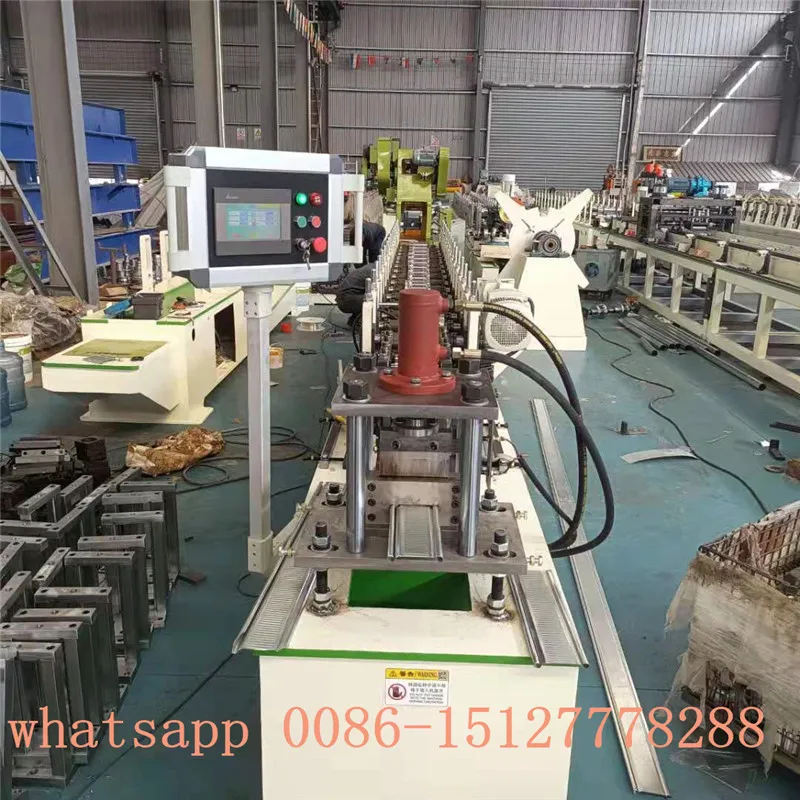

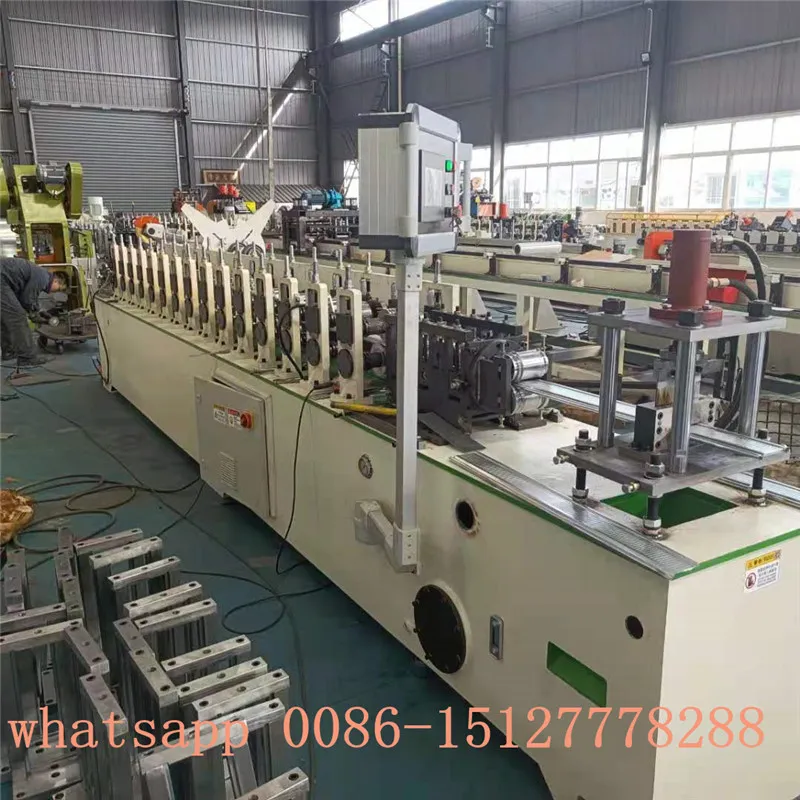

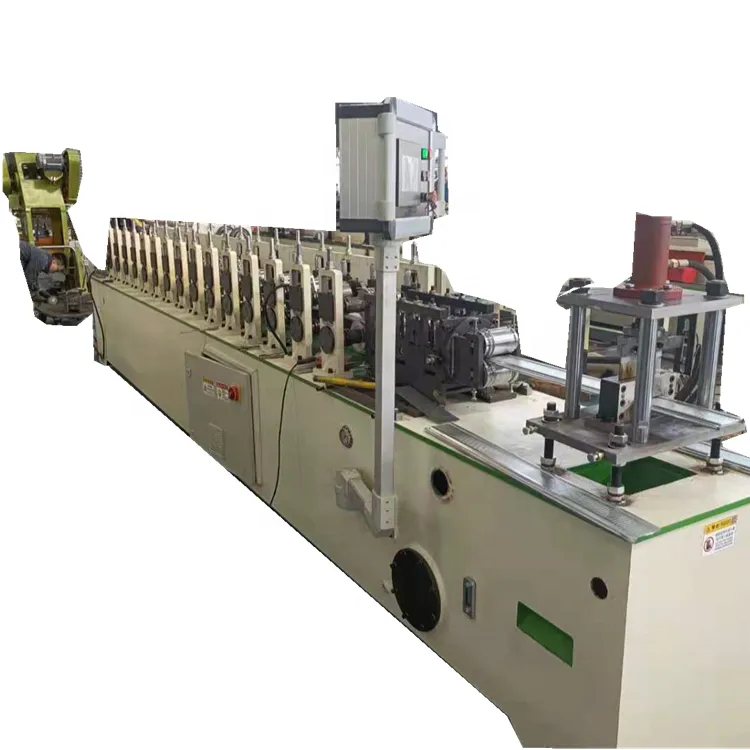

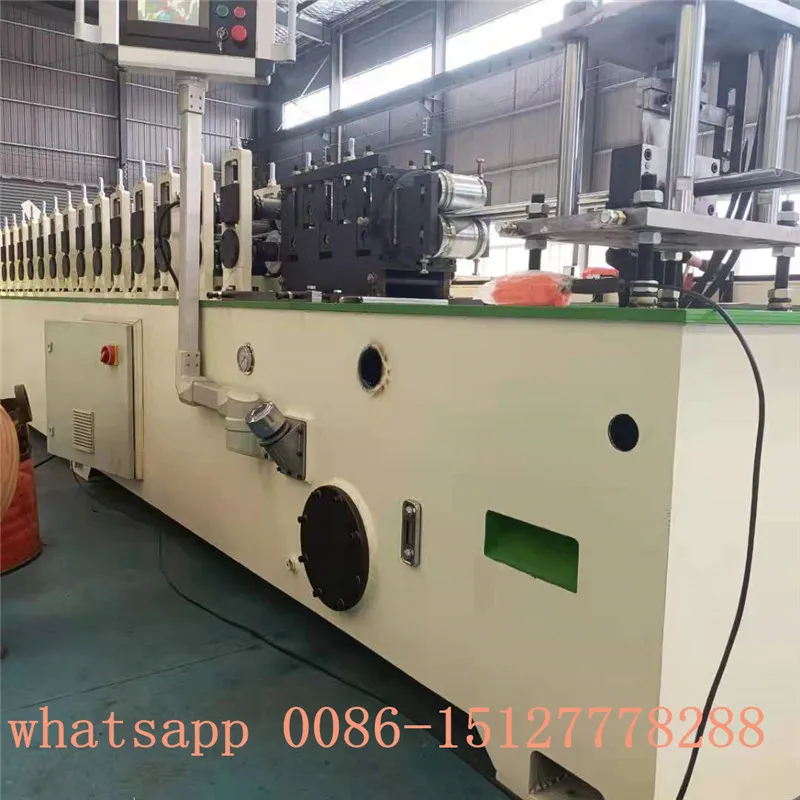

      2. Pictures of rolling shutter slat making machine

      Compared with the old roll forming machine, our latest rolling shutter slat making machine has many advantages.

      (1) We use one-piece frame for the machine body and is easy to realize quick change for rollers for different profiles;

      (2) For PLC part, we introduce motion controller to guarantee the high precision and all our motor are changed into Siemens with servo motor;

      (3) For transmission part, we adopt gear transmission, ensuring the precision and life span of the machine;

      (4) For the cutting part, most of them are hydraulic cutting.

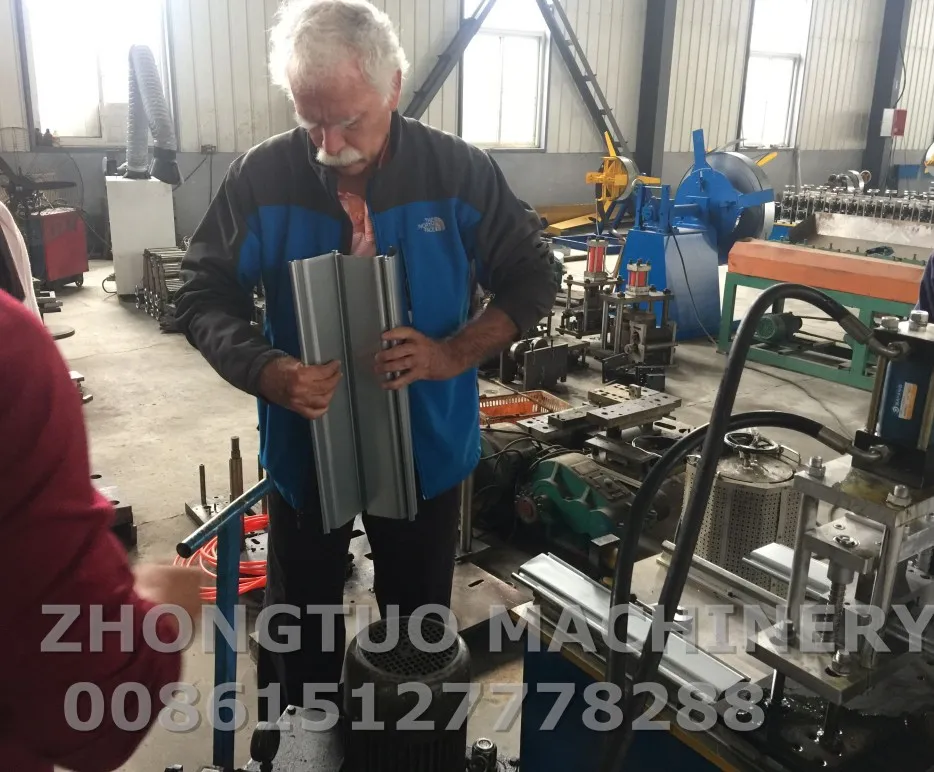

      The customer come to check the machine when the machine is ready, we start the machine and produced several pieces which is in different length.

      First, we will check the product dimension

      Second, will check the product connection

      Third, will check the cutting length

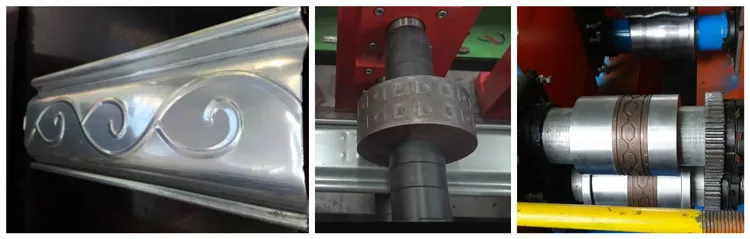

      3. we also can make the embossing on the product, one more embossing station is available.

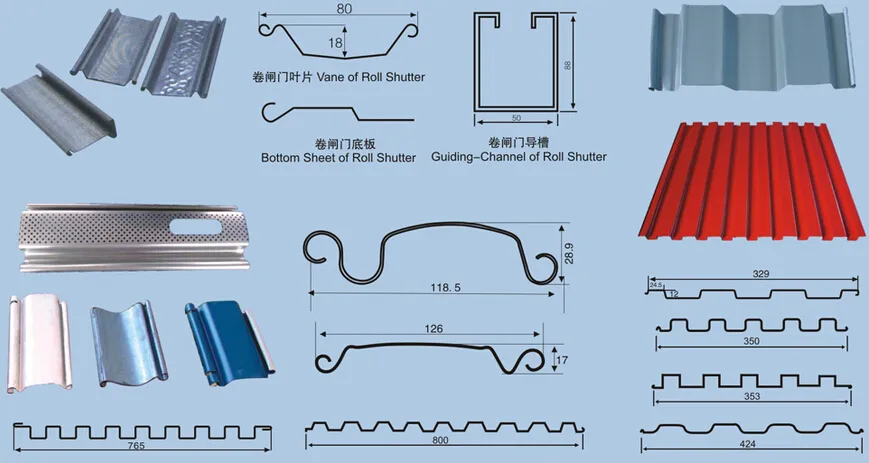

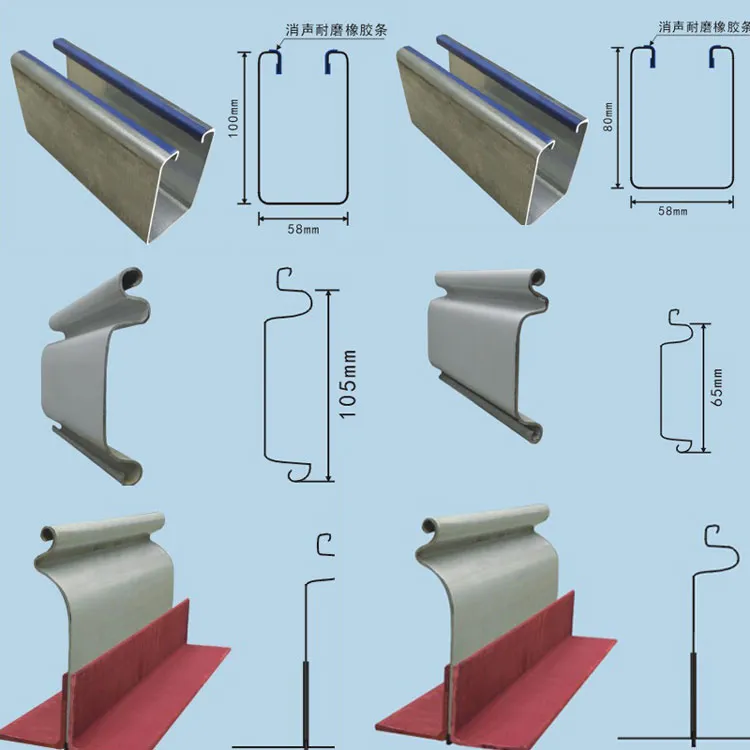

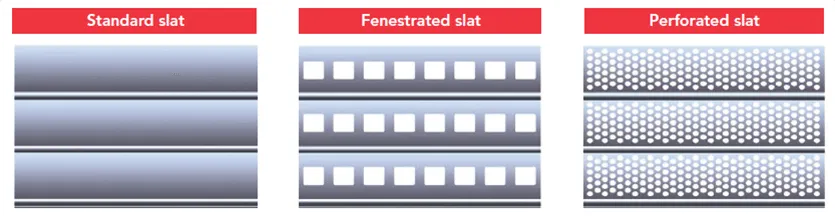

      Here we recommend some regular types for your reference, also can be customized.





      Our Services

      1. We can give you the guarantee by money, you can take the machine first without balance and try the quality.

          Meanwhile, can help customer solve the fund issue.



      2. Because the machine is customized, the customers will provide us the profile drawing by themselves.

          But some customers don't have such profile drawings, then we can recommend the model types according to the local market standard.



      3. We can operate the machine with material before the customer put order if you come to my factory.



      4. Both the sale person and technician can give you the service overseas and make training for the workers,

          the sale person can make translation, so that the installtion and training will be more clear and easily.



      5. We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.



      6. The machine will be tested before shipment with coil, ensure everything is ready





      7. We will be at your service always, our customres can get in touch with us anytime, even have the time difference.

      FAQ



      1. How to get a quotation?

       a.Give me the profile drawing and thickness,this is the important.

       b.Other spicific requirements is welcome,such as the speed,power and voltage you want.

      c. If you don't have your own profile drawing, we can recommend some model types according to your local market standard.



      2. Terms of payment:

      30% advance payment first by T/T, Balance will be paid before shipping after inspection.

      The balance payment can be paid by LC, and we can accept the full payment by LC also.

      Meanwhile, we can ship the machine to you without balance payment.

      You can pay us the balance payment till you receive the machine.



      3. Are you trade company or factory?

      We are the one based on factory and international trade,

      we have our own design concept for the machines and have optional solutions for machine concept according the customer's request.



      4. What can you do if the machine broken?

      Our machine's warranty period is 12months,if the broken parts can't  be repaired,we can send  new to replace for free,but you need to pay the express cost yourself.after warranty period,we can negotiate to solve the problems,

      we supply the technical support for the whole life of the equipment.



      other products

      We are the manufacturer for various cold roll forming machines, here I can show you some model types.

      1. Roof profile sheet roll forming machine

          Trapezoidal profile roofing sheet machine

          Corrugated profile roof sheet forming machine

          Glazed tile roofing sheet forming machine

          Double layer roll forming machine



      2. Partition and ceiling roll forming machine

          CU channel roll forming machine

          Omega/furring roll forming machine

          Wall angle roll forming machine



      3. Floor decking roll forming machine



      4. CZ purlin roll forming machine



      5. Highway gurdrail roll forming machine



      6. Water downspout pipe forming machine



      7. Strut channel roll forming machine



      8. Upright rack roll forming machine



      9. Deformed profile roll forming machine





        If you want to know more ,please copy and paste the link into your web browser.

         https://www.youtube.com/channel/UCea3FfE-LRSPhycSuiY4snA
