The safety performance of the rolling shutter door is verygood, and it has a very good function of setting up the theft prevention.

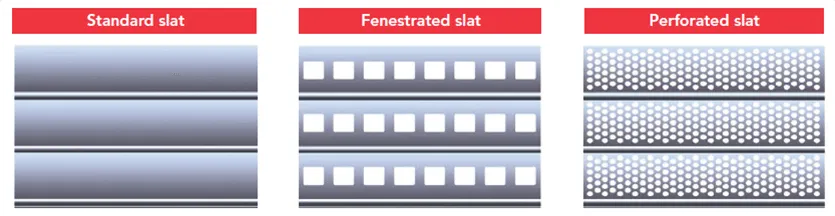

It is widely used in the production enterpriseorin the workshop.There are three types of rolling shutter strip.






1. Specifications of rolling shutter slat making machine

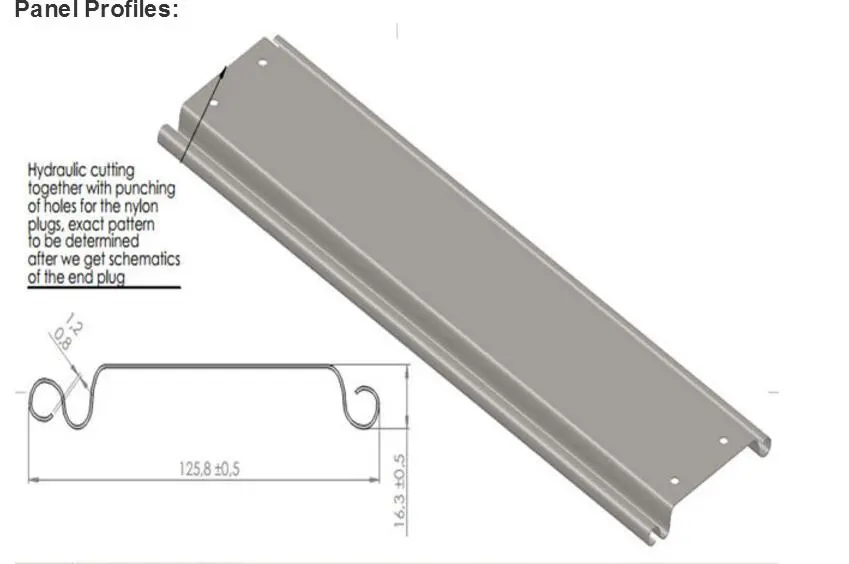

Take the following drawing for example, there are two holes on the shutter slat,
our rolling shutter strip making machine adopts punching two holes and cutting at the same time.


technical parameters of rolling shutter slat making machine
| 1 | suitable material | galvanized steel |
| 2 | product size | 85 mm (depends on customer's request) |
| 3 | feeding width | depends on the product profile |
| 4 | rolling station | 14 stations |
| 5 | diameter of rolling shaft | 50 mm |
| 6 | motor power | 5.5 kw |
| 7 | PLC brand | Delta |
| 8 | working speed | 20 m/min |
| 9 |
cutting length |
+/- 1mm |
| 10 | material of roller | Cr12 |
| 11 | main frame | steel plate welded |
| 12 | voltage | 220/380/440V-50HZ-3Phase |
| 13 | weight | 2.2 tons to 4 tons |
| 14 | cutting way | hydraulic tracking cutting |

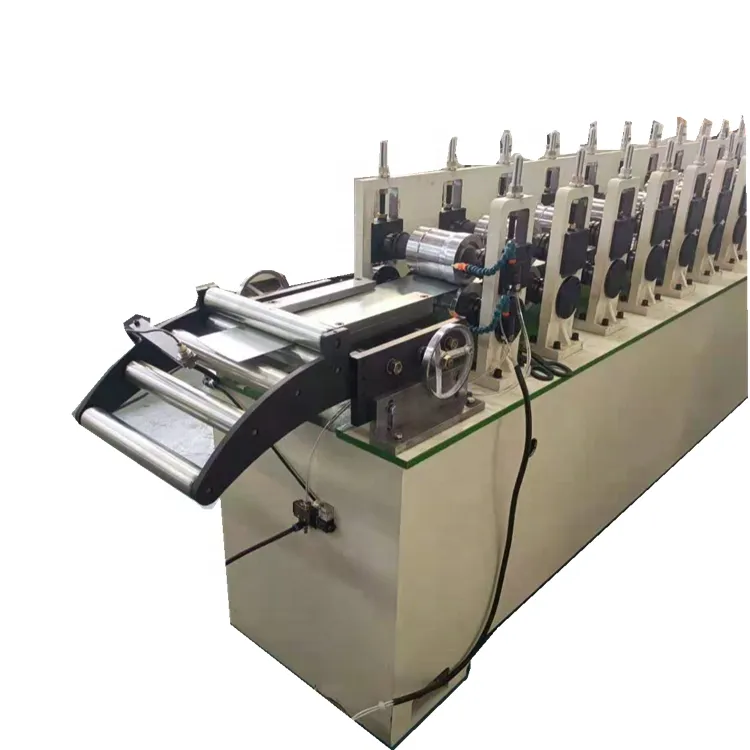

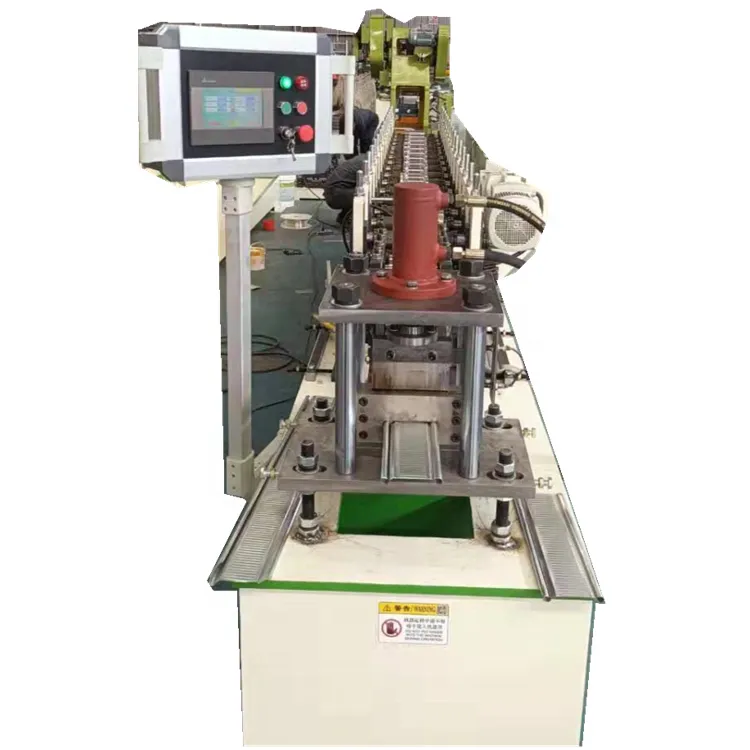

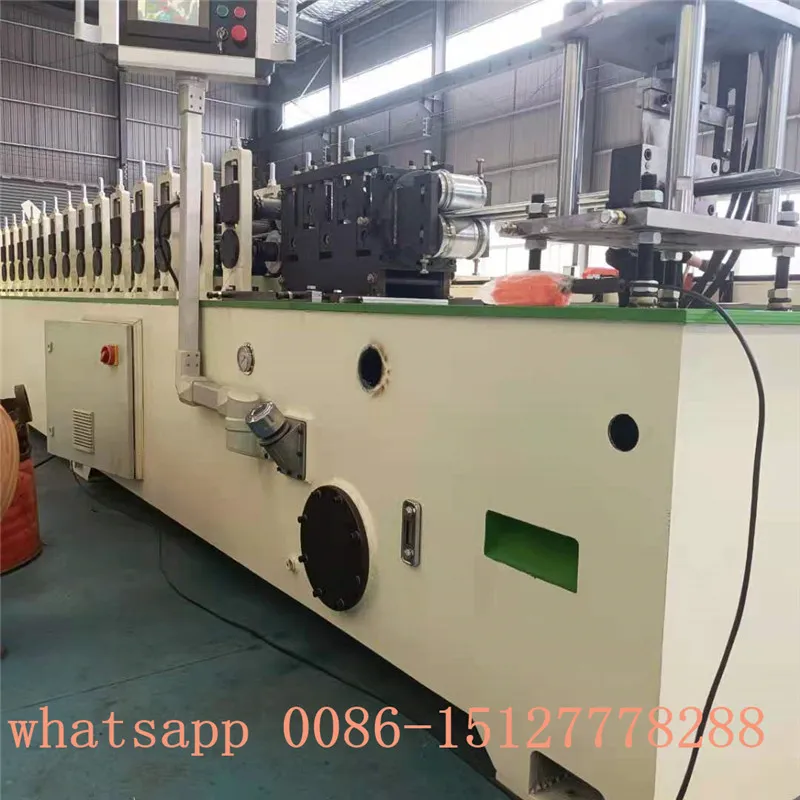

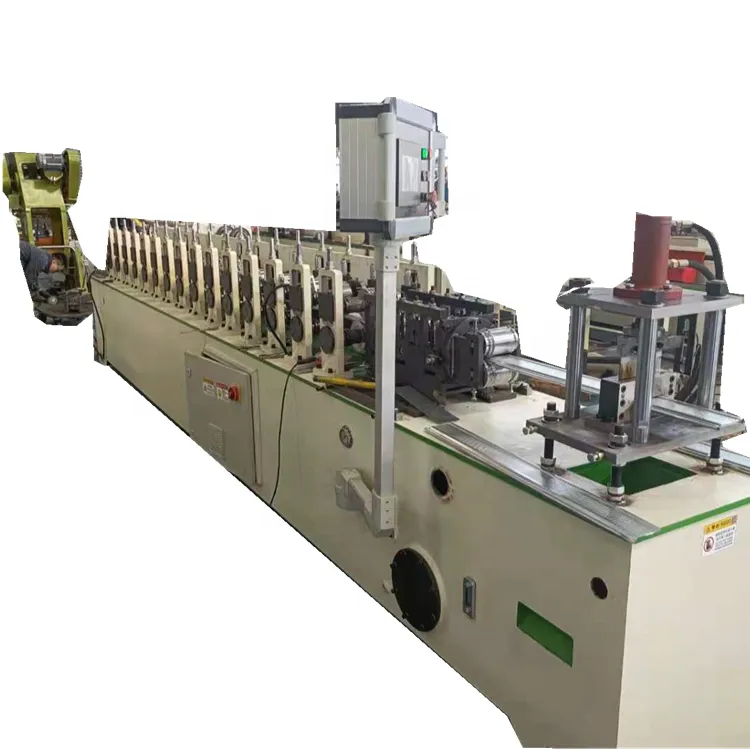

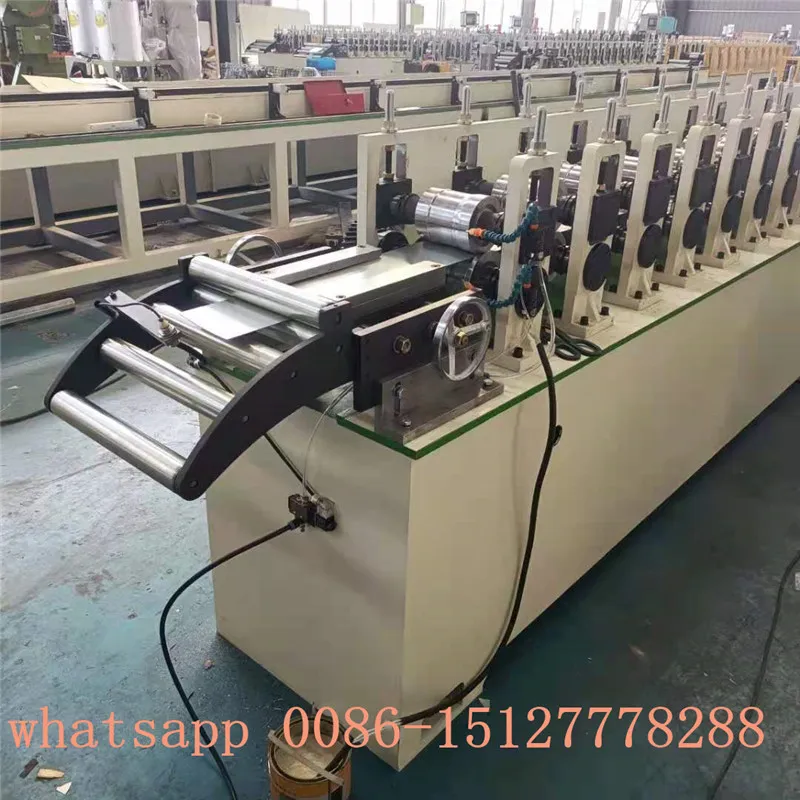

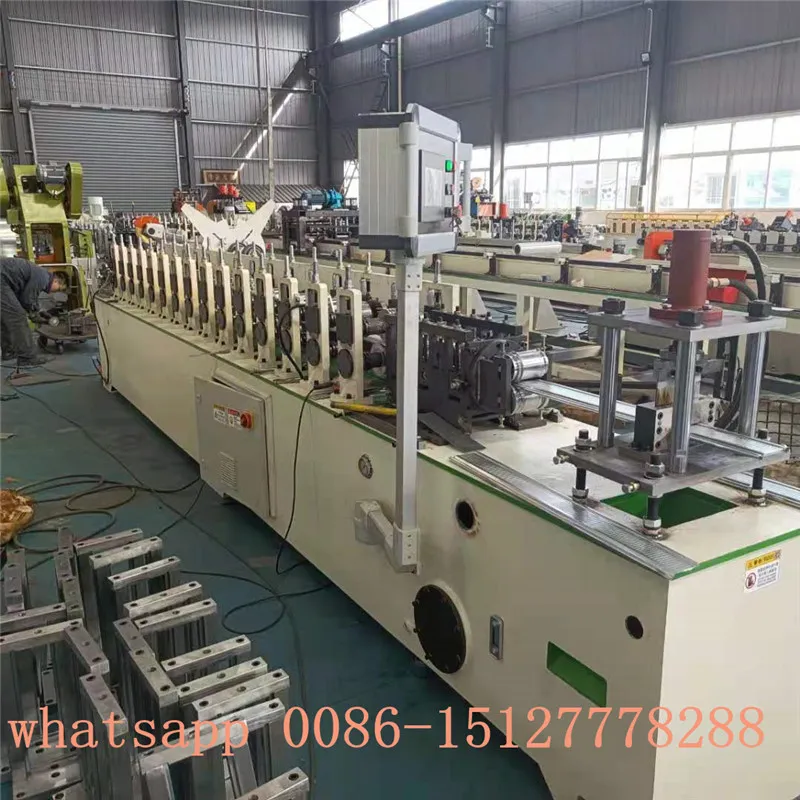

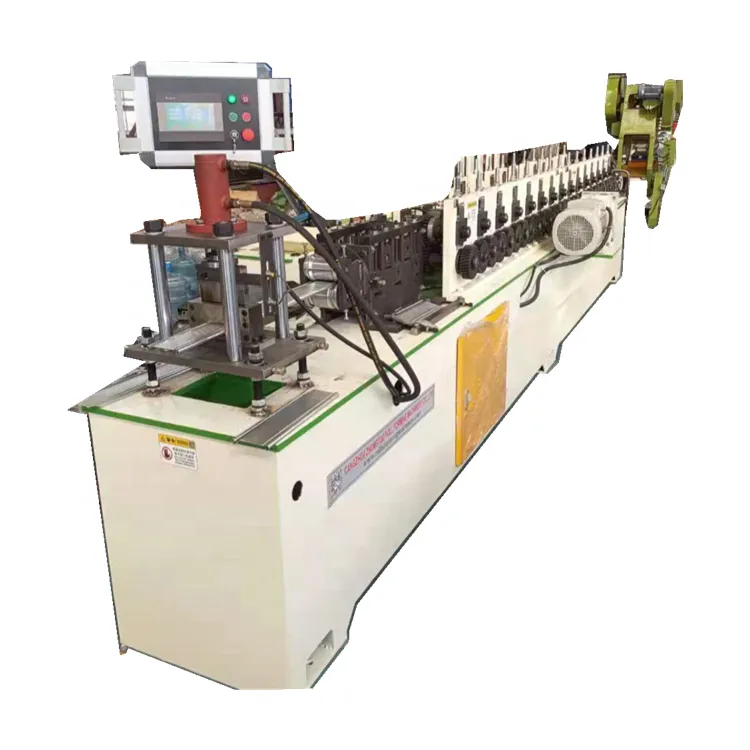

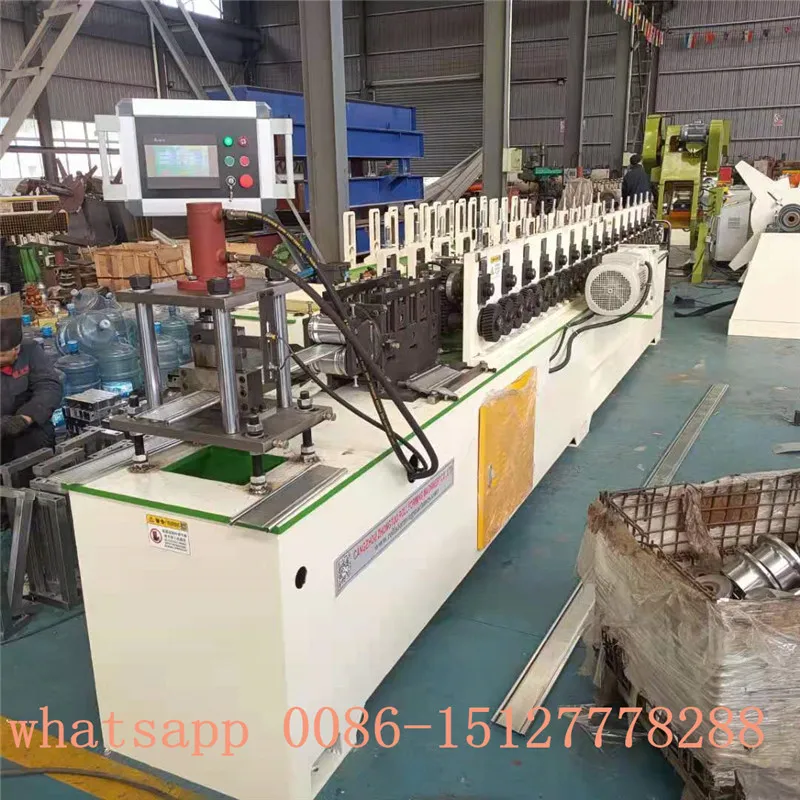

2. Pictures of rolling shutter slat making machine
Compared with the old roll forming machine, our latest rolling shutter slat making machine has many advantages.
(1) We use one-piece frame for the machine body and is easy to realize quick change for rollers for different profiles;
(2) For PLC part, we introduce motion controller to guarantee the high precision and all our motor are changed into Siemens with servo motor;
(3) For transmission part, we adopt gear transmission, ensuring the precision and life span of the machine;
(4) For the cutting part, most of them are hydraulic cutting.

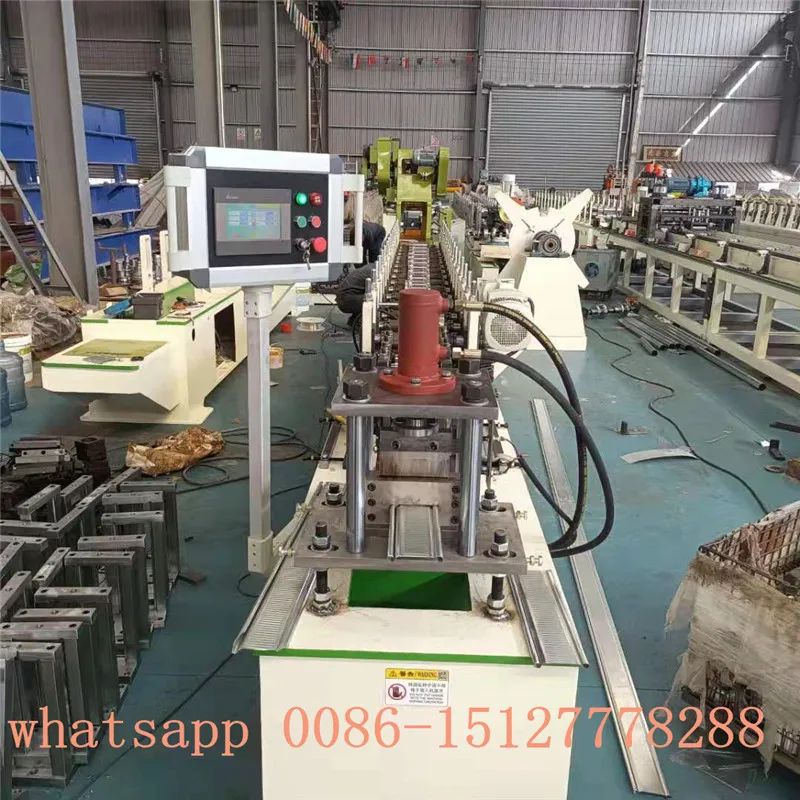

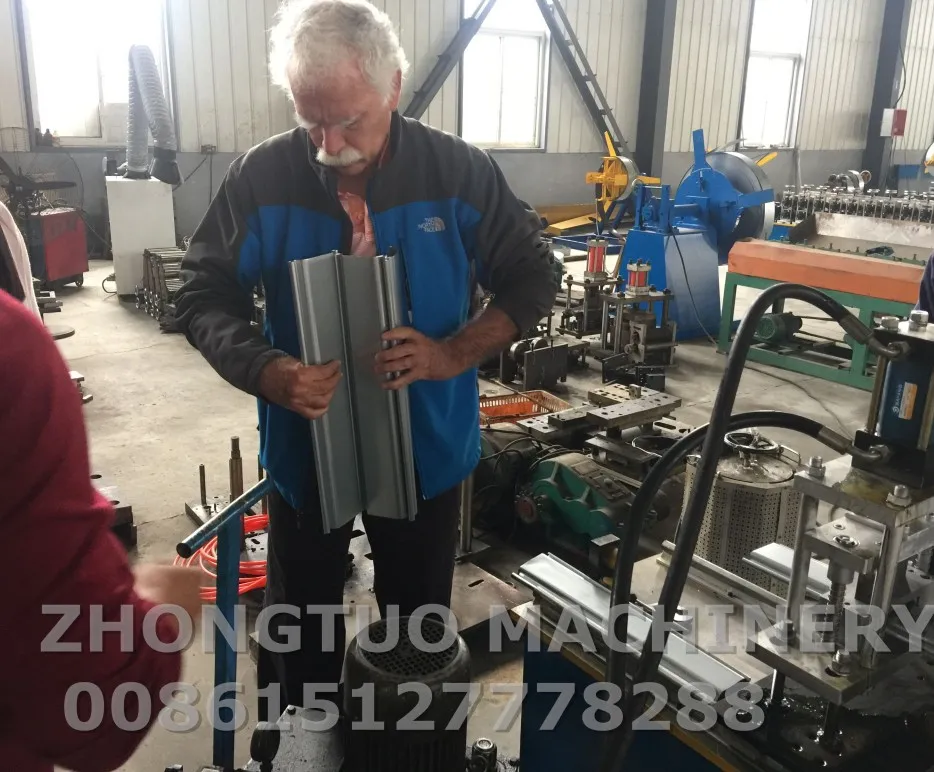

The customer come to check the machine when the machine is ready, we start the machine and produced several pieces which is in different length.
First, we will check the product dimension
Second, will check the product connection
Third, will check the cutting length

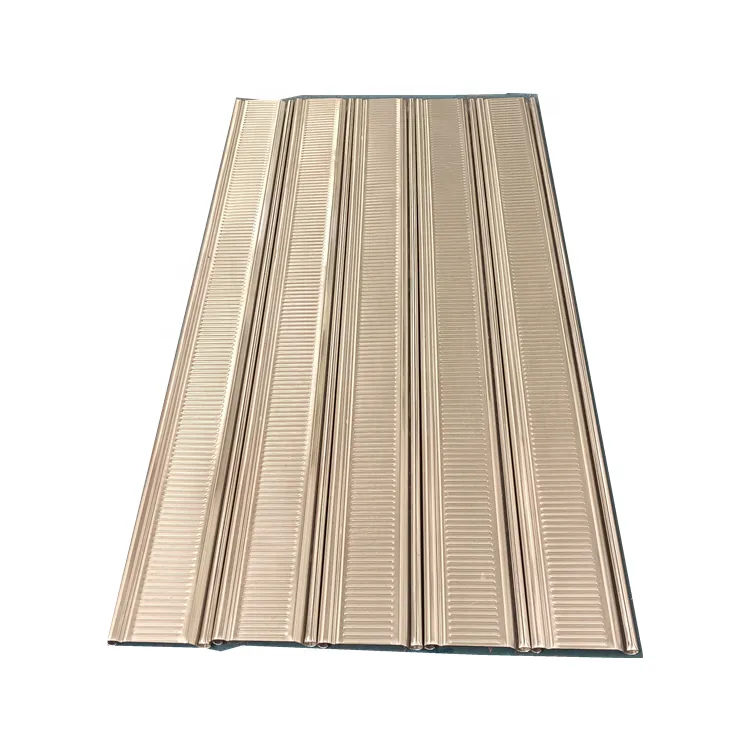

3. we also can make the embossing on the product, one more embossing station is available.

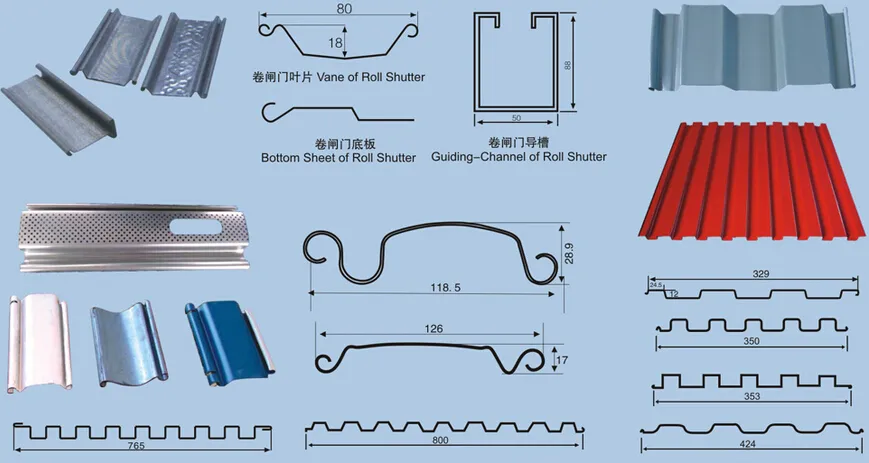

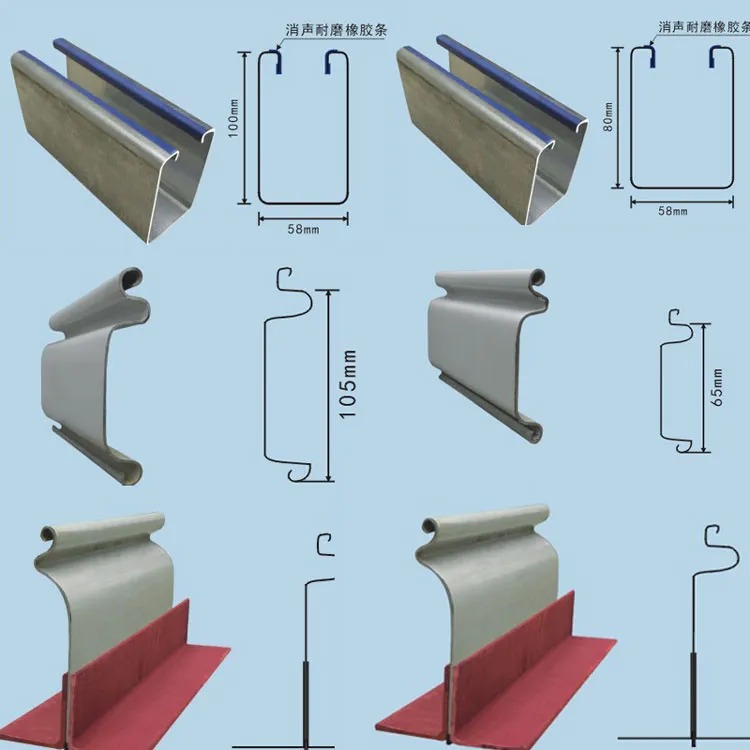

Here we recommend some regular types for your reference, also can be customized.



1. We can give you the guarantee by money, you can take the machine first without balance and try the quality.
Meanwhile, can help customer solve the fund issue.
2. Because the machine is customized, the customers will provide us the profile drawing by themselves.
But some customers don't have such profile drawings, then we can recommend the model types according to the local market standard.
3. We can operate the machine with material before the customer put order if you come to my factory.
4. Both the sale person and technician can give you the service overseas and make training for the workers,
the sale person can make translation, so that the installtion and training will be more clear and easily.
5. We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.
6. The machine will be tested before shipment with coil, ensure everything is ready
7. We will be at your service always, our customres can get in touch with us anytime, even have the time difference.
1. How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
c. If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
2. Terms of payment:
30% advance payment first by T/T, Balance will be paid before shipping after inspection.
The balance payment can be paid by LC, and we can accept the full payment by LC also.
Meanwhile, we can ship the machine to you without balance payment.
You can pay us the balance payment till you receive the machine.
3. Are you trade company or factory?
We are the one based on factory and international trade,
we have our own design concept for the machines and have optional solutions for machine concept according the customer's request.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.after warranty period,we can negotiate to solve the problems,
we supply the technical support for the whole life of the equipment.
