Automatic F5 F8 Style Iron Angle Roof Flashing Metal Roofing Trim V Profile Drip Edge Roll Forming Machine for North America 0-45m/min+DP-1+customized

Name: Automatic F5 F8 Style Iron Angle Roof Flashing Metal Roofing Trim V Profile Drip Edge Roll Forming Machine for North America 0-45m/min+DP-1+customized
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT72905854

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

0-45m/min

Model Number:

DP-1

Max. Working Width:

customized

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
12Mpa
Voltage
380 V, 440 V, 220V Electrical Equipment, 380V
Power(W)
11kw

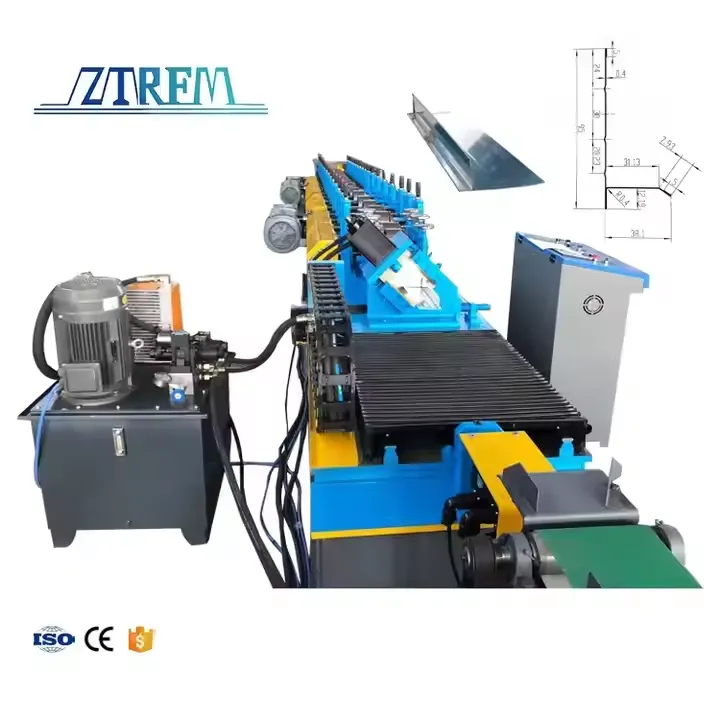

Automatic F5 F8 Style Iron Angle Roof Flashing Metal Roofing Trim V Profile Drip Edge Roll Forming Machine for North America

Drip edge protects the fascia as it keeps water from running behind the gutter. Eliminates stained siding and rotted roof sheathing and fascia.
Used as a starter strip and provides an edge to line up the roof.

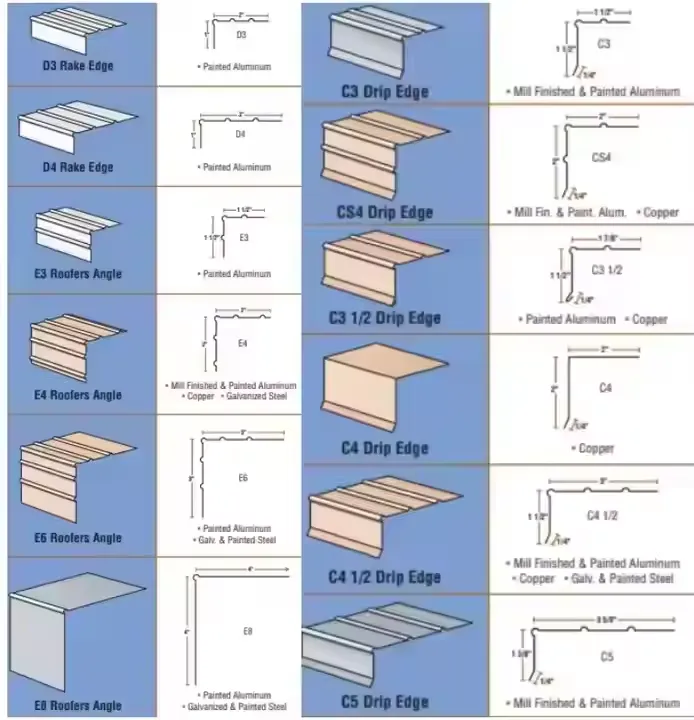

Profile drawing for reference:

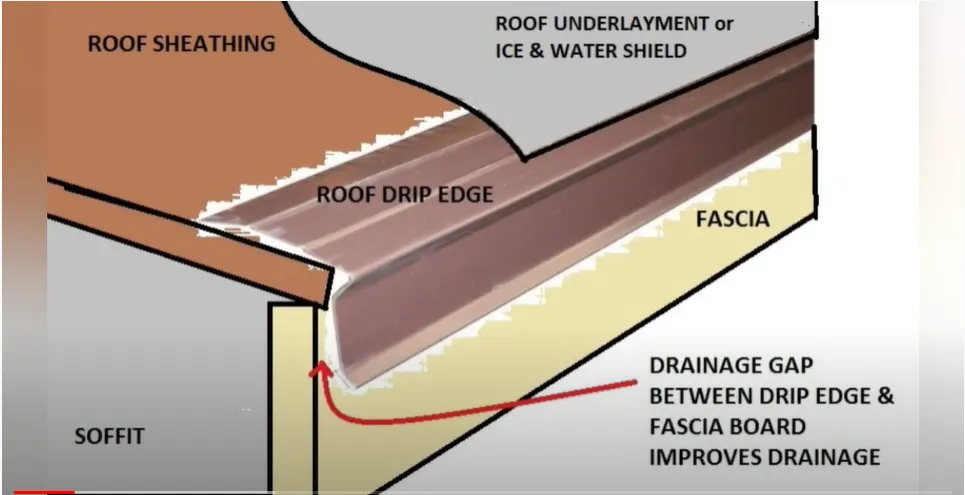

The application of the finished product:

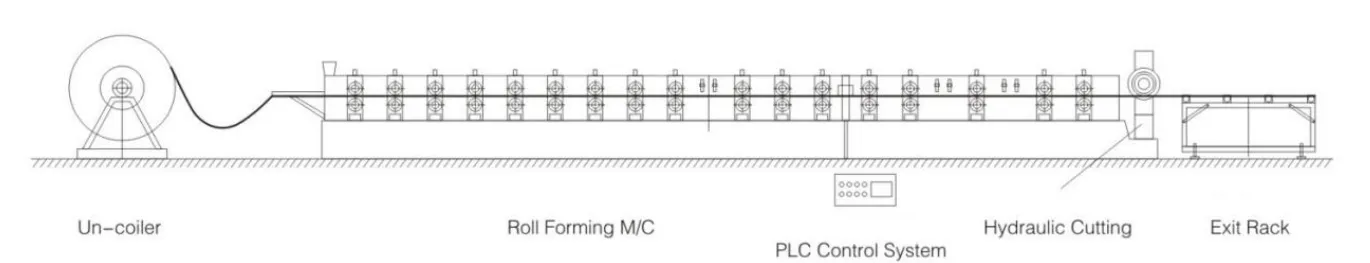

Working flow as below:

Automatic F5 F8 Style Iron Angle Roof Flashing Metal Roofing Trim V Profile Drip Edge Roll Forming Machine for North America
1.Formed Material	Galvanized Steel Sheet	Thickness:0.5-1.2mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free）
3.Main body	Roller station	14 rows(As your requirement)
		Diameter of shaft	50mm solid shaft
		Material of rollers	45# steel, hard chrome plated on the surface
		Machine body frame	Metal steel welded
		Drive	Chains drive
		Dimension(LWH)	490010001500mm
		Weight	About 7T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	11KW
5.Power		Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
		Language	English(Support multiple languages)
		PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-45m/min(customized)	The speed depends on the shape of the tile and the thickness of the material.

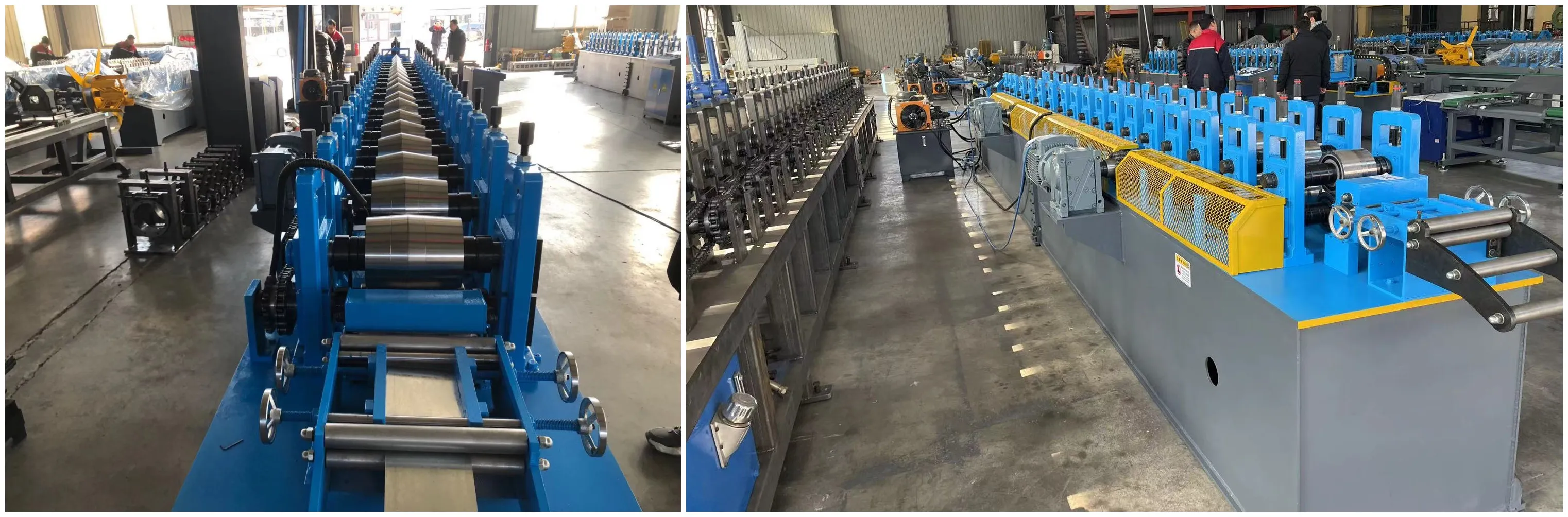

Our machine frame use vertical iron casting frame to ensure stable running, and use chains driving.
Will have protective cover box on it.

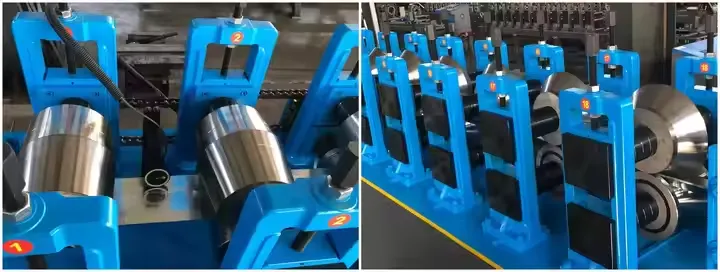

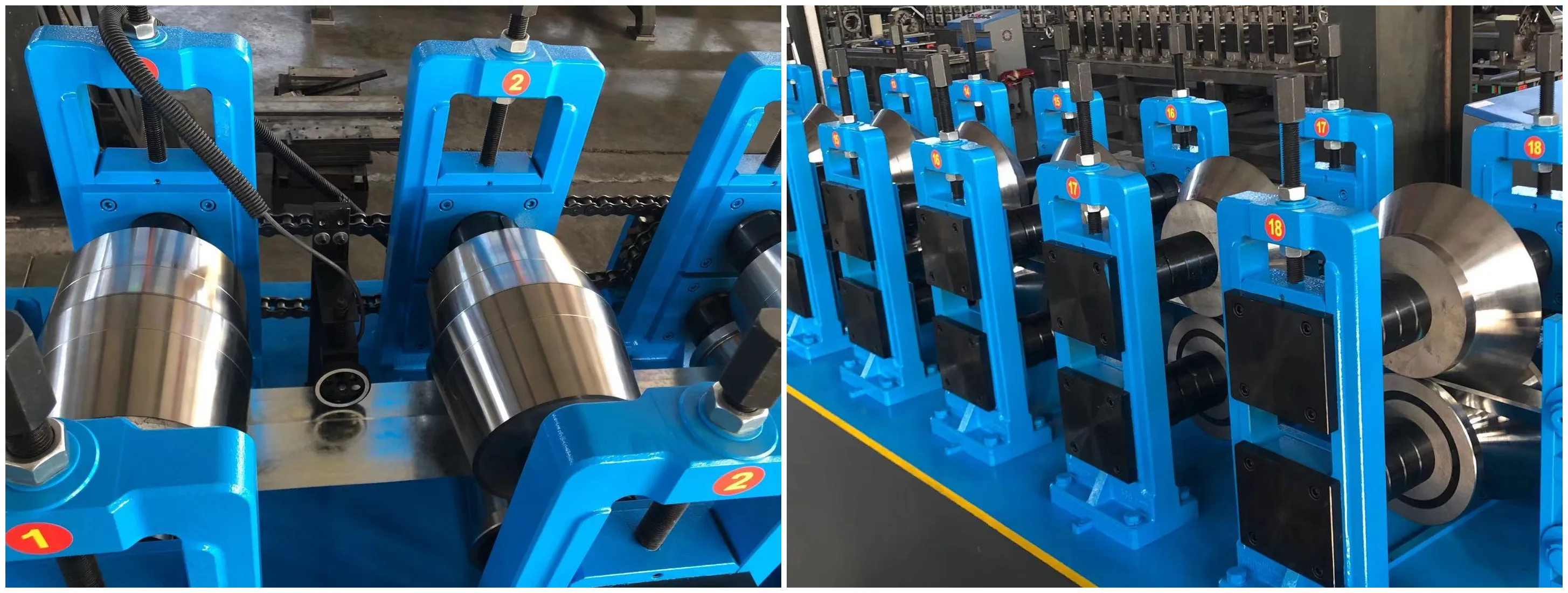

The roller use Cr 12 material, this kind of material hardness is more higher than other kind of material, then can provide more longer service life.
The rollers have heat treatment, chromed treatment, quenched treatment to ensure it's quality.

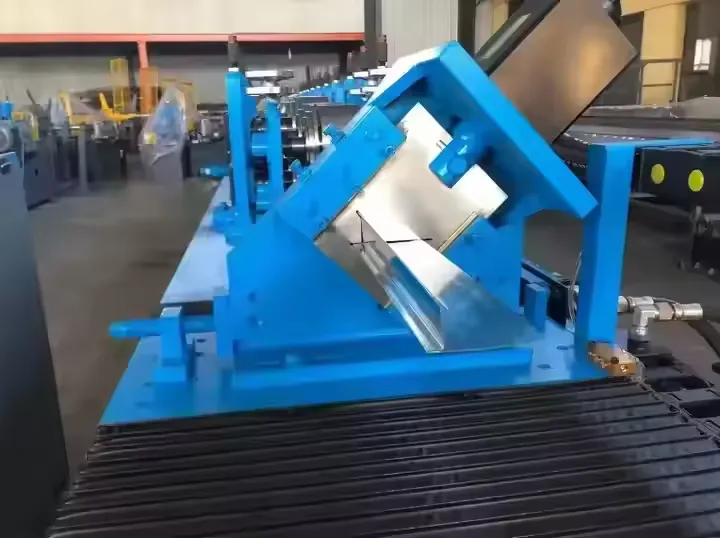

For the cutting device, we adopt tracking cutting to imporve the cutting speed, the machne speed max can reach to 40 m/min.

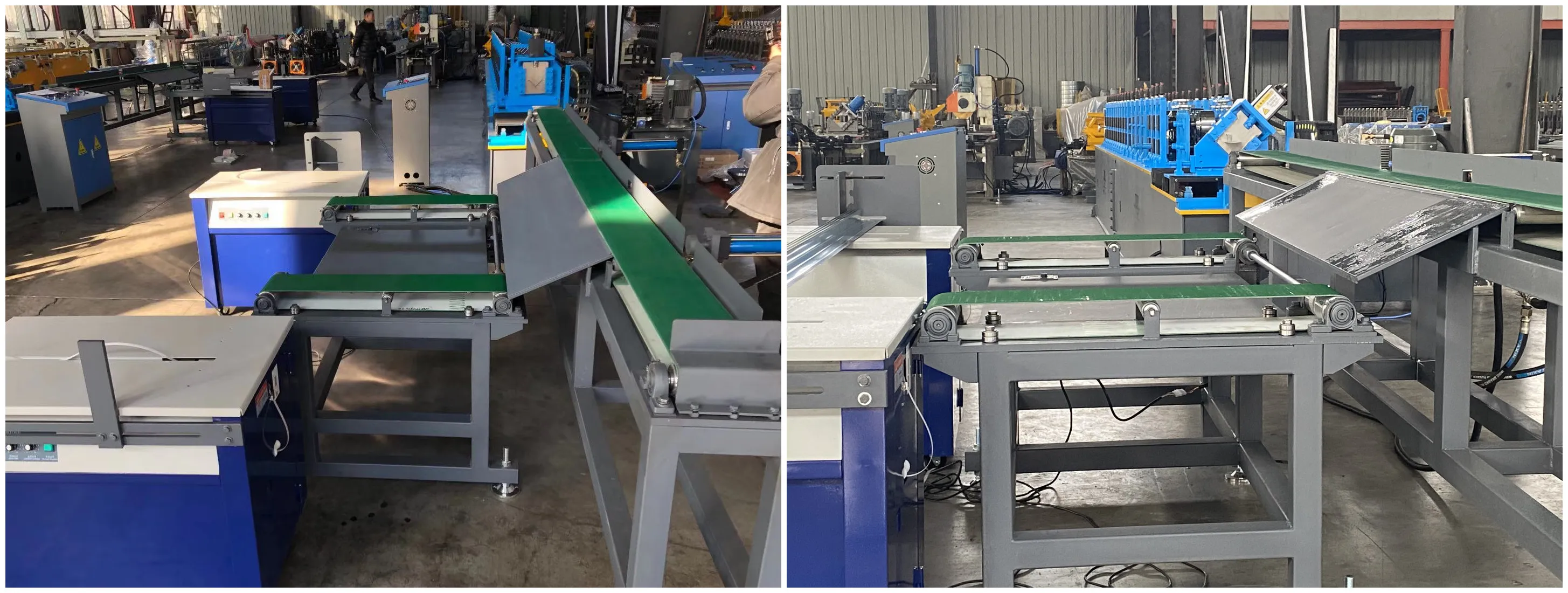

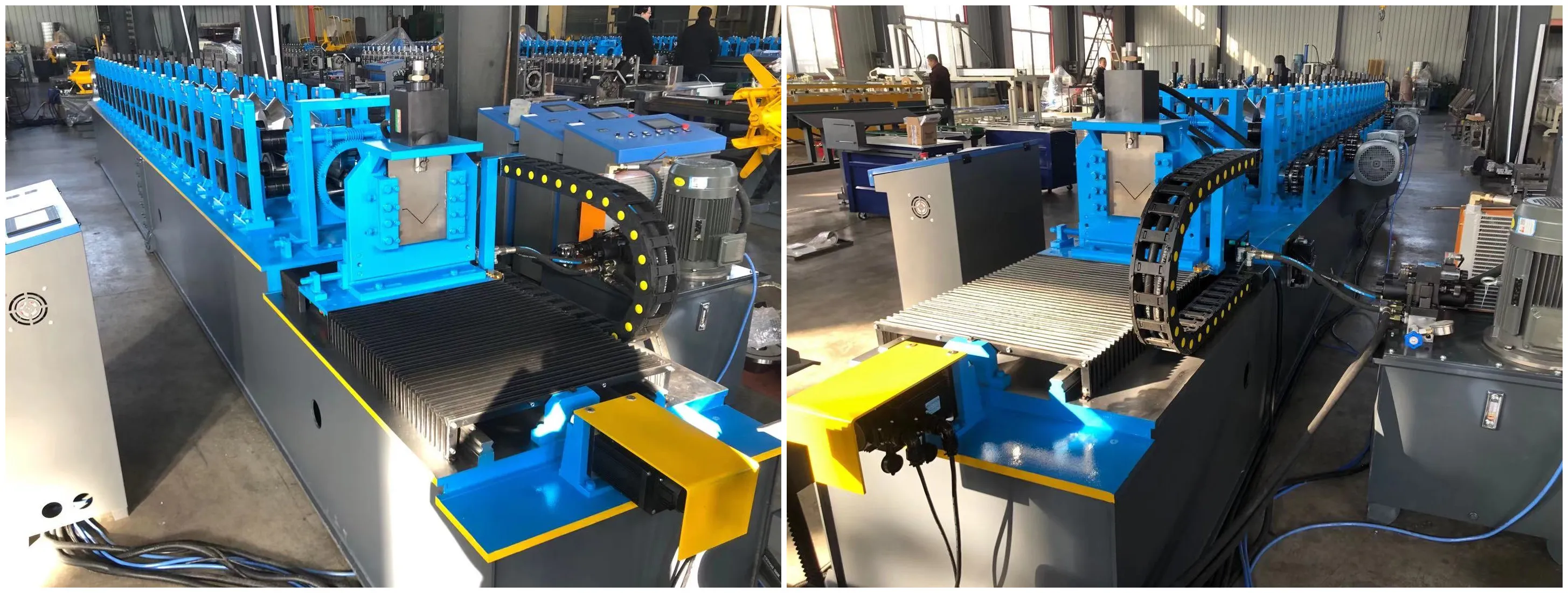

About the product collect tablel and packing device, we adopt automatic type.
The product collect table can transfer the product automatically to packing table.
