Automatic Exterior Wall Cladding Panel Roll Forming Machine | Steel Facade Cladding Making Machine with PLC Control

Full production line overview – decoiler, multi-station forming unit, hydraulic cut-off

✔ High Precision ±0.5mm ✔ PLC Auto Control ✔ Chain-Driven Forming ✔ Hydraulic Flying Cut-off ✔ Customizable Profile ✔ GI / PPGI / Aluminum

Product Overview

The Exterior Wall Cladding Panel Roll Forming Machine is a fully automated cold-roll forming production line engineered for the high-speed, continuous manufacturing of metal exterior wall cladding panels (facade panels). By feeding galvanized steel, pre-painted steel (PPGI), or aluminum coil into the machine, it progressively bends and forms the material through multiple hardened roller stations to produce finished wall cladding profiles with consistent dimensions and surface quality.

Widely used by building material manufacturers, steel structure contractors, facade system suppliers, and prefabricated housing producers, this machine delivers outstanding throughput while minimizing labor costs and material waste. The intelligent PLC + touch-screen HMI control system allows operators to program profile lengths, quantities, and forming speeds digitally — enabling fast changeovers and consistent batch quality with minimal training.

The production line as shown comprises a manual/hydraulic decoiler, feed guide & leveler, multi-station chain-driven roll forming unit, worm-gear width-adjustment mechanism, hydraulic flying cut-off die, and run-out support table — a complete turnkey solution ready for immediate production.

Machine Details – Photo Gallery

① Complete Production Line & Decoiler Unit The overall production line is built on a heavy-duty welded steel base frame, ensuring vibration-free operation during high-speed forming. The front-end decoiler (uncoiler) — featuring dual-spoke wheel support and a manual tension screw — holds steel coils up to the rated capacity and feeds the strip into the line at a controlled, consistent tension. The spacious factory layout visible in the background reflects an experienced, large-scale manufacturer with multiple production lines operating simultaneously.

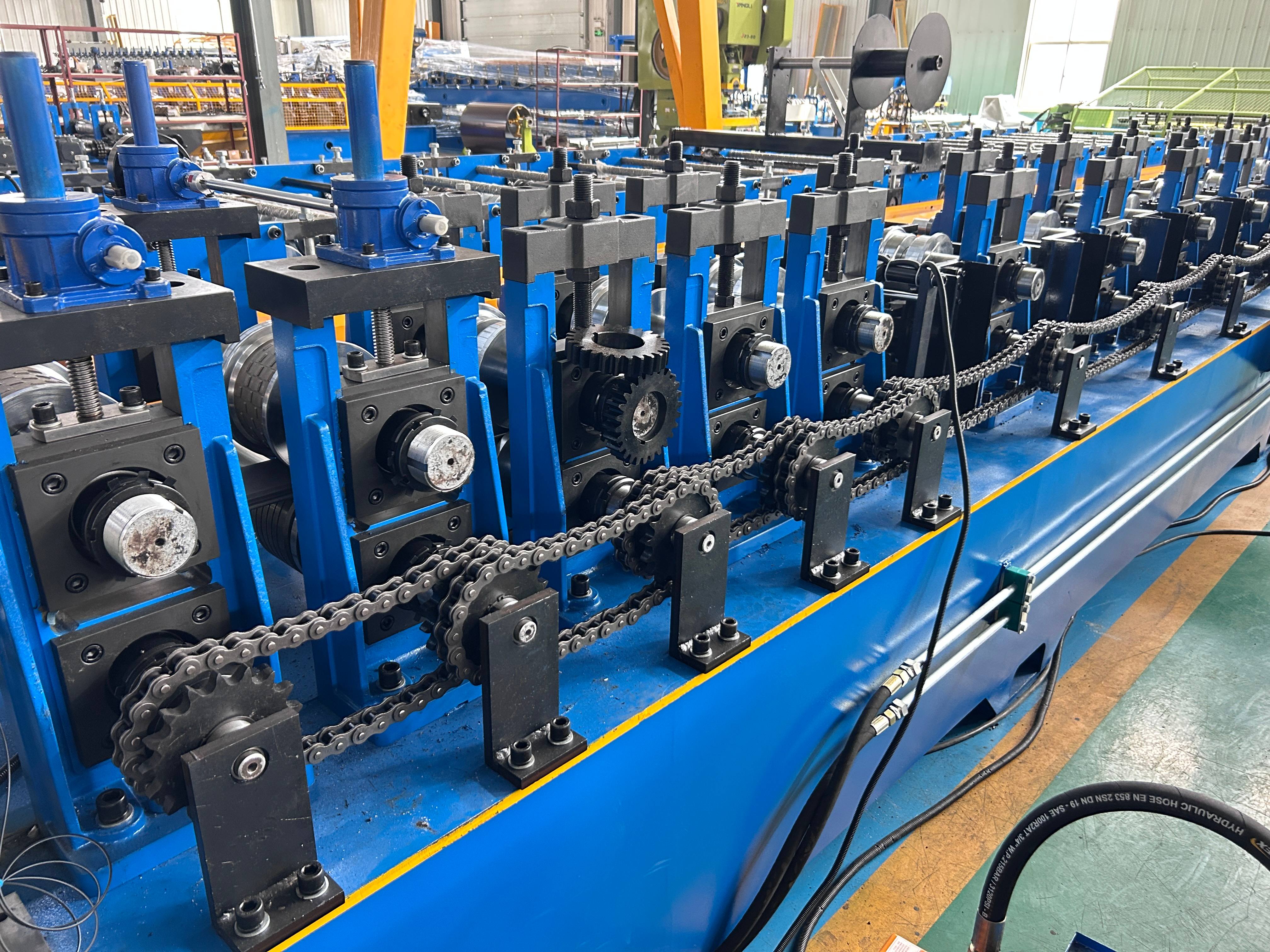

② Chain-Driven Forming Roller System This close-up shows the multi-station chain-driven roller transmission system. Premium-grade double-row roller chains connect all forming shafts in series, delivering synchronized, low-noise power transmission across every station. Each forming shaft is supported by precision bearings mounted in machined cast housings. The forming rollers are manufactured from 45# steel with hardened & ground surfaces (HRC 58–62), guaranteeing dimensional accuracy and a long tooling service life of 5+ years under normal production conditions.

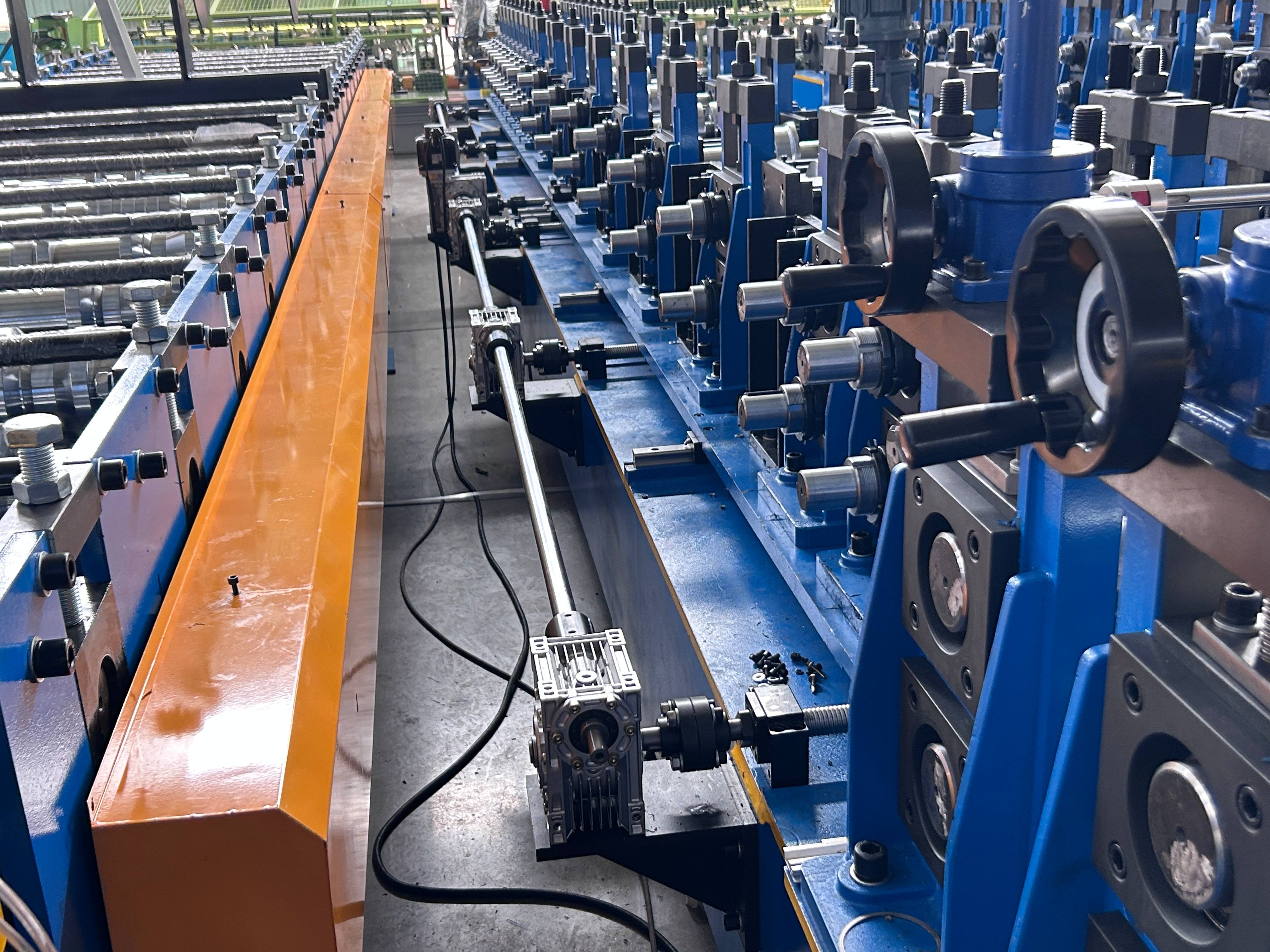

③ Worm-Gear Width Adjustment Mechanism & Profile Output The worm-gear screw adjustment mechanism (visible at right with handwheel) enables quick and precise width adjustment of the forming stations. A single handwheel rotation simultaneously adjusts both sides symmetrically — no special tools required. This allows changeovers between different cladding widths in under 30 minutes. The formed wall cladding panel (shown in orange/gold on the left guide rail) exits the forming unit with a clean, sharp profile and consistent surface finish — ready for immediate stacking or packaging.

④ Multi-Station Forming Unit – Overhead View This aerial-angle view shows the density and precision of the forming stations arranged along the machine bed. Each station introduces an incremental bend to the strip, gradually achieving the final wall cladding profile shape without overstressing the material or damaging surface coatings. The blue anodized machine frame is constructed from heavy-gauge structural steel (wall thickness ≥16mm), providing a rigid, vibration-resistant foundation that maintains roller alignment over years of continuous operation.

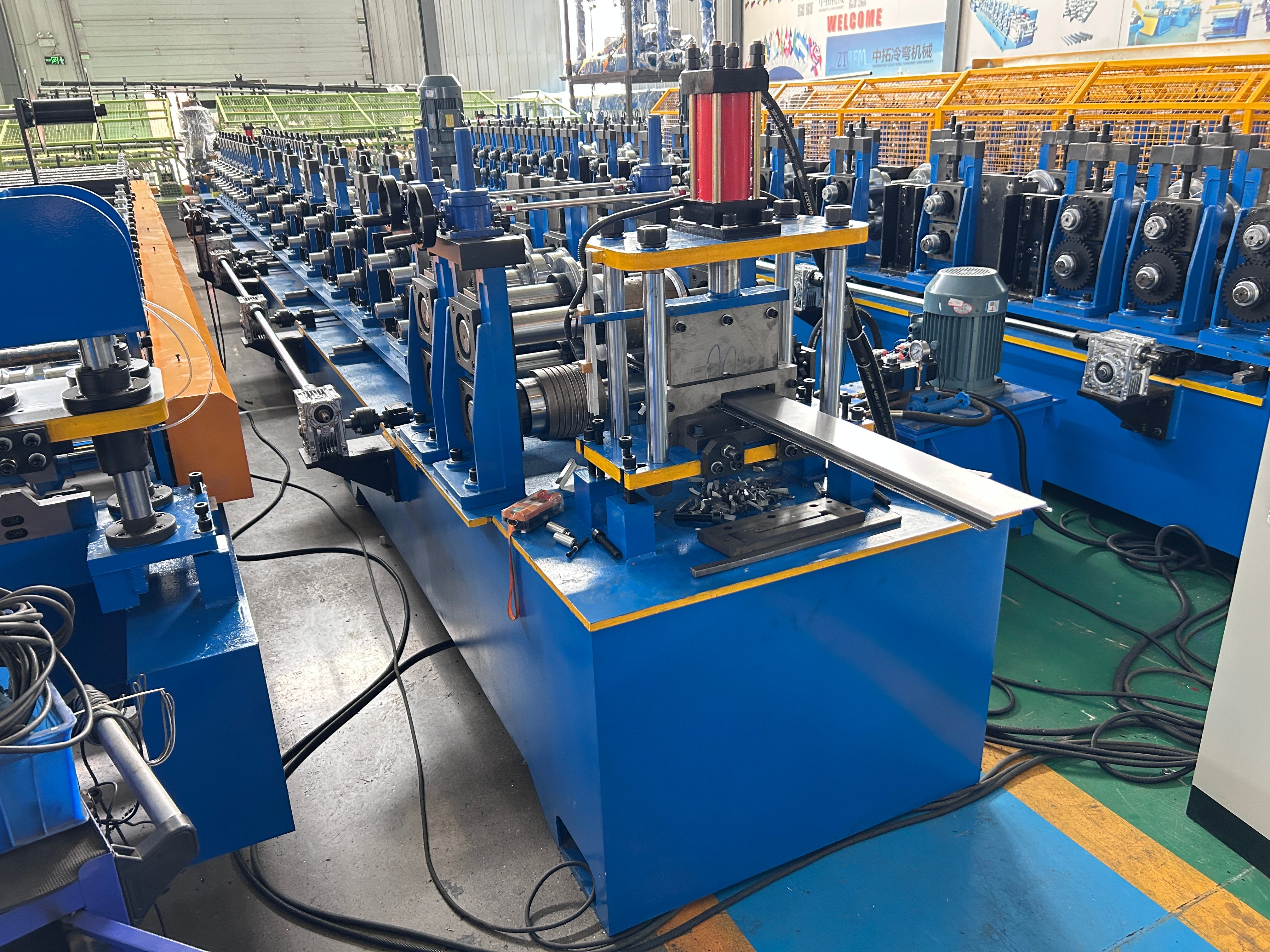

⑤ Hydraulic Cut-off Unit & PLC Control Station The hydraulic flying cut-off system (red hydraulic cylinder visible at top) delivers clean, burr-free cuts at any programmed length without stopping the forming line. The die moves synchronously with the strip during cutting, eliminating end deformation and maintaining full production speed. The PLC intelligent control cabinet (right side, with motor and gearbox) manages all machine functions via a touch-screen HMI interface — including forming speed, cut length, batch count, fault alerts, and emergency stop — enabling one-operator production with minimal downtime.

Technical Specifications

Parameter	Standard Value	Notes
Product Name	Exterior Wall Cladding Panel Roll Forming Machine	Also: Facade Panel Making Machine
Applicable Material	GI, PPGI, Aluminum Coil, Galvalume (GL)	Other coated steels on request
Material Thickness	0.3 – 1.5 mm	Customized range available
Forming Speed	15 – 30 m/min	Varies by profile complexity
Dimensional Tolerance	±0.5 mm	High precision output
Number of Forming Stations	16 – 24 stations	Based on profile design
Roller Material	45# Steel, HRC 58–62 hardened & ground	5+ year service life
Drive System	Chain transmission (double-row roller chain)	Low noise, high efficiency
Width Adjustment	Worm-gear handwheel, bilateral synchronous	Changeover <30 min
Cutting Method	Hydraulic flying cut-off	No deformation, no production stop
Control System	PLC + Touch Screen HMI	Auto length, quantity, fault alert
Main Motor Power	5.5 – 11 kW	Depends on line configuration
Hydraulic Station Power	3 – 4 kW	Drives hydraulic cut-off
Power Supply	380V / 50Hz / 3-Phase	Custom voltage available
Machine Frame	Heavy-duty welded steel, wall thickness ≥16mm	CNC machined after welding
Machine Weight	~4,000 – 7,000 kg	Depends on number of stations
Overall Dimensions (L×W×H)	~9,000 × 1,400 × 1,500 mm	Custom layout available

* All specifications are indicative. Final parameters confirmed at order stage based on project profile drawings.

Production Line Components

#	Component	Specification & Function
1	Manual / Hydraulic Decoiler	Supports steel coils; adjustable tension control; dual-spoke wheel structure for stable unwinding
2	Feed Guide & Leveler	Straightens strip flatness and aligns entry angle before forming; prevents edge wave and center buckle
3	Roll Forming Unit	16–24 progressive forming stations; 45# hardened steel rollers; chain-driven synchronized transmission
4	Worm-Gear Width Adjuster	Handwheel-operated bilateral screw mechanism; simultaneous symmetric adjustment; no tools required
5	Main Drive Motor & Gearbox	5.5–11 kW motor with worm-gear reducer; stable speed output; overload protection built-in
6	Hydraulic Flying Cut-off	Hydraulic cylinder + die-set moves with strip at production speed; clean cut, no deformation, no line stop
7	PLC + HMI Control Cabinet	Touch-screen interface; programmable cut length & quantity; real-time monitoring; fault alarm & E-stop
8	Hydraulic Power Station	3–4 kW hydraulic pump unit; supplies stable pressure to cut-off and optional punching units
9	Run-out Support Table	Receives finished panels after cutting; adjustable height; optional roller-belt conveyor for automated stacking

6 Reasons to Choose Our Machine

Advantage	Detail
🎯 High Precision Output	Dimensional tolerance held at ±0.5 mm across every panel. Hardened & ground rollers maintain accuracy over millions of meters of output — no costly re-tooling between batches.
⚡ Continuous High-Speed Production	Hydraulic flying cut-off means the line never stops during cutting. Forming speeds of 15–30 m/min dramatically increase daily output versus press-brake or batch methods.
🖥️ One-Operator PLC Control	Touch-screen HMI lets a single operator program length, quantity, and speed. Auto-counting, auto-stop, and fault diagnostics eliminate manual measurement and reduce labor costs by up to 60%.
🔧 Fast Profile Changeover	Worm-gear handwheel width adjustment enables changeover between different cladding widths in under 30 minutes — no special tools, no hydraulic tooling cart required.
🛡️ Heavy-Duty Long Service Life	Machine bed of welded structural steel (≥16mm wall), CNC-machined after welding for perfect alignment. Rollers rated for 5+ years of continuous production before re-grinding.
🌍 Full Customization & Global Support	Profile shape, width, thickness range, voltage, and language all customizable to order. On-site installation supervision, operator training, and global spare-parts supply included.

Application Scenarios

Application Sector	Typical Use	End Product
Commercial Buildings	Office towers, shopping malls, hotels, hospitals	Steel facade cladding panels, rain-screen systems
Industrial Facilities	Warehouses, factories, logistics centers, workshops	Wall cladding sheets, insulated panel skins
Residential Buildings	Villas, apartment blocks, townhouses	Decorative exterior wall panels, siding profiles
Prefabricated / Modular Housing	Light-gauge steel frame buildings, container houses	Interlocking cladding panels, hidden-fastener profiles
Public & Infrastructure	Stadiums, airports, railway stations, schools	Large-span facade panels, architectural cladding
Cold Storage & Clean Rooms	Food processing plants, pharmaceutical factories	Insulated sandwich panel skins, hygienic wall panels

Compatible Wall Cladding Profile Types

Profile Type	Common Width	Thickness	Fixing Method
Ribbed / Corrugated Panel	600 – 1,000 mm	0.4 – 0.8 mm	Exposed fastener
Flat / Smooth Panel	200 – 600 mm	0.5 – 1.2 mm	Concealed clip / glue
Interlocking Hook Panel	150 – 300 mm	0.5 – 1.0 mm	Hidden clip system
V-Groove / Batten Panel	150 – 400 mm	0.5 – 1.2 mm	Exposed / concealed
Wave / Trapezoidal Panel	750 – 1,000 mm	0.4 – 0.8 mm	Self-tapping screw

Compatible Input Materials

Material	Code	Thickness Range	Best For
Galvanized Steel	GI	0.3 – 1.5 mm	Industrial & commercial wall panels
Pre-Painted Galvanized Iron	PPGI	0.3 – 1.2 mm	Architectural facade, color cladding
Galvalume / Zincalume	GL / AZ	0.3 – 1.2 mm	High-corrosion coastal & marine projects
Aluminum Coil	AL	0.5 – 2.0 mm	Premium facade, lightweight cladding
Stainless Steel	SUS 304/316	0.3 – 1.0 mm	High-end architectural & hygienic applications

Frequently Asked Questions

Q: Can the machine produce multiple cladding widths?
Yes. The worm-gear handwheel width adjustment mechanism allows changeover between different panel widths in under 30 minutes. For significantly different profile shapes, a separate roller tooling set is required.

Q: What is the minimum order quantity?
MOQ is 1 complete production line. We also supply individual replacement roller sets and spare parts.

Q: What voltage and frequency options are available?
Standard supply is 380V / 50Hz / 3-Phase. Custom configurations (220V, 415V, 440V, 460V, 480V; 50Hz or 60Hz) are available to match your local power standard.

Q: How long is the delivery time?
Standard machines: 25–35 working days after order confirmation and deposit receipt. Customized lines: 35–50 working days depending on profile complexity.

Q: Is on-site installation support available?
Yes. We provide on-site installation supervision, commissioning, and operator training. Engineers can be dispatched globally. Remote video guidance is also available.

Q: What is the warranty?
12-month warranty covering manufacturing defects on all mechanical and electrical components. Spare parts are stocked and can be shipped within 3–5 business days worldwide.

Q: Can you produce a machine from our profile drawing?
Absolutely. Please provide your profile cross-section drawing (DXF, PDF, or dimension sketch). Our engineering team will review and confirm the tooling design within 3 business days.
