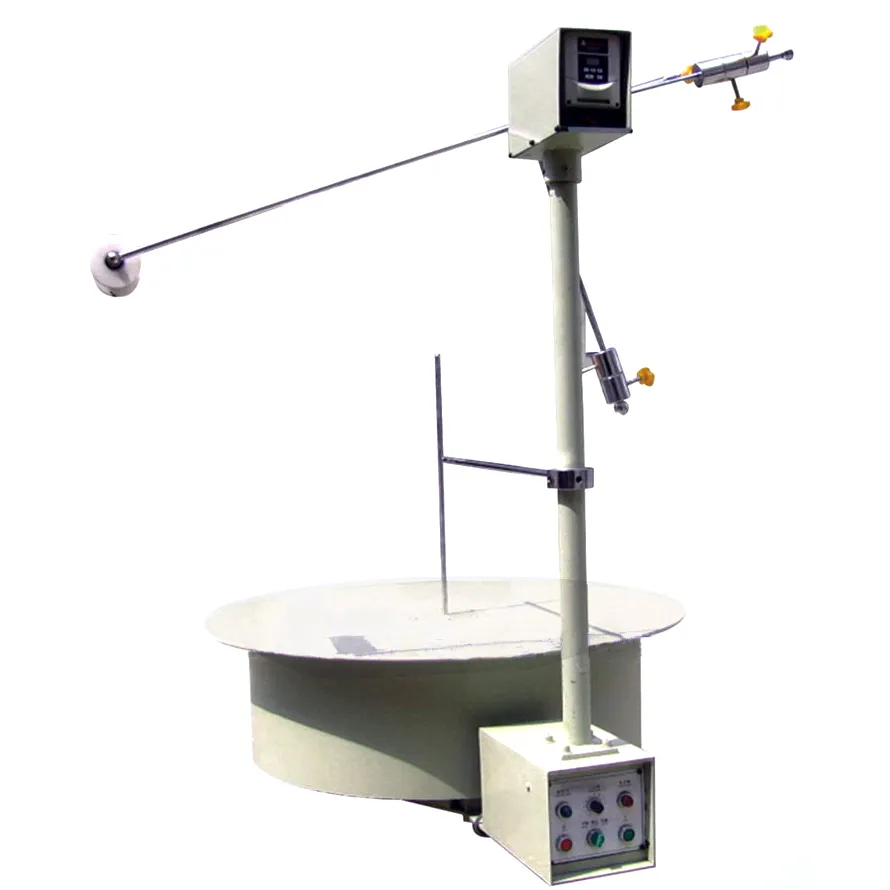

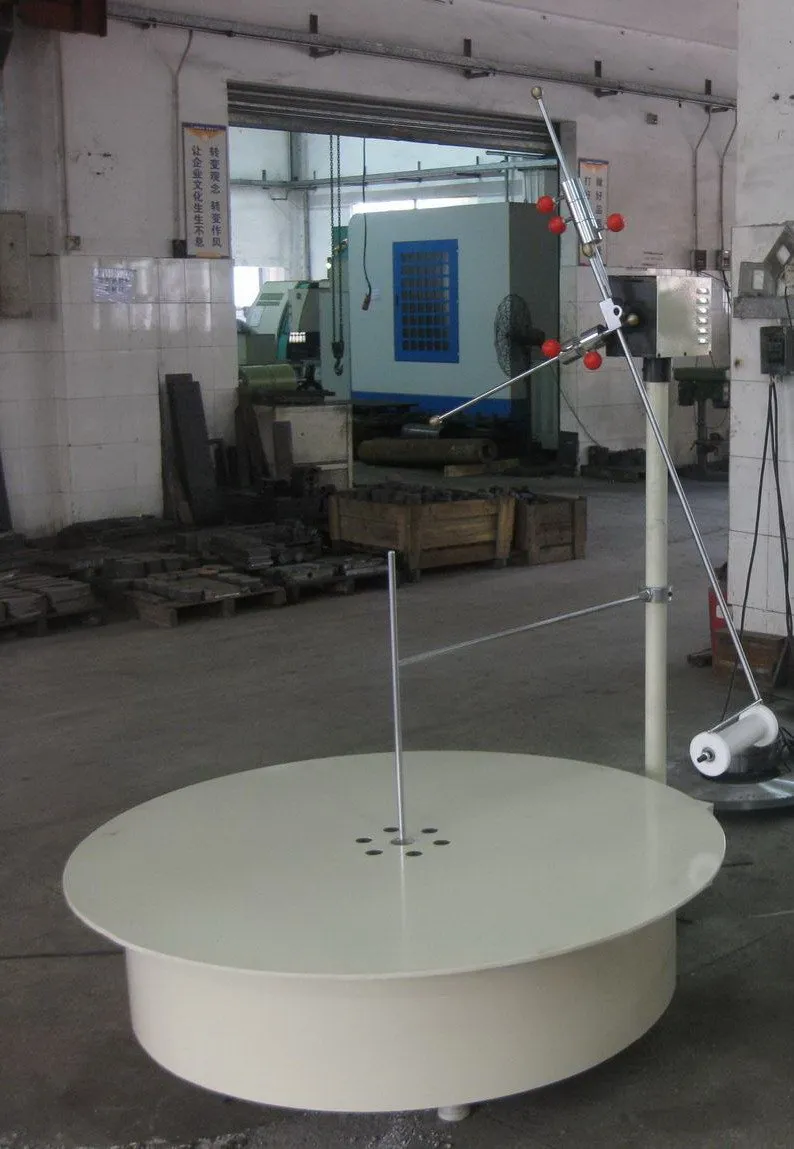

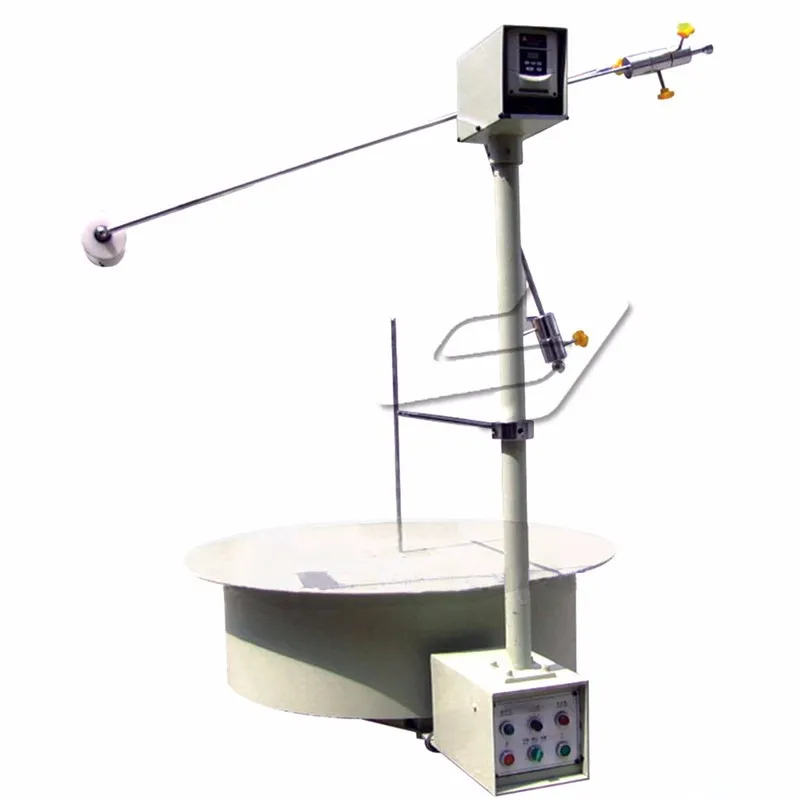

Automatic Electric Horizontal Pallet Decoiler Flat Uncoiler with 1HP Motor for Manufacturing Plant FU-1200

Automatic electric horizontal pallet decoiler flat uncoiler

Description :
Save floor space, coil material loading time and increase production with this excellent LIHAO Electronically Controlled Pallet Reel. The FU's specialty is light gauge, thin material with narrow width, such as tab stock material for beverage cans, electrical parts and other related industries.



Feature :

1.Adopt horizontal turntable feeding style, with large loading capacity, can up to 2T, the coil material can be      placed overlapped to reduce the material loading times and save material changing time. It adopts two-stage speed and can adjust and track the machine working speed separately, the feeding speed can up to 0-24m/min.

2.With reasonable structure, low gravity center for discharging material.

3.Two-stage speed adjusted automatically, adopt tension switch device, the tension, the first stage and second stage can be adjusted individually, feeding smoothly.



Specification :

Type	FU-1000	FU-2000	FU-3000
Material width	120mm	150mm	150mm
Material thickness	1.0mm	1.2mm	1.2mm
Max.Pallet weight	1000kg	1500kg	3000kg
Max.Table stacking height	600mm	600mm	600mm
Coil outer diameter	800mm	1000mm	1100mm
Table speed range	0-24m/min
Motor	1/2HP	1HP	3HP



Standard Accessory :

1.    Coil material head up/down controller

2.    LED display and speed controller

3.    Emergency stop



After-sales Service Provided:

            1.Free spare parts

           2. Field installation, commissioning and training

           3.Field maintenance and repair service

           4.Video technical support

           5.Online support
