Automatic Double Layer Roof Panel Machine for Garage Construction 0.3-0.6mm

1. Product Introduction

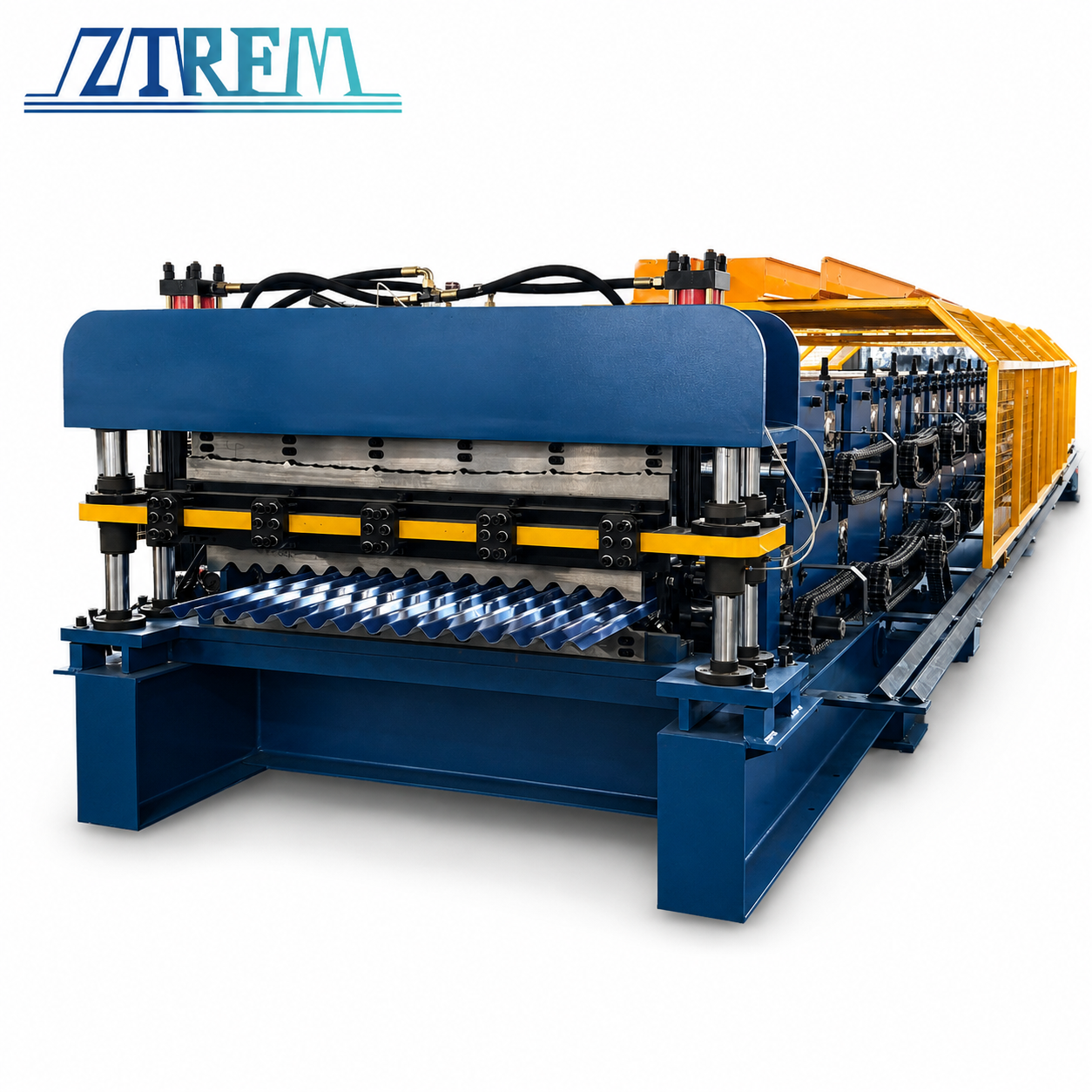

The Double Layer Roll Forming Machine is a metal cold roll forming system designed to integrate two different profiles into one machine.

The machine adopts an upper and lower double-layer forming structure. Each layer is equipped with its own set of forming rollers for producing a different profile according to the customer's production requirements.

Compared with installing two separate roll forming machines, the double-layer design helps save factory space, reduce equipment investment and expand the range of products that can be manufactured. The operator can select the corresponding forming layer according to actual orders, providing greater production flexibility for different projects and markets.

The machine is widely used for producing trapezoidal roofing sheets, corrugated roofing sheets, metal wall panels and other construction metal panels. Customized machines can also be designed according to customer profile drawings, samples and raw material specifications.

2. Main Features

1. Two Profiles in One Machine

The upper and lower layers are equipped with separate forming rollers, allowing one machine to produce two different profiles.

2. Space-Saving Structure

Two forming systems are integrated vertically into one machine, reducing the floor space required compared with two independent production lines.

3. Reduced Equipment Investment

Producing two different products with one machine can help reduce investment in equipment, factory space and supporting facilities.

4. Precision Roll Forming

The forming rollers are designed and precision-machined according to the confirmed profile drawings. The sheet is gradually formed through multiple roller stations to maintain consistent profile dimensions and forming quality.

5. Automatic PLC Control

The machine is equipped with a PLC and touch-screen control system. Production length and quantity can be preset for automatic length measurement, counting and cutting.

6. Stable Transmission System

A chain-drive transmission system provides stable movement of the forming rollers and supports continuous production.

7. Customized Configuration

Profile combinations, material thickness, feeding width, forming stations, rollers, control system, voltage and other configurations can be customized according to the customer's project.

3. Technical Parameters

Parameter	Specification
Machine Name	Double Layer Roll Forming Machine
Machine Structure	Upper & Lower Double-Layer Forming Structure
Forming Method	Cold Roll Forming
Number of Profiles	2 Different Profiles
Applicable Materials	PPGI, PPGL, GI, Galvanized Steel, Galvalume, etc.
Material Thickness	Customized according to profile
Material Width	According to profile drawing
Forming Speed	10–20 m/min
Forming Stations	Designed according to profile
Roller Material	GCr15 / 45# Steel
Roller Surface Treatment	Precision Machining
Shaft Material	45# Steel
Shaft Diameter	Φ65 mm
Transmission Type	Chain Drive
Main Motor Power	7.5 kW
Hydraulic Station Power	5.5 kW
Cutting Method	Hydraulic Cutting
Cutting Type	Stop-to-Cut
Length Measurement	Encoder
Control System	PLC + Touch Screen
PLC Brand	Delta / Schneider / Customized
Operation Mode	Automatic
Automatic Functions	Length Setting, Counting, Forming & Cutting
Power Supply	380V / 50Hz / 3 Phase, Customized
Machine Frame	Heavy-Duty Welded Steel Structure
Applicable Profiles	Trapezoidal / Corrugated / Customized Profiles
Machine Dimensions	According to Final Configuration
Machine Weight	According to Final Configuration
Customization	Available

Note: The above specifications are for reference. Actual material thickness, feeding width, forming speed, number of forming stations, roller design, motor power, machine dimensions and other technical parameters will be determined according to the customer's final two profile drawings, raw materials and production requirements.

4. Working Process

Decoiling → Feeding & Guiding → Roll Forming → Encoder Length Measurement → Hydraulic Cutting → Finished Product

After decoiling, the metal sheet enters the feeding and guiding system and passes through multiple forming stations, where it is gradually formed into the required profile.

The encoder measures the production length. Once the preset length is reached, the hydraulic cutting system cuts the finished panel according to the PLC settings.

The upper and lower layers correspond to different profiles, allowing the customer to select the required forming layer according to actual production orders.

5. Products & Applications

The Double Layer Roll Forming Machine can be configured for different profiles and is commonly used to produce:

• Trapezoidal Roofing Sheets
• Corrugated Roofing Sheets
• Metal Wall Panels
• Metal Roofing Panels
• Industrial Building Panels
• Steel Structure Building Panels
• Warehouse Roofing & Wall Panels
• Other Customized Roll-Formed Metal Profiles

The machine can be widely used for industrial workshops, warehouses, logistics centers, steel structure buildings, agricultural buildings, garages, commercial buildings and other metal construction projects.

6. Customized Solutions

Profile dimensions, raw materials and production requirements vary between countries, markets and construction projects. Therefore, we can design the machine according to the customer's actual production requirements.

Customers can provide:

Profile Drawing + Material Thickness + Material Width + Material Type + Required Production Speed + Local Industrial Voltage

Based on this information, the technical team can design a suitable machine configuration.

Customized options include:

• Upper and lower profile combinations
• Number of forming stations
• Forming rollers
• Shaft structure
• Feeding width
• Transmission system
• Hydraulic cutting system
• Main motor and hydraulic station
• PLC and electrical system
• Voltage and frequency
• Machine color
• Complete production line layout

7. After-Sales Service & Technical Support

We provide not only the machine itself but also technical support covering machine testing, installation, commissioning and subsequent maintenance.

Pre-Shipment Installation & Testing

After production is completed, the machine will be assembled and tested at our factory. The operating condition and finished profile will be checked before shipment.

Raw Material Testing

For projects with special materials or dimensional requirements, customers can provide their actual production material or samples. The machine can then be adjusted and tested according to the actual material.

Installation & Commissioning Support

Installation, commissioning and operation guidance can be provided. Remote technical assistance is available, and on-site service solutions can also be arranged according to specific project requirements.

Operator Training

Training can be provided for machine operation, PLC parameter settings, routine maintenance and common troubleshooting.

Remote PLC Technical Support

For control-system-related issues, remote technical assistance can be provided to help with parameter checking, program adjustment and troubleshooting.

Spare Parts & Wear Parts Support

Long-term support for relevant spare parts and wear parts is available for routine machine maintenance and replacement requirements.

Long-Term Technical Support

After machine delivery, our technical team can continue to provide support for operation, commissioning, maintenance and profile forming issues encountered during production.

8. Core Advantages

Two Profiles · One Machine · Space Saving · Lower Investment · Automatic Production · Flexible Customization

The Double Layer Roll Forming Machine integrates the production of two different profiles into one machine, helping reduce equipment investment and production floor space while providing greater manufacturing flexibility.

For different profile standards in different countries and markets, the machine can be designed according to the customer's actual drawings, materials and production requirements, providing a practical and efficient solution for manufacturing metal roofing sheets, wall panels and other construction profiles.
