Five Smart Uses for Unistrut Channel and the Channel Roll Forming Machine Behind Them

Unistrut channel appears on construction sites and in mechanical rooms for a reason. Cable trays hang from it. Pipes and ducts are secured with it. Solar panel arrays are mounted on it. Seismic bracing relies on it too.

This article covers five practical uses for Unistrut channel and explains what makes it different from standard steel channel. It also shows how a channel roll forming machine produces this profile from steel coil.

5 Smart Uses for Unistrut Channel in Construction and Installation

Unistrut channel is a cold formed steel section with a U shaped profile and a continuous slot along its web. That slot allows bolts to slide in from any position and lock into place. Here are five common applications.

1. Cable tray and power distribution supports. Electricians use Unistrut channel to suspend cable trays and route power lines along ceilings or walls.

2. Pipe, duct, and HVAC system installation. Mechanical contractors rely on it for supporting water pipes, air ducts, and ventilation systems.

3. Solar panel mounting structures. Solar installers use Unistrut channel as the structural base for ground mounted or rooftop photovoltaic arrays.

4. Seismic bracing and diagonal supports. In earthquake prone regions, Unistrut channel serves as a component in seismic restraint systems.

5. Warehouse shelving and industrial framing. Warehouses and workshops use it as general purpose framing for racks, workbenches, and equipment stands.

Unistrut Channel Advantages

• No drilling required on site. Bolts slide into the continuous slot at any position, eliminating the need to mark and drill holes.

• Adjustable on site. When component positions shift, bolts can slide along the slot rather than requiring removal or reaming.

• Fewer tools and less hardware. On site work does not require drill rigs, bits, welding equipment, or extra consumables.

• Consistent dimensions and accurate hole positions. The machine uses gear transmission to keep each roller station synchronized. This helps maintain hole position consistency across production runs.

• Clean cuts and intact coating. Cr12 quenched blades are used for cutting. The roller surfaces are finished to reduce scratching on the zinc coating.

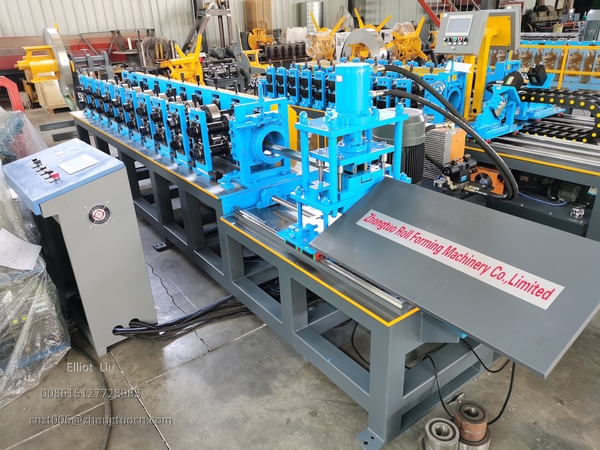

How Unistrut Channel Is Made from Steel Coil

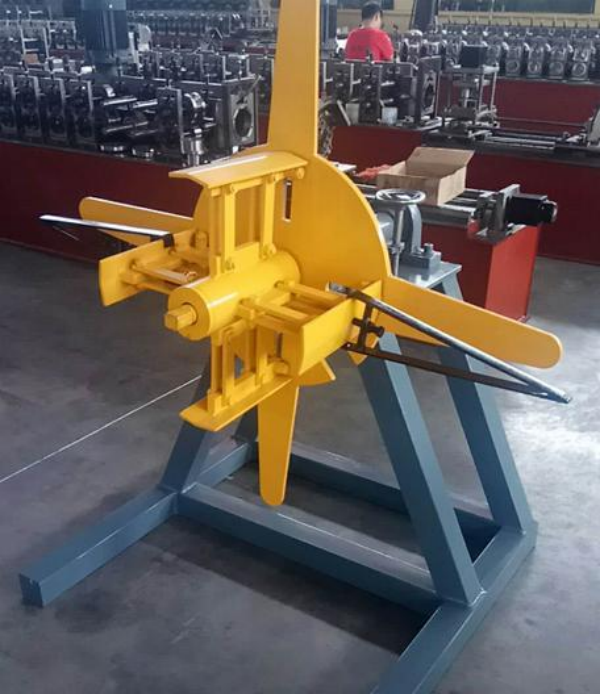

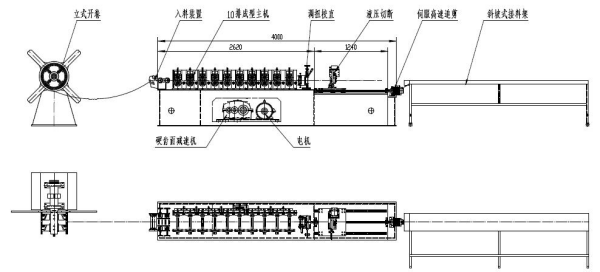

Unistrut channel production starts with a steel coil. The coil unrolls and feeds into a continuous series of roller stations. Each station bends the flat strip gradually, and after several forming passes the material takes on a U shaped profile.

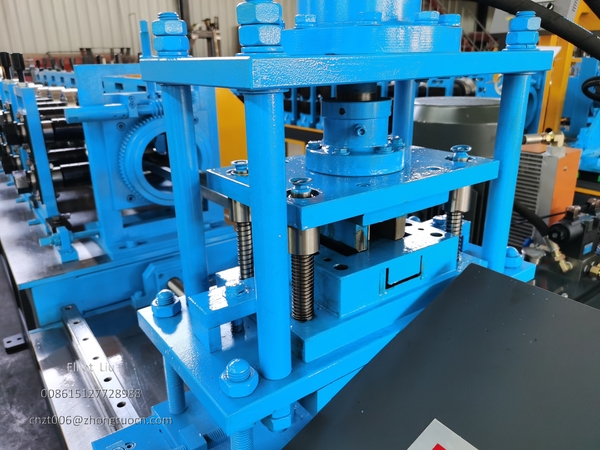

The formed channel moves forward continuously. A punching system cuts the slot or round holes on the web while the material is still moving. When the channel reaches the set length, the shearing system cuts it off, completing one piece. The entire line runs continuously, turning coil into finished channel.

Key Parameters for Channel Roll Forming Machine

The following parameters are relevant to Unistrut channel production.

What to Consider When Choosing a Channel Forming Machine for Unistrut

Choosing a unistrut channel roll forming machine depends on the size and hole pattern of the finished product.

Different mounting applications call for different channel sizes. Cable tray supports typically use narrower profiles, while seismic bracing often requires wider sections. The hole spacing and pattern matter too. If the job requires slots or round holes in specific positions, the punching station must be configured accordingly.

The power supply and floor space also need attention. This equipment operates on 480V/60Hz/3 phase power and needs approximately 12m × 2.0m × 1.5m of floor space. Once these conditions are confirmed, the machine can be installed and put into production.

The value of Unistrut channel comes from the flexibility that continuous slot provides. Whether it is supporting electrical gear, securing pipes, or reinforcing structures, it makes installation faster. A channel roll forming machine makes the continuous supply of this profile possible, turning steel coil into finished channel. A c channel forming machine that handles Unistrut profiles gives fabricators the consistency needed for these applications.
