ZTRFM Ceiling T Grid Roll Forming Machine T Bar Roll Forming Machine Light Steel Profile Machine

Machine feature:

1. Speed: can reach 0-45 m per minute

Modern buildings increasingly rely on suspended ceiling systems to improve aesthetics, acoustic performance, and maintenance accessibility. Among the essential components of these systems are T grid channels and ceiling tiles, which create the structural framework for installing modular ceiling panels.
To meet the growing demand for efficient production of ceiling grids, the Ceiling T Grid Roll Forming Machine provides a highly automated solution capable of producing different types of Main T, Cross T, and Flat T grid channels with excellent precision and productivity.

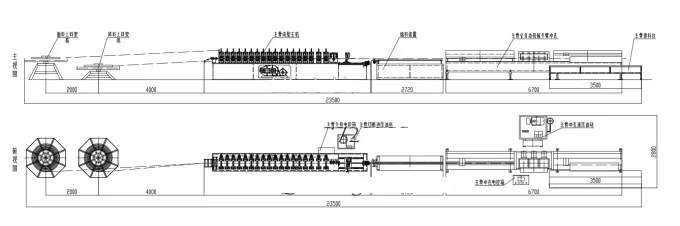

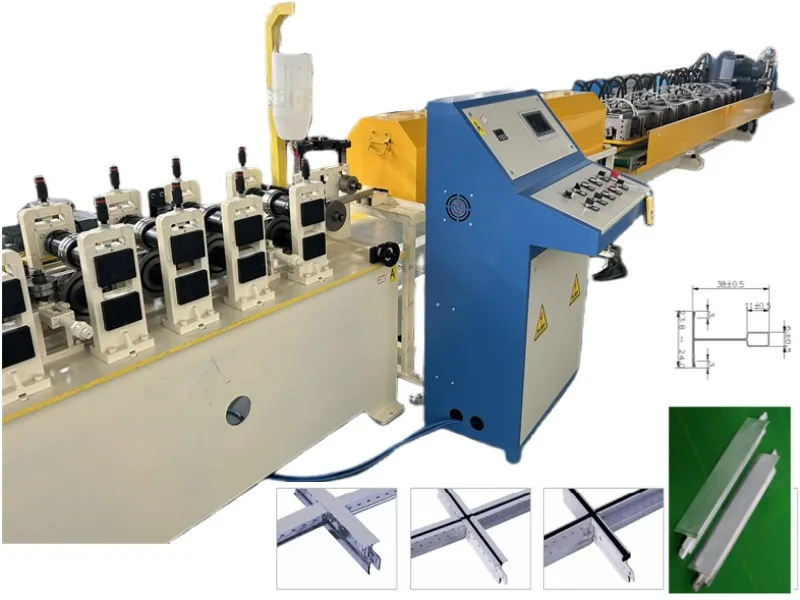

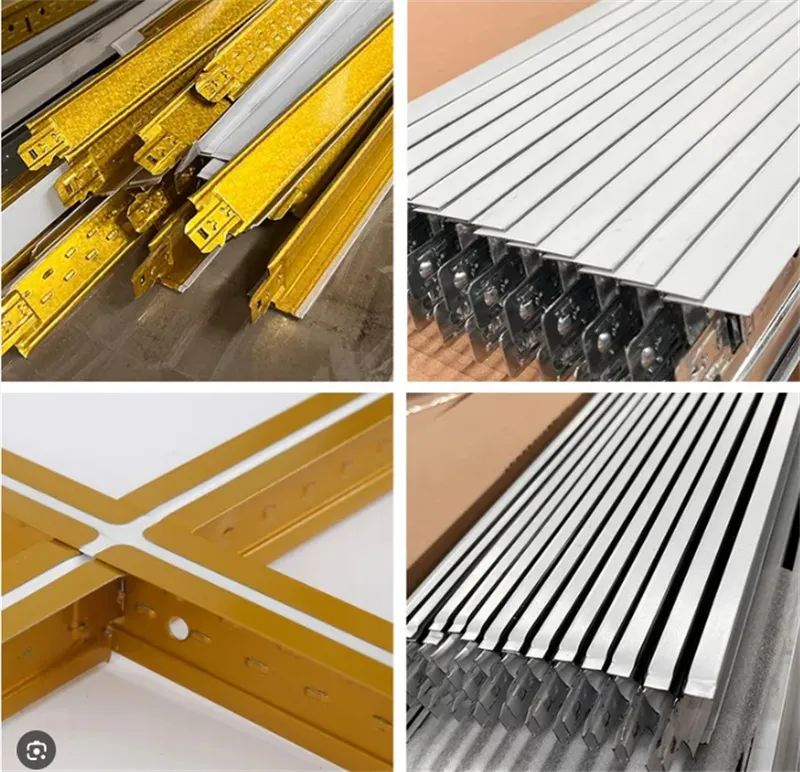

Profile drawing for reference:

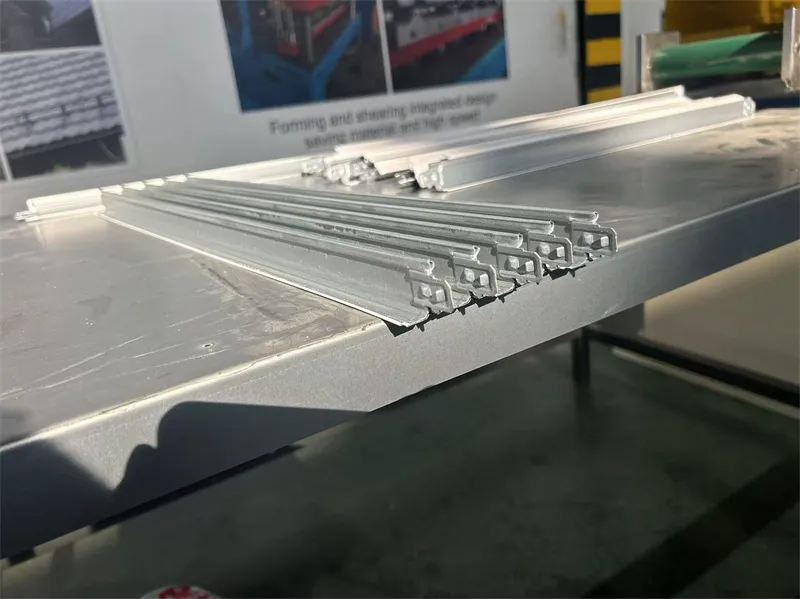

The whole T grid ceiling system combined with main tee, long cross tee, short cross tee and wall angle. Here is attached the standard dimension for each part for your reference.

Main tee	38x24x3600 mm
Long cross tee	28x24x1200 mm
Short cross tee	28x24x600 mm
Wall angle	22x22x3000 mm

Main T bar roll form machine processing flow:

Uncoiling---Feeding material---Roll forming---Hydraulic cutting---Pinching the T bar from roll forming machine to punching machine---Punching holes---Product collect table

Main T Roll Forming Machine Main Technical Parameters
Raw material	PPGI & GI
Forming speed	0-45 m per minute
Forming stations	18 stations
Shaft material	45# steel with quenched treatment precision machined
Roller shaft diameter	40 mm
Voltage	380 v 50 hz 3 phase or customized as your request
Roller material	Cr12 with quenched treatment
Transmission type	By chains
Material of blades	Gcr12mov quenched

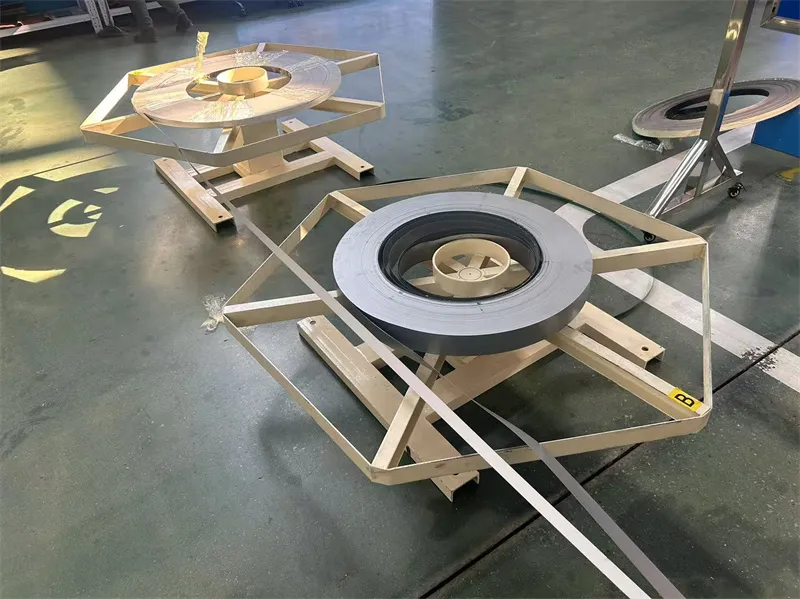

Two sets Manual Decoilers

Need two sets decoilers, one loading basic material, another set loading face material.

a. Inner diameter: 450-550 mm b. Coil max width: 300 mm c. Max carrying capacity: 1500 kg

Entry Beach

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

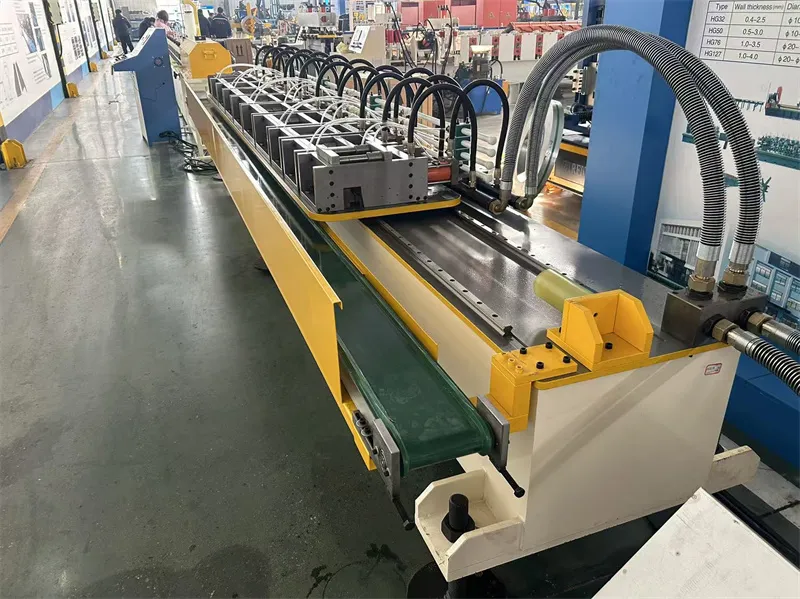

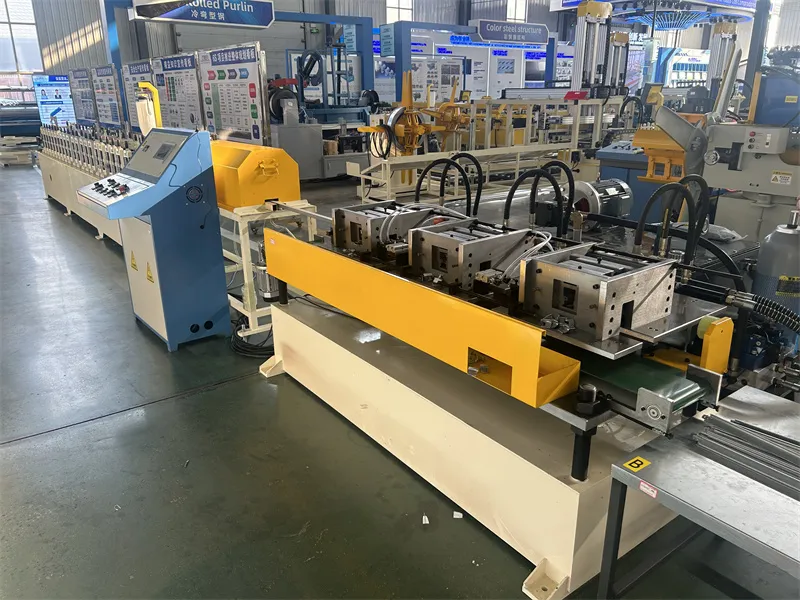

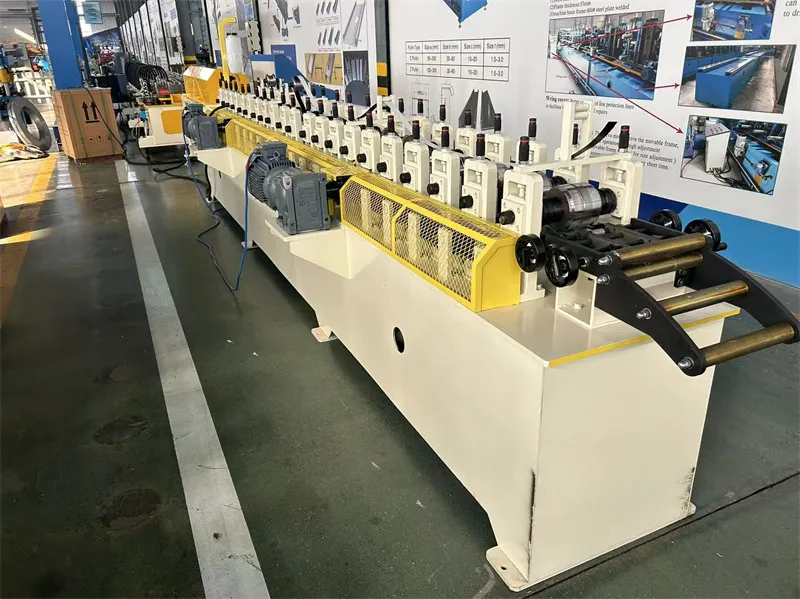

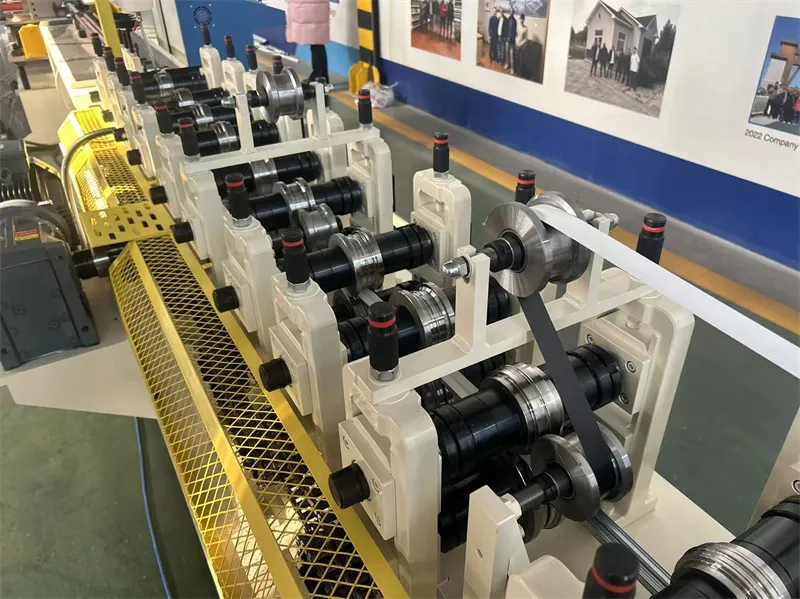

Roll Forming Machine

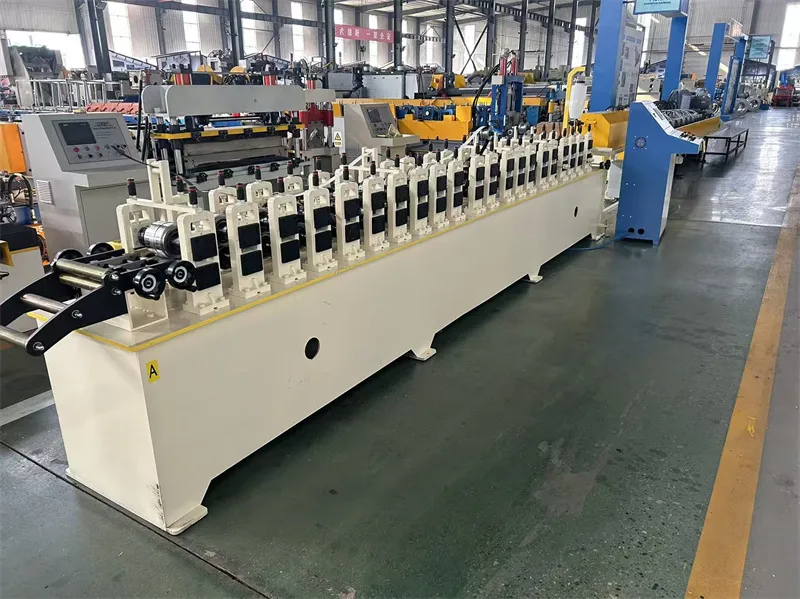

a. Number of forming steps: 18 stations b. Shaft material: 45# steel with quenched treatment precision machined outer diameter: 40 mm c. Roller material: Cr12 with quenched treatment d. Transmission type: By chains e. Drive motor power: 4kw f. Voltage: 380 v 50 hz 3 phase g. Forming speed: 0-25 m per minute h. Structure: Independent stand (cast steel)

Tracking Hydraulic cutting

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Cutting type: servo tracking cutting Servo motor power: 1.2 kw

Power supply: 3 kw hydraulic power Material of blades: Gcr12 mov quenched

Components: It contains one set of cutting tools with one hydraulic tank and one cutter machine.

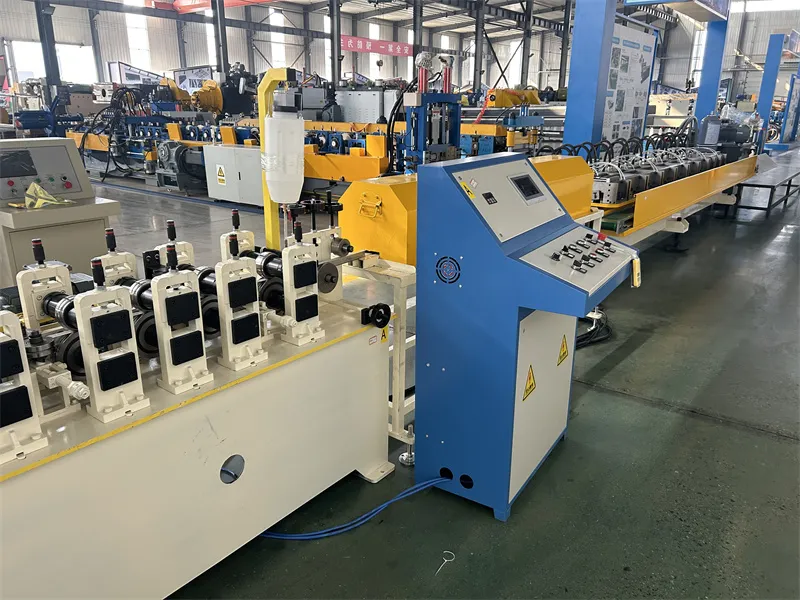

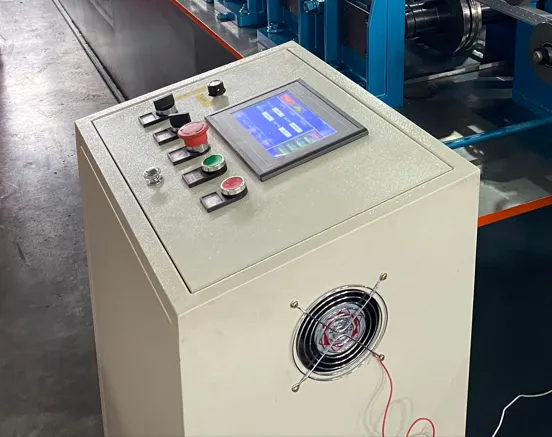

PLC control system

Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime.

Language: Chinese and English Automatic length and quantity measurement

Length Tolerance: 3 m+-1.5 mm Computer operating panel: touching screen and button together

Equipped with movable switch, air break, radiator, transformer and electric leakage protector for operation convenience and safety.

Punching System

Processing molds: 3 sets Mould material: Skd 11 (Cr 12) Servo motor power: 1.2 kw Power supply: 7.5 kw hydraulic power Have logo pressing function

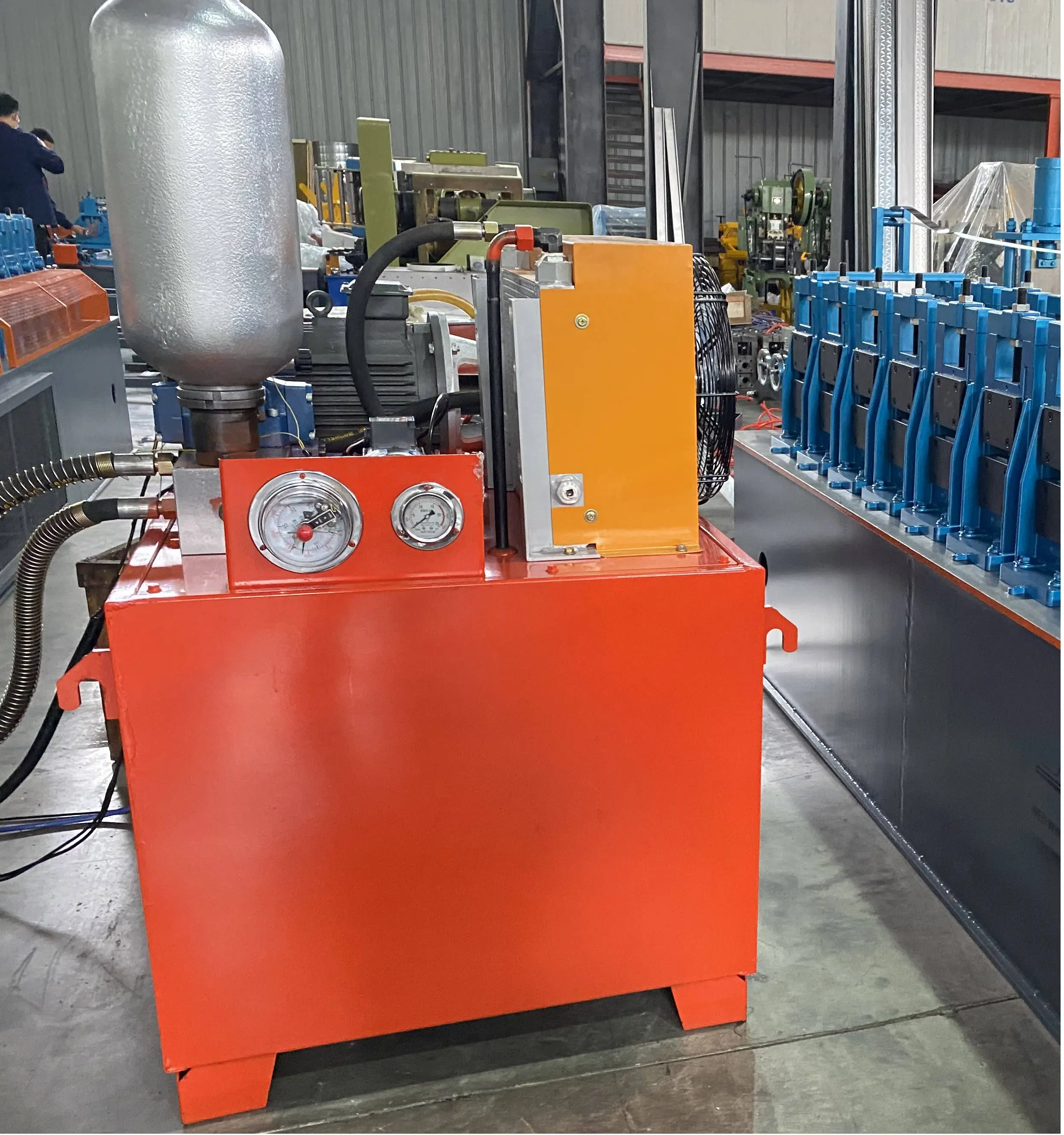

Hydraulic Station

Processing molds: 3 sets Mould material: Skd 11 (Cr 12) Servo motor power: 1.2 kw Power supply: 7.5 kw hydraulic power Have logo pressing function

Electric Control System For Punching

Processing molds: 3 sets Mould material: Skd 11 (Cr 12) Servo motor power: 1.2 kw Power supply: 7.5 kw hydraulic power Have logo pressing function
