CZ Purlin Roll Forming Machine: Automatic Size Changeover for Steel Building & Solar Projects

Description:The CZ purlin roll forming machine​ is an integrated cold roll forming line that produces both C-shaped and Z-shaped steel purlins from a single set of equipment. By combining two profile types in one machine, it eliminates the need to purchase separate C and Z lines, reduces floor space, and gives steel structure manufacturers the flexibility to fulfill mixed orders without tooling changeover delays. Known in export markets as a CZ interchangeable purlin machine, CZ channel forming machine, CZ section steel roll former​ or C and Z purlin making machine, this equipment has become the preferred choice for roofing system suppliers, prefab building factories, metal construction contractors and solar racking producers who demand fast changeover and high production efficiency.

Why the CZ Interchangeable Purlin Machine Is in High Demand

Steel building projects rarely use only one profile type. Roof purlins are often C sections, while Z sections are preferred for overlapping and longer-span applications. A dedicated C machine or Z machine forces buyers to choose between limited product range or double capital investment. The CZ interchangeable machine solves this by allowing operators to switch between C and Z profiles — and between different size ranges within each type — through adjustable roller gaps, flip-over forming stations or servo-driven changeover systems.

Key competitive advantages include:

Two profiles, one machine​ – produce standard C purlins, C channels with lips, Z purlins and sometimes straight channels from the same line.

Fast C-to-Z changeover​ – manual crank adjustment, motorized shifting or fully automatic PLC-controlled changeover depending on model grade.

Wide size range​ – one machine covers multiple web heights, flange widths and lip sizes, reducing the need for multiple production lines.

Reduced floor space and labor​ – one operator runs one line instead of managing two separate machines.

Lower total investment​ – capital cost is significantly below the combined price of standalone C and Z machines.

Export-ready configuration​ – customizable voltage, CE/ISO documentation, multilingual HMI and container-optimized structure.



How the CZ Purlin Roll Forming Machine Works

The production process begins with a steel coil loaded on the decoiler. The strip feeds through the entry guide and leveling unit, which removes coil set, camber and twist before forming. The strip then enters the roll forming stations.

In a CZ interchangeable line, the forming stations are designed with adjustable roller positions. For C profile production, the rollers form the web, flanges and returned lips symmetrically. For Z profile production, certain roller stations shift or flip to create the offset web and asymmetrical flange geometry. The transition between C and Z modes is managed by the machine's adjustment system — from manual spacer changes on entry-level models to servo-motor-driven automatic repositioning on high-end lines.

After forming, the profile passes through the punching unit if holes, slots or notches are required. The cutting unit then shears the purlin to the programmed length. Finished C or Z purlins discharge onto the run-out table or automatic stacker.

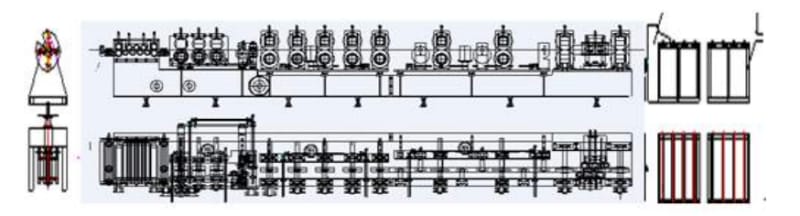

Typical process flow: decoiler → strip guiding → leveling → servo feeding → CZ roll forming → hydraulic/servo punching → flying or stop cutting → discharge → automatic stacking.



Core Machine Configuration and Build Quality

The line is engineered for heavy-duty continuous operation. The main frame uses integral welded steel construction, stress-relieved through vibration aging or heat treatment to prevent deformation under long-term forming pressure.

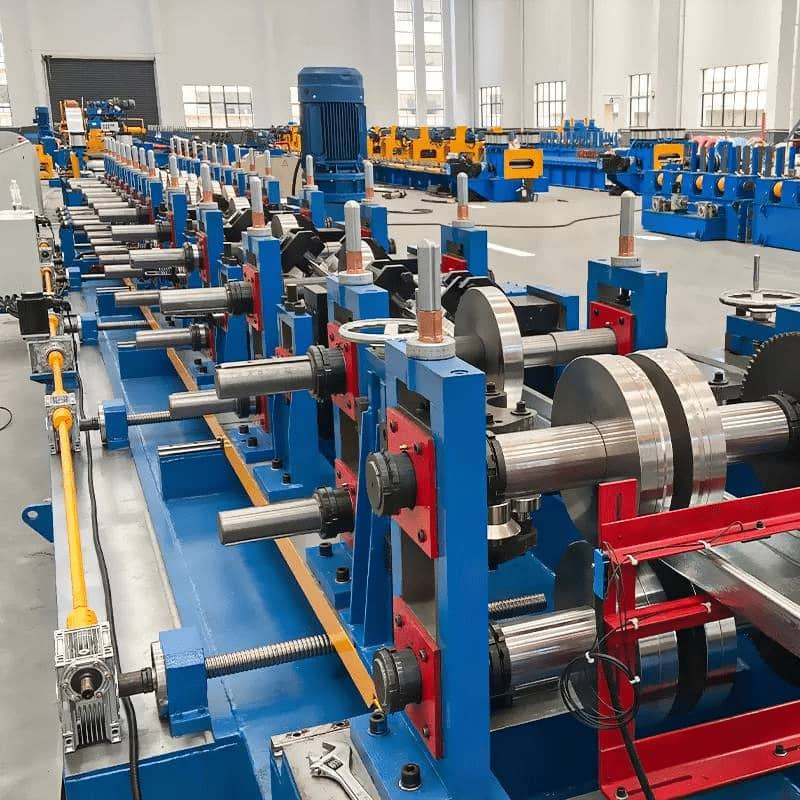

Rollers are the heart of any CZ machine. Because the same rollers must handle two different profile geometries, they are precision machined from high-grade materials such as GCr15 bearing steel or 45# steel, heat-treated to 58–62 HRC and hard chrome-plated for wear resistance and corrosion protection. The chrome layer also ensures a clean surface finish on galvanized and coated strips without scratching the zinc or paint layer.

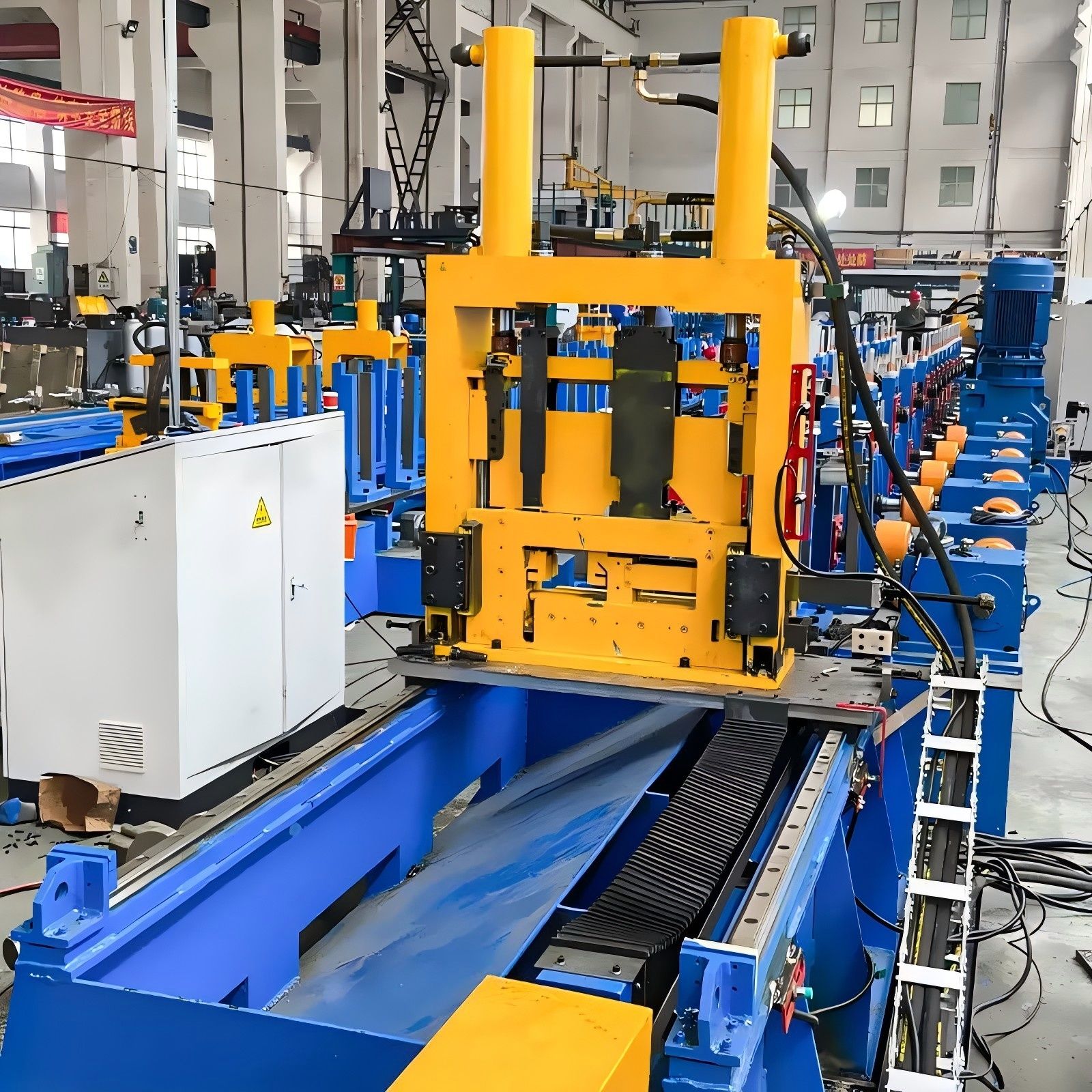

Shafts are solid forged steel, quenched and tempered, supported in robust cast iron or steel plate stands. The cutting system uses Cr12MoV or equivalent alloy tool steel blades, hardened for burr-free, repeatable cuts. The punching unit employs hardened die sets with guided punch tools to maintain hole position accuracy across long production runs.

Control is centralized in a PLC with color touchscreen HMI. Operators input profile type (C or Z), web height, flange width, lip dimension, hole positions, cutting length and batch quantity. The PLC coordinates feeder, punch and cutter with encoder feedback for length precision. Advanced models store multiple production recipes, support remote diagnostics and integrate with automatic stackers or full purlin production lines.



Technical Scope for Export Buyers

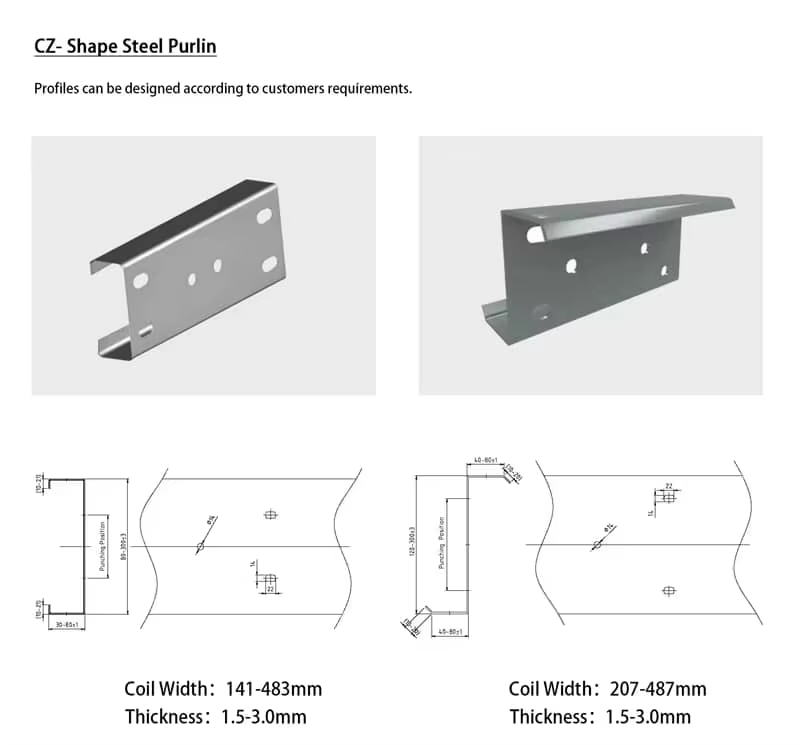

Every CZ purlin machine is configurable to match the buyer's profile drawings and output targets. Standard technical scope covers:

Material:​ galvanized steel (GI), galvalume (GL), cold-rolled steel (CR), hot-rolled steel (HR), PPGI/PPGL, occasionally aluminum

Thickness range:​ commonly 1.5–3.5 mm; light-gauge versions 1.2–2.5 mm; heavy-duty versions up to 4.0 mm

Web height range:​ typically 80–300 mm or 100–350 mm depending on model

Flange width range:​ typically 40–100 mm

Lip size range:​ 15–25 mm

Yield strength:​ matched to roller power and station count, commonly up to 345 MPa

Roller stations:​ 16–22 stations for CZ interchangeable design (more than standalone C or Z due to dual-profile tooling)

Forming speed:​ standard 8–15 m/min; high-speed lines 20–30 m/min

Main motor power:​ 11–22 kW depending on profile range and thickness

Cutting mode:​ hydraulic stop cut for accuracy or flying shear for continuous high-speed production

Punching:​ hydraulic or servo punching stations for web holes, flange holes, slots, end notches

Control system:​ PLC + HMI, encoder-based length control, recipe storage

Power supply:​ 380V/50Hz/3PH standard; customizable to 415V/50Hz, 440V/60Hz or local specification

Line footprint:​ approximately 9–14 m plus decoiler and run-out/stacker

Exact parameters should be confirmed against the buyer's profile drawings, hole pattern requirements and daily production volume.



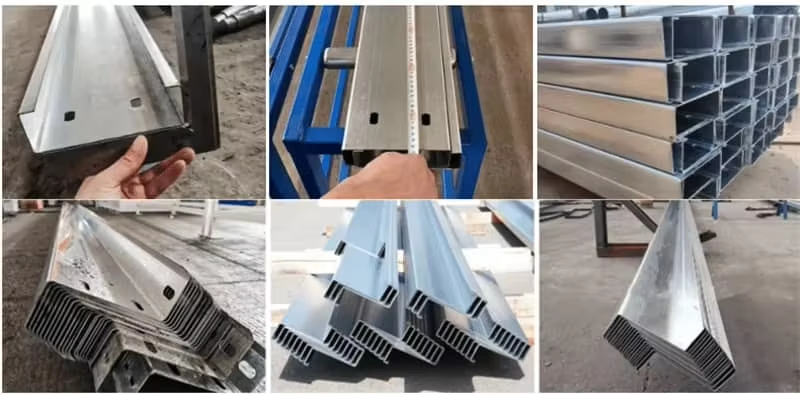

Applications of C and Z Purlins From One Machine

The CZ interchangeable machine serves diverse building and engineering sectors:

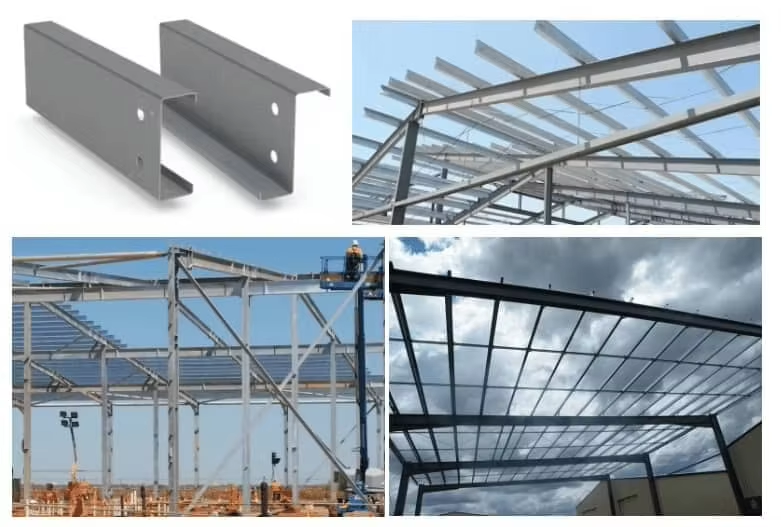

Industrial steel buildings​ – factories, warehouses, logistics centers, workshop roofs and walls

Commercial structures​ – exhibition halls, sports facilities, cold storage buildings, retail centers

Agricultural construction​ – farm sheds, equipment storage, livestock barns, greenhouse frames

Metal roofing and cladding systems​ – roof purlins (C and Z), wall girts, eave struts, framing members

Solar PV mounting​ – ground mount racking, solar carports, tracker support structures, fixed-tilt arrays

Prefab and modular buildings​ – light steel frames, panel support channels, structural connectors

General steel fabrication​ – equipment frames, conveyor supports, racking beams, bracket channels

The ability to produce both C and Z profiles from one line means a single machine can supply an entire steel building package — roof purlins, wall girts and overlapping Z sections — without cross-factory sourcing.



CZ Changeover Technology: Manual, Semi-Auto and Full Auto

The defining feature of a CZ purlin machine is how it handles profile changeover. Three technology levels are available:

Manual adjustment models use hand cranks, spacer blocks and manual roller gap setting. The operator loosens locking bolts, repositions roller assemblies and resets gaps for the new profile. Changeover takes 30–60 minutes. This is suitable for workshops with low product mix and longer production batches.

Semi-automatic models use motorized adjustment for roller gap and station positioning. The operator selects the profile recipe on the HMI, and motors drive the adjustment screws to preset positions. Manual intervention is still needed for certain flip-over stations or punch die changes. Changeover takes 10–20 minutes. This fits medium-volume producers with regular C-to-Z switching.

Full automatic models integrate servo motors on every adjustable station. The PLC controls all position changes — roller gap, station shift, flip-over and punch alignment — with one-button recipe change. Changeover completes in 3–5 minutes with no manual tool handling. This is designed for high-mix, fast-turnaround operations and large export-oriented factories.



Customization Options for International Buyers

Export orders often require market-specific adaptations:

Changeover system:​ manual crank, motorized semi-auto or full servo automatic

Punching configuration:​ single-side web holes, dual-side flange holes, staggered Z overlap holes, slot punches, end cuts, custom die sets

Cutting system:​ stop-cut for ±1 mm accuracy or flying shear for zero-speed loss

Coil handling:​ 5-ton, 8-ton or 10-ton hydraulic decoiler with coil car and coil loading ramp

Discharge and stacking:​ manual run-out table, pneumatic turnover device, automatic counter-stacker with strapping

Compliance and branding:​ CE marking, UL-listed components, multilingual HMI (English/Spanish/French/Arabic/Russian), local voltage and frequency, country-specific wiring standards

Profile library:​ custom C and Z section drawings beyond standard range, special lip configurations, straight channel mode
