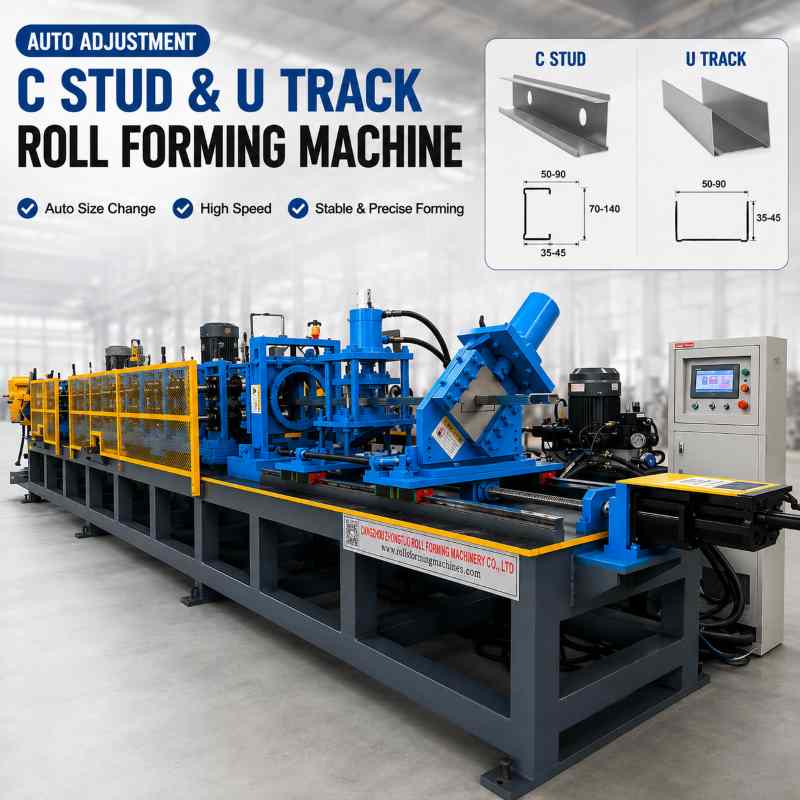

Automatic C Stud & U Track Roll Forming Machine

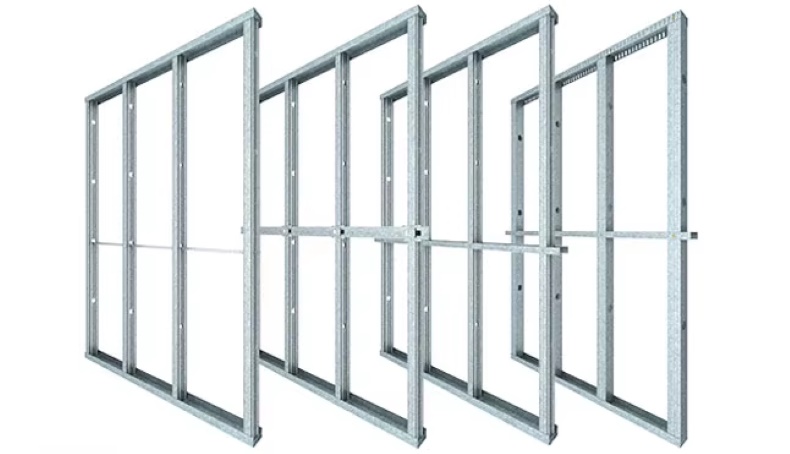

Zhongtuo Automatic C Stud & U Track Roll Forming Machine is designed for the continuous production of metal framing profiles used in drywall, partition, ceiling, and light steel construction systems.

This customized solution features automatic size adjustment, integrated punching and hydraulic cutting, and a high-speed gear-driven forming system, providing an efficient solution for producing different C Stud and U Track sizes from a single machine.

The standard configuration includes:

1.5T Manual Decoiler → Automatic Size-Changing Roll Forming System → Hydraulic Punching & Cutting → 3 m Product Collection Table

The machine is designed around a 0.5 mm material thickness for the quoted customer project.



1. Technical Specification:

Machine	Automatic C Stud & U Track Roll Forming Machine
Material Thickness	0.5 mm
Forming Stations	14
Shaft Material	45# Steel
Shaft Diameter	40 mm
Roller Material	Cr12 Quenched
Speed with Punching	0–25 m/min
Speed without Punching	0–40 m/min
Transmission	Gear
Main Power	7.5 kW + 7.5 kW
Hydraulic Power	5.5 kW
PLC	Delta
Encoder	Omron
Electrical Components	Schneider
Cutting	Hydraulic Automatic Cutting
Cutter Material	GB-Cr12
Decoiler	1.5T Manual
Receiving Table	3 m
Working Voltage	380V / 60Hz / 3 Phase

 2. Manual Decoiler

Capacity: 1,500 kg
Coil Inner Diameter: 450–550 mm
Maximum Coil Width: 300 mm
Passive uncoiling driven by the roll forming machine

3.  Automatic Size Changeover

One of the key features is the automatic changing-size forming system. The machine frame uses a vertical cast-iron arch structure, with one side fixed and the other side driven by a motor to move and produce different profile sizes.

This allows manufacturers to produce multiple C Stud and U Track profiles with greater flexibility and reduced manual adjustment time.

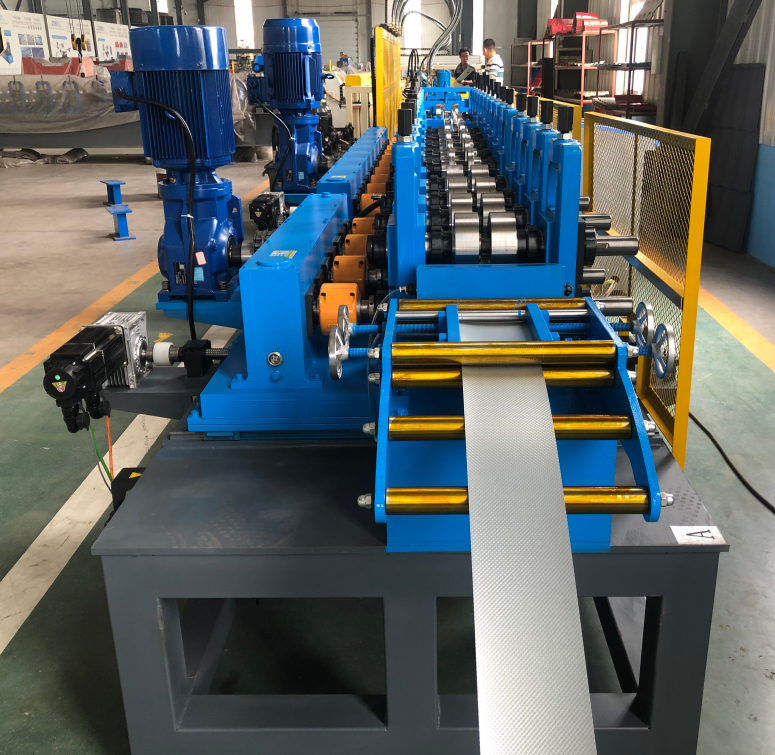

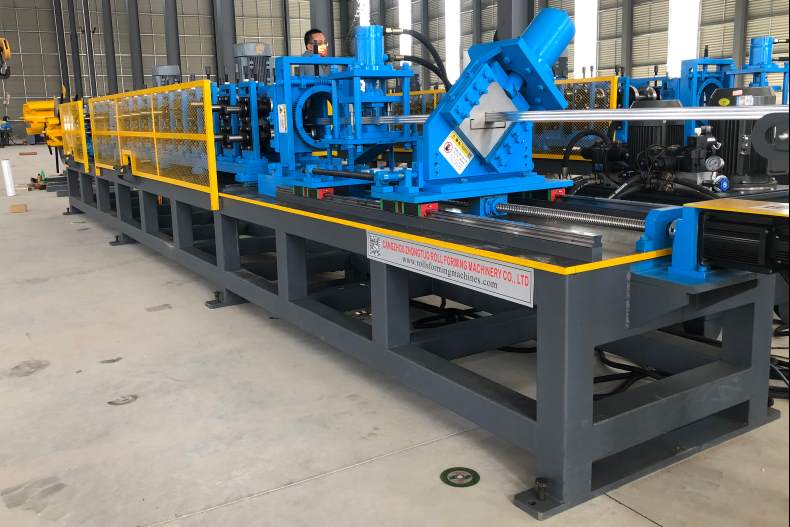

4. High-Speed Roll Forming

The forming system is equipped with 14 forming stations and a gear transmission system for stable power transfer.

Forming Stations: 14
Shaft Material: 45# Steel, tempered
Shaft Diameter: 40 mm
Roller Material: Cr12, quenched
Working Speed:0–25 m/min with punching
Working Speed: 0–40 m/min without punching
Transmission: Gear
Main Power: 7.5 kW + 7.5 kW
Bearing: Harbin brand

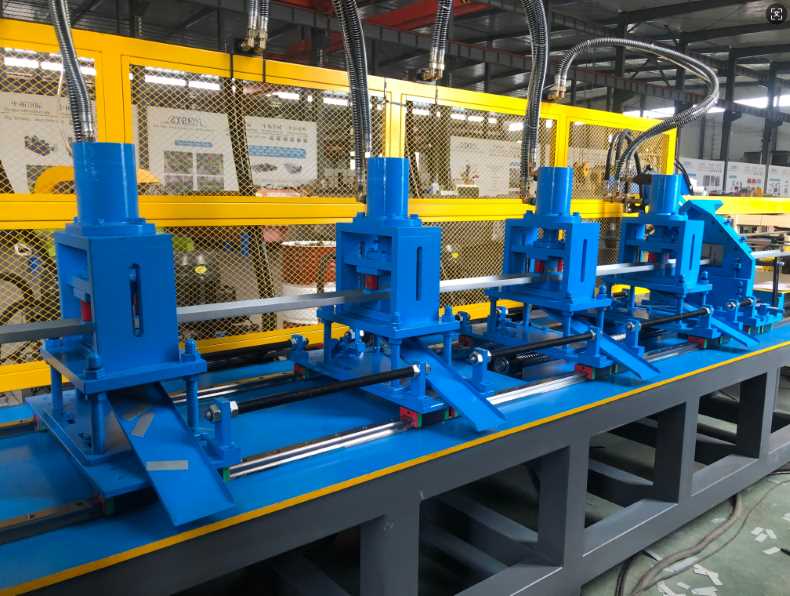

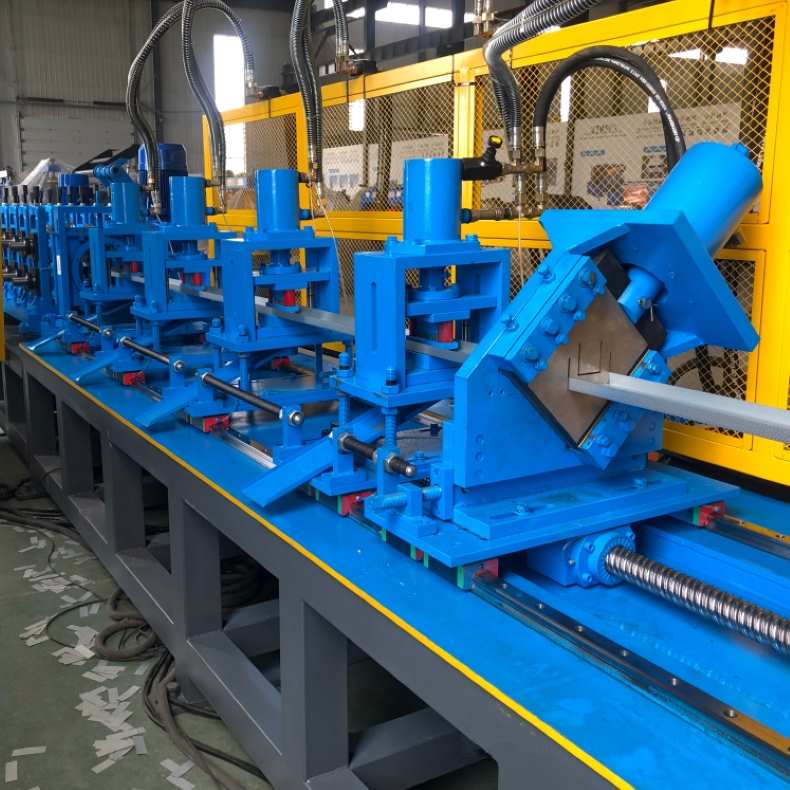

5.  Integrated Punching System

The machine includes one punching station for punching holes on C Stud profiles during the forming process. This allows punching and forming operations to be integrated into one production line.

6.  Automatic Hydraulic Cutting

After roll forming and punching, the finished profile is automatically cut to the required length.

The hydraulic cutting system uses GB-Cr12 cutting blades and is designed to cut the formed profile without distortion.

Features:

Hydraulic cutting
Automatic cutting after forming
GB-Cr12 cutter
5.5 kW hydraulic power
Cutting without profile distortion

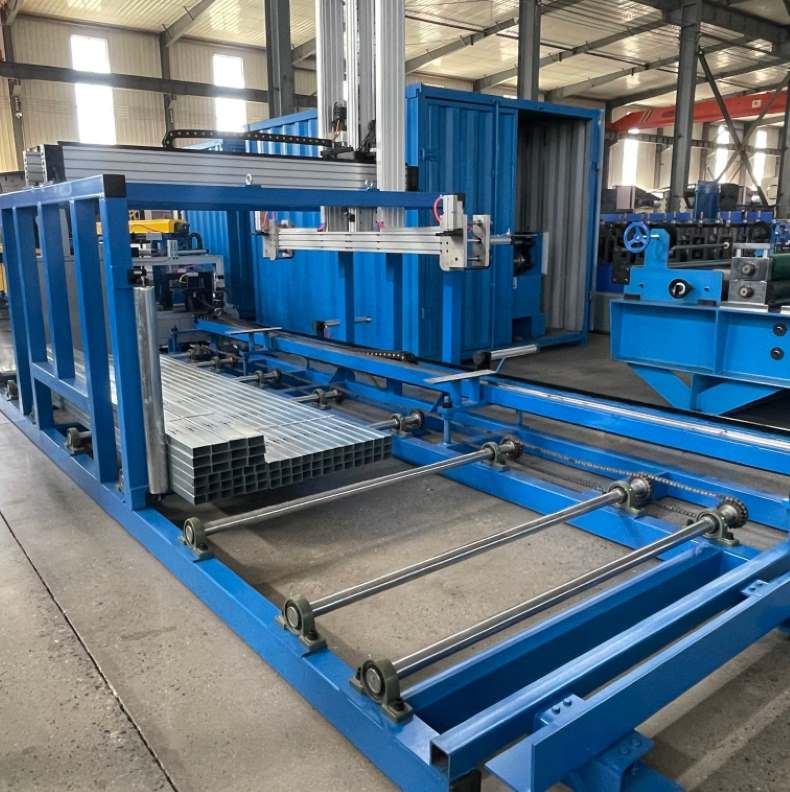

7. Product Collection Table

Length: 3 m
Used for receiving and collecting finished profiles

8.  Professional PLC Control

The control system combines Delta, Omron, and Schneider components for convenient operation and reliable control.

PLC: Delta
Inverter: Delta
Touch Screen: Yes
Encoder: Omron
Electrical Components: Schneider
Languages: Chinese & English, customizable
Functions: Length control, quantity control, and speed adjustment

Operators can set the required profile length and production quantity directly through the touch screen.

⭐ Why Choose This C Stud & U Track Machine?

✔ Automatic size adjustment
✔ C Stud & U Track production in one solution
✔ Up to 40 m/min without punching
✔ Integrated punching and hydraulic cutting
✔ Cr12 forming rollers for durability
✔ Gear transmission for stable operation
✔ Delta + Omron + Schneider control system
✔ Customizable profile sizes according to customer drawings
✔ Complete roll forming solution from coil to finished profile

The machine is backed by one-year warranty, free online training and technical guidance, with lifetime technical support provided by Zhongtuo.
