Automatic Anchor Bolt Roll Forming Machine for Mining and Rock Support
The Anchor Bolt Making Machine is a specialized production machine designed for manufacturing full-length anchorage and steel strip-shaped anchor bolts used in mining, tunneling and rock stabilization applications.
The finished anchor is formed from high-strength steel strip or steel pipe into a longitudinally opened three-dimensional anchorage profile. When the finished anchor is installed into a hole smaller than its outer diameter, the profile generates radial pressure against the surrounding rock, helping improve the stability of the surrounding rock structure.
Compared with conventional anchorage solutions, the steel strip-shaped anchor design can help reduce material consumption and production costs while providing an efficient solution for continuous industrial production.
The machine integrates feeding, forming, punching, counting and hydraulic cutting into a streamlined production process.
Continuous roll forming allows the machine to produce anchor profiles efficiently and consistently for high-volume manufacturing.
Punching and cutting operations are integrated into the production process, reducing the need for secondary processing.
The counting and cutting system is designed to provide accurate product length control during continuous production.
Gearbox transmission provides stable power delivery and consistent forming force throughout the production process.
The compact machine structure occupies limited production space while maintaining strong forming force for steel anchor manufacturing.
Coil Loading → Guided Feeding → Roll Forming → Punching → Length Counting → Hydraulic Cutting → Finished Anchor Bolt
The production line is designed to perform the main manufacturing operations continuously, reducing manual intervention and improving production efficiency.
The Anchor Bolt Making Machine is equipped with an uncoiler with a material stopper to help prevent the steel strip from moving sideways during decoiling.
The feeding inlet is equipped with matching guide rollers to maintain the correct material direction before the strip enters the forming section. The guide system helps stabilize the feeding process and maintain consistent material orientation.
Helps keep the coil material properly positioned during decoiling.
Helps maintain stable feeding direction and material alignment.
Keeps the strip aligned before entering the forming rollers.
The forming section combines vertical rollers and horizontal rollers to form the steel strip from multiple directions.
Four forming angles are processed simultaneously during the forming operation. This forming configuration helps create the required three-dimensional anchor profile while minimizing product deformation.
The forming section adopts gearbox transmission to provide stable and consistent power during the forming process.
Compared with lighter transmission configurations, the gearbox drive provides strong torque transmission and helps maintain stable forming force when processing steel materials.
The machine uses an Omron pipe-welding-machine-specific counter for production length counting.
The counting system is designed to provide accurate length measurement during continuous production and helps reduce counting errors caused by material slipping.
Supports precise control of finished product length.
Designed to improve counting consistency during continuous feeding.
Integrated with the forming and cutting process for efficient automatic production.

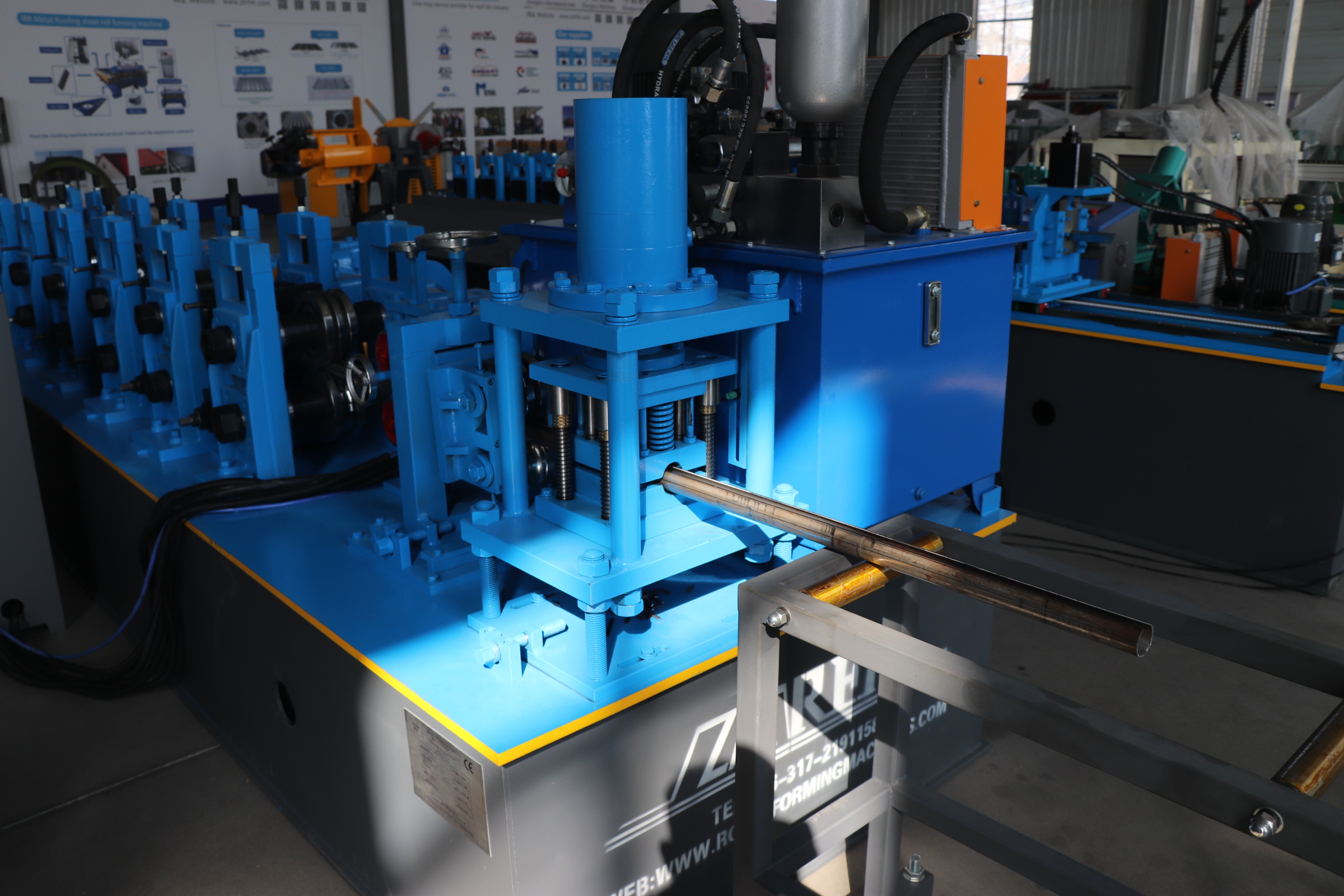

The hydraulic system is designed to complete punching and cutting operations within the production process.
When the hydraulic system performs the cutting operation, the cutting and incision are completed simultaneously, helping improve production efficiency and reducing the need for additional processing.
The hydraulic station is equipped with an accumulator, allowing the cutting and punching system to maintain efficient operation without requiring continuous high-pressure output.
The production solution can be equipped with a matching locking machine for additional processing of the finished anchor components.
The locking machine adopts foot-pedal operation, making it convenient for operators to control the machine during production.
Continuous roll forming and integrated processing support high-output anchor manufacturing.
Punching and cutting are integrated into the production process, reducing additional processing steps.
Vertical and horizontal rollers work together to form the profile from multiple directions.
The counting system supports accurate finished product length measurement and cutting.
A compact equipment structure is suitable for efficient use of factory production space.
Integrated controls and optional foot-operated locking equipment simplify daily operation.
| Feature | Description |
|---|---|
| Machine Type | Anchor Bolt Making Machine |
| Application | Mining, tunneling and rock support applications |
| Forming Method | Vertical + Horizontal Roll Forming |
| Forming Configuration | Four-Angle Simultaneous Forming |
| Transmission | Gearbox Drive |
| Counting System | Omron Counter |
| Cutting Method | Hydraulic Cutting |
| Punching | Integrated Punching Process |
| Hydraulic System | Hydraulic Station with Accumulator |
| Optional Equipment | Matching Locking Machine |
Designed for manufacturing anchor components used in underground mining and rock support applications.
Suitable for continuous production of steel anchorage components for tunneling and underground construction.
Produces longitudinally formed anchor profiles designed for rock stabilization applications.
Contact Zhongtuo to discuss your anchor bolt profile, raw material specifications, production requirements and customized machine configuration.
