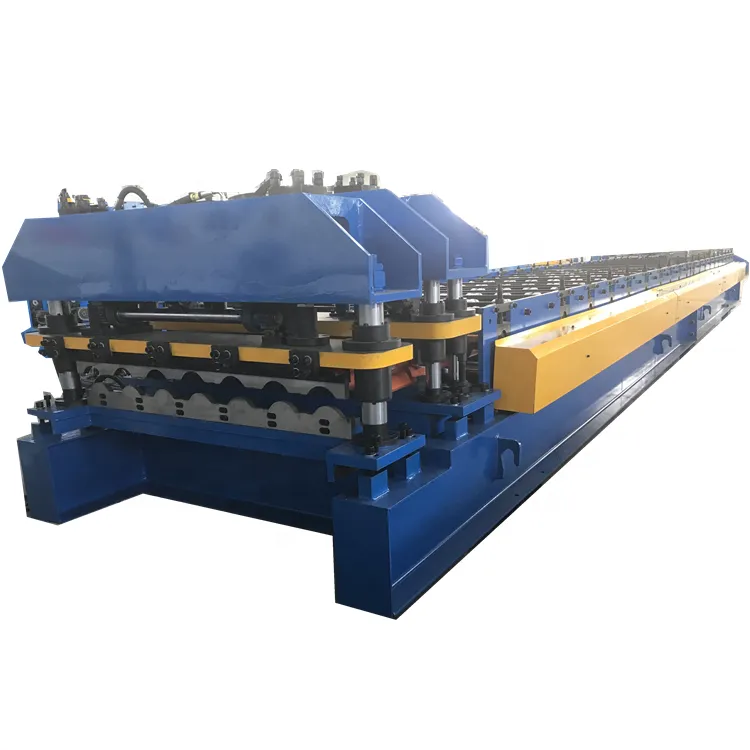

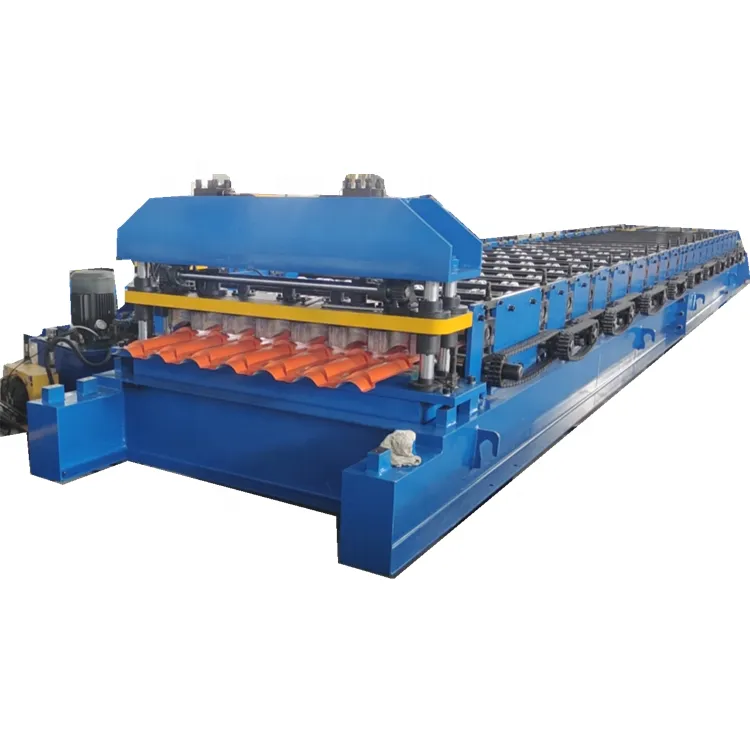

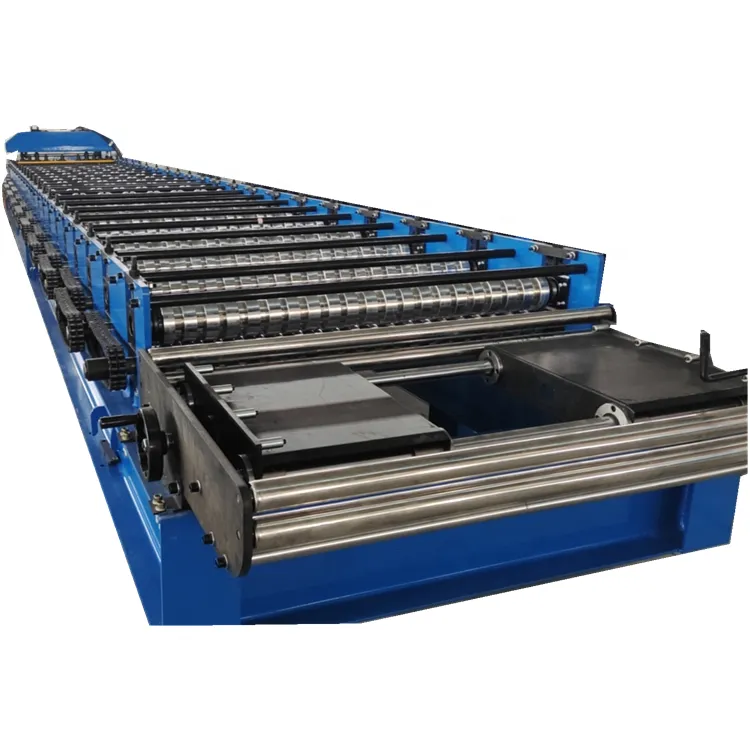

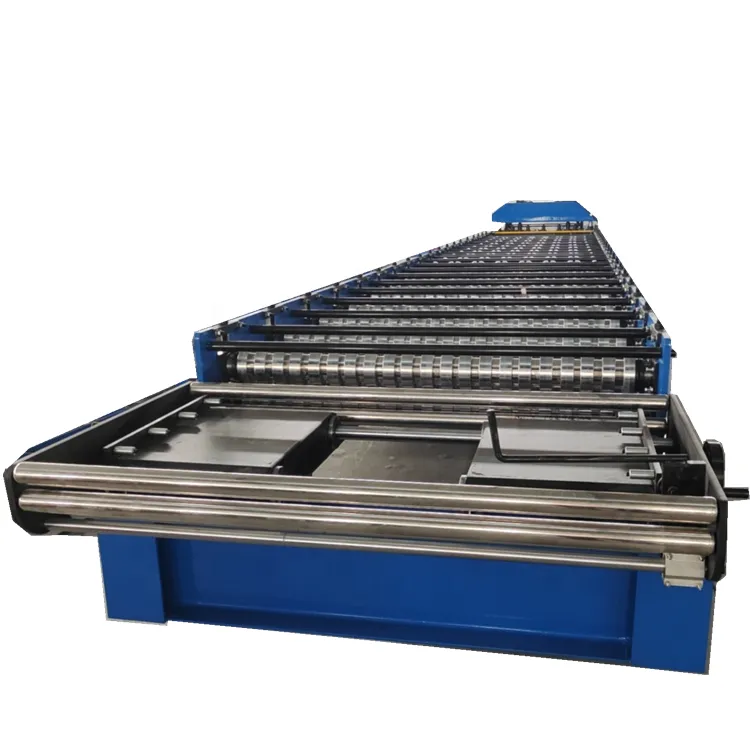

    Automated Solutions for Roof Tile Production: Full Auto Roll Former ZT840+7 kw

    $***/ Set
    Min. Order:1 Set

    Coupons: More >

    You can log in to view more discounted prices.Login Now

    Price:
    $***
    Quantity:
    1Set

    Order CodeZT80101637
    Shipping:
    Delivery to:
    • Select country
    • 中国
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antarctica
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bonaire, Saint Eustatius and Saba
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cabo Verde
    • Cambodia
    • Cameroon
    • Canada
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Cook Islands
    • Costa Rica
    • Croatia
    • Cuba
    • Curacao
    • Cyprus
    • Czechia
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • Dominican Republic
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Eswatini
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and McDonald Islands
    • Honduras
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Ivory Coast
    • Jamaica
    • Japan
    • Jersey
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Libya
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • North Korea
    • North Macedonia
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestinian Territory
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Republic of the Congo
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthelemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • Samoa
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Serbia and Montenegro
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and the South Sandwich Islands
    • South Korea
    • South Sudan
    • Spain
    • Sri Lanka
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Sweden
    • Switzerland
    • Syria
    • Tajikistan
    • Tanzania
    • Thailand
    • The Netherlands
    • Timor Leste
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • U.S. Virgin Islands
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • Uzbekistan
    • Vanuatu
    • Vatican
    • Venezuela
    • Vietnam
    • Wallis and Futuna
    • Western Sahara
    • Yemen
    • Zambia
    • Zimbabwe
    • Select province
    • Select city

    Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

    Specification:

    Model Number:
    ZT840
    Power(W):
    7 kw
    Payment:
    Transaction Protection:
    • Secure payments
    • Money-back protection
    • 24/7 support
    • Data privacy
    ZT80101637
    Quantity:
    -
    +
    Add to CartBuy Now
    • Product Details
    • Reviews(0)
    • Technical Specifications

      • Type
        Tile Forming Machine
      • Tile Type
        colored
      • Use
        ROOF
      • Voltage
        380v 50HZ 3 phase or customize
      • Rolling Thinckness
        0.3-0.8mm
      • Feeding Width
        1250 mm

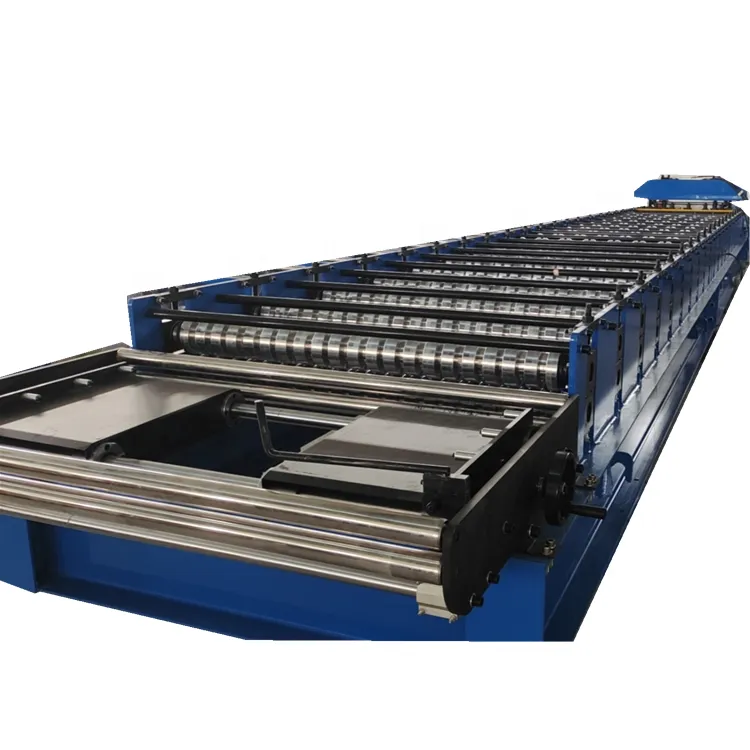

      Automated Solutions for Roof Tile Production: Full Auto roll former



      A metal roof roll forming machine works by gradually shaping a flat strip of metal into a specific profile (the cross-sectional shape of the roofing material) through a series of rolls or stages. Each roll, or set of rollers, bends the metal slightly more than the previous one until the desired profile is achieved.

      There are various types of metal roof roll forming machines to cater to different profiles, such as corrugated iron, standing seam, R panel, or V crimp profiles. Some machines are portable, allowing manufacturers to bring the machines directly to the construction site, creating a highly efficient production process that reduces costs associated with shipping and potential damage.

      Product Description

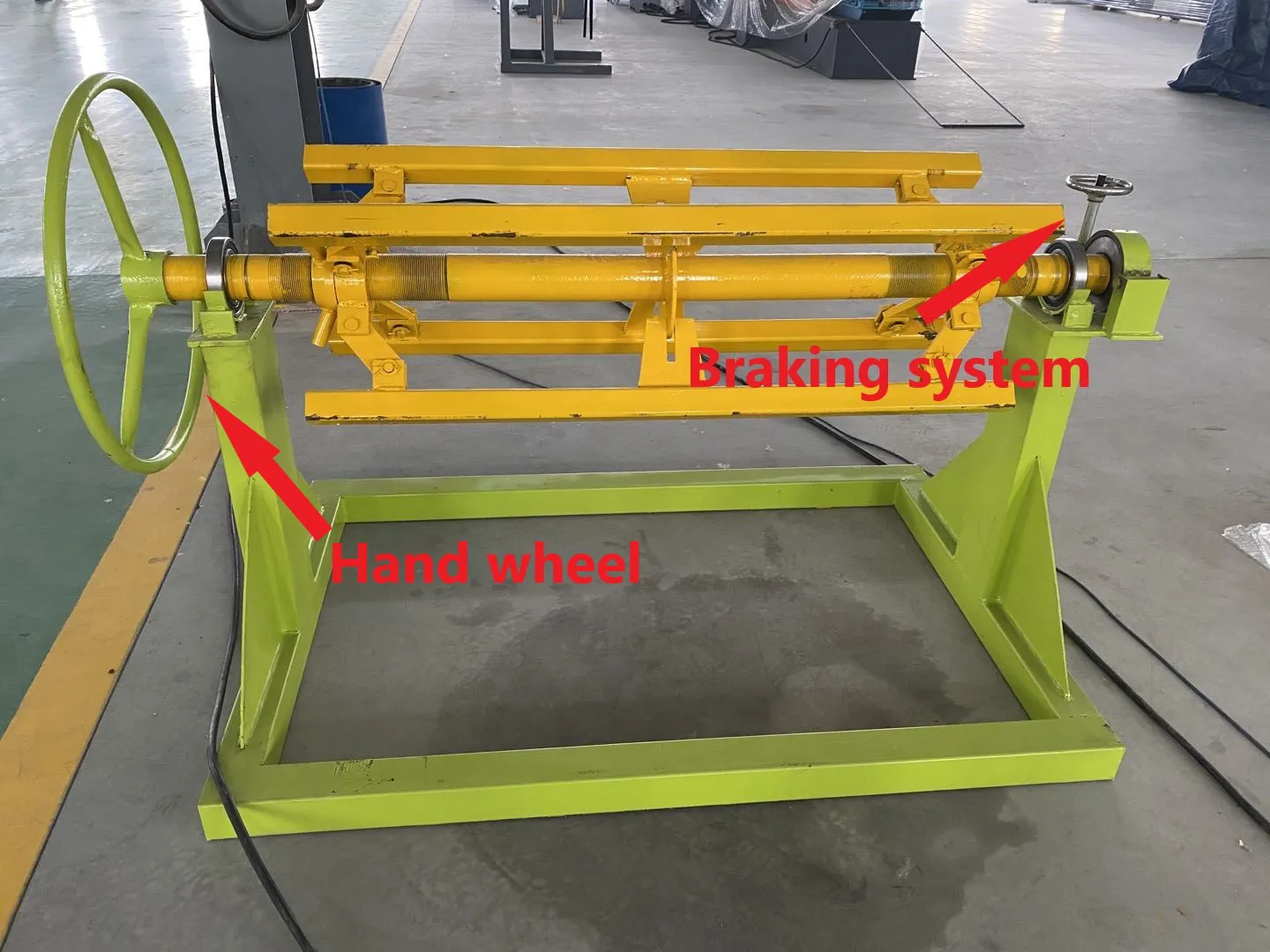

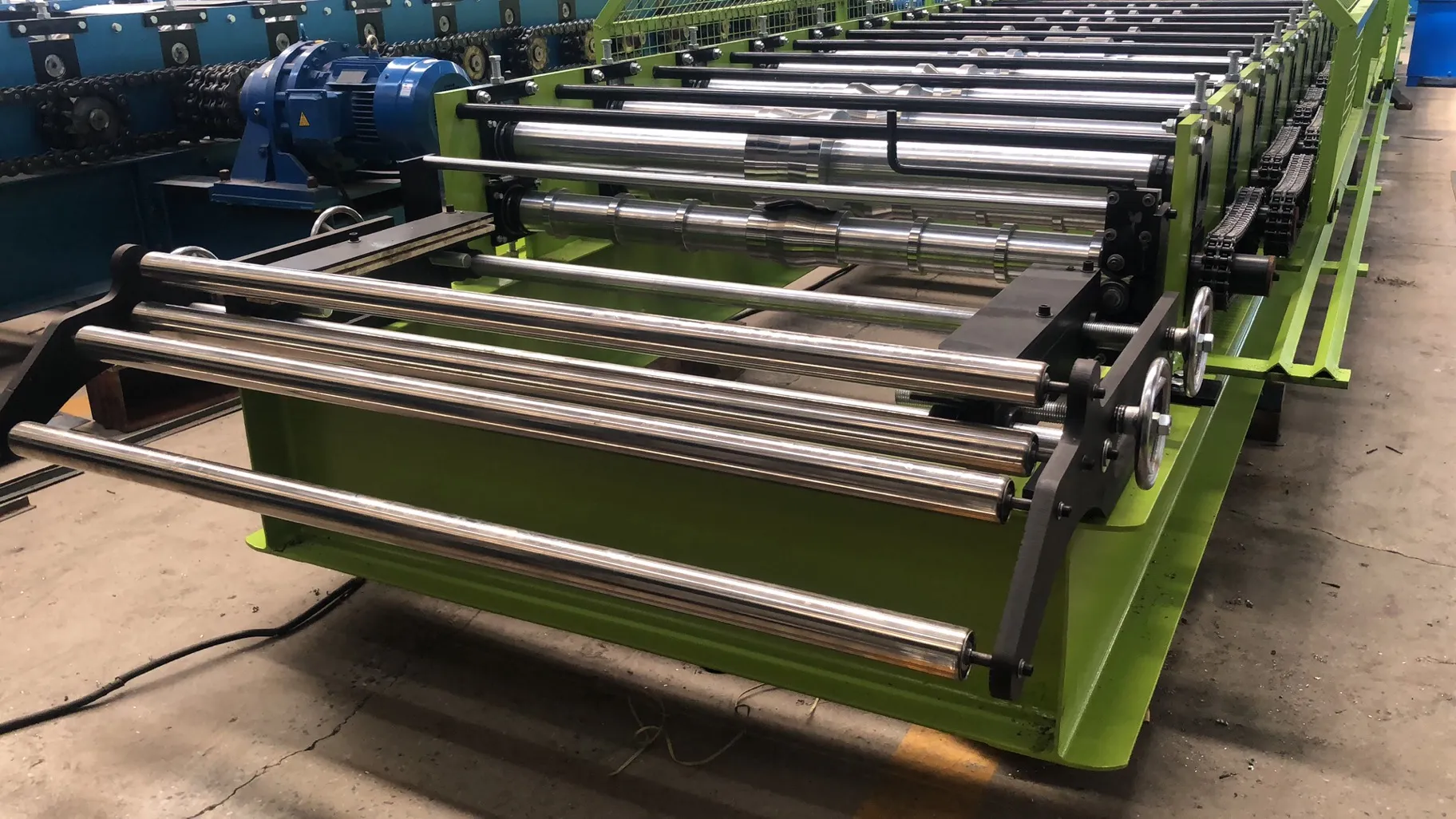

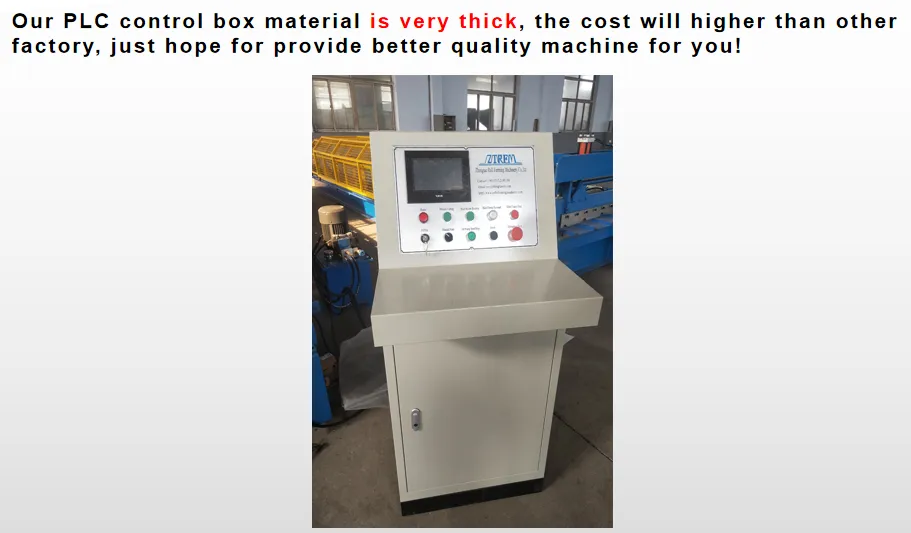

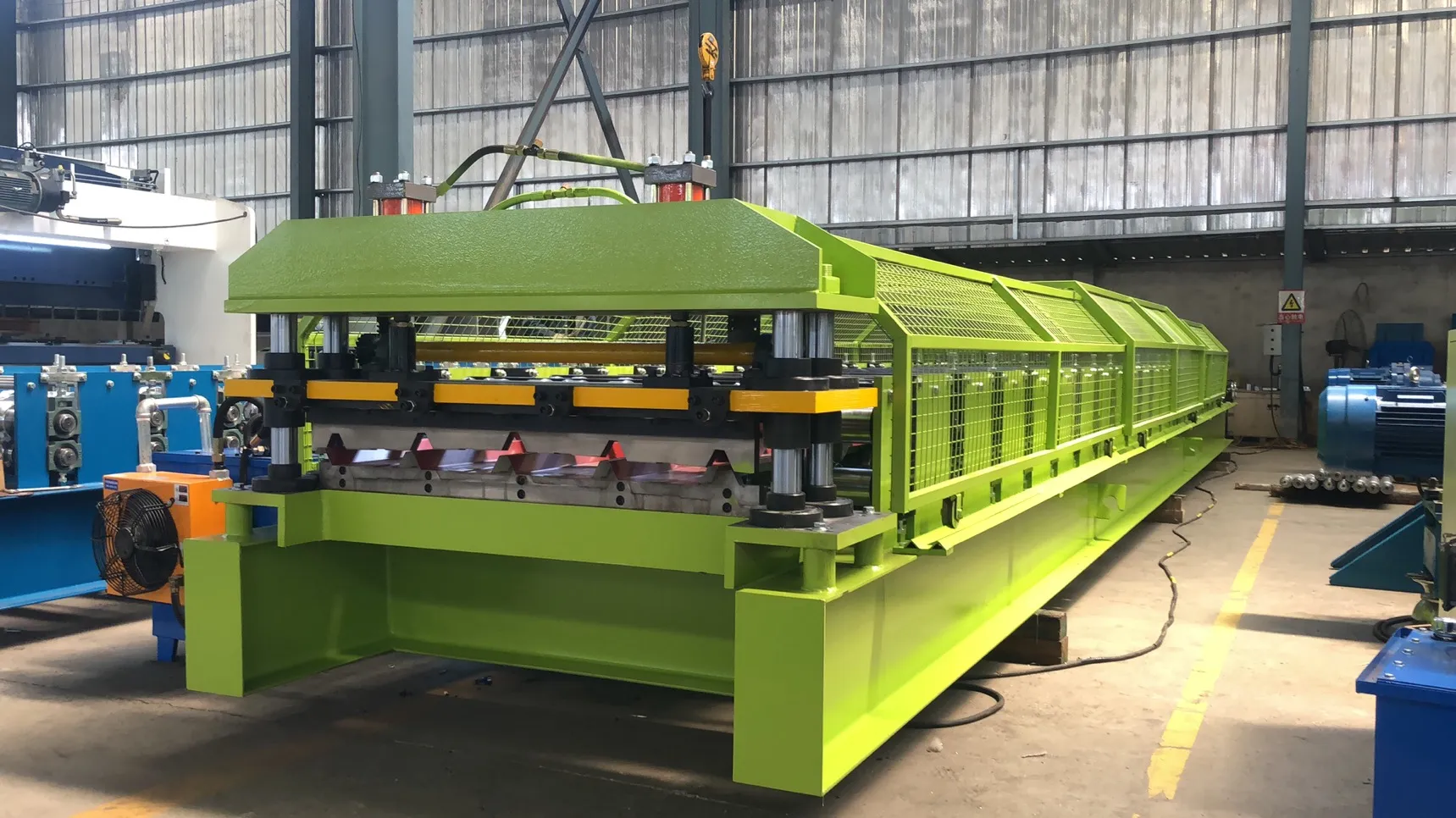

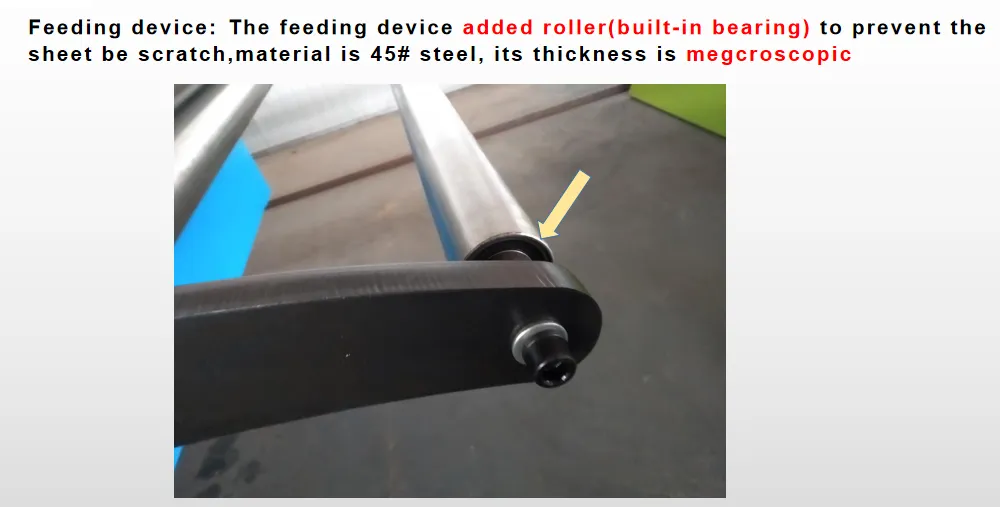

      A metal  roof sheet machine consists of uncoiler and its base,infeed guides,fixd positiondriven forming stations,shearing device,hydraulic station,PLC control console and so on.



      Our company has hundreds of profile models for this series  roof sheet machine,We can design different kinds of profile and fittings for machine,as per customersrequirements.





      No.

         roof sheet machine

      1

      Suitable material

      Color steel sheet ,galvanized steel sheet, aluminium sheet

      2

      Width of material

      1200mm or as you required

      6

      Thickness of material

      0.3-0.8mm or as your needs

      2

      Working speed

      10-20m/min

      3

      Main motor power

      5.5kw with cycloidal reducer

      4

      Hydraulic station power

      5.5kw

      5

      Electrical control system

      PLC control system

      7

      Shaft diameter

      70mm

      8

      Roller station

      12



      10

      Dimension

      7500x1500x1910mm

      11

      Weight

      About 6 T

      12

      Voltage

      380V 3phase 50HZ or as the customer's requirements

      13

      Material of roller

      High grade 45# forged steel plated with hard chrome plating

      14

      Material of cutting

      Cr12 mould steel with quenched treatment

      15

      Working time

      Can be 24 hours

      16

      Workers

      1-2 only



      Please Note: All the parameters can be designed as your requirement.

      Let me show you how to operate Steel Bamboo Roofing Sheets Making Machine  :

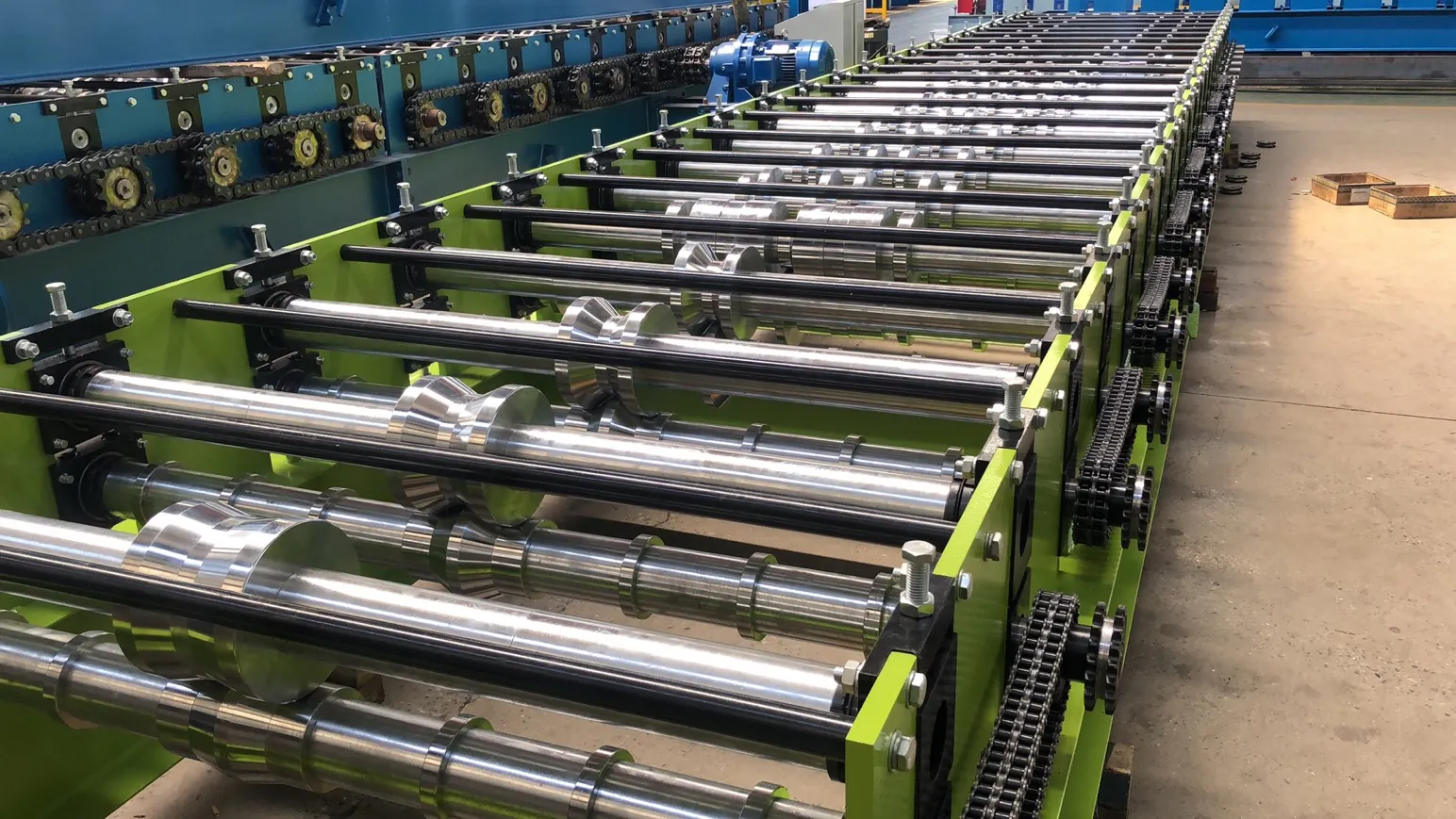

      Decoiling→Feeding & Guiding→Roll Forming→ Cutting→Finished Products To Support Table

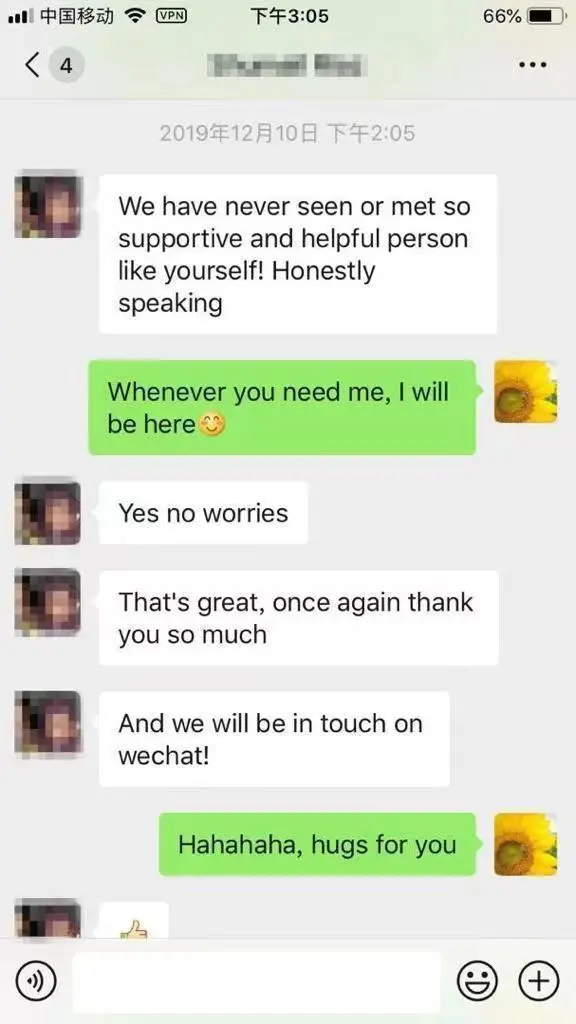

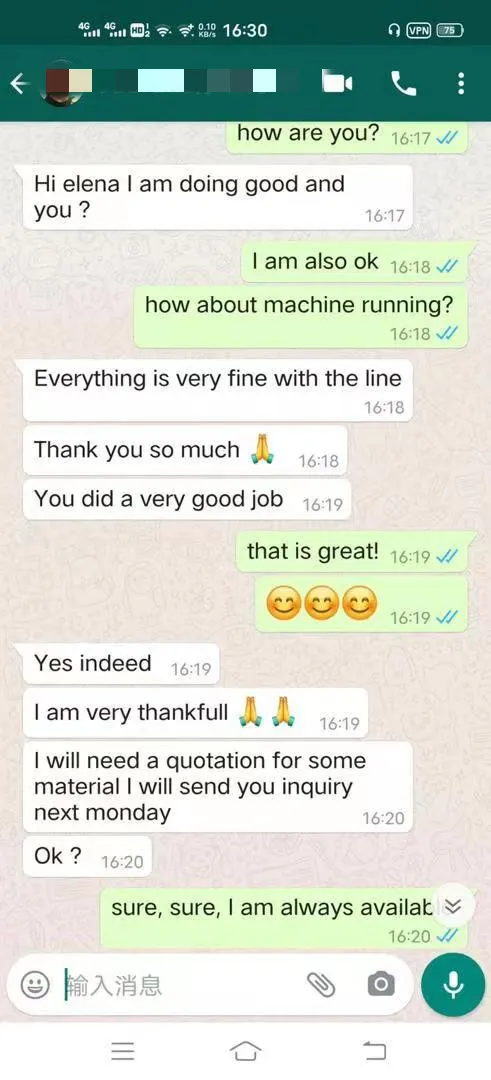

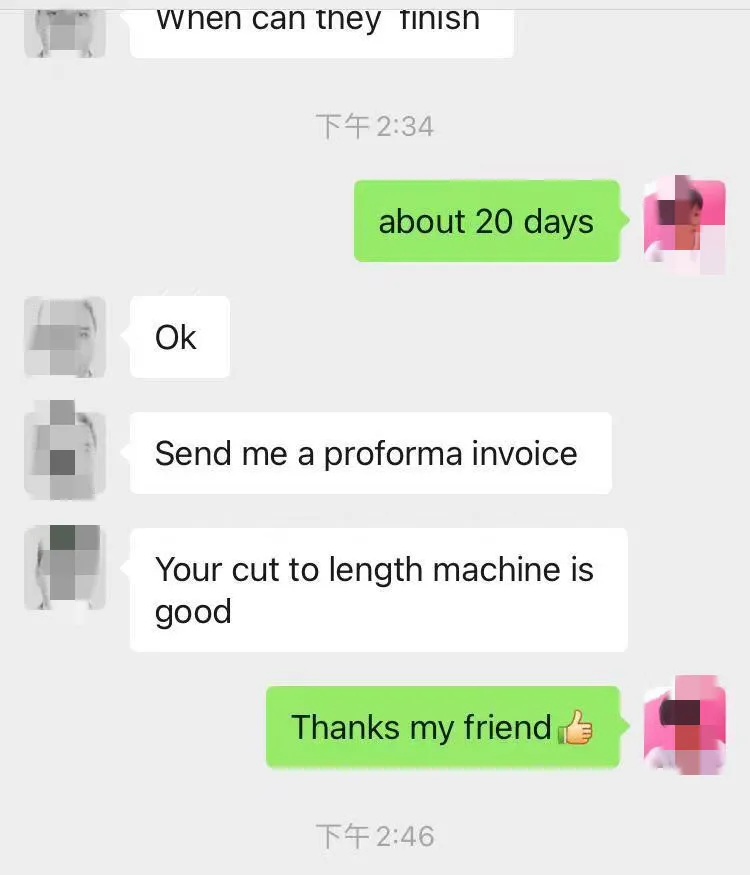

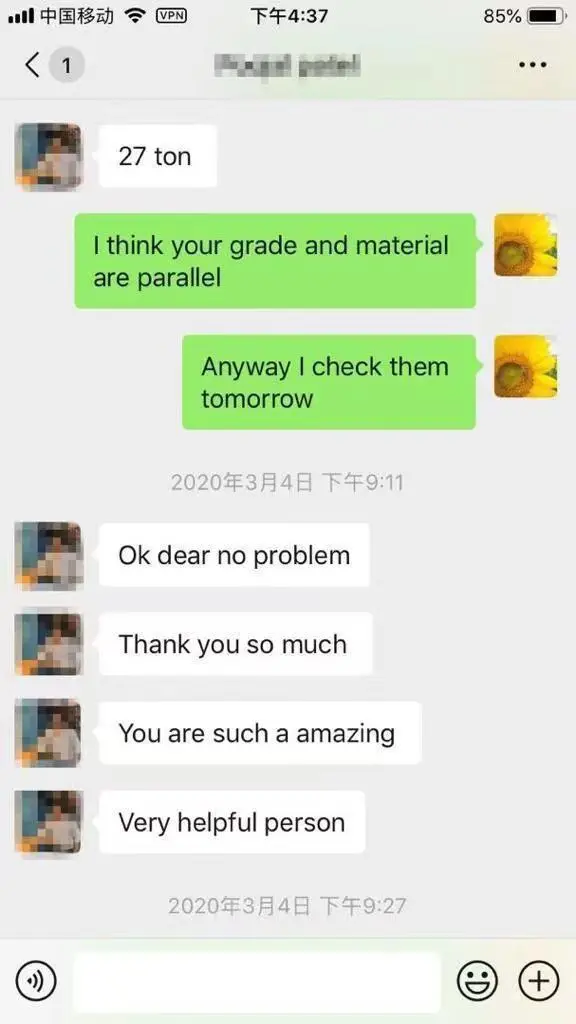

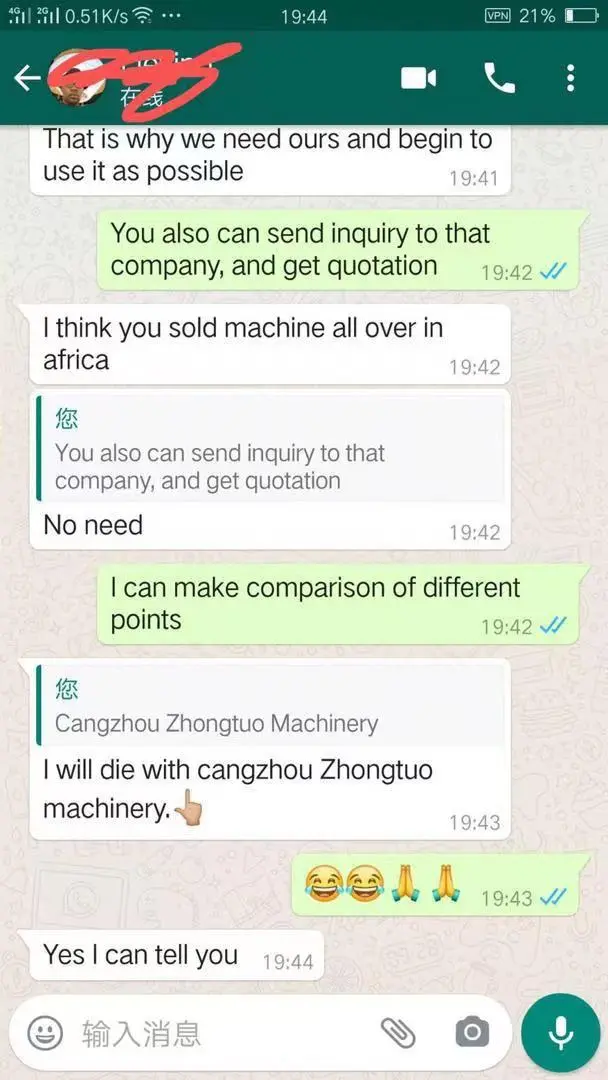

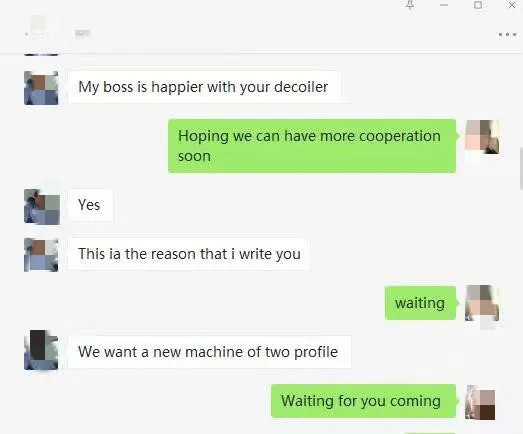

      Positive feedbacks from clients:

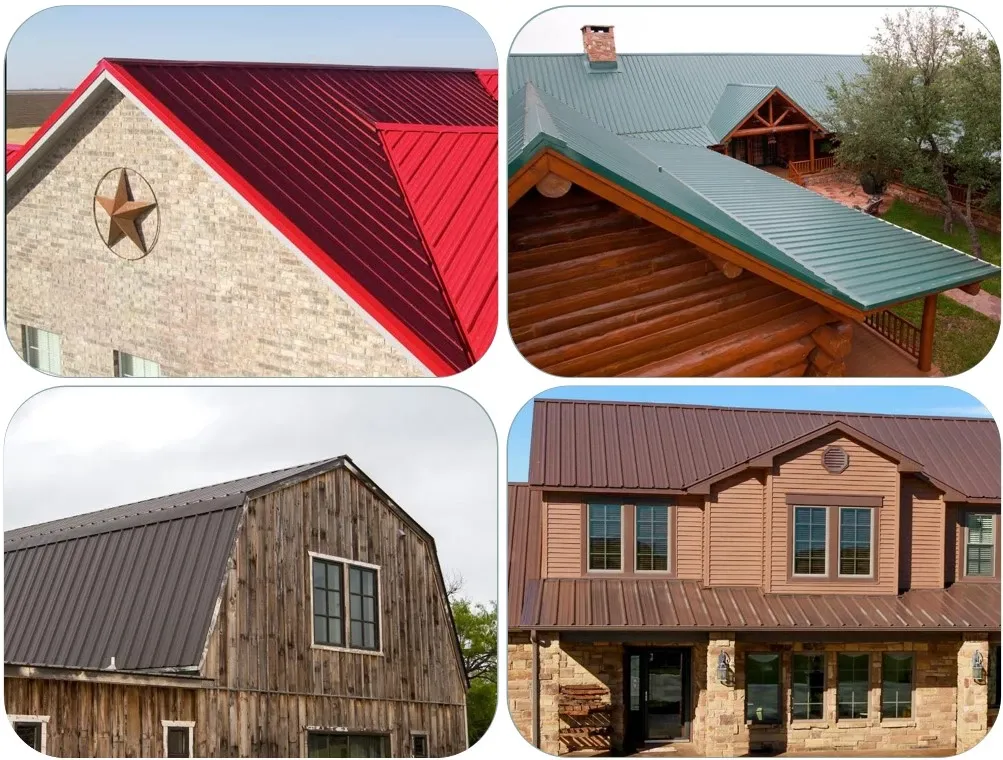

       Buildings built with trapezoidal tile/panel.

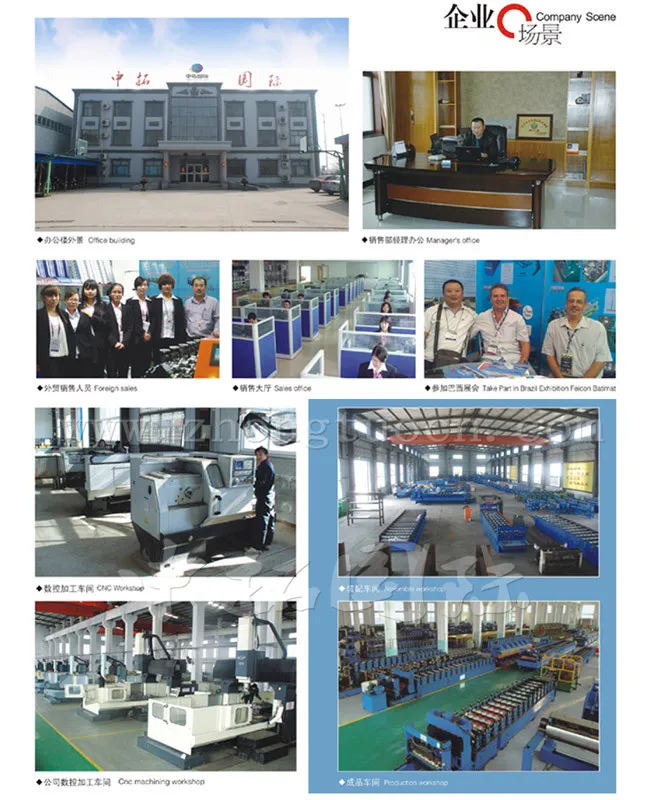

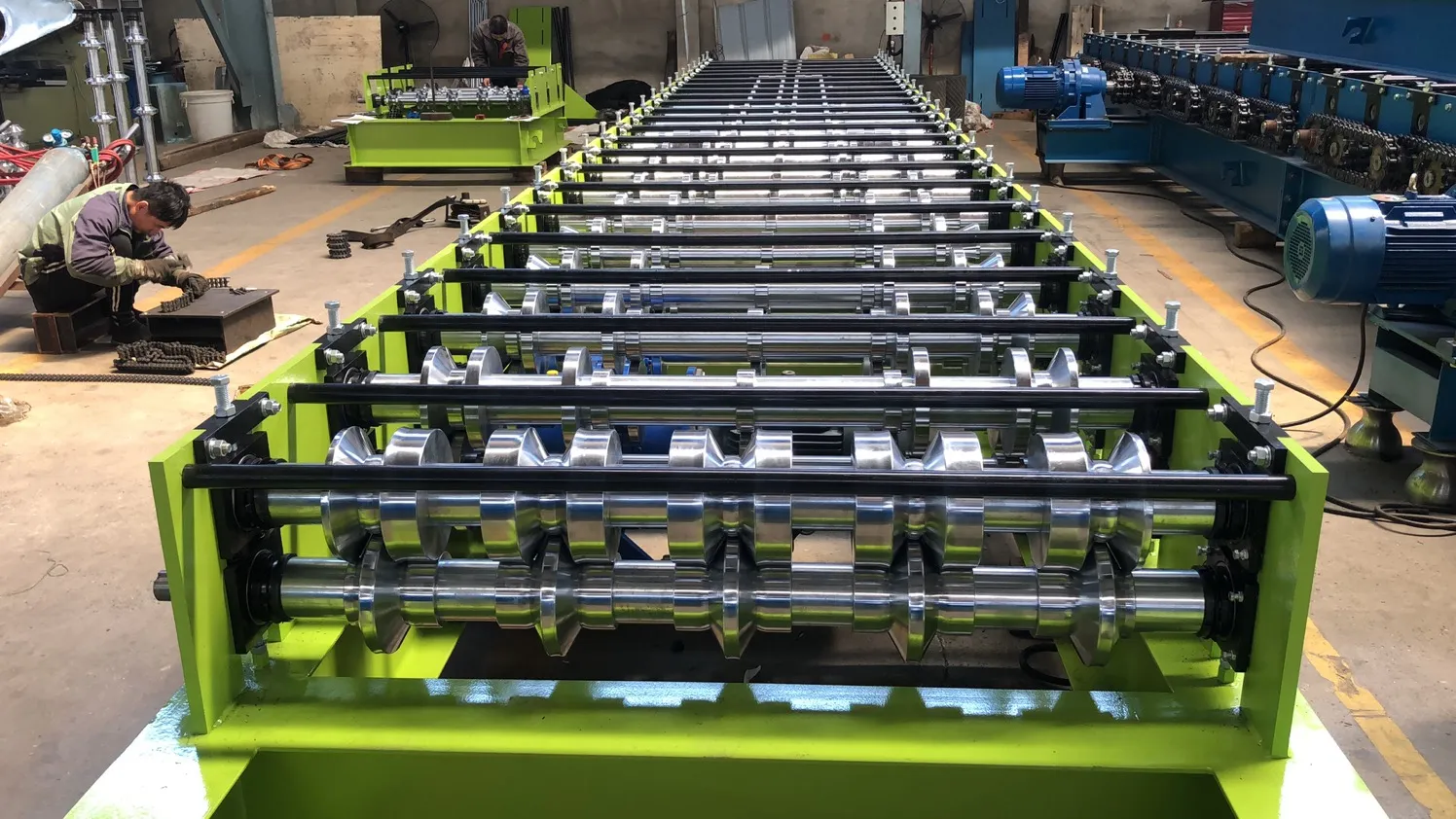

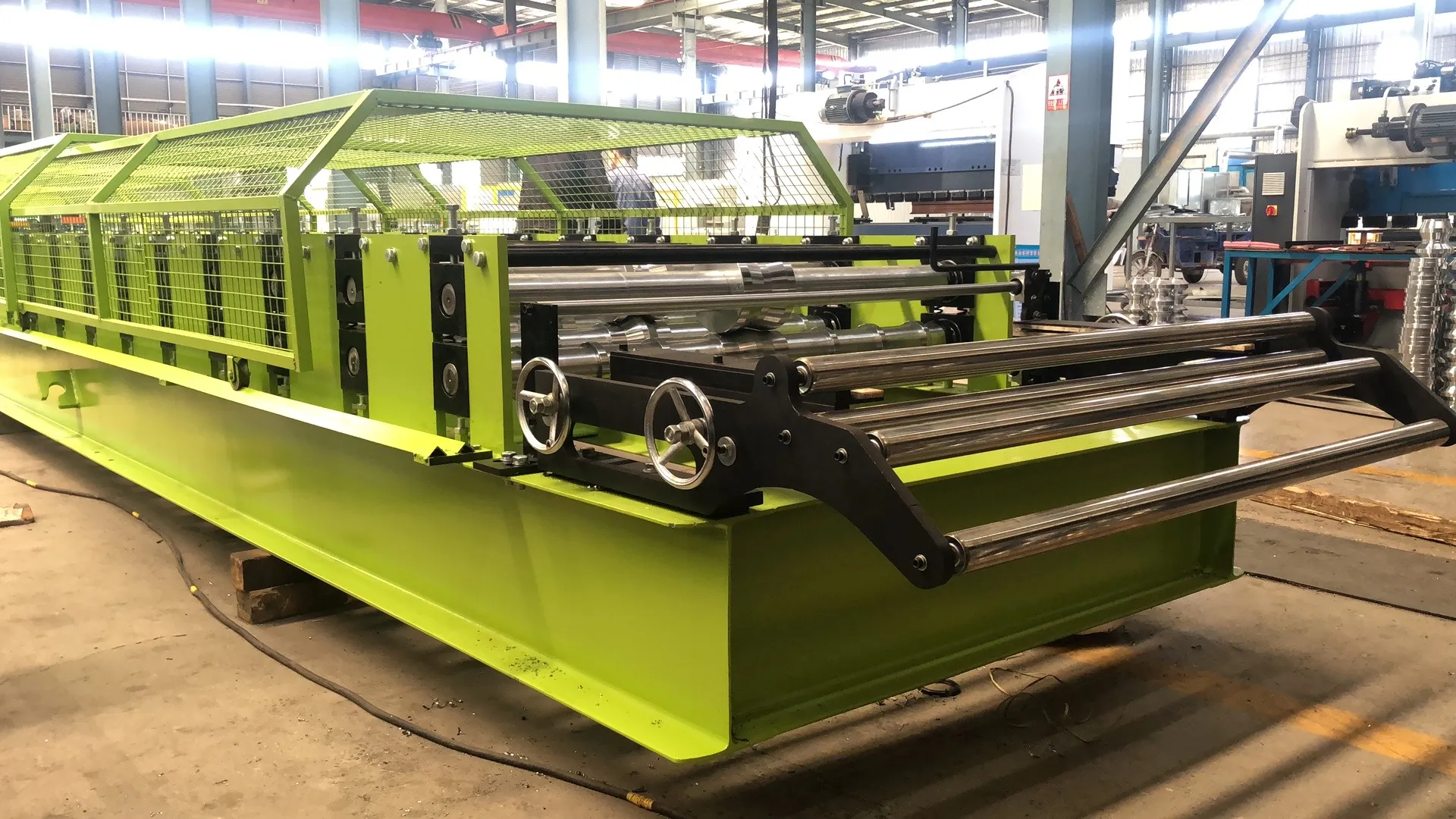

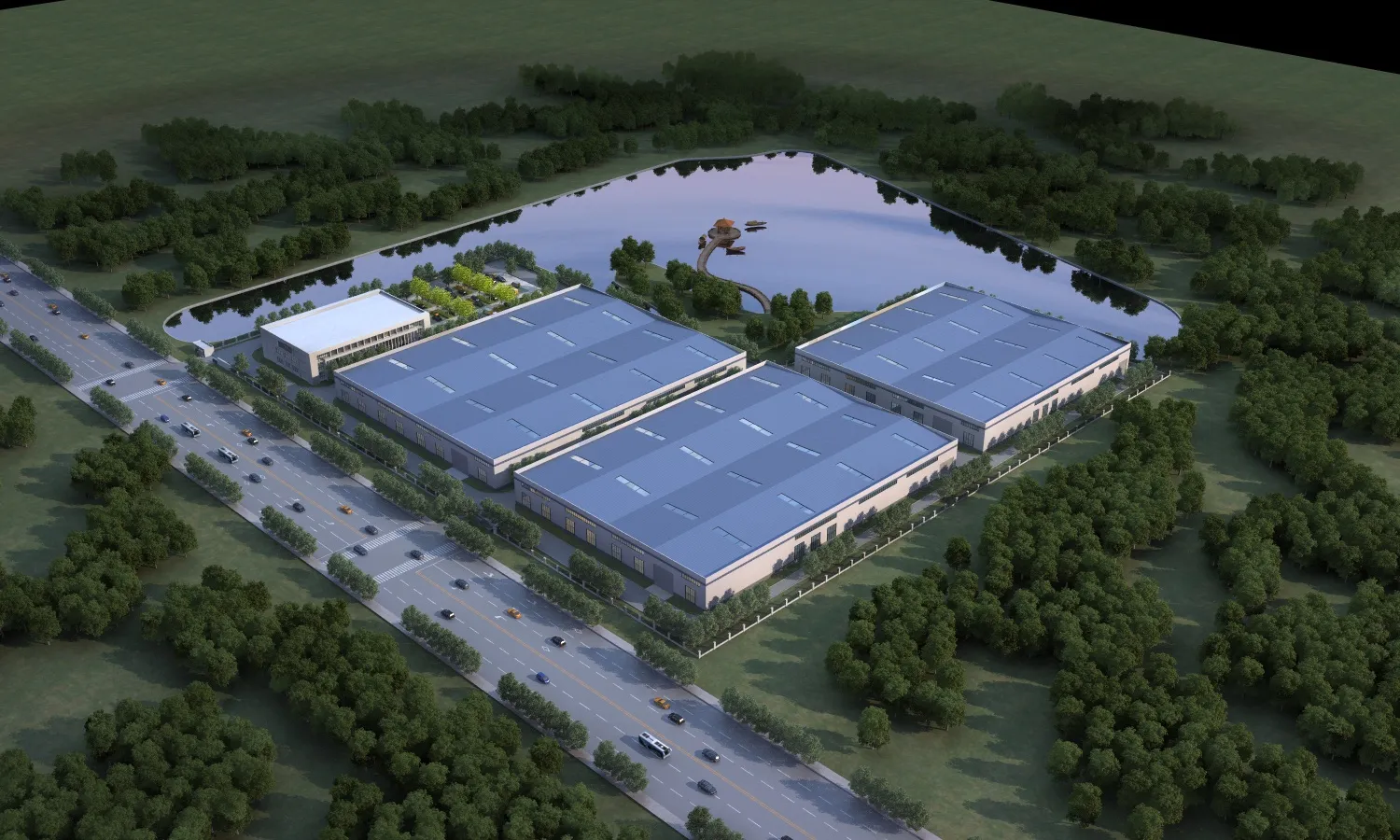

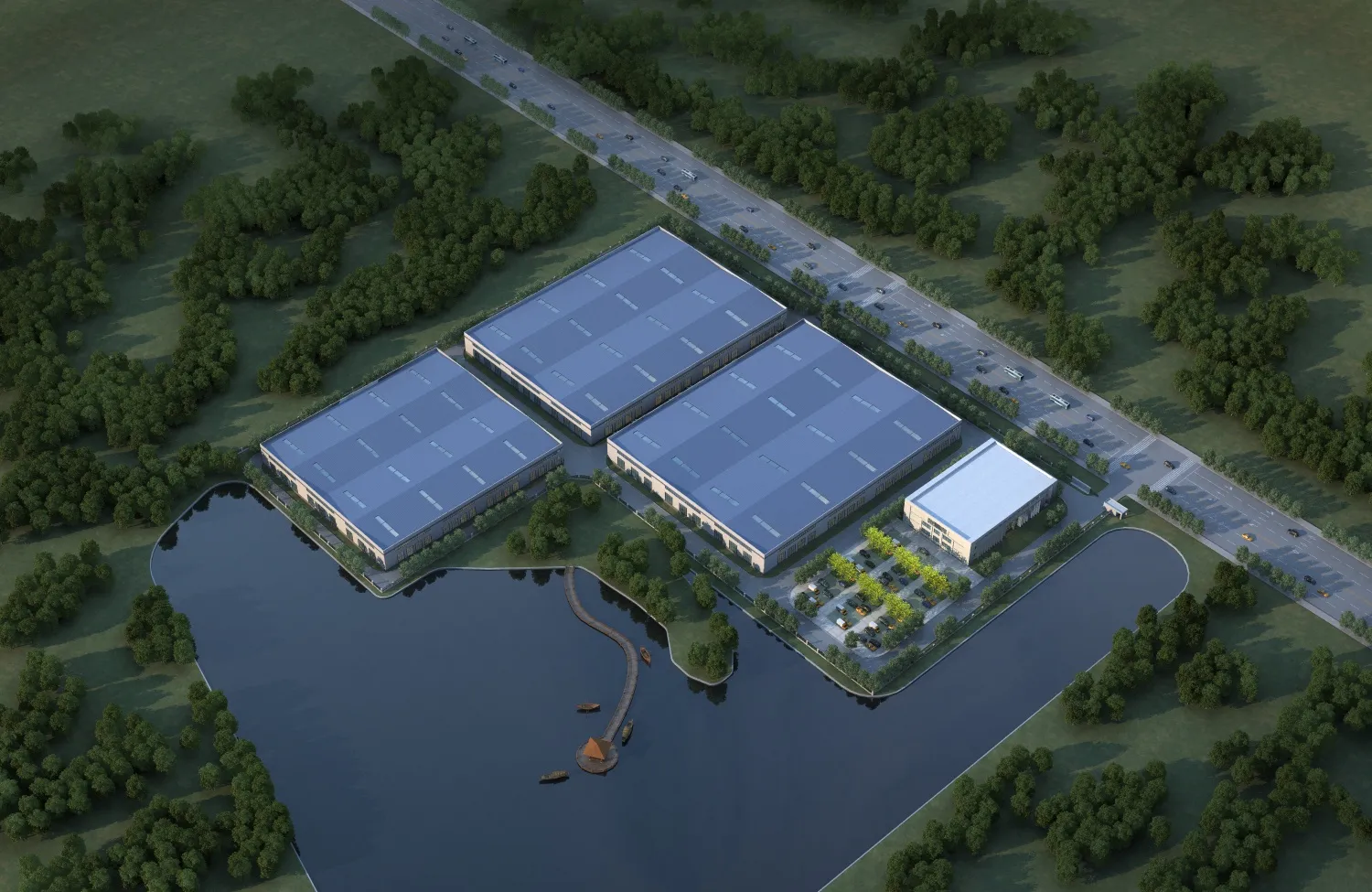

      Our Factory:

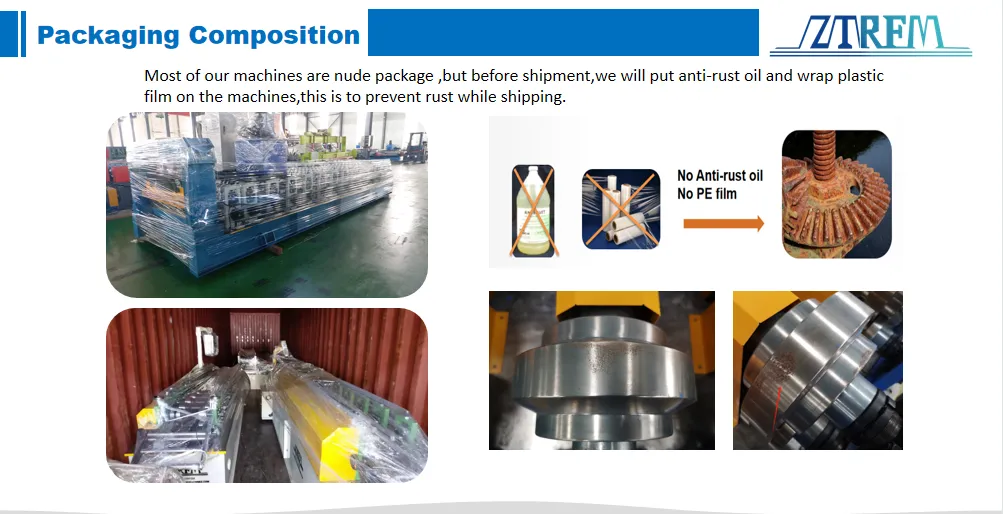

      Packaging & Shipping



      Payment Terms: 30%T/T after signed the contract,balanced before delivery



      One 40' HQ





      Company Information





      FAQ





      1.You are trade company or factory

      - We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.



      2. Why your price is higher than others

      - As we persist on that each factory should put quality at the first place. We spend time and money on developing



      how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality  assurance.



      3. How long the machine could be made

      - Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines



      in a hurry, we can make it for you less than a month.
