Door Roll Forming Machine System > Production Equipment > Roller Shutter Door Frame Roll Forming Machine

Australia Style Australia Type Roller Shutter Garage Door Roll ZTE-ASDRFM+12KW

Cangzhou Zhongtuo International Trade Co., Ltd

Australia Style Australia Type Roller Shutter Garage Door Roll ZTE-ASDRFM+12KW

Name: Australia Style Australia Type Roller Shutter Garage Door Roll ZTE-ASDRFM+12KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT81835760

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTE-ASDRFM

Power(W):

12KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
door making machine
Tile Type
Steel
Use
garage door
Voltage
220V 60HZ 3P or as request
Rolling Thinckness
0.4-0.6mm
Feeding Width
1000mm

Australia Style Australia Type Roller Shutter Garage Door Roll Forming Machine Australian Type Roller Shutter Door Machine

Australian type roller shutter door is widely used in shops, shopping malls, schools, villas, factories, stations, banks and factories. It is the best alternative to aluminum roller shutter.

Features: the appearance of Australian roller door is novel and beautiful. Compared with other roller doors, Australian roller door has the characteristics of light, static and fast; The door panel is wavy and integrated, which is not easy to be stained with dust and oil. It can be cleaned with water, which is time-saving and convenient.

Cangzhou Zhongtuo can customize high-quality machines for you according to your requirements and provide you with several satisfied solutions.

Profile drawing as follow for reference.

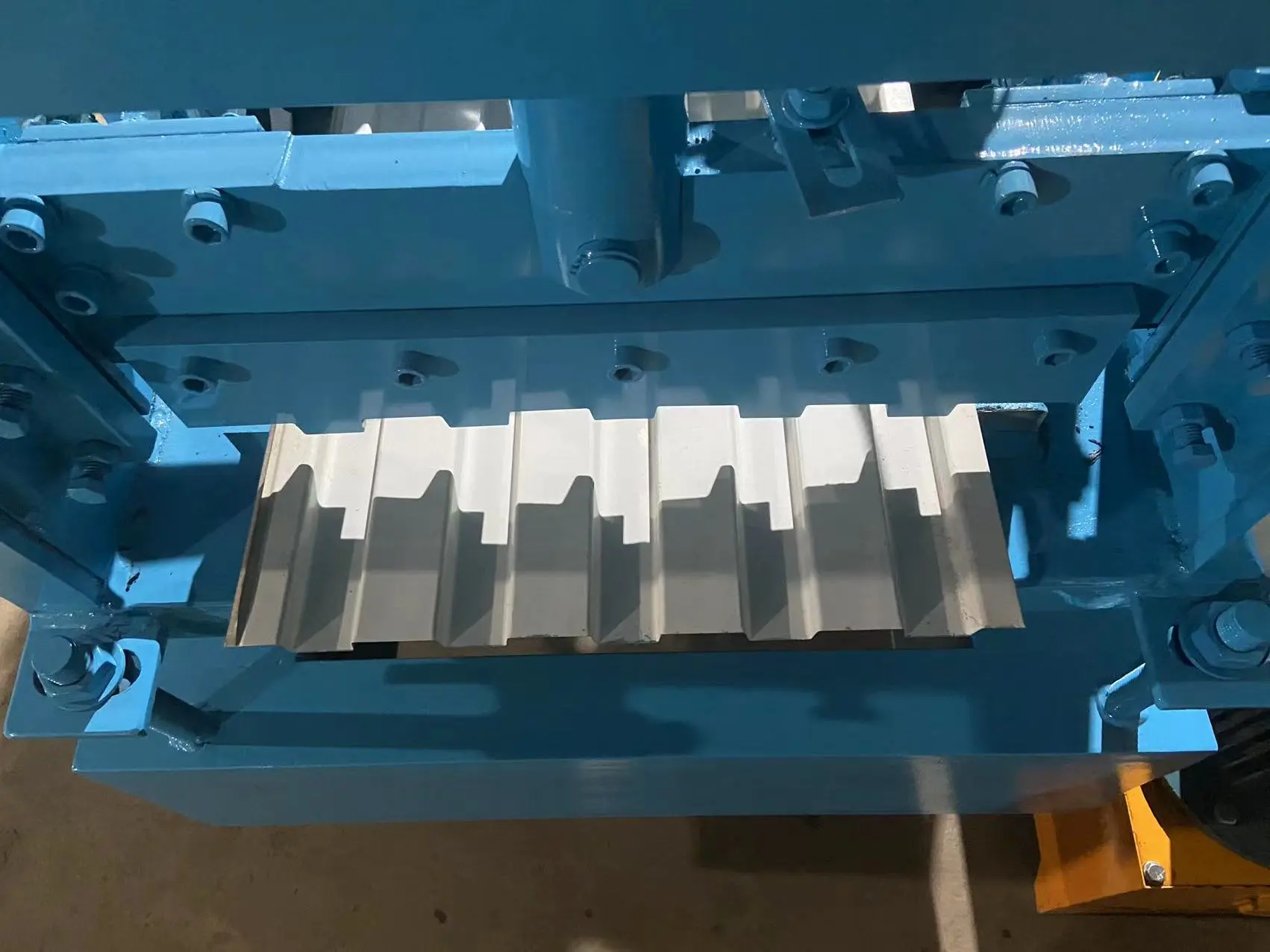

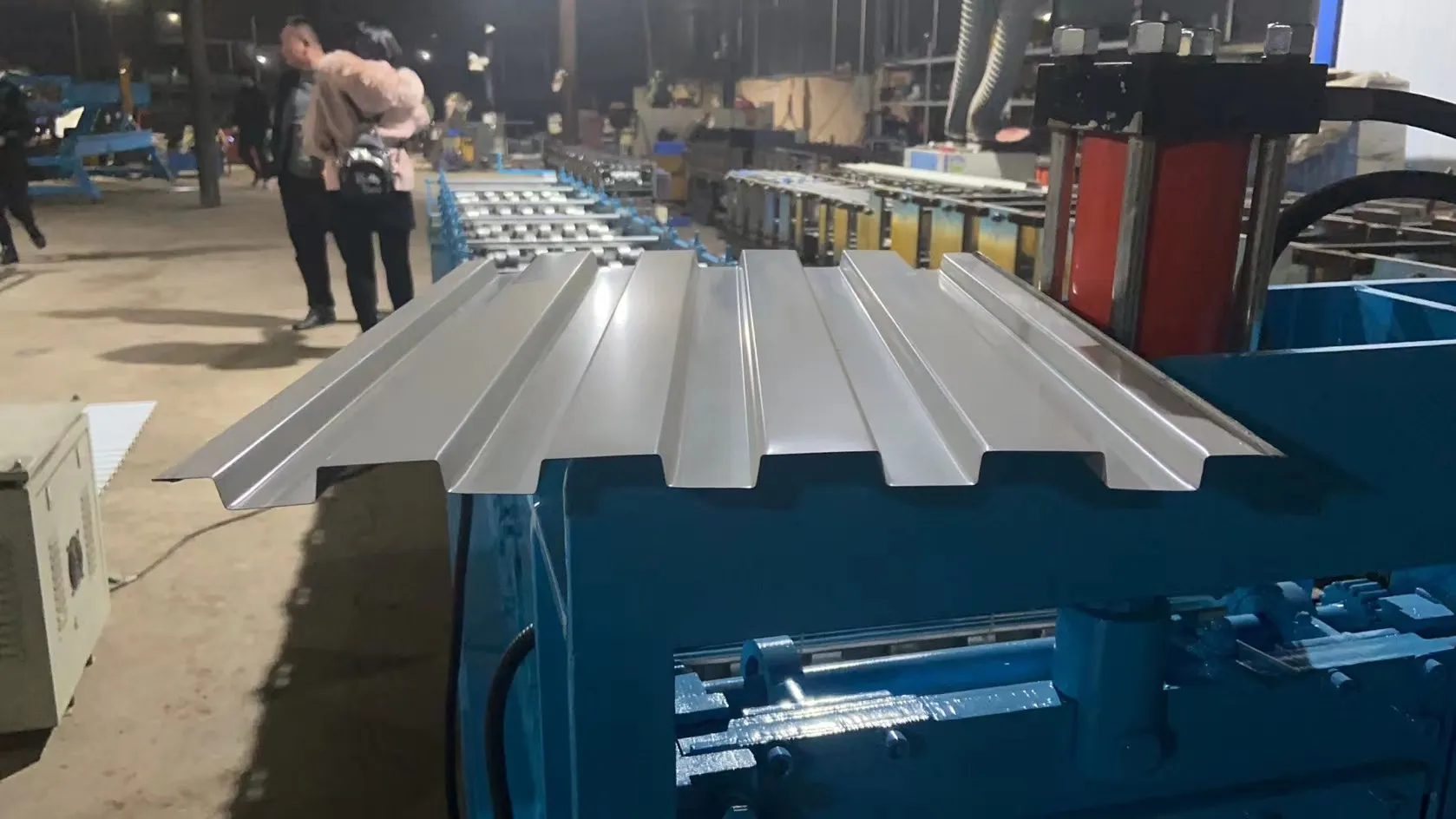

Finished product show

Main components

Item	Description	Unit	Quantity	Remark
Part 1	5T manual decoiler	set	1	Manual
Part 2	Main forming machine	set	1
Part 3	cutting system	set	1	Manual
Part 4	Receiving table	set	1	regular

The work flow of production line

Technical parameter
Series	Details	Parameter
Product	Raw material	galvanized steel
	Material thickness	0.4-0.6mm
	Feeding width	1000mm
	Cutting length	adjustable

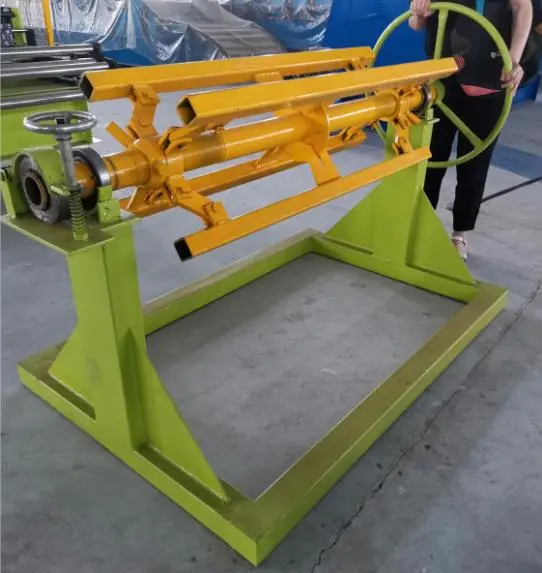

Part 1: Manual Decoiler (5 Ton)
Type	Passive
Coil width	max 1200mm
Loading capacity	5Tons
Inner diameter	450-550mm

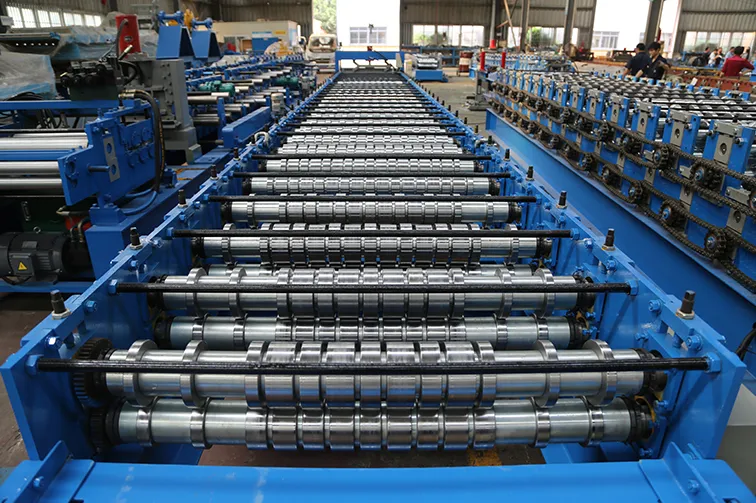

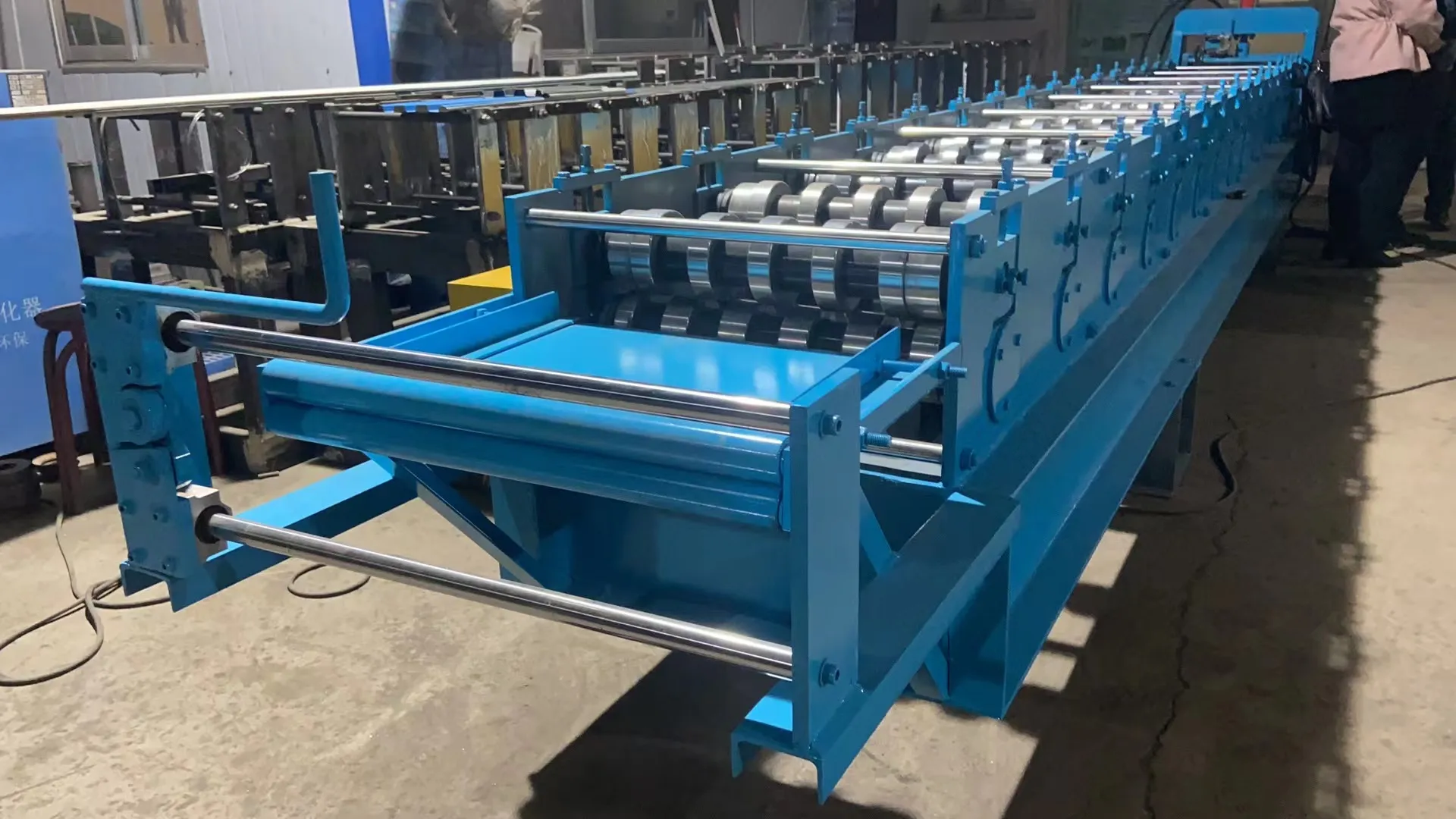

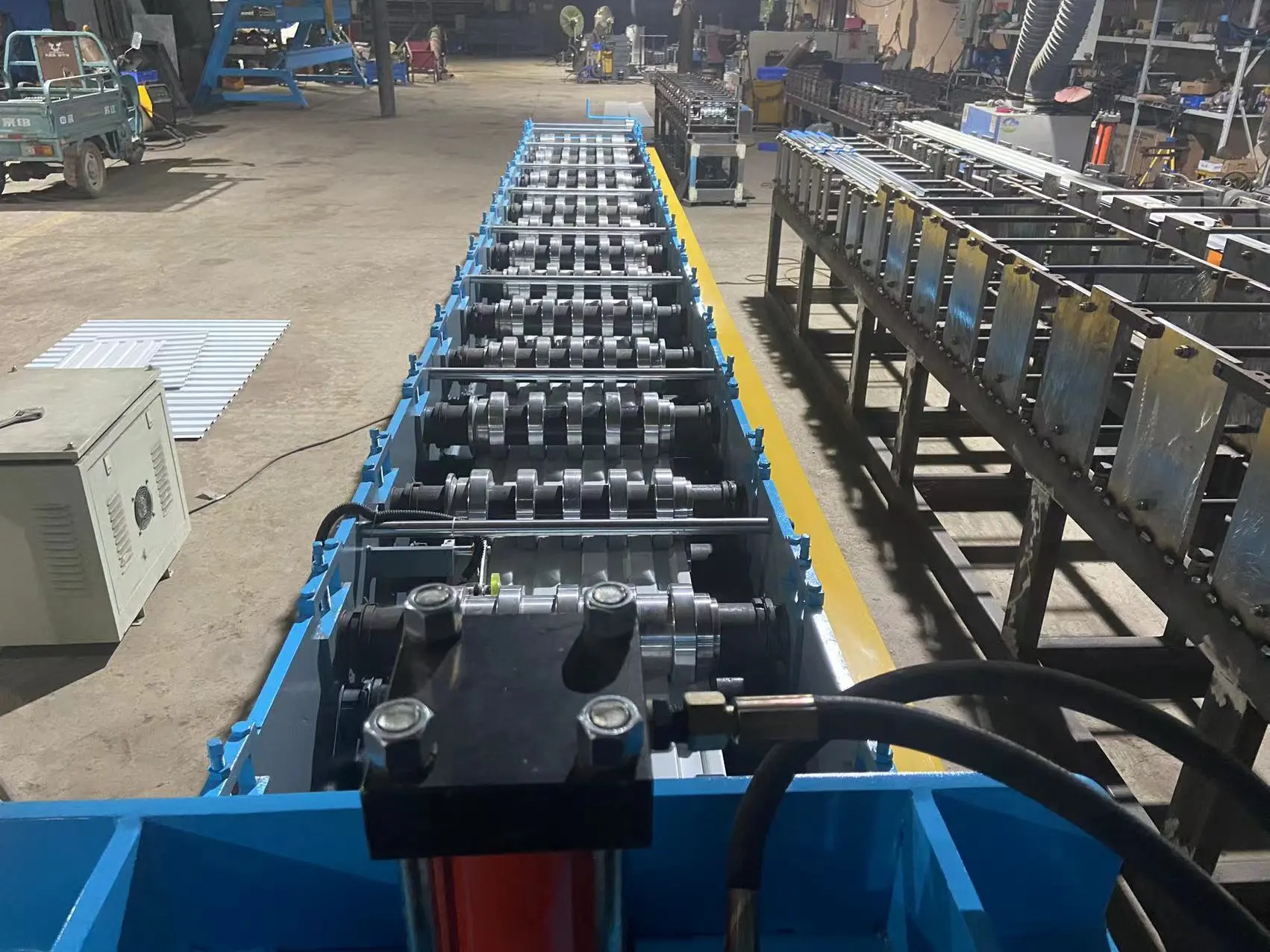

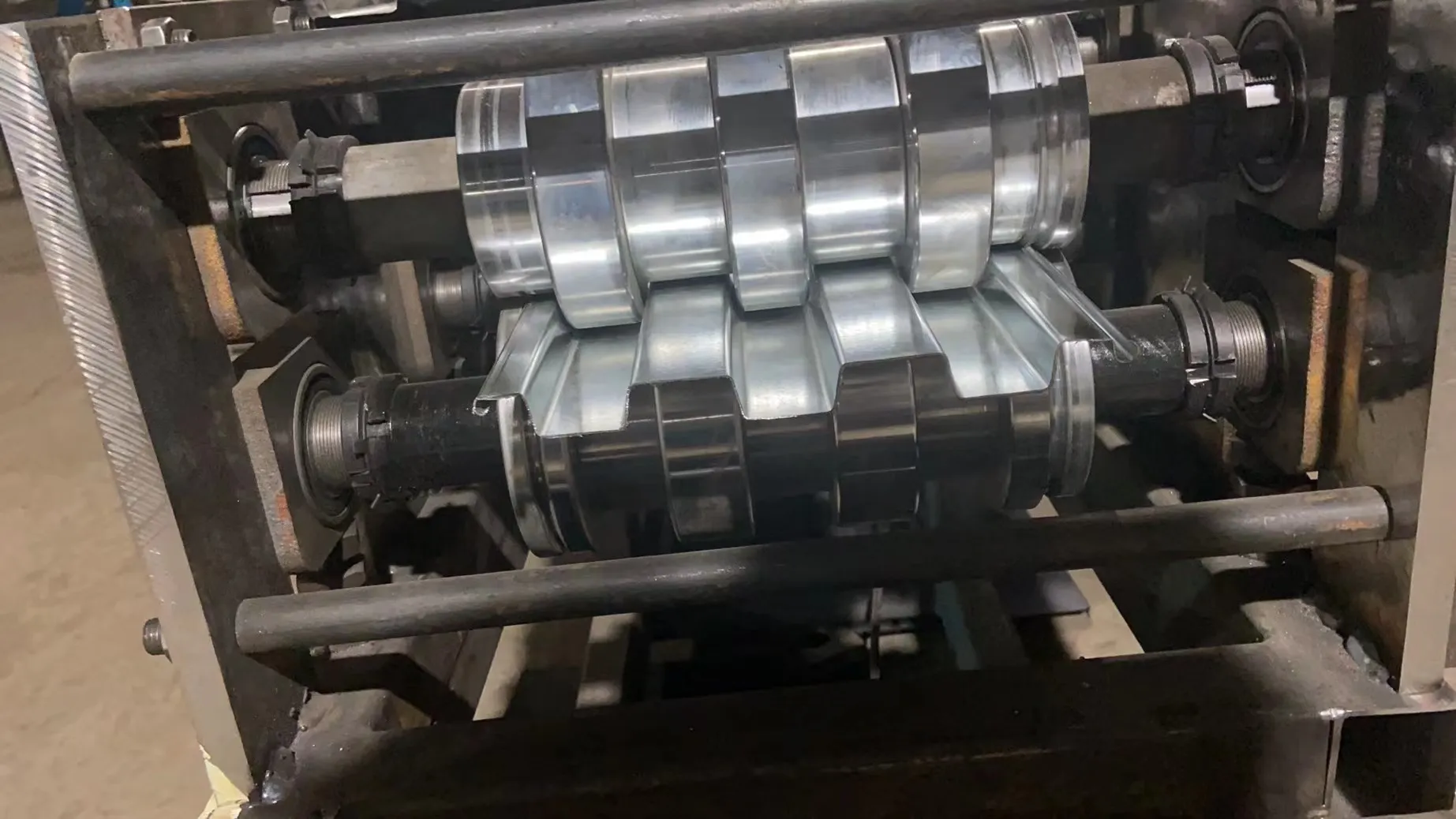

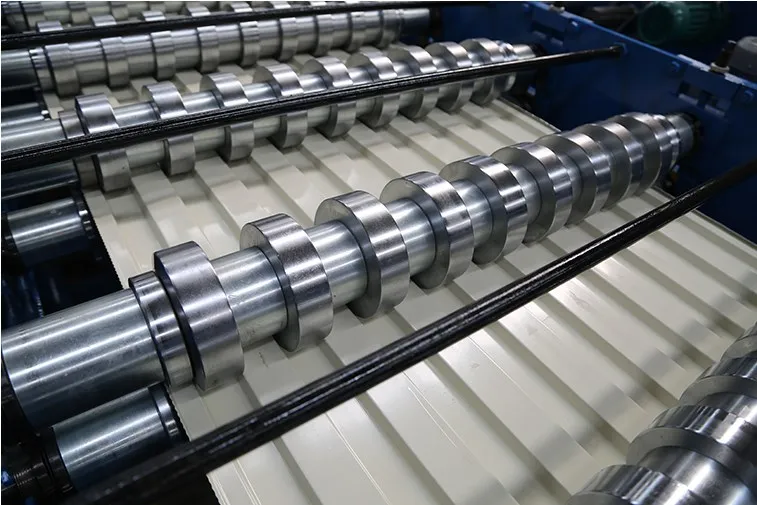

Part 2: Main roll forming machine
Feeding device	with fourrollers
Rolling shaft	Shaft material: 45# STEEL
	Shaft diameter: 80mm
	Tempering treatment
Forming step	24 steps
Work speed	0-20m/min
Machine frame	middle plate structure
Bearing	Chinese famous brand Haerbin
Work power	7.5KW

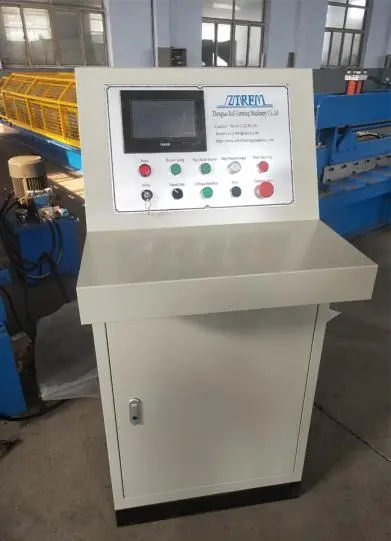

Part 3: Control system
PLC control system	Delta, Touch screen, also have buttons on the panel
Feature	Support multi orders input,ensure the machine can work continuously according to different request without stop.
	All the electrical parts are branded with a high quality, it can be fixed easily if damaged. Because you can find these again in any area of the country and it’s a standard parts.

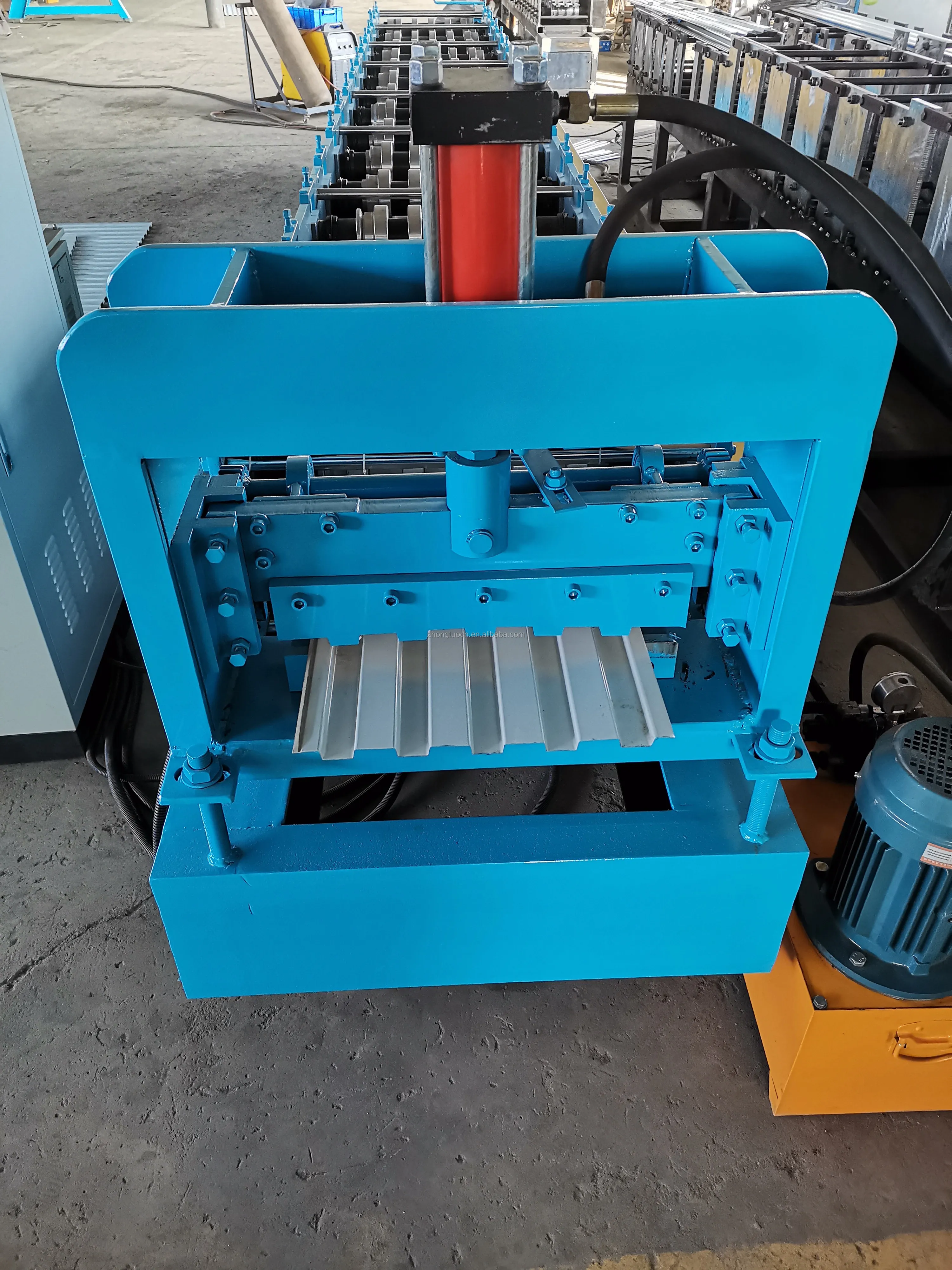

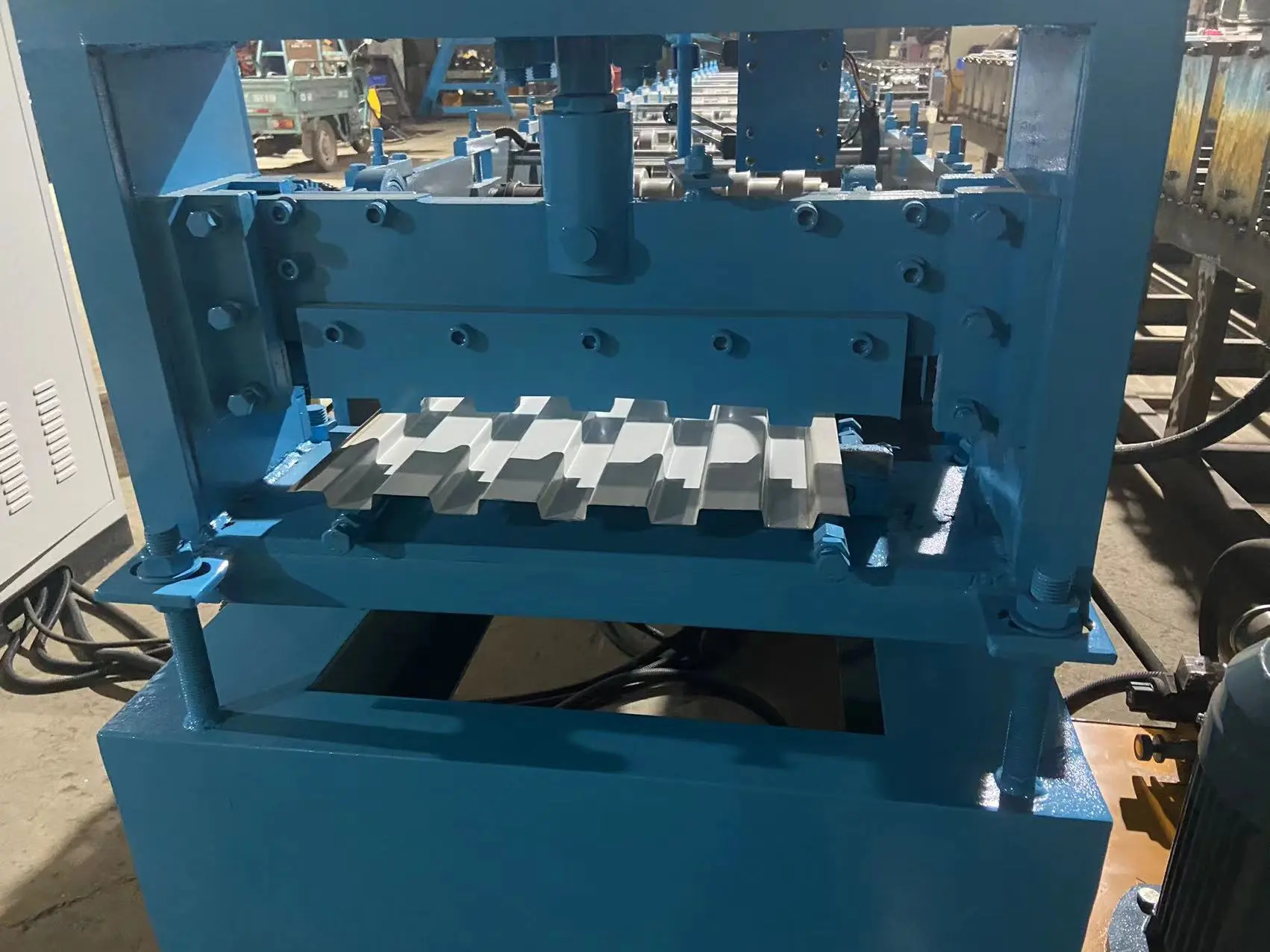

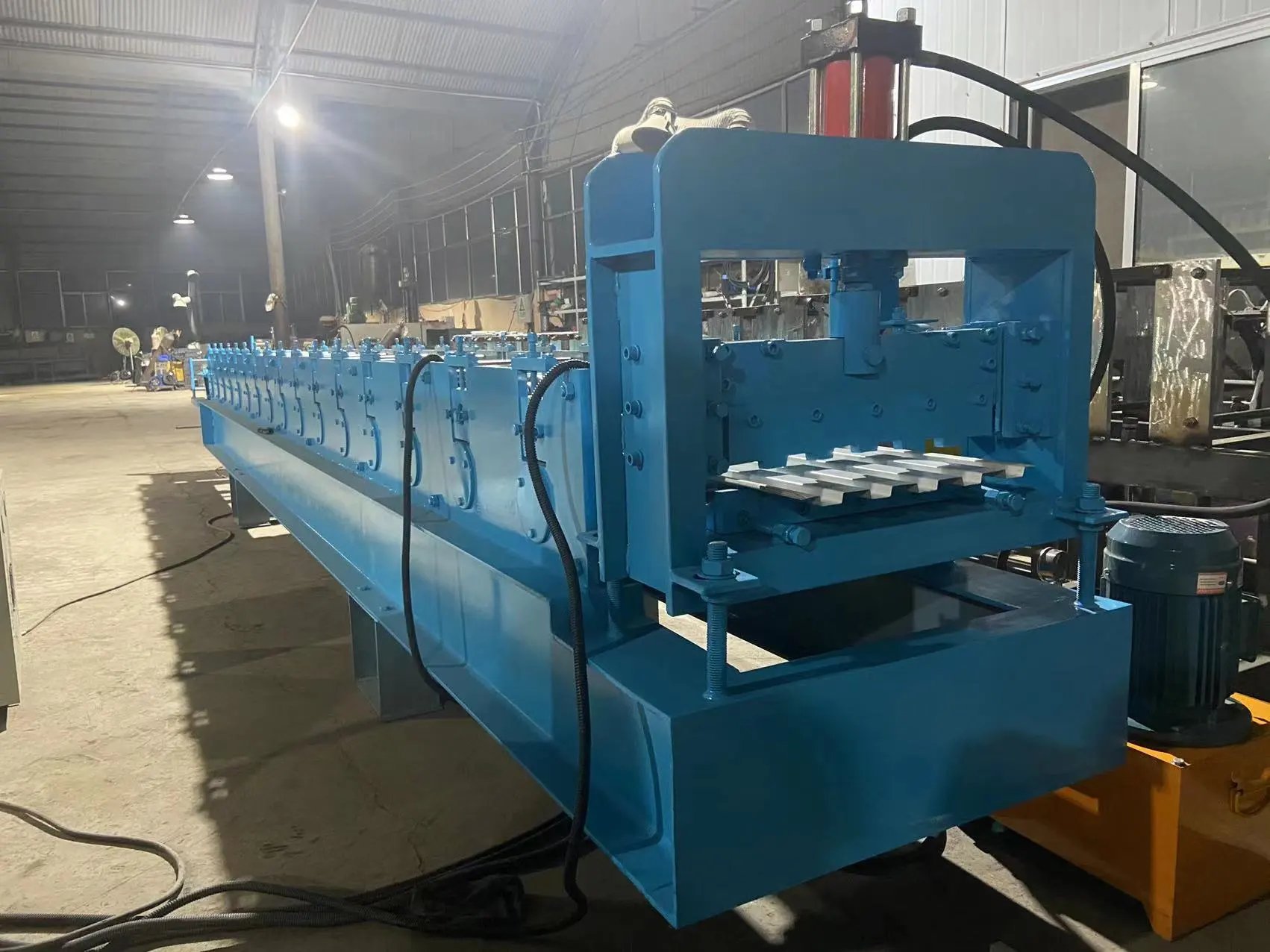

Part 4:Hydraulic Cutting System

Feature

Ensure stability, precision and cutting speed.

Automatic cutting controlled by PLC.

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Cooling method

Equipped with fan on the tank, in case the oil temperature getting hot when the machine working for hours continuously, ensure the hydraulic oil in a constant temperature to have enough power for cutting device

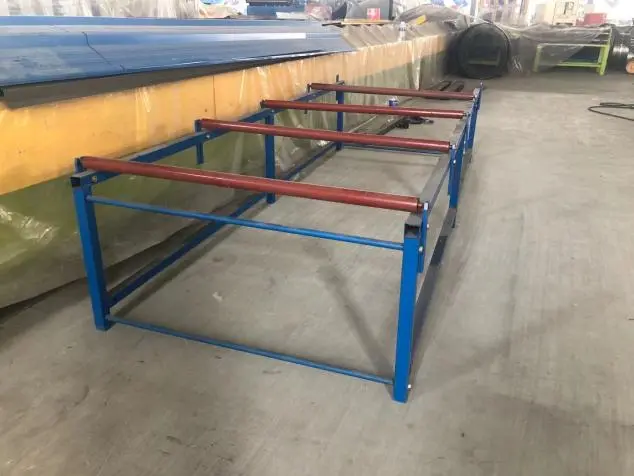

Part 5: Product table
Table	Length: 3 meter
	Table total width: 1000 mm
	Table material: square pipe welded
