Anchor Rod Making Machine Anchor Rod Cold Bending Roll Forming Machine ZT pipe rollforming machine+40mm

anchor rod making machine anchor rod cold bending roll forming machine



Bolt support is a kind of reinforcement and support method used in the construction of underground windows such as slope, deep foundation pit and other surface works and tunnel and stope.
A rod made of metal, wood, polymer, or other material into a hole that is pre-drilled in a rock mass around a surface rock or chamber, utilizing the special structure of the head, the rod, and the tail pallet Can be used), or rely on the role of bonding will be combined with the stability of rock and rock to produce a suspension effect, combined beam effect, reinforcement effect, in order to achieve the purpose of support.
With low cost, good support effect, easy operation, the use of flexible, take the construction of less than the advantages of net space.

Our anchor bolt machine steel material anchor bolt cold bending roll forming machine professional make the anchor bolt .

Below are some pictures for your reference:













The of the anchor bolt  is:2.5mm and 3.8mm, diameter: 41mm, length: min 600mm, max 2400mm

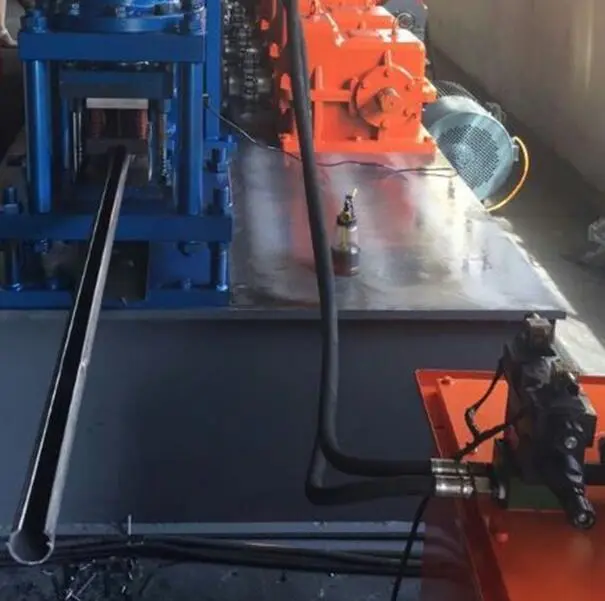

Process: decoiler--feeder--roll former--cutting--run out table

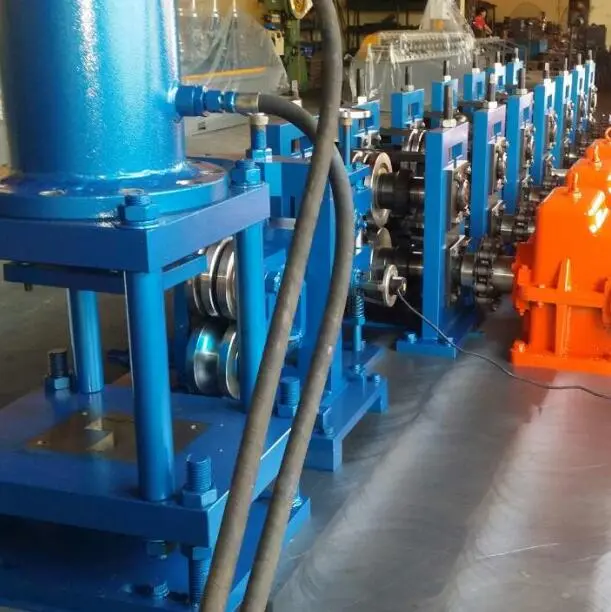

The anchor bolt roll forming machine is similar to other roll forming machines. including the decoiler system, the feeding system, the roll forming machine system, the hydraulic cutting system and the running out tables.

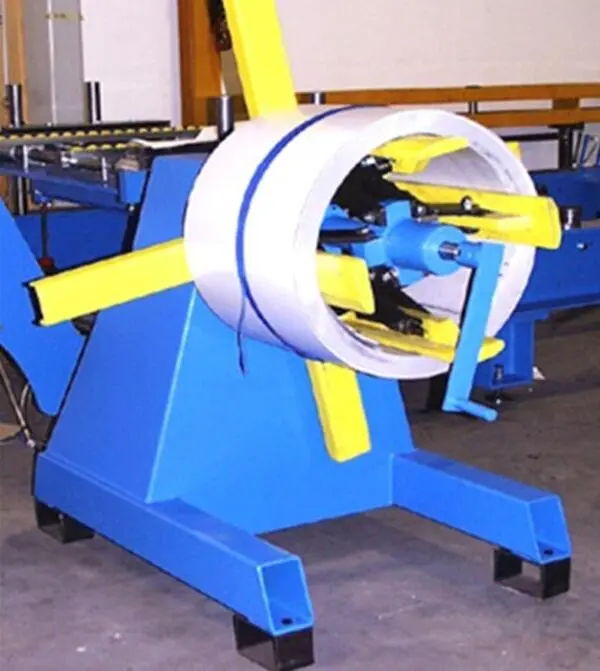

The first part is the manual decoiler:

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity: 3T

Uncoiling width: 300mm

Inner diameter: 450-550mm

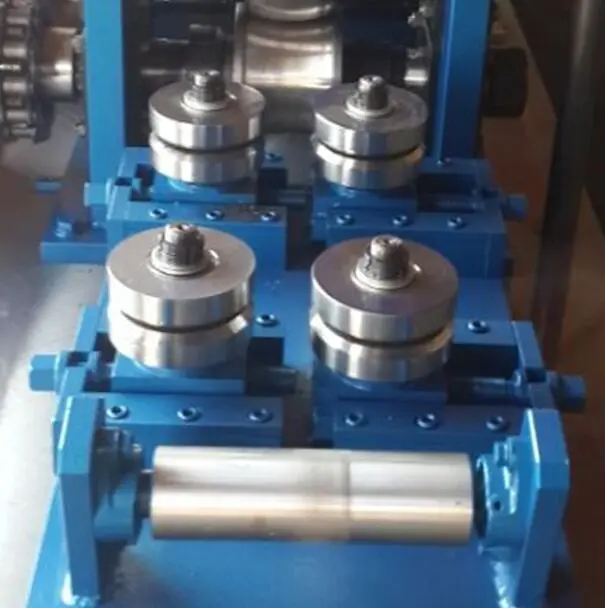

The enter leveling part is as below:

This part will level coil to make sure it is neat clean and straight.

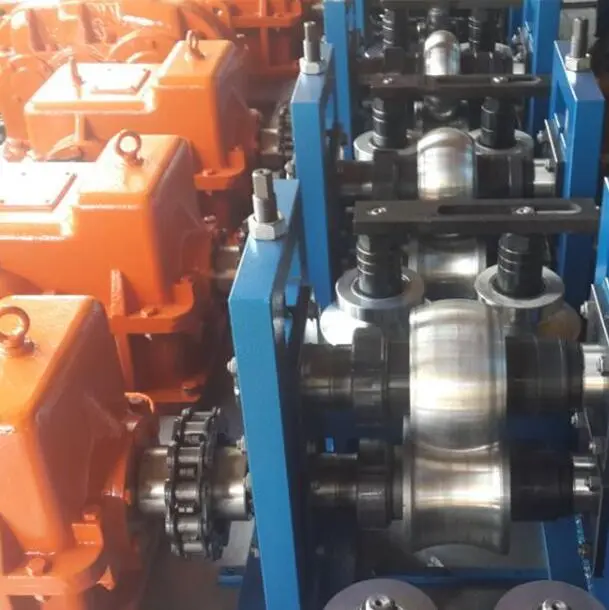

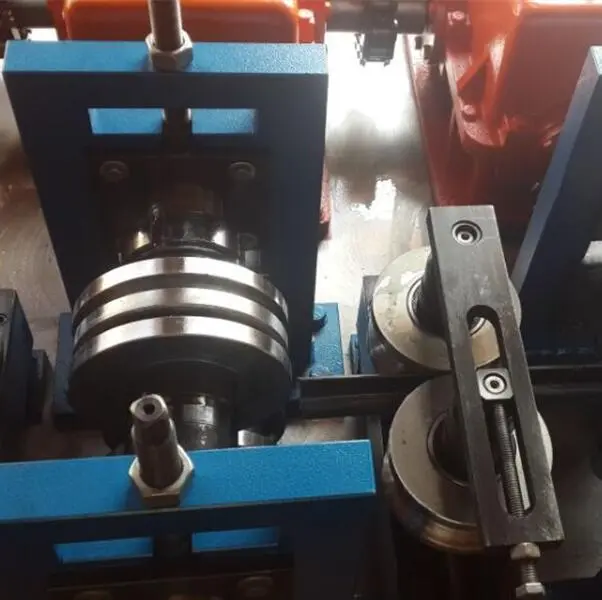

The main roll forming body is with below detailed infromation:

Size: 4500X1800X1400
Weight t: 5 tons
Voltage:380V/50HZ3Phase(as customer's request)
Roller fixer : Vertical arch
Frame : middle plate welded
Memorial arch frame type
Frame thickness:25mm
Drive mode: Differential box
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ70mm
Number of rollers : 11 rollers (5 Level, 6 Vertical)
Main power: 15kw
Cycloidal planetary gear speed reducer)
Speed: 20m/min

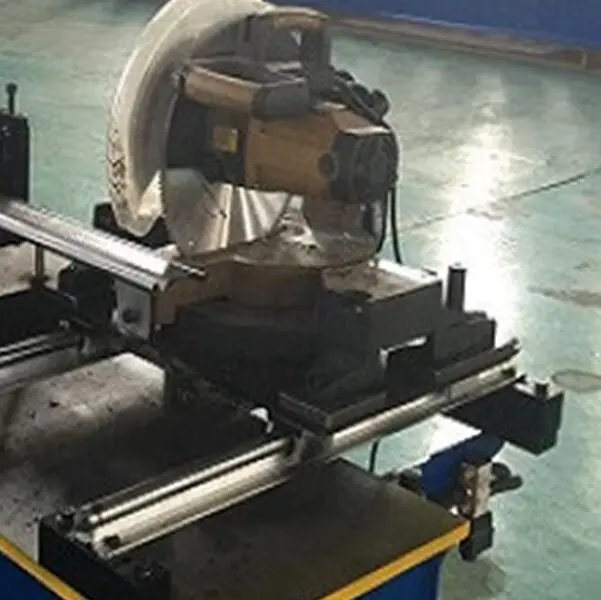

The shearing system is as below:

Material of blades: Gcr12MoV quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.





PLC station
Feature:
1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2.Other electric element are Delta
3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.



and below is the service we can offered to you:
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technician.
4. Training time: one week (contains the time of installation and adjustment)



Any needs of the anchor bolt machine anchor bolt cold bending roll forming machine, please feel free let me know!
