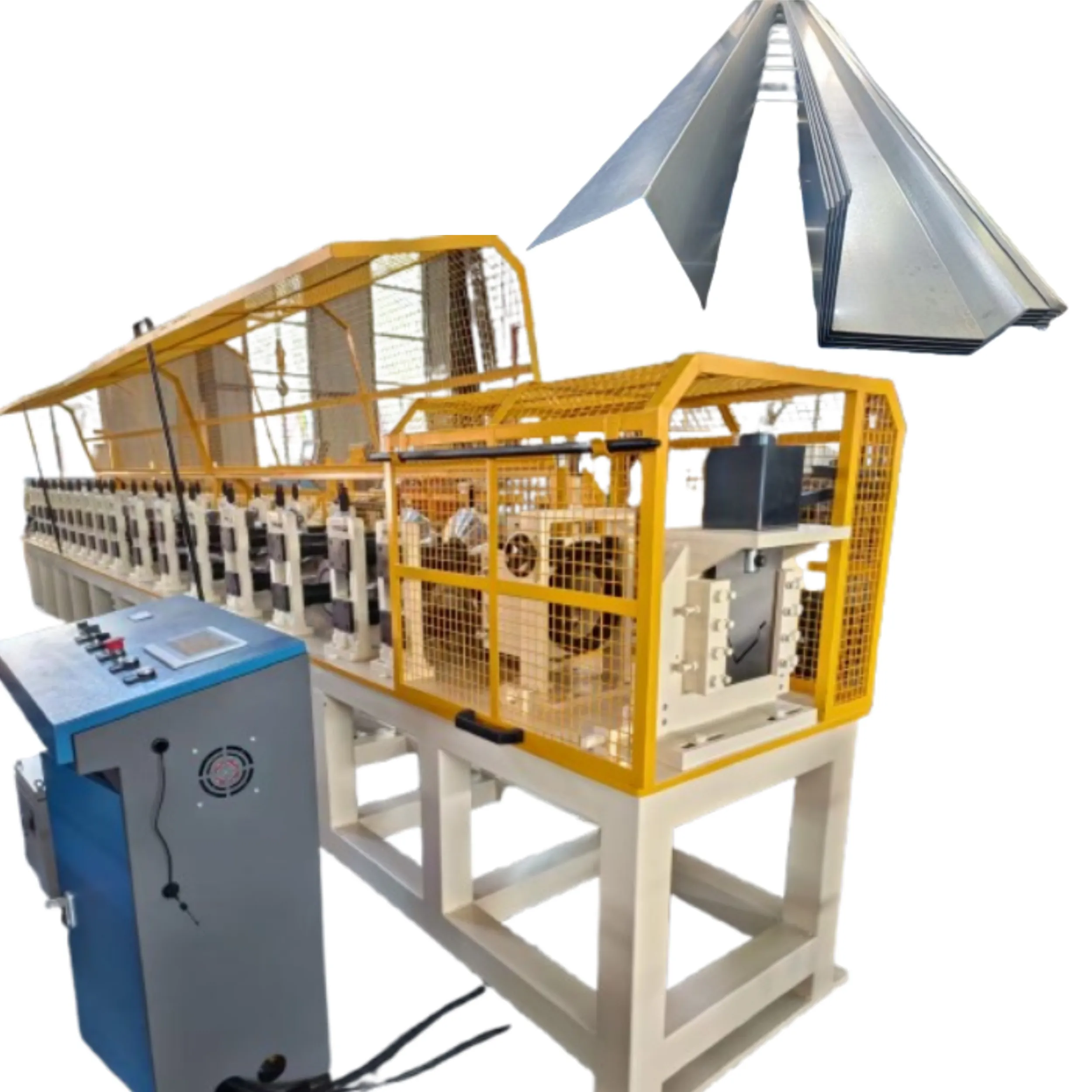

American Drip Edge Roll Forming Machine for Roof Use with PLC Control Motor & Pump Steel Tile Production 25 M/min+Drip Edge Roll Forming Machine+11kw

Cangzhou Zhongtuo International Trade Co., Ltd

American Drip Edge Roll Forming Machine for Roof Use with PLC Control Motor & Pump Steel Tile Production 25 M/min+Drip Edge Roll Forming Machine+11kw

Name: American Drip Edge Roll Forming Machine for Roof Use with PLC Control Motor & Pump Steel Tile Production 25 M/min+Drip Edge Roll Forming Machine+11kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT72918364

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

25 M/min

Model Number:

Drip Edge Roll Forming Machine

Power(W):

11kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Roll Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380 V
Rolling Thinckness
0.4-0.8mm
Feeding Width
Can Customized

Company Profile

Cangzhou Zhongtuo cold roll forming machinery Co.ltd

Cangzhou Zhongtuo cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

Drip Edge Roll Forming Machine

Drip Edge Roll Forming Machine can producing drip edge, Waterproofing Protection: Metal strips installed along the bottom edge of the roof effectively direct rainwater away from the roof structure, preventing it from seeping into the wood panels or roof trusses. This design prevents rainwater from backing up under the roof, reducing the risk of moisture and rotting of wooden components. Structural reinforcement: By securing the wood panels to the roof trusses, it enhances overall stability and provides a flat foundation for subsequent waterproofing. Optimizes drainage: Used in conjunction with step flashing in areas like chimneys and valleys, it forms a complete drainage system, reducing the risk of leaks.

1.Formed Material	GI		Thickness:0.4-0.8 mm
2.Decoiler	Hydraulic automatic decoiler		Electric double head decoiler
3.Main body	Roller station		14 rows(As your requirement)
		Diameter of shaft		75mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		Metal steel welded
		Drive		Chains transmission
		Dimension(LWH)		550014001500(customize)
		Weight		About 6T
4.Cutter	Automatic		Cr12mov material, no scratches, no deformation
5.Power	Motor Power		11 KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		Chinese and English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	40m/min(customized)		Speed is adjustable according to customer's request

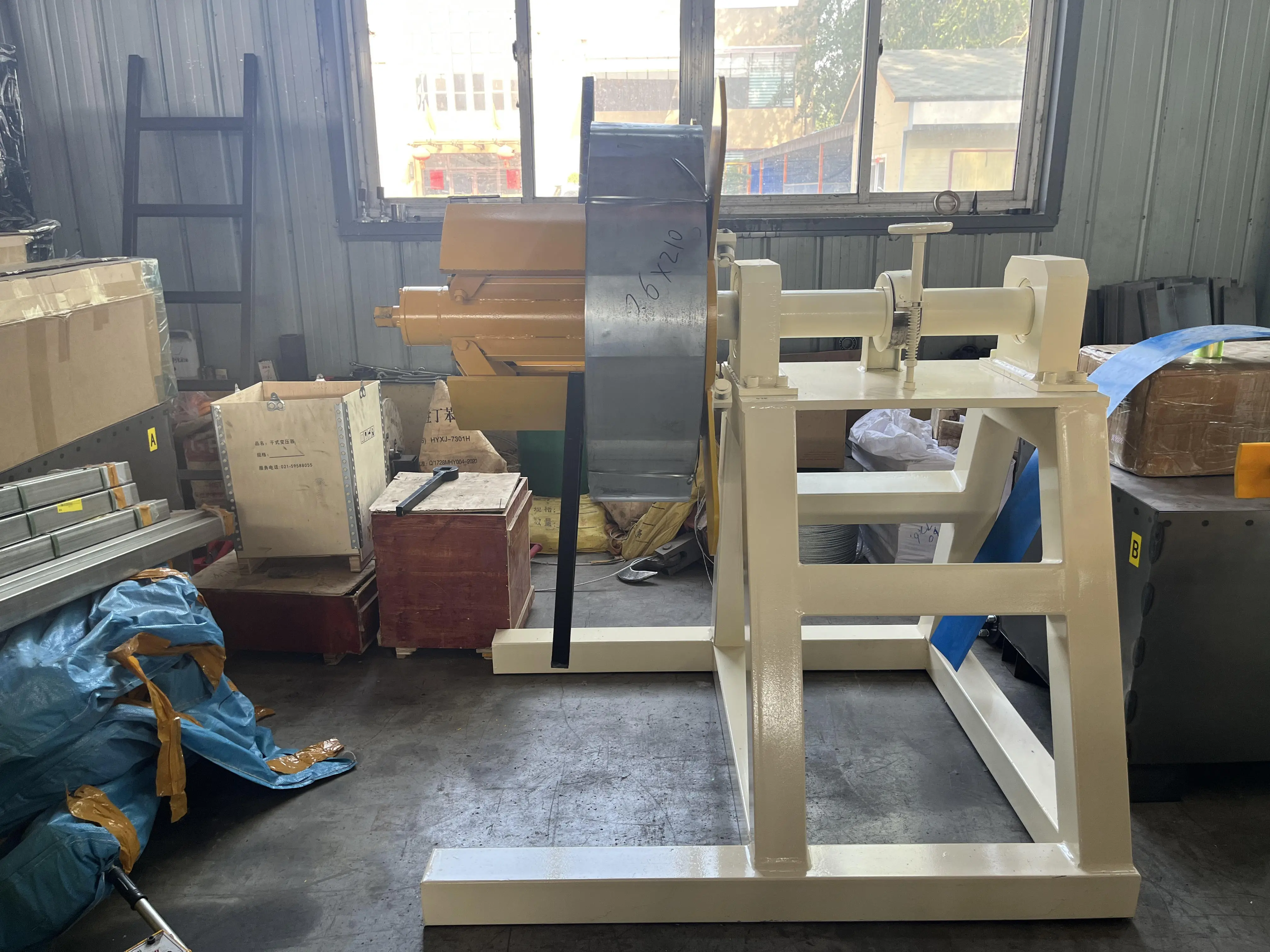

3 tons Manual Decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoiling
Loading capacity: 3 T
Uncoiling width: 300mm
Inner diameter: 450-550mm

Automatic oil filling device

1.Automatic lubrication for the coils 2.Prevent material dezincification and paint scratching

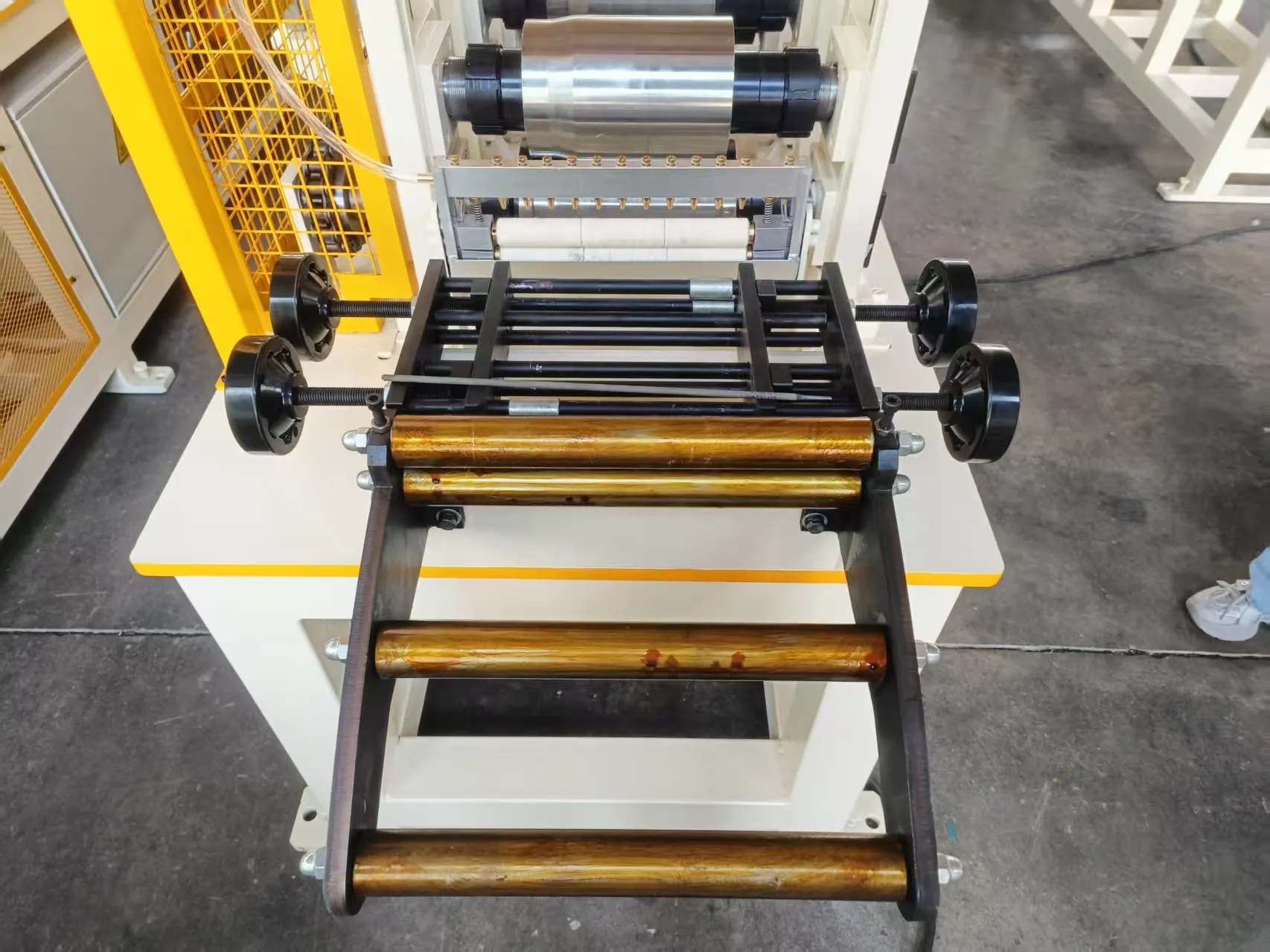

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

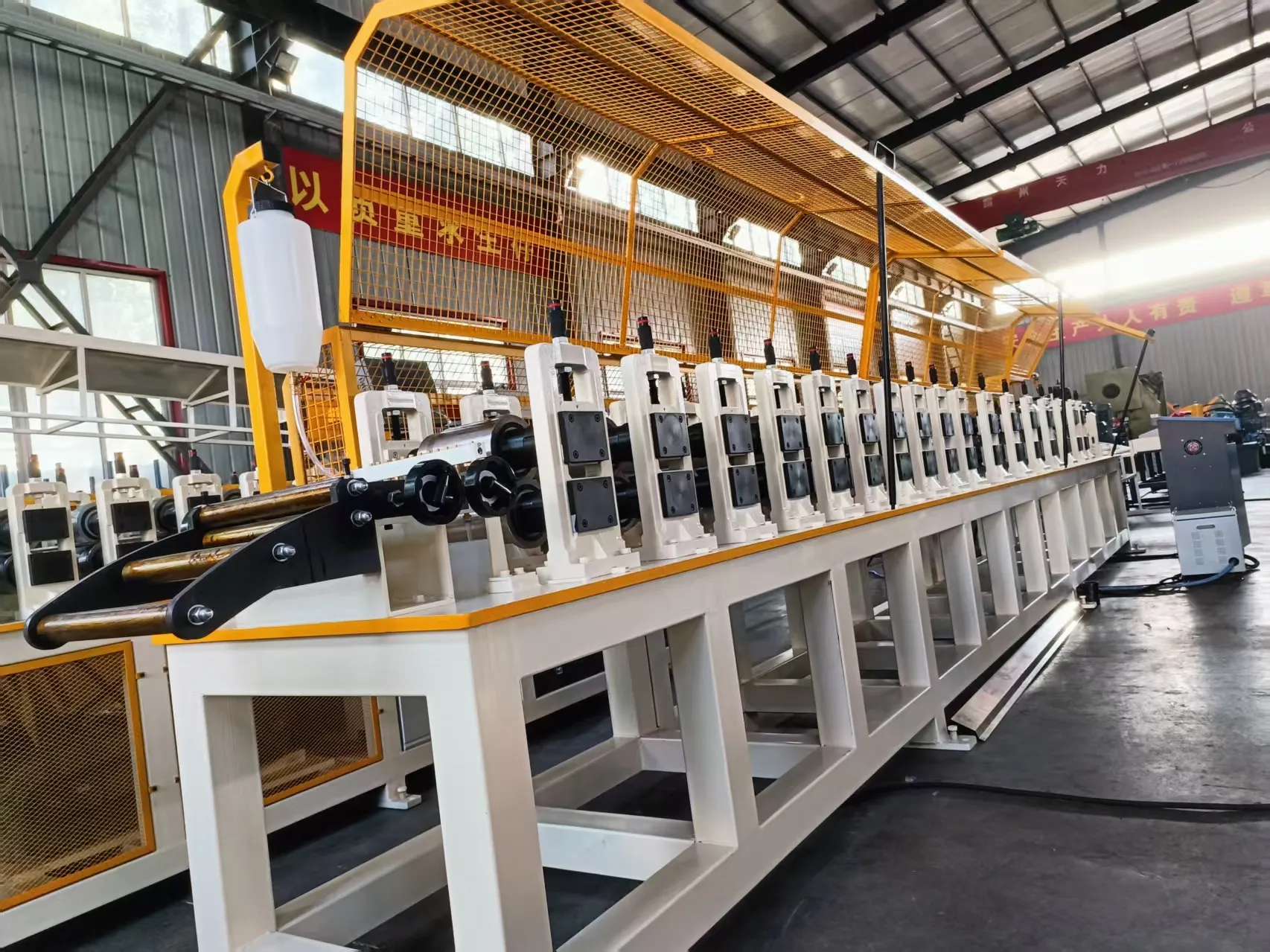

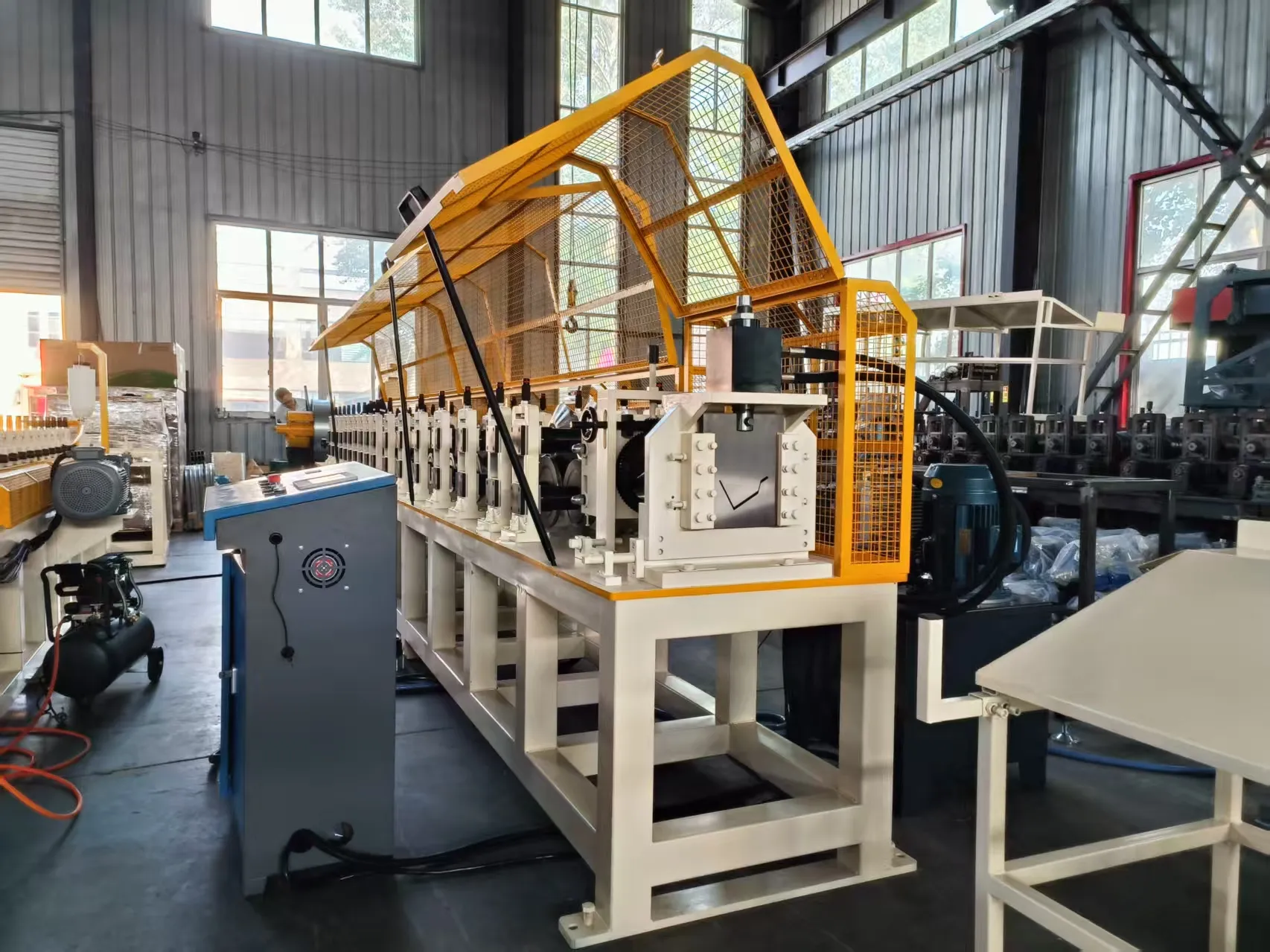

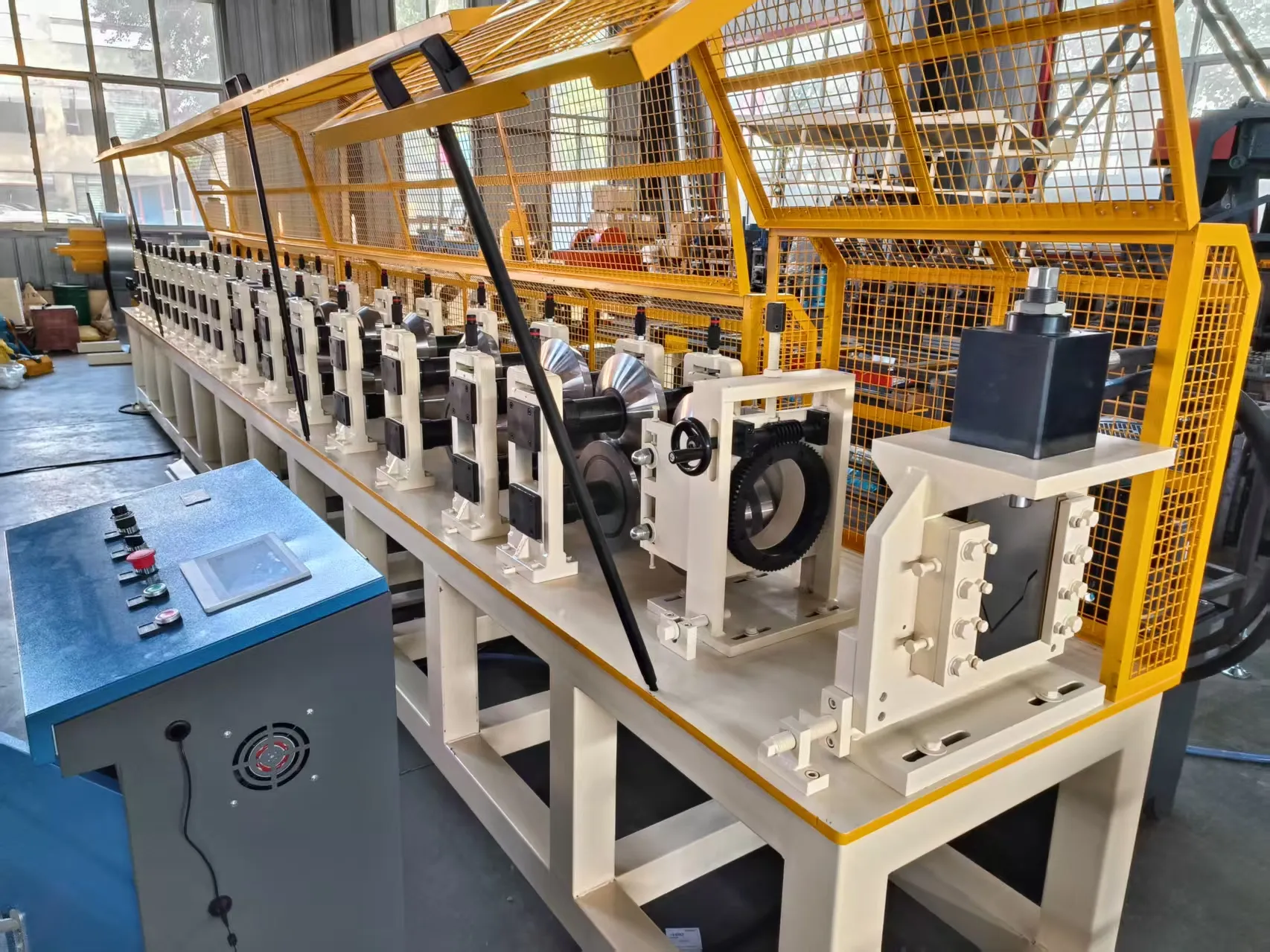

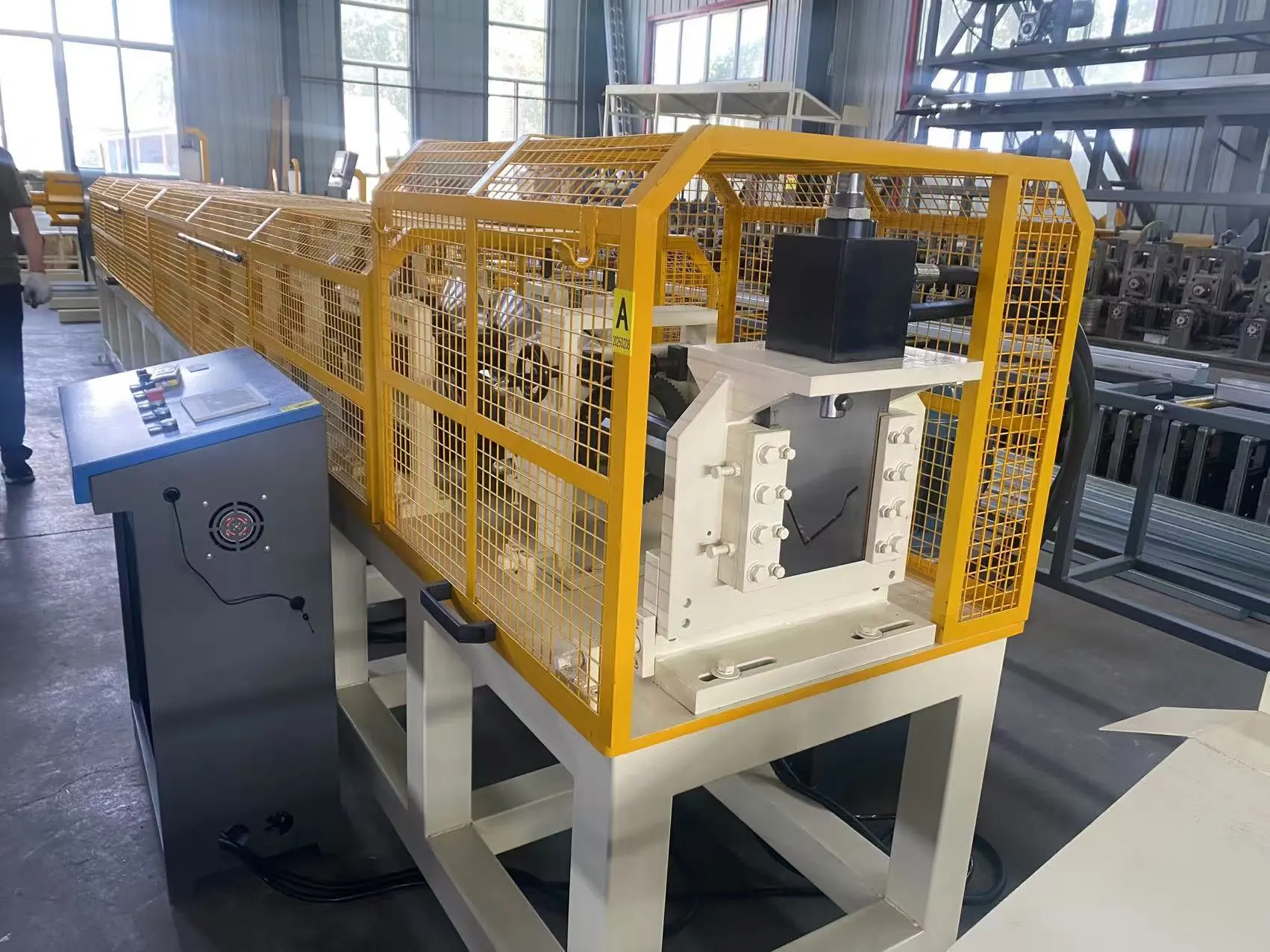

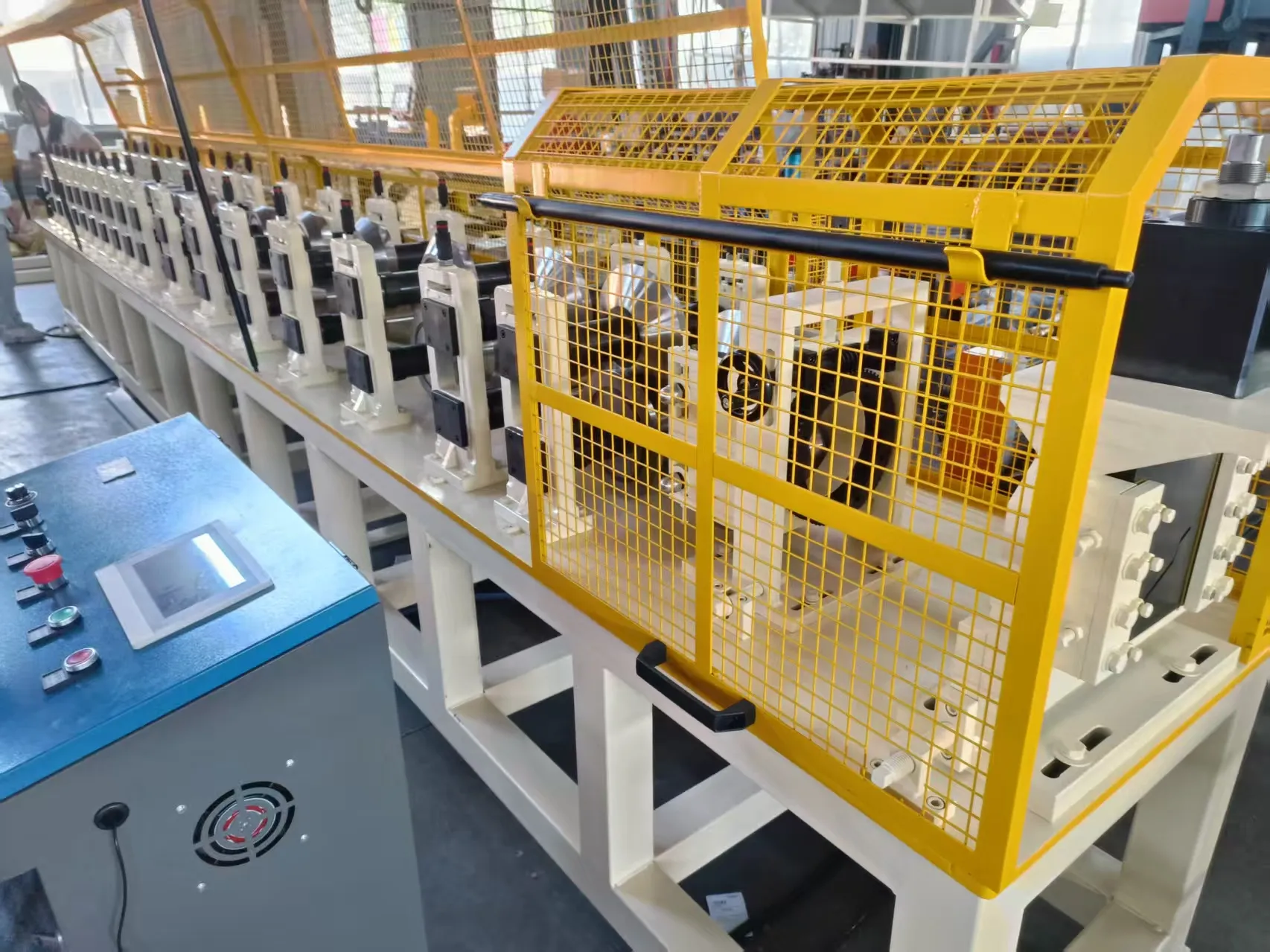

Main roll forming machine

Roller fixer : Guide column
Frame : middle plate welded, Memorial arch frame type
Frame thickness:20mm
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm
Number of rollers : 18 rollers
Main power: 4.5kw

Cutting system

Material of blades: Gcr12MoV quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
The different sizes can be produced on this machine by adjusting the feeding width.

Cutter Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

Control system

Feature:
1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Delta
3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

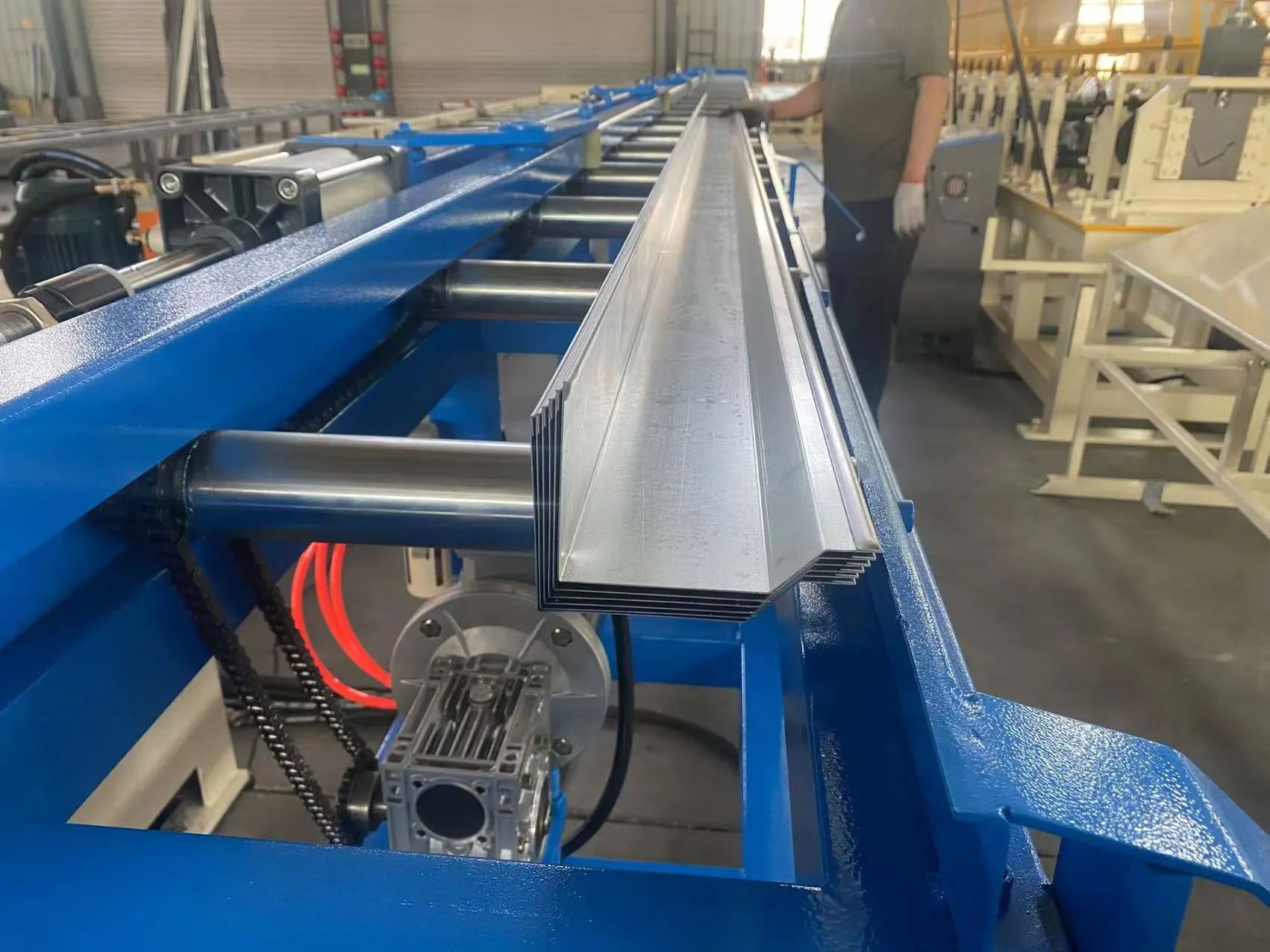

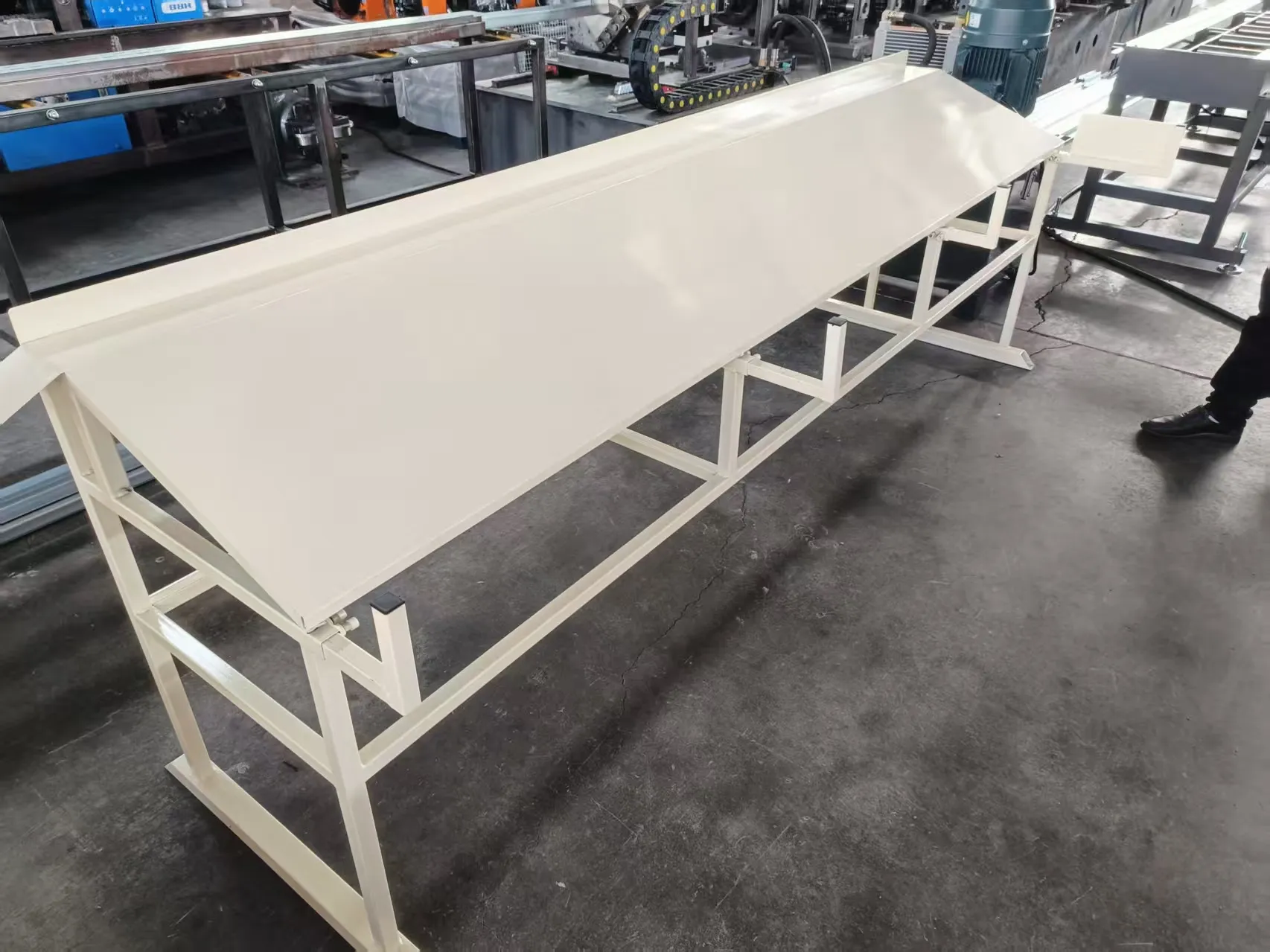

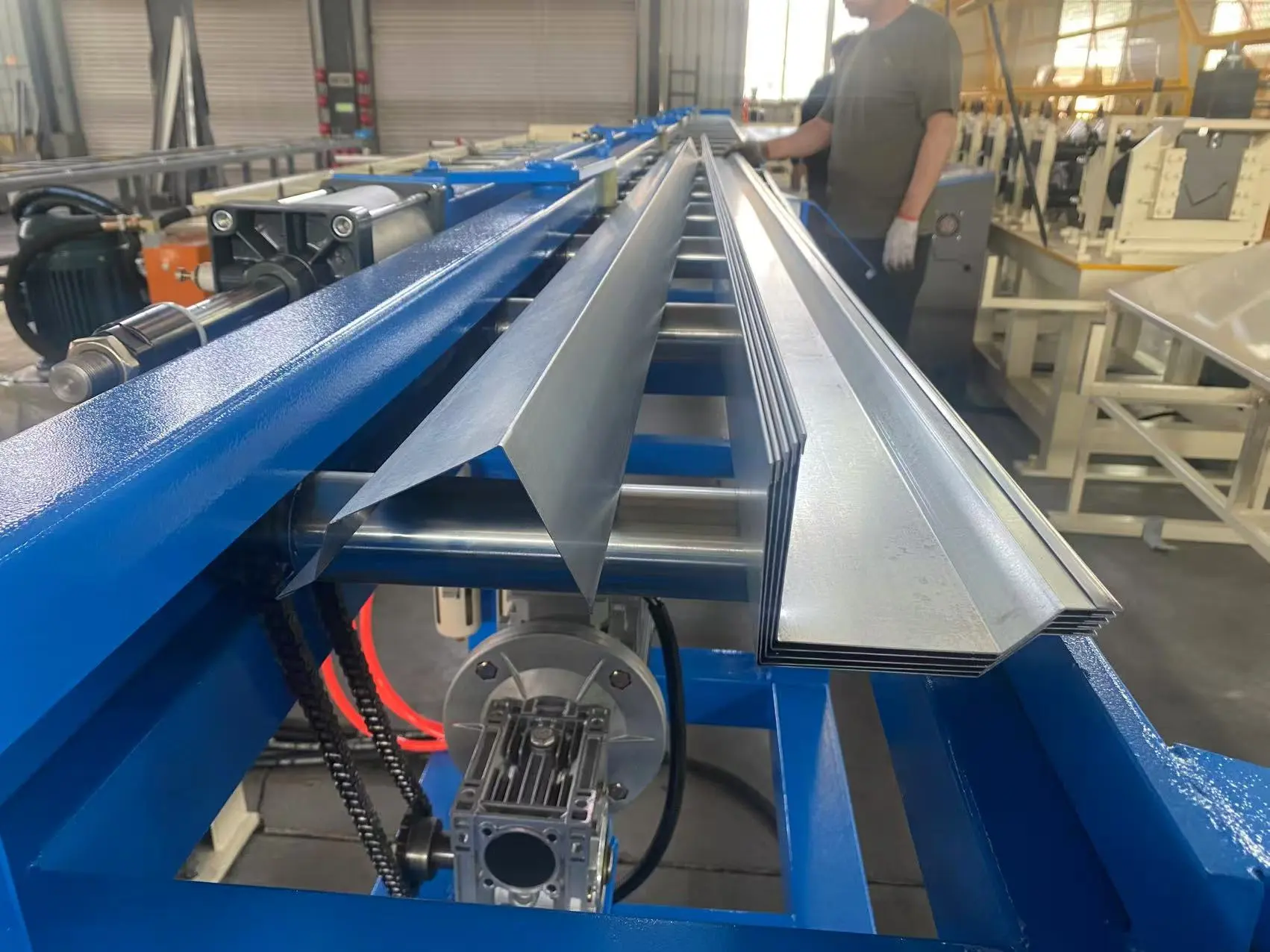

Receive Production table

It adopts welded steel and supported roller to transmit the products.

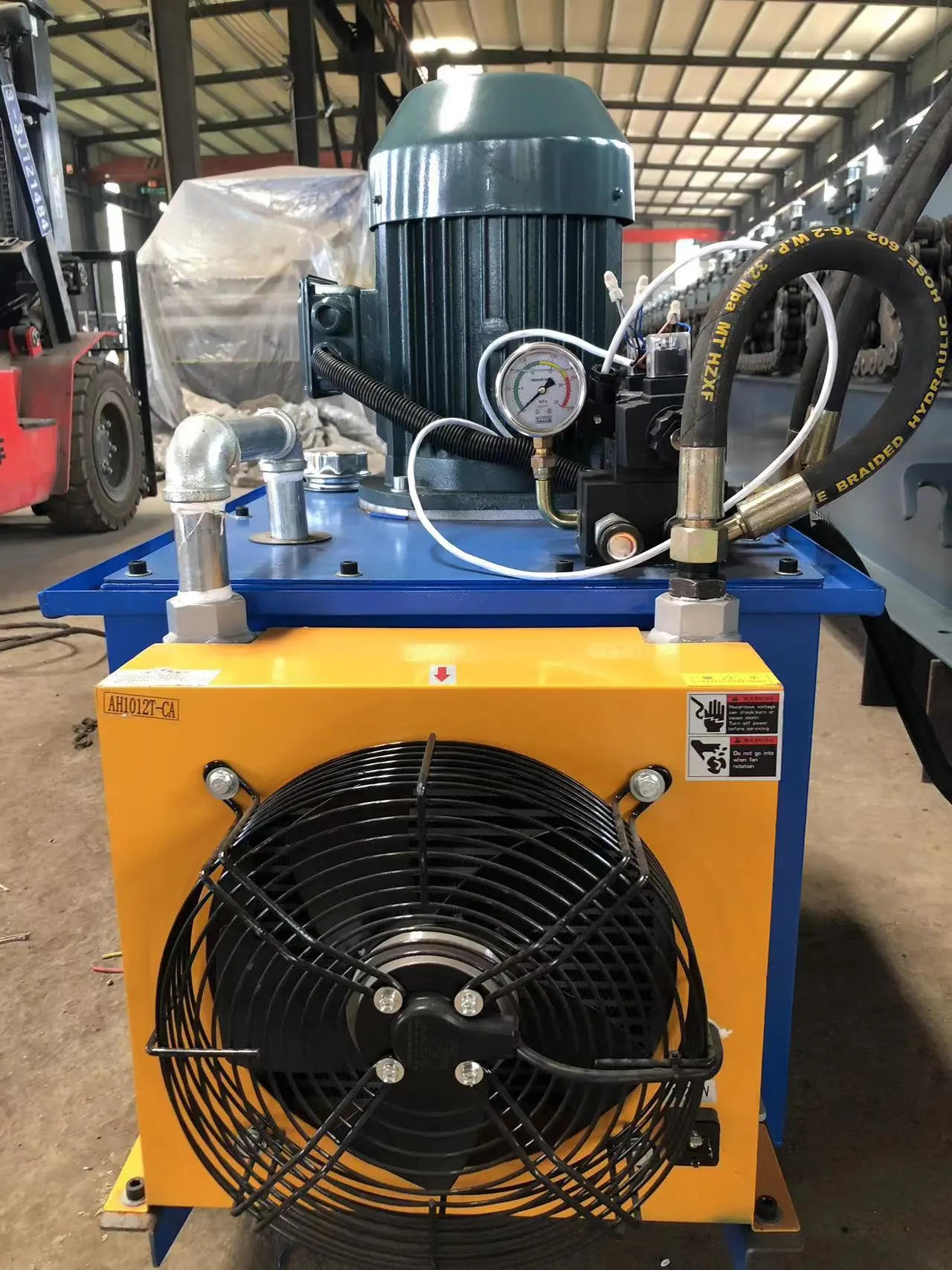

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

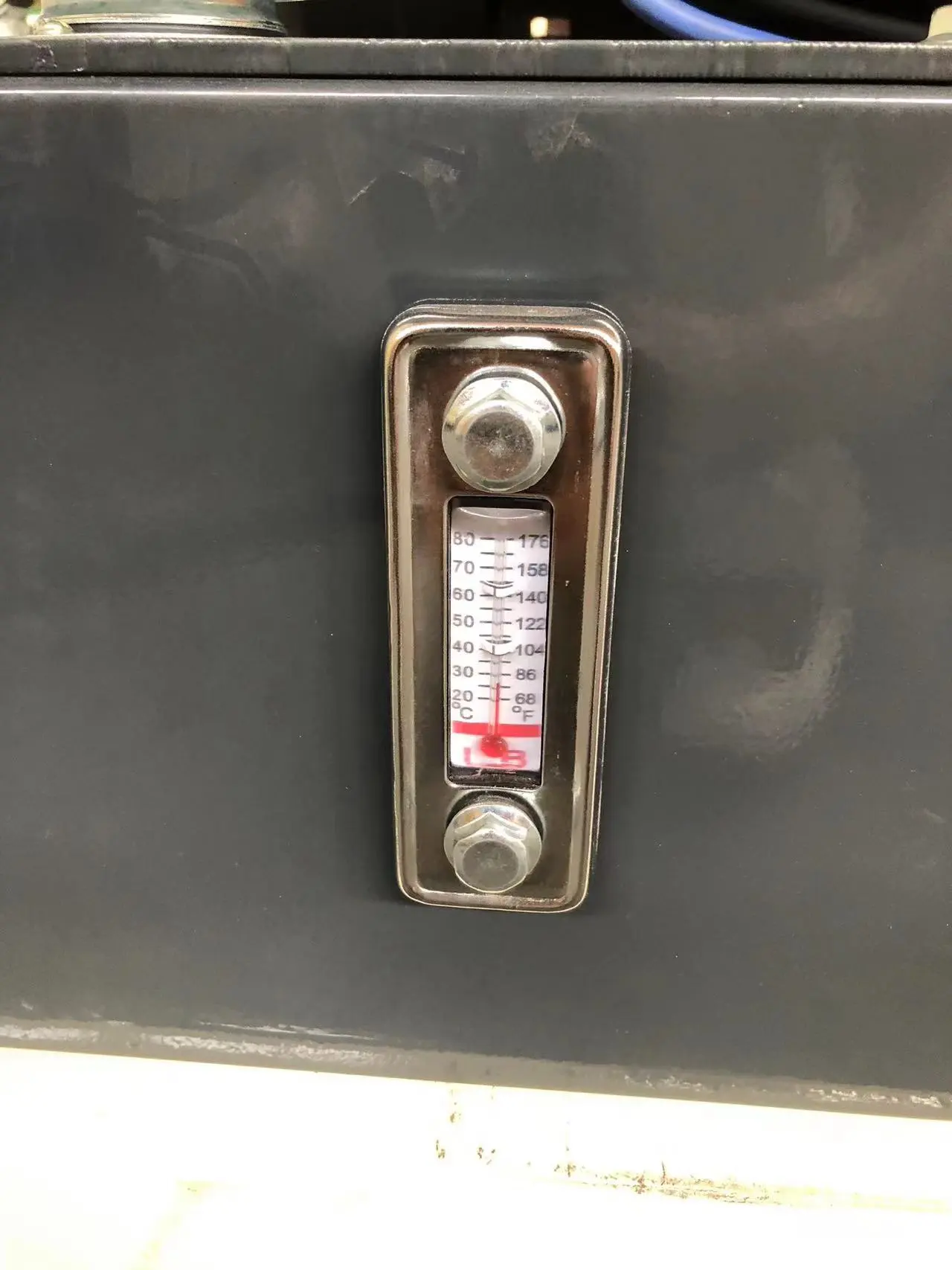

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

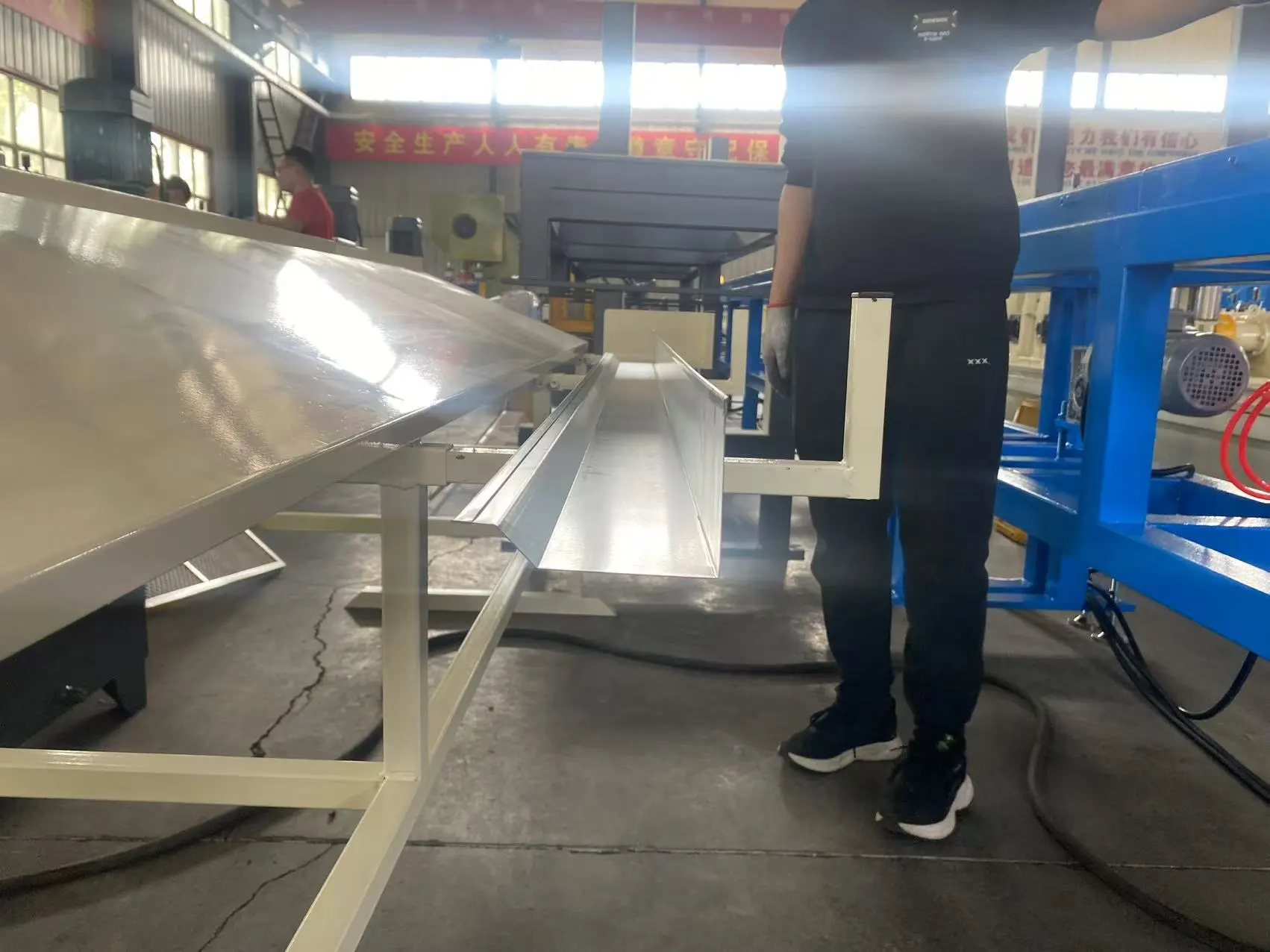

Product display

Exhibition

Certification

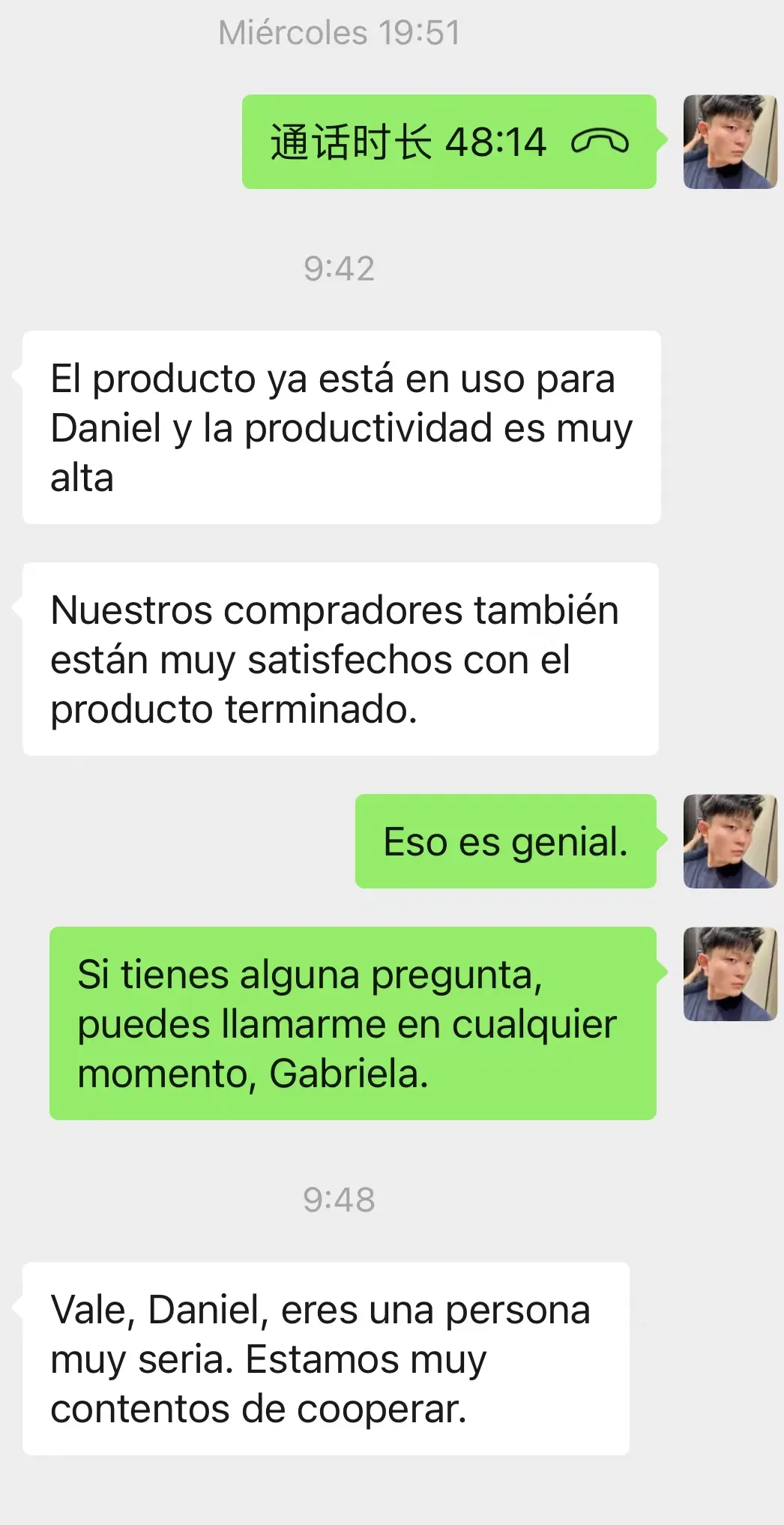

Customer Photos
