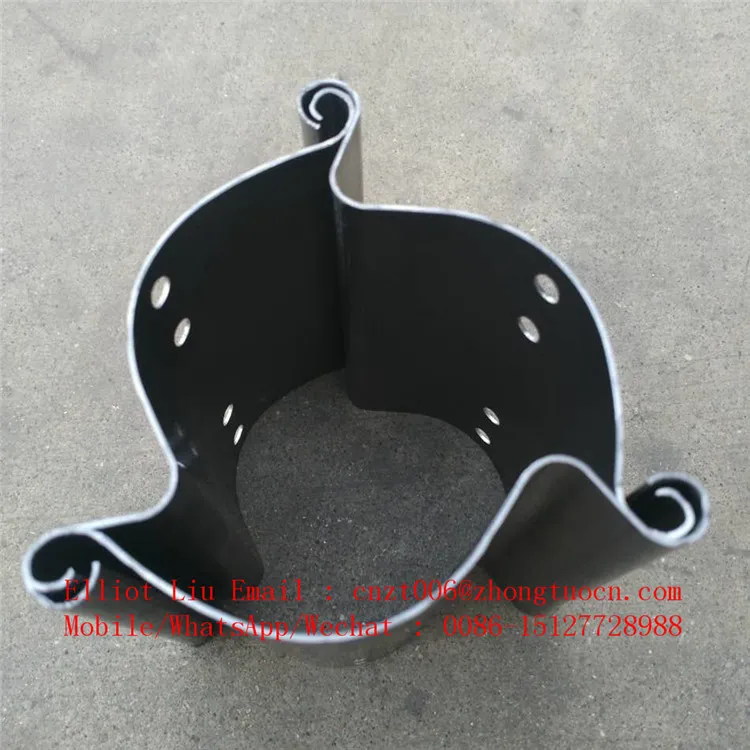

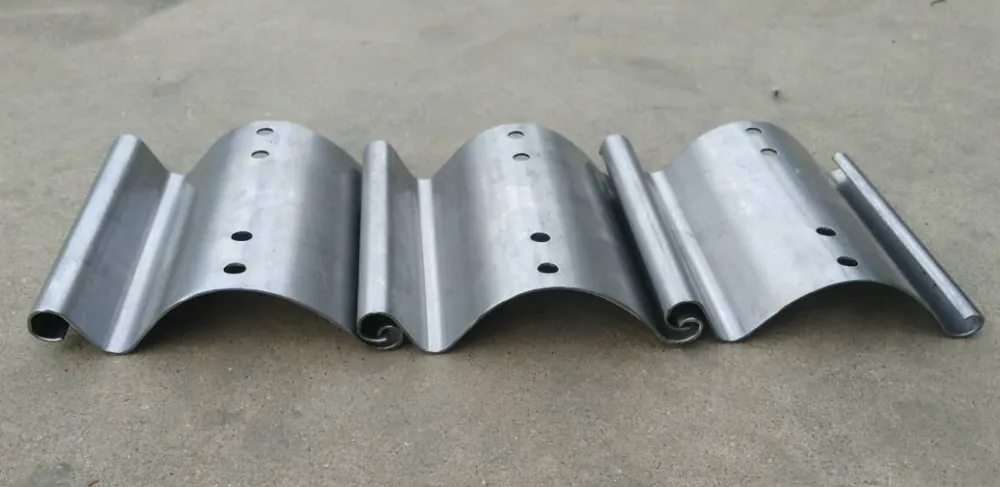

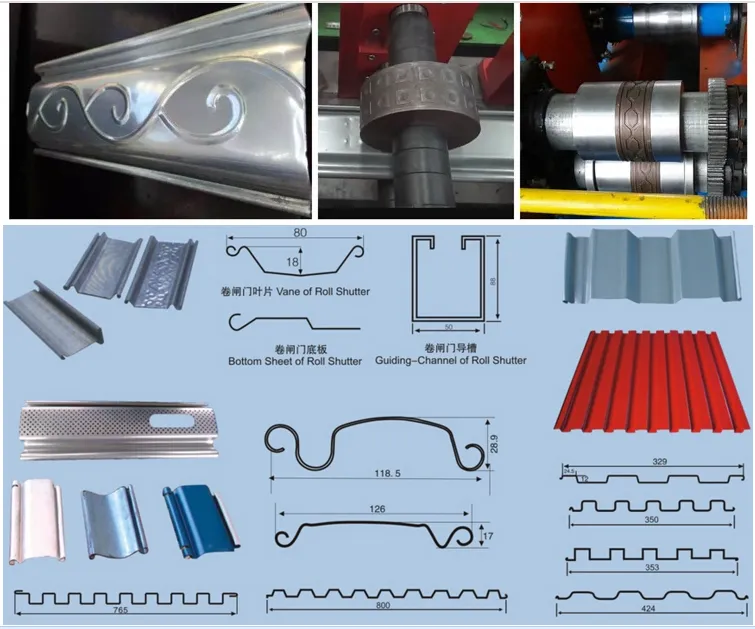

Our roller shutter door machine is customized, we can design and produce the roller shutter door machine as your profile drawing. Here I attached some of our roller shutter door lath profile drawings for you reference, you can select the one you want and then let me know, we will produce the machine as the roller shutter door lath profile drawing you selected.

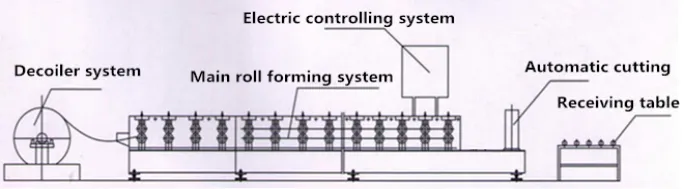

Aluminum Rolling Shutter Slat Making Machine Working Process:

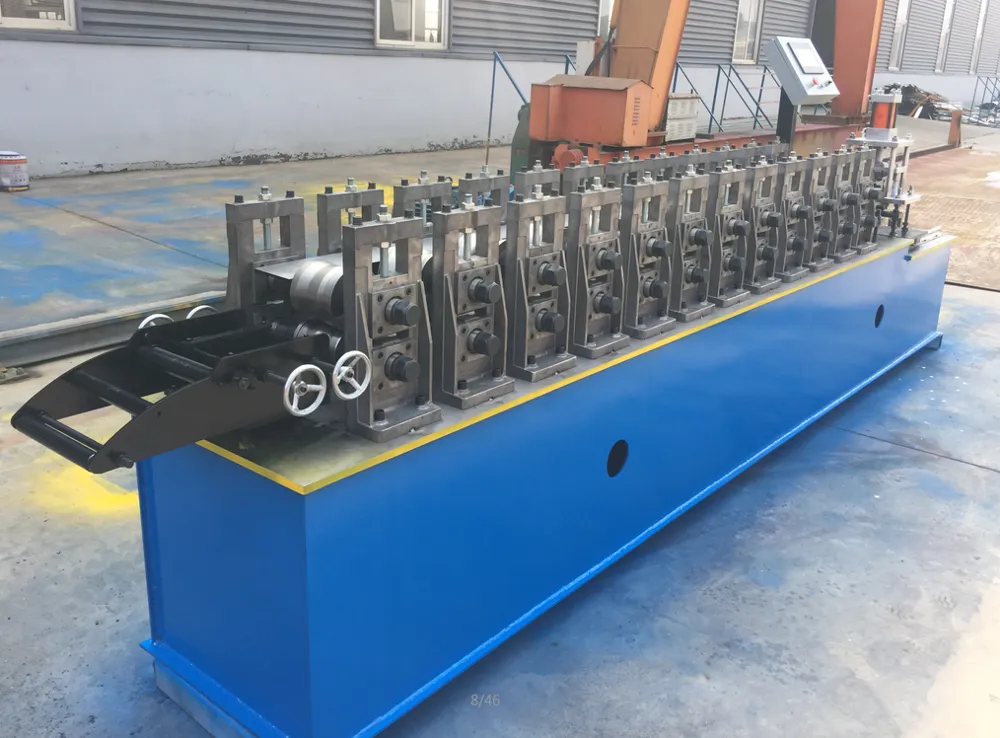

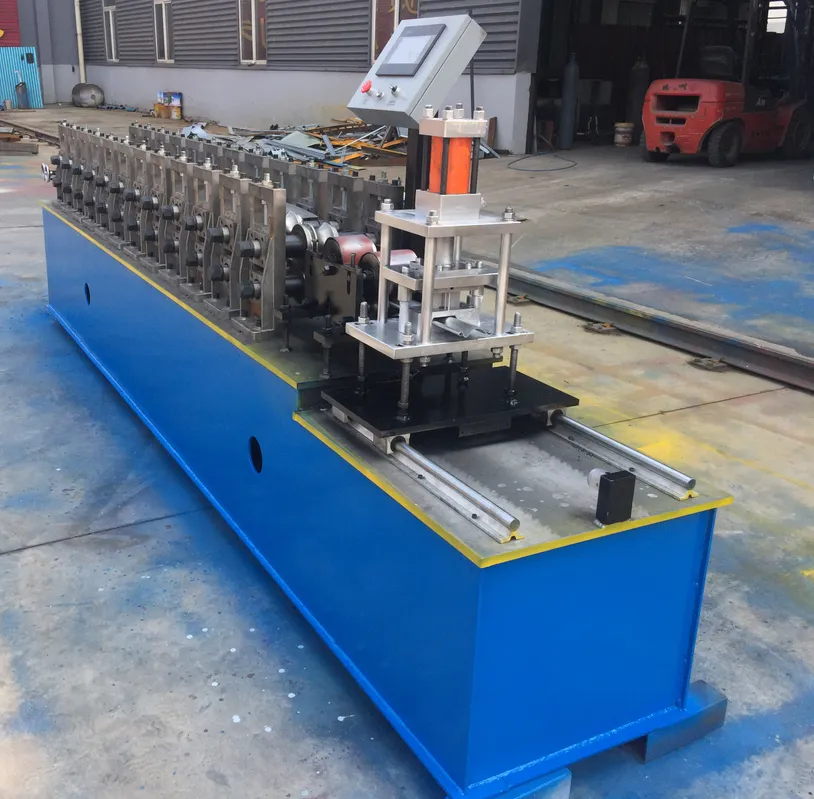

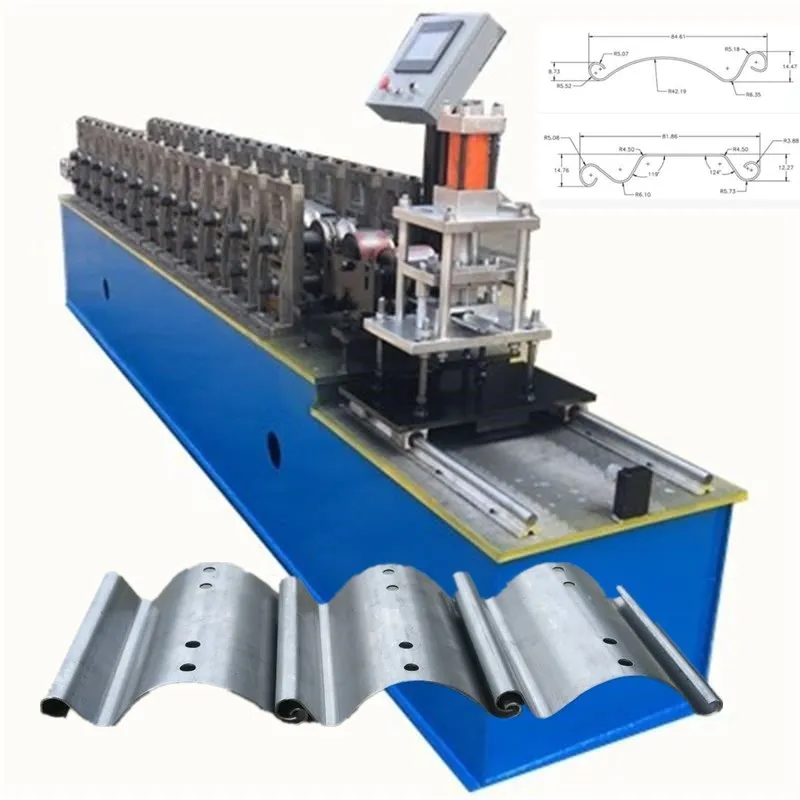

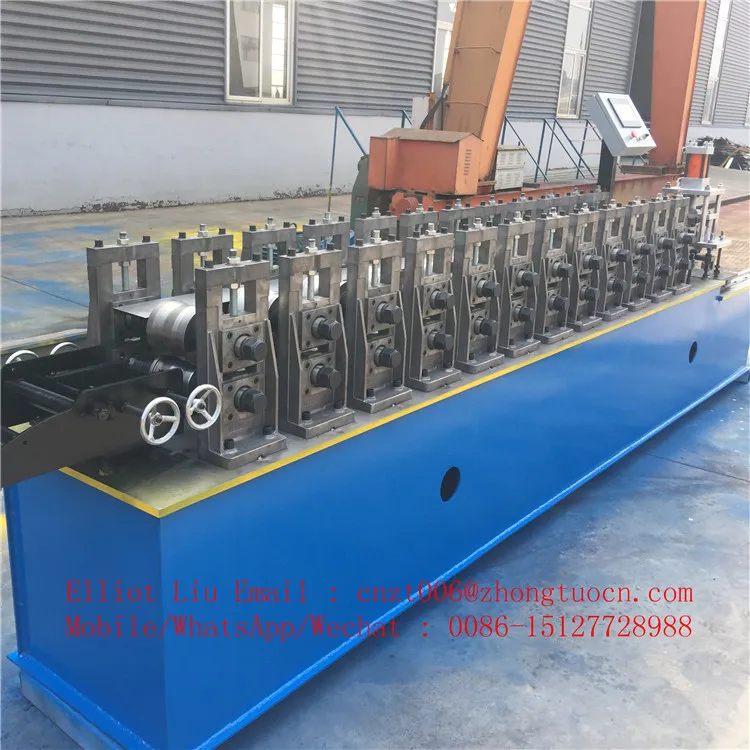

Aluminum Rolling Shutter Slat Making Machine Roll Forming Machine
Length of the main part: About 4500 900 1000 mm
Weight of main part: 3 tons
Voltage : 380 V 50 HZ 3 Phase
Frame type: Memorial arch frame
Drive mode: Gear
Material of rollers: GCr 12 quench with 58-60°
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 50 mm
Number of rollers : 12 rollers
Main power: 5.5 kw
Forming speed: 15-20 m/minute
Material thickness: 0.5-0.8 mm
Processing material: Galvanized sheet or aluminum sheet

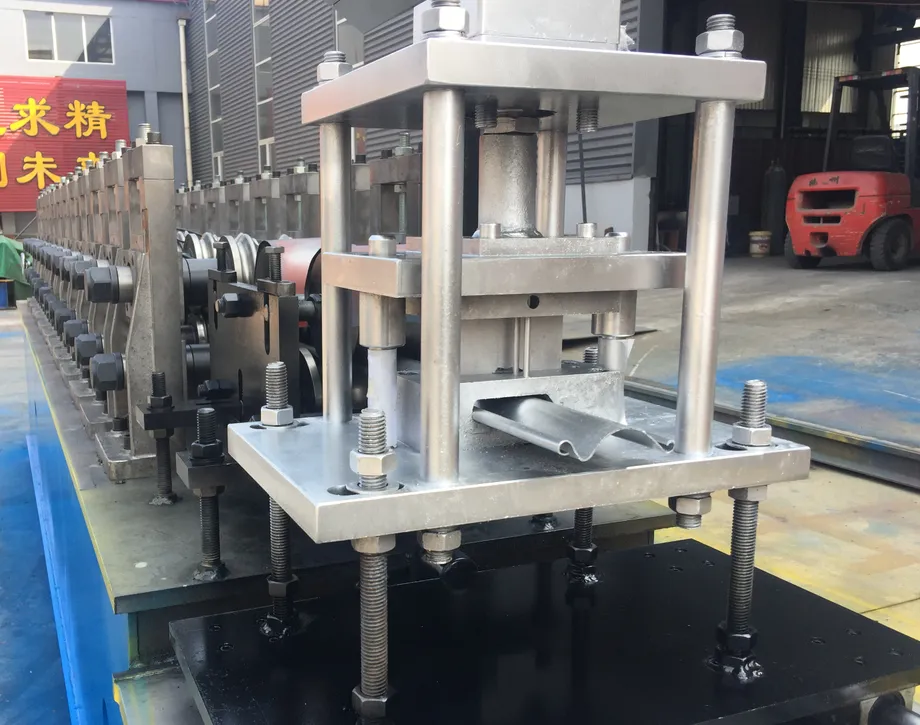

Aluminum Rolling Shutter Slat Making Machine Automatic Cutting
Material of blades: Gcr12MoV quenched
Power supply : Hydraulic power

Aluminum Rolling Shutter Slat Making Machine Hydraulic Station
Hydraulic motor Power: 3kw
Hydraulic oil: 46# hydraulic oil

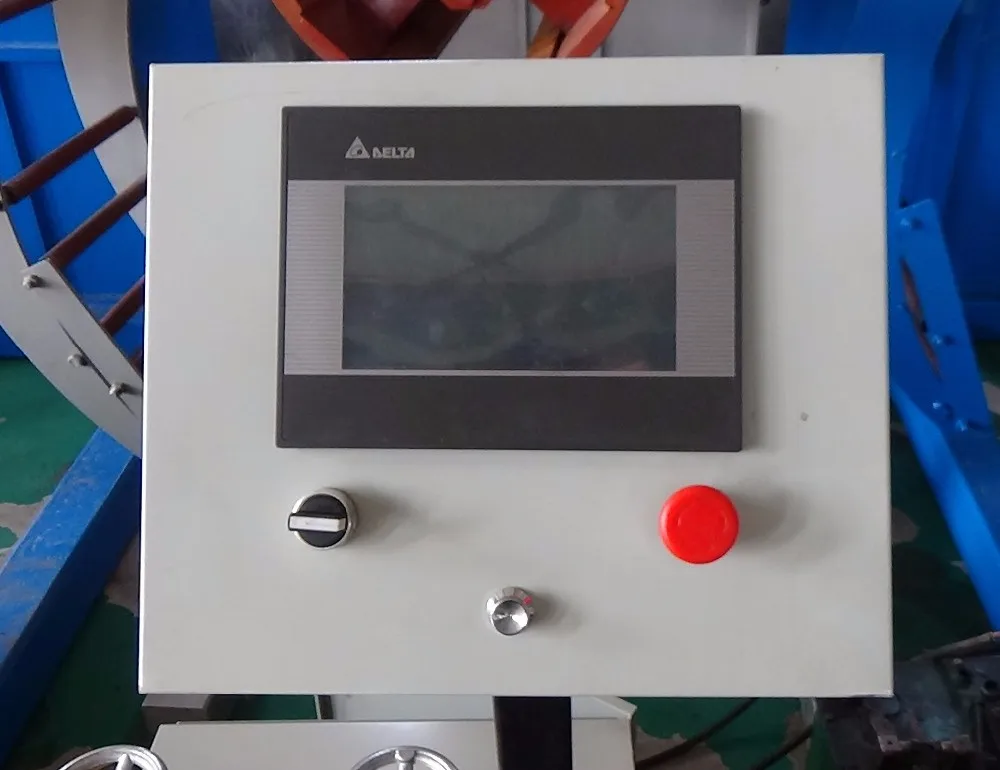

Aluminum Rolling Shutter Slat Making Machine Electric Control System
1. Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime.
2. Voltage: 380V/50HZ/3Phase
3. Language: English and Chinese
4. Automatic length measurement
5. Automatic quantity measurement
6. Length Tolerance: 3m±1.5mm
7. Length inaccuracy can be amended easily.
8. Operating panel: touching screen and button together.
9. Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety.

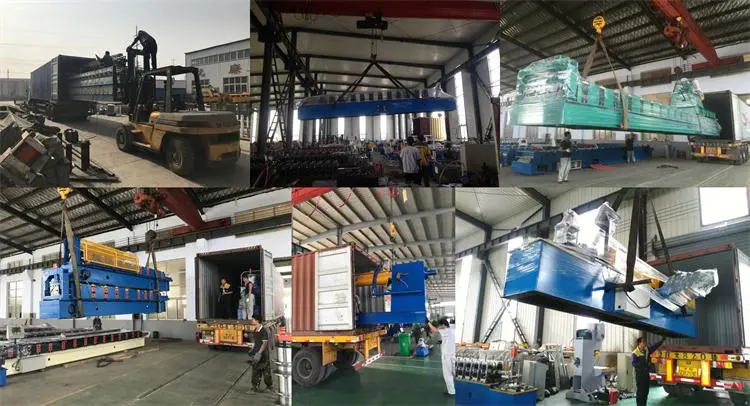

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take video for the customer and customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD 80/person/day salary.

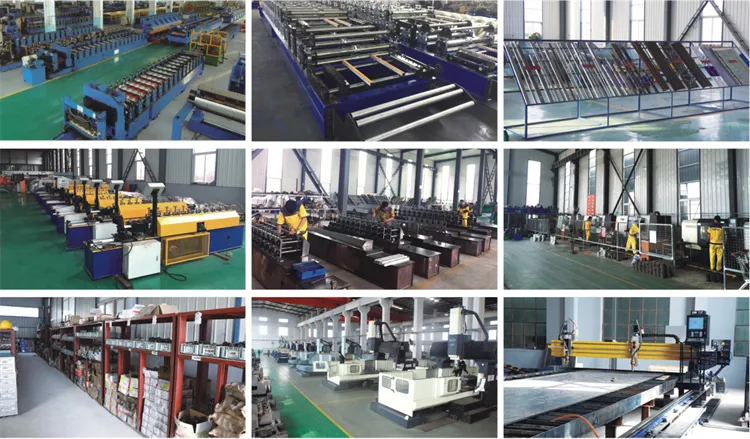

Cangzhou zhongtuo roll forming machinery co., ltd as a manufacturer since 1996, we are specialized in manufacturing color steel forming machine, light keel machine, c&z purline machine, glazed tile forming machine, welded tube mill, steel structural floor panel roll forming machine and so on. We can provide you one station, non-stop service. Our machines have been exported to 90 countries, such as Canada, South Korea, Russia, Holland, Sri Lanka, Malaysia, India, Brazil as so on. Our company insists on the service aim: Quality First, Credit First. We believe that we can make the future cooperation and achieve win-win.

Why choose to cooperate with us ?????
1. We are professional manufacturer, we can produce best quality machine for you.
2. We have strong design ability, we can design machine as your requirements.
3. We have much experience for installation and training experience overseas.
4. We have successfully exported our machines to more than 90 countries.
5. We provide one year machine warrant and whole life technical support.
1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you. b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself. if after warranty period, we can through negotiation to solve the problems,a nd we supply the technical support for the whole life of the equipment.
4. Can you be responsible for transport?
Yes, please tell me the destination port. We can help you to do the shipping if you need. we have rich experience in transport. We can give you the cheaper freight and send the machien to your country port.
5. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
6. How long the machine could be made?
Normally speaking, all the machines could be made without 45 working days. But if you need machines in a hurry, we can make it for you less than a month.
