Aluminum Garage Intelligent High Speed Spiral Door with Manual Buttons Other

Name: Aluminum Garage Intelligent High Speed Spiral Door with Manual Buttons Other
Brand: ZTRFM
SKU: ZT75262458
Availability: InStock

$69.00/ Set

Min. Order:2 Set

You can log in to view more discounted prices.Login Now

Price:

$69.00

Quantity:

≥2Set

Order CodeZT75262458

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Color:

Other

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Door Material
Steel
Feature
Anti-Theft
Application
Outdoor, Home Office, Exterior, Entry, Mall, Supermarket, Warehouse, Workshop, Farmhouse, Courtyard
Design Style
Modern

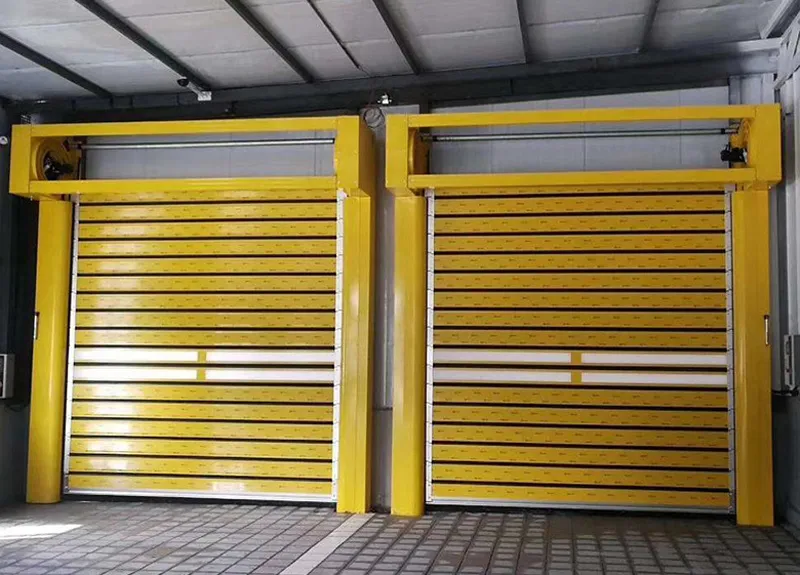

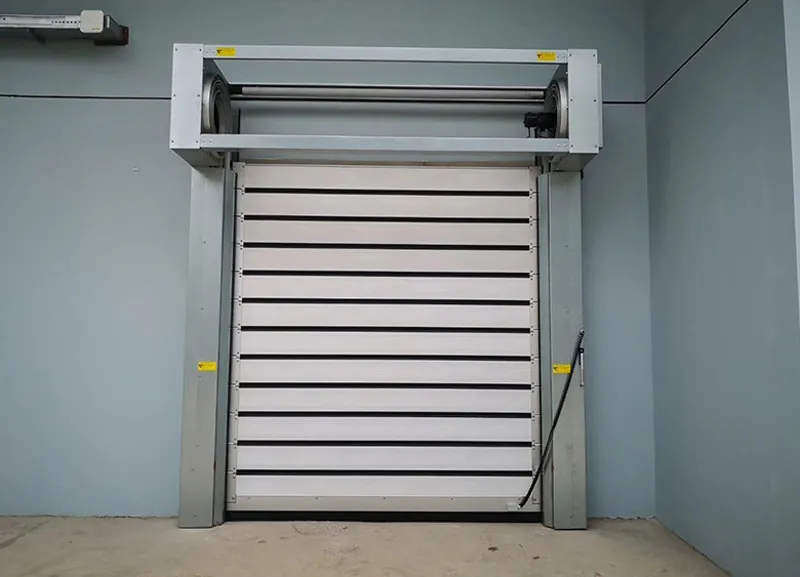

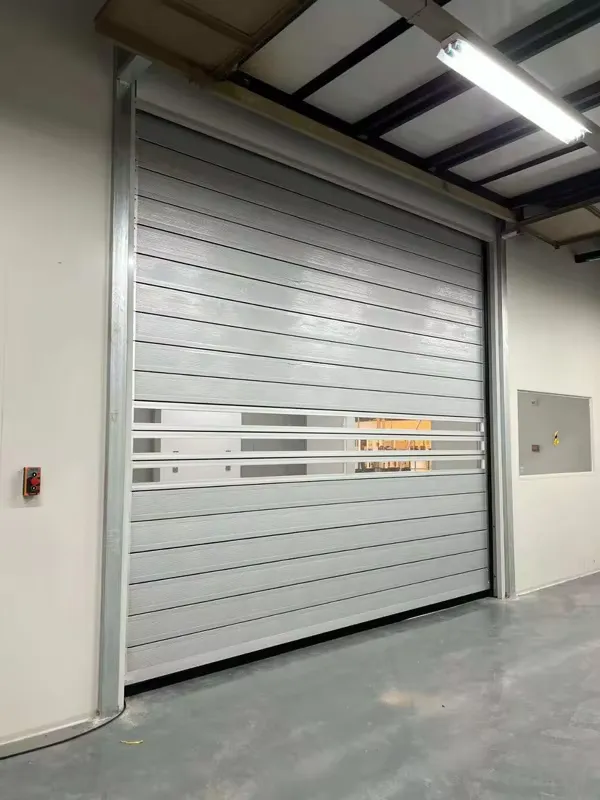

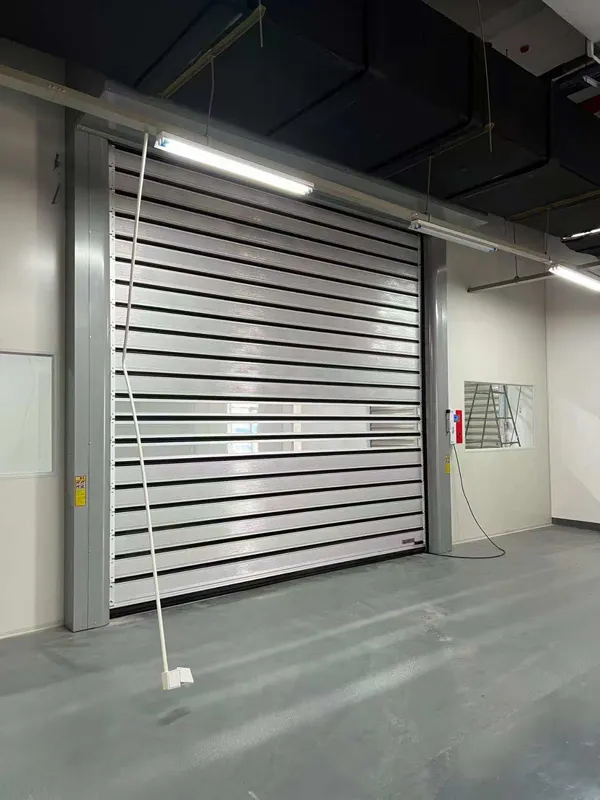

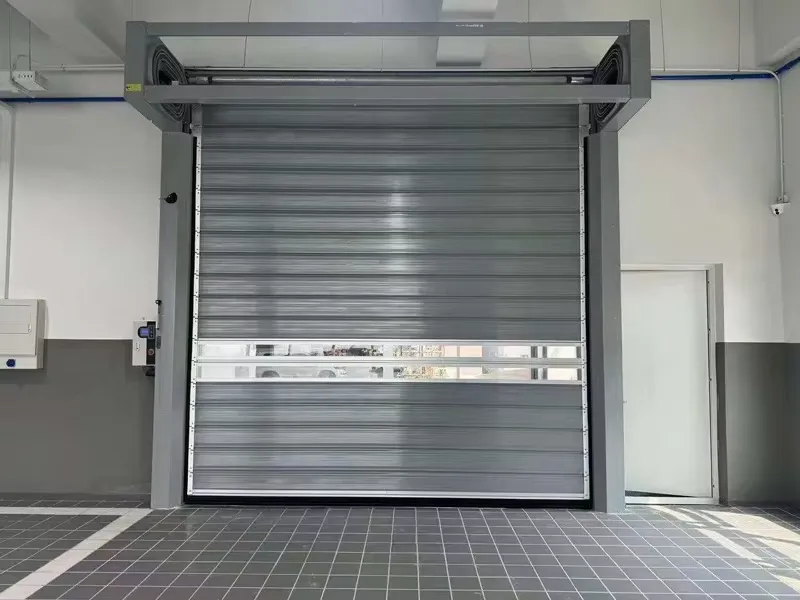

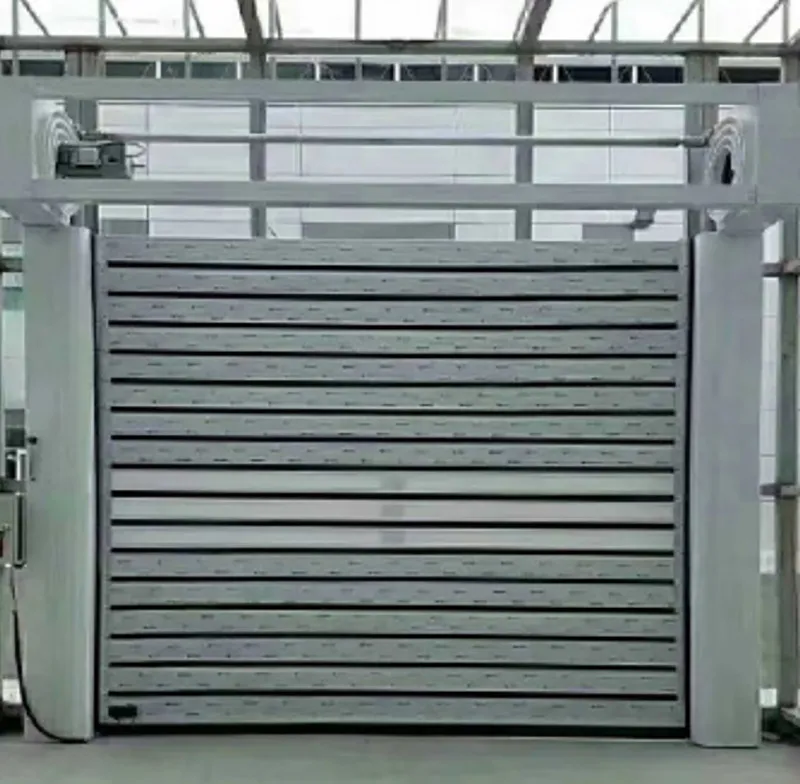

The turbine hard quick rolling shutter door adopts a spiral track design, ensuring that there is no direct contact between the door panels when the door is lifted, reducing friction and increasing the service life of the door panels. At the same time, it can also be equipped with a viewing window according to customer requirements, making it easier to observe and more secure. At the same time, it solves the problem of the door being unable to be raised or lowered due to power failure and being unable to be used normally. An emergency manual release device has been added, which is installed on the door track. When there is a power failure, the motor brake is immediately released, and the door is lifted or lowered by the balance system, greatly facilitating the use of customers. The turbine hard quick door is a new type of metal industrial door that integrates insulation, energy saving, sealing, high efficiency, wind resistance, and environmental protection. It has a fast opening speed and high safety. It is suitable for logistics channels, warehouses, temperature-controlled factories, cold storage, etc., as well as factory gates in northern areas that need wind resistance and insulation, and underground garage doors.

ltem	Detail Description
Max Dimension	Widthheight 12000mm8000mm(customized)
Power Supply	220±10%V, or 380V, 50/60Hz, IP55
Opening and Closing Speed	5-15m/min
Surface Treatment	Finished
Wind Resistance	28-35m/s(Class 10-12)
Sound Insulation Level	50DB
R Value	≥12.05㎡.K/W
Material	Galvanised steel, aluminum alloy, PU foam
Color	Colors can be customized.
Installation Method	Middle,exterior, interior
Application	Residential House, Warehouse

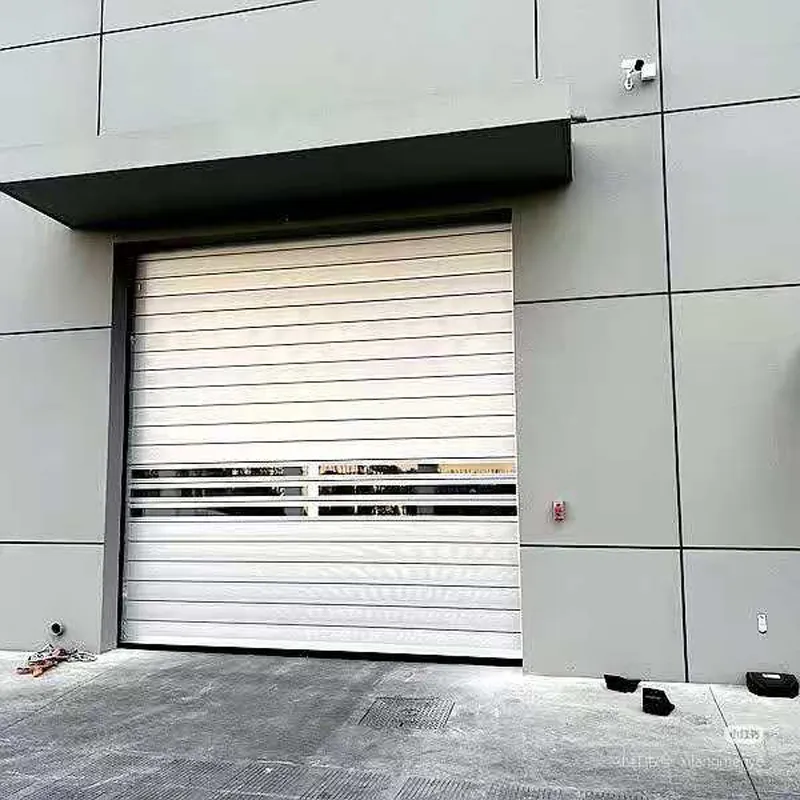

Window	Can be added.
Pedestrian Door	Can be added.
Packing	Exported standard carton

Long Service Life

Before leaving the factory, the door bodies undergo durability standard tests. Each door can be opened and closed 5,000 times per day to ensure its stability for long-term use.

Fast Startup Speed

We select the Heford brand motors, which can reach a speed of 5.8 M/S. They are lightweight in both size and weight, have high speed, low energy consumption, and are of higher quality and reliability.

Excellent Sealing Performance

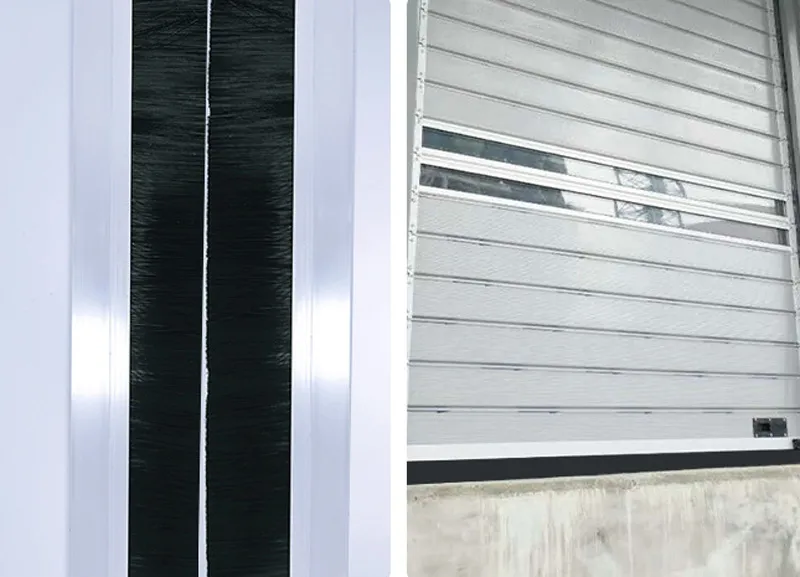

Double-sided nylon super elastic brush on the guide rails, preventing dust and mosquitoes; bottom is equipped with a sealed cloth bag that closely adheres to the ground.

Low Noise

Bi-directional spiral guide rails, opening and closing are rapid, the movement is smooth and quiet, and the stability is stable.

Sealed brush;

Standard with aluminum alloy.

Stainless steel packaging box;

Motor sealing box.

Aluminum alloy anti-wind pole; Aluminum alloy base.

Types of roller blinds

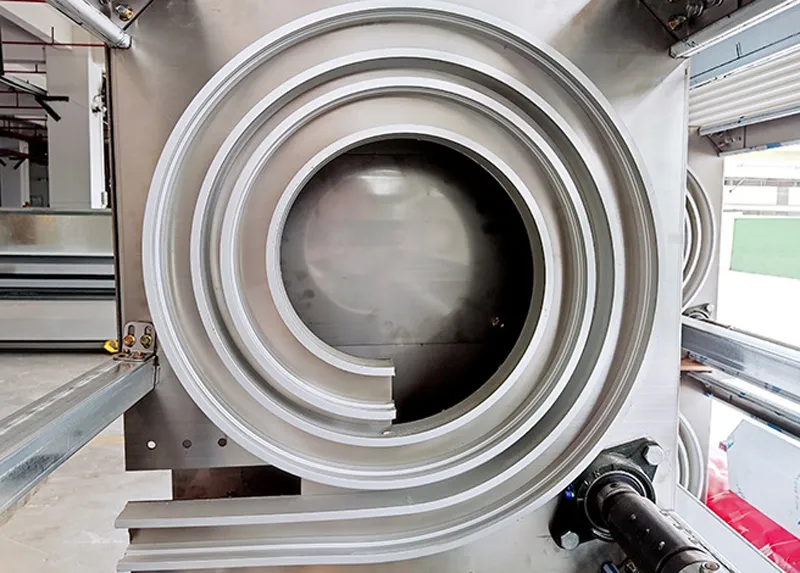

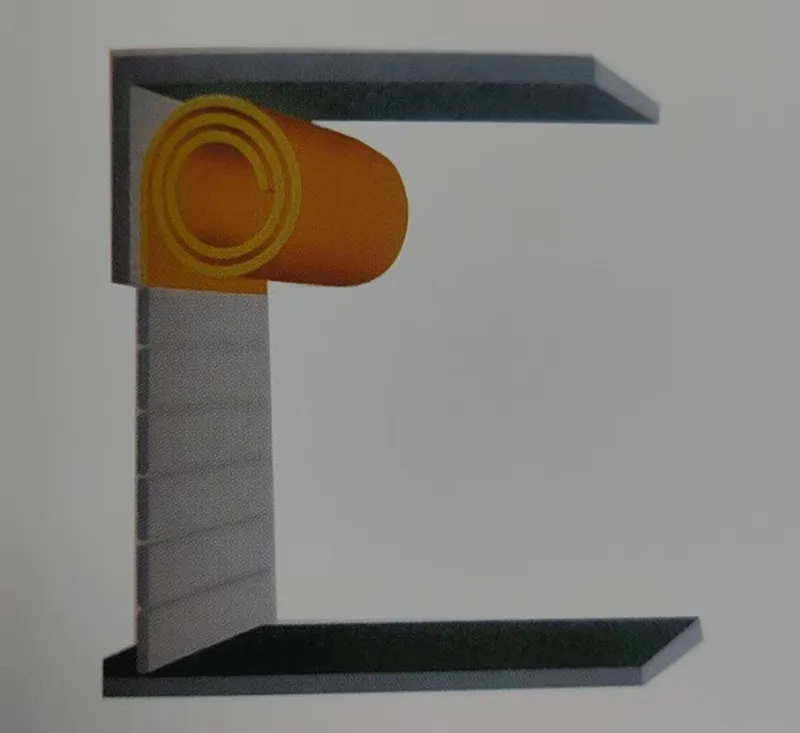

Round spiral guide rail

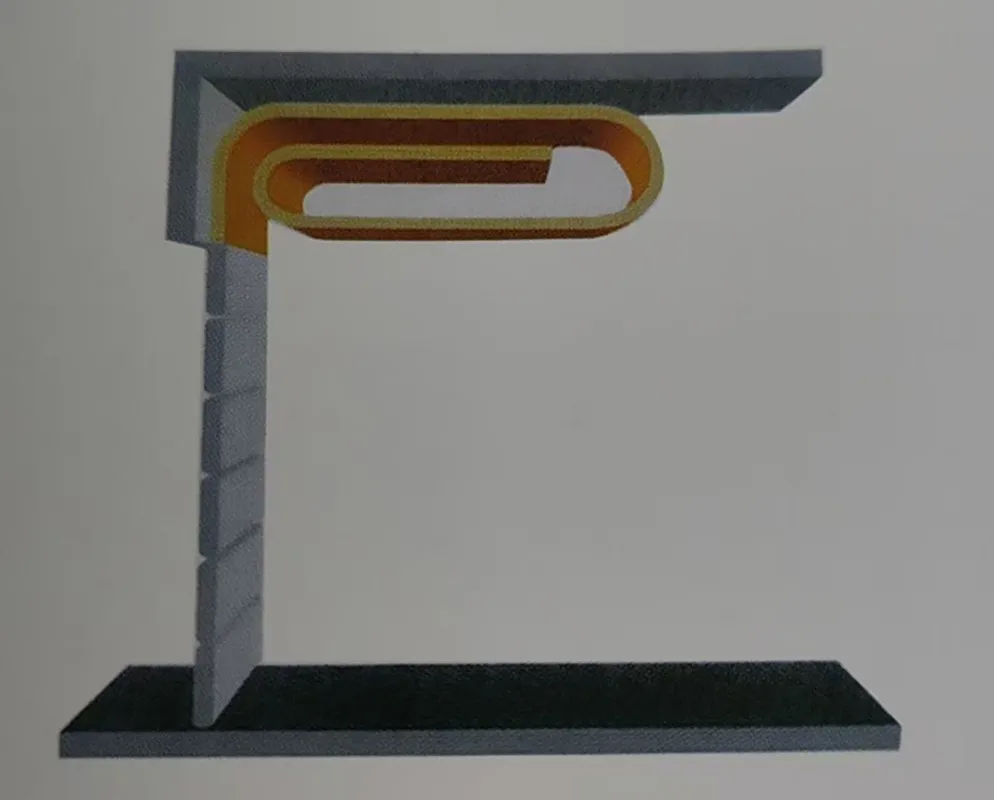

Oval spiral guide rail

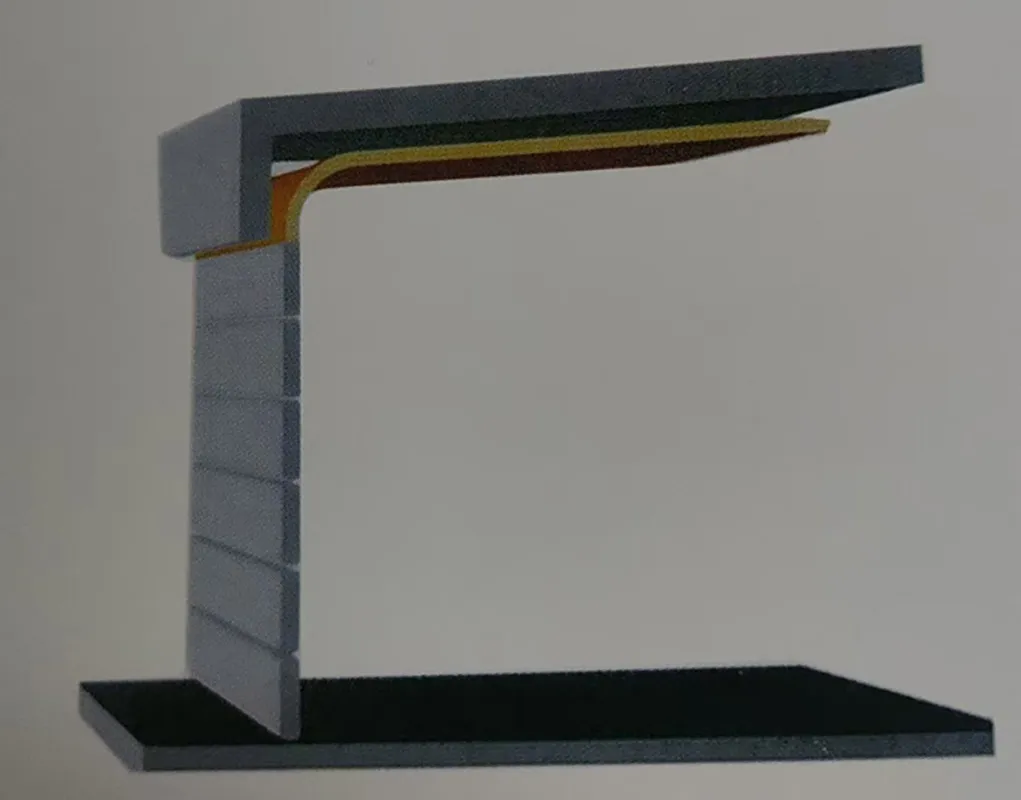

Low lintel guide rail

Other Products

High Speed Roller Shutter Door

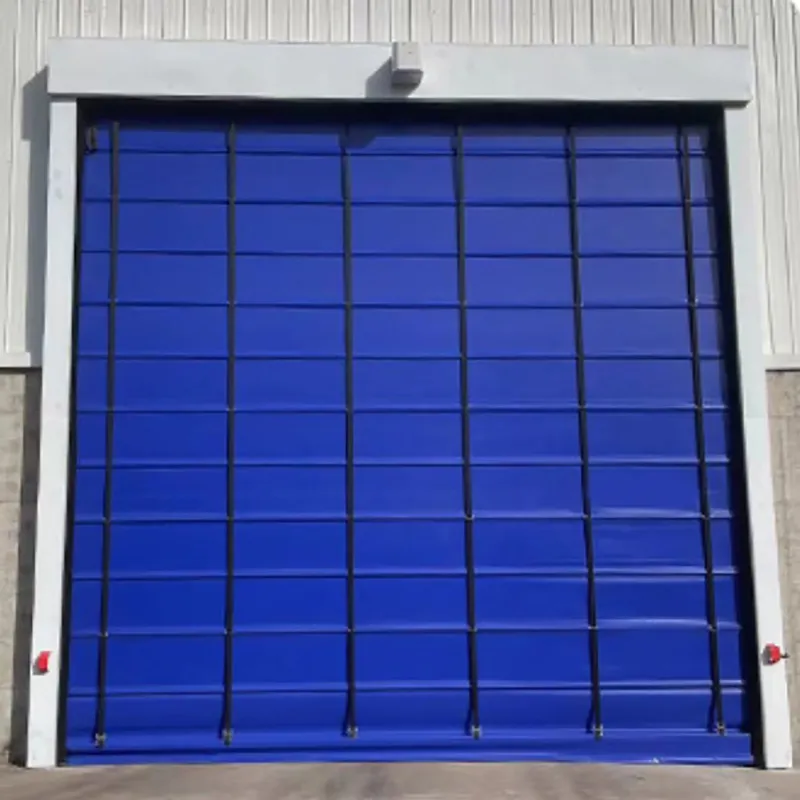

High Speed Stacking Door

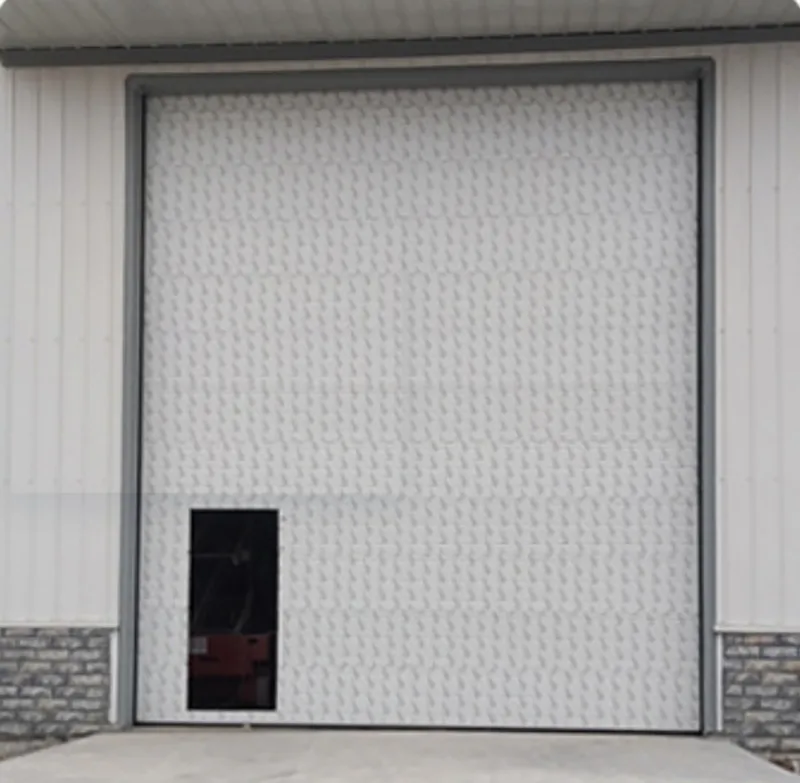

Industrial Lifting Door
