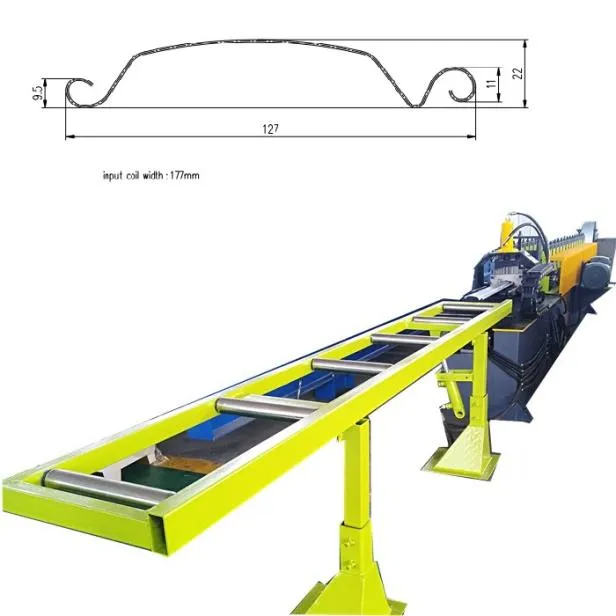

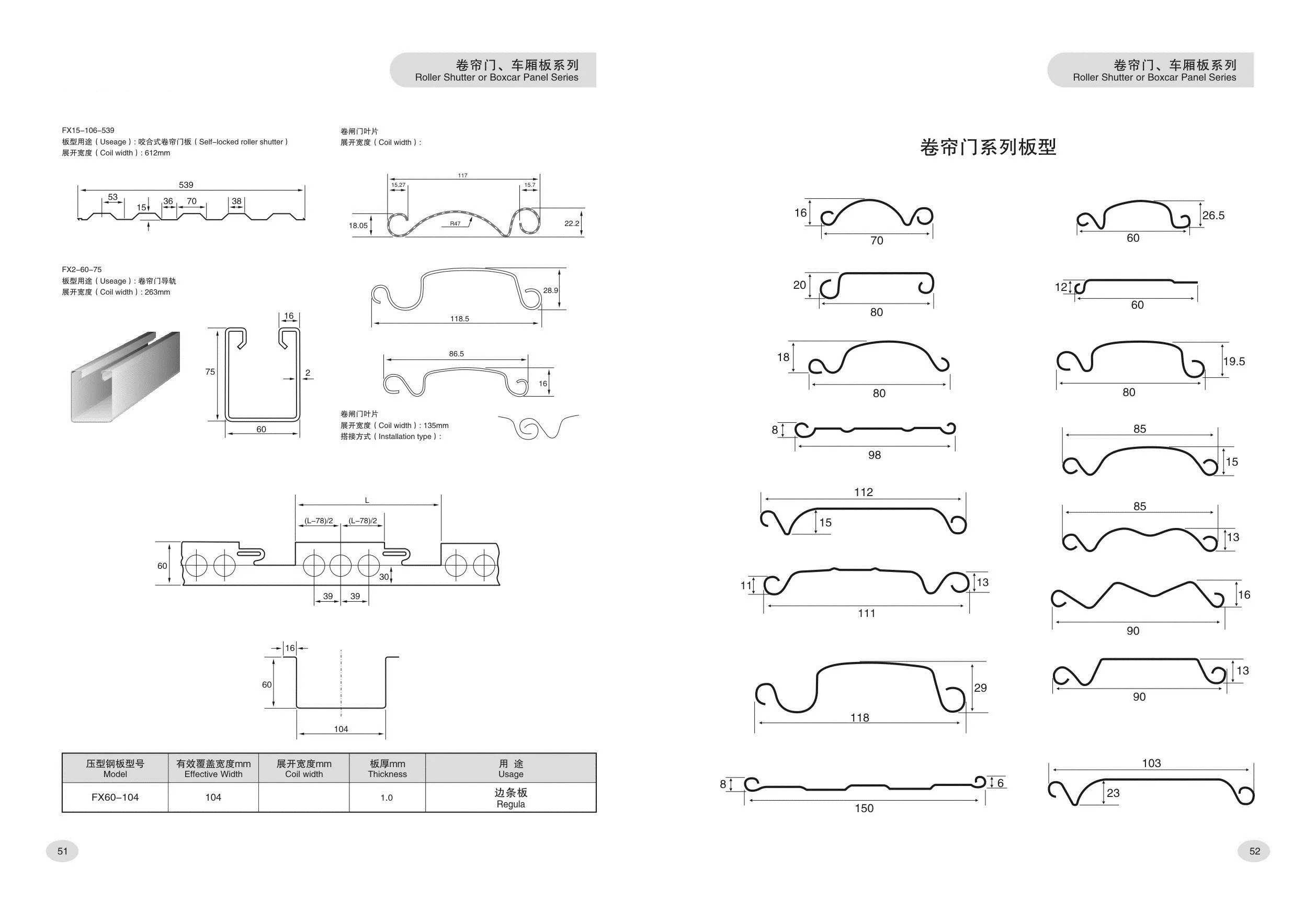

1. Profile drawings of rolling shutter door machine

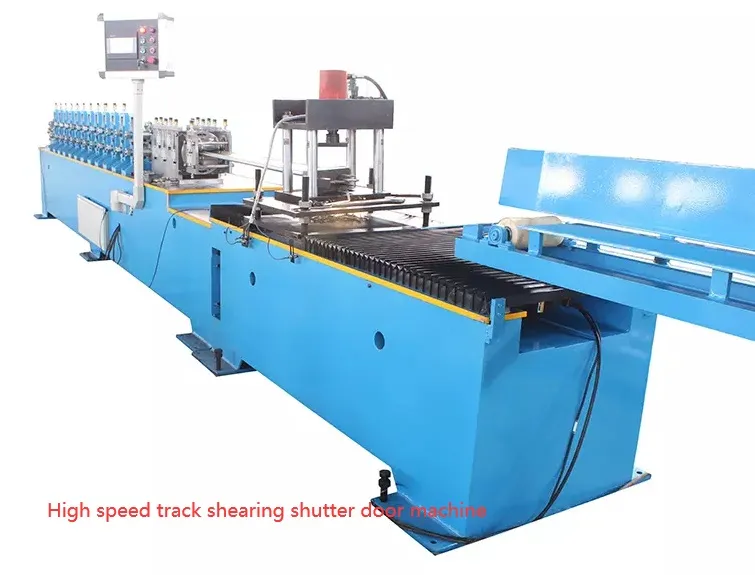

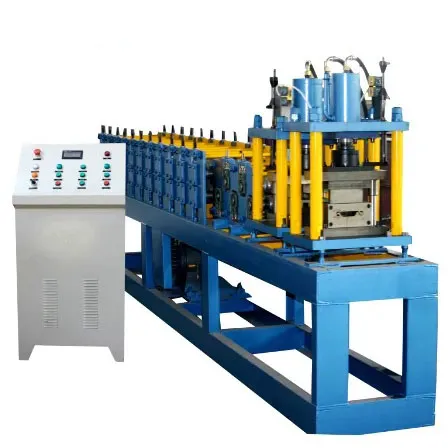

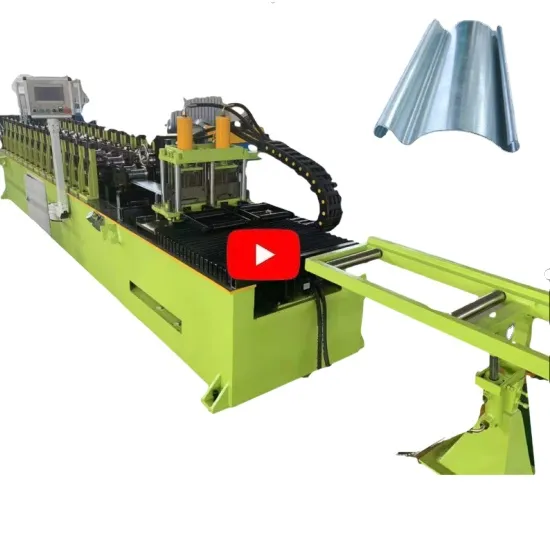

2. Pictures of rolling shutter door machine



3. Some details of rolling shutter door machine
|

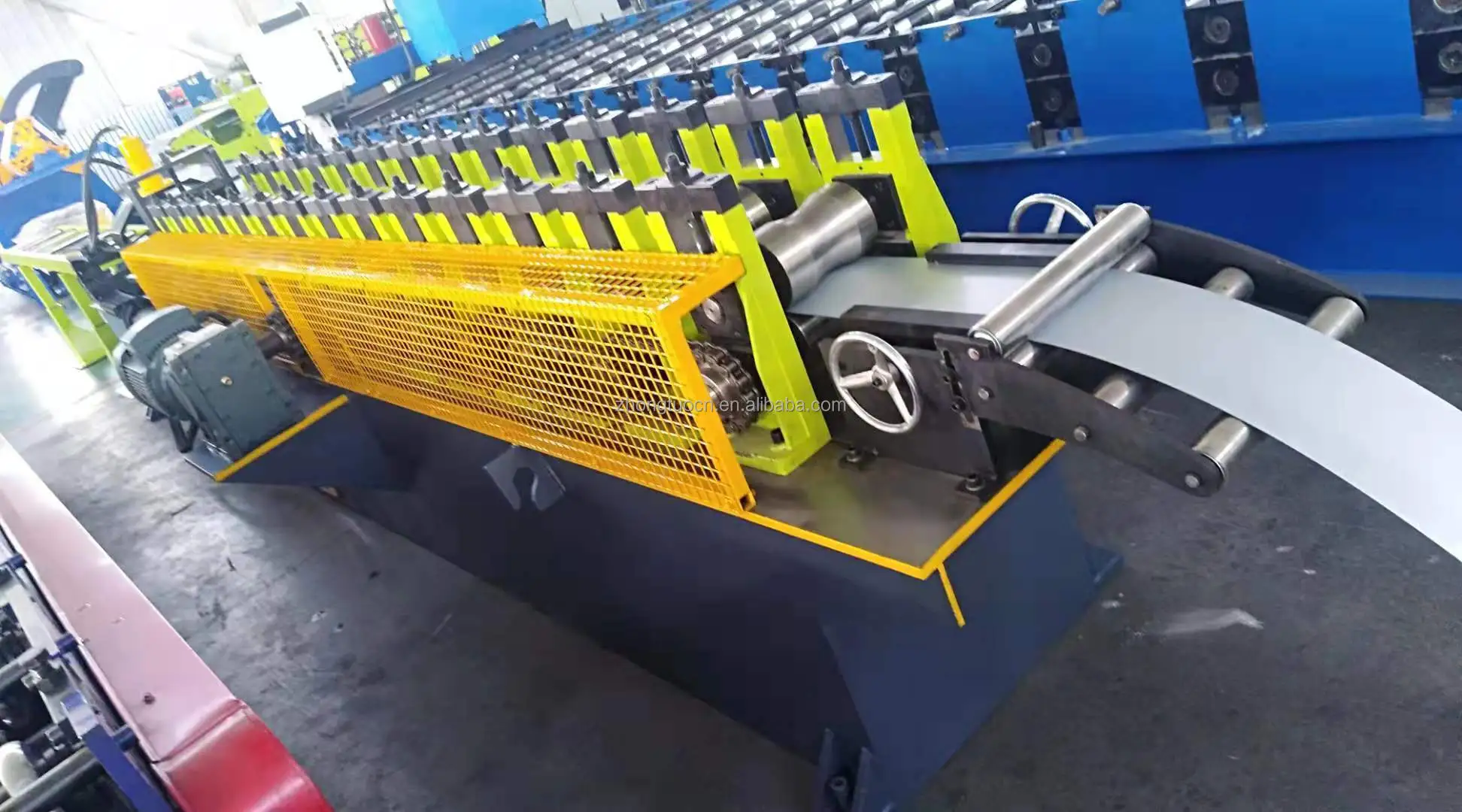

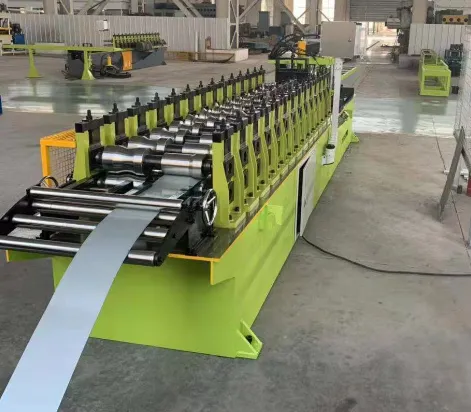

Feeding device
|
Usage: Put the material through the feeding rollers,it can guarantee that the products are neat, parallel and everything is uniformity. 1.with the handwheelbeside the feeding part,for adjust feeding width easily. |
|
Forming device
|
Voltage:customized Frame:Molding frame driving:double chain Material shalft:40 cr tempering material of rollers:Cr12 chromed and quenched main power:5.5kw speed:0-30m/min
|
|

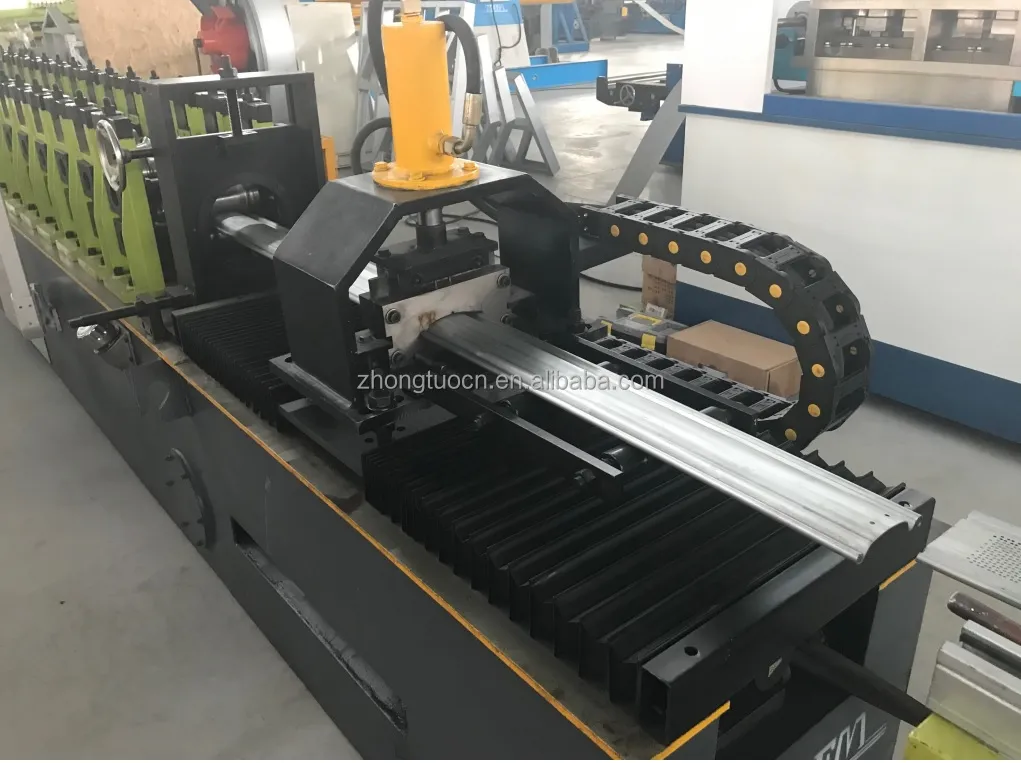

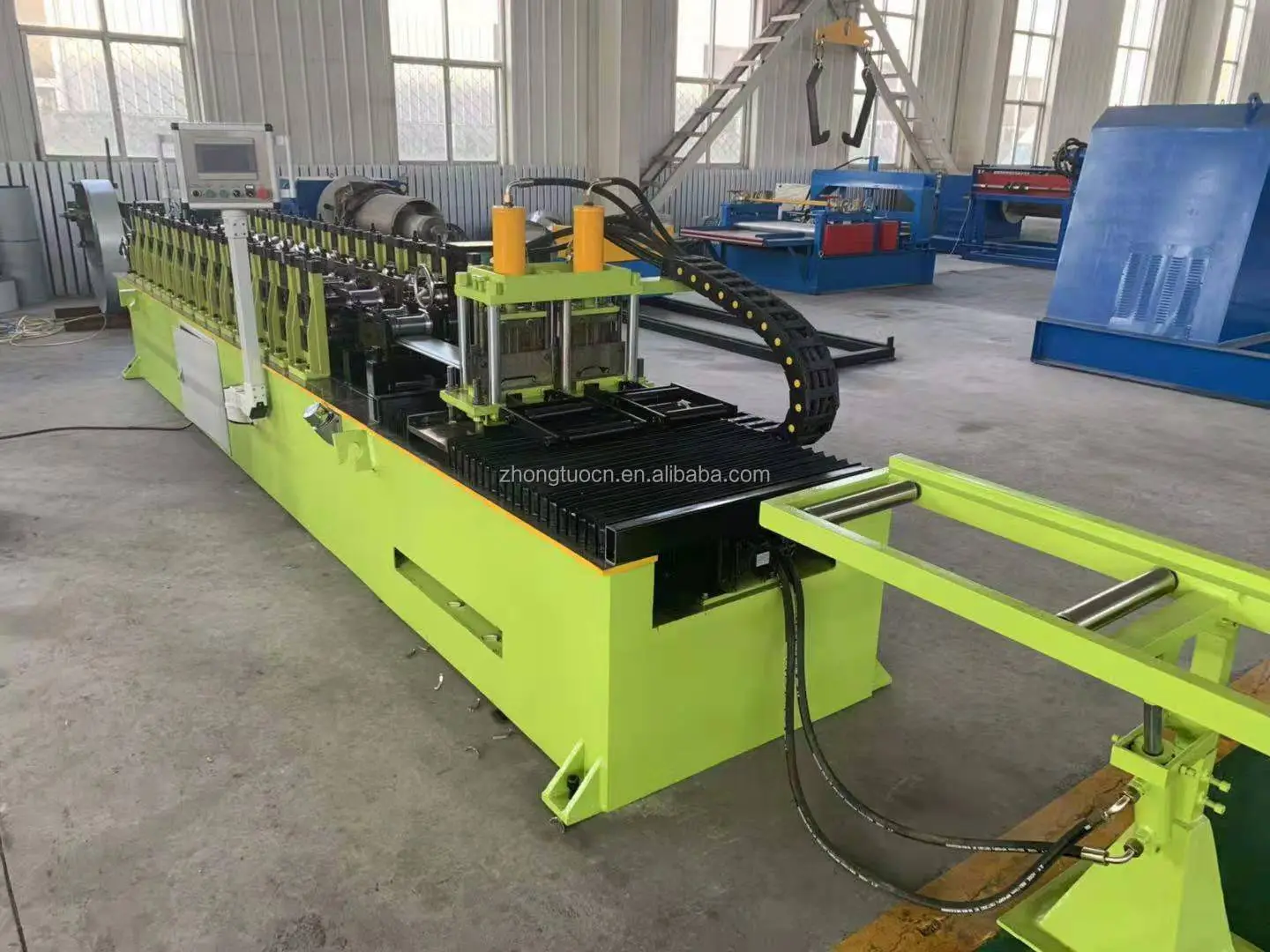

Cutting device
|
Cutting with punching Method:Hydraulic cutting with servo.No stop cutting for high speed Cutting blade material:Cr12 chromed and quenched Counter:Omron counter |

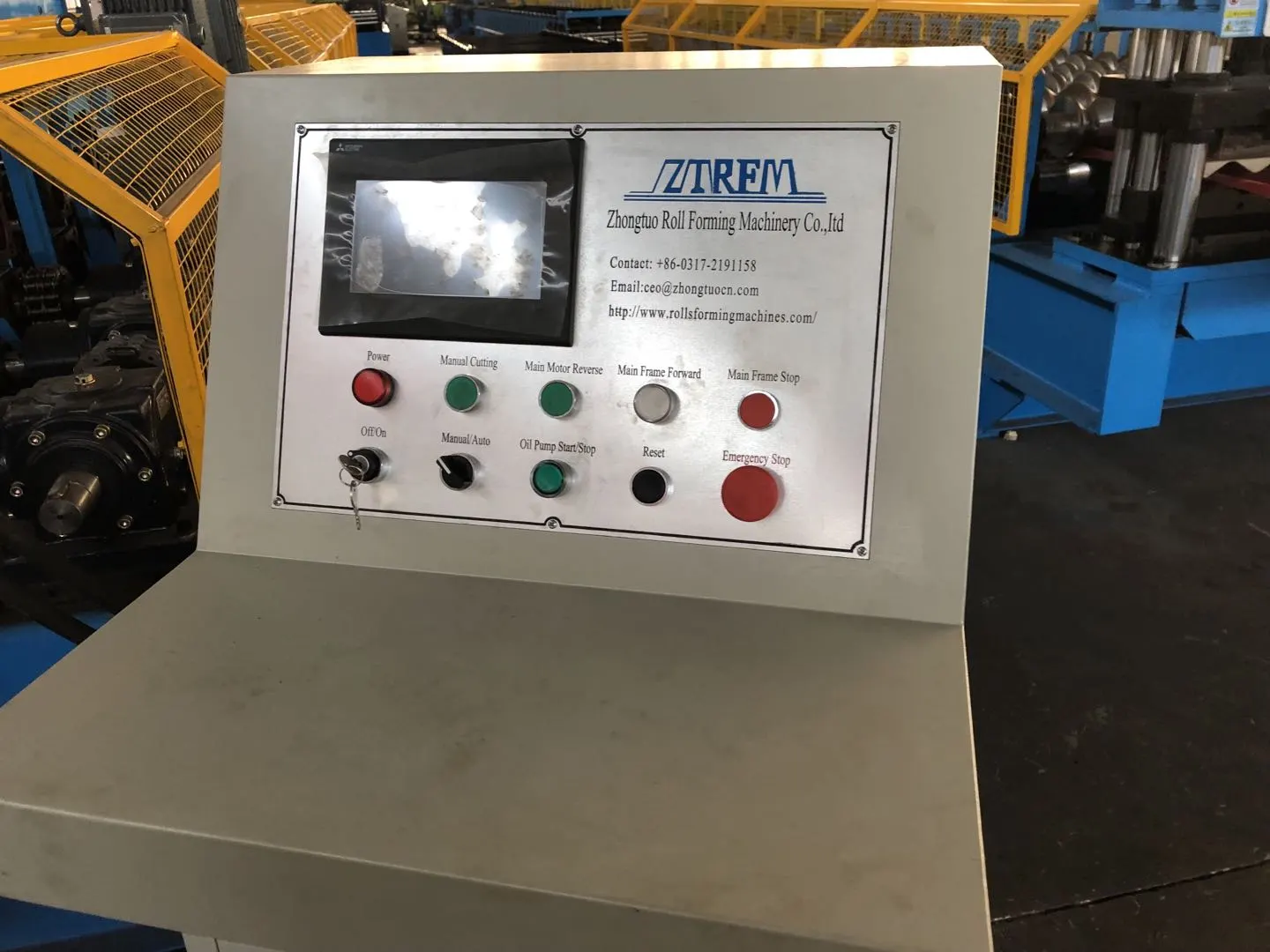

No.3 PLC control System
![]() |
Language:English and Chinese(Customized)
Adopted PLC, transducer, touch panel from Mitsubishi Japan to ensure high speed with stability, precision and lifetime.
Other electric element is Schneider |

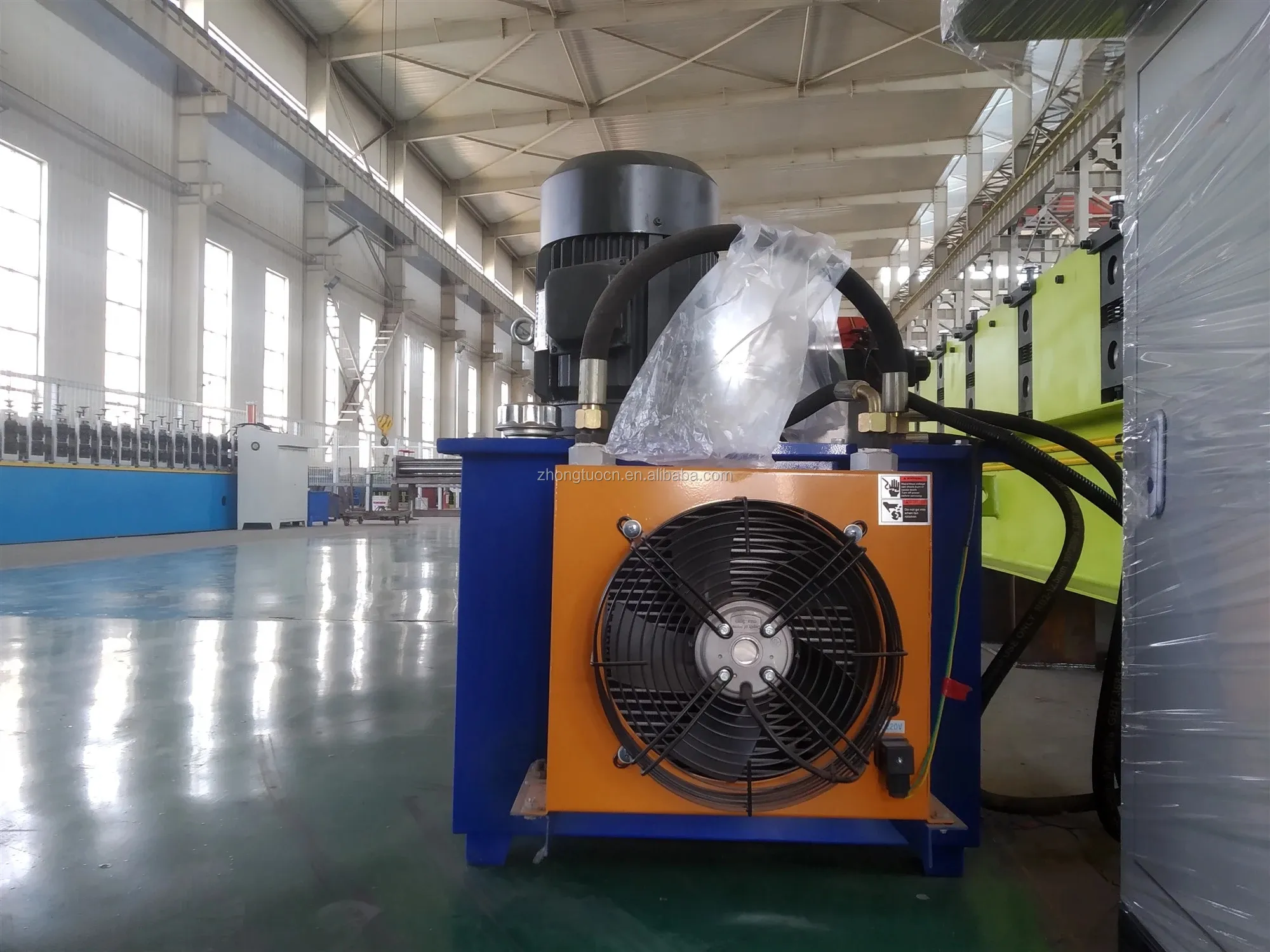

No.4 Hydraulic station
![]() |
power:3kw
With cooling fan for ling time using over than 8 hours. |

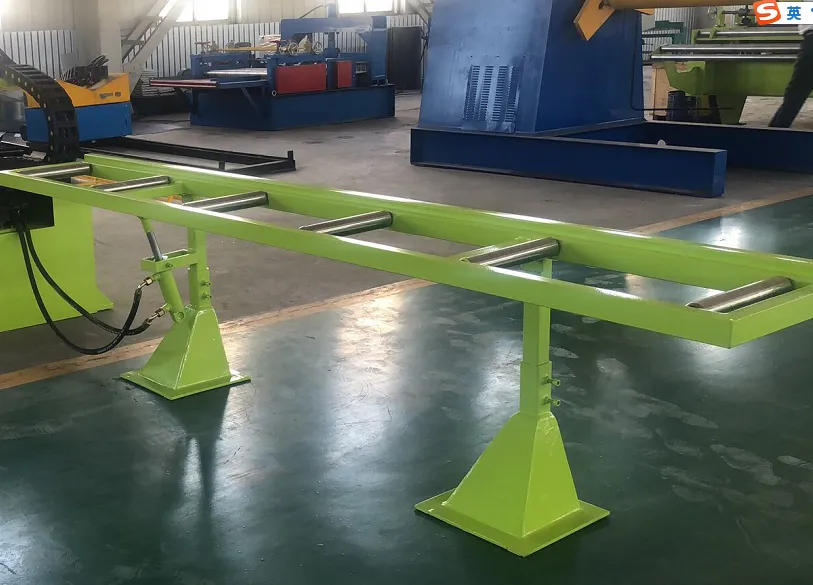

No.5 Automatic receiving table
![]() |
Penumatic automatic receiving table. length:3m |
4. Production Line of rolling door machine

Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.
We specialized in manufacturing metal roofing roll forming machine, purlin machine, Glazed tile roll forming machine, floor tile making machine, rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, gutter machine,no beam roof tile machine, pipe welding machine.




FAQ:
How to ask the accurate quotation of the rolling door machine?
1. Normally we give the accurate quotation based on the drawing profile, so if you want to get the accurate quotation, please show us the drawing profile first.
2.Machine could be designed in many type and methods, for the machine frame, PLC brand, motor brand all will effect the price.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection. We SLAO accept the payment L/C, O/A , D/P.
3. What is your after-sale service?
Roll forming machine's warranty period is 24 months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost.we supply the technical support for the whole life of the equipment.
4. How to visit your company?
Kindly tell us your visting time, we can pick up you AT the stations. and help you check the airport ticket and train ticket.
Our city is near Beijing, it is about 54 minutes by high speed train, it is short time and convenient for you to by train to our city from Beijing , so we suggest you come by high speed train.
Thank you for your attention!
