Agile Compact Metal Furring Studs and Omega Profile Forming Machine 0-30 m per minute (depends on holes quantity)

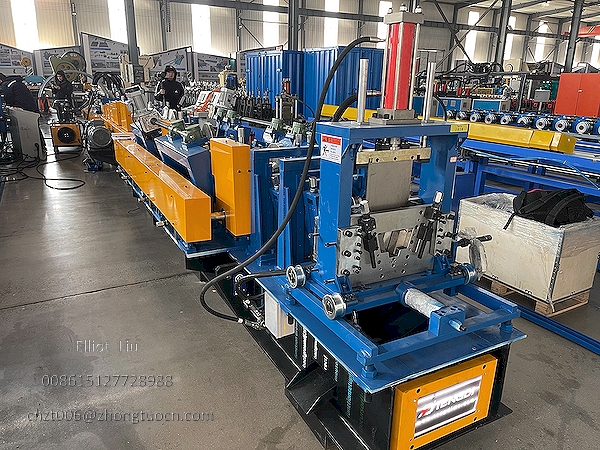

16 Station Metal Furring Studs Machine for Stable Continuous Production Lines

When buying a metal furring studs machine, most buyers focus on the main unit first. They ask about forming stations, roller hardness, and motor power. These things matter, but once continuous production starts, problems often show up elsewhere.

The coil doesn't feed smoothly. The main machine stops too often. Operators keep adjusting hole positions. The receiving table can't keep up with forming speed. These issues are often related to how well different stages of the line work together. The value of a metal furring studs machine isn't just about the main forming unit. It's about whether decoiling, forming, punching, cutting, and receiving operate as one continuous system.

Where Are Metal Furring Studs Used in Real Projects?

The profiles produced by this metal furring studs machine are used in these applications:

• Steel structure buildings: roof purlins, wall purlins, and secondary structural supports

• Light gauge steel framing and ceiling systems: load bearing frameworks for partition walls and suspended ceilings

• Industrial shelving and storage equipment: support profiles for columns and beams

• Prefabricated houses and light steel structures: standard sections for quick assembly

These applications require consistent, continuous production. Line coordination directly affects order delivery and product quality.

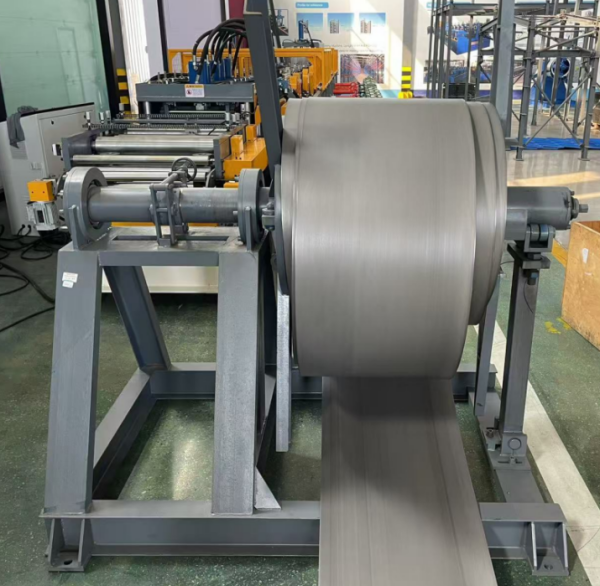

How the Manual Decoiler Works with the Main Machine's Speed

The decoiler holds the coil and feeds the strip into the main machine. How it feeds the strip affects line stability.

The difference between passive and powered decoiling is the drive source. Passive decoiling uses the main machine's pulling force to rotate the decoiler. Powered decoiling uses a separate motor to actively feed the strip at a speed that matches the main machine.

This equipment uses a manual decoiler with passive uncoiling. It's simple and cost effective for most furring stud production. The decoiler handles coils up to 4 tons, with a maximum width of 500mm, inner diameter adjustable from 480 to 550mm, and outer diameter up to 1500mm.

Decoiling speed must match the main machine's production speed. If it's too fast, the strip stacks up or folds. If it's too slow, the main machine runs out of material and stops. Operators adjust the decoiler based on actual running conditions to maintain proper strip tension.

Core Machine Specifications – What This Metal Furring Studs Machine Can Handle

Whether the main machine runs stably depends on whether its core specifications match your production needs. Here are the key parameters:

These specifications determine the speed and material range the line can handle.

Advantages of the Metal Furring Studs Machine

• Integrated PLC control and touch screen operation make parameter setup straightforward

• Recipe storage allows quick recall of settings when switching between different profile sizes

• Coordinated production stages reduce manual intervention between decoiling, forming, punching, and cutting

• The line can be operated by a small number of operators from decoiling to finished product collection

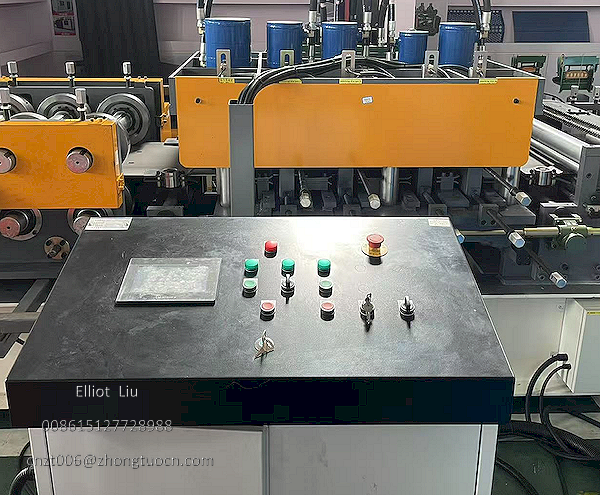

How PLC and Touch Screen Control the Whole Production Line

In continuous production, operators need to set and adjust parameters regularly. A well designed control system makes these operations simple and repeatable.

Operators set the following through the touch screen:

• Product length: enter the cutting length

• Punching quantity and position: enter hole parameters directly

• Production quantity: set batch size

• Working speed: select the right speed based on material and hole pattern

How the PLC control system works:

• An encoder measures formed length in real time. When it reaches the set value, it triggers the cut automatically. This equipment uses an Omron encoder

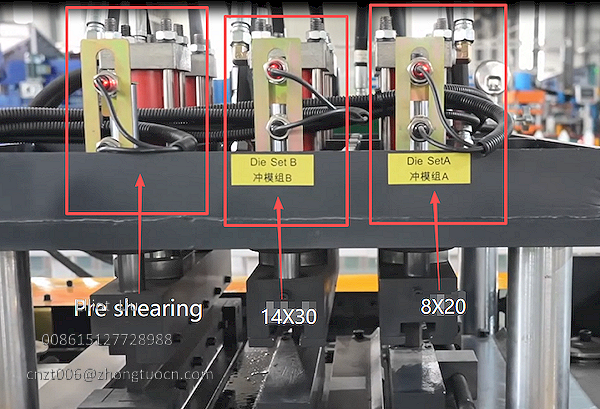

• The punching system follows the set positions and quantities

• The system stores multiple product recipes. When switching sizes, operators recall saved parameters instead of re entering everything

• Operators focus on checking settings rather than adjusting the machine repeatedly

Why Production Line Coordination Matters More Than Individual Machine Specs

The value of a production line is coordination, not the strongest single component.

How each stage works together:

• Decoiler supplies strip continuously → main machine forms continuously → punching completes as programmed → cutting happens at set length → finished profiles go to the receiving table

• If any stage fails, the whole line stops or produces scrap

• The goal is stable, continuous operation, not maximum speed on every stage

Common coordination issues:

• Decoiler speed doesn't match main machine speed: strip gets loose or stretched, affecting forming accuracy

• Punching speed can't keep up with main machine speed: the line stops and starts too often

• Cutting isn't synced with main machine speed: length deviation increases

• Control system response is slow: settings don't match actual execution

A well designed metal furring studs machine integrates all stages into a complete system.

If your goal is stable, continuous furring stud production, don't focus only on the main forming machine. Coordination between decoiling, control, punching, cutting, and receiving determines whether the line runs well over time. Choose a metal furring studs machine where each stage works with the others, not as separate units.
