Drywall Channel Stacker Packing Machine 70m/min Working Speed Improves Efficiency

Have you ever watched your drywall channel production line run at high speed while finished sections pile up on the floor because workers cannot keep up with sorting and packing? This is not a problem unique to one factory. It is a typical bottleneck that appears when a continuous production line speeds up.

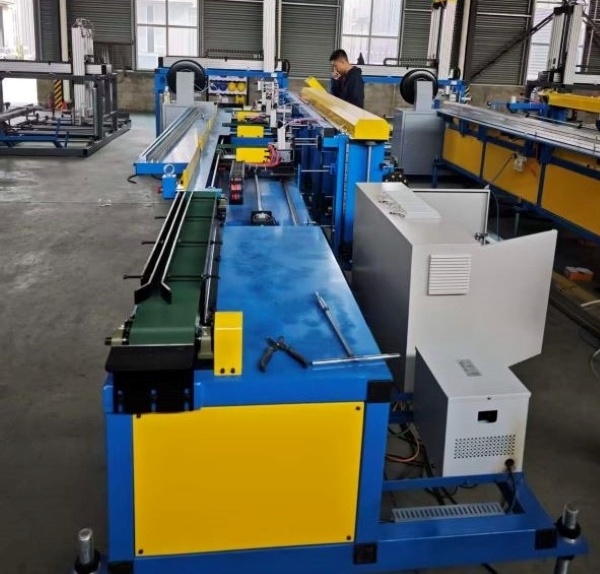

A drywall channel stacker packing machine exists to solve this exact problem. It automatically collects, organizes, and stacks finished sections on the continuous production line, turning scattered profiles into neat bundles. Unlike stackers used in warehouse logistics for moving boxes, this equipment directly receives products after forming and cutting. It is an extension of the production line itself.

Stacker Machine Basics

A stacker machine is an automatic material receiving device installed at the end of a production line. Its job is simple: catch each formed and cut profile one by one, then stack them neatly into piles. Workers only need to monitor the machine's operation instead of bending over to handle each piece.

Drywall Channel Production Applications

The drywall channel is the most typical application for a stacker machine. This light gauge steel channel, with its C shaped or U shaped cross section, is widely used in building partition walls and ceiling systems. Commercial buildings, residential projects, and public facilities all require large quantities.

Specific application scenarios include:

• interior partition systems for office buildings, hotels, hospitals, and schools

• ceiling systems for shopping malls, airports, and subway stations

• furring walls and basement walls in renovation projects

• non load bearing interior partitions and suspended ceilings in various industrial and civil buildings

As demand grows across these application scenarios, drywall channel production lines continue to increase speed. The value of a drywall channel stacker packing machine is that it keeps the line running smoothly without slowing down because the end cannot keep up.

Core Components of the Stacker Machine

A stacker machine relies on several key components working together. Each part has its specific function.

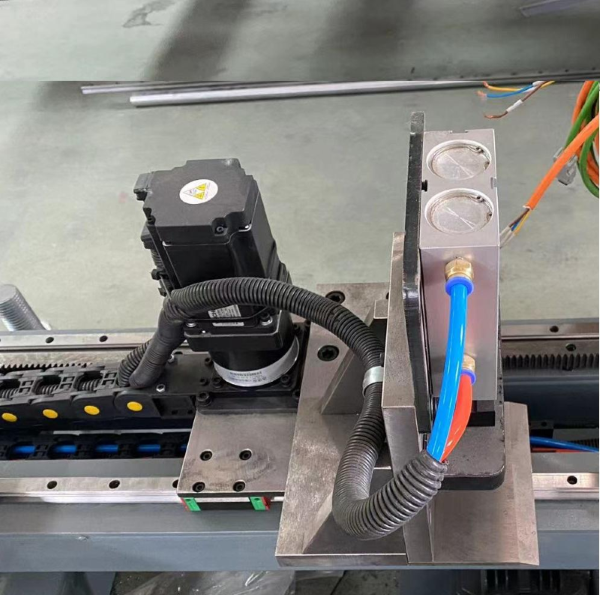

Pulling system.
The pulling section uses servo gear rack drive, designed specifically for high speed and long travel applications. The gear rack structure provides high rigidity and transmission efficiency. It does not slip or lose position during continuous high speed operation. The servo motor delivers precise torque and speed control, ensuring each profile reaches its designated position accurately.

Servo drive system.
The complete machine includes five servo motor systems that control the buckle, lifting push table, tape wrapping, pulling, stacking translation, and stacking lifting. These servo systems respond quickly and position precisely, making sure every profile lands in the right place.

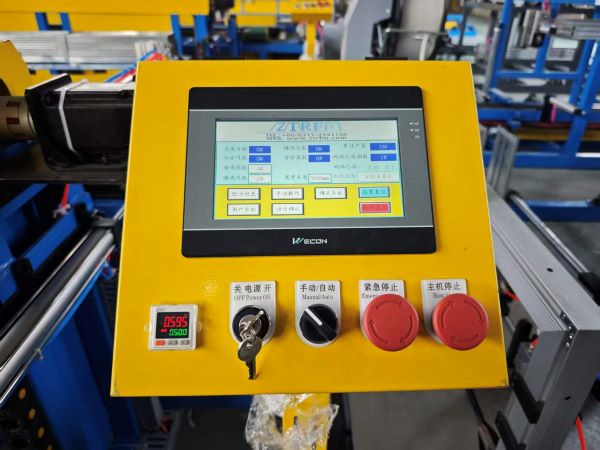

Control system.
One touch operation with a built-in recipe storage system that saves up to 50 channel types. When switching specifications, just recall the recipe. No need to readjust machine parameters each time.

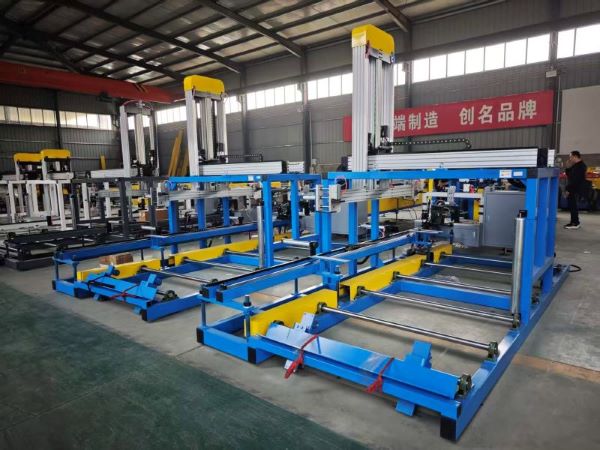

Frame and base.
The frame serves as the equipment's backbone, rigid and wide span, mounted directly above the conveyor line. The base uses 120 by 80mm square tubes for stable support, and forklifts can access it from any direction.

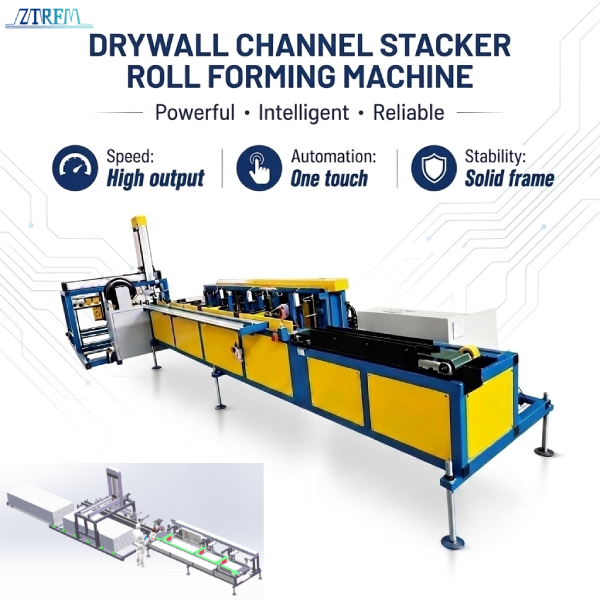

Advantages of the Drywall Channel Stacker Roll Forming Machine

Reduces manual handling.
The machine automatically handles collection and stacking. Workers no longer need to catch profiles at the output chute. A stud channel automatic stacker machine offers similar benefits for other profile types.

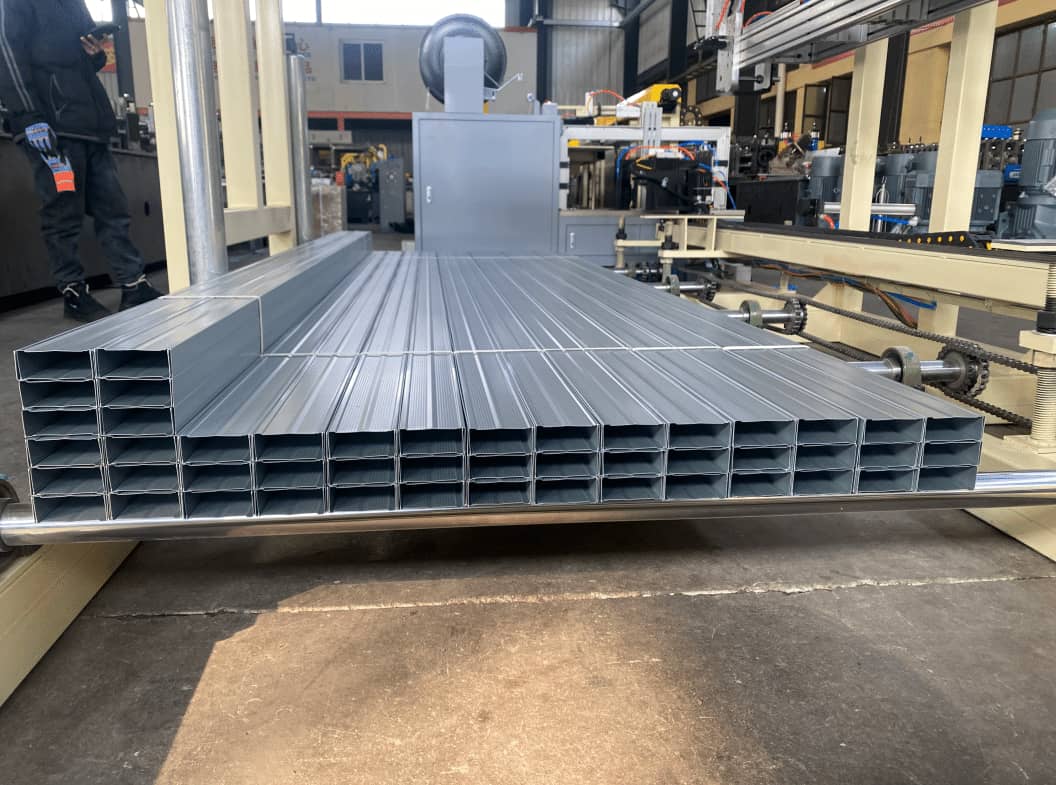

Delivers consistent stacking quality.
The servo system provides precise position control. Every stack comes out neat and uniform.

Protects product surfaces.
The clamping parts use soft rubber covering with adjustable cylinder pressure. This helps resist squeezing and reduces scratch risks.

Supports continuous operation.
The machine matches the roll forming machine's speed, so the line does not have to slow down because the end cannot keep up.

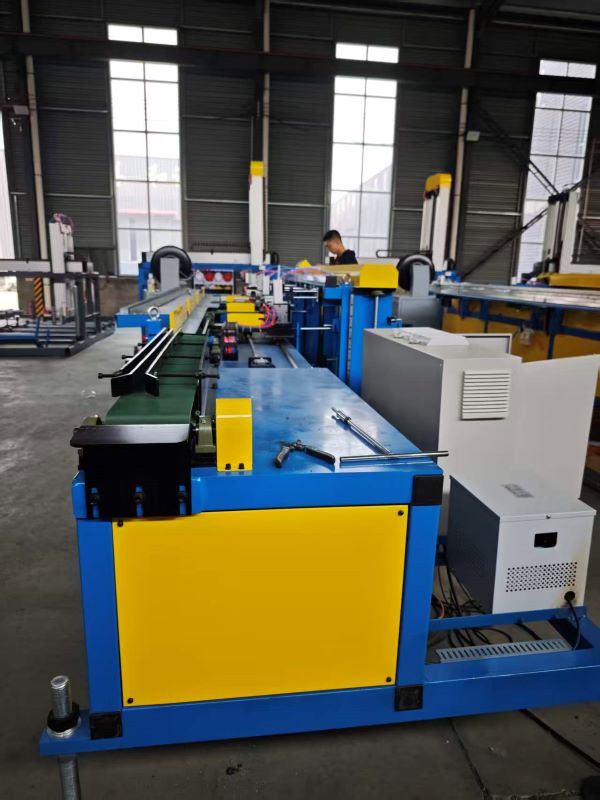

Stacker and Roll Forming Line Coordination

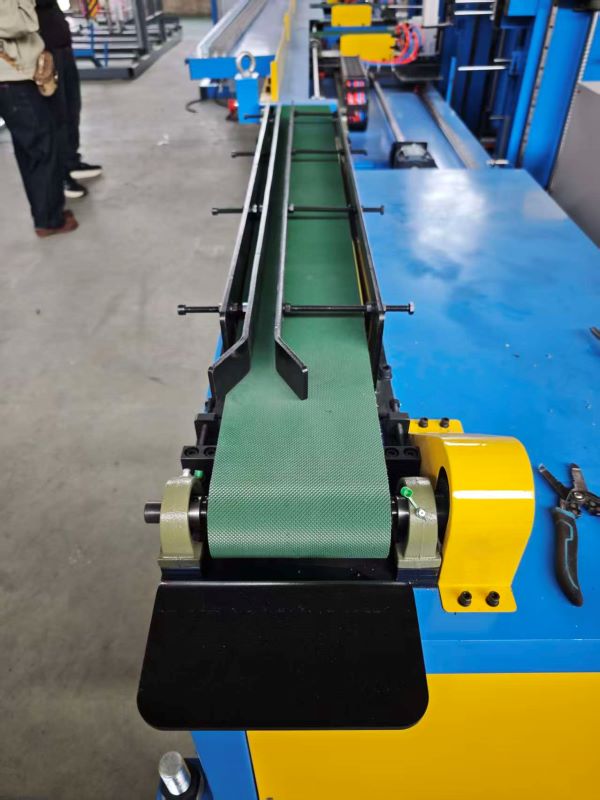

The stacker packing machine coordinates directly with the production line. After the forming machine completes continuous forming and cutting, profiles exit from the output chute. When a sensor detects that a profile has arrived, the machine's clamping device lowers and grips it. The movement system carries the profile to the designated position above the stacking table, then releases it. This cycle repeats until the stack reaches the preset layer count.

The quotation shows an applicable channel length of 2.6 to 4.0 meters and a working speed of 70 meters per minute for 3 meter channels. These parameters determine what kind of production line this equipment can match. A metal channel automatic stacker machine would use similar specifications for different profile geometries. The machine footprint is 9.0 meters long by 2.5 meters wide, so you need to reserve space before installation.

Compatible Production Lines

One stacker can fit the end of various cold formed section production lines:

• drywall channel roll forming line

• steel stud and track roll forming line

• C channel roll forming line

• U channel roll forming line

On any of these lines, when the forming speed exceeds manual handling capacity, the channel automatic stacker machine becomes the key to continuous production.

Technical Parameters

The following parameters come from the equipment quotation:

If you are planning a new drywall channel production line or preparing to speed up your existing line, consider including end of line stacking and packing in your plan. A drywall channel stacker packing machine keeps your line running at high speed. We can provide configuration suggestions based on your profile specifications and line speed. Feel free to reach out anytime.
