Africa Popular 840 Metal Roofing Machine Trapezoidal Roof Sheet Making Machine 20 M/Min+Africa Popular 840 Metal Roofing Machine+5.5KW

Cangzhou Zhongtuo International Trade Co., Ltd

Africa Popular 840 Metal Roofing Machine Trapezoidal Roof Sheet Making Machine 20 M/Min+Africa Popular 840 Metal Roofing Machine+5.5KW

Name: Africa Popular 840 Metal Roofing Machine Trapezoidal Roof Sheet Making Machine 20 M/Min+Africa Popular 840 Metal Roofing Machine+5.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT53138674

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

Africa Popular 840 Metal Roofing Machine

Power(W):

5.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380 V
Rolling Thinckness
0.3-0.8mm
Feeding Width
1000mm

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

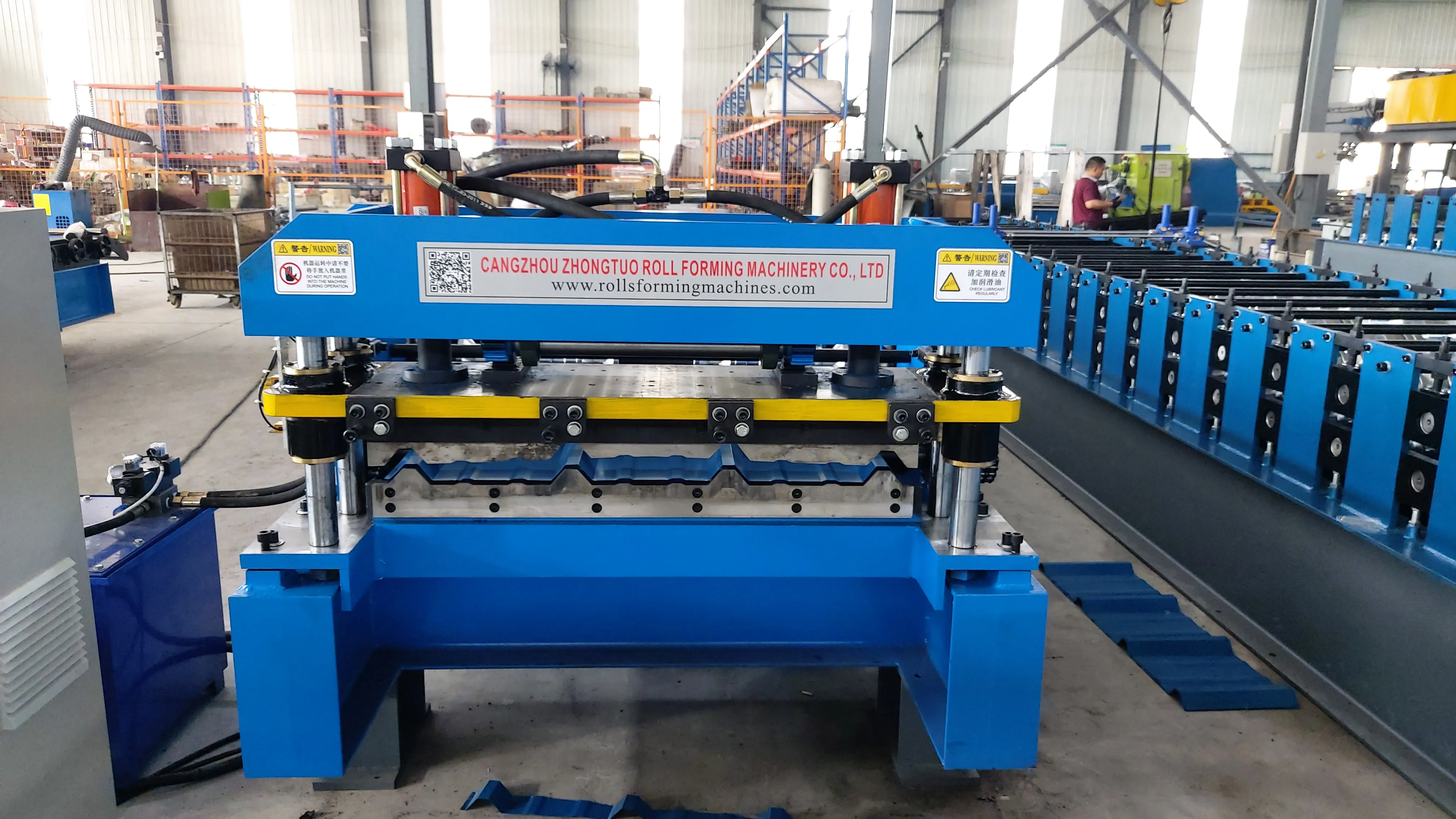

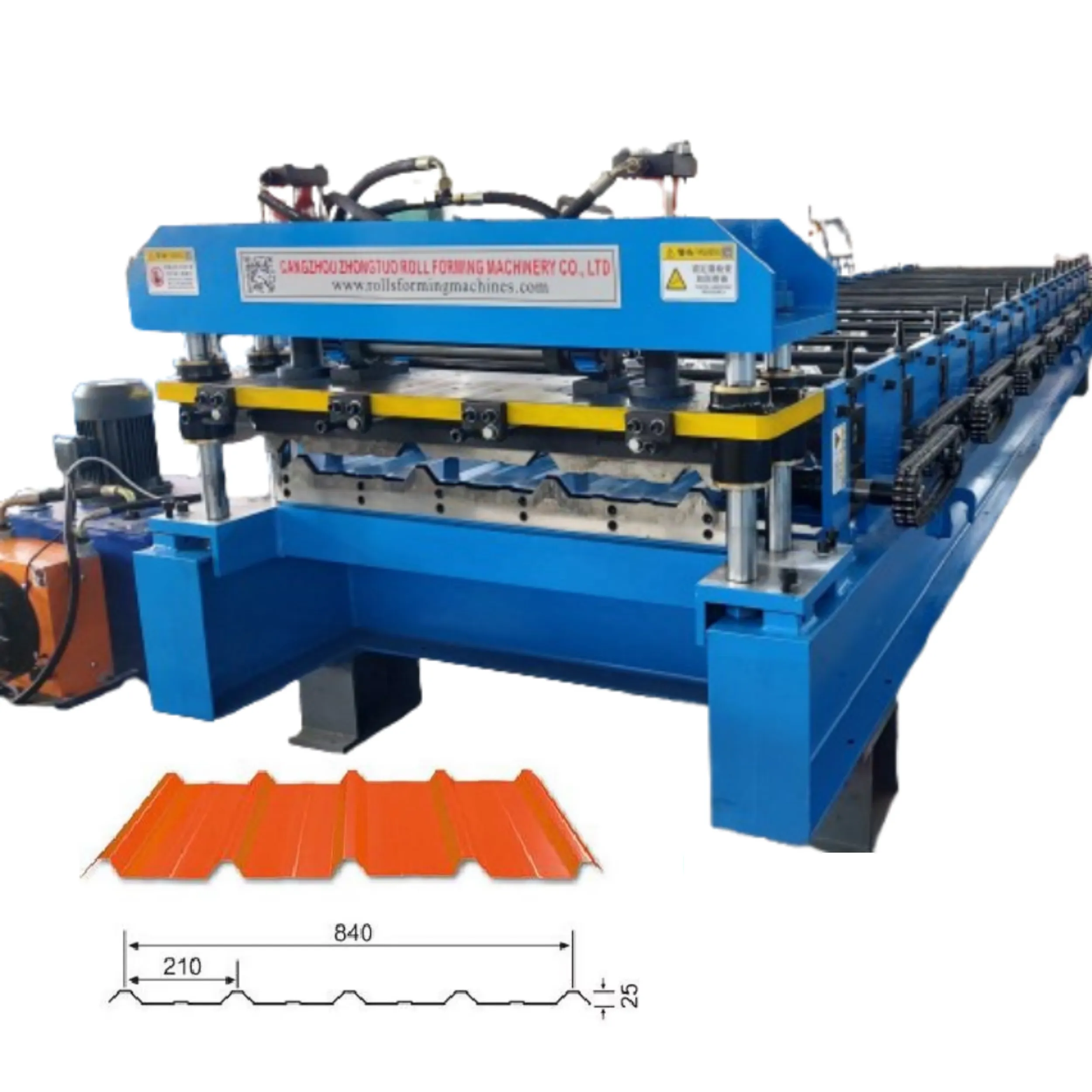

840 Metal Roofing Machine

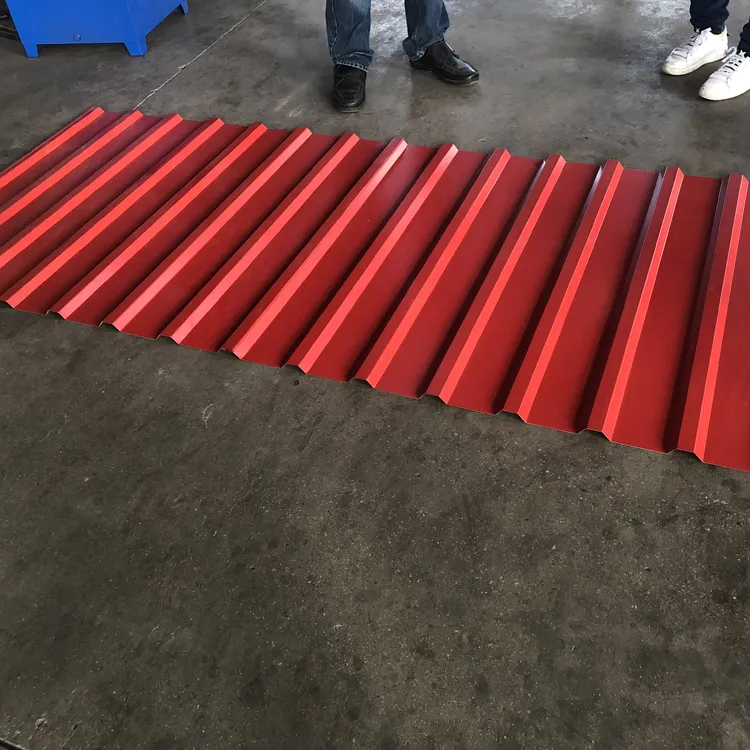

Our 840 metal roof sheet machine producing wave height range usually 22mm-25mm. Since the effective coverage width of the finished roof tile is 840mm, it is very popular in Africa. Our machine supports remote control, which is convenient for you to provide after-sales service at any time. The quality of the machine is strongly recognized by the African market.

The glazed tiles advantages 1.Unique appearance:

it retains the elegant shape and classical aesthetics of traditional glazed tiles, and also incorporates the exquisite craftsmanship of modern color steel technology. 2.Light weight and high strength:

the unit mass is light, only 1/10 of the traditional ceramic tile, but the strength is significantly higher than the ceramic tile, with strong wind resistance and weather resistance. 3.Corrosion resistance:

special materials and anti-corrosion coating are used to prolong the service life of the products. 4.Waterproof and fireproof:

reasonable structural design, no gap connection on the slope, excellent waterproof performance; the substrate is non-combustible and has excellent fireproof performance. 5.Convenient installation:

the glazed tiles produced by the equipment can provide complete sets of roofing system solutions, easy and fast installation, reducing construction intensity and cost.

Machine frame	350mm H beam structure, with 18mm welded steel middle support plate.
Material of rollers	High grade 45# forged steel
	Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Forming stations	about 16 rows
	Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision.
Diameter of shafts	Φ80mm solid
Material of shafts	High grade 45#,with heat treatment
Forming speed	20m/min
voltage	380V/50HZ/3P (as requested)
Transmission way	By 1.5 inch chain (double chains)
Main motor	7.5 KW
Cutting blade material	Gcr12 quenched treatment
Cutting type	hydraulic post cutting
Driving method	By pillar type Cylinder

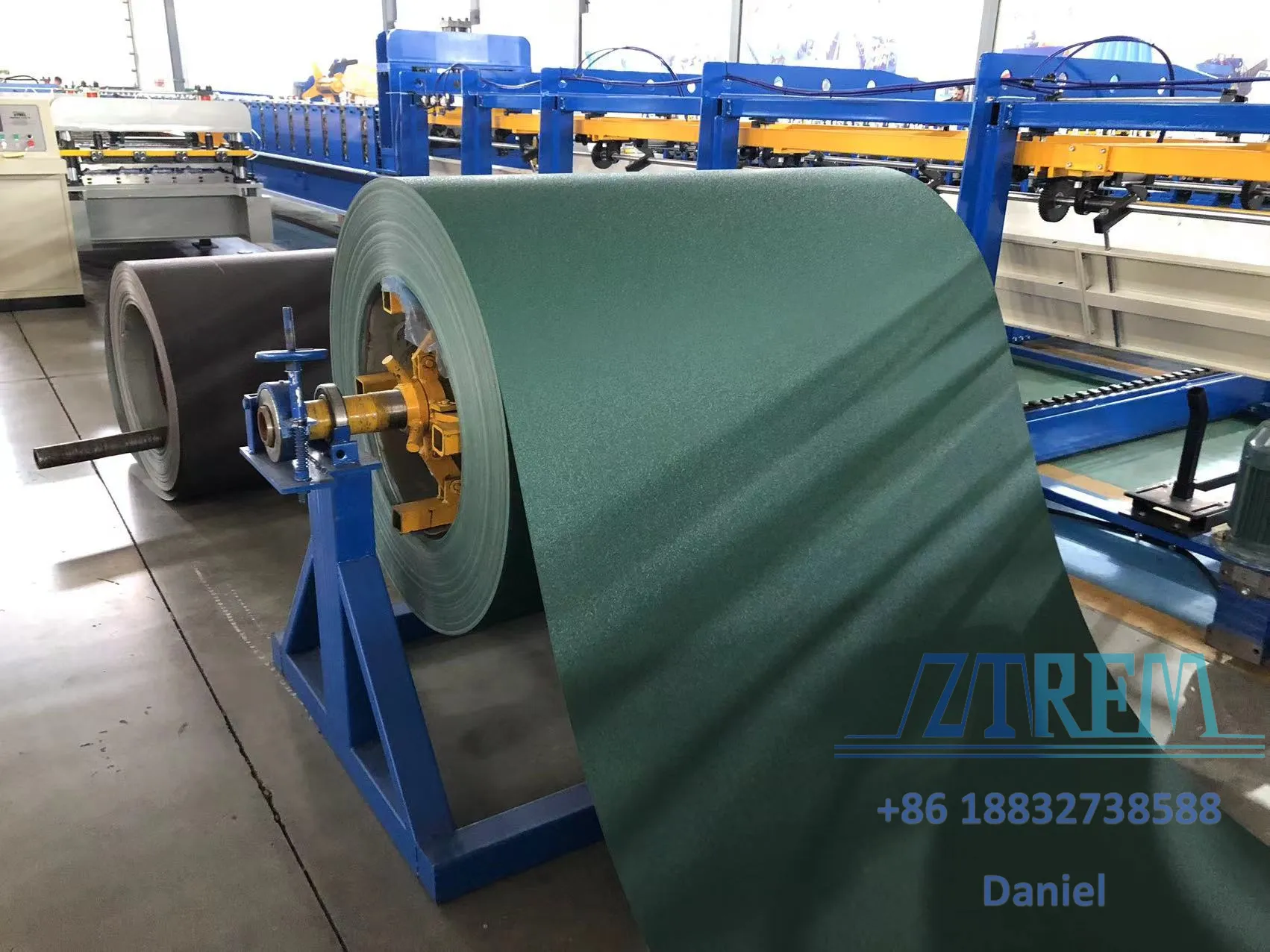

Manual Decoiler

Our manual unwinders are equipped with handwheels that can be operated by workers to assist in unwinding, and are additionally equipped with brakes to prevent slush and facilitate emergency braking and adjustment.

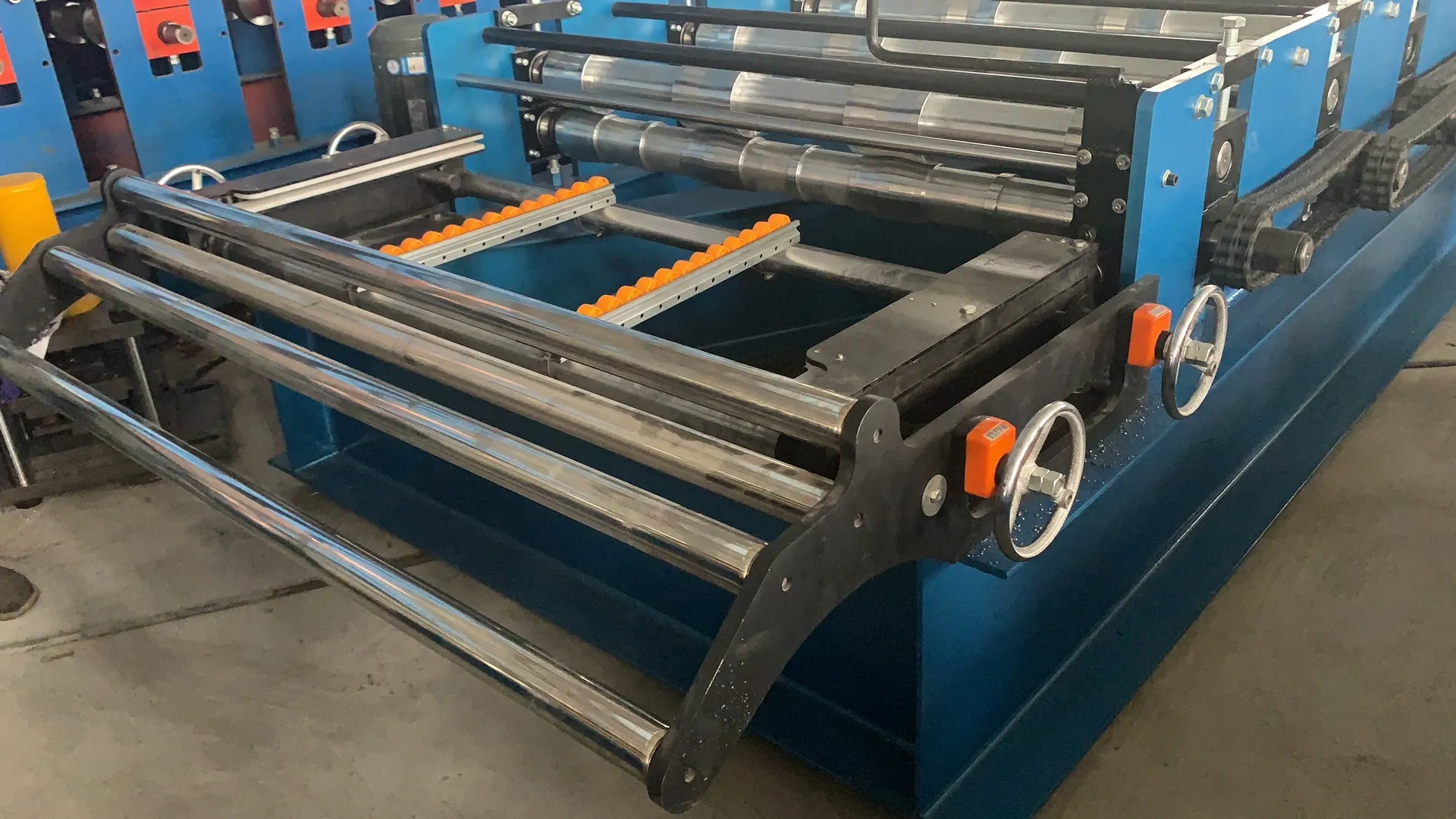

Feeding Device

Our Advantage:
1. With several support rollers, to feed the material more smoothly
2. With hand wheels to adjust the feeding size, more conveniently.
3.Up layer and down layer with manual cutter to cut feed material more easily.

4. Upper layer and down layer with two gears on the outside, so that the upper axis of each layer runs passively to actively, with
more power and faster.

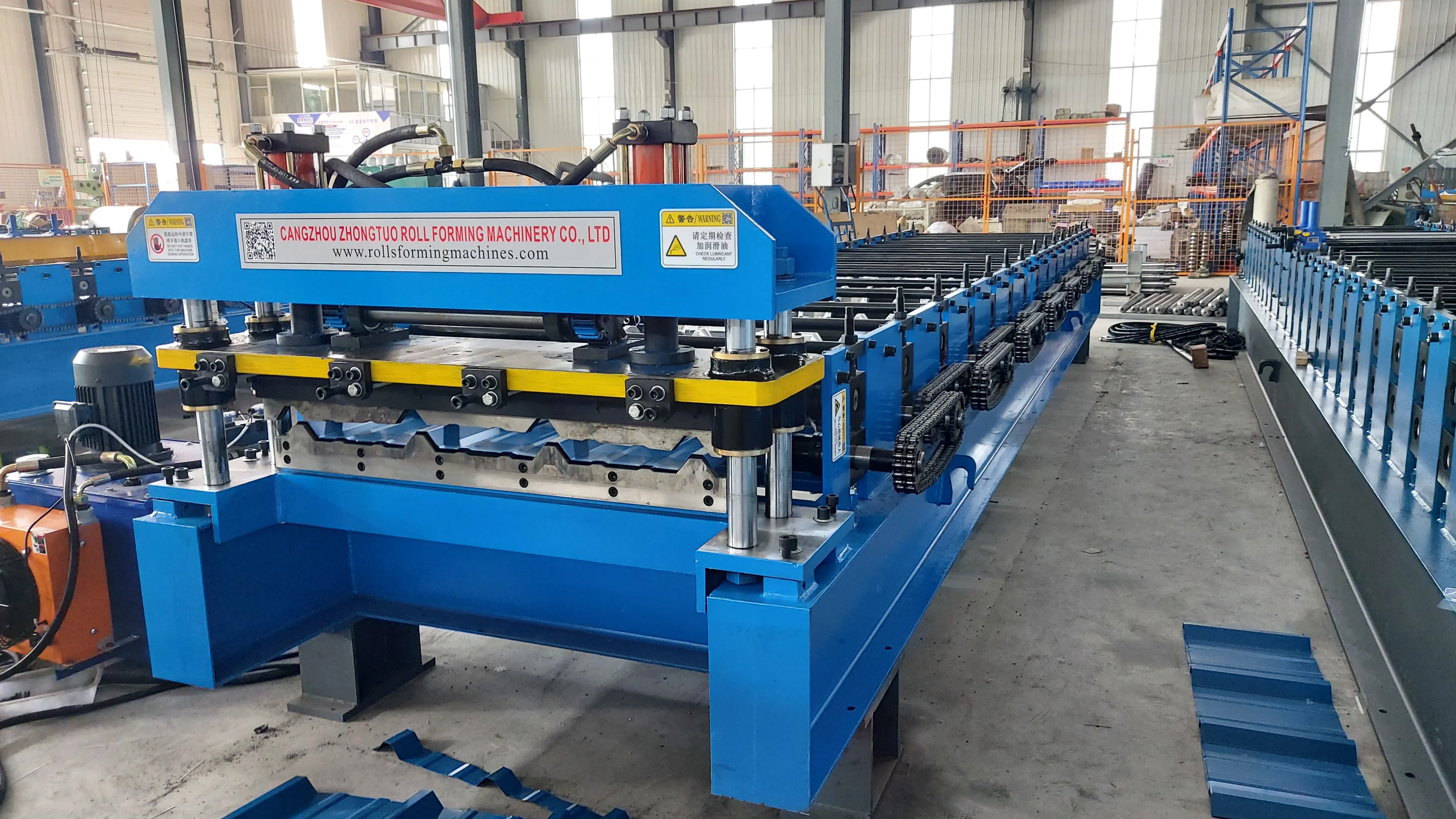

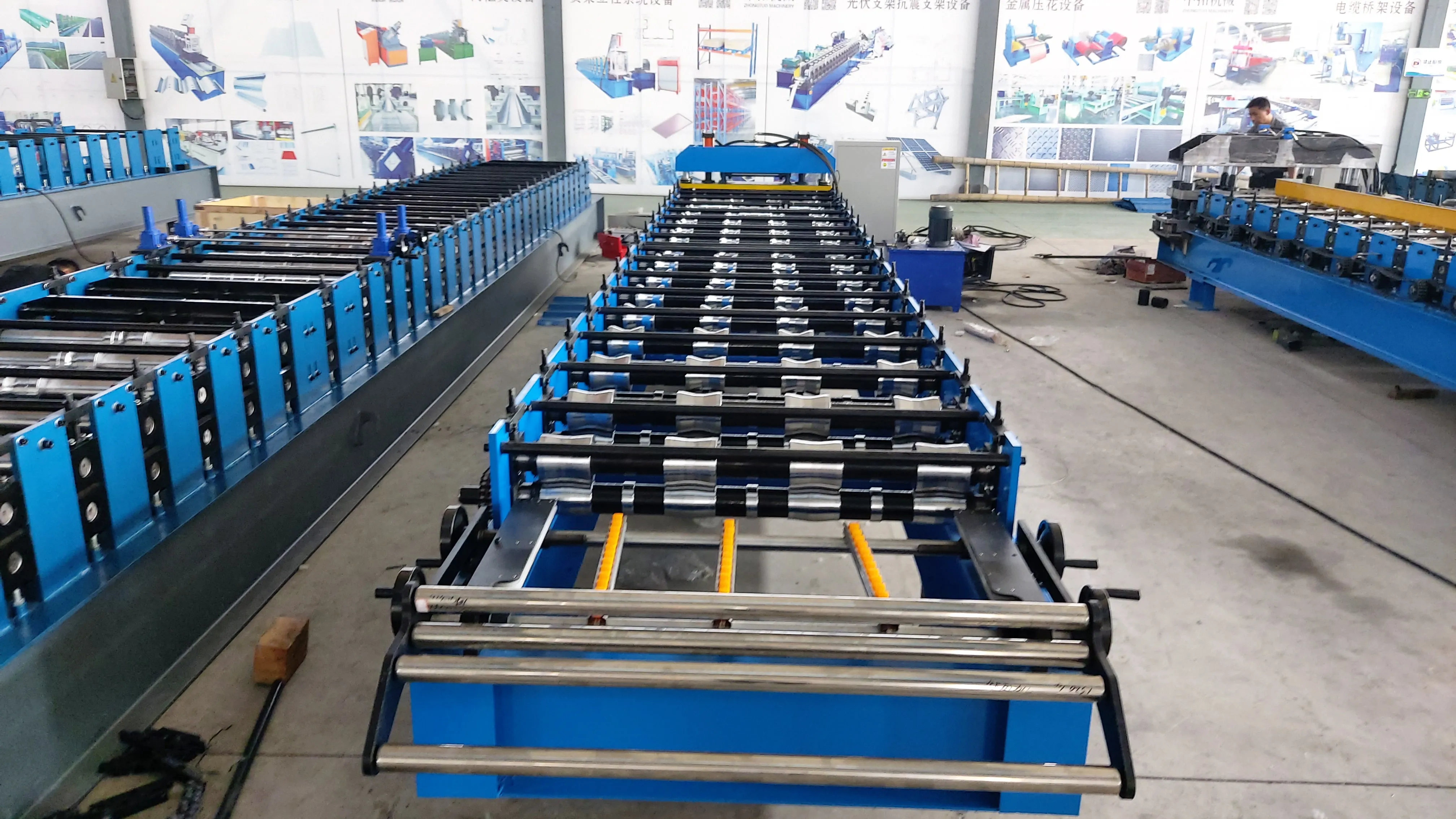

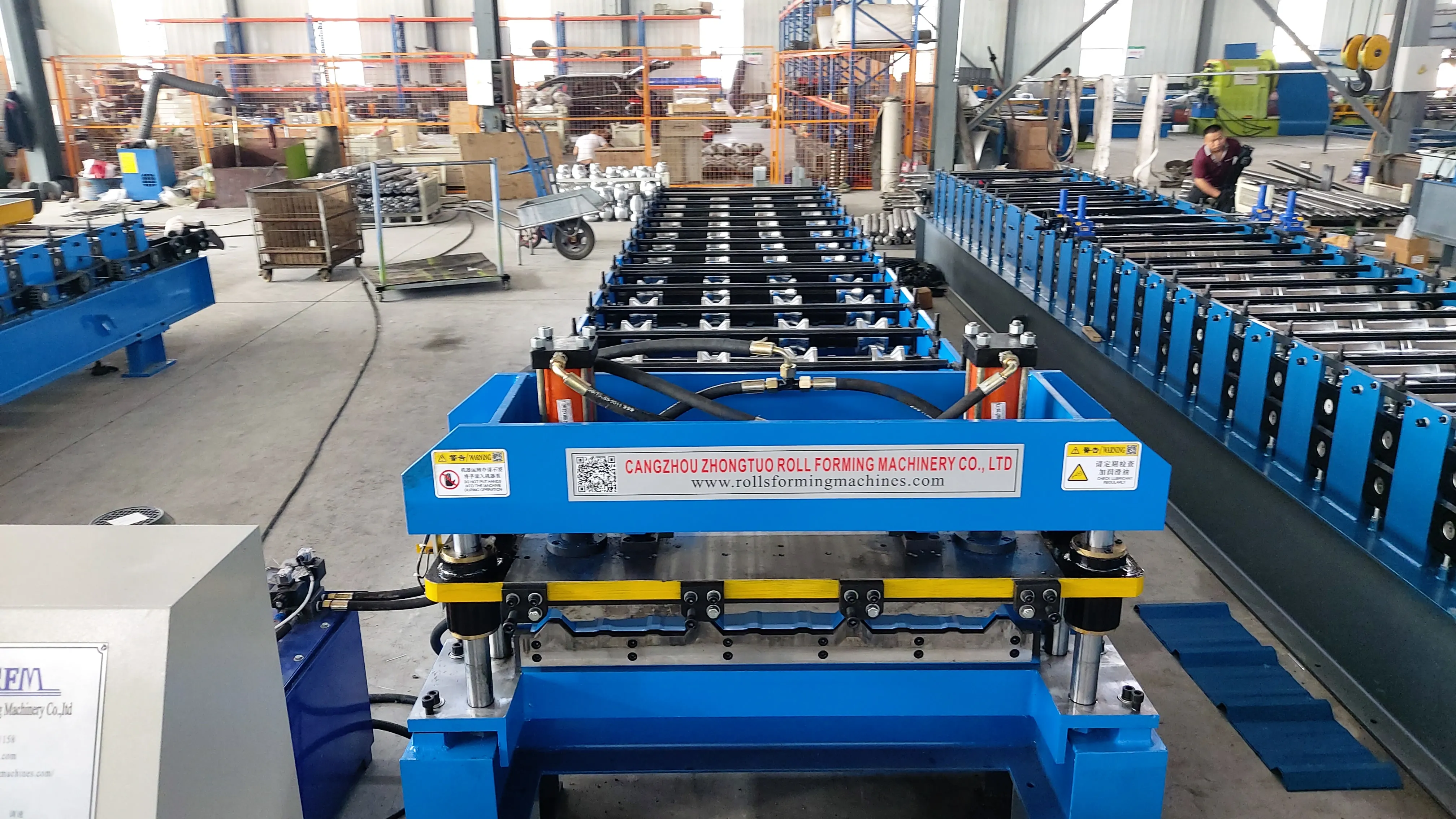

Main forming machine

We use integral forming type

first molding, then roll pressure out of the curvature, to protect the raw material paint layer, the counter is close to the material to roll counting, to ensure that the data is accurate and the molding is perfect.

Chain transmision

Double chains transmission

Save machine space

More beautiful

Whole piece chains through motor transmission.

Cutting Device

We use a double guide column structure, a tool holder reinforced with 8.8 grade screws, and an automatic oiler, which is more efficient, more convenient to use, and has a longer machine life.

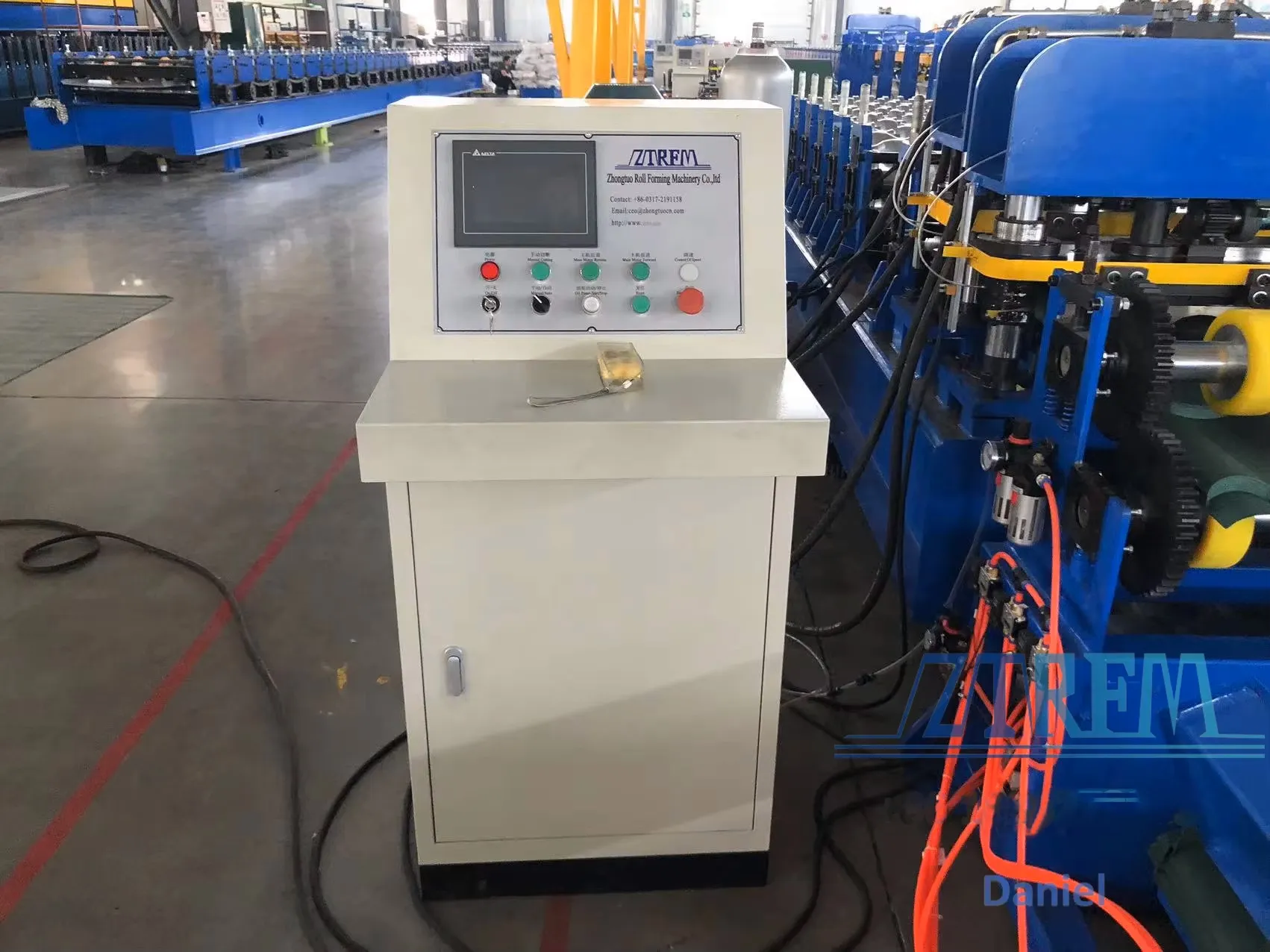

PLC Control System

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation
4.Languages can be customized

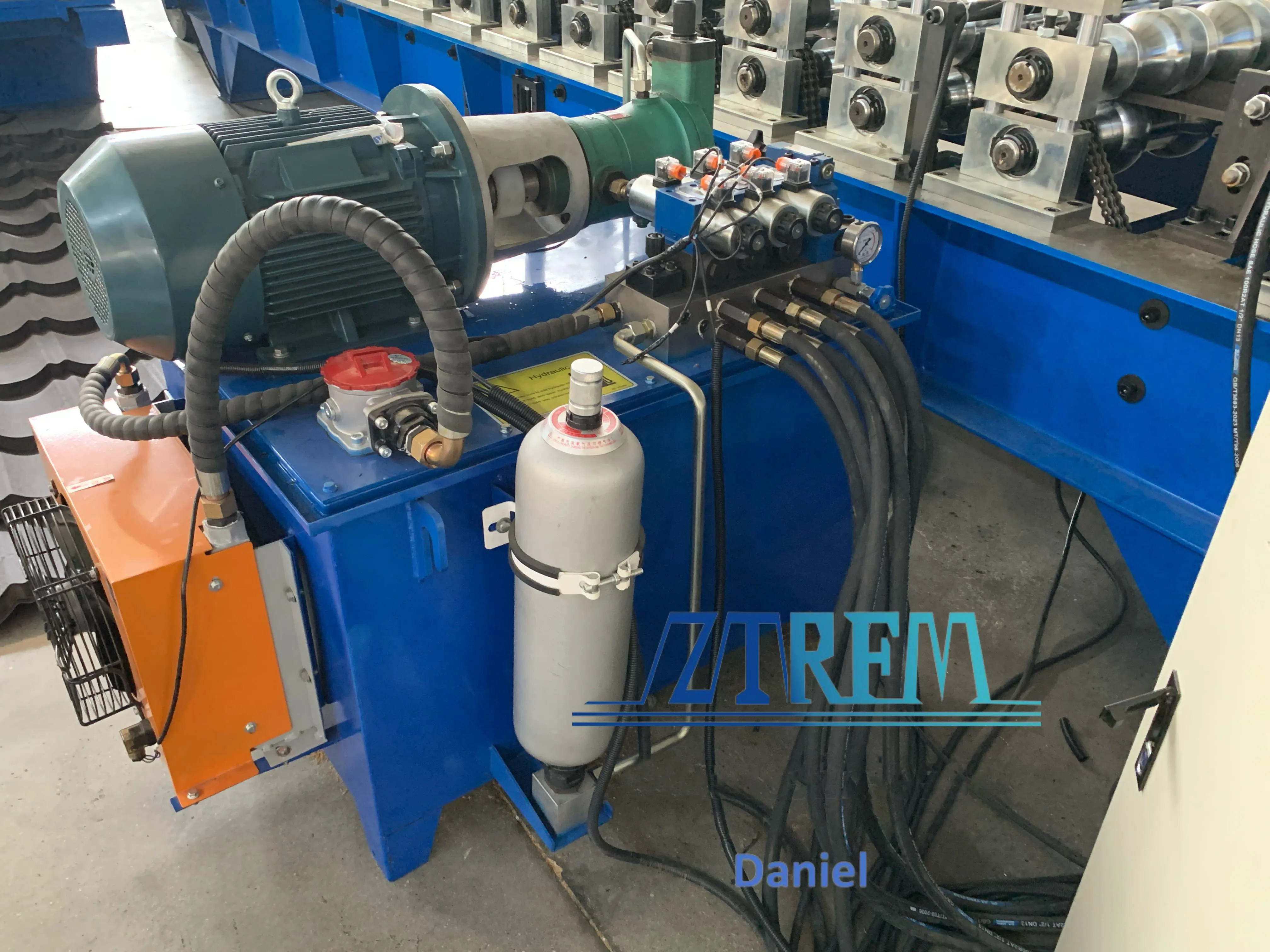

Hydraulic Station + Accumulator

Hydraulic station with accumulator, the machine shear speed faster, more stable operation, higher machine efficiency

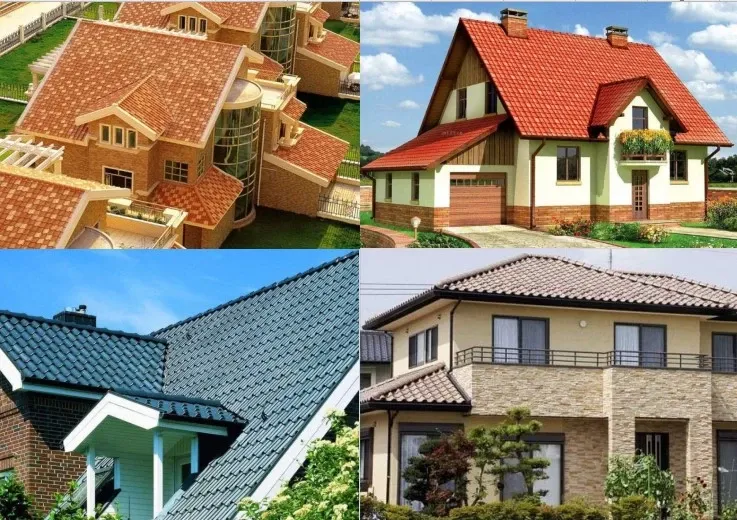

Application

Exhibition

Certification

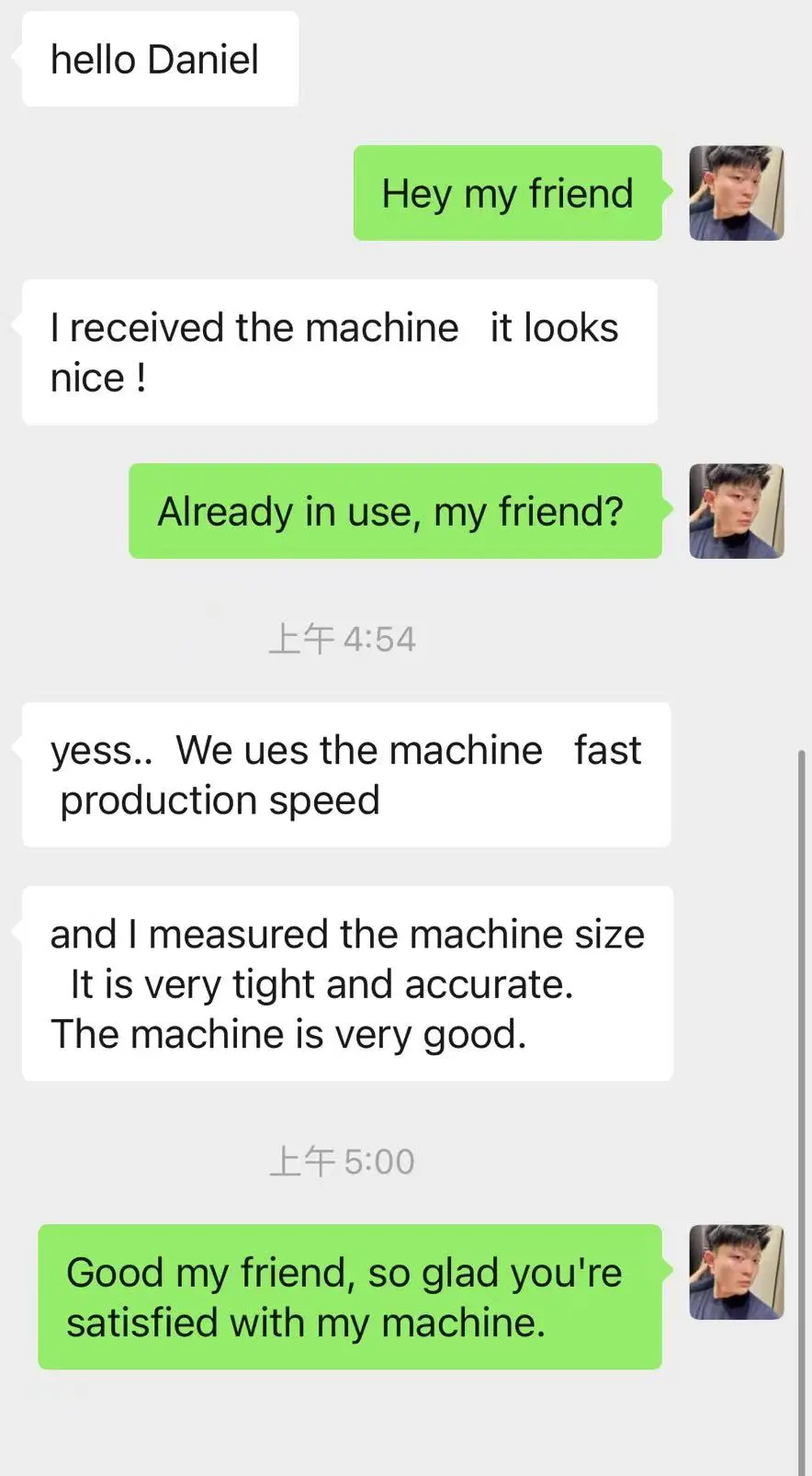

Customer Photos
