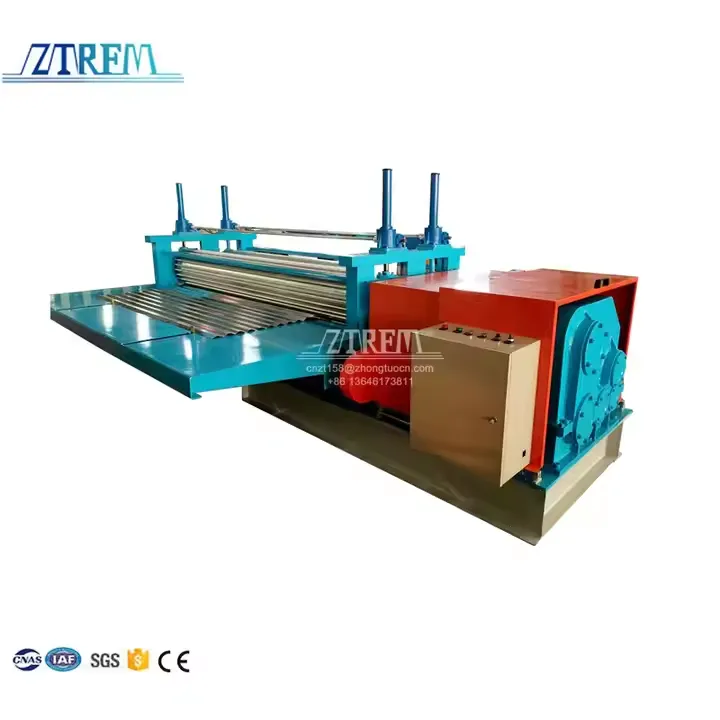

Africa Hot Sale Aluminum GI PPGI Tile Forming Machine with Motor & Gear for Corrugated Iron Roofing Sheets 0.3-0.8mm Thickness 15pcs/min+BC+5.5kw

Name: Africa Hot Sale Aluminum GI PPGI Tile Forming Machine with Motor & Gear for Corrugated Iron Roofing Sheets 0.3-0.8mm Thickness 15pcs/min+BC+5.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT53834875

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15pcs/min

Model Number:

Power(W):

5.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
cutomized
Rolling Thinckness
0.3-0.8mm
Feeding Width
1250 mm

Africa Hot Sale Metal Galvanized Steel Thin 0.1-0.4mm Barrel Type Corrugated Iron Roofing Sheet Making Machine

Africa Hot Sale Metal Galvanized Steel Thin 0.1-0.4mm Barrel Type Corrugated Iron Roofing Sheet Making Machine size is customized to customers specifications. Normally have 3m and 6m.And this machine very popular in Africa,good roll forming for thin material GI PPGI for produce corrugated roof sheet.

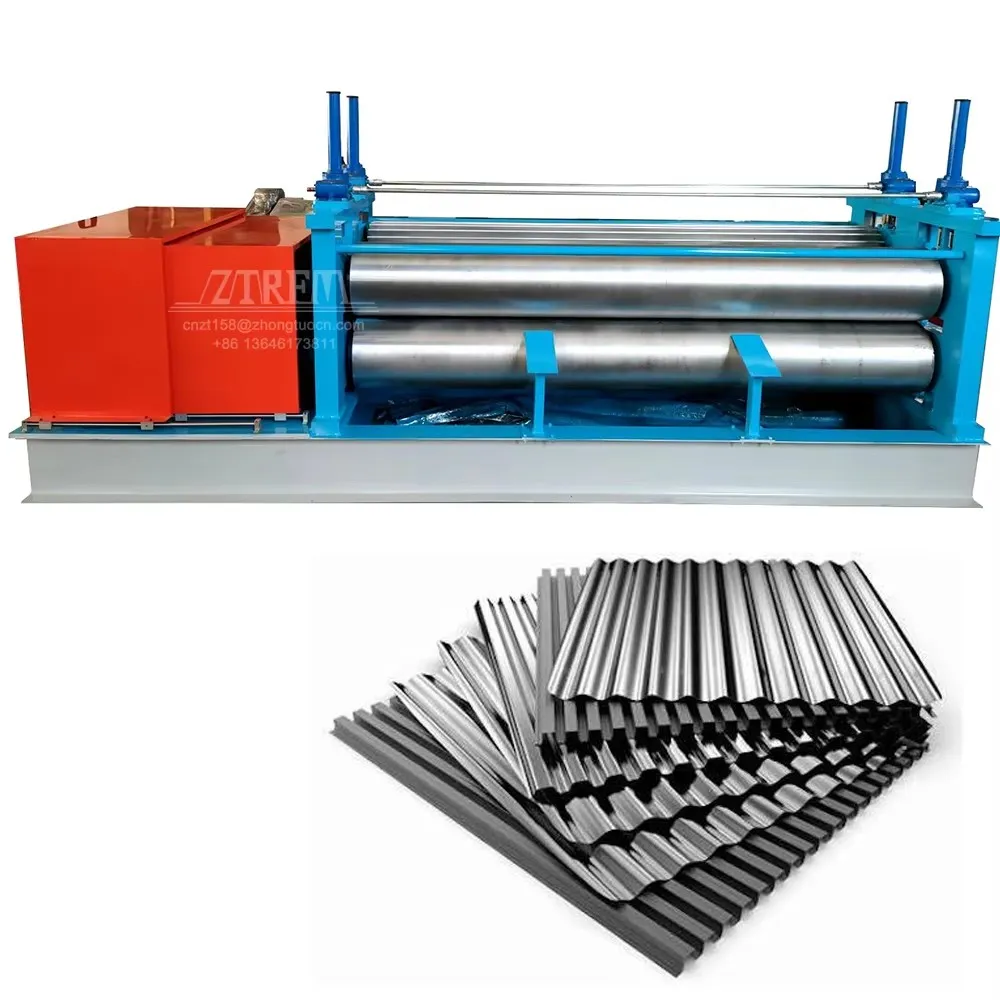

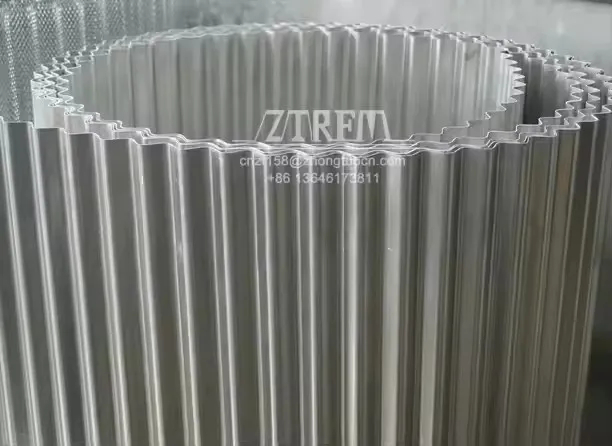

The pictures for the finished product:

Profile drawing for reference:

How USA customer Say about us?

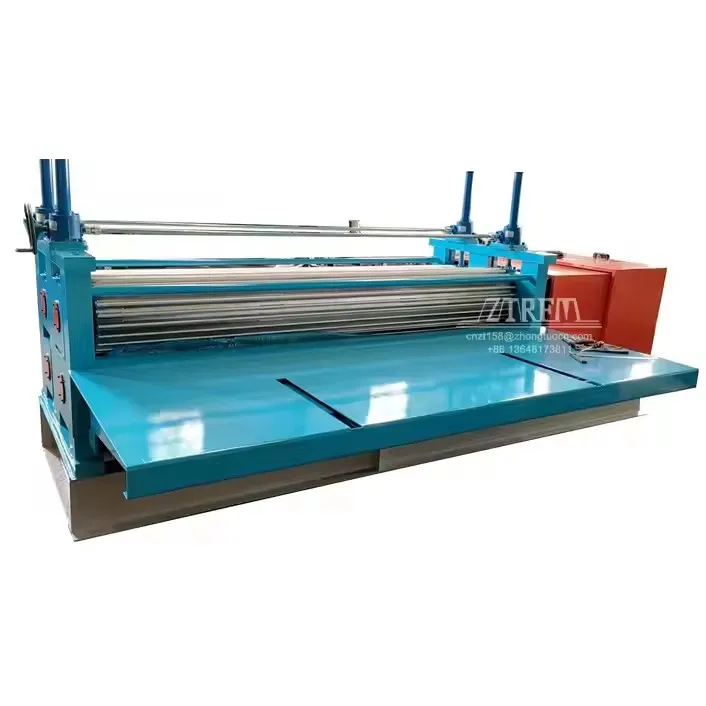

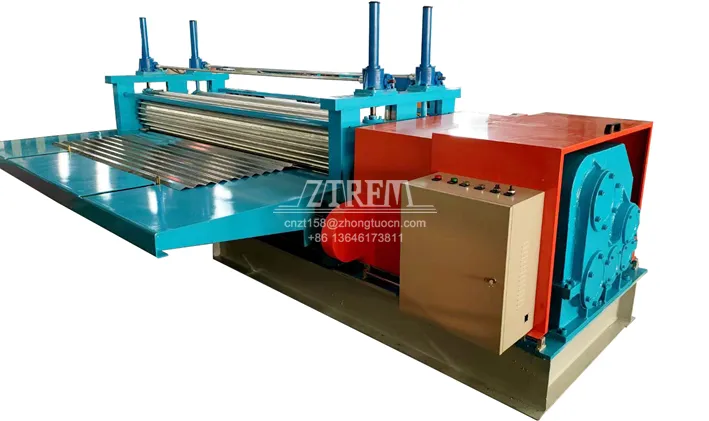

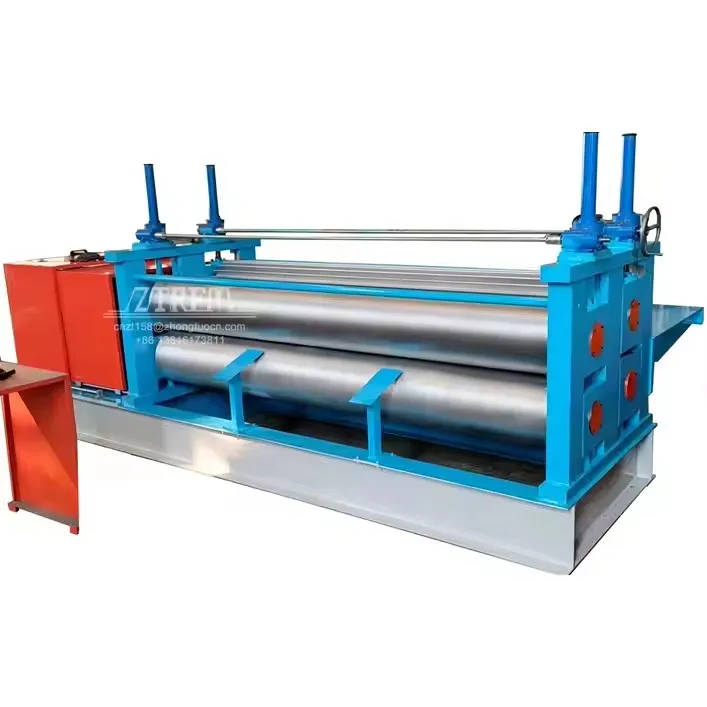

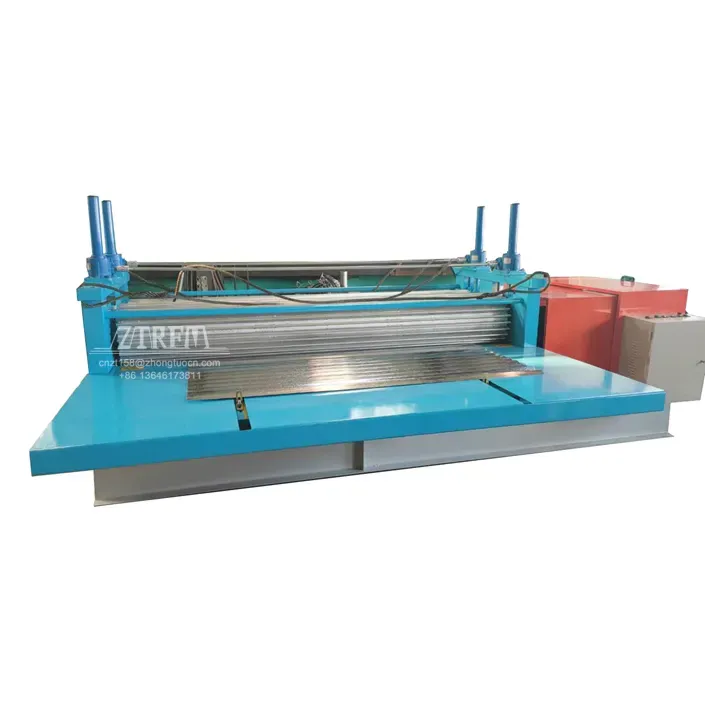

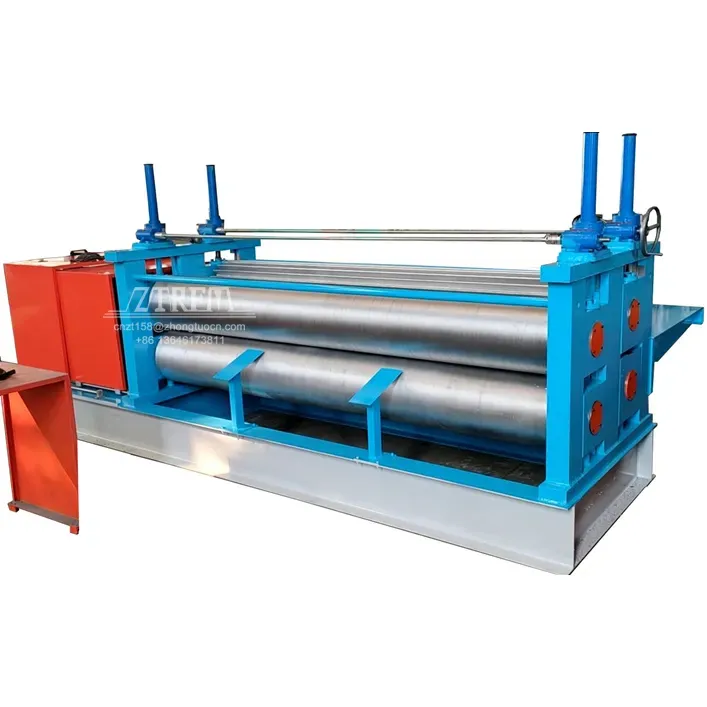

ZTRFM 3m Horizontal Corrugated Pressing metal barrel corrugation machine roof tile making machine
Raw material	GI & PPGI
Material thickness	0.12 - 0.48mm (as request)
Material thickness		Chromed treatment, make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Feeding length	Max 3000mm
Roller station	2 sets (4 pcs)
Roller diameter	300mm
Roller material	45# steel
Roller length	3000mm (by request)
Working speed	15pcs/mim
Transmission	Gear
Voltage	380v 50hz 3 phrase (Customizable)
Weight	5.5t

1. Why some sheet panel need the round wave machine while some sheet panel machine need the cold roll forming machine?
The difference is that, the sheet panel made by the round waveroofing sheet machine is much thinner and with hardness up to 550 Mpa.The thickness range is: 0.2-0.6. But the thickness of the cold roll forming machine coil is 0.3-1.0mm as usual.
2. Which machine with higher capacity between the round wave machine and cold roll forming machine?
The capacity of the round wave machine and cold roll forming machine is more or less similar capacity, the round wave machine can press several pieces of the sheet at one time.

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
