Adjustable Width Steel Wall Cladding Profile Making Machine Motor Engine Gear Bearing High Productivity Multi-Voltage 15 m/min+Wall Cladding Machine+5.5KW

Name: Adjustable Width Steel Wall Cladding Profile Making Machine Motor Engine Gear Bearing High Productivity Multi-Voltage 15 m/min+Wall Cladding Machine+5.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT70027332

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15 m/min

Model Number:

Wall Cladding Machine

Power(W):

5.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Roll Forming Machine
Tile Type
Steel
Use
Wall
Voltage
220V Electrical Equipment, 380 V, 440 V
Rolling Thinckness
0.3-0.8mm
Feeding Width
1000mm or As customized

Company Profile

CANGZHOU ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

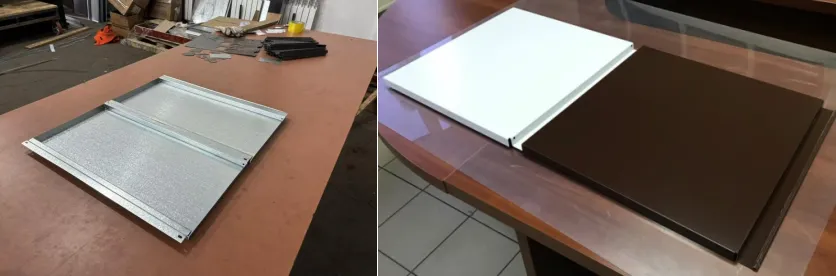

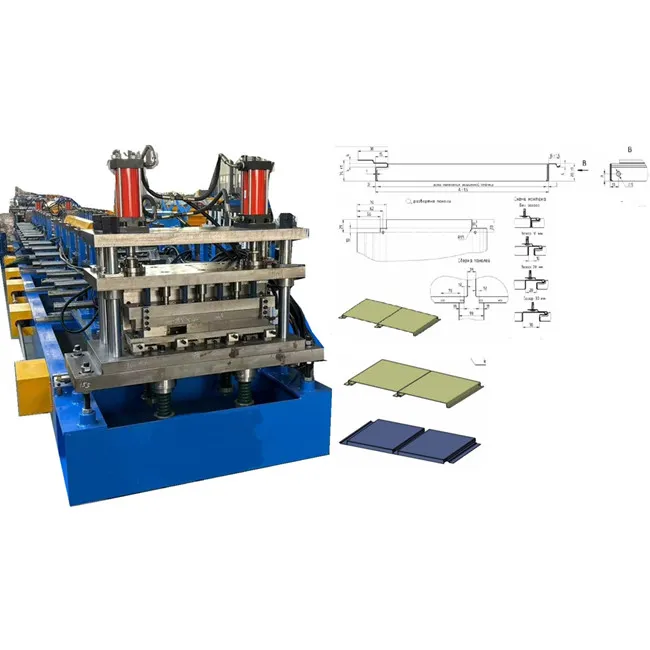

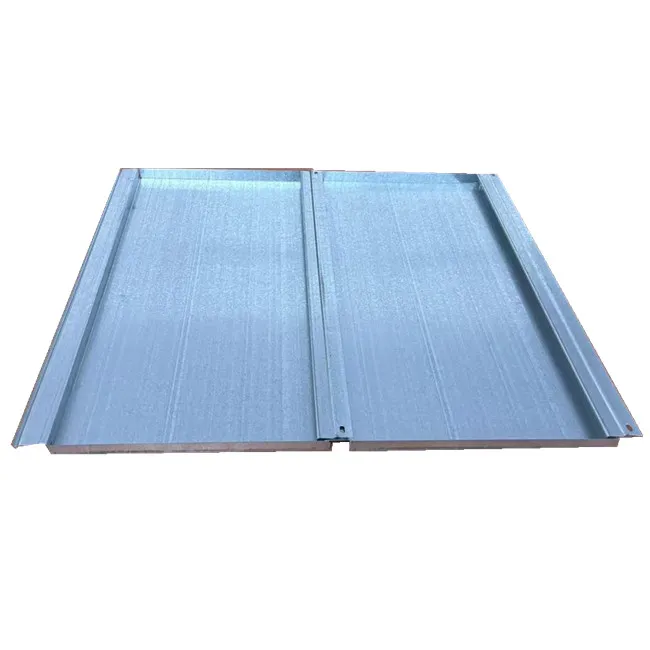

Width adjustable wall cladding profile making machine

Width adjustable wall cladding profile making machine is designed to make the wall cladding panel in batch fully automatically. This profile is quite popular in Russian. By this kind of profile, the width could be from 420 to 650mm adjustable. With side hole punching for easy to do the installation but, you can choose add or not. As the length and width both adjustable, you can use it also for ceiling. The nails are hidden in the profile, so the installation will
be more beautiful.

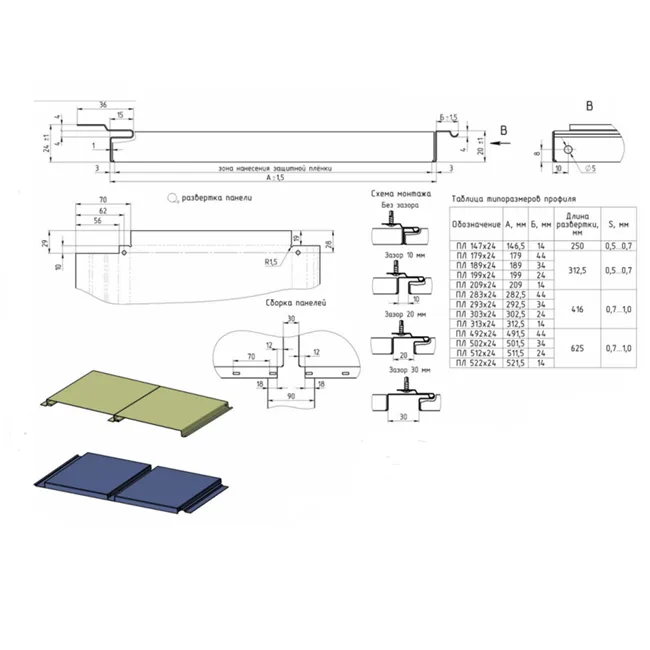

Features of such wall cladding profiles:

1. PPGI and GI (if you use 550 MPA ,please tell me in advance), support the most common and popular profiles.
2. Support the thickness range:0.4 to 1mm
3. Coil width adjustable 198-728mm.
4. With installation holes punching.

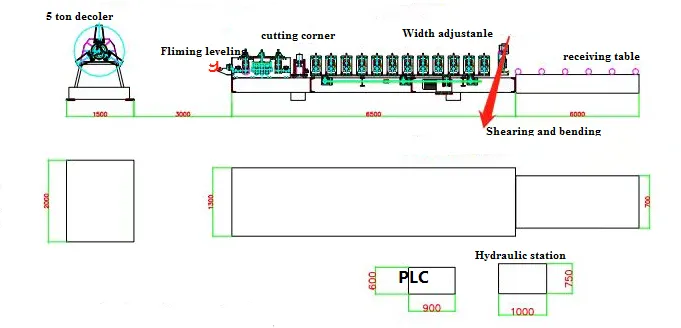

Width adjustable wall cladding profile making machine working flow:
Decoiler -> Leveling and filming--> Punching and rolling forming --> Shearing and bending

Rolling shaft	Shaft material: 45# steel with quenched treatment, precision machined
	Shaft diameter: 65 mm

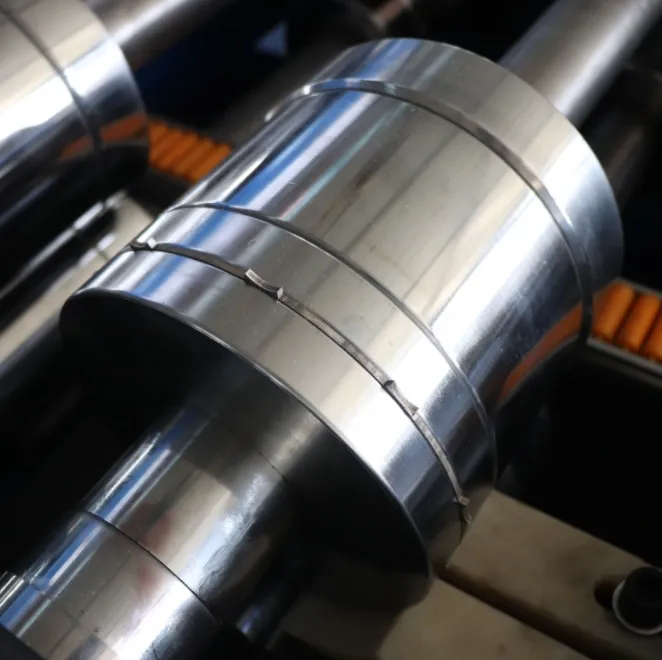

Roller	Roller material: GCR15 steel, finely processed, HRC58-62℃ surface chrome plating
Machine structure	Arch frame thickness 35 mm
Rolling station	16 stations
Forming speed	10-20 m/min
Machine body	350H beam steel
Bearing	Chinese famous brand Harbin
Work power	5.5 kw servo motor
Transmission	By chains
Automatic changing size	By servo motor; PLC control

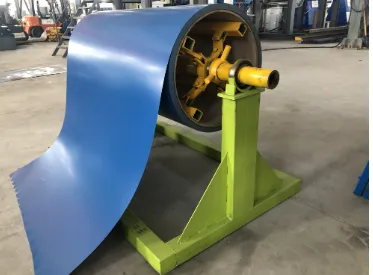

Manual Decoiler

1.Working type: Manual

2.Loading capacity: 10 tons

3.Coil inner diameter: 450-1000 mm

Transportation

1Chains transmission
2.Ensure the high speed and stable efficiency of the machine

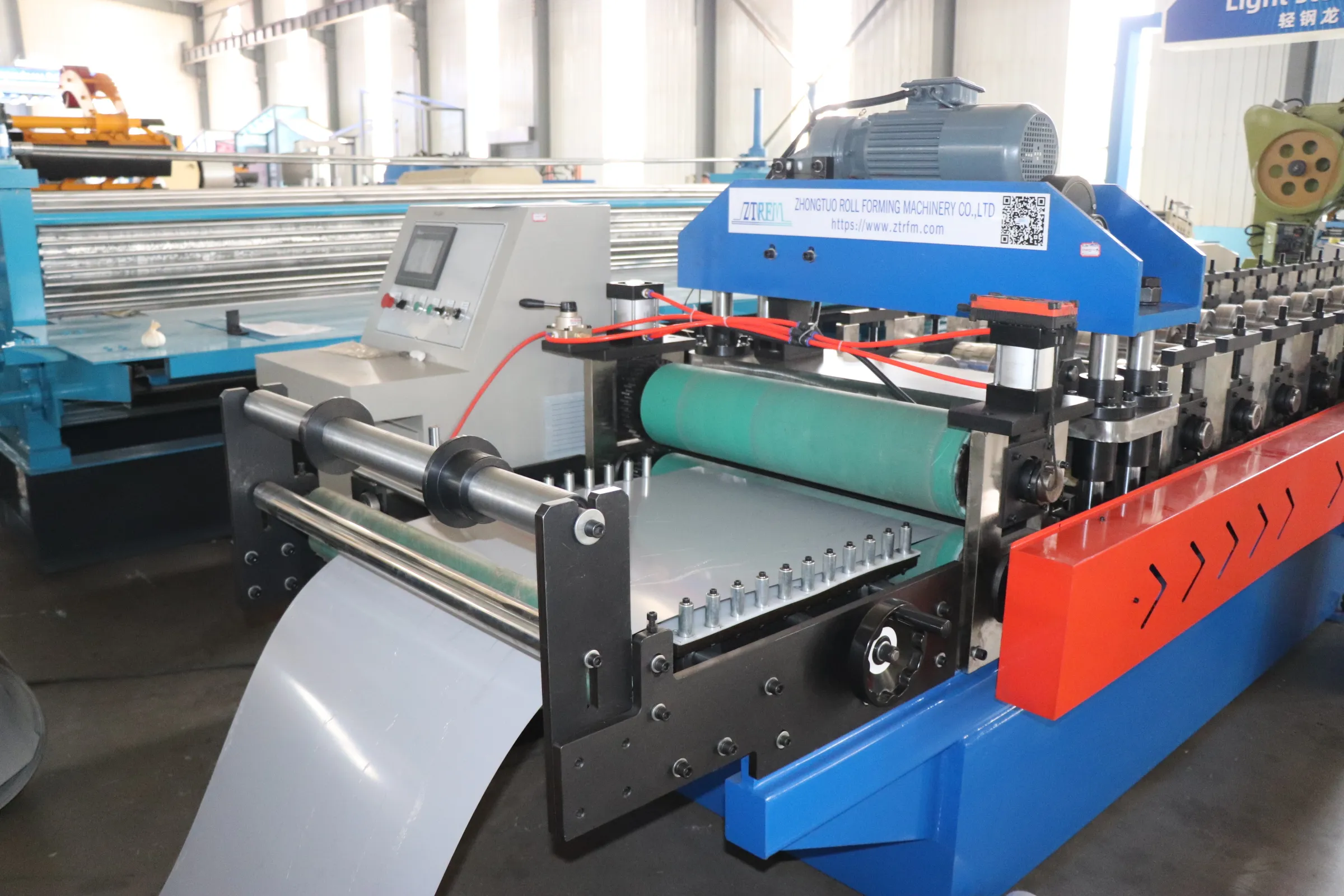

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

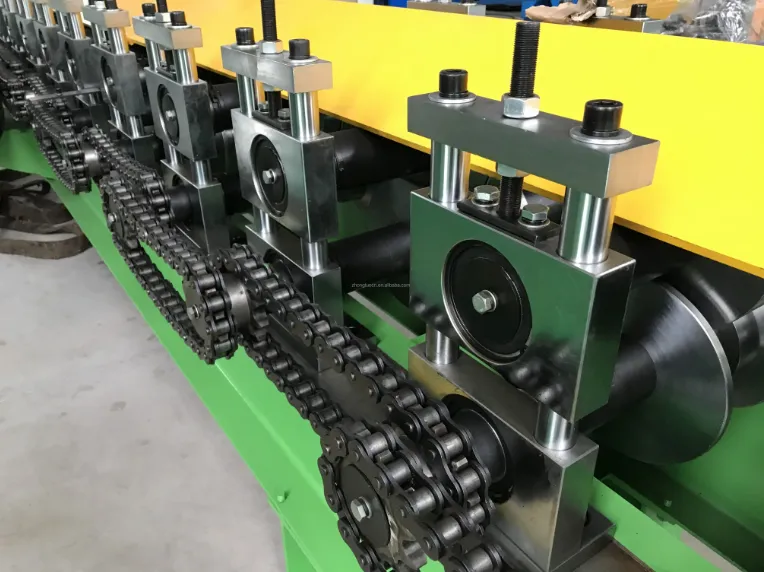

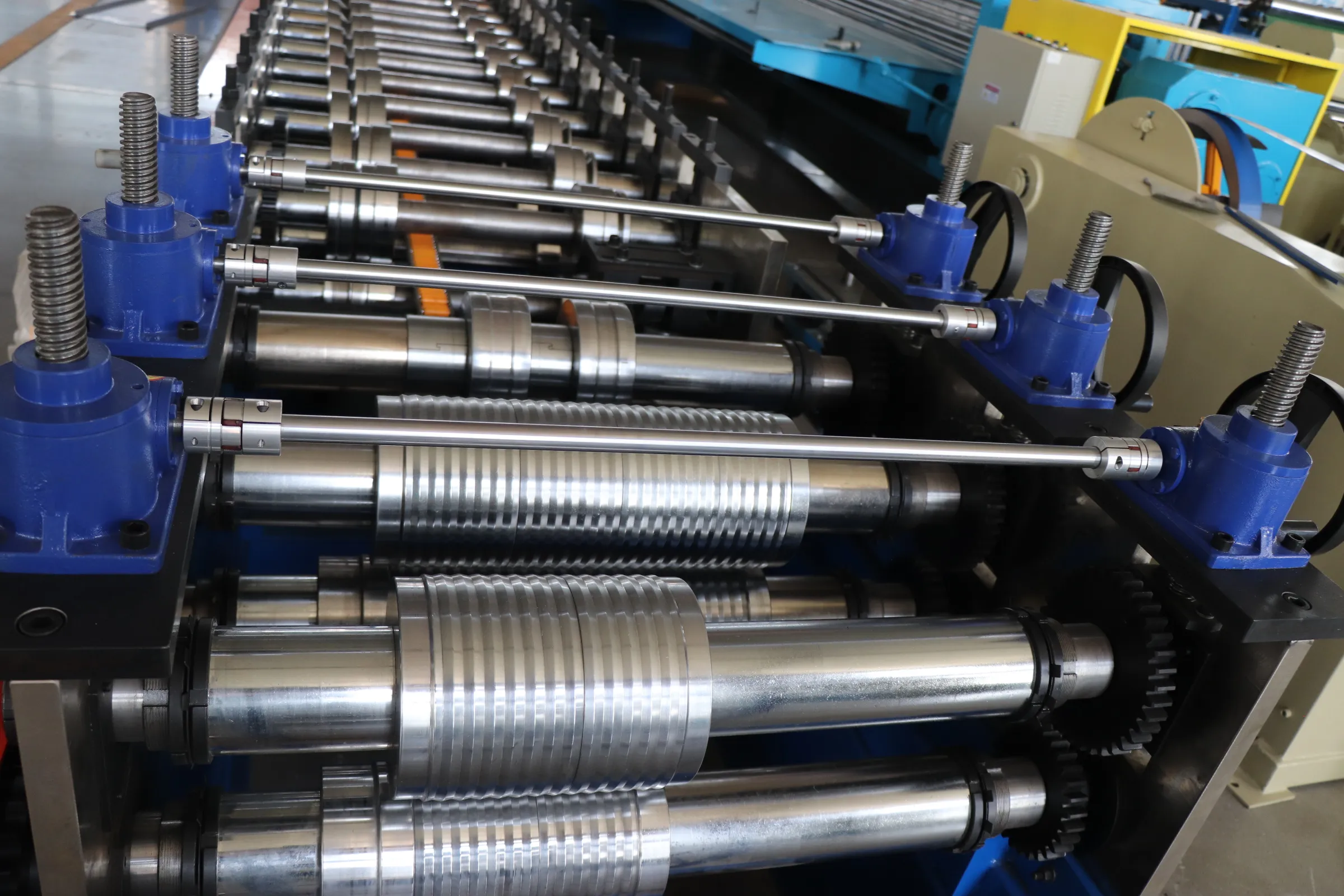

Main roll forming machine

1.Shaft material:45# steel with quenched treatment
2.Shaft diameter: 70mm
3.Roller station:18 stations
4.Roller material: 45# steel with chromed
5.Motor power: 5.5kw
6.Speed: 0-10m/min
7.Transmission:gear and chain
8.Voltage:customized

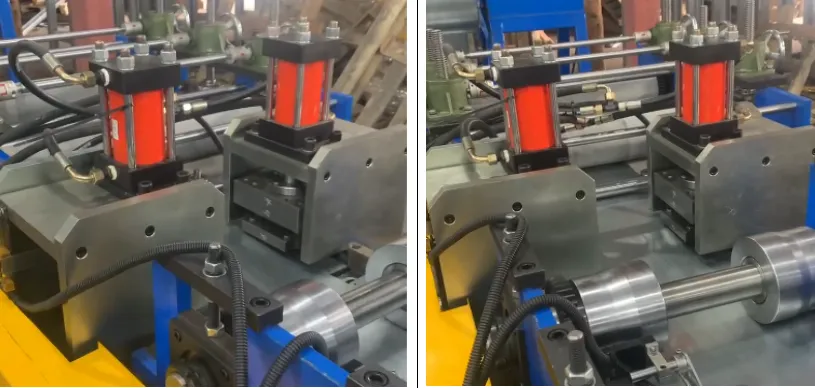

Cutting corner device

Cut the corner and punching device: it is adjustable according to the width change.

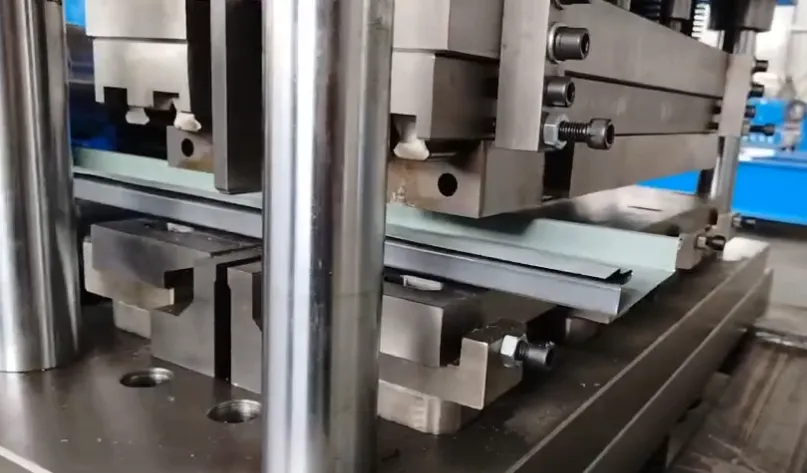

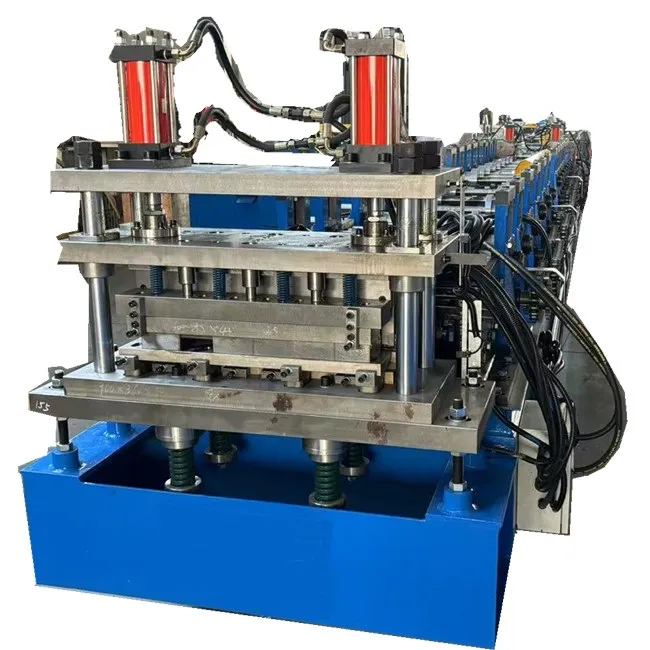

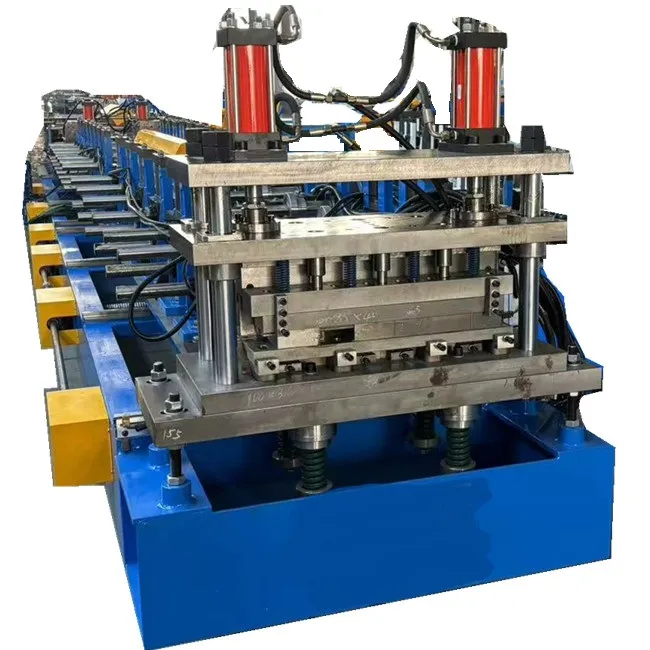

Shearing and bending part

1.Feature: it is used to make the step , the glazed tile's final formed.
2.Material of mold: Cr12 quenched

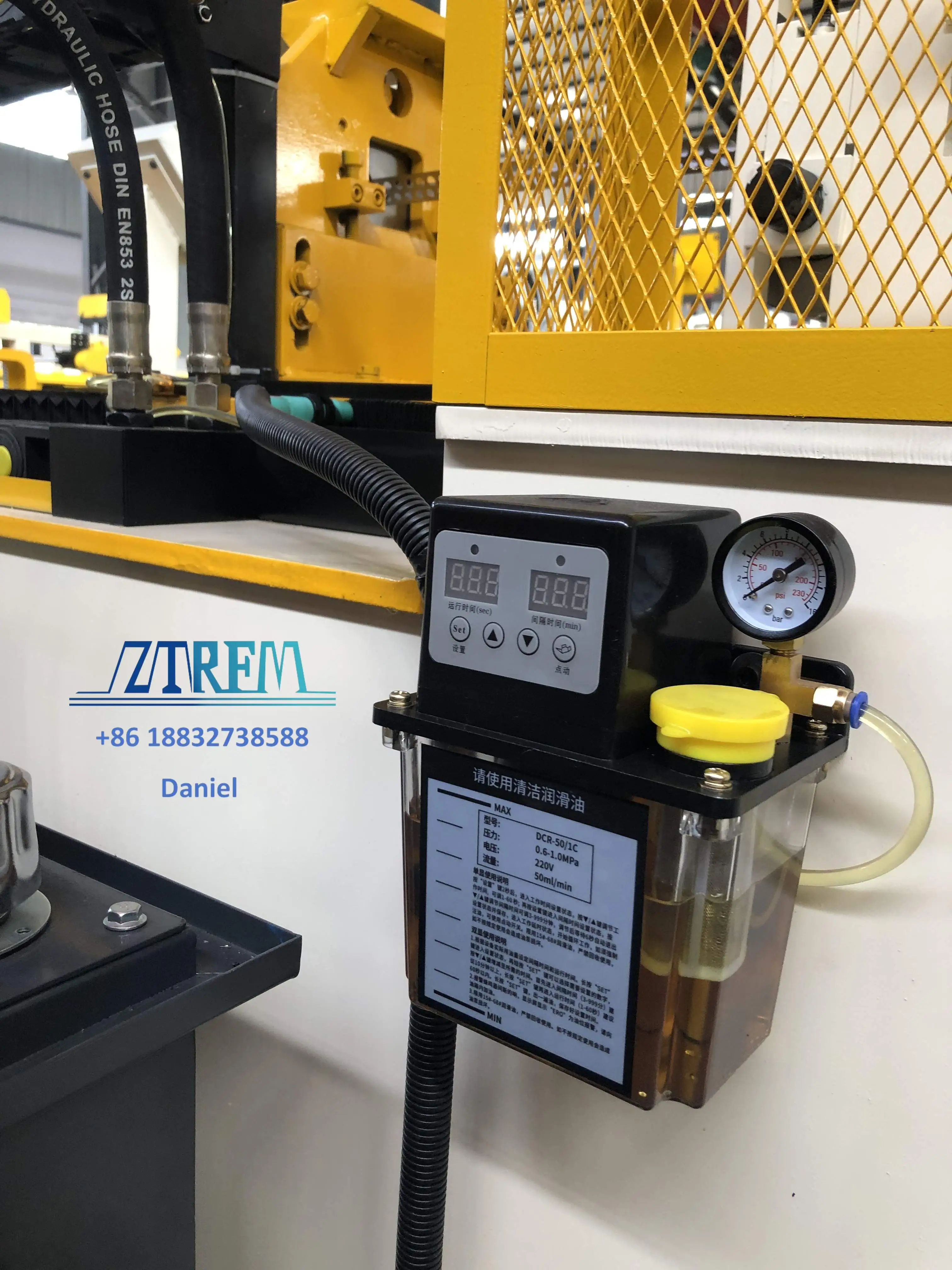

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

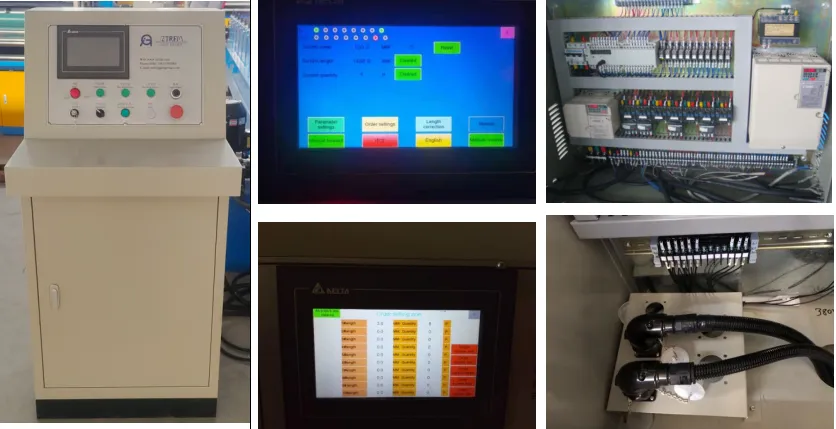

PLC control cabinet

1. Adopted PLC, transducer, touch panel from Delta to ensure high speed with more stability,
high precision and long lifetime.

2.Other electric element is Schneider. Equipped with movable switch, air break, radiator, transformer & electric leakage protector, that element can make sure easy operation convenience and safety.

Production receive table

1.Convenient collection of finished products

2.Protecting worker safety

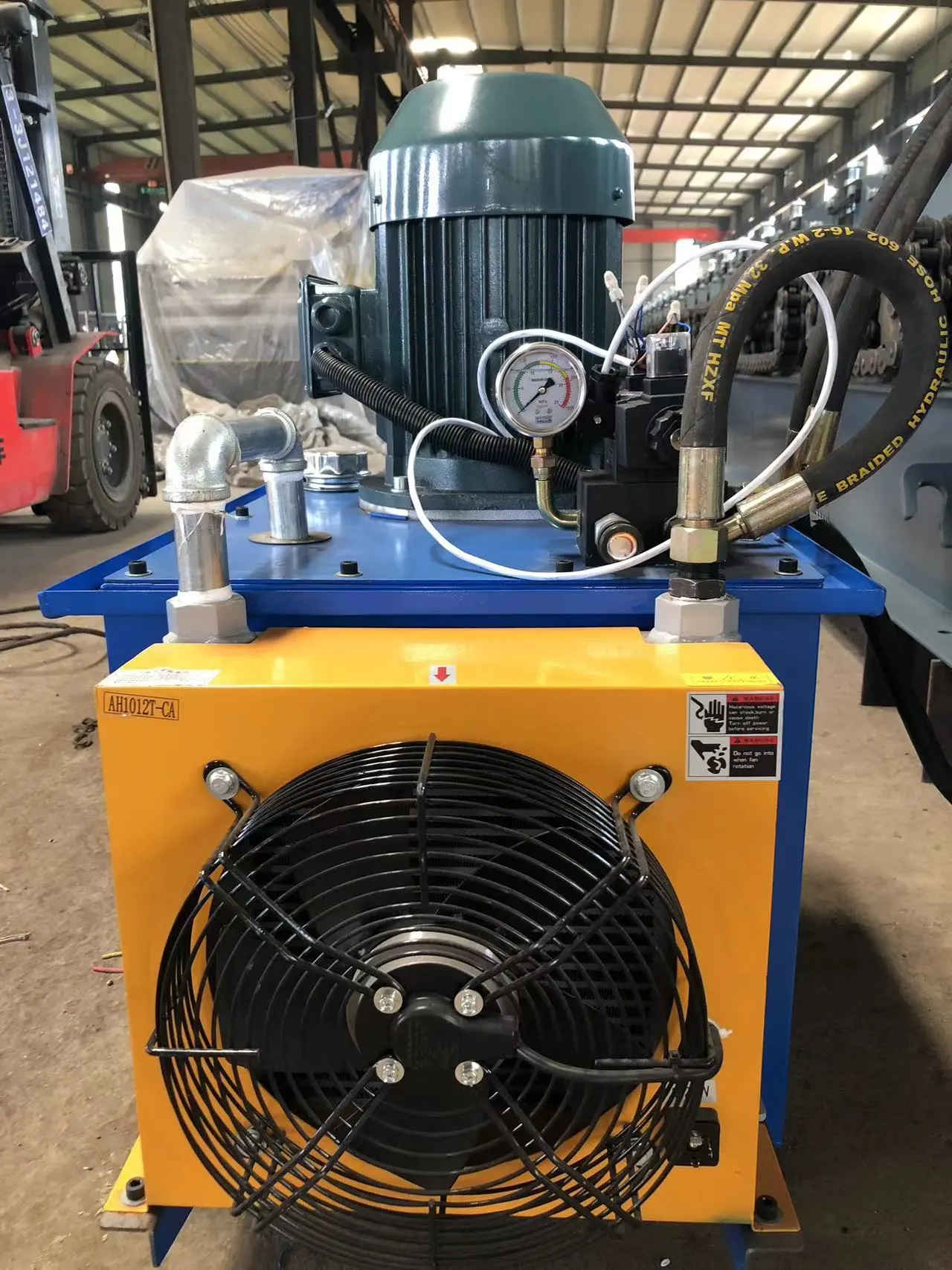

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

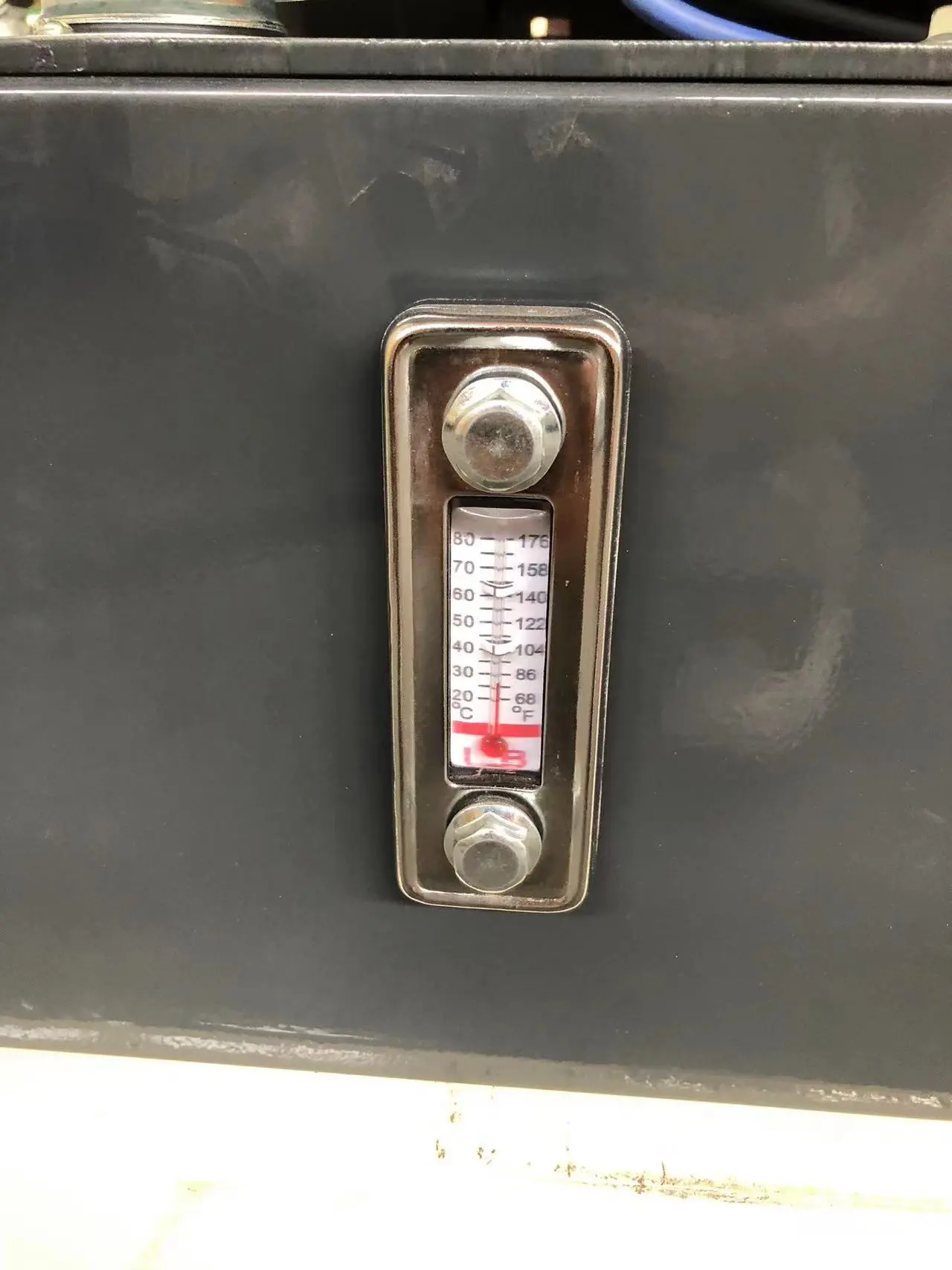

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

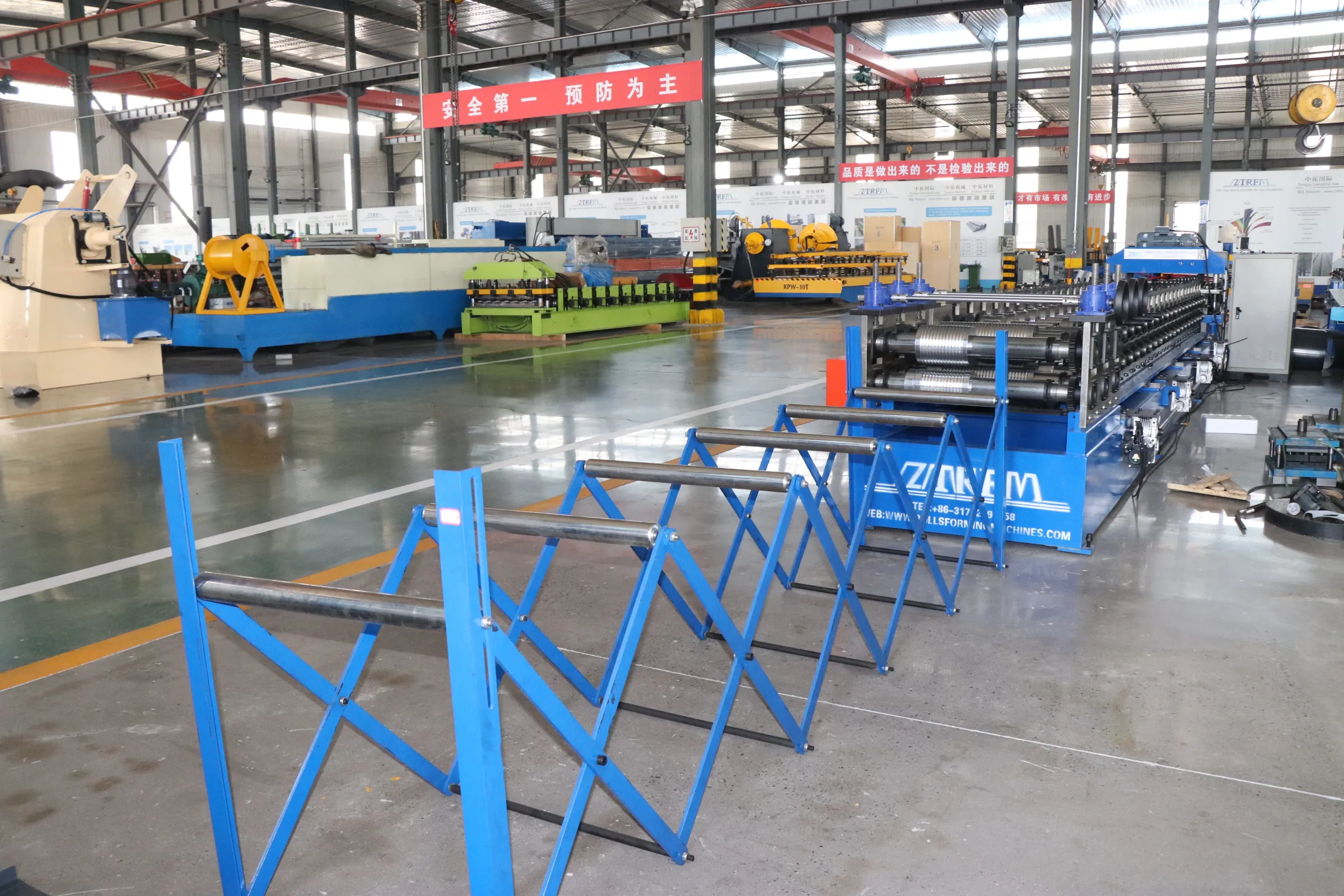

Product display
