Adamante Profile Glazed Tile Roll Forming Machine


The Adamante Profile Glazed Tile Roll Forming Machine is a device used for building houses. The equipment uses galvanized steel plates or colored steel plates or aluminum plates as raw materials. The products produced are used to build the exterior roof and wall panels, as well as interior decorative panels such as ceilings, etc., to enhance the aesthetics and durability of the roof or walls.

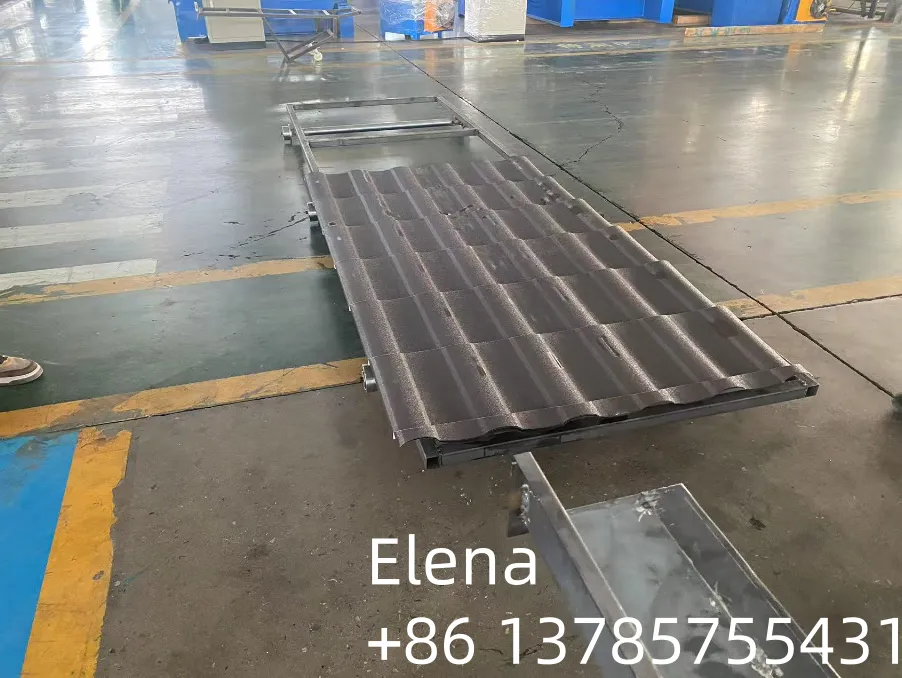

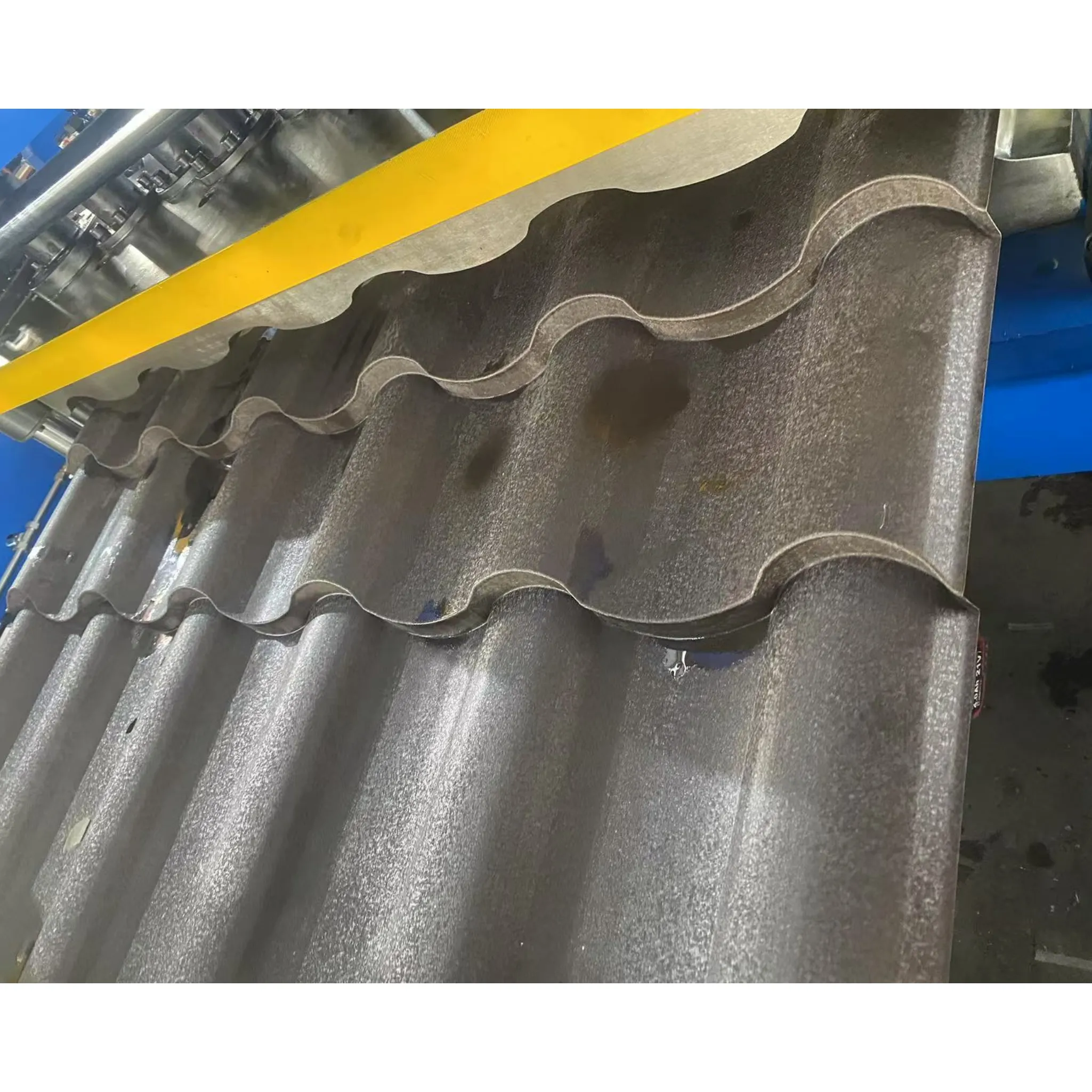

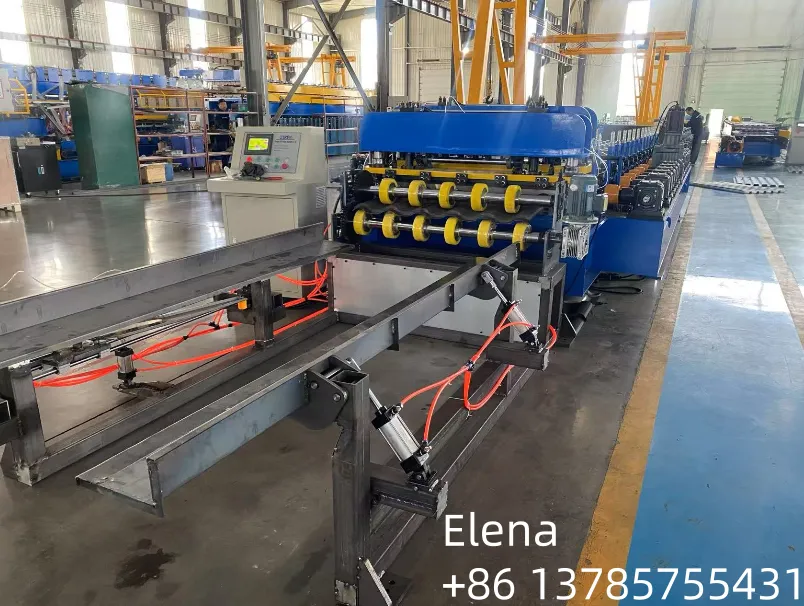

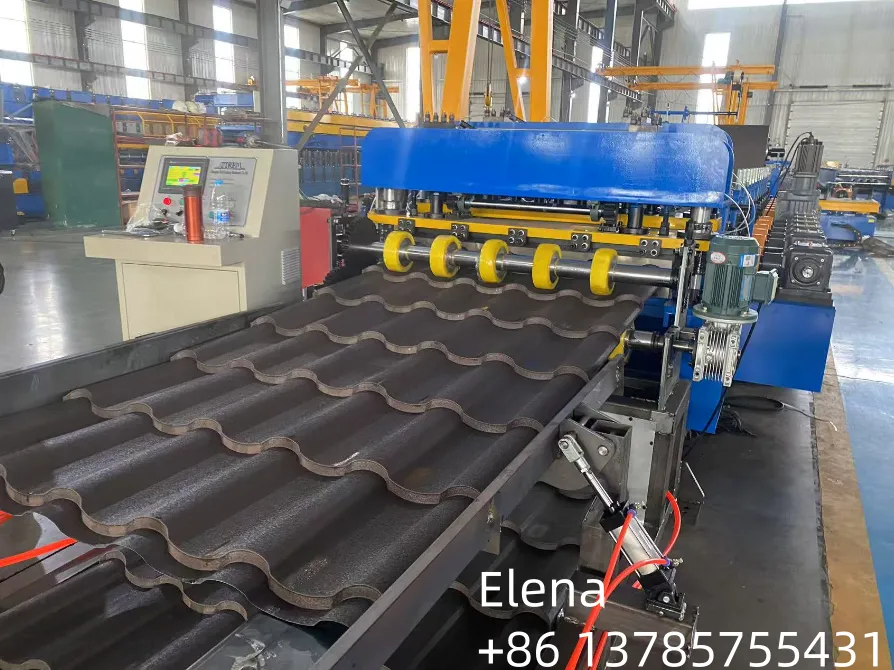

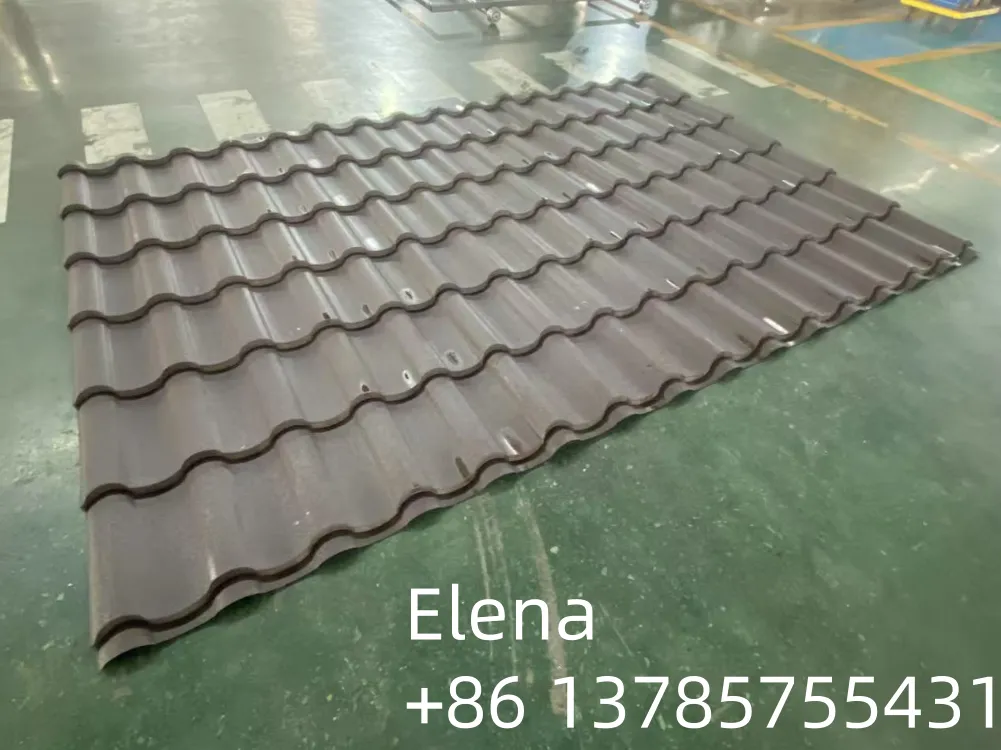

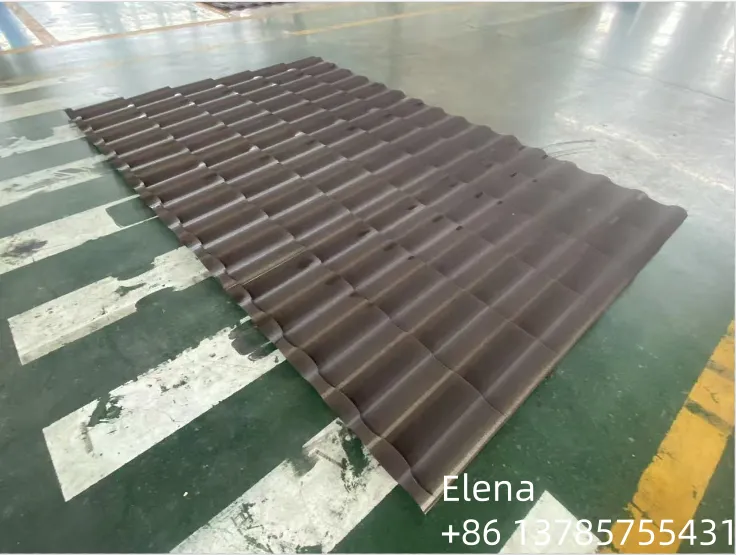

Here are photos of finished Adamante Profile Glazed Tile Roll Forming Machine:

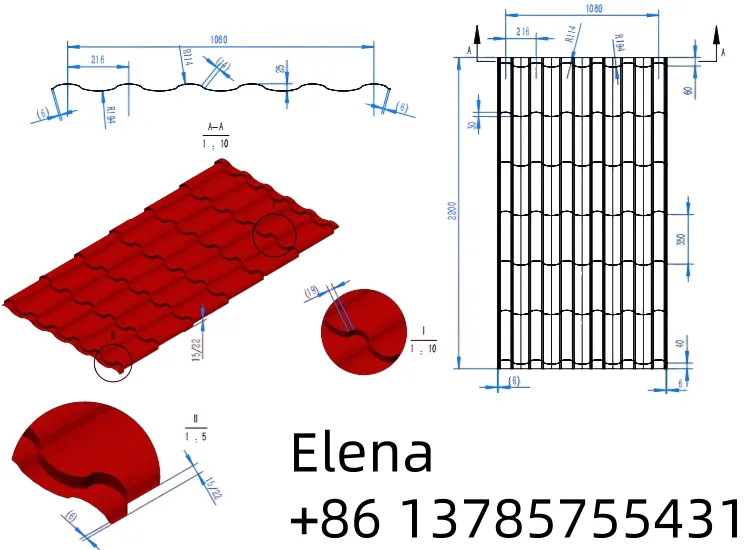

Profile drawing of Adamante Profile Glazed Tile Roll Forming Machine:

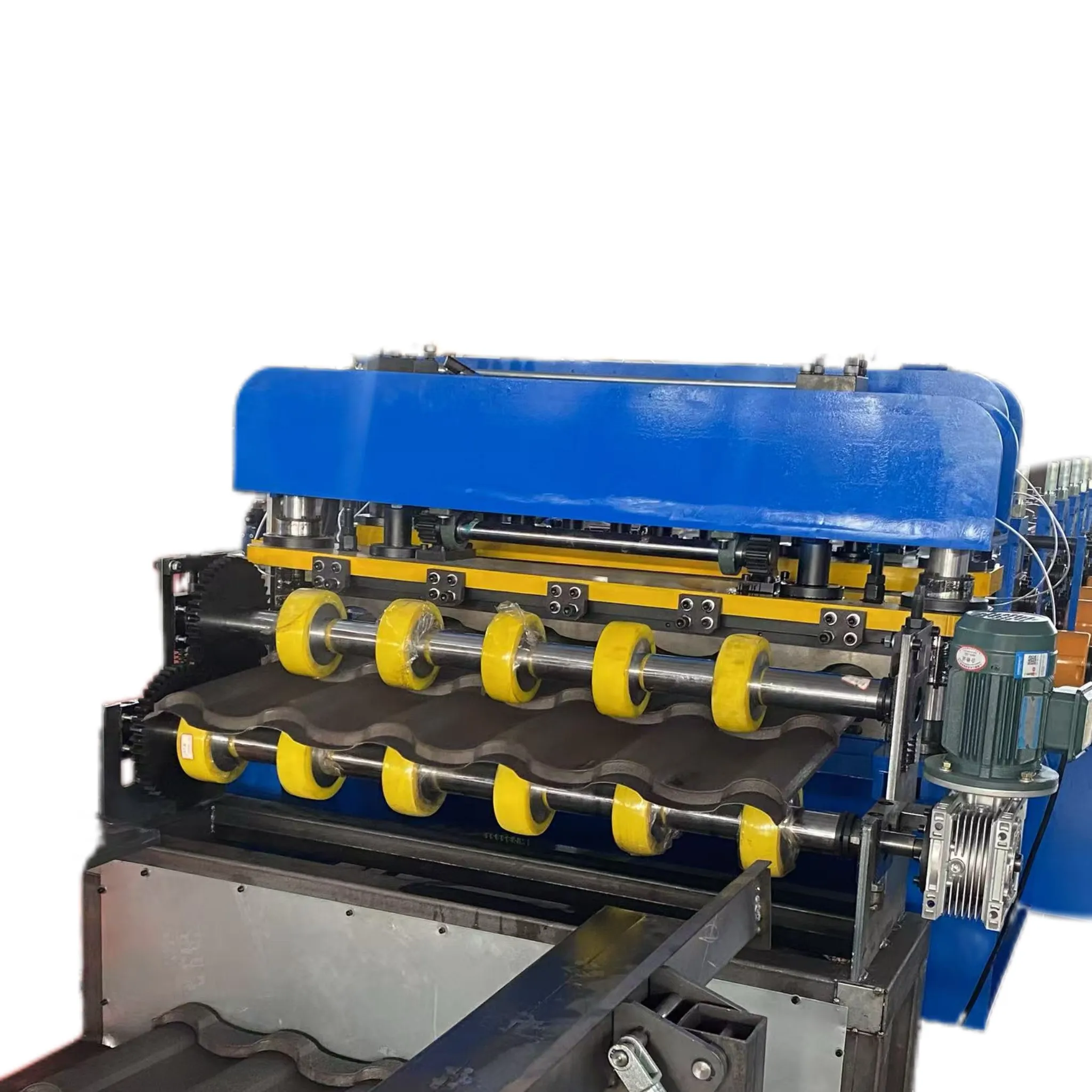

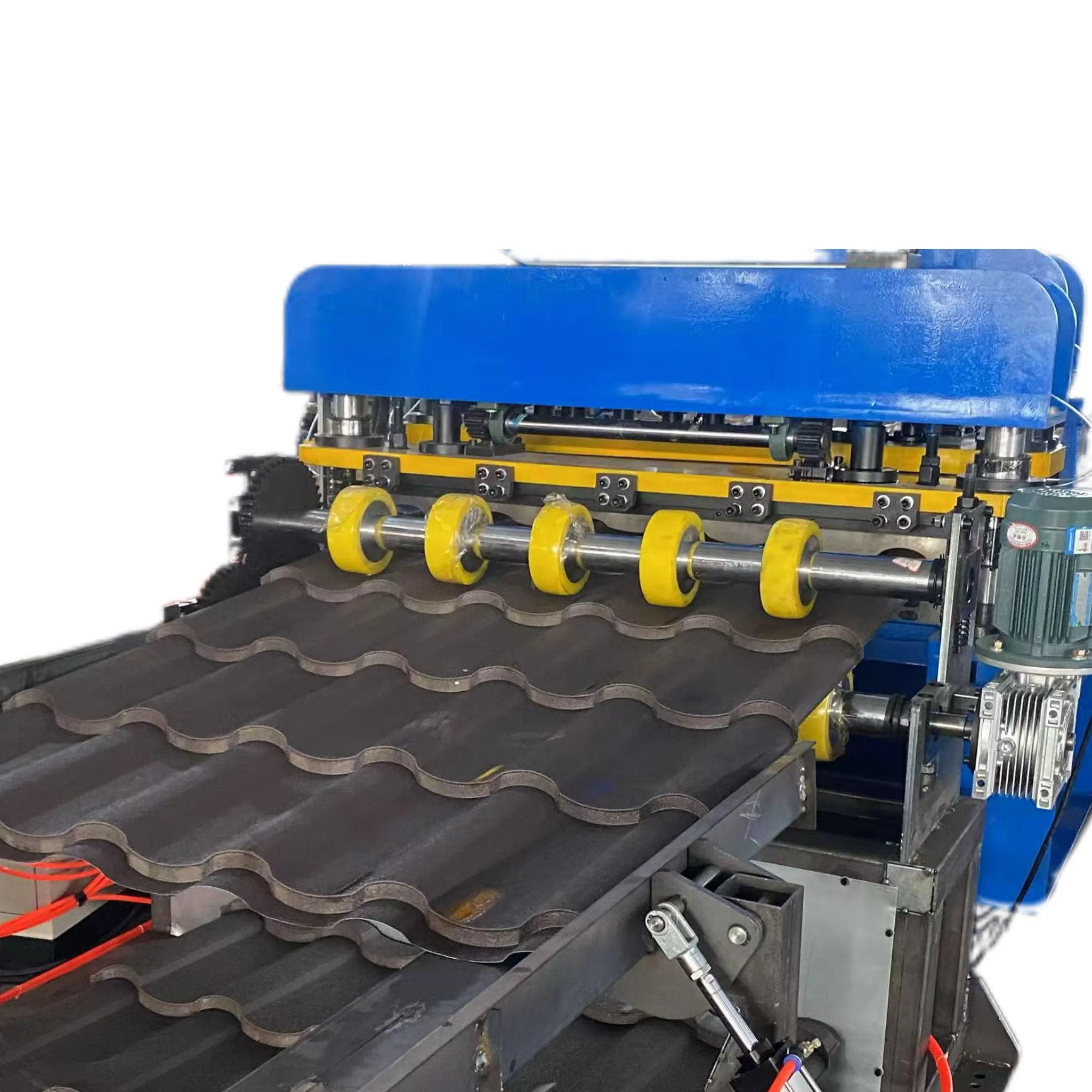

 Main components of Adamante Profile Glazed Tile Roll Forming Machine:



Technical parameters:

Item	Name	Specifications
1	Raw material	GI&PPGI
2	Raw material thickness	0.3-0.5 mm
3	coil feeding width	1250 mm
4	Felt device	Available
5	Roller station	14stations
6	Punching speed	0-6 m/min
7	Motor for roll forming	5.5 KW
8	Machine frame	Hot rolled H-beam
9	Transmission	Gear box transmission(bevel gear inside)
10	Roller material	High grade 45# steel
11	Shaft diameter	80 mm
12	Cutting type	Hydraulic cutting
13	PLC brand	Delta
14	Frequency brand	Delta
16	Coder brand	Omron

The following is detailed introduction of Adamante Profile Glazed Tile Roll Forming Machine:

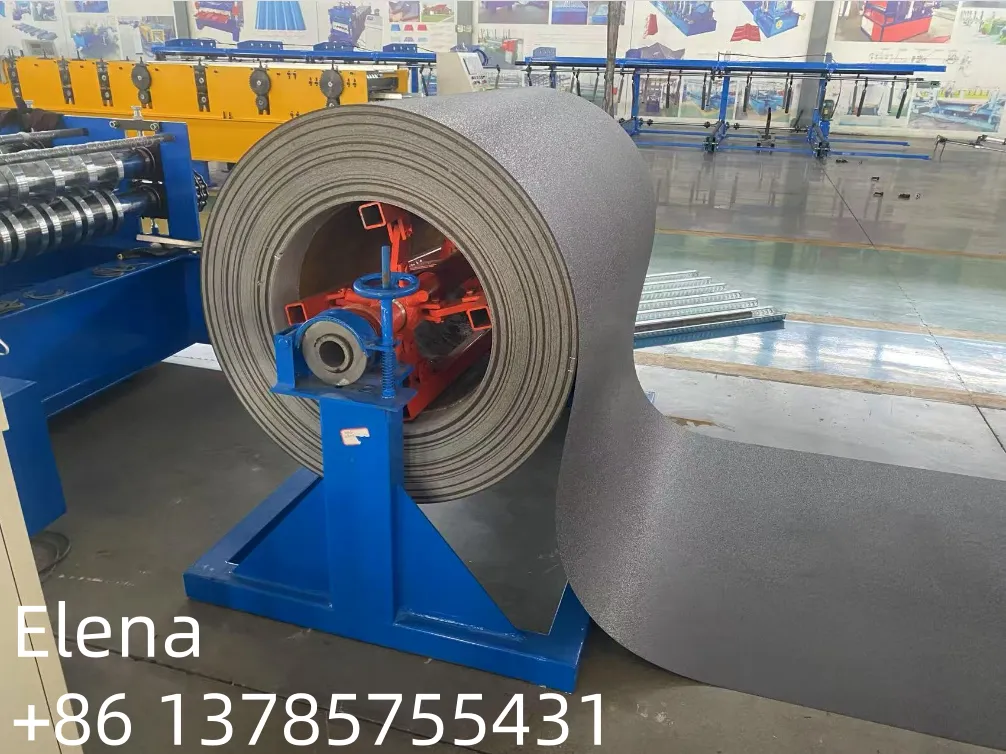

Part 1: 5 ton manual decoiler

1.Capacity:5 tons
2.Coil inner diameter:450-550mm
3. Feeding width: max 1250mm
4.Structure: welded by the steel plates and profiled bar.

The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine.

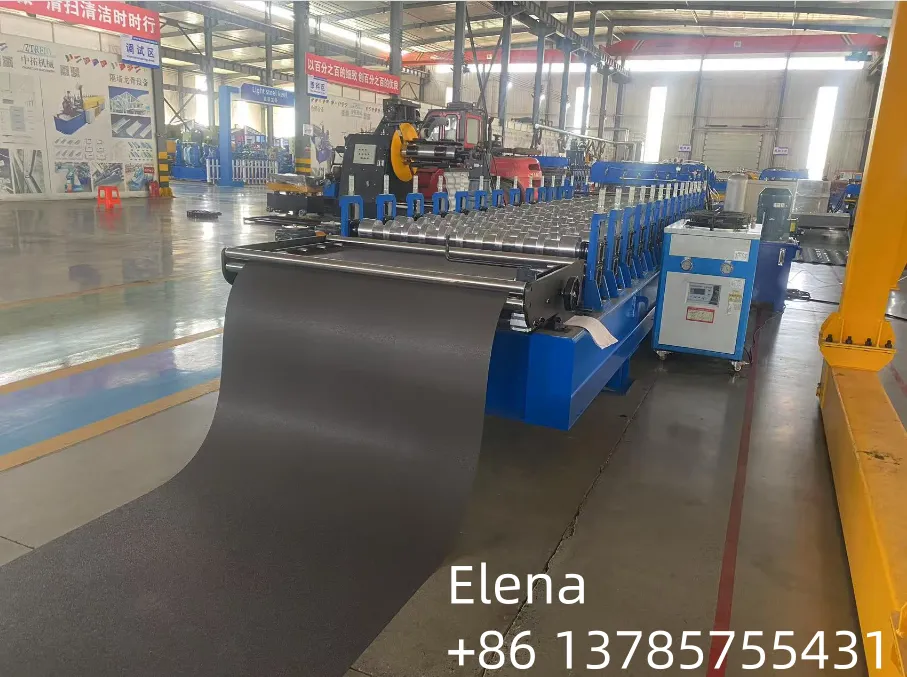

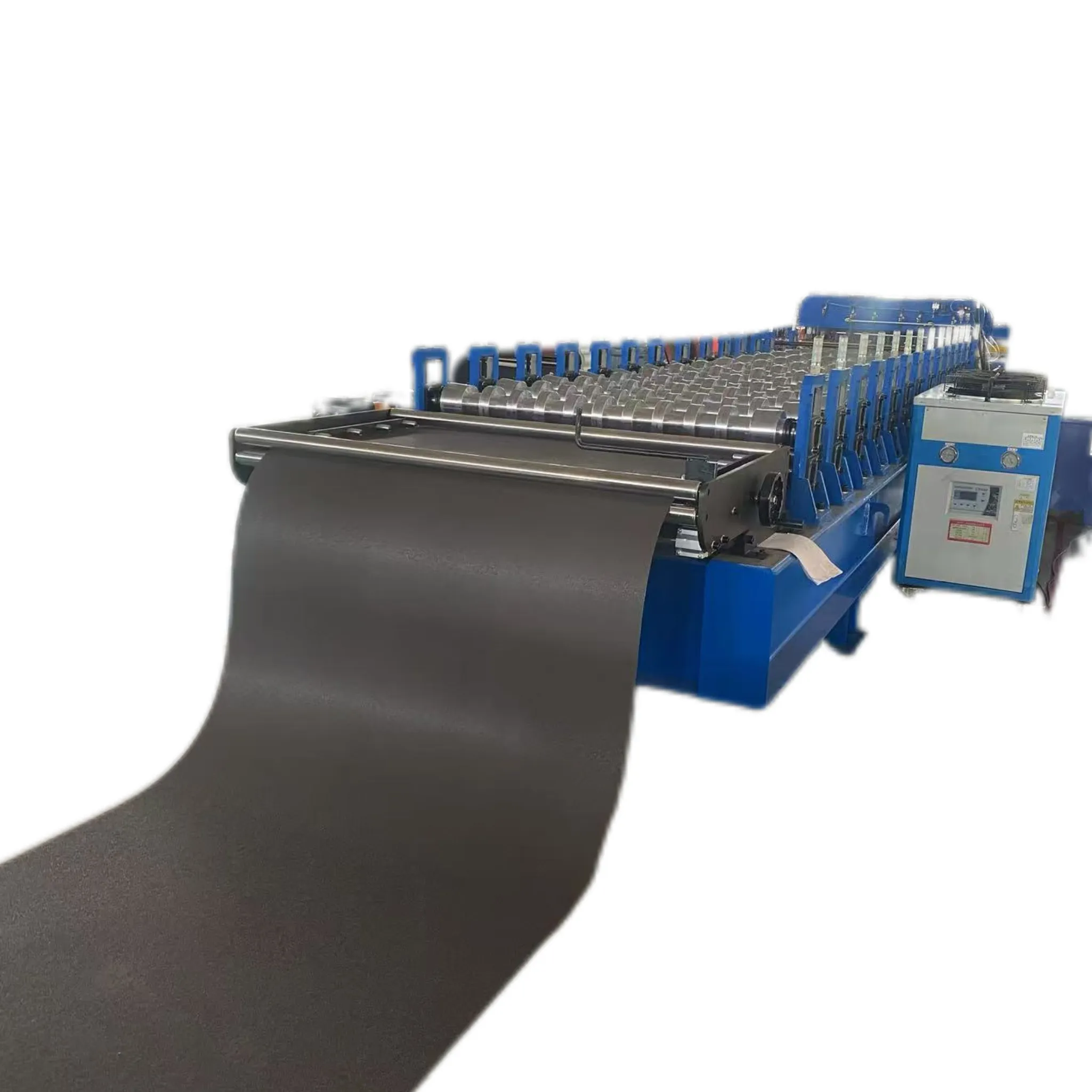

Part 2: Main roll forming machine





Part 3: PLC control system





1.Frequency brand:Delta
2.Screen language:English/Chinese/as request

3.Counter brand:Omron

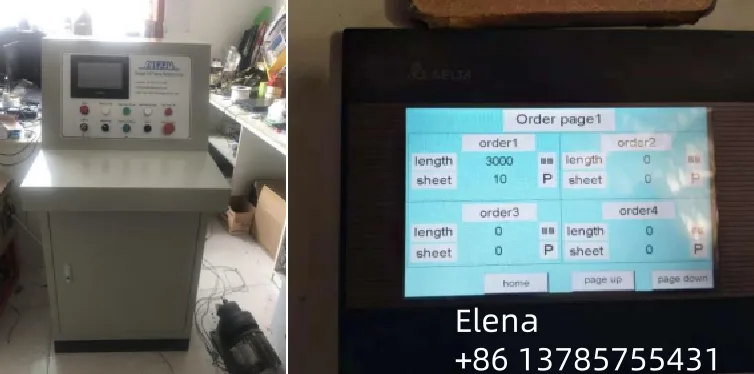

4.Feature:The control system support multi orders input, it can match different production needs, please check the photos

5.Function:Cutting length control, cutting quantity control, and speed control

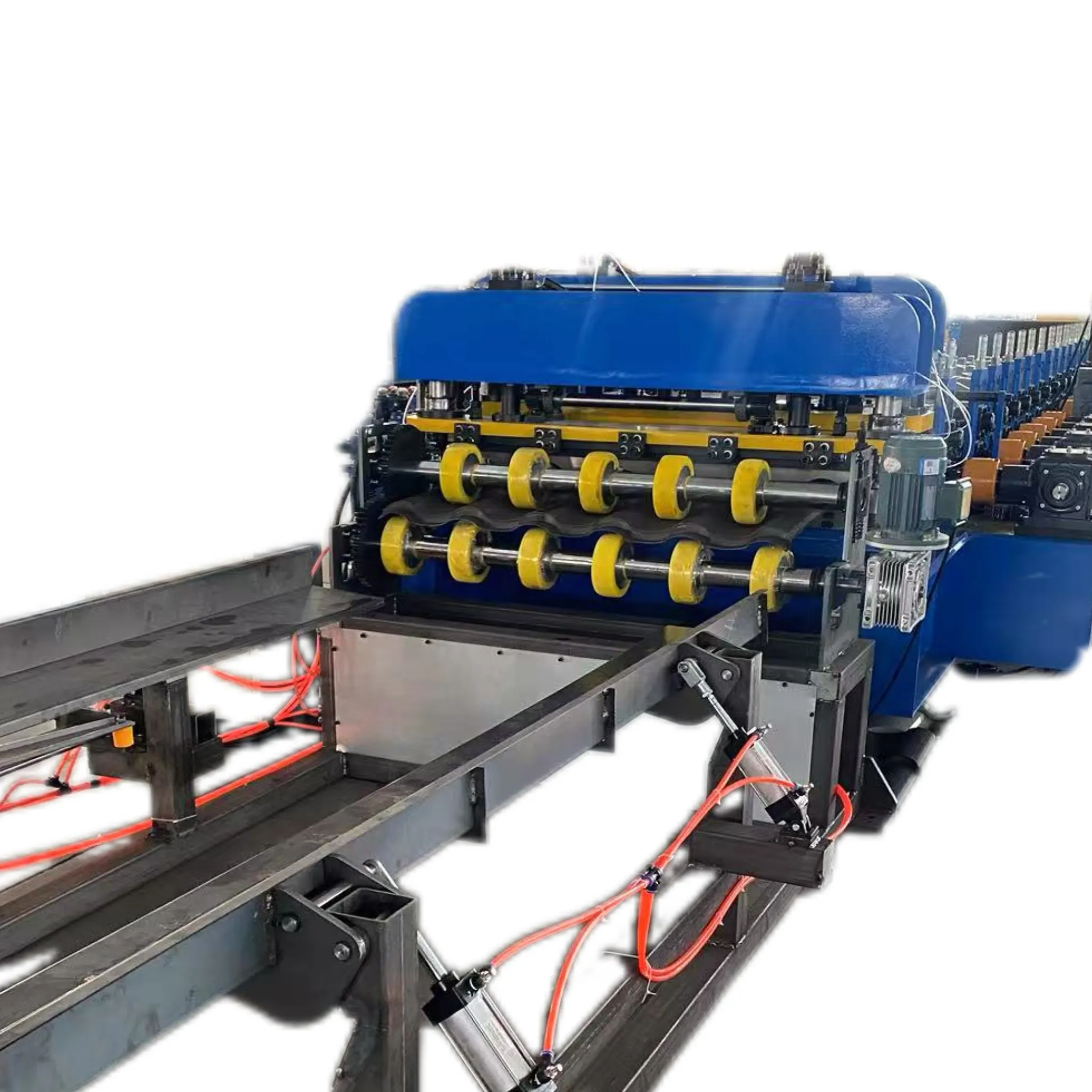

Part 4: stacker
