Acoustical Sound Barrier Panels Profile Rolling Forming Machine Sound Barrier Panels Profile Rolling Forming Machine+36KW+14 m/min

Name: Acoustical Sound Barrier Panels Profile Rolling Forming Machine Sound Barrier Panels Profile Rolling Forming Machine+36KW+14 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT115871072

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

Sound Barrier Panels Profile Rolling Forming Machine

Power(W):

36KW

Production Capacity:

14 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Roll Forming Machine
Tile Type
Galvanized Steel
Use
Highway
Voltage
380 V
Rolling Thinckness
0.8-1.5mm
Feeding Width
customized

Product Description

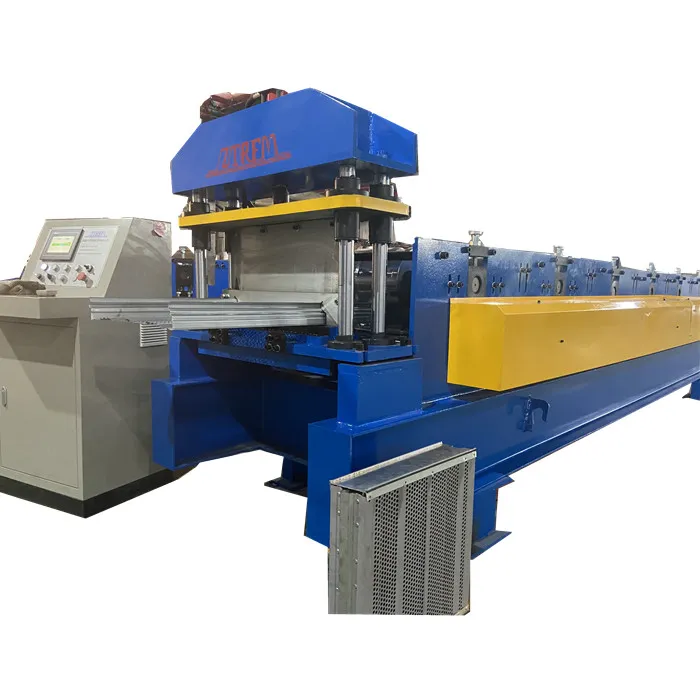

Acoustical Sound Barrier Panels Profile Rolling Forming Machine

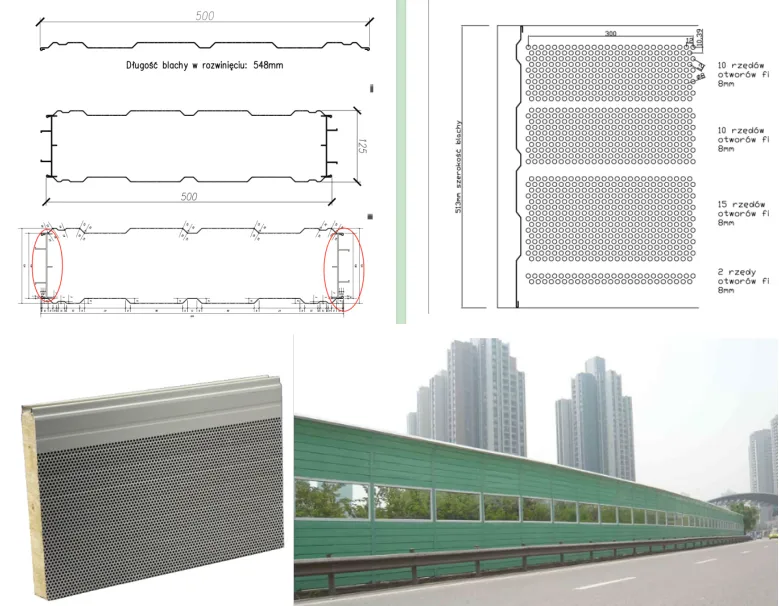

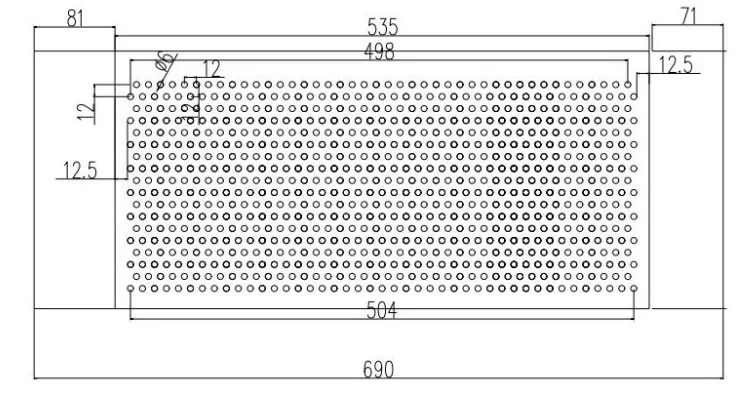

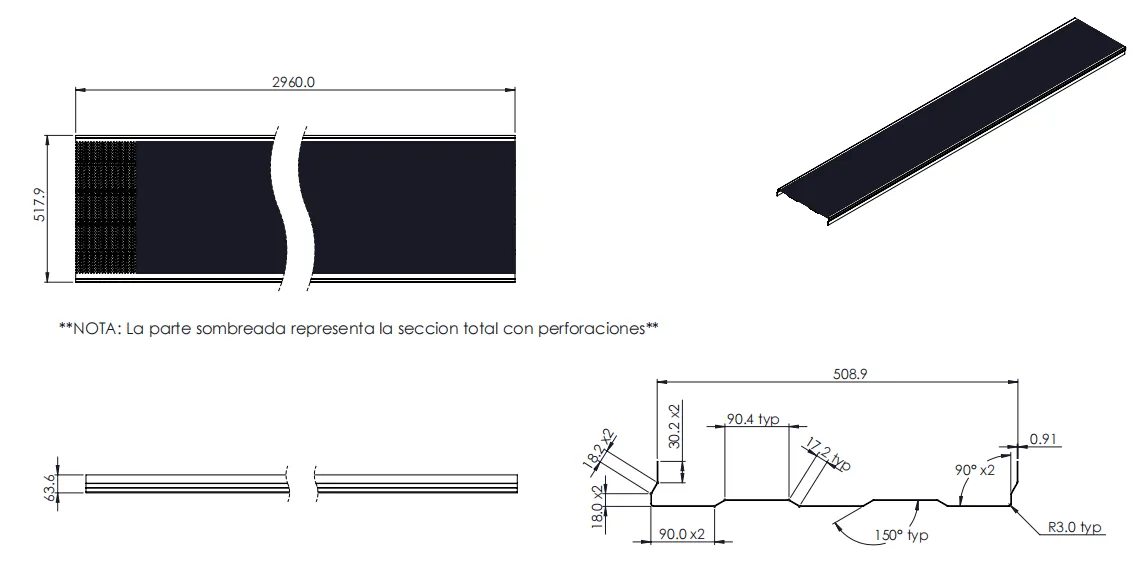

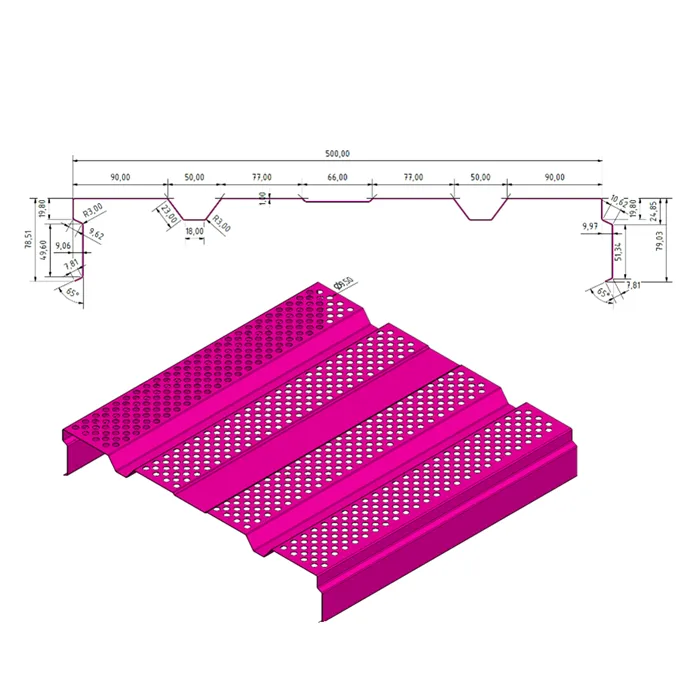

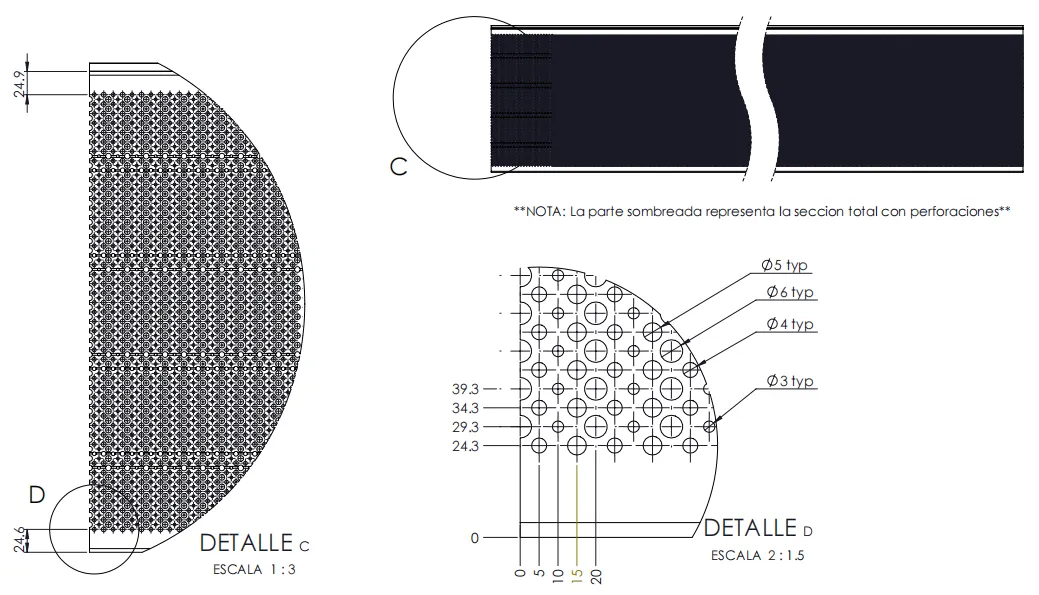

Acoustical Sound Barrier Panels Profile Rolling Forming Machine is designed to make the sound barrier panels in batch fully automatically.Acoustic panels are the most popular solution for spaces where echo and reverberation create so much ambient noise, it’s difficult to hear. By absorbing sound, acoustic panels minimize sound reflections and create a more comfortable acoustic environment where speech is intelligible, and loudness is reduced. Here we take some drawing profile for example to show you how to make machine to do the production:

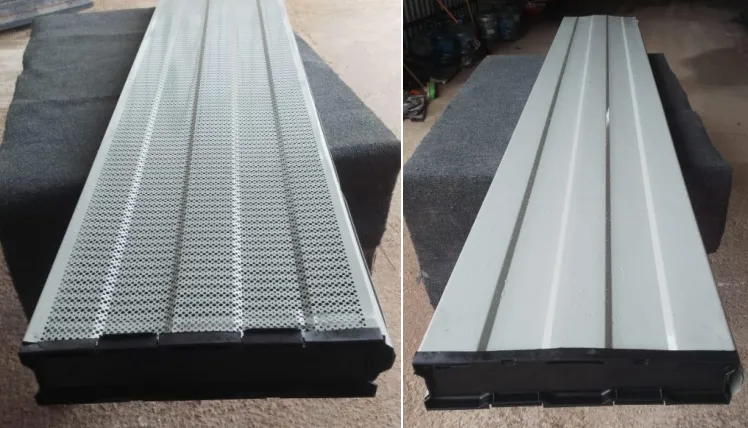

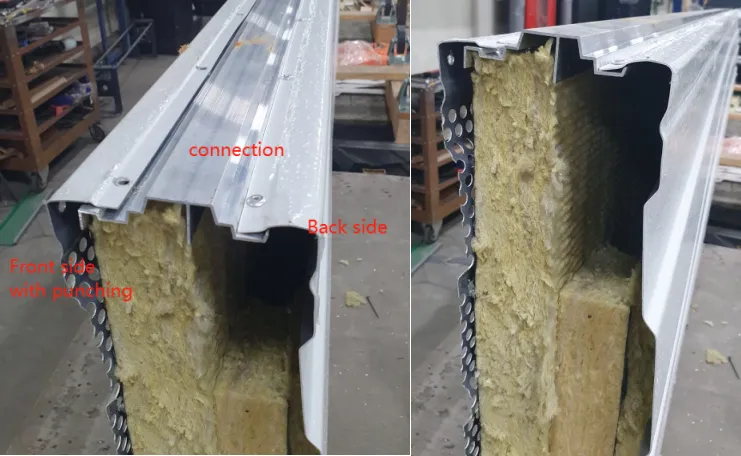

For the Sound Barrier Panels, mostly there are three parts composed to be: bottom, cover and connection channel.

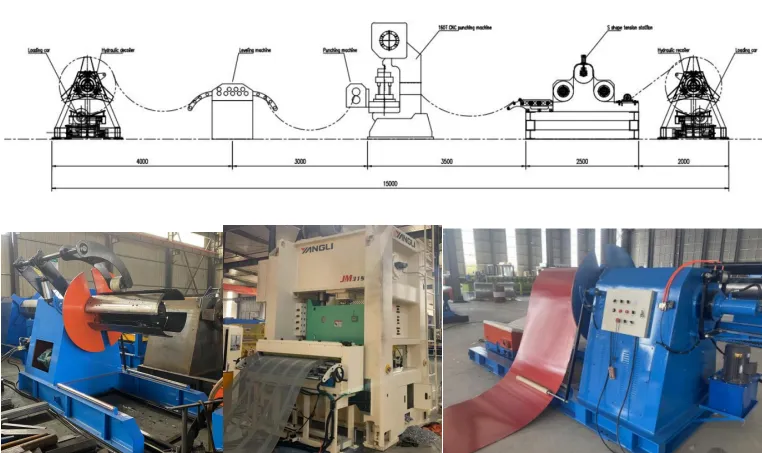

So the rolling forming machine, we need following tools: 1.One production line: punching machine. This machine function should be from decoiler to hold the coil and then to the punching machine, make the sheet with holes and then to the rolling forming machine or recoiler. 2.Second option, if you want to speed up production rate. We can recoiler the punched and then do the rolling forming for bottom profile and back profile. 3.If your factory area is limited, we can make the punching and rolling forming by one machine. In the following part, we introduce one by one: Part 1: Punching Line:

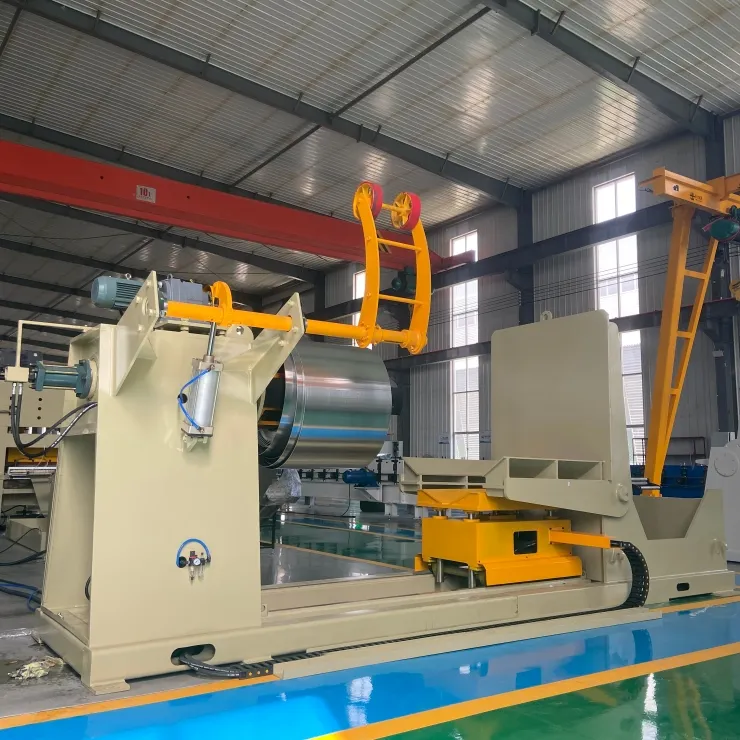

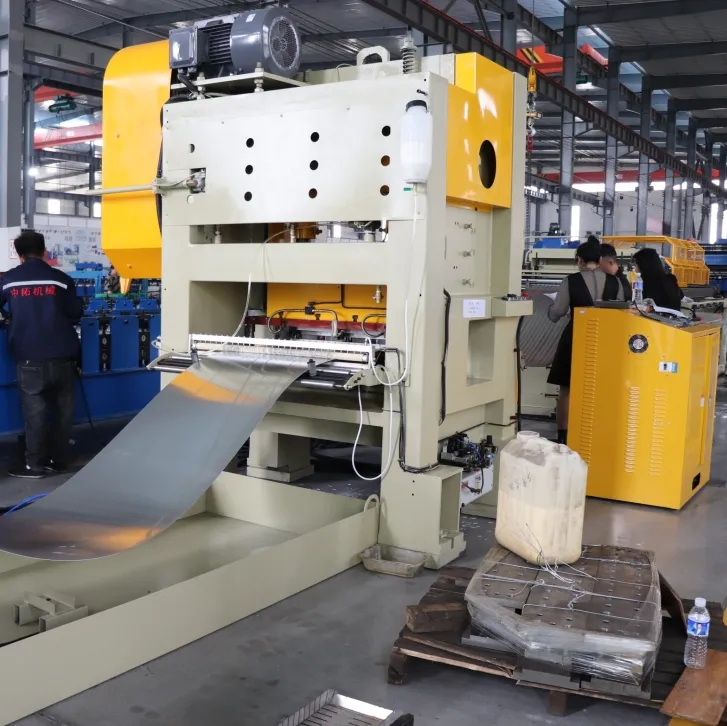

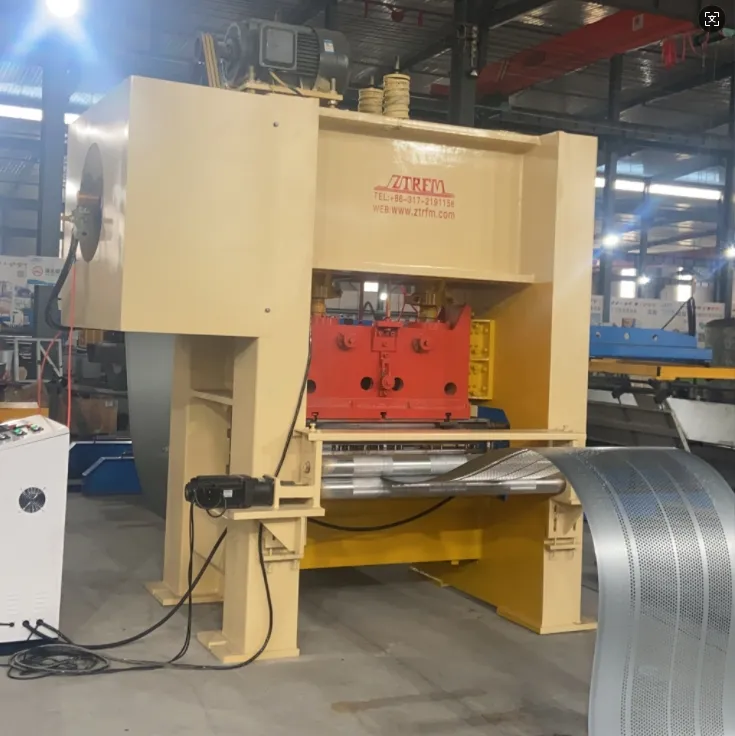

For the decoiler, you can choose manual one or hydraulic one, we recommend better automatic type. For the punching machine, you can choose China famous brand or normal one. Recoler is necessary, automatic with tension system. Part 2: Rolling forming machine

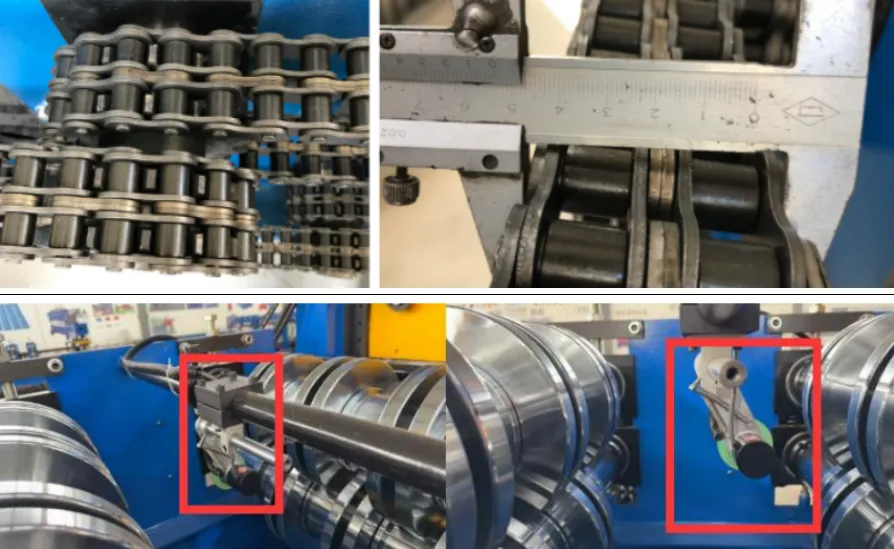

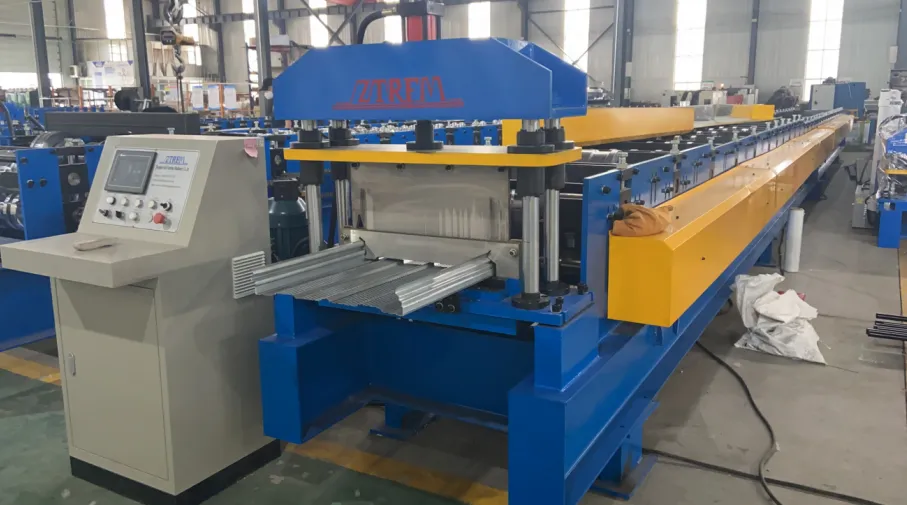

Sound Barrier Panels Profile Rolling Forming Machine, we can fully customize according to your requirements: For the transmission part, you can use gearbox type or chain type. For the shearing, you can choose to use the servo tracking shearing or the stop cutting design. Here we take the economic type for example to show you how we design the machine: 1.About chain: Advantage: This design will make machine more strong, to prolong the machine using life. 2.For the encounter, we use strong holder to make sure durable and accuracy.

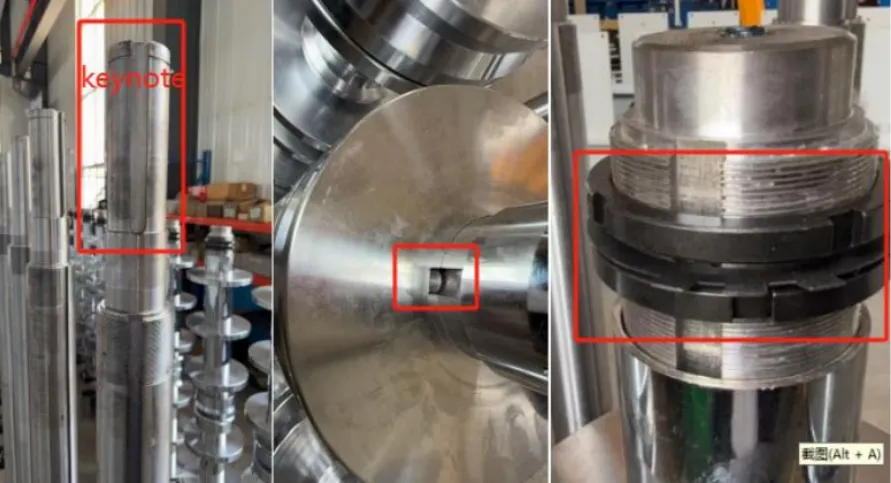

3.For the rollers and shaft: Double locking nut with thrust pad and keynotes to ensure that the roller lock cap does not loosen during equipment operation. The keynotes of the roller and the keynotes of the shaft are tightly matched, and the roller will not slip. Many factories do not have keynotes.

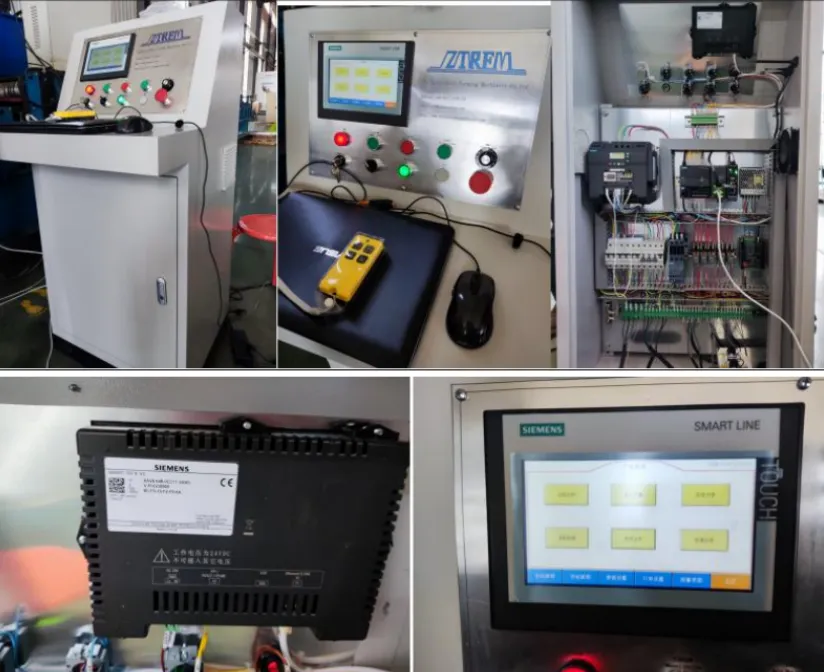

4.For the control panel, normally we use the whole Siemens system;

Acoustical Sound Barrier Panels Profile Rolling Forming Machine
1.Formed Material	Alimu		Thickness:0.7 to 1.2 mm (standard)
2.Decoiler	3 Tons Hydraulic automatic decoiler		3 Tons Manual decoiler(will give you as free）
3.Main body	Roller station		28 rows (As your requirement)
		Diameter of shaft		80 mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		400 H steel
		Drive		Gear and chains transmission or gearbox
		Dimension(LWH)		1500018001600(customize)
		Weight		15T

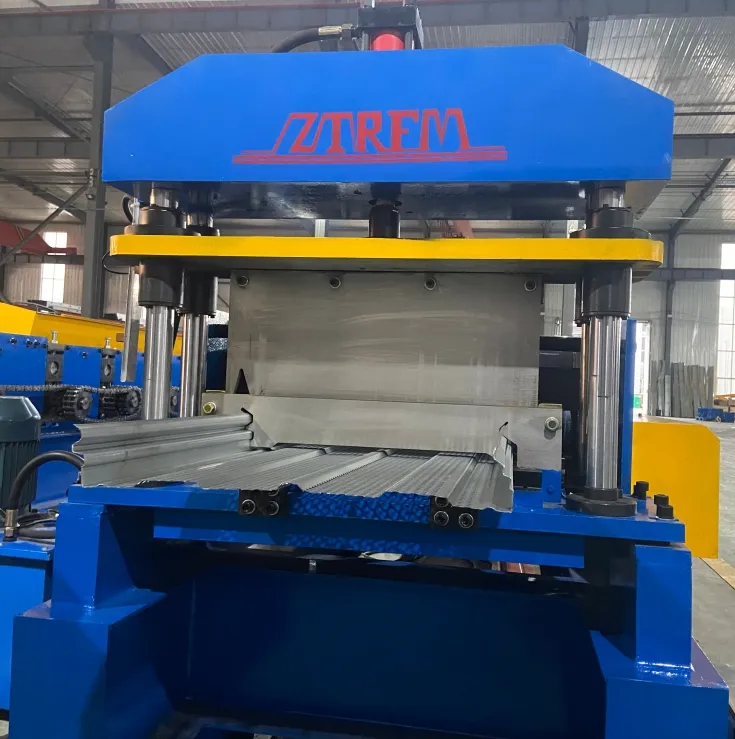

4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		11KW*2 sets,Siemens brand
		Hydraulic system power		15 KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	25 m/min		The speed depends on the shape of the tile and the thickness of the material.
