ASTM Standard wire mesh basket cable management tray wire mesh tray and fittings cable tray production line

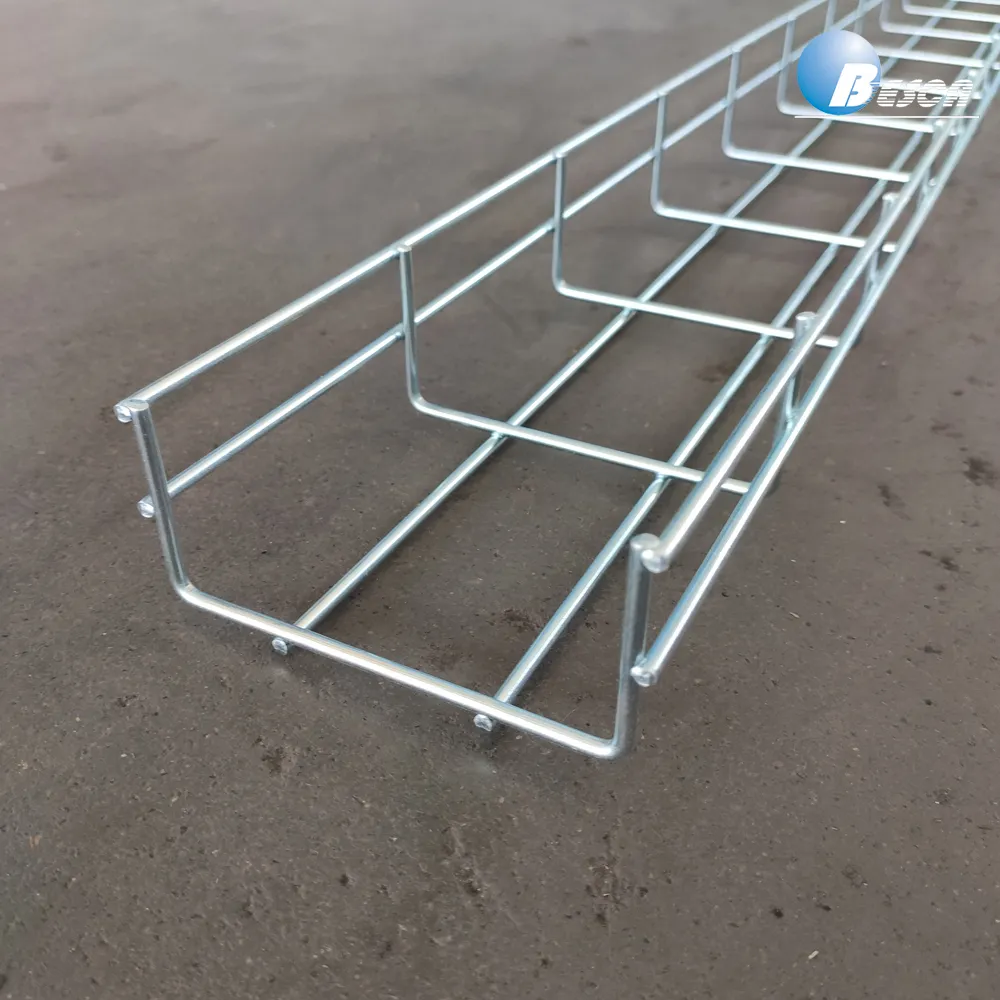

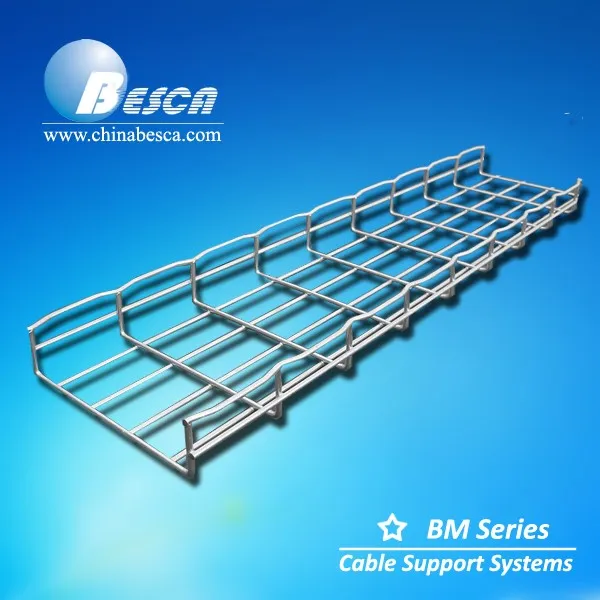

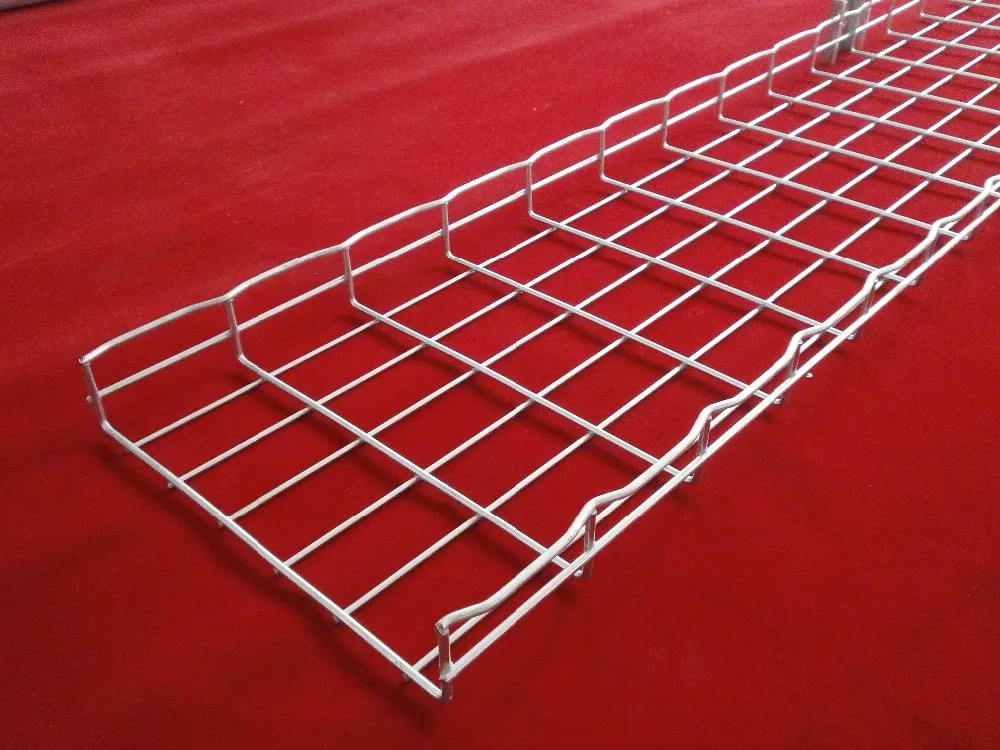

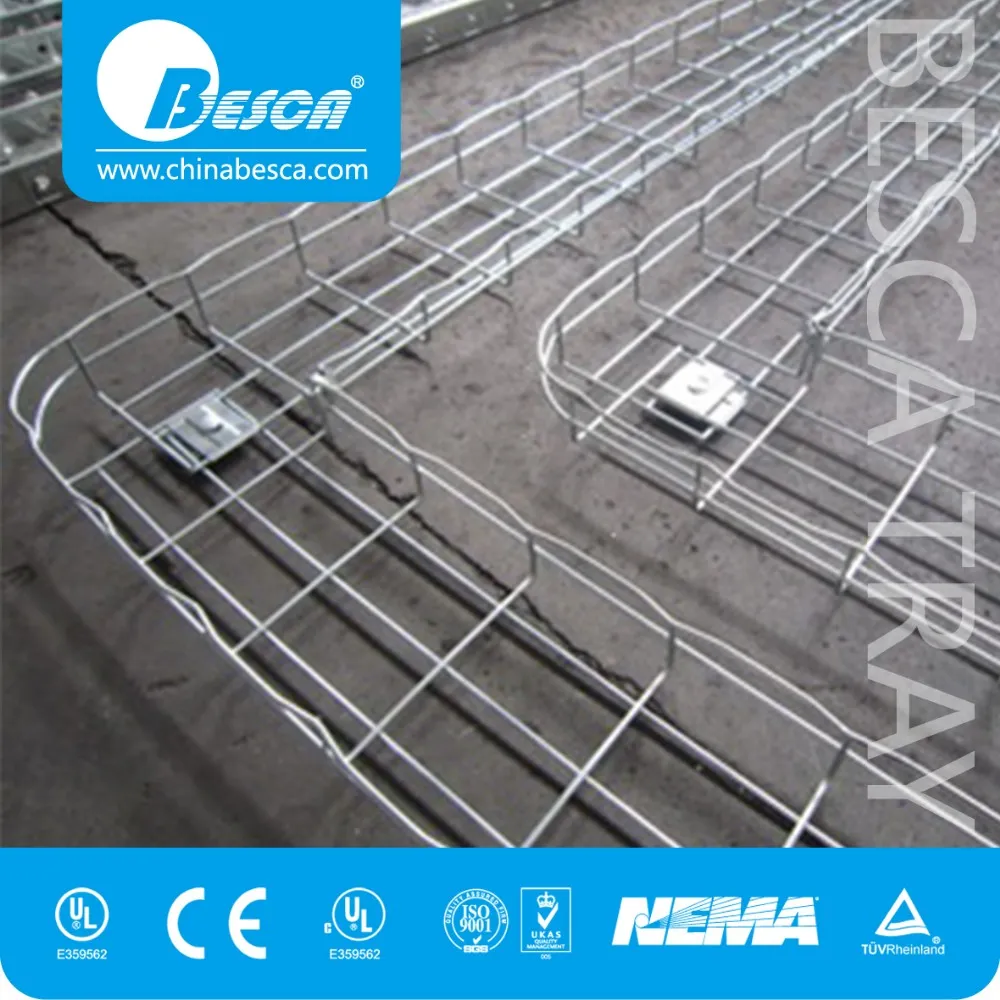

Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install, Besca Wire Mesh Cable Tray is complimented with all the accessories you need.

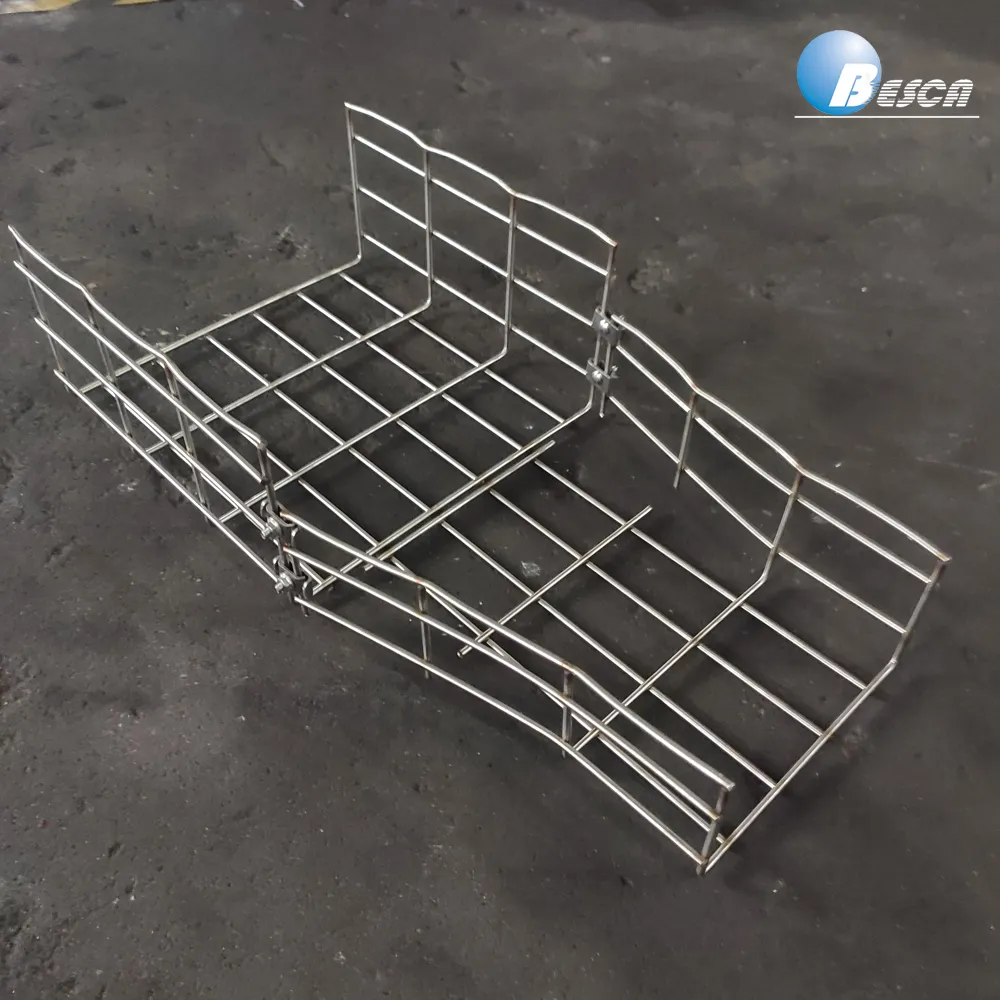

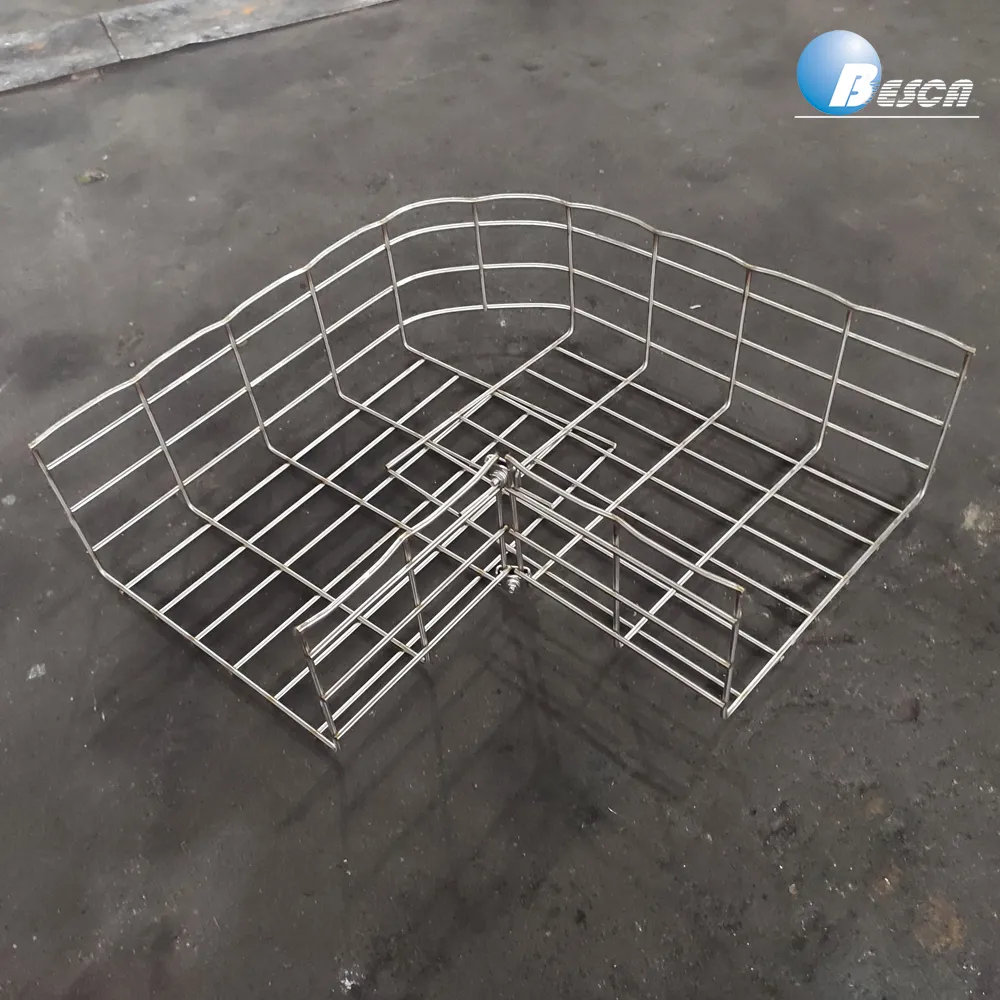

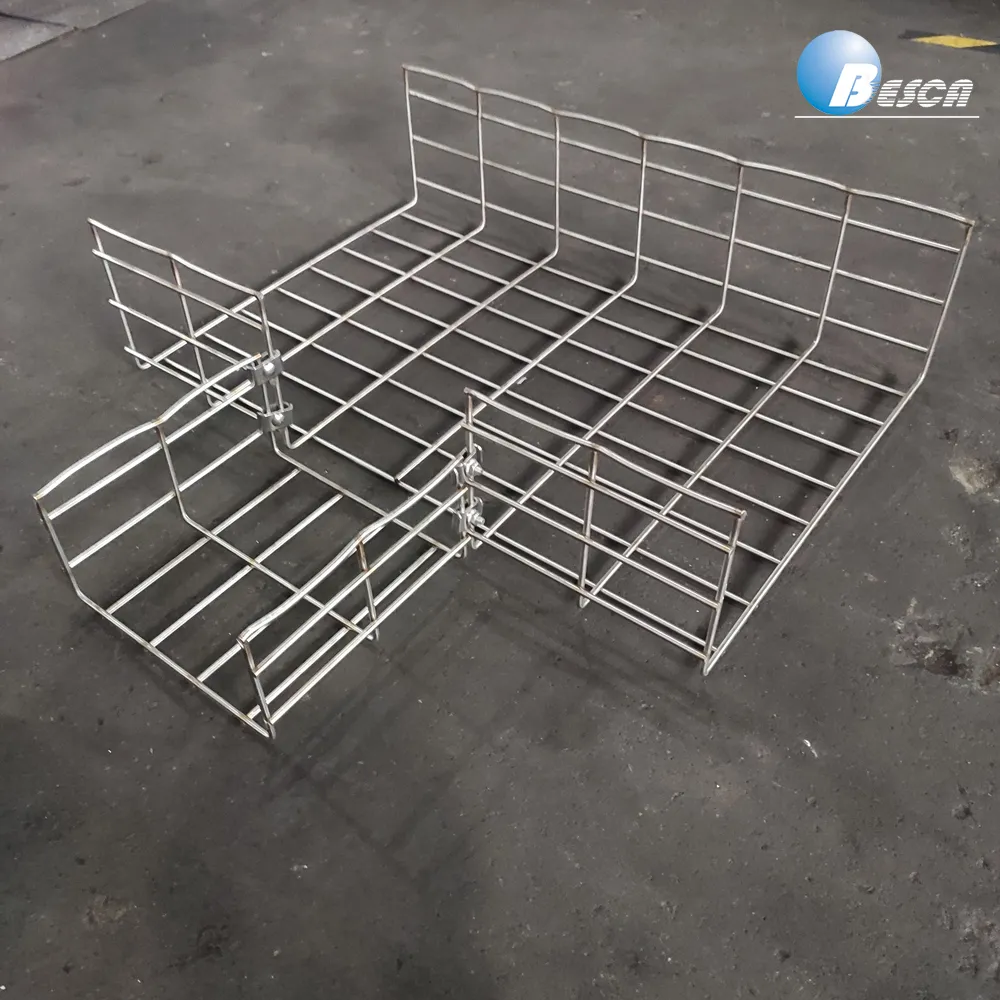

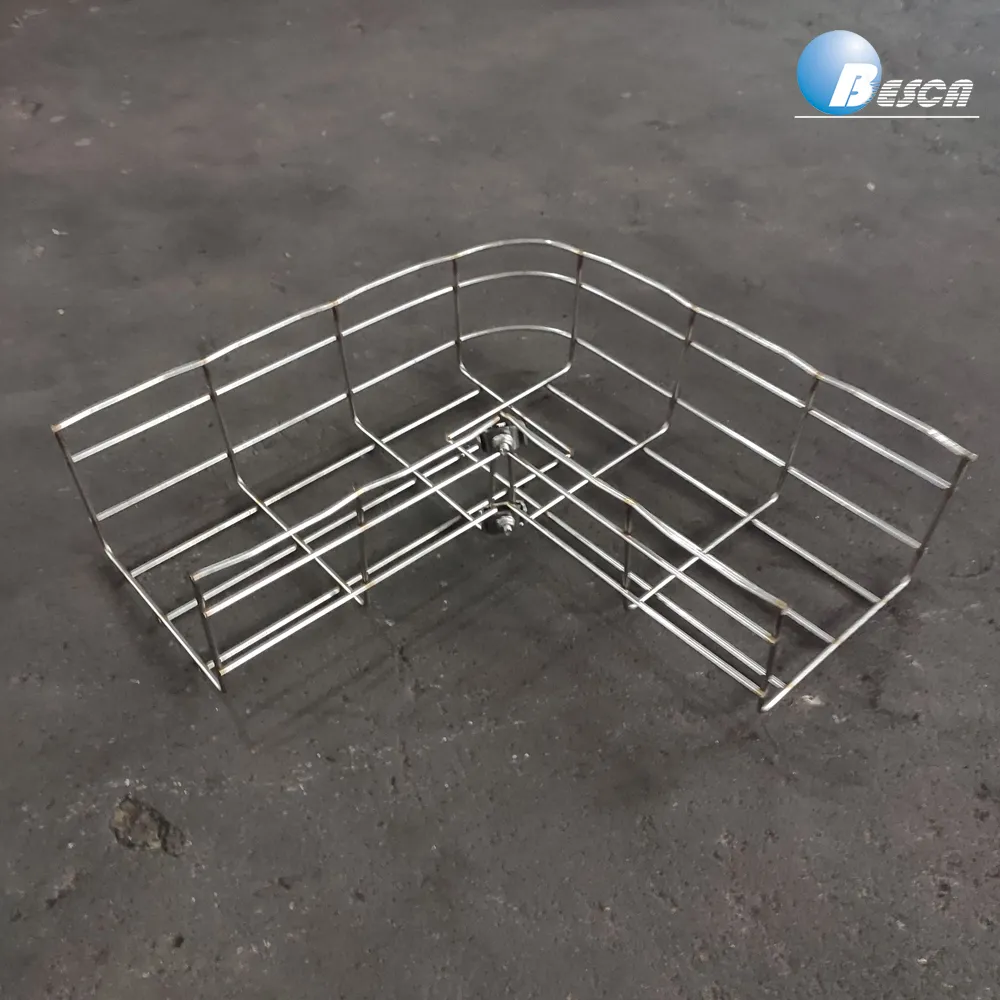

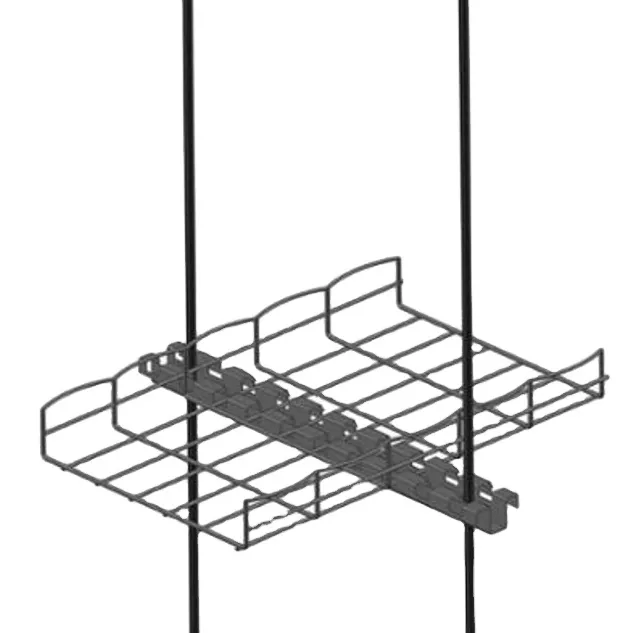

With no need for separate bends, risers, tees and crosses, Besca Wire Mesh Cable Tray lengths can be fabricated to suit the application on site. Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Tray is available in stainless steel against firm orders only. - Minimum production may quantities apply.

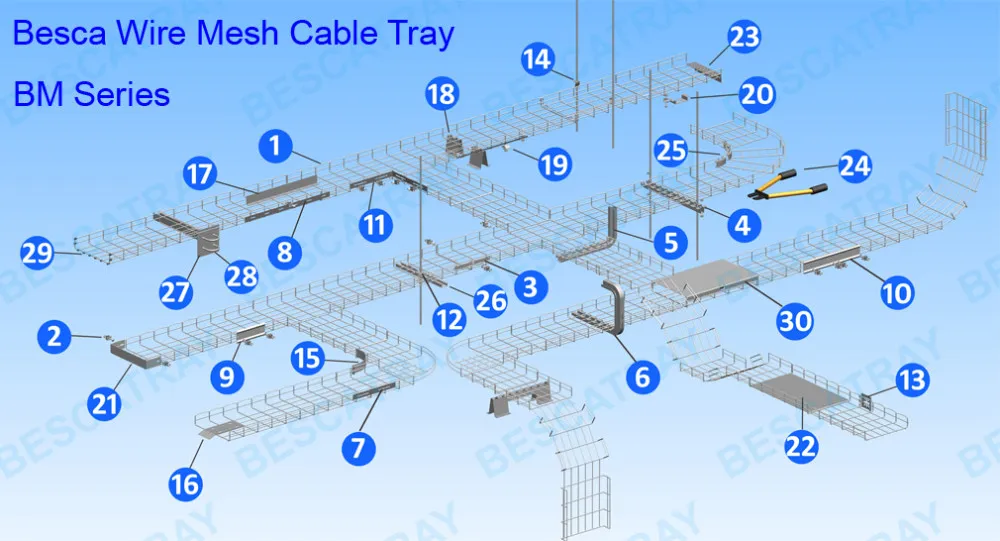

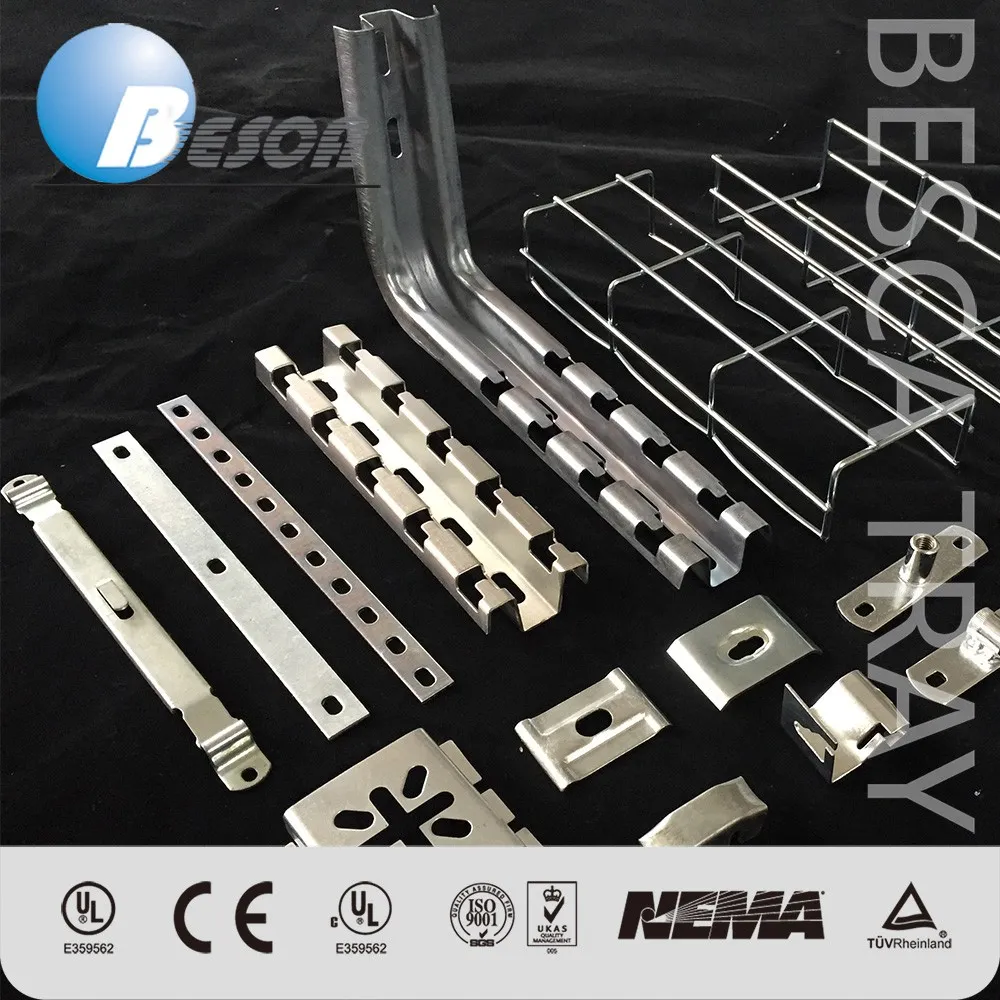

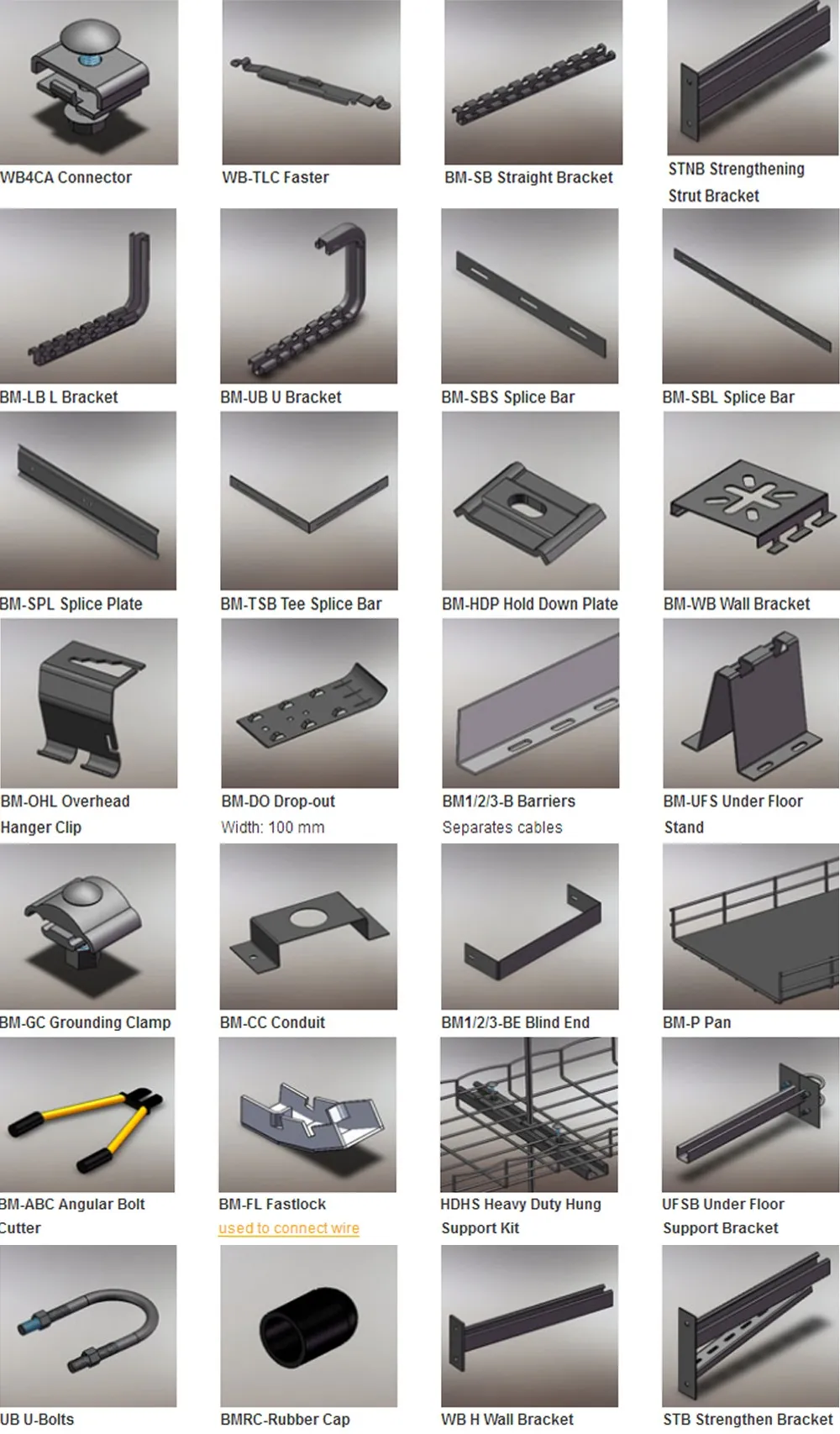

1. Wire meshcable tray straight(BM*) | 2. Connector assembly(WB4CA) | 3. Faster connector(WB-TCL) | 4. Straight bracket(BM*-SB) | 5. L Bracket(BM-LB) |
6. U Bracket(BM-UB) | 7. Splice bar(short)(BM-SBS) | 8. Splice bar(long)(BM-SBL) | 9. Splice plate(short)(BM-SPS) | 10. Splice plate(long)(BM-SPL) |
11. Tee splice bar(BM-TSB) | 12. Hold dowm plate(BM-HDP) | 13. Wall bracket(BM-WB) | 14. Overhead hanger clip(BM-OHL) | 15. Radius shield(BM*-RS) |
16. Drop-out(BM-DO) | 17. Barriers(BM*-B) | 18. Under floor stand(BM-UFS) | 19. Grounding clamp(BM-GC) | 20. Conduit connector(BM-CC) |
21. Blind end(BM*-BE) | 22. Pan(BM-P) | 23. Wall termination kit(BM-WTK) | 24. Angular bolt cutter(BM-ABC) | 25. Fastlock(BM-FL) |
Ordering Code | W(mm) | H(mm) | L(mm) |
BM1-50H | 50 | 35 | 3000 |
BM2-50H | 50 | 50 | 3000 |
BM3-50H | 50 | 100 | 3000 |
BM1-100H | 100 | 35 | 3000 |
BM2-100H | 100 | 50 | 3000 |
BM3-100H | 100 | 100 | 3000 |
BM1-150H | 150 | 35 | 3000 |
BM2-150H | 150 | 50 | 3000 |
BM3-150H | 150 | 100 | 3000 |
BM1-200H | 200 | 35 | 3000 |
BM2-200H | 200 | 50 | 3000 |
BM3-200H | 200 | 100 | 3000 |
BM1-300H | 300 | 35 | 3000 |
BM2-300H | 300 | 50 | 3000 |
BM3-300H | 300 | 100 | 3000 |
BM1-400H | 400 | 35 | 3000 |
BM2-400H | 400 | 50 | 3000 |
BM3-400H | 400 | 100 | 3000 |
BM1-450H | 450 | 35 | 3000 |
BM2-450H | 450 | 50 | 3000 |
BM3-450H | 450 | 100 | 3000 |
BM1-600H | 600 | 35 | 3000 |
BM2-600H | 600 | 50 | 3000 |
BM3-600H | 600 | 100 | 3000 |
Width - no more than 900mm
Height - no more than 200mm
Length - should be 3 meters for each.
1: Are you trading company or manufacturer ?
S: We are manufacturer, we have own factory.
2: How long is your delivery time?
S: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to purchase quantity.
3: Do you provide samples ? is it free or extra ?
S: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4: What is your terms of payment ?
S: Payment<=US 1000 dollars, 100% in advance. Payment>=US 1000 dollars, 40% T/T in advance ,balance before shippment.
If you still have any question, please feel free to contact me.
English or Spanish are both available

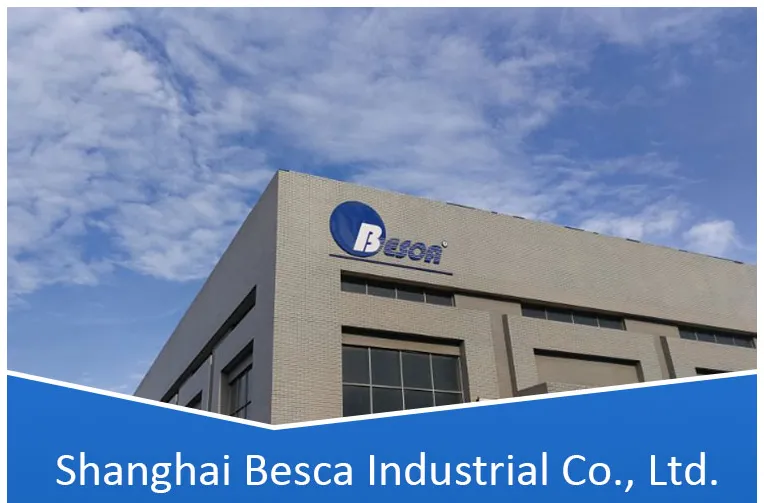

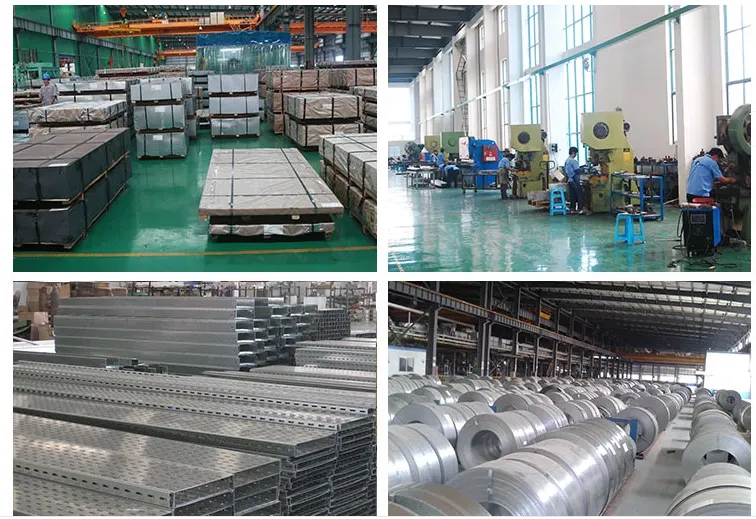

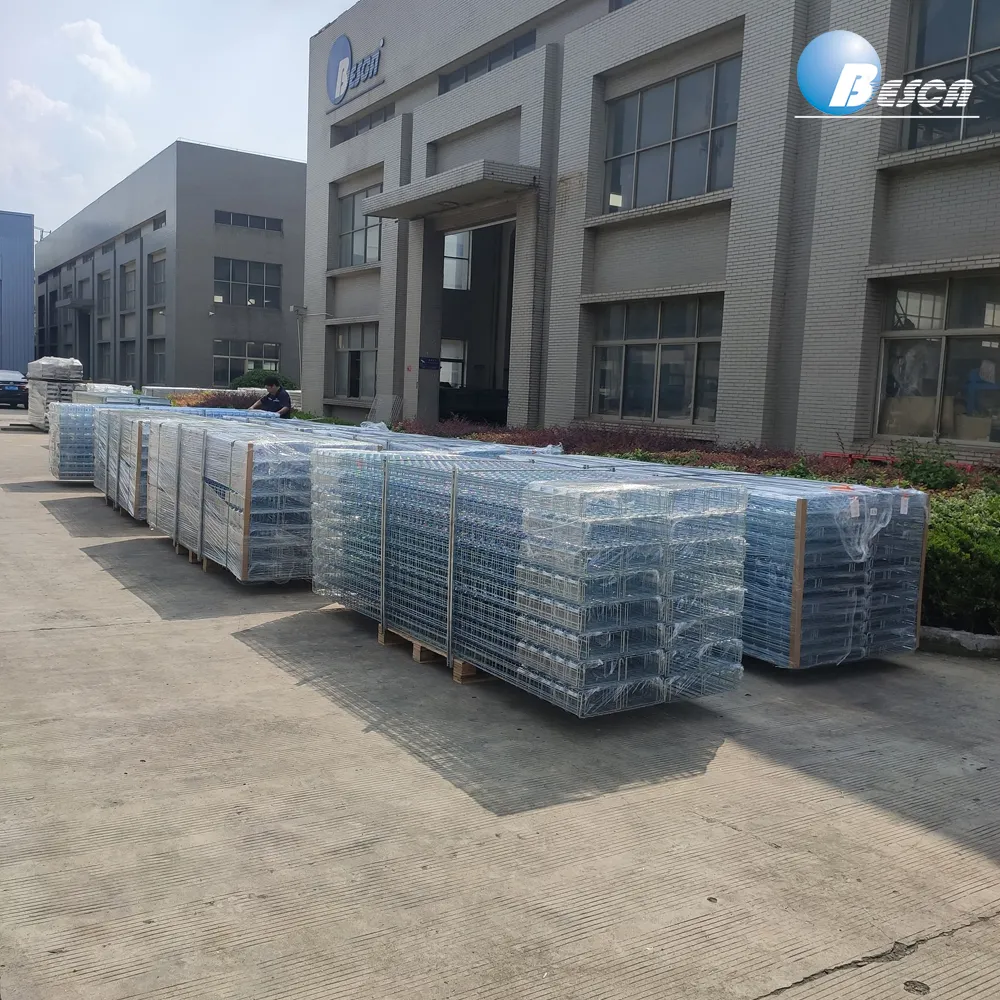

Besca Industrial Co., Ltd is a company that manufactures, sells, and services customers. Besca's subordinate factory: Zhenjiang Besca Electrical Manufacturing Co., Ltd. is located in Yangzhong Science and Technology Industrial Park in Jiangsu, covering an area of 55000 square meters. It is one of the professional cable tray manufacturers with large scale and high-level production capacity. Besca's foreign trade sales headquarter is located in the Shanghai Shibei Industrial Park.
Cable Tray Quality Traceability System Maintained
In order to serve high quality products, it is essential to test the manufactured products before delivery. In this session, Besca develops the most stringent testing procedures, and trains factory inspectors besides its already high level product inspection equipment. Besca provides after sale service and on site engineer technique support for detailed feedbacks and solutions. Besca consistently insists the concepts that quality and service goes first.
New Cable Tray Design Developed
Besca is still not fully satisfied with current performances with the fact that it already has a strict production process and perfect inspection and testing procedures. Instead it continues to conduct market researches and develops new designs to meet developing construction market demands. Besca firmly believes that only those can lead market are permanently welcomed.

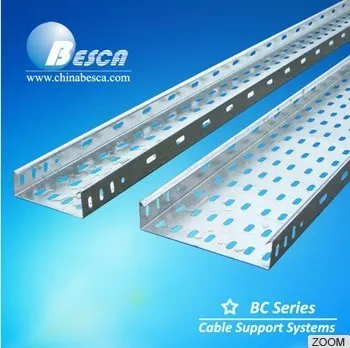

Heavy-Duty Perforated Cable Tray System NEMA & IEC Standard Compliant 50mm - 900mm Customizable HDG ≥ 65μm Cable Ladder Tray
$***
Connecting Wires and Cables Assemblies Management With Cable Tray Design for Industrial and Office Use
$***

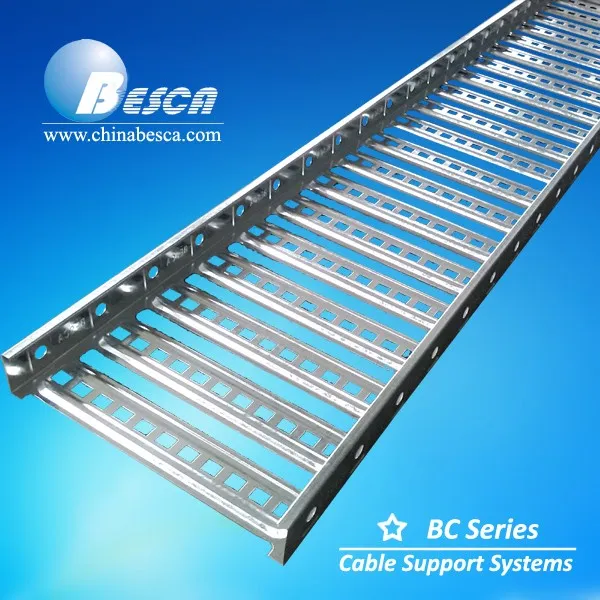

Pre Galvanized Cable Ladder Tray 3 Meters Length for High Efficiency Roll Forming Machine System
$***
Solar DC Cable Tray High Temperature Wire Support Mineral Insulated Heating Cable for Industrial Cable Raceway
$***

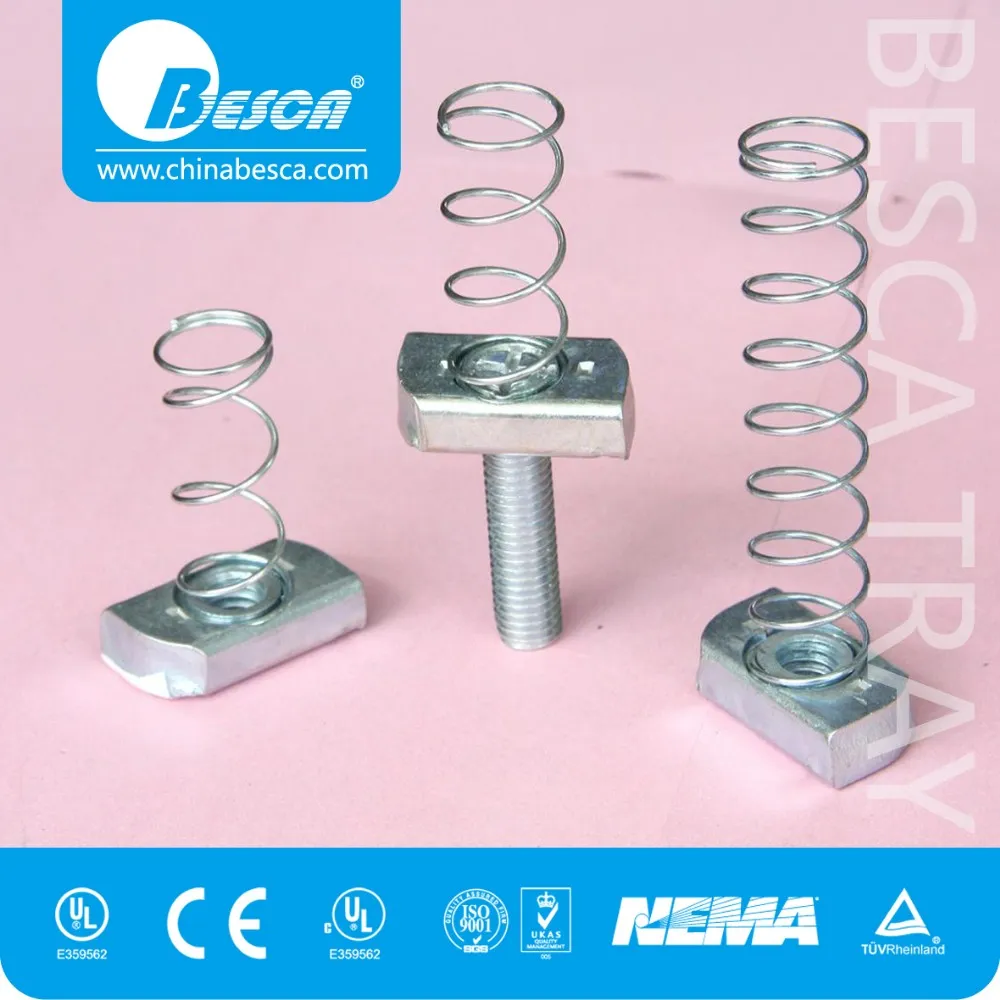

Cable Tray Accessories Kit Stainless Steel Cable Ties Malleable Iron Cable Cleat Nut Bolt HDG for Support
$***
