AG Panel Roofing Tile Machine Trapezoid Roll Forming Machine 0-20m/min

AG Panel Roofing Tile Machine Trapezoid Roll Forming Machine

The beauty of architecture begins with the facade and ends with the roof. As the “fifth facade” of a building, the roof not only serves as a shelter from wind and rain, but also determines the overall shape and temperament of the building. Among numerous tile types, trapezoidal roof tiles have become the preferred choice for industrial buildings, public facilities, and even modern residential buildings due to their excellent drainage efficiency, strong wind resistance, and concise and powerful longitudinal lines.

And what gives these metal coils a “trapezoidal skeleton” is the core equipment – the AG Panel Roofing Tile Machine Trapezoid Roll Forming Machine. It transforms cold and hard steel plates into roof armor that combines functionality and rhythm.

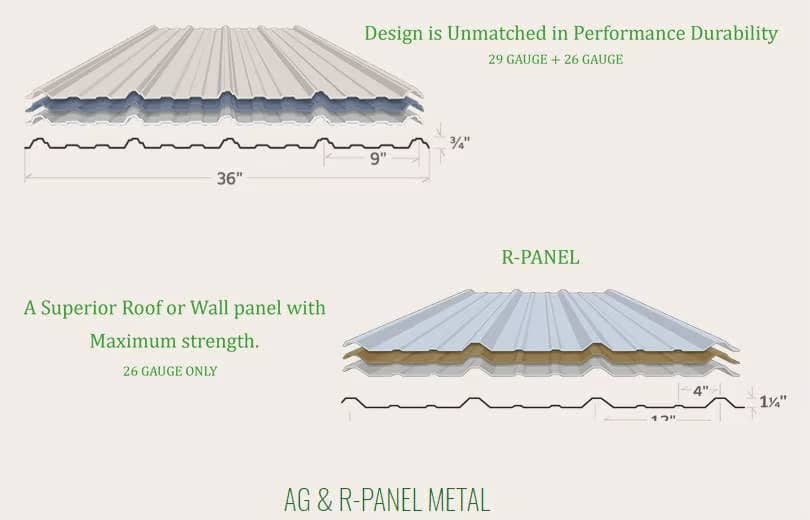

Pattern diagram:

The advantage of this AG Panel Roofing Tile Machine Trapezoid Roll Forming Machine:

1. Ultra high peak, one-time molding without rebound
2. Composite cross-section, customizable functional ribs
3. Online punching and gap making, ultimate paving efficiency
4. High adaptability flying saw, perfectly responding to wave sections
5. Intelligent flexible switching, multi tile co linear production

Application Scenario:

• Large span industrial plants and logistics warehouses:
The trapezoidal tiles have a super strong spanning ability, which can reduce the density of purlins and lower the amount of steel required for the plant skeleton. Paired with FRP daylighting panels of the same type, it achieves large-scale natural lighting on the roof, saving energy and environmental protection.

• Sports venues and high-speed railway stations:
In large public buildings, trapezoidal tiles are often used in conjunction with upright locking systems. Through precise edge rolling and corner bending processing by a molding machine, it provides a perfect waterproof and decorative base for curved domes or large sloping roofs.

• Agricultural greenhouses and livestock sheds:
For facilities in agriculture that require ventilation and insulation, the steep height of the trapezoidal tile side walls facilitates the opening of ventilation openings, resulting in more efficient airflow organization and less accumulation of dust and snow.

Product Attributes:

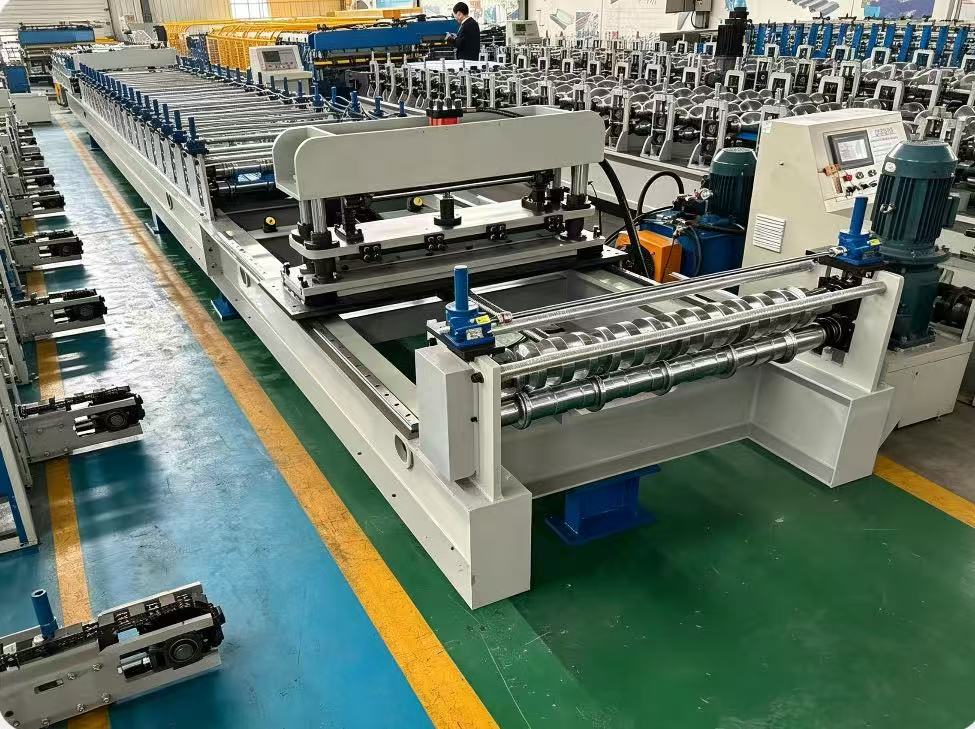

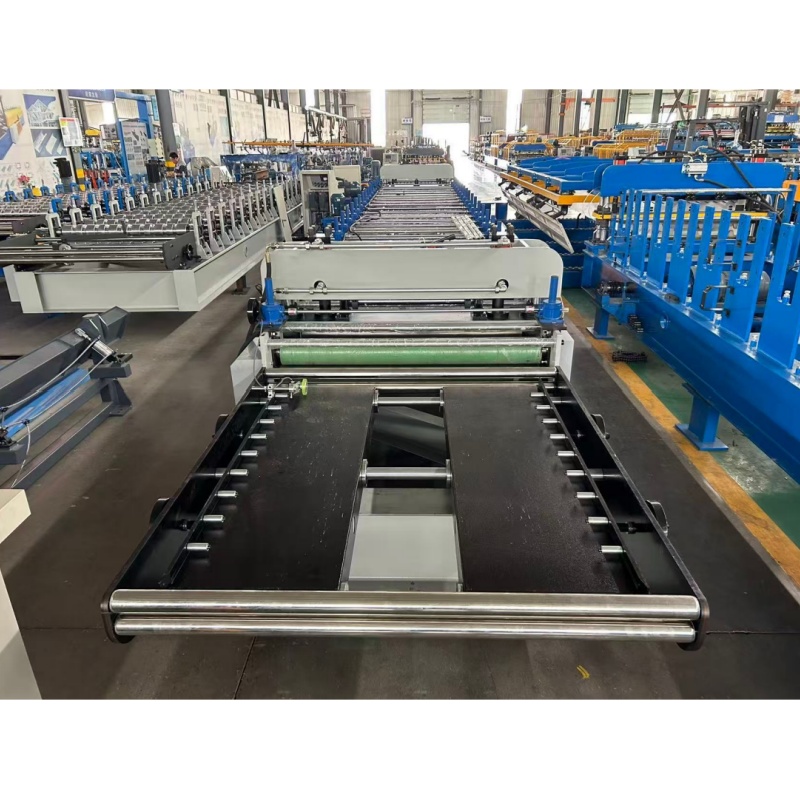

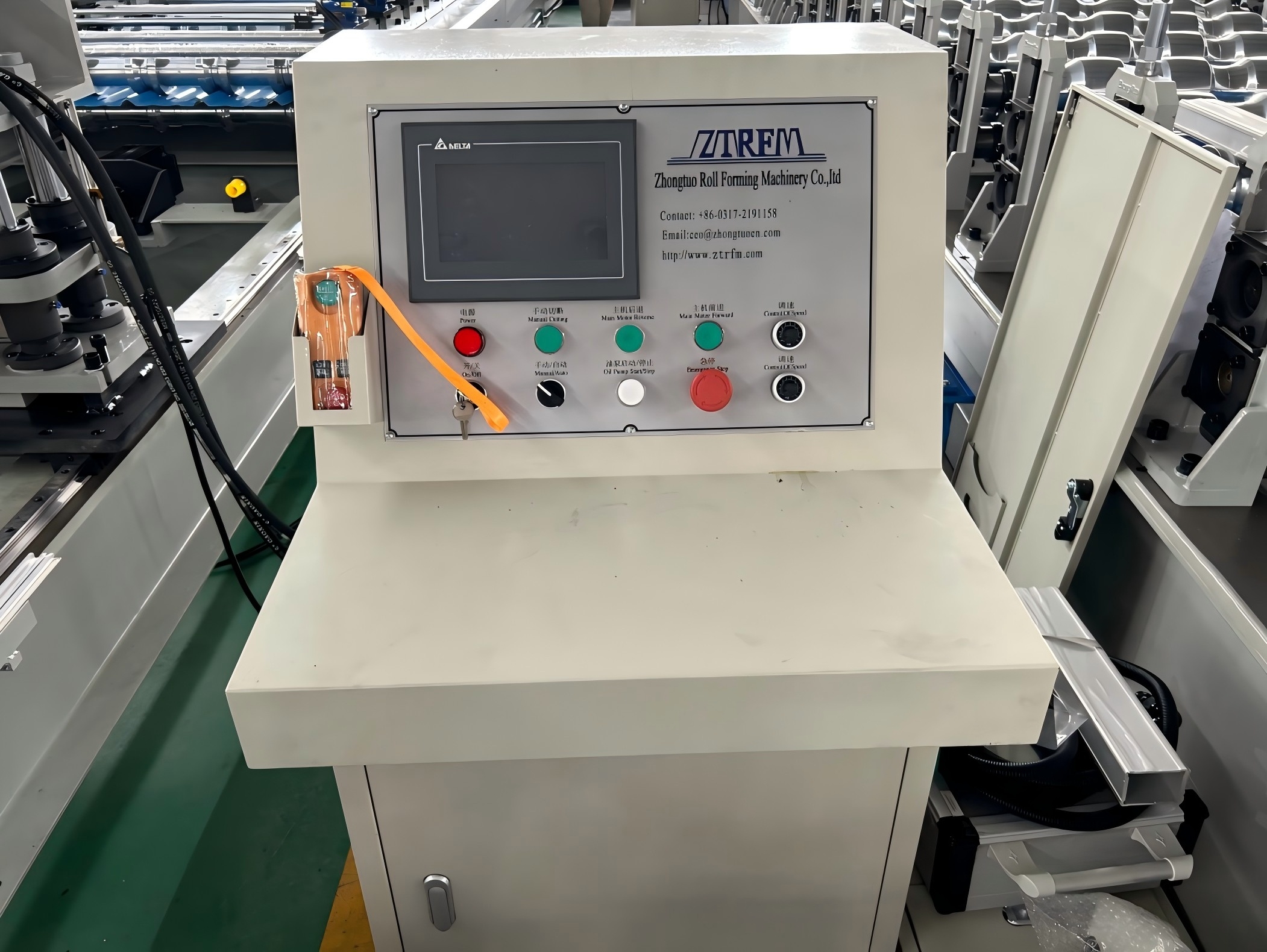

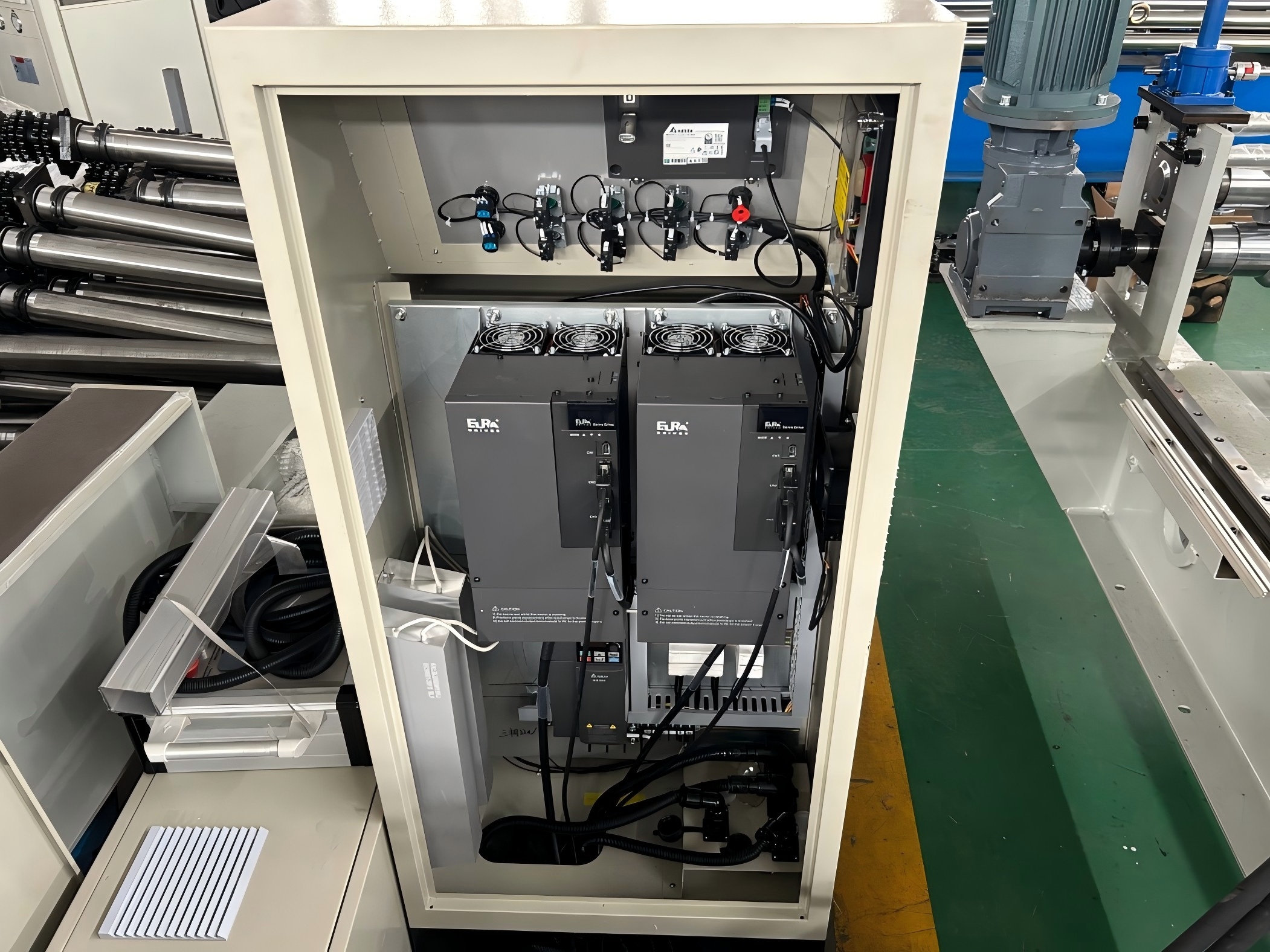

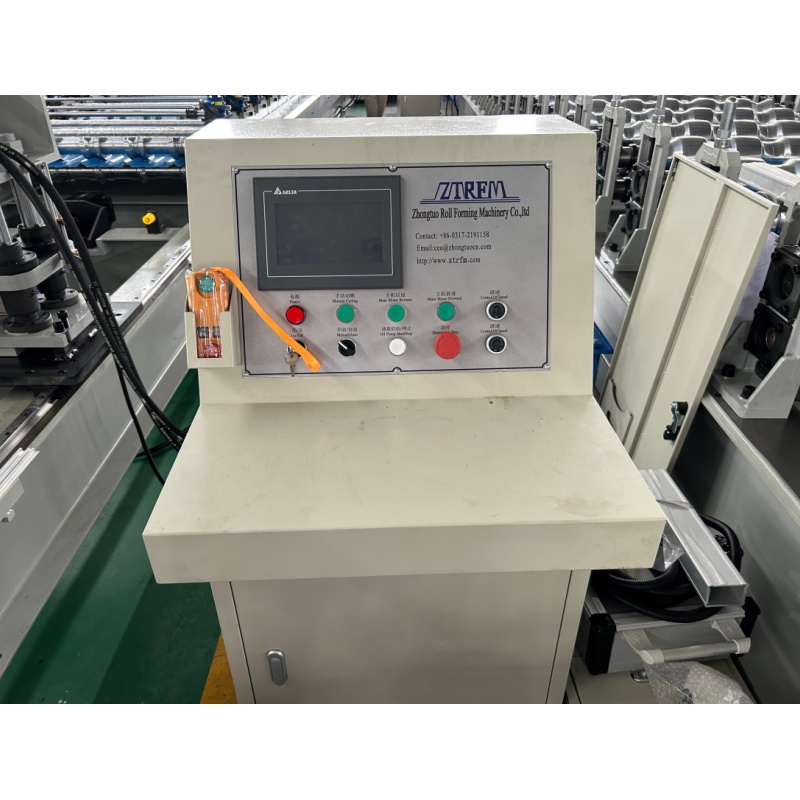

Machine photos:





Contact Us：

The value of a roof lies in its durability and freshness. Choosing a trapezoidal roof tile forming machine means choosing to deliver sturdiness, efficiency, and aesthetics to your customers together.

We provide a one-stop solution from tile design, equipment customization to operation training. We sincerely invite you to bring drawings or rolls to the factory for testing, and witness firsthand how a steel plate can transform into a solid roof that carries the glory of architecture in just a few minutes.
