Product Details
Reviews(0)

Technical Specifications

Thickness
0.3-0.8mm
Roller Station
20+24rows(As your requirement)
Diameter Of Shaft
80mm solid shaft
Material Of Rollers
45# steel, hard chrome plated on the surface
Drive
Chains transmission
Motor Power
7.5KW
Hydraulic System Power
5.5KW
Control System
PLC

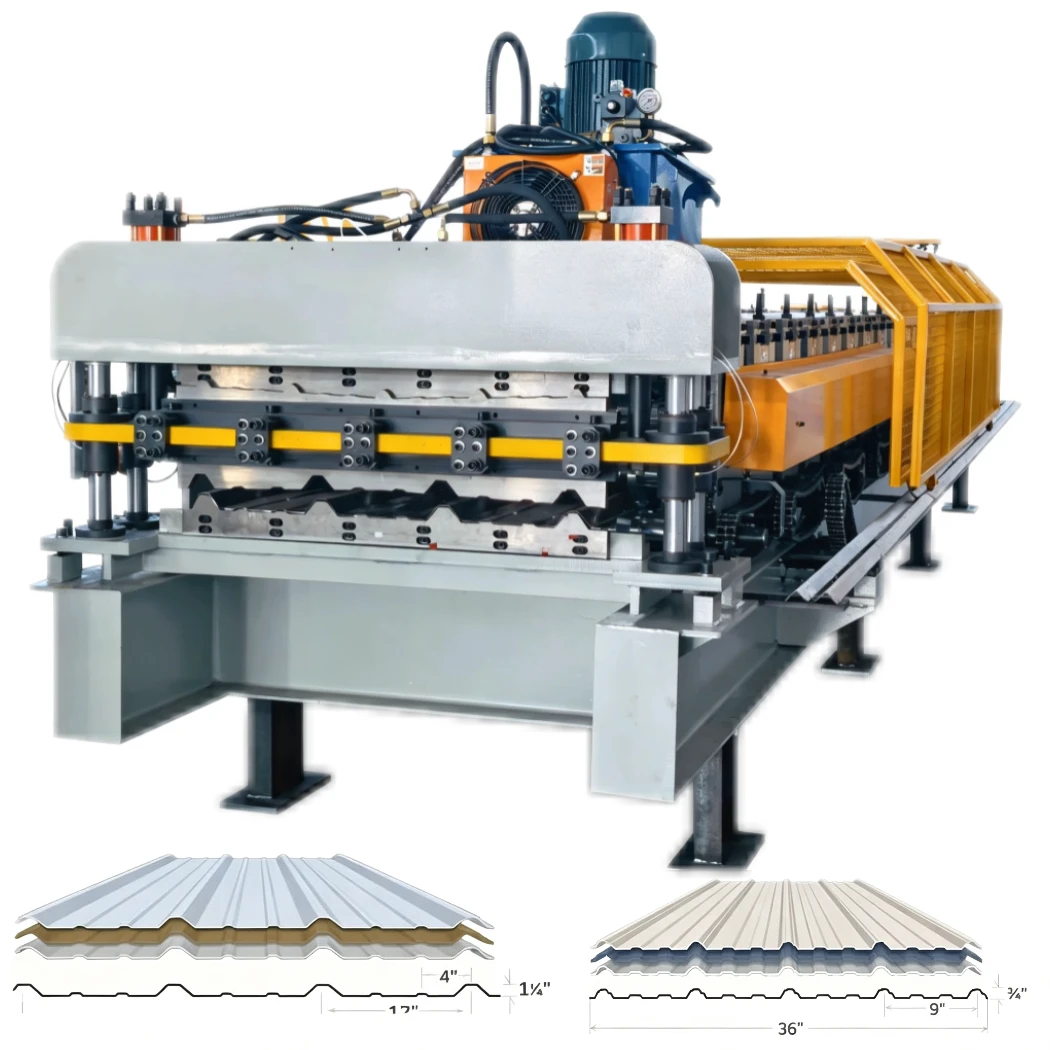

AG PBR/R Panel Double Layer Tile Making Machine

The AG PBR/R Panel Double Layer Tile Making Machine is an efficient production equipment that vertically stacks two completely independent cold bending forming units on the same high-strength frame. It is not simply stacking two single machines, but through integrated design, sharing hydraulic feeding, servo feeding, integrated electronic control and other systems. The upper and lower roller sets can each be equipped with molds of different tile types, such as pressing antique glazed tiles on the upper layer, producing wood grain buckle tiles on the lower layer, or making high wave trapezoidal tiles on the upper layer and low wave circular arc tiles on the lower layer.

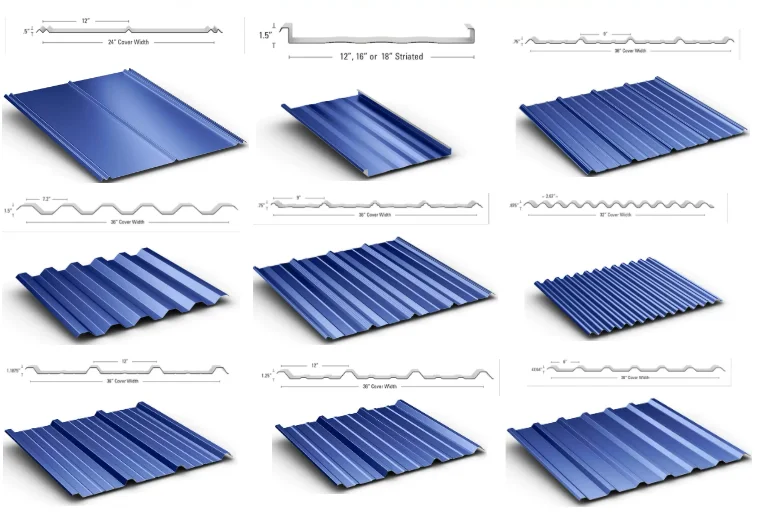

Roofing sheet profile drawing:

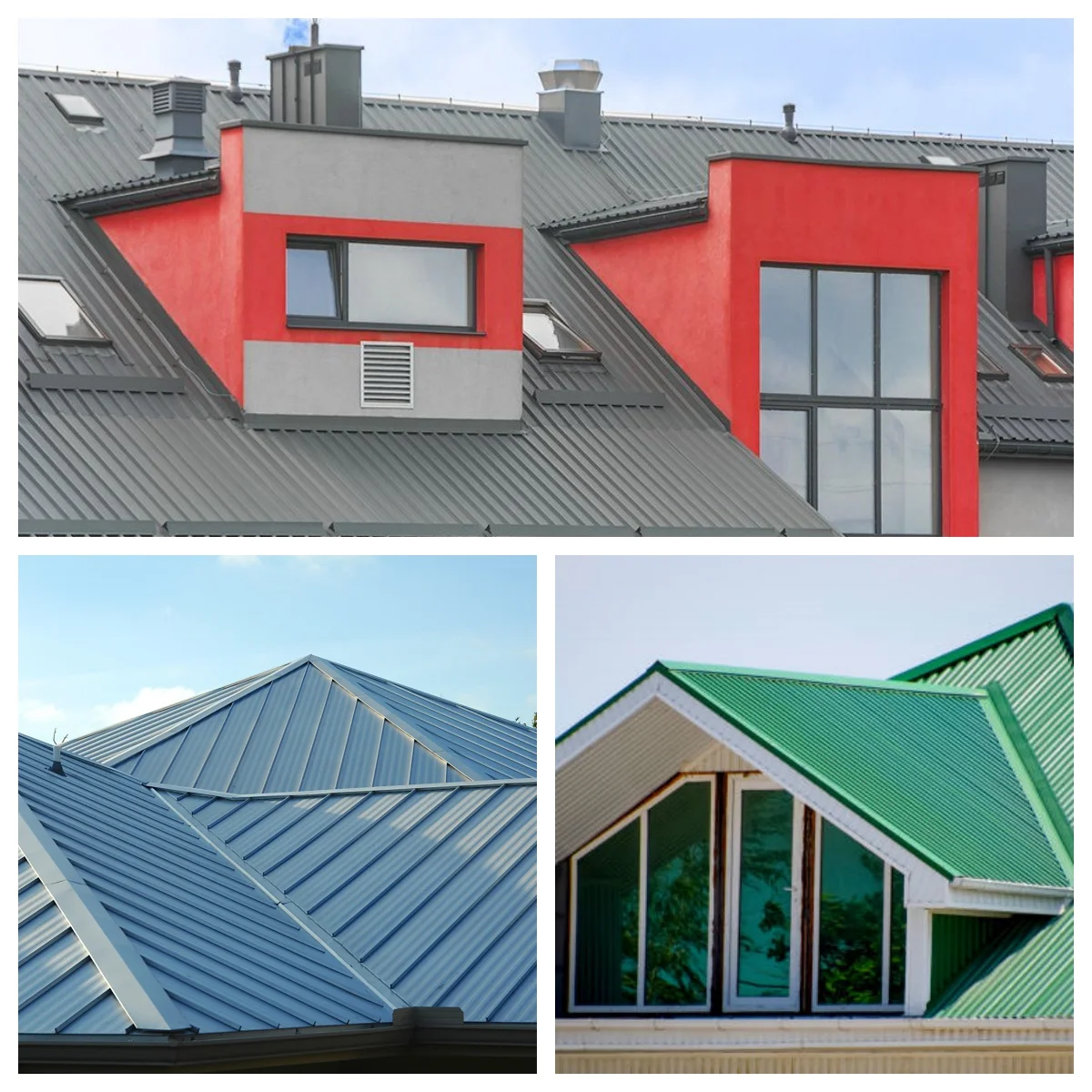

Roofing sheet installation and application:

Product Attributes :

AG PBR/R Panel Double Layer Tile Making Machine
1.Formed Material	PPGI,GI,AI,GL	Thickness:0.3-0.8mm Width:1220mm(As per profile drawing)
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free）
3.Main body	Roller station	20+24rows(As your requirement)
	Diameter of shaft	80mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	400 H steel
	Drive	Chains transmission
	Dimension(LWH)	1050016001600(customize)
	Weight	11.5T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	7.5KW
	Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min	The speed depends on the shape of the tile and the thickness of the material.

Products Display：

Contact Us：

When the color and shape of the roof become the personalized business card of the building, your production equipment also needs to be equally flexible and versatile. The double-layer roof tile forming machine combines the intelligence of the upper and lower layers, breaking the limitations of single machine and single type, allowing each production to perfectly match market demand, and winning more projects with a better cost structure.

Please feel free to contact us at any time to obtain a dual machine combination solution and detailed quotation for your main tile type. Let’s work together to open up a new era of efficient and flexible intelligent tile pressing.
