AFP AZ60 Zincalum Steel Coil Galvalume Metal Sheet G550 Az150 Anti-Finger GL Aluzinc Galvalume Cut-to-Size Metal Coil Shandong, China+55%+15-21 days+SPCC+JIS AISI ASTM GB DIN EN BS

Zhengzhou Wanzhi Steel Materials Co., Ltd

AFP AZ60 Zincalum Steel Coil Galvalume Metal Sheet G550 Az150 Anti-Finger GL Aluzinc Galvalume Cut-to-Size Metal Coil Shandong, China+55%+15-21 days+SPCC+JIS AISI ASTM GB DIN EN BS

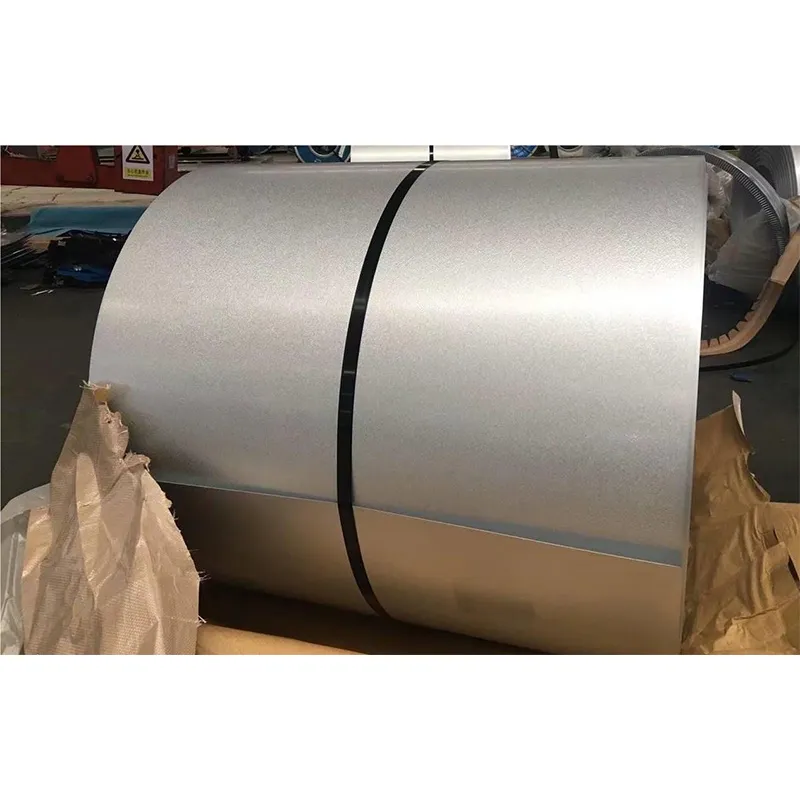

Name: AFP AZ60 Zincalum Steel Coil Galvalume Metal Sheet G550 Az150 Anti-Finger GL Aluzinc Galvalume Cut-to-Size Metal Coil Shandong, China+55%+15-21 days+SPCC+JIS AISI ASTM GB DIN EN BS
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:10 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥10Set

Order CodeZT46898021

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Coating
AZ121~Z150
Hardness
Full Hard
Spangle Type
Regular Spangle
Type
Steel Coil

Standard	EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
Grade	DC51D+AZ, DC52D+AZ, DC54D+AZ, DC53D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S450GD+AZ, S550GD+AZ
Thickness	0.12-4.0mm (customize)
Width	600mm-1500mm,according to customer's requirement
Length	as customer requirements
Zinc coating	AZ30-AZ150g/m2
Raw material	cold rolled base. (hot rolled base also available)
Coil weight	3-8 tons

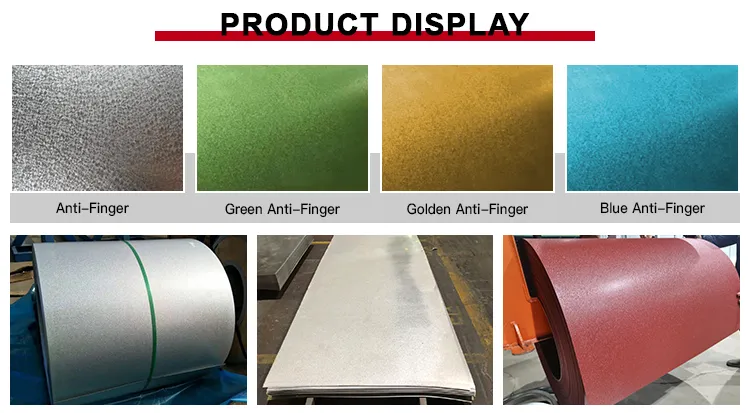

Surface treatment	chromated/non-chromated, oiled/non-oiled, anti-fingerprints
Certification	CE, ISO9001, SGS
Packaging	3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside
Payment terms	T/T, L/C, western union paypal etc
Delivery time	it takes about 10 days for stock goods, or it will need 15-25 days if goods need to be customized
MOQ	as customer needs. reminder: more quantity reduce your purchase cost greatly
Inspection	third-party test

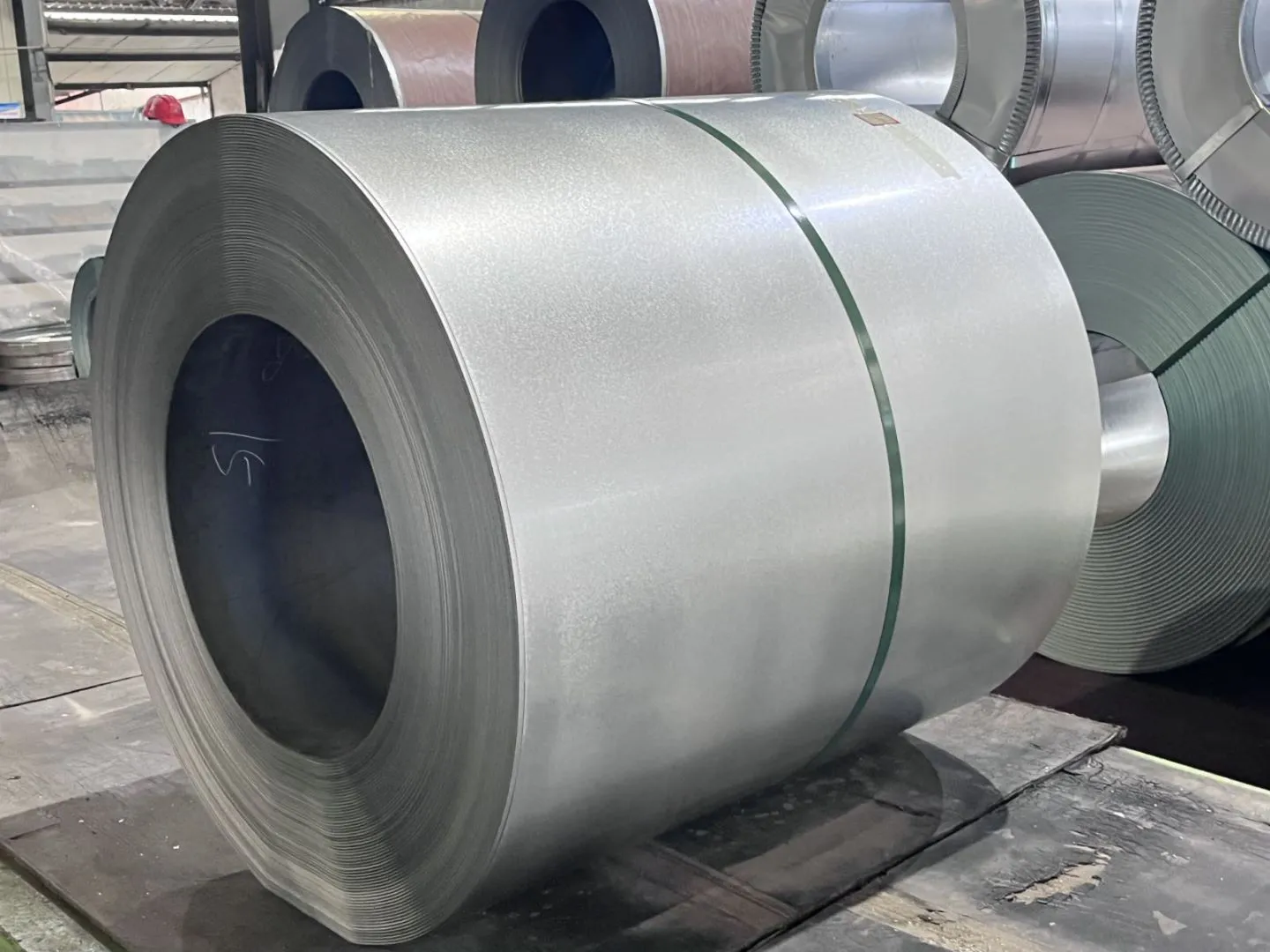

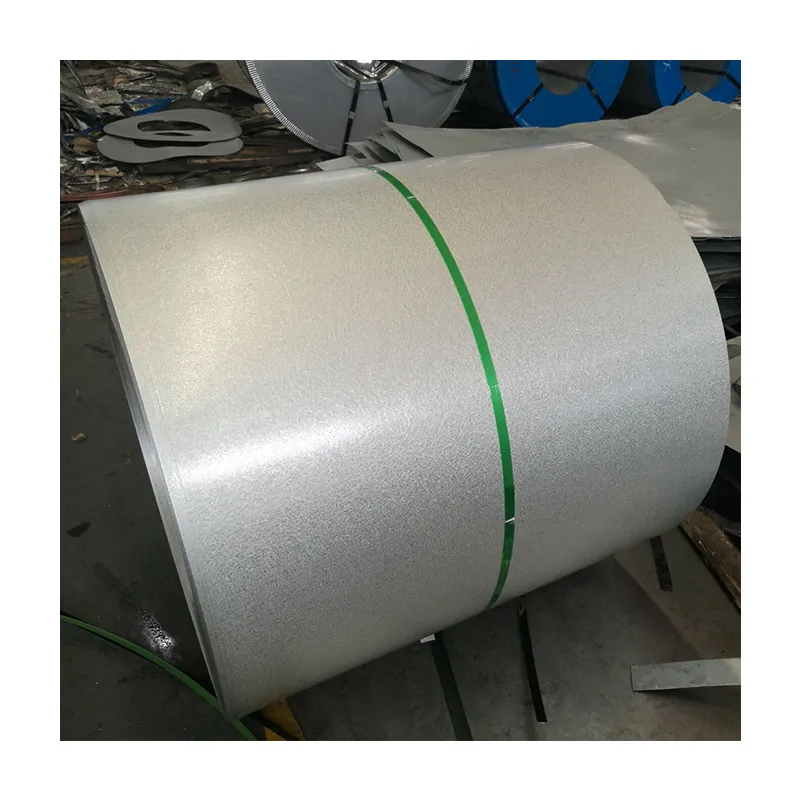

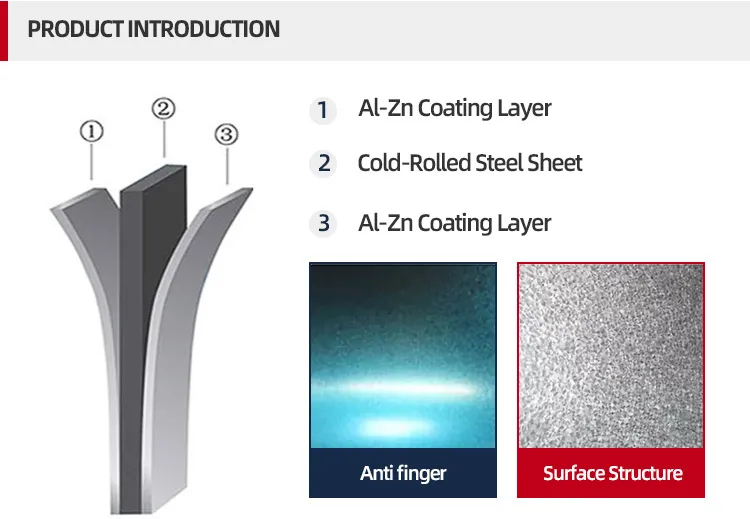

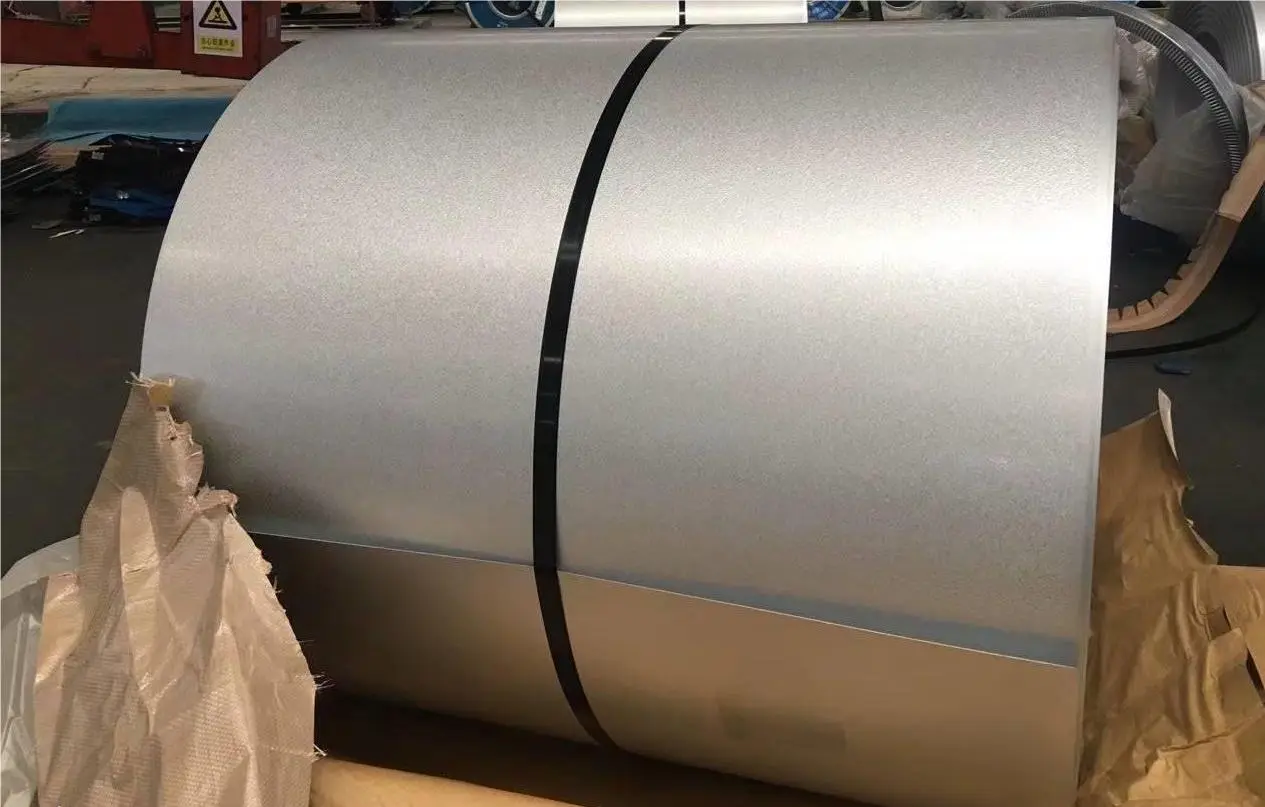

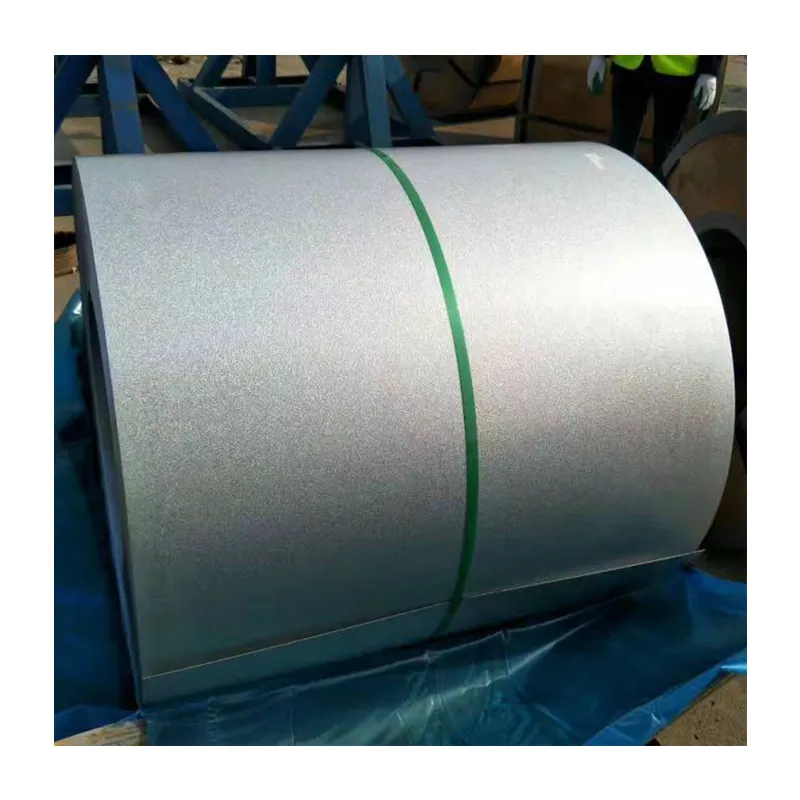

Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel,aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. And its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.

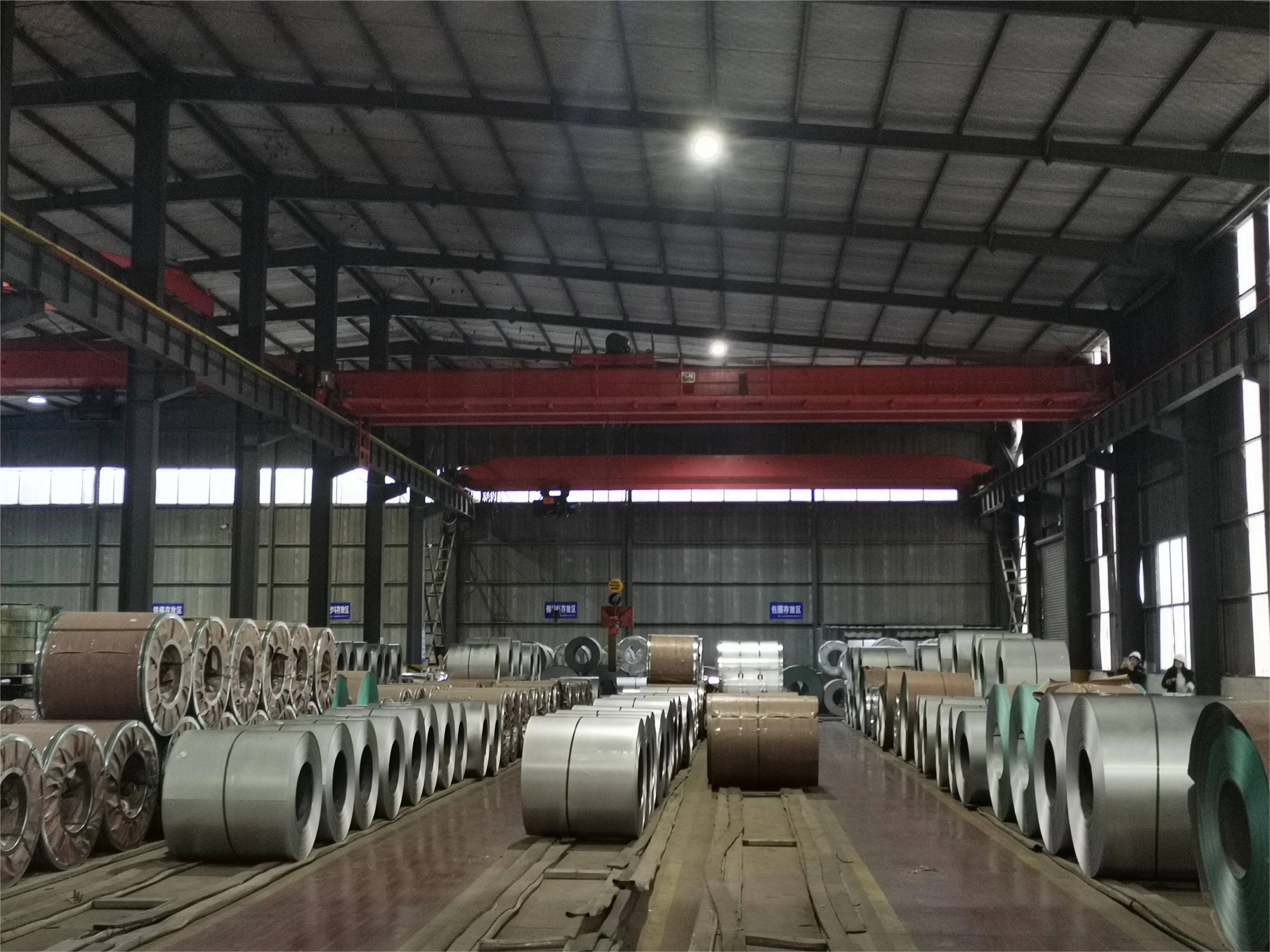

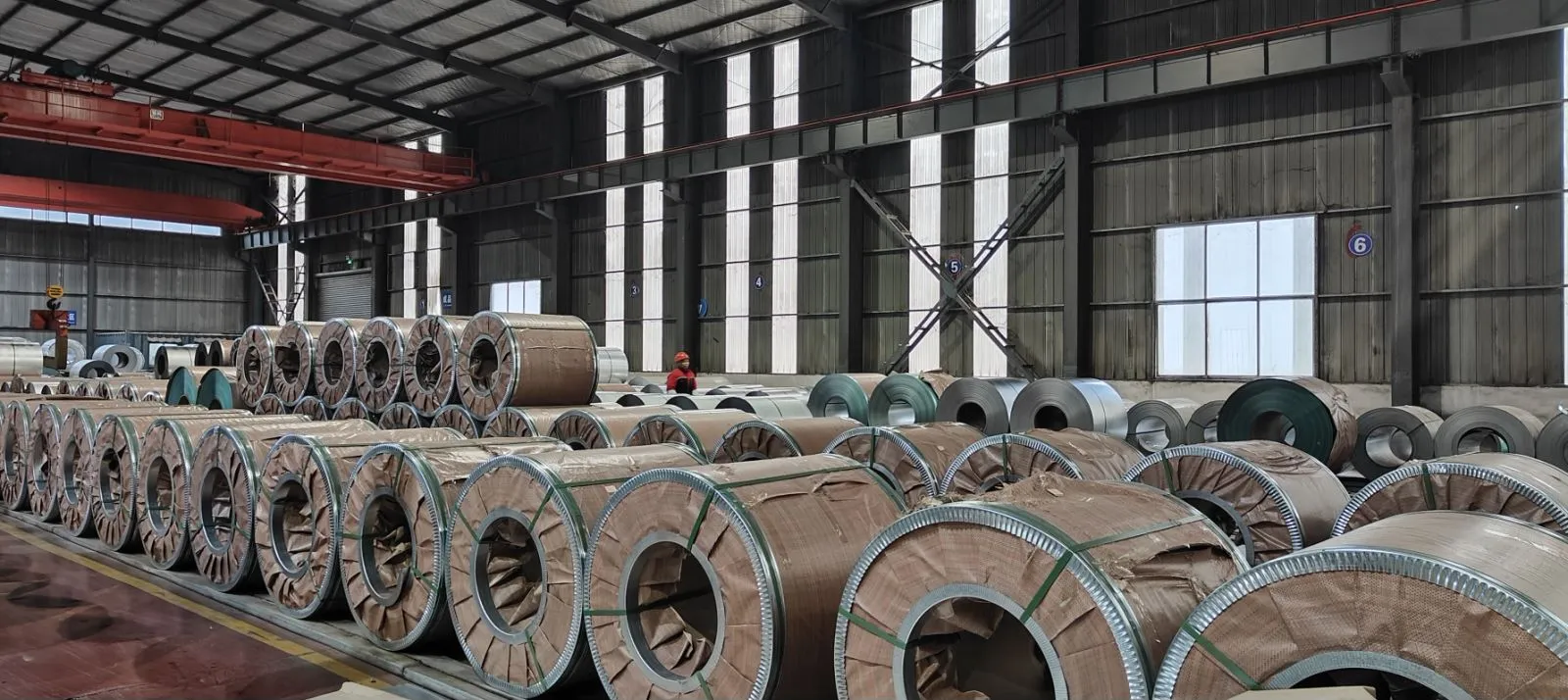

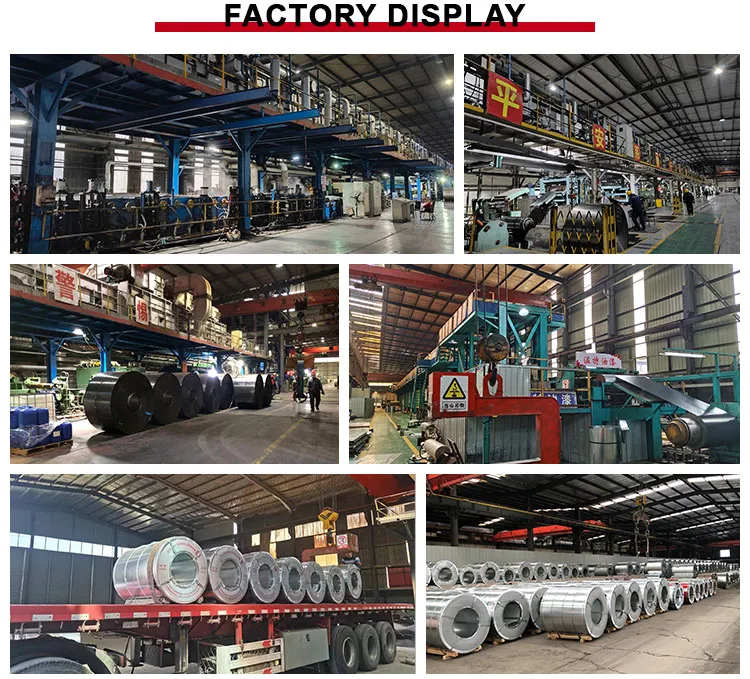

Production Line

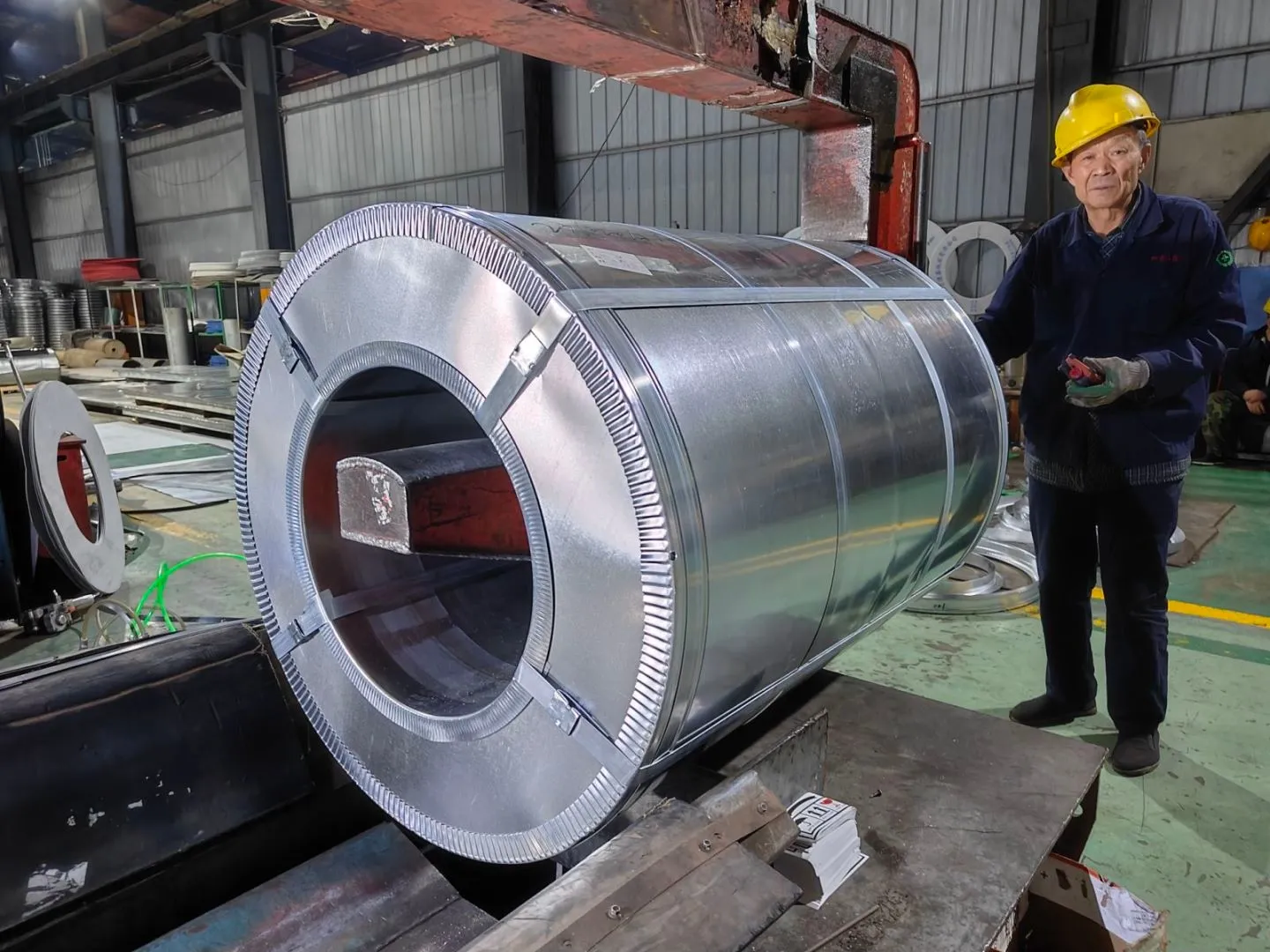

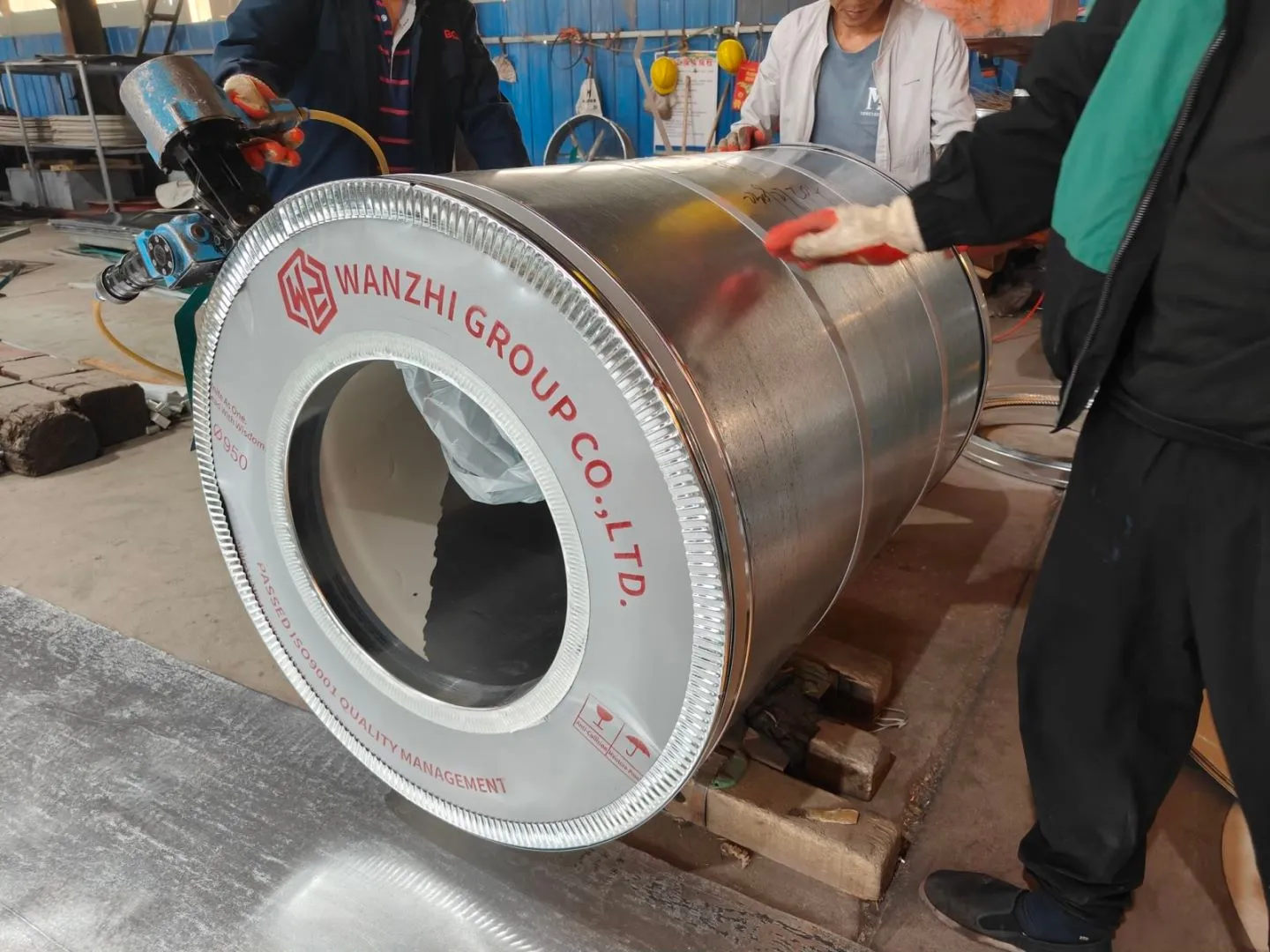

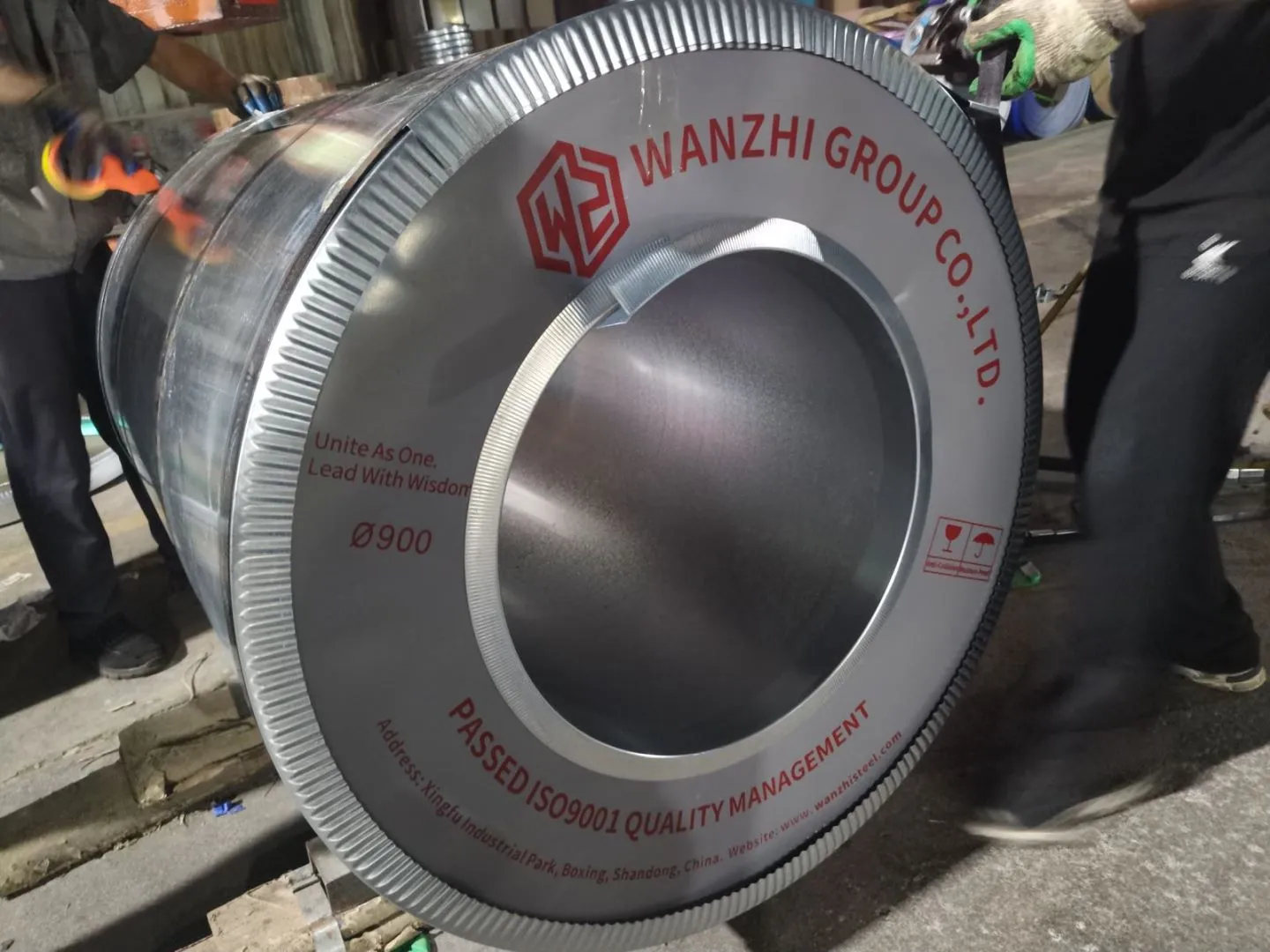

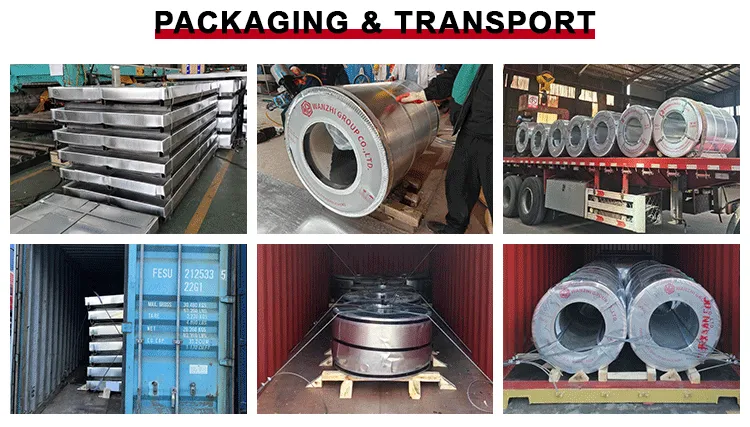

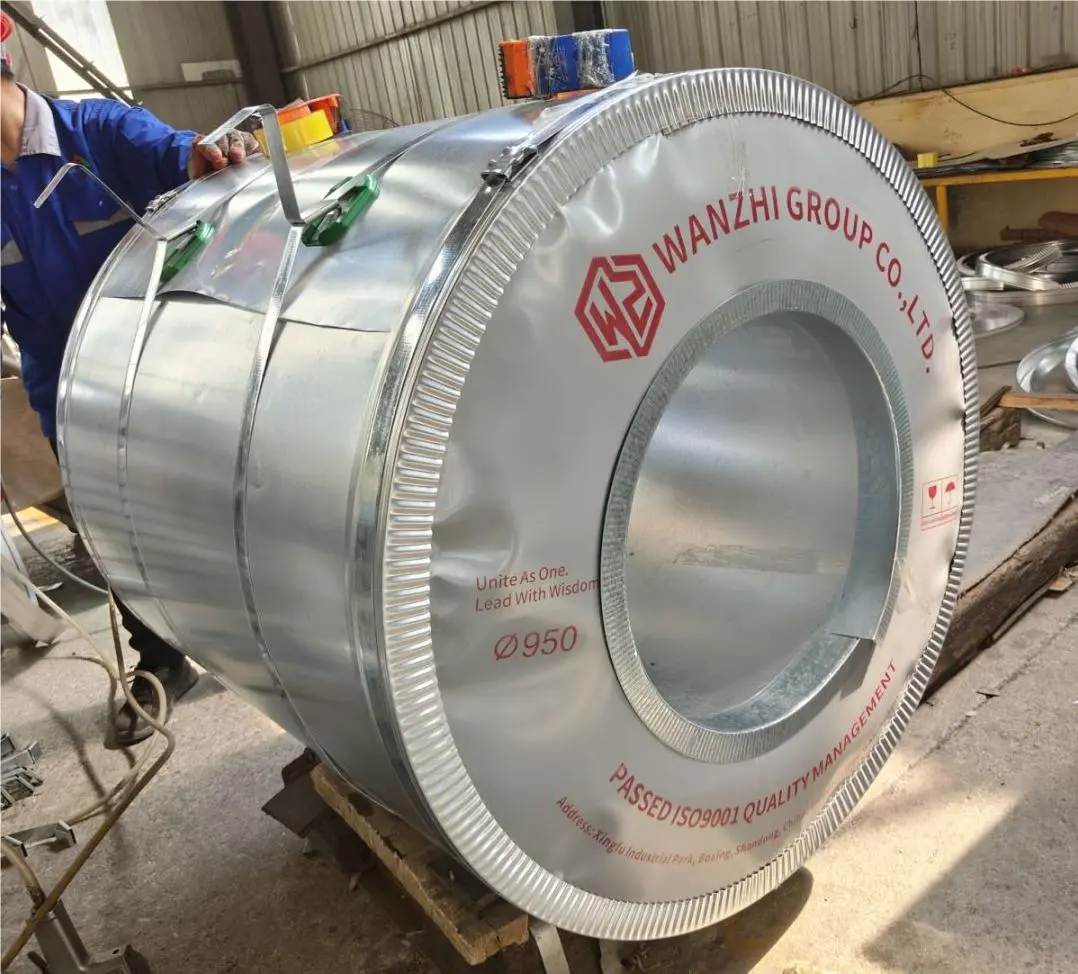

Product Packaging

Packaging
Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details 7-15 dyas,or according to the order quantity or upon negotiation.

Product Advantages

Great Features of Galvalume Steel
▶ Excellent Corrosion Resistance
Similar to galvanized steel, the Al-Zn coating will protect the base metal. Especially, when the zinc layer is worn, there will be a layer of dense alumina to prevent the base metal from further corrosion. It is proved that GL steel will serve 3 times longer than GI steel does. That’s why GL steel is preferred in severe environments.
▶Great Heat Resistance
Aluzinc steel has good heat resistance to withstand temperatures of more than 300 degrees Celsius, and it is often used in chimney pipes, oven illuminators, and lampshades.
▶High Heat Reflectivity
The thermal reflectivity of GL is twice of galvanized steel so it is often used as a heat-insulating material. Therefore, it is a better choice for roofing in a hot climate.
▶Beautiful Appearance
The surface of GL steel is smooth and with spangles, which makes it good-looking. So it can be used directly without painting.

For more details and discounts, check here >>> 7*24 hours service

We have hot dipped galvanized steel coils(GI)、 hot dipped Galvalume steel coils(GL)、steel strip、 roofing sheets、prepainted steel coils (PPGI、PPGL)，Stainless Steel coil ，aluminum coil sheet、zinc sheets and so on.

We also provide customized, if you have the need welcome to chat with us！！！

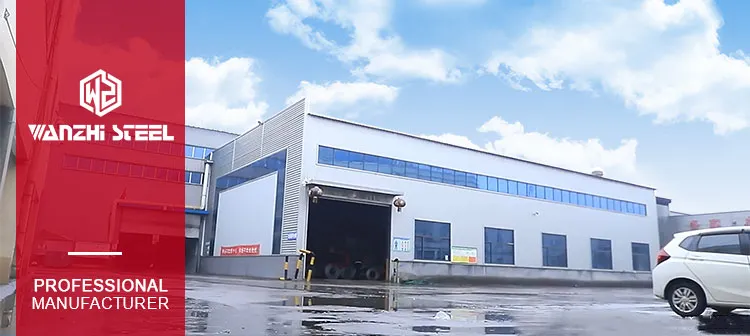

Wanzhi Steel,established in 2011,is a leading manufacturer and supplier of diversifed steel products in China.lt covers a wide range of steel products such as carbon steel, galvanized steel, aluminized steel, painted steel and stainless steel coils, strips, plates and sheets. Our factory has a 65,825 sqm plant and 60,000 sqm warehouse. Nine production lines are set up with an annual capacity of over 700,000 tonnes. Wanzhi Steel always insists on "Quality First".We have a strict quality inspection system with more than 20 professional inspectors and various precision testing instruments. Wanzhi Steel has been exporting steel for over 14 years and has served customers in over 130 countries and regions worldwide. As our company slogan says,"We are united in our aim to provide you with the best solutions"

FAQ

Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in SHANDONG,CHINA. We have a leading power in producing and exporting galvanized steel coil,galvalume steel coil,ppgi etc. We promise that we are what you are looking for.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .

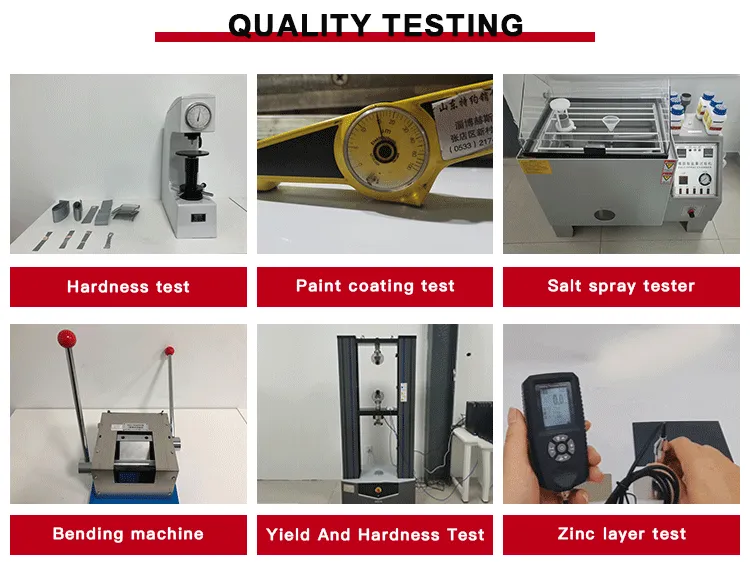

Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.
