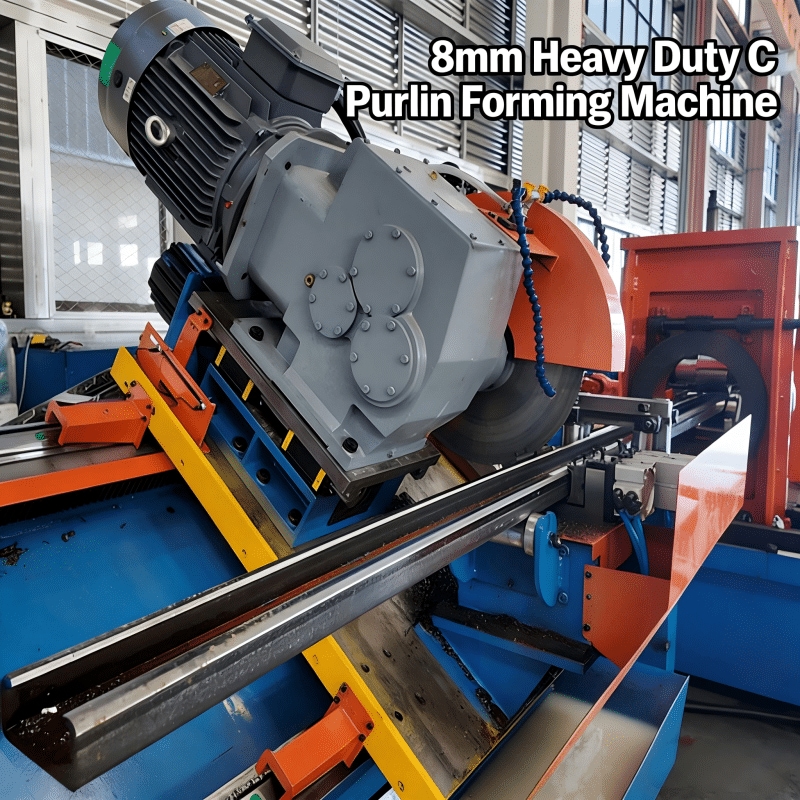

8mm Heavy Duty C Purlin Machine: High-Strength Roll Forming with Laser Cutting Technology

In the heavy industrial construction sector, the demand for thick-gauge structural steel components is rapidly increasing. The 8mm Heavy Duty C Purlin Machine (also known as a Heavy Steel Frame Forming Line) provides a powerful solution for manufacturing C-shaped purlins with material thicknesses ranging from 6mm to 8mm. Unlike standard thin-gauge machines, this equipment is engineered to handle the extreme torque and pressure required to shape thick, high-strength steel plates.

One of the standout features of this production line is the integration of laser cutting technology. Compared to traditional hydraulic shear, laser cutting offers superior edge quality, precise hole placement, and the flexibility to handle complex profiles without changing physical dies. With a production capacity of 25m/min, this machine combines heavy-duty durability with modern precision, making it an ideal choice for manufacturing structural beams for large-span industrial warehouses and multi-story steel buildings.

As a leading heavy duty roll forming machine manufacturer, Zhongtuo (ZTRFM) delivers CE and ISO certified equipment designed for long-term industrial reliability. Our heavy-duty models are built on a reinforced frame weighing approximately 6,500 kg, ensuring stability and accuracy even under high-load continuous operation.

Advanced Engineering for Heavy-Gauge Steel Forming

Forming 8mm thick steel arcareccios (purlins) requires a sophisticated multi-station roll forming process. The ZTRFM Heavy Duty Purlin Machine features precision-engineered rollers that gradually shape the thick steel plates to prevent stress cracks and maintain profile structural integrity. The entire line is synchronized by an advanced PLC control system, allowing for "Easy to Operate" management of production speed, batch quantity, and cutting lengths.

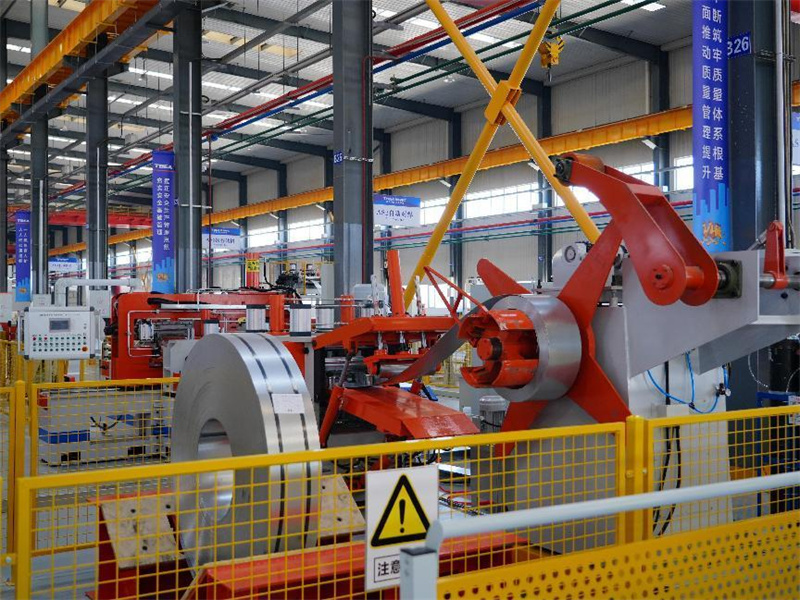

To support the weight of heavy-duty steel coils, the line includes a 5T Hydraulic Decoiler. The main rollers are crafted from high-grade alloy materials with professional heat treatment and chromed finish, providing exceptional wear resistance. The machine's 15 kW power system ensures sufficient torque to process high-strength galvanized or hot-rolled steel consistent across the entire shift.

Furthermore, the integration of laser cutting eliminates the secondary processing often required for heavy purlins, significantly reducing factory labor costs and improving overall "High Efficiency."

Key Selling Points of ZTRFM 8mm Purlin Machine:

• Heavy Duty Capability: Specifically designed for 6-8mm thickness
• Integrated Laser Cutting: Superior precision and clean edges
• High-Speed Production: Up to 25m/min efficiency
• Robust Construction: 6.5-ton reinforced machine frame
• Siemens/Imported PLC: Reliable and flexible automation
• High Power System: 15 kW motor for extreme forming torque

Technical Specifications: 8mm Heavy Duty C Purlin Machine

Choosing a Heavy Gauge Steel Forming Machine requires attention to power and material handling capacity. The ZTRFM series is built to industrial standards for maximum uptime.

Technical Item	Heavy Duty Specification Detail
Machine Type	8mm Heavy Duty C Purlin Roll Forming Machine
Material Thickness	6.0 mm – 8.0 mm (Heavy Gauge)
Forming Speed	15 – 25 m/min (Adjustable)
Cutting Method	High-Precision Laser Cutting
Main Power	15 kW (High Torque Motor)
Control System	Imported PLC with Touch Screen
Decoiler Type	5 Ton Hydraulic Decoiler
Total Weight	Approx. 6,500 kg
Dimensions	9.0m * 1.5m * 1.5m
Warranty	2 Years with Life-Time Tech Service

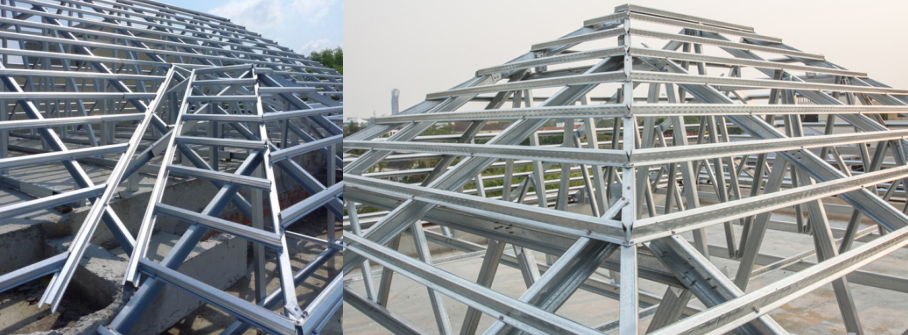

Applications: Structural Integrity for Heavy Industry

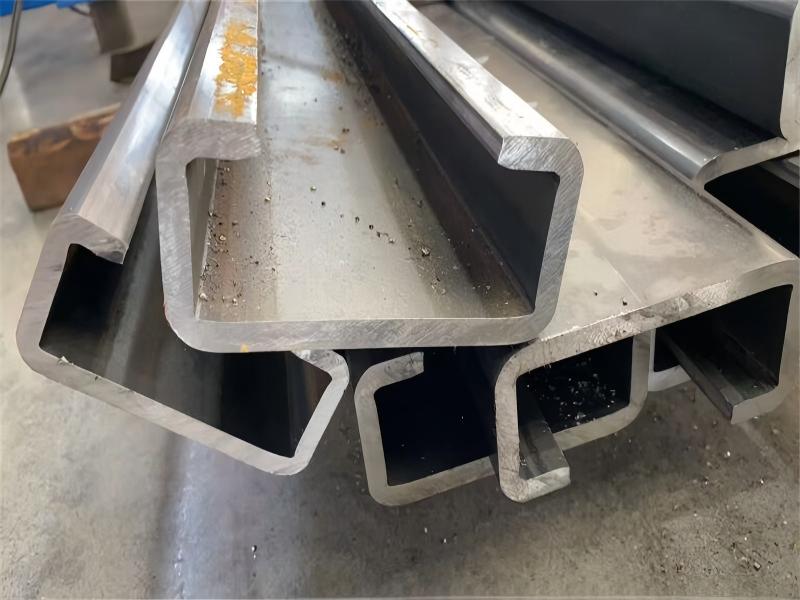

The 8mm C Purlin produced by this machine is a critical component for structural stability in large-scale engineering. By investing in a heavy-duty roll former, manufacturers can supply the high-strength members required for the most demanding construction projects.

Typical applications include:

• Primary structural support for heavy industrial warehouses
• Multi-story steel frame building foundations
• Structural members for bridges and infrastructure
• Heavy-duty agricultural storage facilities
• Commercial building load-bearing frames
• Customized high-strength structural profiles

Moreover, the use of laser cutting ensures that the bolt holes in these thick purlins align perfectly during assembly, enhancing building safety and reducing on-site installation time.

Zhongtuo: Setting the Standard for Heavy Roll Forming

Investing in a ZTRFM Heavy Duty C Purlin Machine means choosing technical leadership and long-term partnership. With a 2-year warranty and a machinery test report provided for every unit, we ensure your investment is protected. Our expertise in 8mm forming is trusted by global contractors for its high precision and high efficiency.

We provide comprehensive after-sales support, including life-time technology service and on-site guidance if required. Whether you are upgrading your facility or starting a new high-strength profile line, our engineering team provides custom designs within 3 days.

Contact Zhongtuo today to learn how our Heavy Duty 8mm Purlin Solutions can strengthen your manufacturing capabilities.
