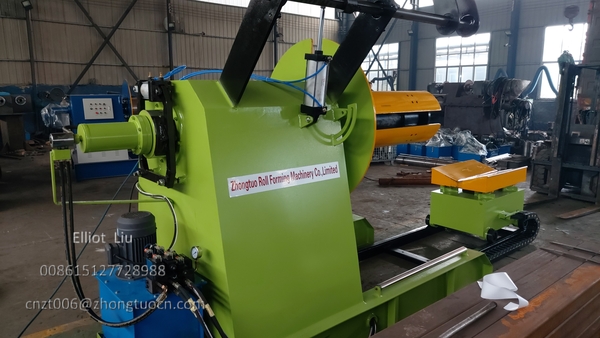

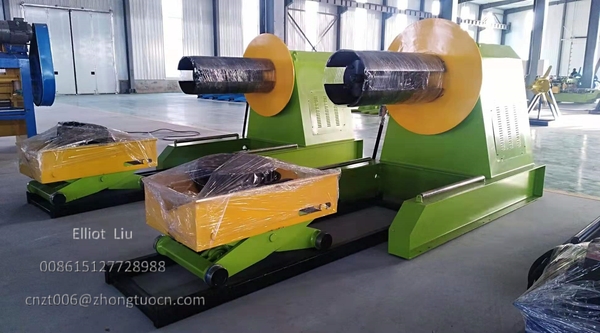

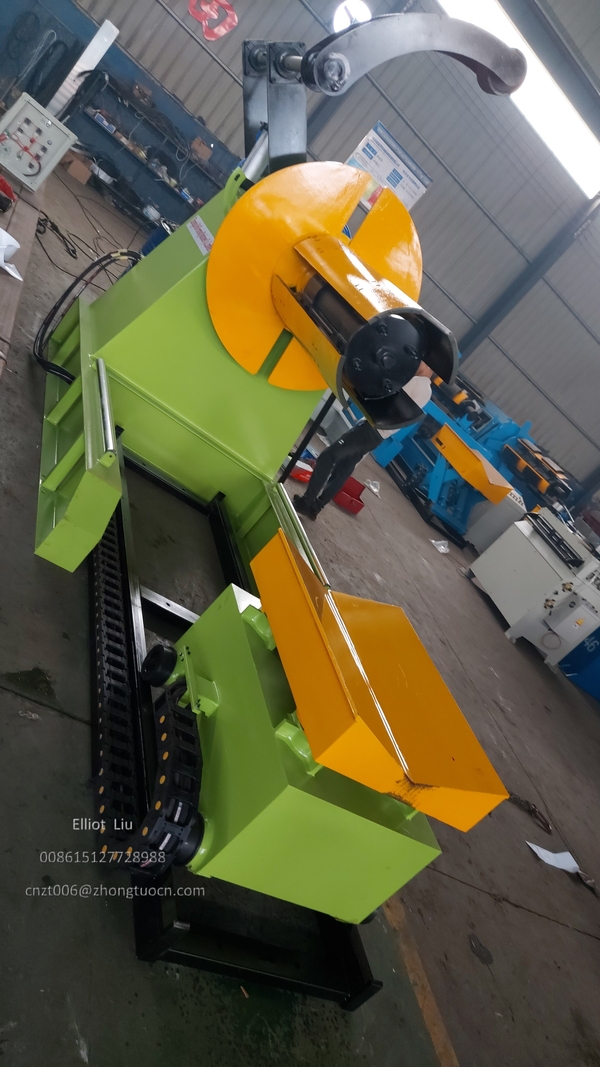

7T Automatic Hydraulic Decoiler with PLC Press Arm and Speed Control 5 tons, 6 tons, 7 tons (universal)

7 Ton Automatic Decoiler Prevents Costly Main Shaft Problems

Does a decoiler main shaft bend or sag under heavy loads? You load several tons of steel coil onto it every day, and the two ends of the shaft bear different forces. Will it gradually bend over time? Once it bends, uncoiling becomes unstable, and your downstream punch presses and roll formers all start having problems.

This 7 ton automatic decoiler is built specifically for heavy duty conditions. Its main shaft is machined from thick wall seamless steel tubing, with dimensions and wall thickness designed for long term load bearing. As a hydraulic decoiler with press arm, it also provides additional outer coil control during uncoiling. Let me walk you through three aspects: shaft structure, common problems, and real benefits. That will help you understand how to choose the right main shaft for a heavy duty decoiler.

Applications

This 7 ton automatic decoiler serves the following production scenarios under heavy loads:

• Structural steel framing and heavy section purlins, with coil weights typically in the 5 to 7 ton range

• Heavy gauge cable trays and support systems that require stable uncoiling

• Industrial storage rack uprights and beams that need continuous uncoiling over long periods

• Heavy duty roof and wall cladding panels with greater material thickness

• Large section solar mounting structures with high order volumes and frequent coil changes

Main Shaft Design of the 7 Ton Automatic Decoiler

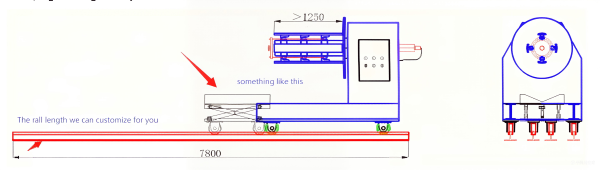

The main shaft is the core component that directly bears the coil weight on the decoiler. The steel coil mounts onto the shaft, with one end fixed to the frame and the other end suspended. The heavier the coil, the greater the downward force on the suspended end.

This 7 ton automatic decoiler uses a main shaft machined from thick wall seamless steel tubing. Compared with ordinary welded pipe, seamless steel tubing has no weld seams and a more uniform material structure. The shaft diameter of 194mm and wall thickness of 45mm are sized to match the rated load range.

The shaft undergoes turning and machining during production. This helps ensure that after the coil mounts onto the shaft, its rotation center aligns properly with the shaft center during normal operation.

Advantages of the Hydraulic Decoiler with Press Arm

The shaft maintains straightness under rated loads. The rigidity of thick wall seamless steel tubing supports stable operation under coil weights of 5 to 7 tons on this 7 ton automatic decoiler.

Expansion stays reliable without damaging the inner wall. With a stable shaft structure, the hydraulic expansion force applies evenly across the coil inner wall, reducing the risk of localized pressure marks on the material.

Uncoiling speed stays consistent. A straight shaft supports steady rotation. The automatic speed adjustment for decoiler helps downstream equipment receive strip steel with more consistent tension.

Longer service life. Thick wall seamless steel tubing offers good fatigue resistance under daily multiple coil changes.

Suitable for continuous production lines. A solid shaft structure helps the 7 ton automatic decoiler run steadily over extended periods. The plc controller decoiler machine system gives operators reliable speed regulation and remote control.

After all these benefits of the shaft structure, you might wonder: what actually happens if the shaft design falls short? Let me walk through how heavy coils create bending risks and how those risks translate into real losses.

Why Heavy Coils Risk Bending the Main Shaft

The effect of coil weight on the main shaft goes beyond just whether it can physically support the load.

First, a steel coil is not a rectangular block but a cylinder. The center of gravity sits at the geometric center, but coils can have slight variations in wall thickness or uneven ends during production, causing the center of gravity to shift away from the shaft centerline. This eccentric load puts additional bending moment on the shaft.

Second, during each coil change, the coil slides onto the shaft. If there is any gap between the inner diameter and the shaft, the coil may wobble slightly during the initial rotation. This impact load repeats with every coil change and stresses the shaft more than static weight alone.

Third, a heavy duty decoiler may go through multiple coil changes every day. Each loading and unloading cycle adds stress. Over time, the internal stress in the shaft material gradually accumulates. That is why some shafts work well at first but develop bending or cracks over time.

Hidden Costs of a Weak Main Shaft

A bent or sagging main shaft creates more than equipment problems. It costs you real money.

When the shaft bends slightly, uncoiling speed fluctuates, and strip tension varies. Too much tension stretches the material; too little creates wrinkles. Both produce scrap. On a line producing dozens of tons per day, even a small increase in scrap rate eats into your monthly profit.

Replacing a shaft is not a quick job. Dismantling, rigging, realigning takes time. Lost production time plus the cost of a new shaft add up fast. Uneven tension also subjects downstream dies to uneven impact loads, which can shorten die life and increase replacement frequency. The time and cost of die changes ultimately get passed into every part.

One more cost that often gets overlooked: when the shaft bends slightly, operators may not notice, but bearing noise gradually increases. By the time the noise becomes obvious, both the shaft and the bearing housing are already damaged. Repair costs end up much higher than replacing just the shaft.

Choosing the right main shaft for your 7 ton automatic decoiler helps support production stability. The shaft doesn't get much attention during daily operation, but once something goes wrong, replacement and downtime costs are significant. If you are selecting a decoiler, or if your existing shaft has been in use for many years and needs replacement, feel free to reach out. Tell us your coil specifications and working conditions, and we will give you a tailored shaft configuration recommendation.
