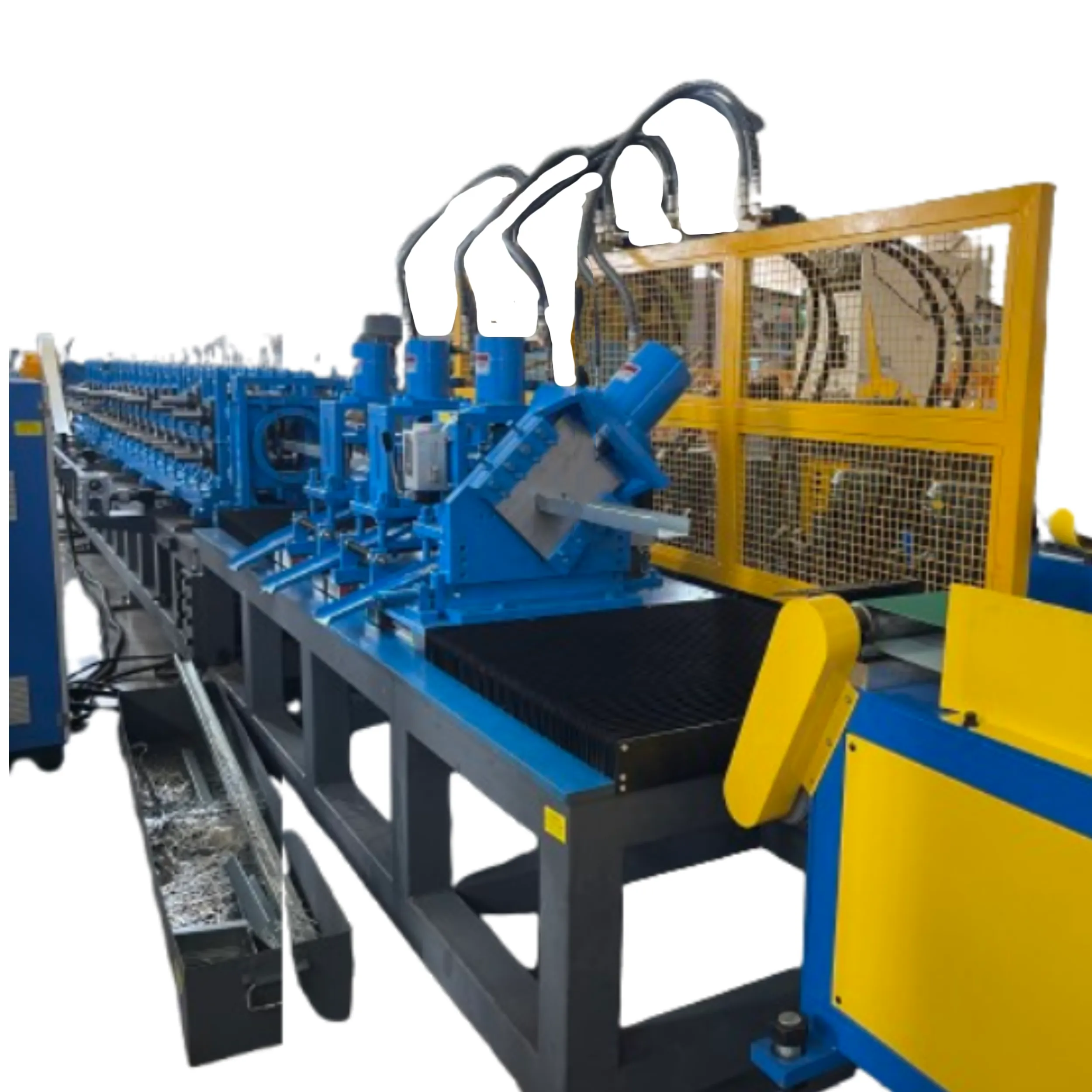

70m/min High Speed PLC Controlled Gear Drive CU Light Gauge Steel Framing & Channel Forming Machine 70m/min+High Speed CU Light Gauge Steel Framing Machine+Customized

Cangzhou Zhongtuo International Trade Co., Ltd

70m/min High Speed PLC Controlled Gear Drive CU Light Gauge Steel Framing & Channel Forming Machine 70m/min+High Speed CU Light Gauge Steel Framing Machine+Customized

Name: 70m/min High Speed PLC Controlled Gear Drive CU Light Gauge Steel Framing & Channel Forming Machine 70m/min+High Speed CU Light Gauge Steel Framing Machine+Customized
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT76183268

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

70m/min

Model Number:

High Speed CU Light Gauge Steel Framing Machine

Max. Working Width:

Customized

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
Customized
Voltage
380 V
Power(W)
22kw

Product Description

High Speed CU Light Gauge Steel Framing Machine

Zhongtuo offers customizable C-stud and U-track Light Gauge Steel Framing Machine, with adjustable production speeds. Our machines can reach speeds of up to 70m/min, equipped with dual-head hydraulic uncoilers and automatic stacking machines. The machines feature high production speeds and reliable quality, having obtained import certifications such as ISO, CE, and CSA from various countries. They are worth your consideration!

High Speed CU Light Gauge Steel Framing Machine
Feeding device:	With three rollers.
Rolling shaft :	Shaft diameter:70 mm
Shaft material:	45# STEEL Tempering treatment Rollers
Roller staions	15 rows
Material:	GB-Cr12(Tempered treatment (heat treatment) 56-58 degrees)
Machine frame can be moved:	Control by servo motors
Transmission	By gear box
Machine frame:	Vertical arch frame structure
Motor power:	7.5 KW +11KW

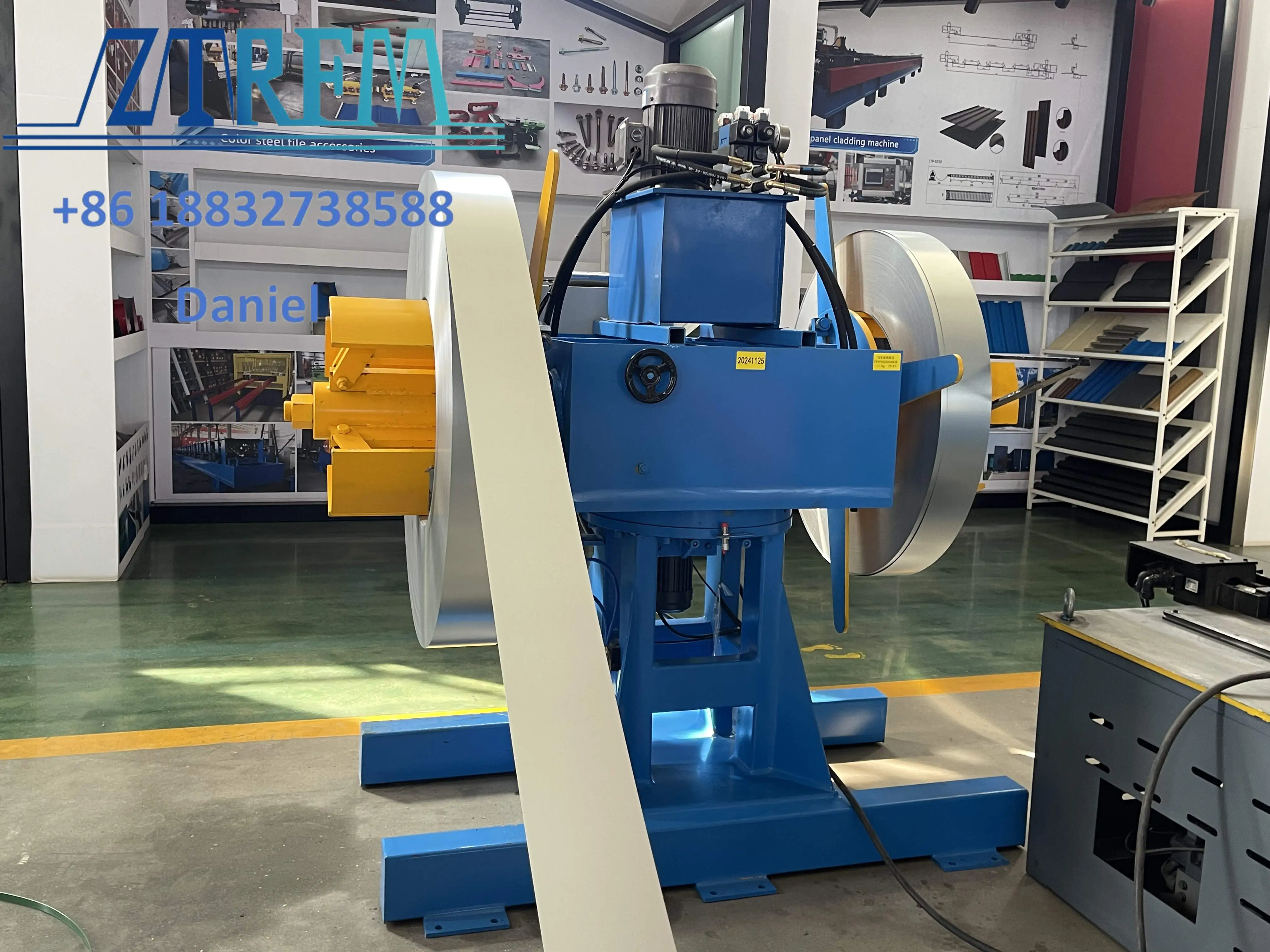

3 Tons double head hydraulic Decoiler

Usage: The double-head hydraulic uncoiler can reduce the time required to change steel coils during operation, saving time and improving
efficiency.
Active uncoil by hydraulic station
Loading capacity: 3 T
Uncoiling width: 300mm
Inner diameter: 450-550mm

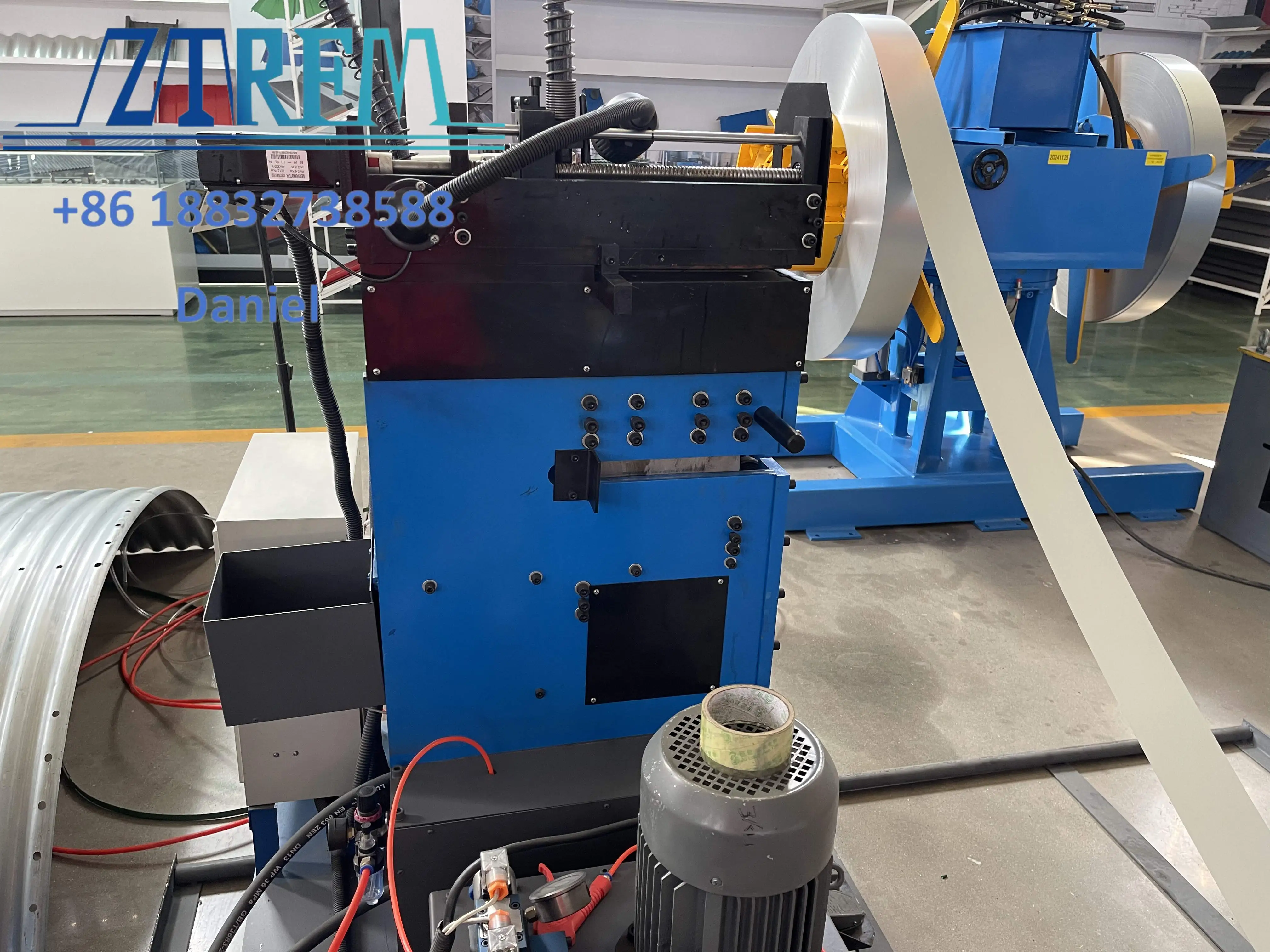

Shearing and butt welding integrated machine

Used to cut two rolls flat during roll replacement on a hydraulic uncoiler, then weld them together to save feeding time.

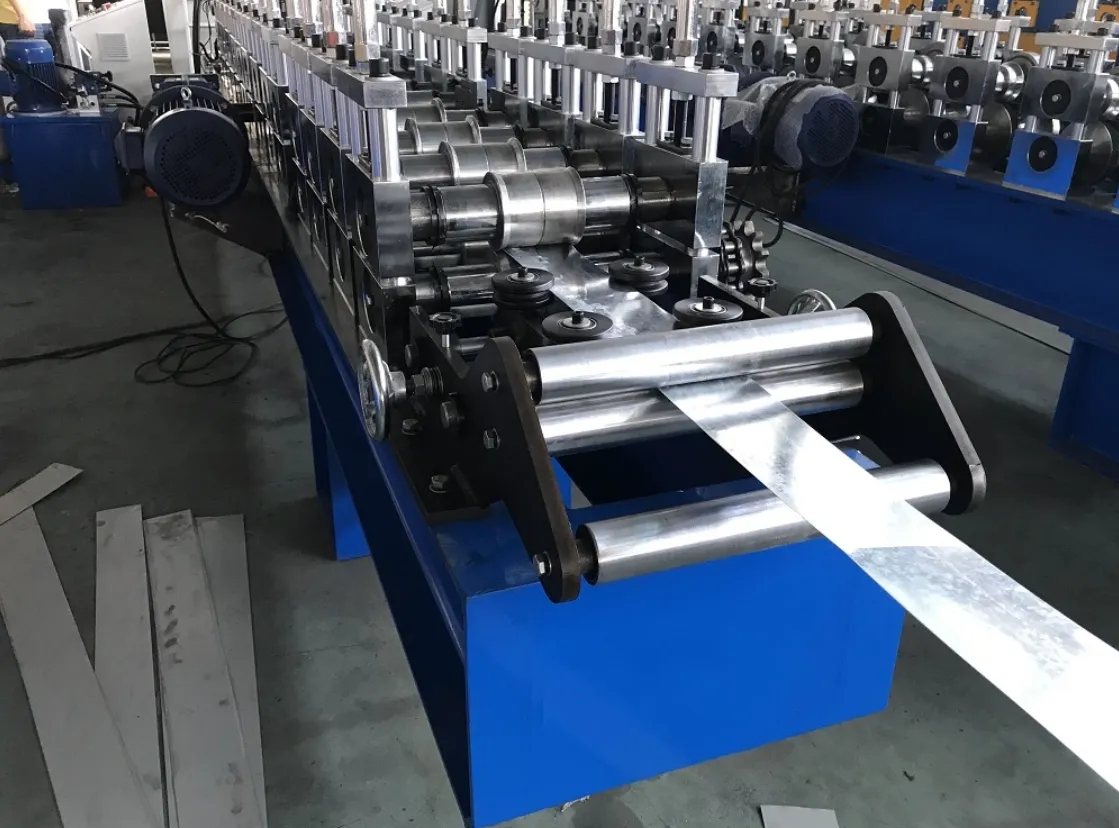

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

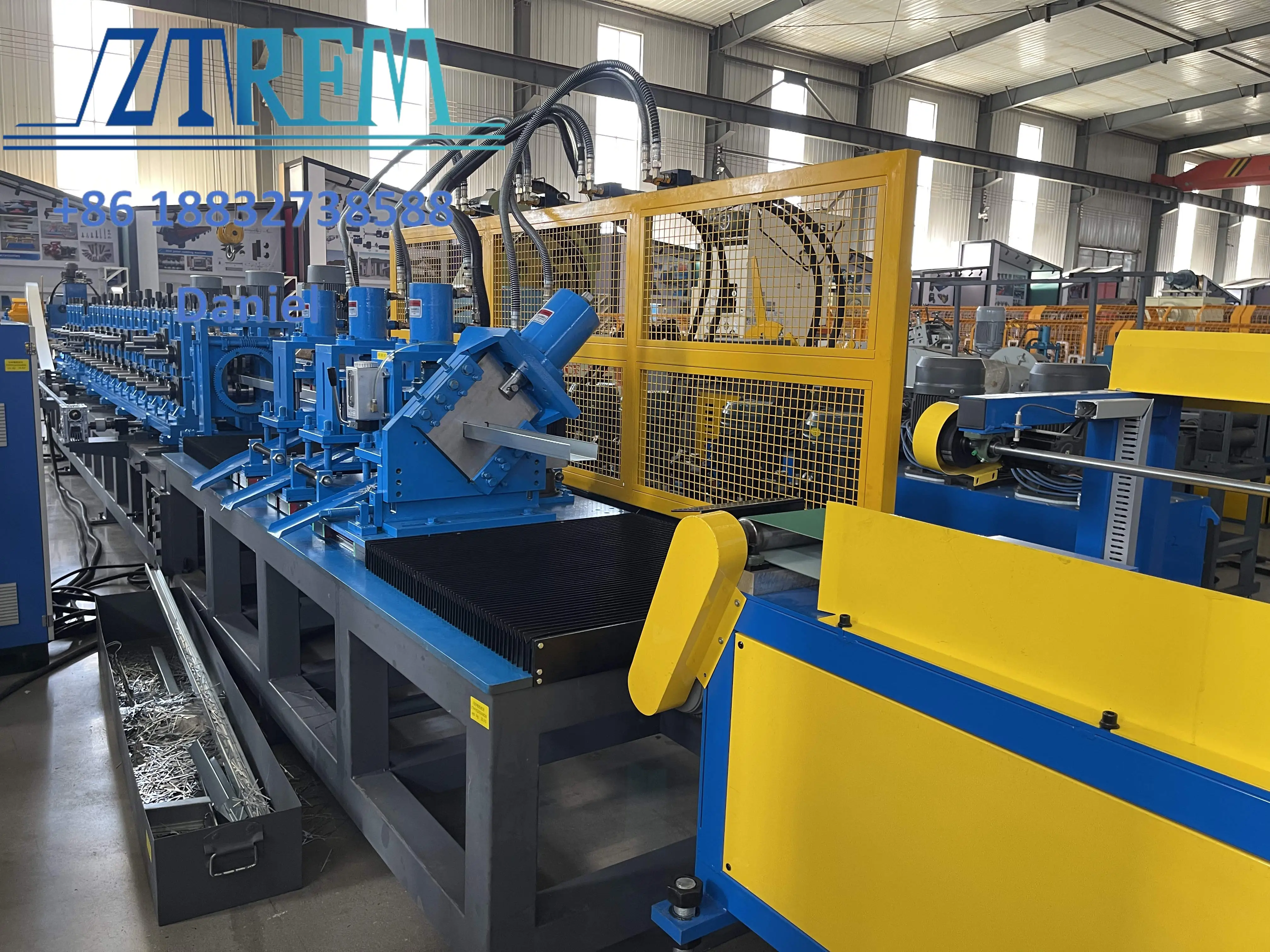

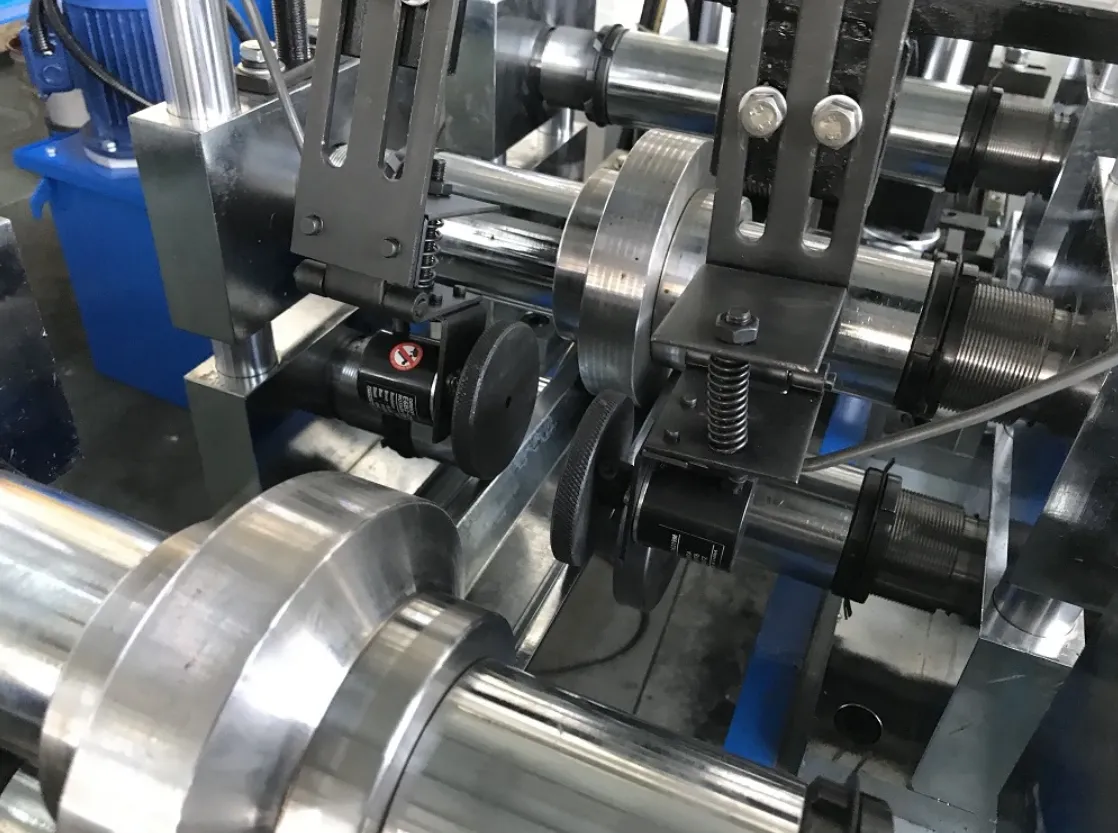

Main roll forming machine

Roller fixer : Guide column
Frame : middle plate welded, Memorial arch frame type
Frame thickness:20mm
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm
Number of rollers : 16rollers
Main power: 11 kw+11kw

Cutting system

Material of blades: Gcr12MoV quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
The different sizes can be produced on this machine by adjusting the feeding width.

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

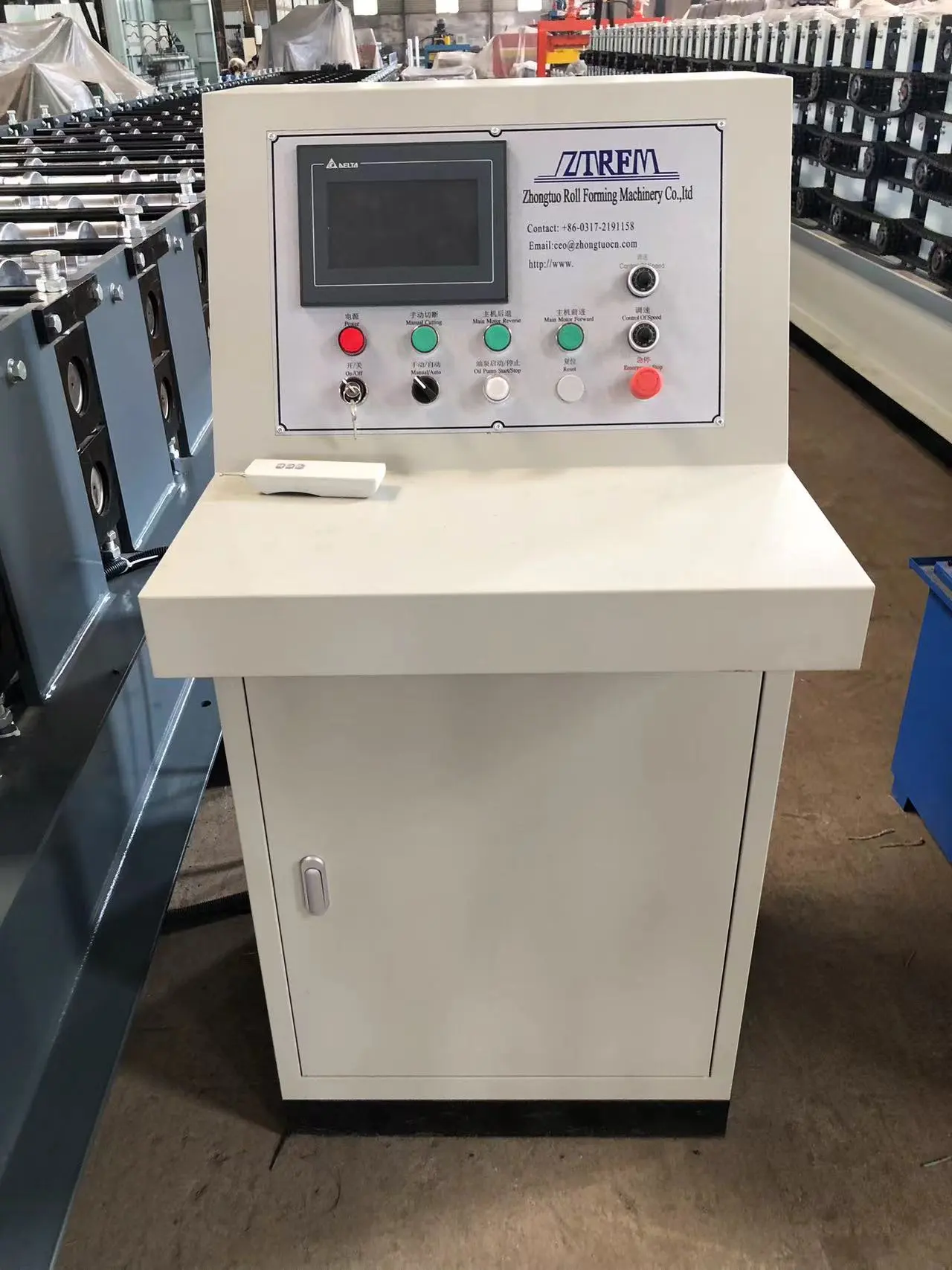

Control system

Feature:
1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Delta
3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

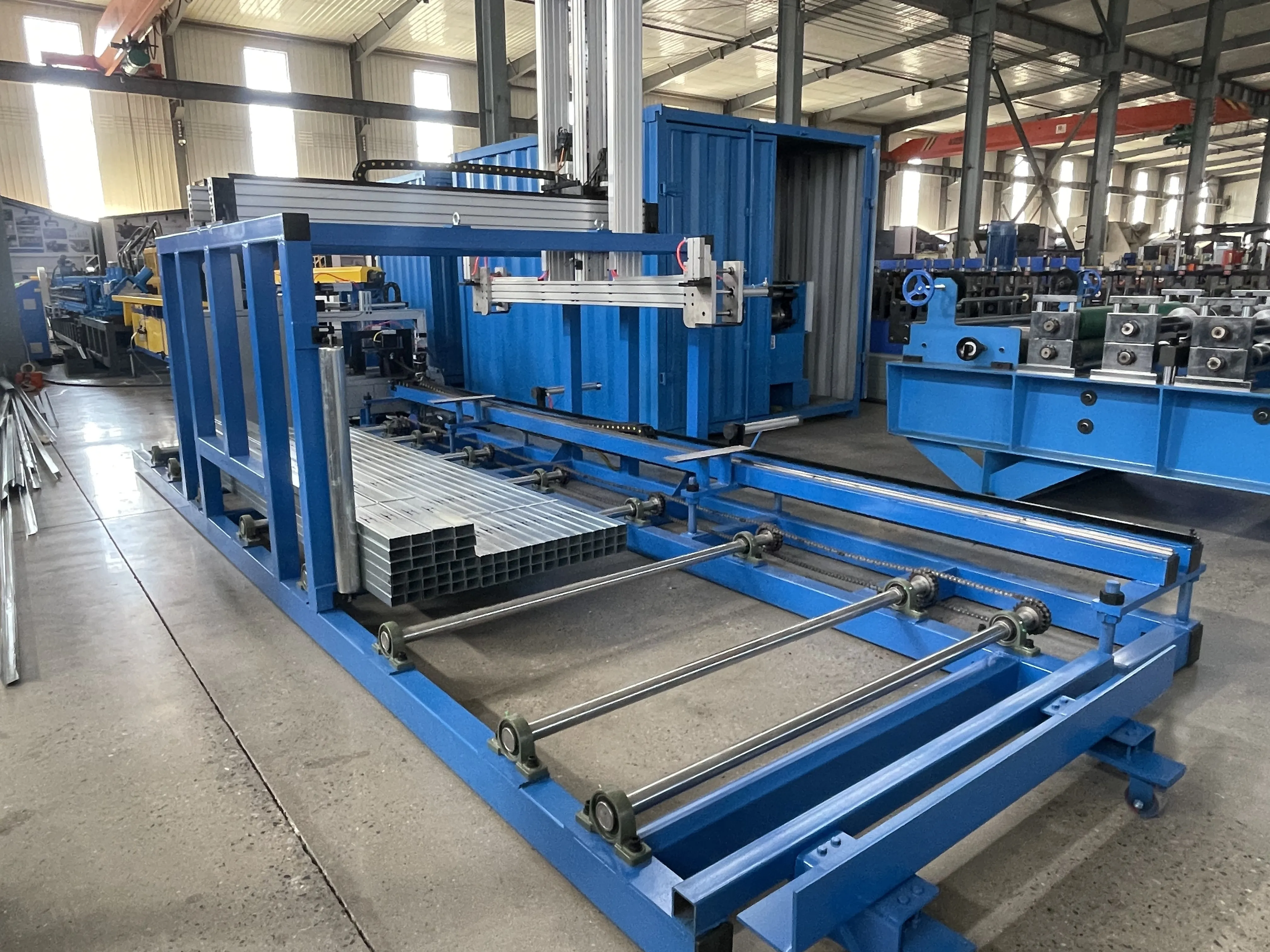

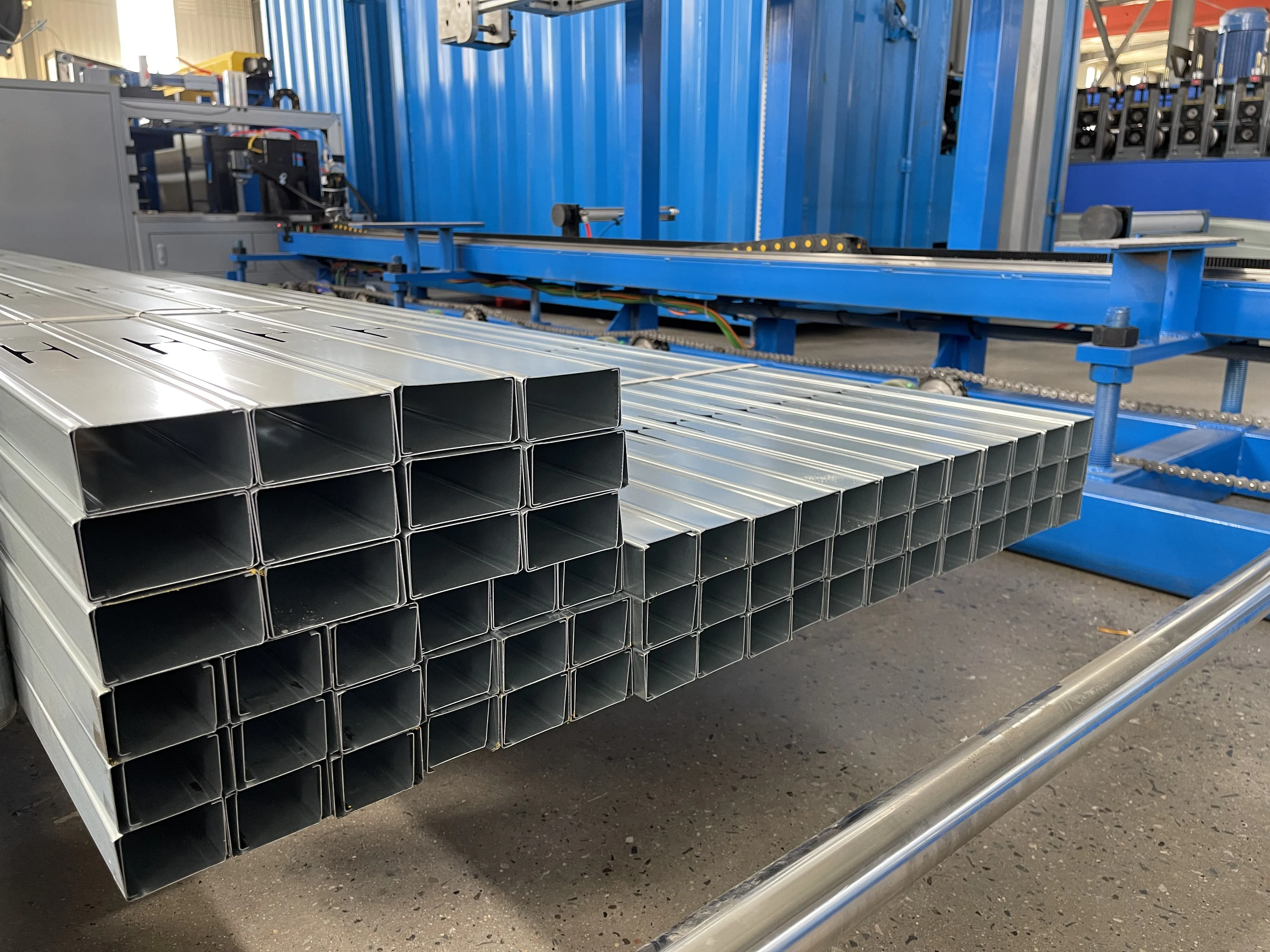

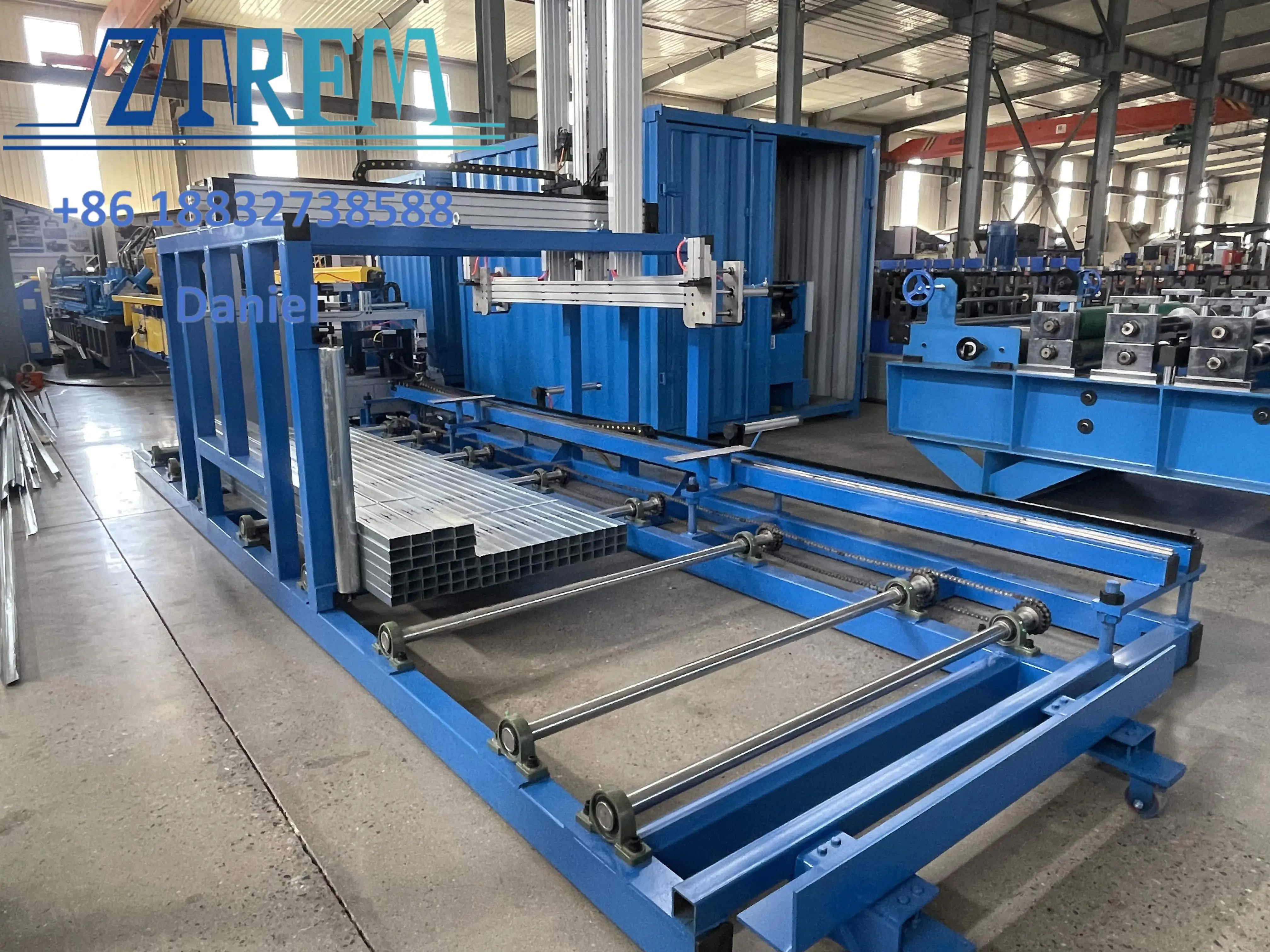

Automatic stacker and package machine

1.Fully automatic alignment, packaging, and stacking of finished CU products
2. Fully machine-controlled, saving labor costs and ensuring work efficiency

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

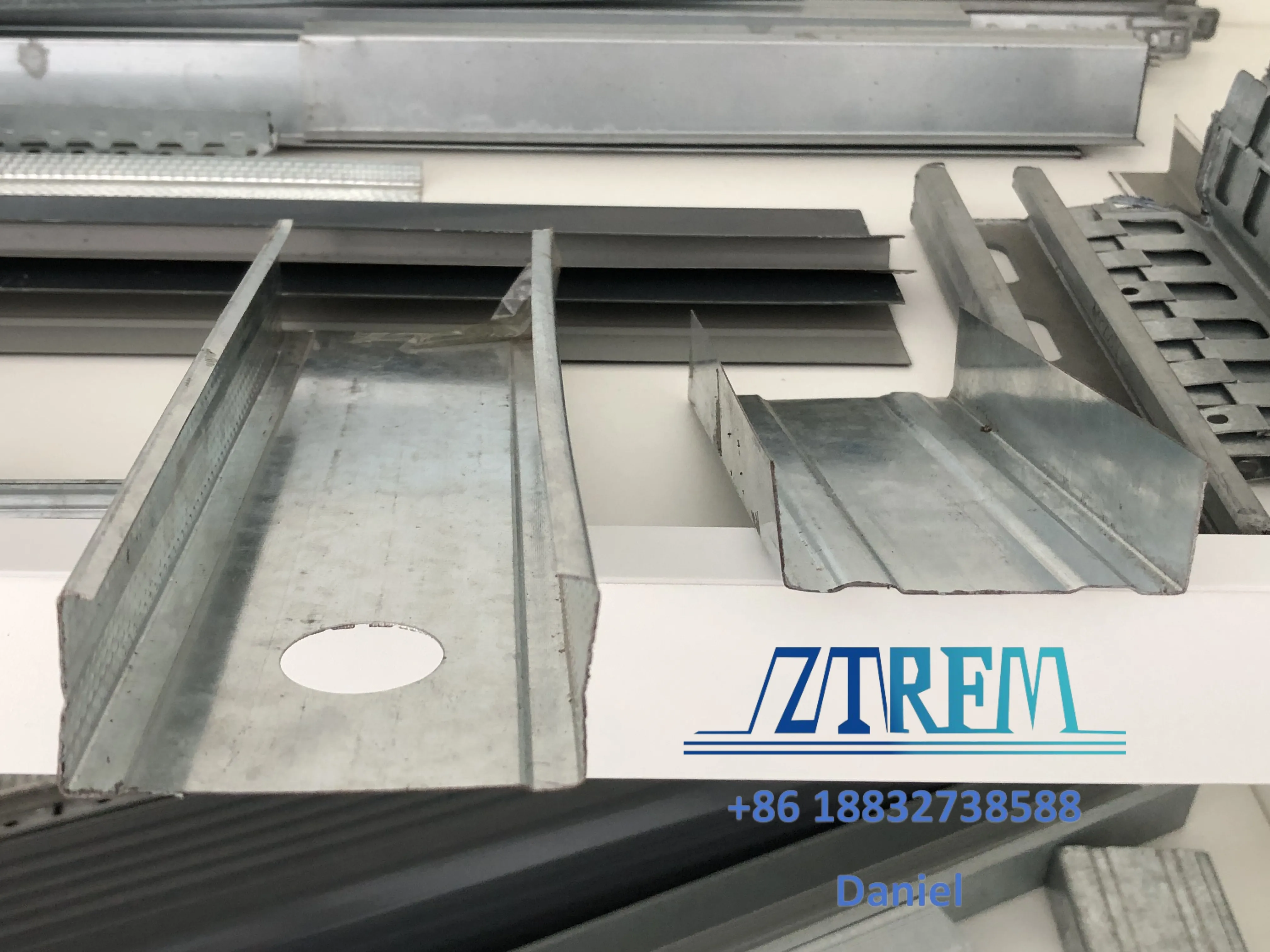

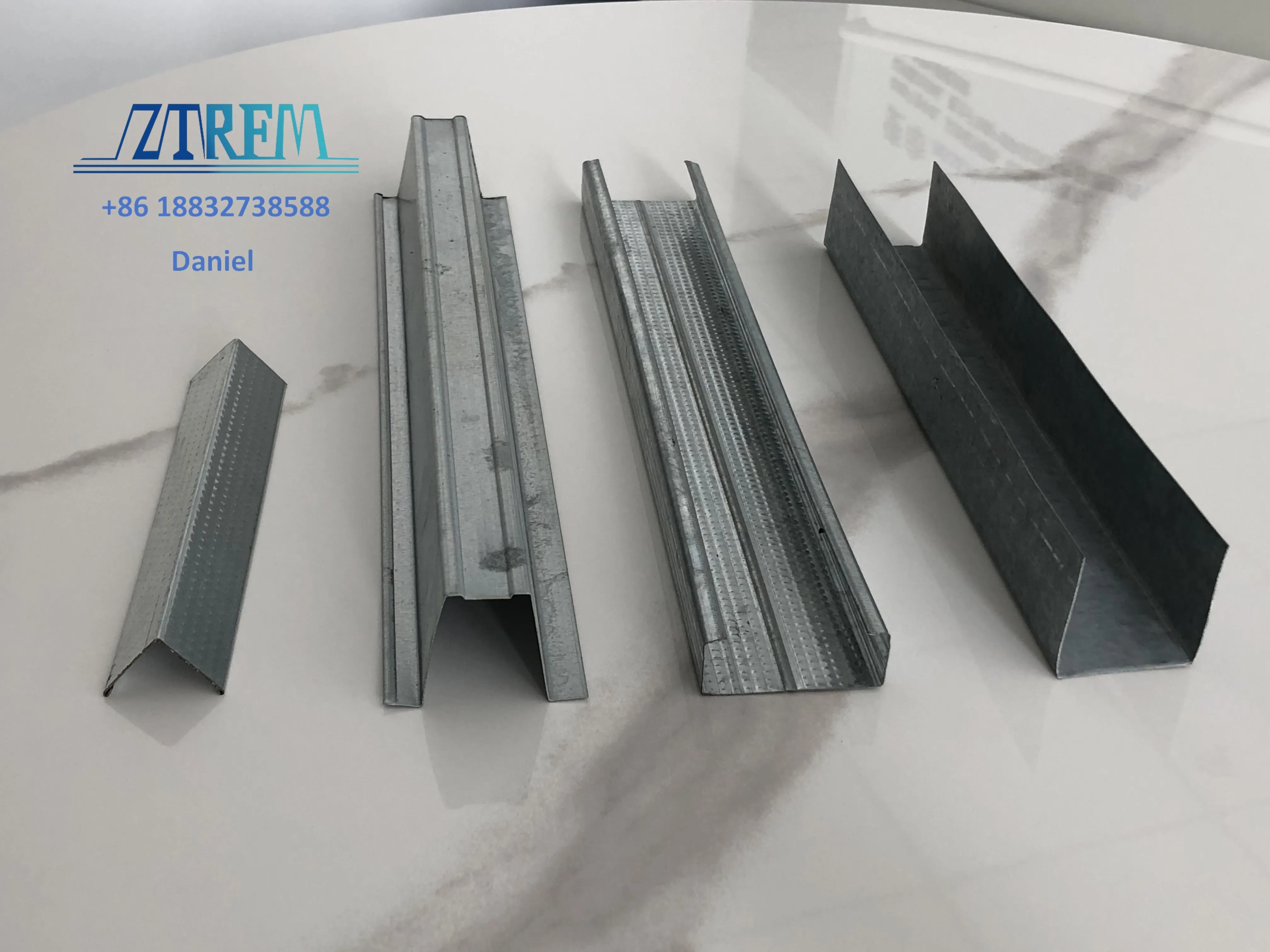

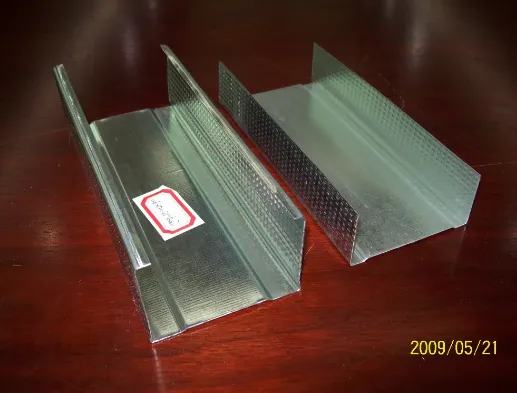

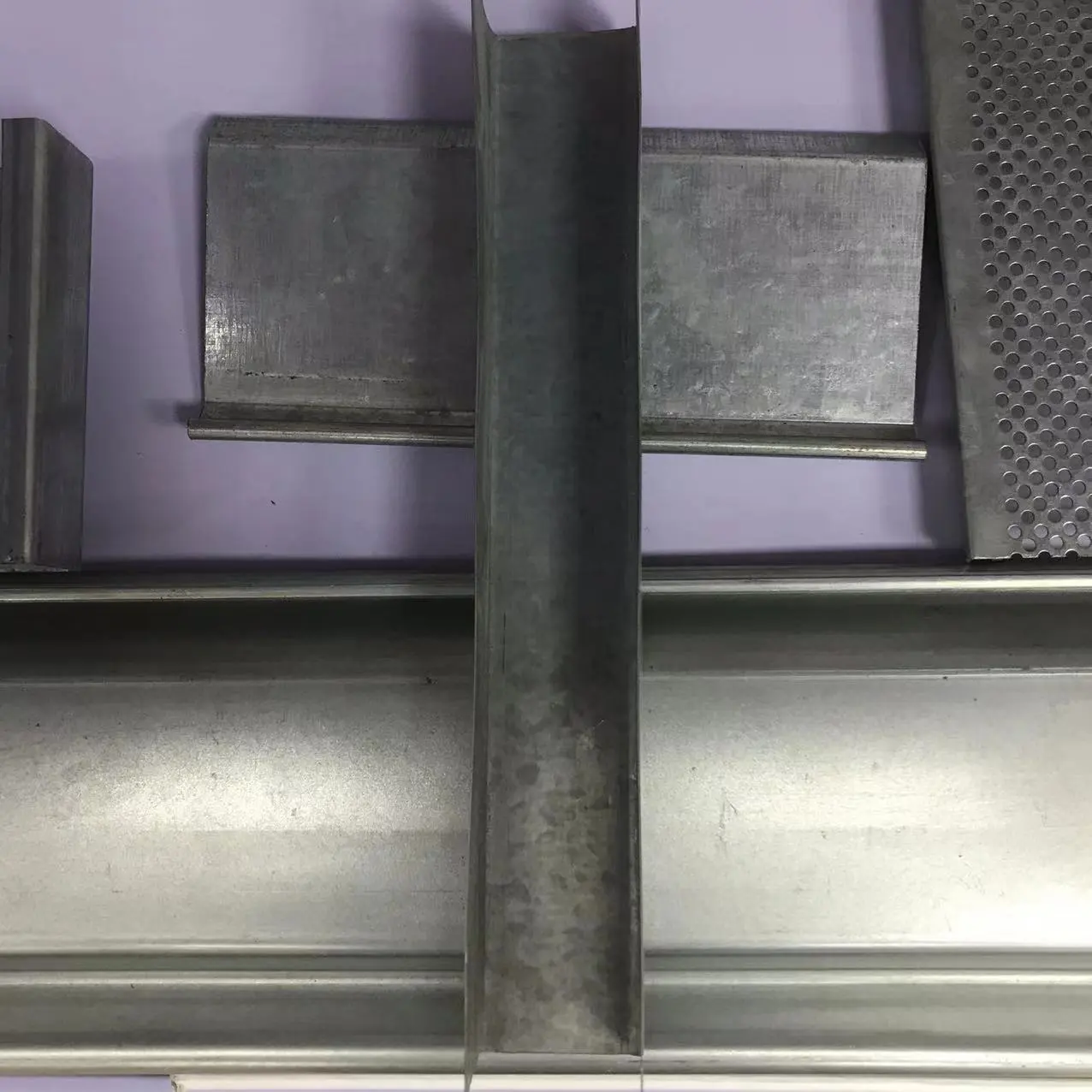

Product display

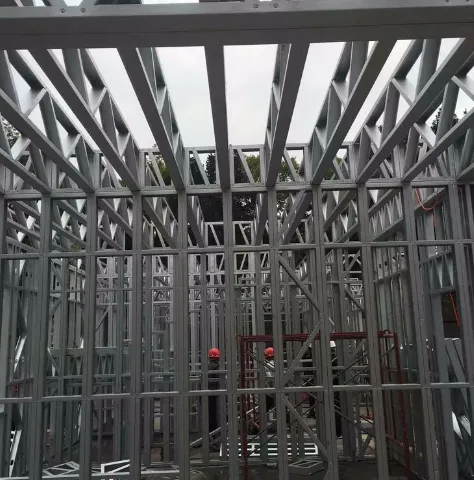

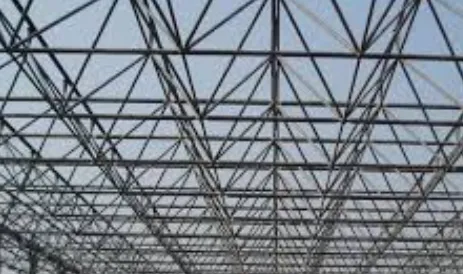

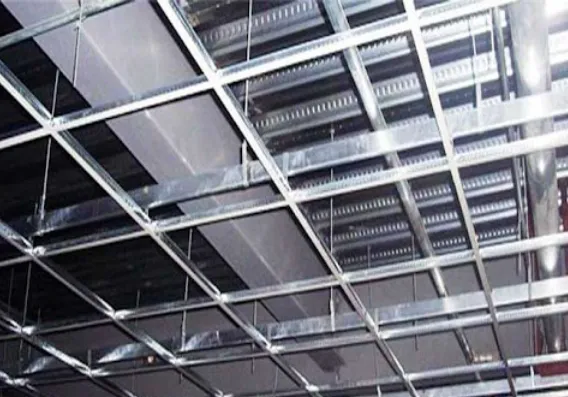

Application

Exhibition

Certification

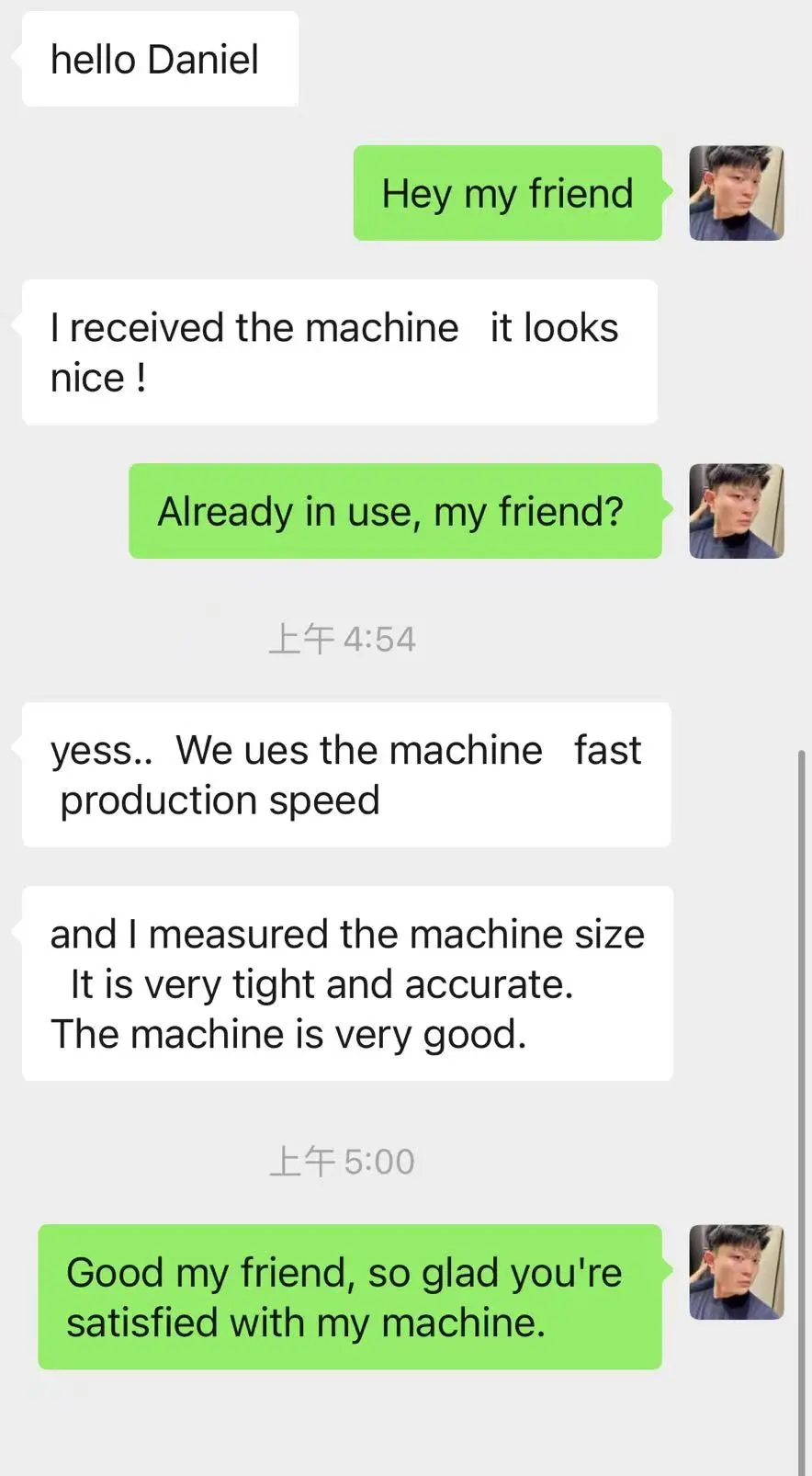

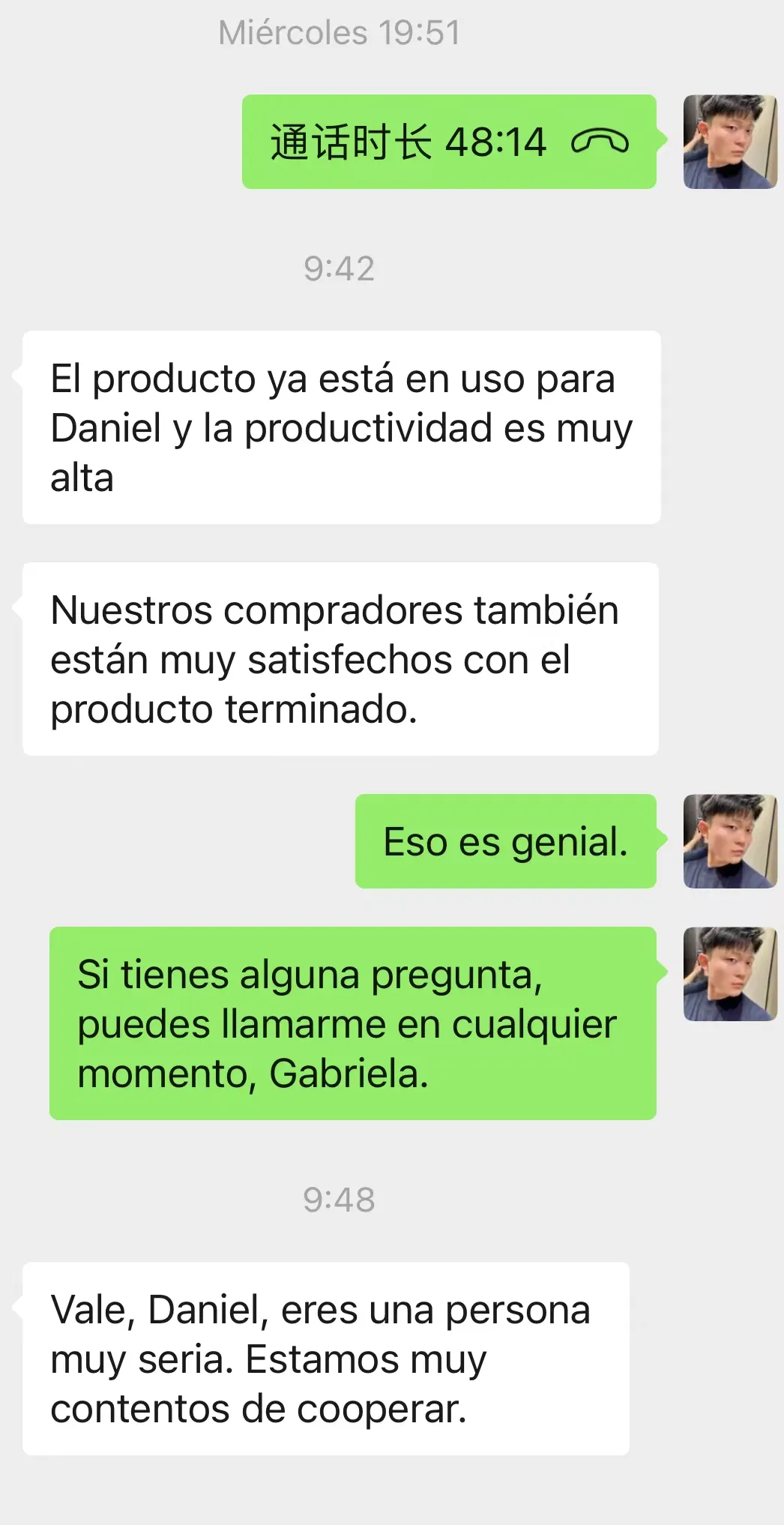

Customer Photos
