63T / 2500 CNC Hydraulic Press Brake Sheet Metal Bending Machine 63T/2500

General Industry Tech Hebei Developing Co.,Ltd

63T / 2500 CNC Hydraulic Press Brake Sheet Metal Bending Machine 63T/2500

Name: 63T / 2500 CNC Hydraulic Press Brake Sheet Metal Bending Machine 63T/2500
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT123456430

Machine TypeTorsion Bar Hydraulic Press Brake

Slider Stroke (Mm)120 mm

Throat Depth (Mm)320 mm

Length Of Working Table (Mm)2500

Width Of Working Table (Mm)180 mm

Motor Power (Kw)7.5 kw

Weight (Kg)3000

Key Selling PointsCompetitive Price

Warranty2 Years

Core ComponentsBearing, Motor, Pump, Engine

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

63T/2500

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Machine Type
Torsion Bar Hydraulic Press Brake
Slider Stroke (Mm)
120 mm
Throat Depth (Mm)
320 mm
Length Of Working Table (Mm)
2500
Width Of Working Table (Mm)
180 mm
Motor Power (Kw)
7.5 kw
Weight (Kg)
3000
Key Selling Points
Competitive Price
Warranty
2 Years
Core Components
Bearing, Motor, Pump, Engine
Product Name
Hydraulic Press Brake
Nominal Force
63T
Length Of Working Table
2500 mm
Width Of Working Table
180 mm
Slider Stroke
120 mm
Throat Depth
320 mm
Machine Type
Torsion Bar
Power
7.5 KW
Dimension
2600*1300*2180
Weight (Kg)
3000
Material / Metal Processed
Stainless Steel, Carbon Steel, Aluminum, Brass / Copper, Alloy
Warranty
2 Years
Moq
1
Ladder Prices
1-2 pcs: 3500 USD; 3-4 pcs: 3200 USD; >=5 pcs: 3000 USD
Lead Time
45 days (1-1 pcs)

63T / 2500 CNC Hydraulic Press Brake Sheet Metal Bending Machine

This 63T / 2500 CNC hydraulic press brake is engineered for high-precision sheet metal bending across stainless steel, carbon steel, aluminum, brass/copper, and alloy sheets. Featuring a heavy torsion bar synchronization system, a 2500 mm working table, 120 mm slider stroke, 320 mm throat depth, and an EASYCAT TP10S / TO10S touchscreen CNC controller, it delivers reliable angle accuracy, quick tooling changeovers, and motorized rear backgauge positioning with competitive pricing and low maintenance costs. metal bending machine

63 Ton Nominal Bending Force: Robust hydraulic cylinder system with 630 kN nominal pressure easily processes light to medium sheet metal fabrication up to full 2500 mm bend lengths.
TP10S CNC Touchscreen Controller: Intuitive angle programming system with automatic backgauge positioning, angle compensation, tool library management, and single/continuous cycle execution.
Quick-Clamp Segmented Tooling: Upper punch equipped with quick-release clamp handles and segmented tool sections (H120 punch + multi-V V16 die) for versatile box and profile bending.
Motorized CNC Rear Backgauge: High-precision timing belt and linear guide drive with dual adjustable stop fingers ensure fast, repeatable sheet positioning.
Sliding Front Sheet Support Arms: Linear rail mounted front sheet supports with height adjustment provide stable workpiece handling during bending.
Comprehensive Quality Assurance: Certified with factory machinery test reports, video outgoing-inspection, and a 2-year warranty on the complete machine and core components.

Technical Specifications

Item	Specification
Equipment Type	Hydraulic Press Brake / CNC Bending Machine
Nominal Force / Model	63T / 2500 (630 kN)
Length of Working Table	2500 mm
Width of Working Table	180 mm
Slider Stroke	120 mm
Throat Depth	320 mm
Machine Type / Structure	Torsion Bar Hydraulic Synchronization
CNC Control System	EASYCAT TP10S / TO10S Touch Screen CNC System
Motor Power	7.5 kW
Material / Metal Processed	Stainless Steel, Carbon Steel, Aluminum, Brass / Copper, Alloy
Machine Dimensions (L×W×H)	2600 × 1300 × 2180 mm
Total Machine Weight	3000 kg
Automation Level	Automatic / Semi-Automatic with Motorized CNC Backgauge
Key Selling Points	Competitive Price, High Bending Accuracy, Easy Operation
Core Components	Bearing, Motor, Pump, Engine, Hydraulic Valve Block
Warranty & Support	2 Years Warranty on machine and core components with lifetime technical support
Minimum Order Quantity (MOQ)	1 Set

Machine Structure & Tooling System

The 63T-2500 features heavy all-steel welded side frames, high-rigidity upper ram, and precision machined torsion synchronization shaft. Quick-clamp tool holders with orange locking levers allow rapid punch insertion and removal, while the sliding front sheet support arms smoothly glide along a precision linear guide rail.

Enhanced 63T-2500 CNC hydraulic press brake machine overview with TP10S screen arm and movable foot pedal

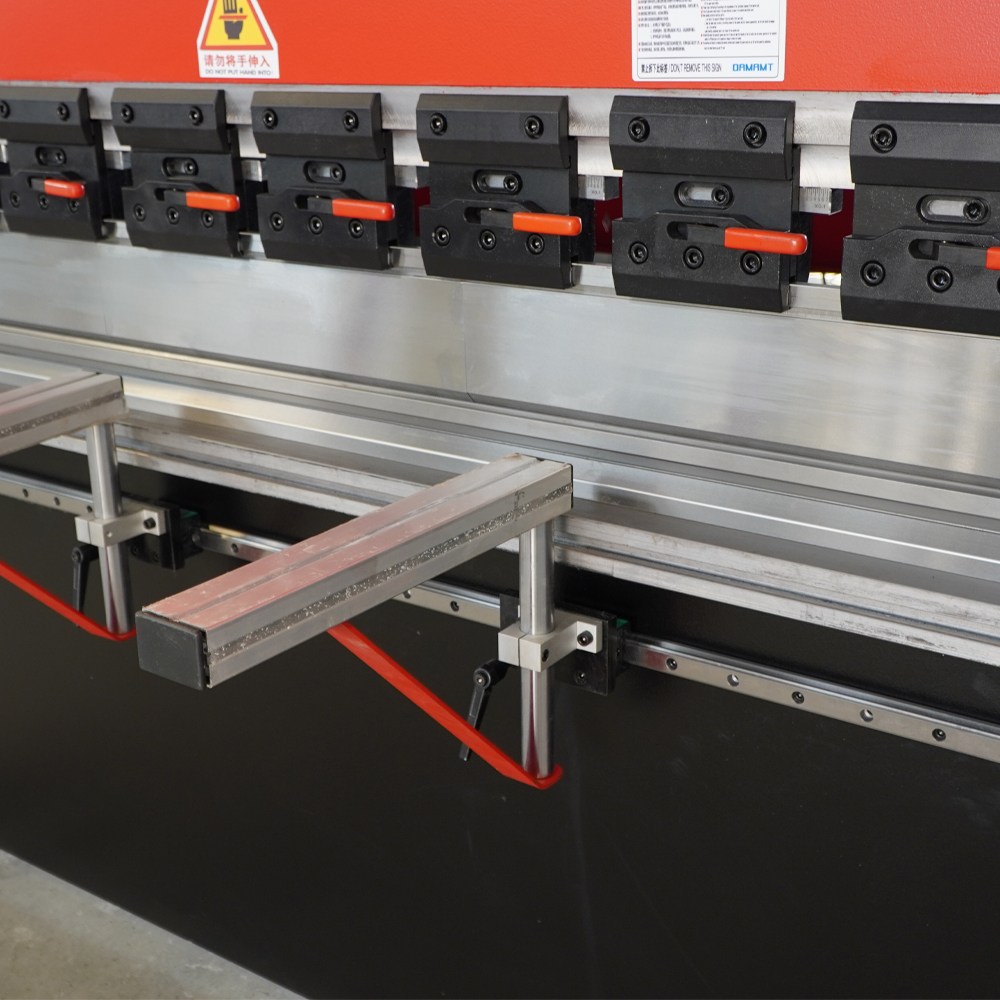

Segmented upper punch quick clamps with orange handles, multi-V die and front sliding sheet support arms

CNC Backgauge & Touchscreen Controller

The rear motorized backgauge system employs high-torque drive motors, synchronous timing belts, precision linear guides, and adjustable stop fingers for rapid, accurate workpiece depth positioning. The EASYCAT TP10S CNC controller provides direct angle input, position calculation, and single-touch operation.

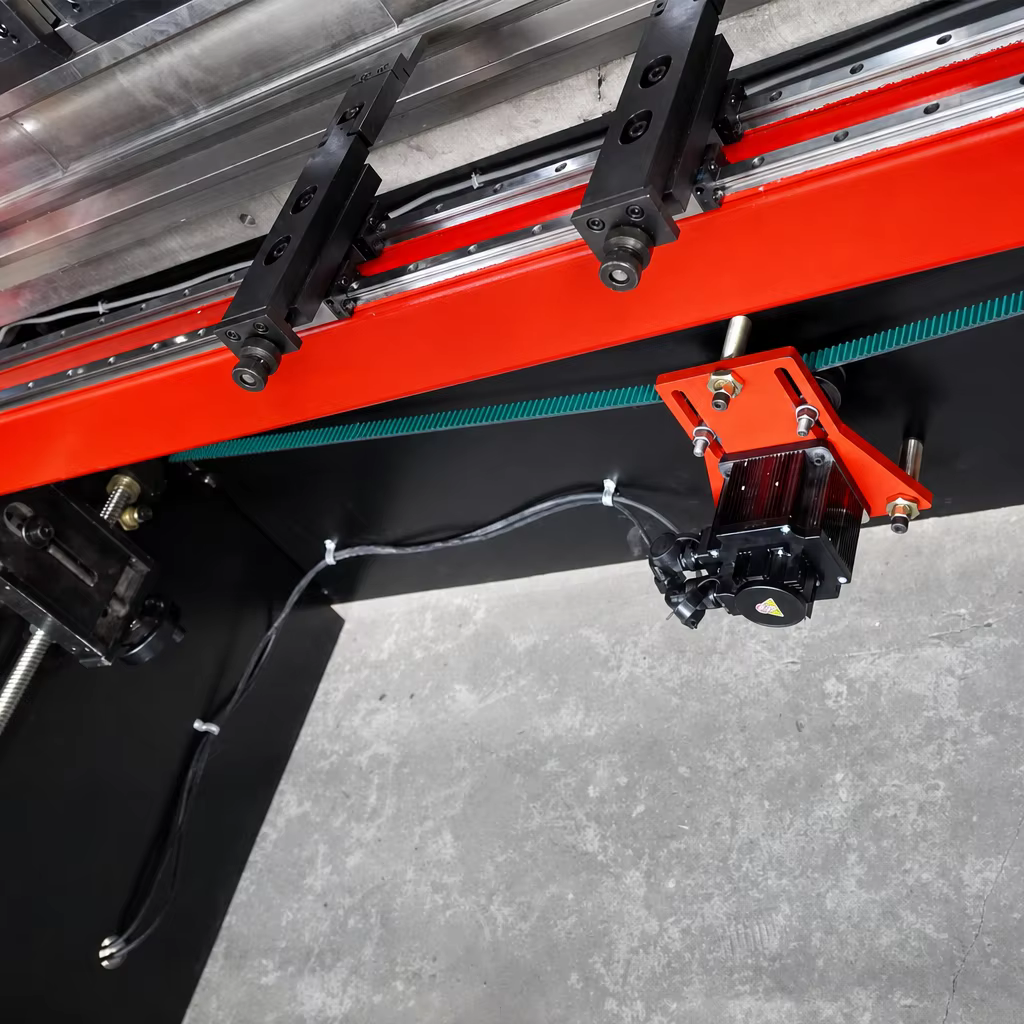

Motorized CNC rear backgauge axis mechanism with timing belt, drive motor and stop fingers

EASYCAT TP10S CNC touchscreen controller display interface with angle parameters and emergency stop button

Frequently Asked Questions

What is the nominal bending force and table length?
This model provides 63 Ton (630 kN) nominal bending force with a 2500 mm working table length and 180 mm table width.

What materials can be bent on this press brake?
It processes stainless steel, carbon steel, aluminum, brass/copper, and alloy sheet metal.

Which CNC control system is installed?
It is equipped with the EASYCAT TP10S / TO10S touchscreen CNC controller supporting direct angle calculation and motorized backgauge control.

What is the motor power and stroke specification?
The main motor is 7.5 kW, with a 120 mm slider stroke and 320 mm throat depth.
