General Equipment & Consumables > Forming Equipment > Decoiler

5T-15T PLC Controlled Hydraulic Decoiler with Gear Drive Coil Upender High Speed Low Energy Consumption Engine & Motor Driven 5-40/ min+upender+customized

Cangzhou Zhongtuo International Trade Co., Ltd

5T-15T PLC Controlled Hydraulic Decoiler with Gear Drive Coil Upender High Speed Low Energy Consumption Engine & Motor Driven 5-40/ min+upender+customized

Name: 5T-15T PLC Controlled Hydraulic Decoiler with Gear Drive Coil Upender High Speed Low Energy Consumption Engine & Motor Driven 5-40/ min+upender+customized
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT76673770

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

5-40/ min

Model Number:

upender

Max. Working Width:

customized

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
380V 50Hz 3Phase(As your requirement)
Voltage
380V/50HZ 3Phase
Power(W)
7.5kw

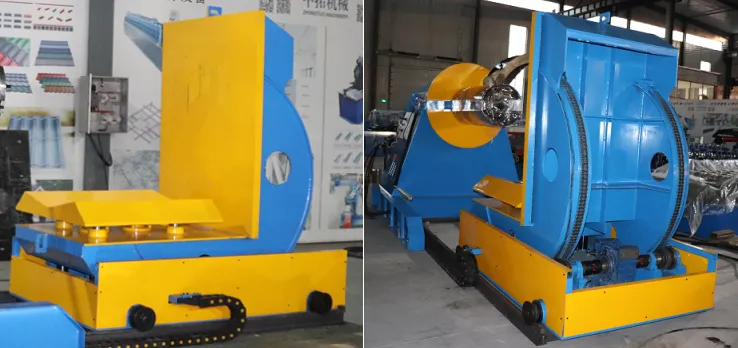

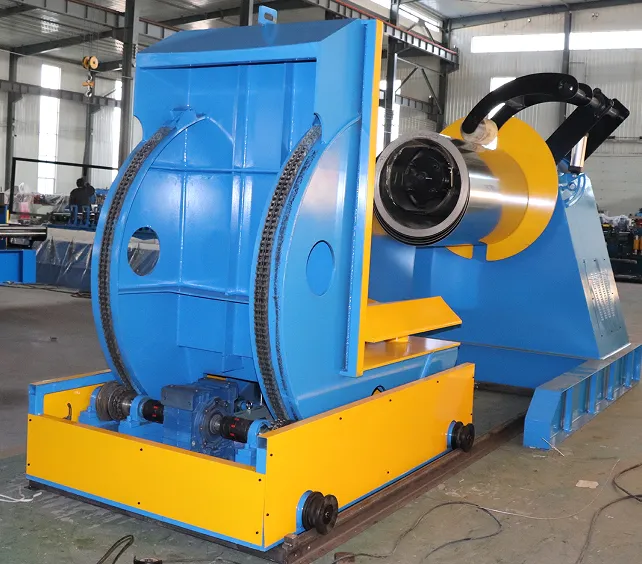

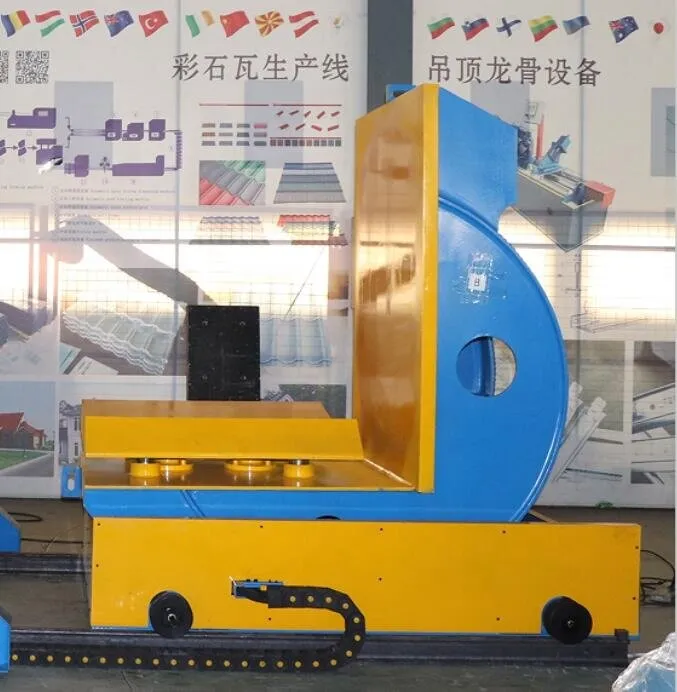

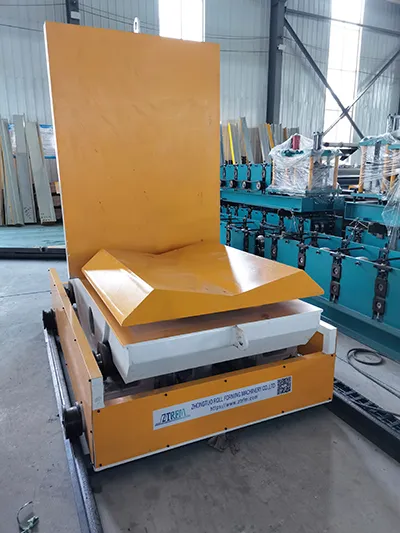

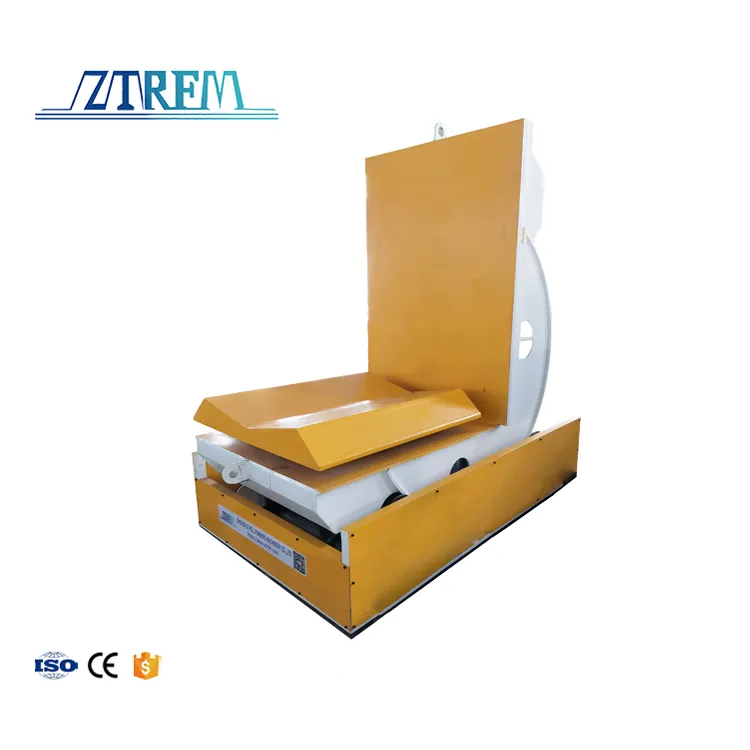

5T 7T 10T 15T Hydraulic Decoiler with Coil Upender

The maximum load capacity of the turning machine: 10 tons;

Reversal feeding panel: 1100 mm * 1346 mm and 1220 mm * 1654 mm,

the feeding width: 500-1200 mm, can according to the routine of 1250 mm (4 folding power source: 8 magnitude 5.5 KW motor, NMRV150

ratio 100 reducer,

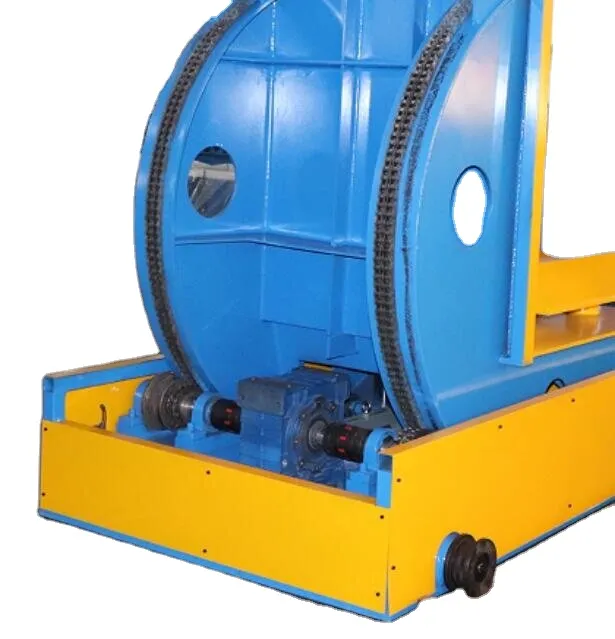

transmission five ways: 1 inch double row sprocket chain transmission, folding trip: seven, big: 90 ° 14 thick

plate welding, turnover weight: 3.4 tons

5T 7T 10T 15T Hydraulic Decoiler with Coil Upender
1.	Working speed	0-16m/min
2.	Weight	300kg
3.	Carry Capacity	5T,7T,10T
4.	Roller shaft	Φ75mm solid
5.	Number of roller stations	16
6.	Decoiler Carry Weight	3T
7.	Equipment size	LWH--5.5m1.8m1. 9m
8.	Main engine power	7.5kw
9.	Power of hydraulic station	5.5kw
10.	Shaft material and diameter	45# Steel finishing，Shaft diameter is￠150mm
11.	Voltage	380V, 50HZ,3 phase（According to customer requirements can be adjusted）
12.	Hydraulic pressure	12Mpa

Our Advantages

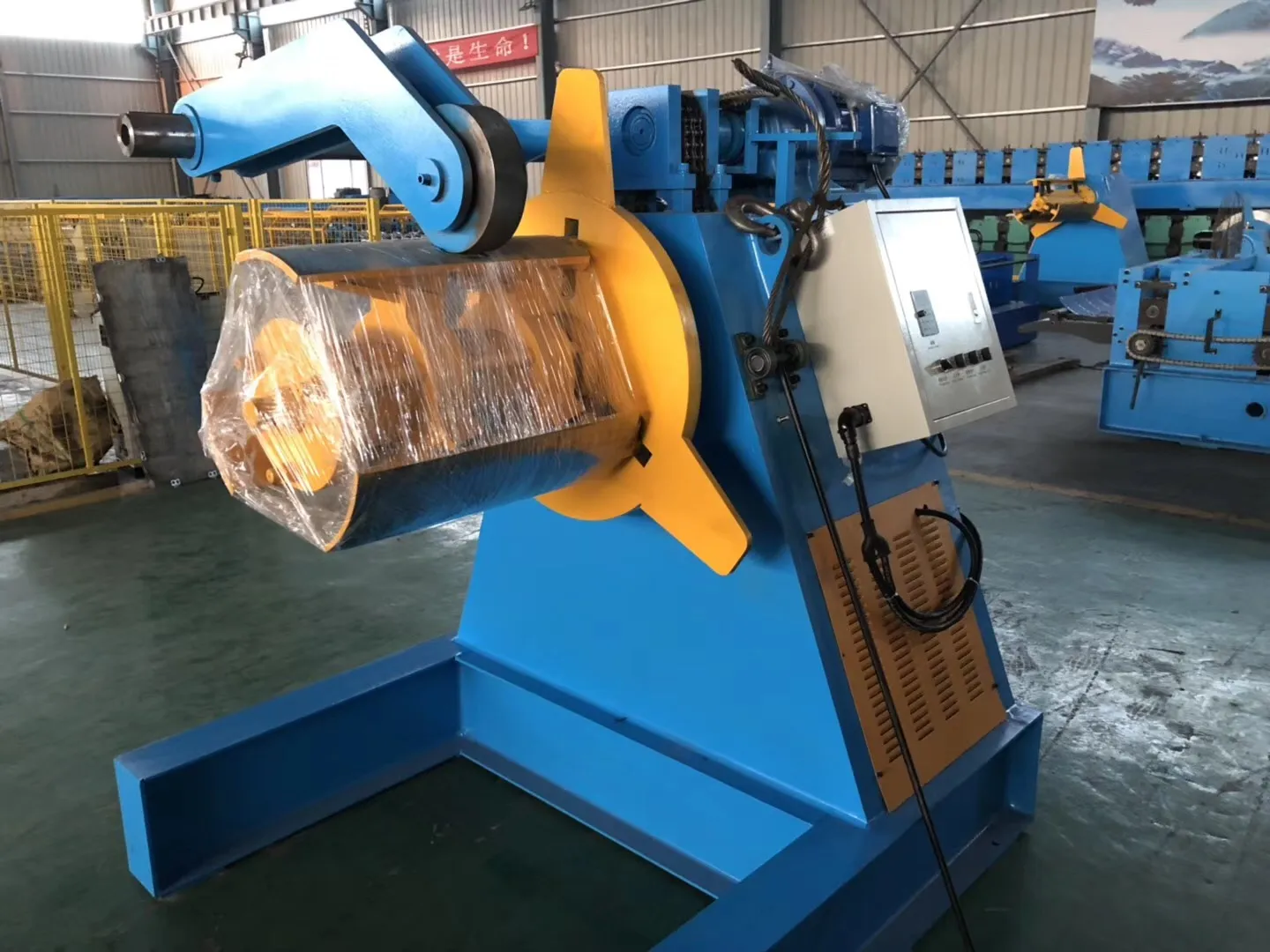

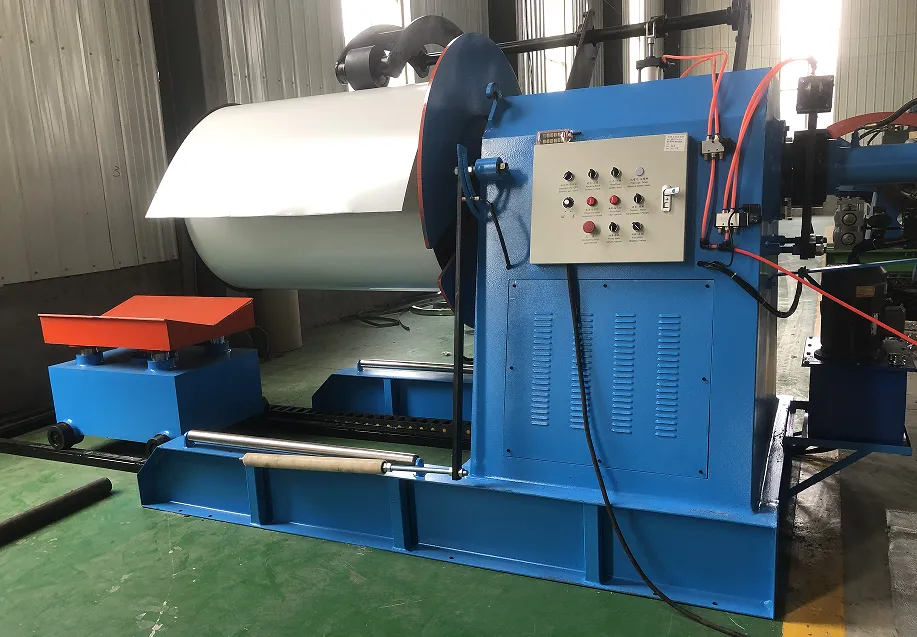

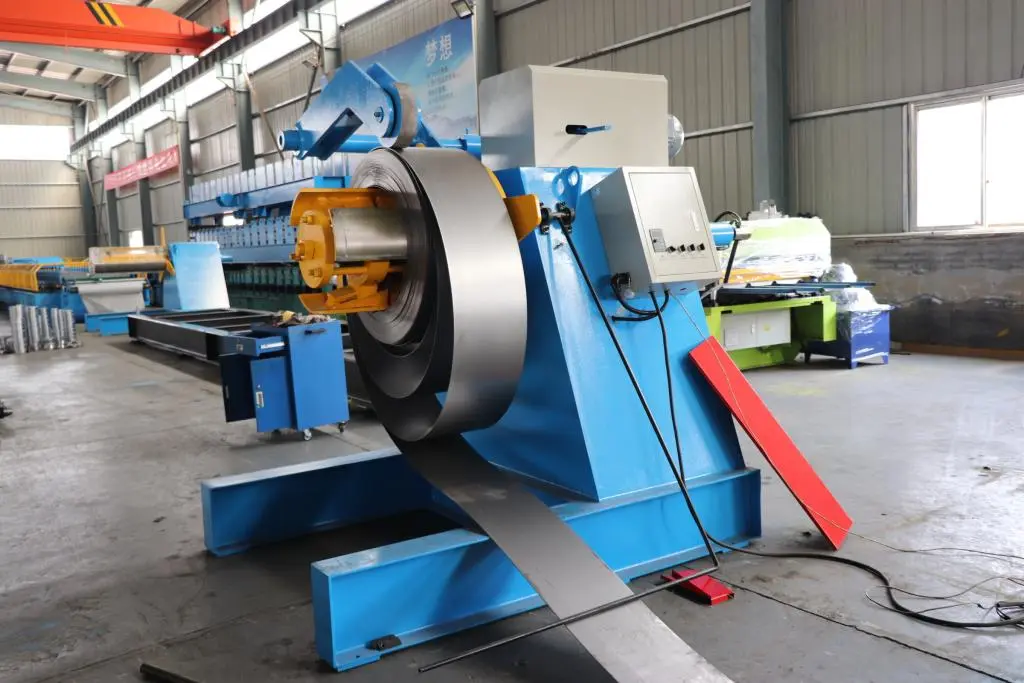

1.We will equip with loading table car of Hydraulic Decoiler upto the customers’ requirement.This loading table car has two types:X structure type hydraulic loading table car and Guide pillar type hydraulic loading table car(much more bearing). These two types can steadily deliver materials to the uncoiler and save manpower.
2. The uncoiler trolley has nylon plate, which can not only have hardness and strong support, but also protect the material.
3. The four support arms are arc-shaped, and the protection effect is better for materials with higher grades.
4.The advantage of the diagonal bracing of the dovetail groove:It can adjust while the transmission is on.It will be more stable.

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)

Our Machine Sells Well In US
Gets High Praise From US Customers！
