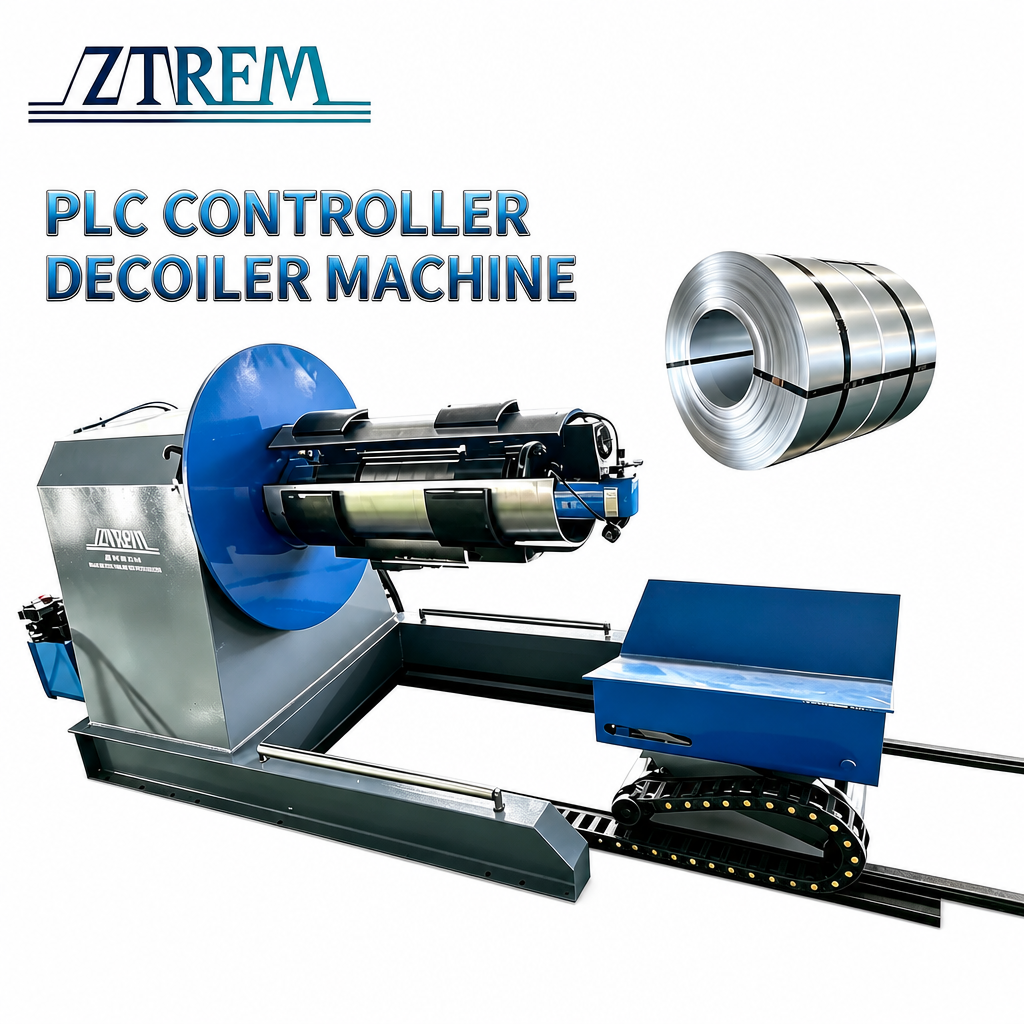

This 5-ton PLC controlled hydraulic coil decoiler machine is an automated uncoiling and coil-loading system engineered for roll forming lines, slitting lines, cut-to-length equipment, and metal stamping processes. Equipped with a motorized hydraulic coil car, hydraulic wedge expansion mandrel, independent 3 kW hydraulic station, and intelligent PLC control, it enables safe, fast, and continuous coil feeding for steel and aluminum coils.
| Item | Specification |
|---|---|
| Equipment Type | Hydraulic Coil Decoiler / Uncoiler with Loading Car |
| Model Identifier | ZT1610 |
| Rated Loading Capacity | 5 Ton (5000 kg) |
| Applicable Coil Width | 0 – 1250 mm |
| Material Thickness Range | 0.8 – 2.0 mm |
| Coil Inner Diameter (ID) | Ø470 – 530 mm / Ø570 – 630 mm (±20 mm tolerance) |
| Hydraulic Station Power | 3.0 kW, 380 V |
| Main Drive Motor Power | 4.0 kW |
| Loading Car Cylinder Specs | Cylinder Diameter: 110 mm | Lifting Stroke: 300 mm |
| Loading Car Track Size | 950 mm (Width) × 3000 mm (Length) |
| Cart Movement Travel Range | Vertical Stroke: 300 mm | Horizontal Stroke: 3000 mm |
| Overall Machine Dimensions | 3.4 × 1.6 × 1.8 m (L × W × H) |
| Total Machine Weight | 2100 kg |
| Control System | PLC Control System with Operator Panel |
| Operating Voltage | 380 V / 50 Hz (Customizable to local grid) |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
| Warranty & Support | 1 Year Warranty with lifetime technical support |
| Minimum Order Quantity (MOQ) | 1 Set |
The decoiler system features a heavy-duty fabricated steel housing, rotary hydraulic expansion mandrel, high-torque geared drive motor, and an independent 3 kW hydraulic station with pressure regulation manifold. The motorized coil car runs along ground tracks to align and load heavy steel coils directly onto the expanded mandrel.
The hydraulic power unit provides regulated oil pressure for mandrel wedge expansion and hydraulic car elevation. Heavy-duty cable carrier drag chains protect electrical and hydraulic lines during continuous car traversing along the 3-meter track.
What is the maximum coil capacity and width?
The decoiler supports coil weights up to 5 tons (5000 kg) and coil widths from 0 to 1250 mm.
What coil inner diameters are supported?
The hydraulic expanding mandrel accommodates inner diameters of Ø470–530 mm or Ø570–630 mm with a ±20 mm tolerance.
How does the coil loading car operate?
The motorized loading car features a 300 mm hydraulic lifting stroke and a 3000 mm horizontal travel along a 950 mm track for automated coil positioning.
What inspections and warranty are included?
Video outgoing-inspection and machinery test reports are provided with a 1-year warranty and lifetime technical support.
