Technical Specifications

Work Pressure
Material yield strength 550 mo
Voltage
480V 60Hz 3P
Power(W)
30Kw

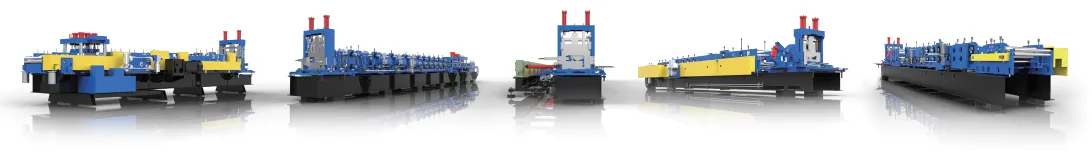

4 Inch Zee and 6 Inch Cee 14 Gauge Steel Frame Roll Forming Machine USA Hot Selling C Z Purlin Roll Forming Machine

Design Idea：
The heavy duty purlin macine can roll the thick material , Max thickness 4mm (6 gauge). For this machine we use the servo motor and Intelligent production system. Servo motors are well suited to precision to applications where accurate control of motor speed, position and/or torque is required.The first domestic self -developed intelligent fast input software -tedious input of liberation, improvement of work efficiency, one step ahead, one step by step (save about an hour of working hours per day)

Profile drawing for reference:

Standard sepcification: Width from 100-400 mm(4-15 inch) , Thickness from 1-4mm( 15-6 gauge ) , other specail size we can also customized.

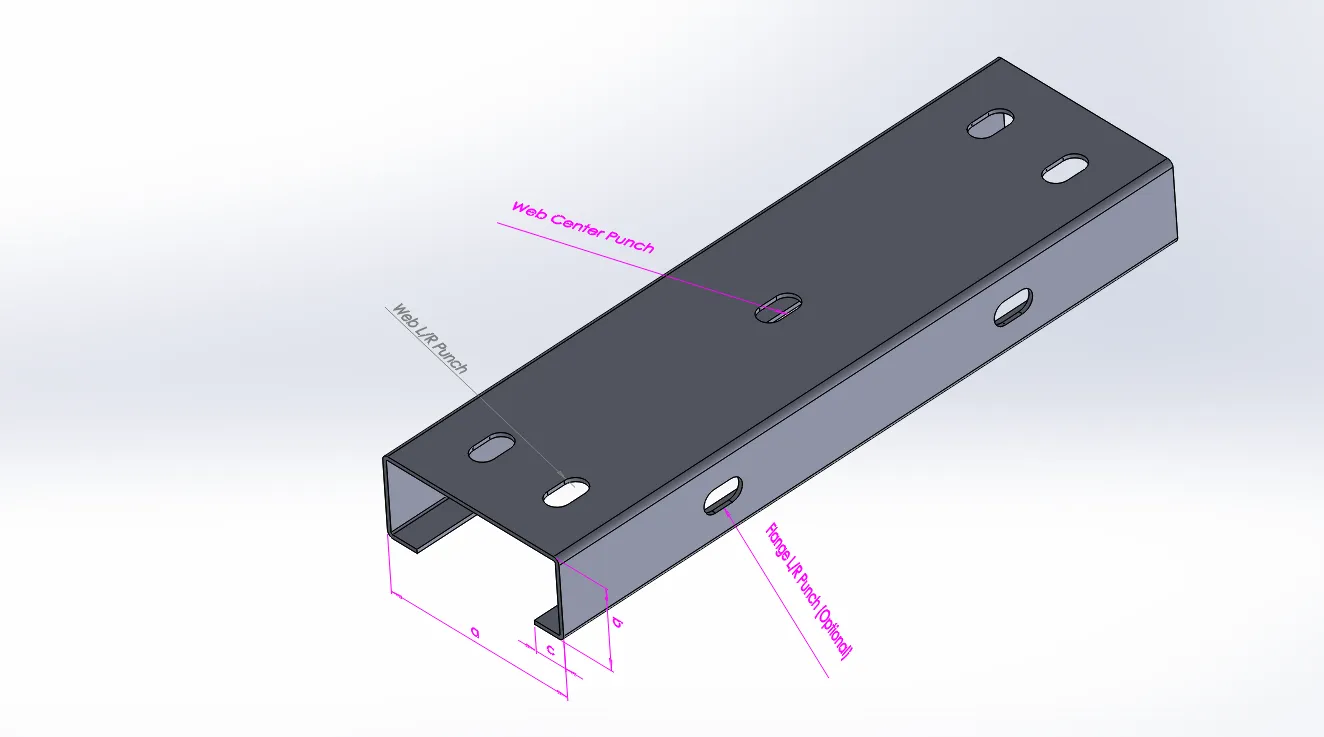

C purlin making machine

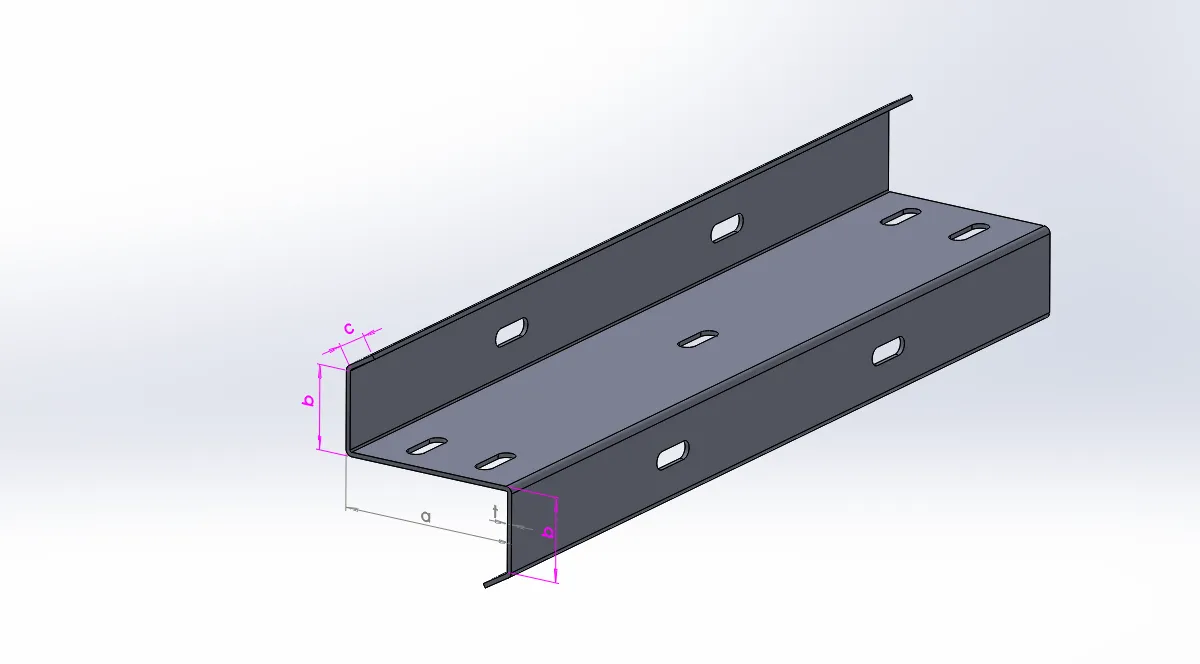

Z purlin making machine

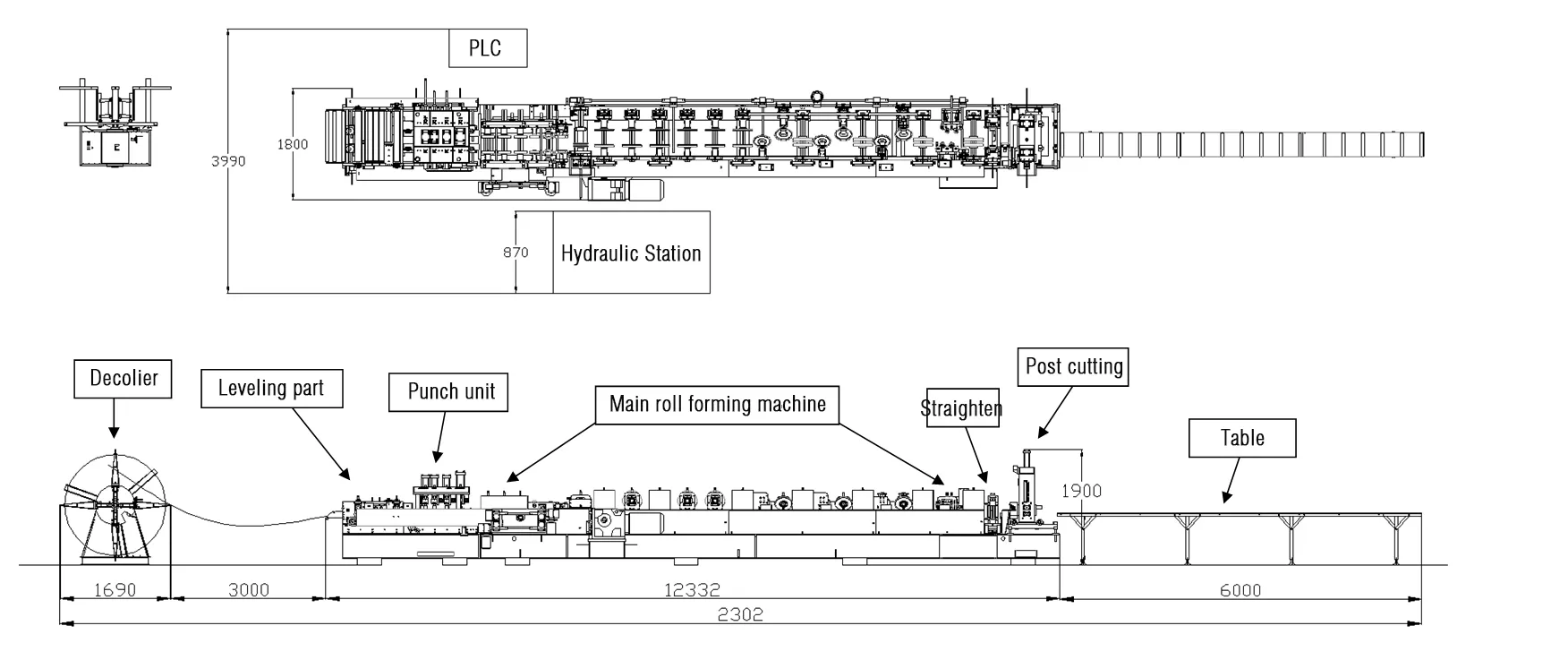

Processing Flow

Uncoiling → Feeding And Leveling →Punching/Pre-Shearing→Roll Forming → Auto Cutting →Products Receiving Table

4 Inch Zee and 6 Inch Cee 14 Gauge Steel Frame Roll Forming Machine USA Hot Selling C Z Purlin Roll Forming Machine
Raw Material	PPGI,PPGL
	Raw material	Material thickness: 1-4mm( 15-6 gauge )
		Coil width ：150-500 mm adjusted
Machine Frame	Machine base frame is made of U beam weld steel. In the main roll forming machine, there are 2 buttons for urgency stop in case any malfunction happens.
Material Of Rollers	High grade 45# forged steel
Material Of Rollers	Material Of Rollers	Roller material: Cr12 CNC processing heat treatment to HRC: 58-60 ,finish turning
Forming Stations	Roller stations :24 rows
Diameter Of Shafts	Φ85mm solid
Material Of Shafts	40 Cr CNC processing HRC28-32 ,finish turning and electroplate
Forming Speed	Max 30 m/min
Voltage	480v/60hz/3p (As Requested)
Transmission Way	By 1.5 inch chain
Servo Power	60 KW
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Control	Sizes adjust by PLC control and button C and Z section changing by PLC control

8T Manual Decolier For Free

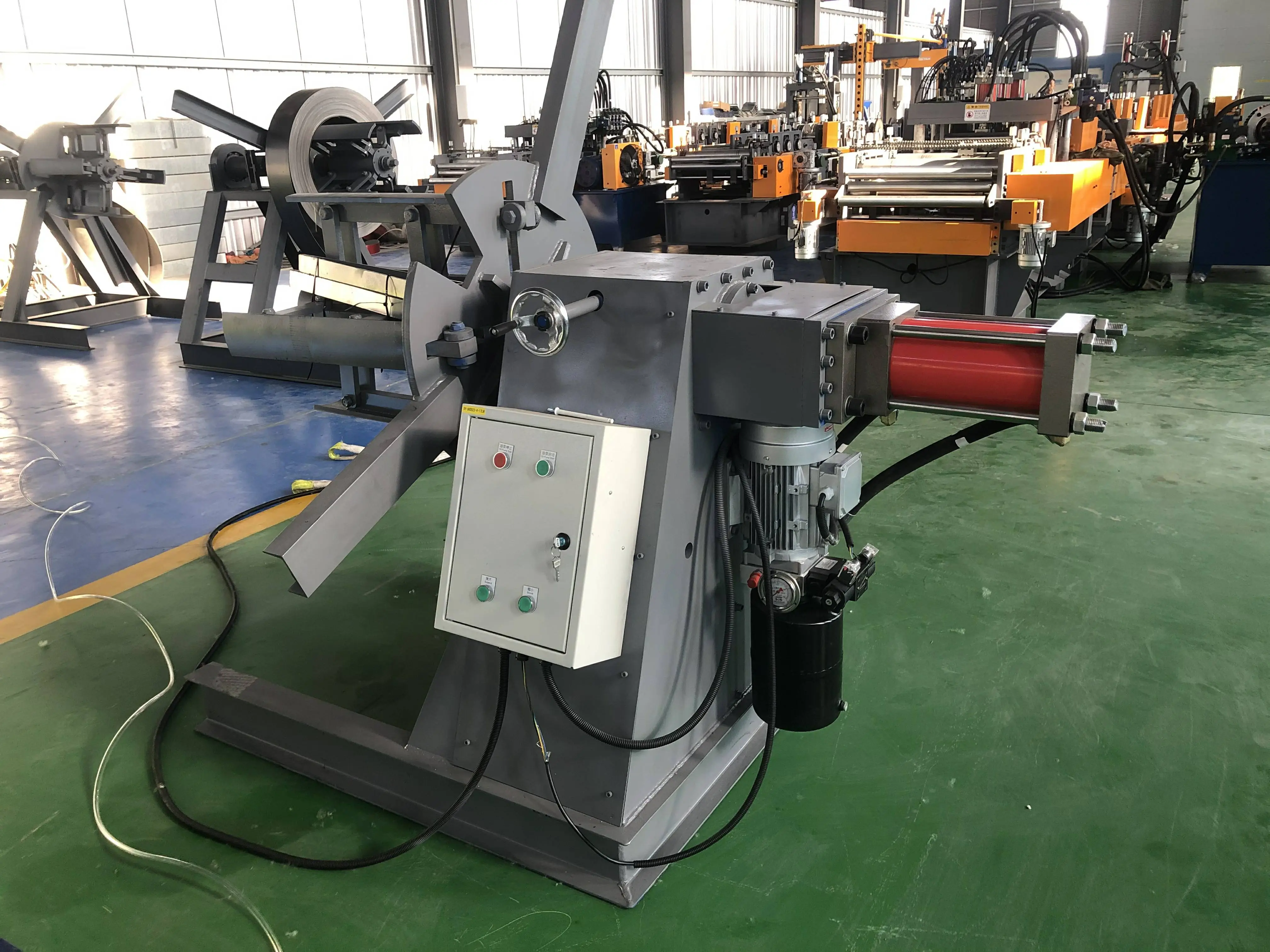

Capacity:8 tons Coil inner diameter:450-550mm Feeding width: max 500mm Structure: welded by the steel plates and profiled bar. The shrink and expand of coil is automatic , Drive by Hydralic power.

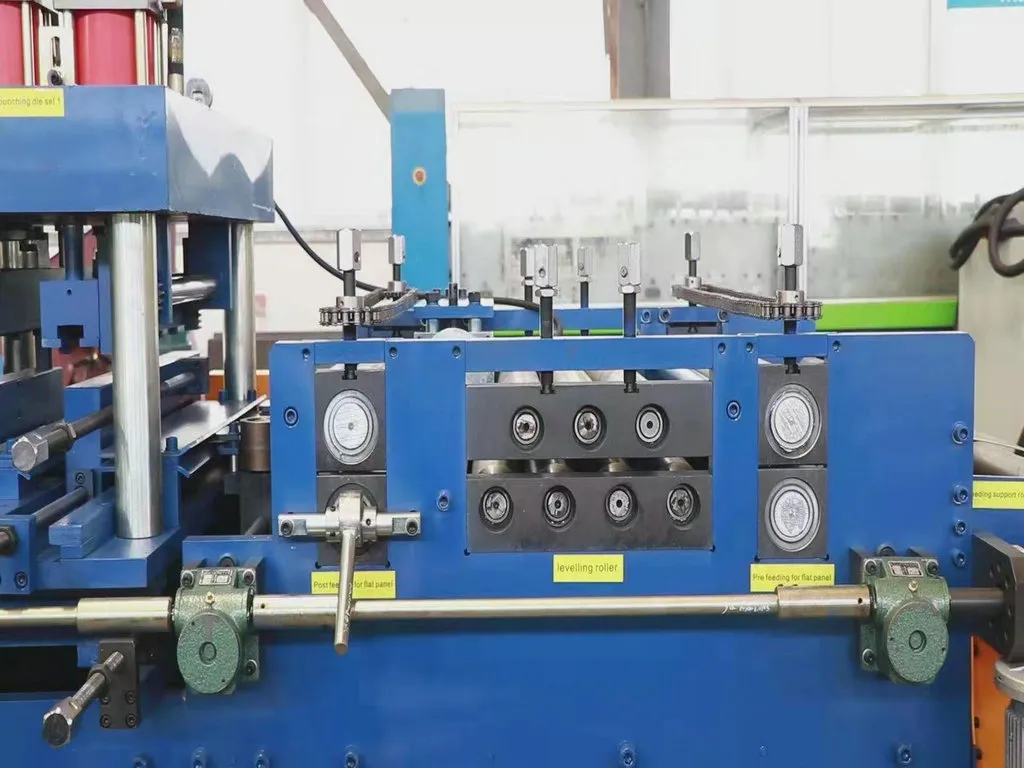

Feeding And Leveling Device

There is an electric button here, which can automatically adjust the feeding width Leveling rollers: 3 up 4 down Roller material: Cr15 Roller diameter: 75mm Feeding width adjustment: automatic by button Make sure inputted steel sheet straight and neat and then roll forming process could be made accurate

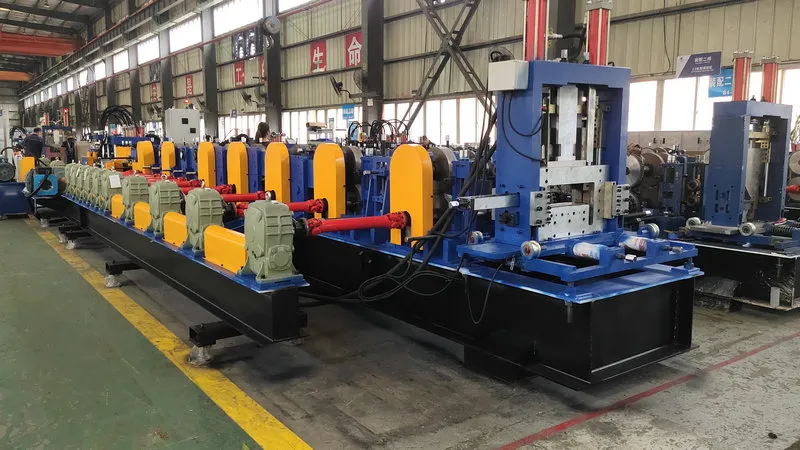

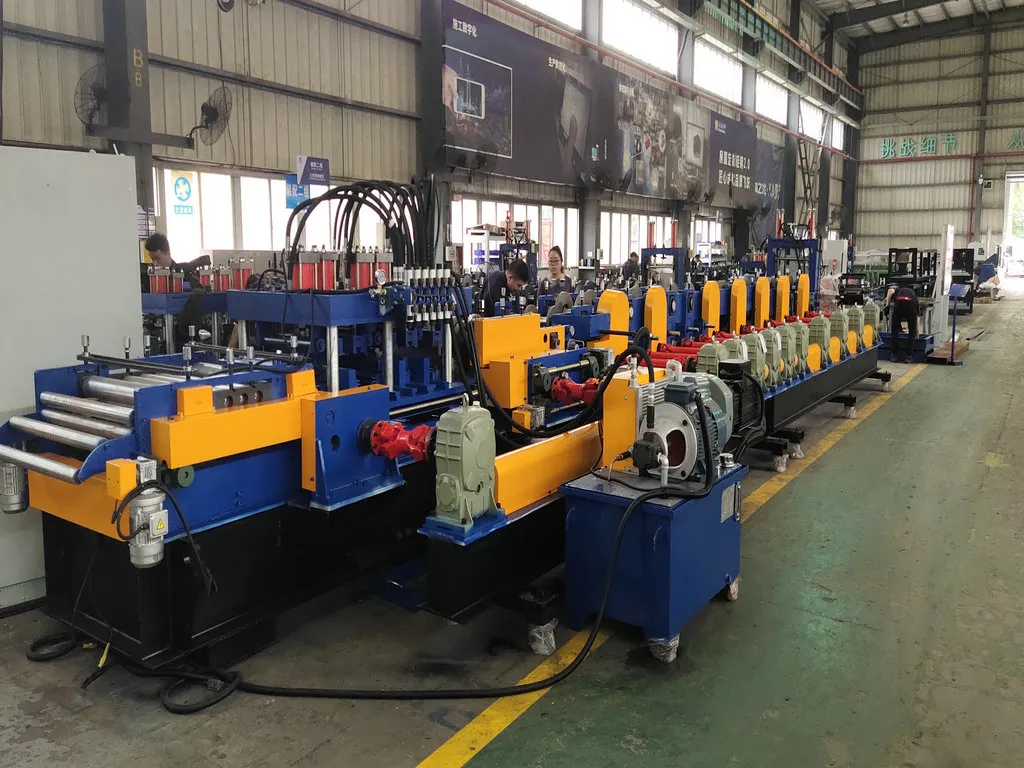

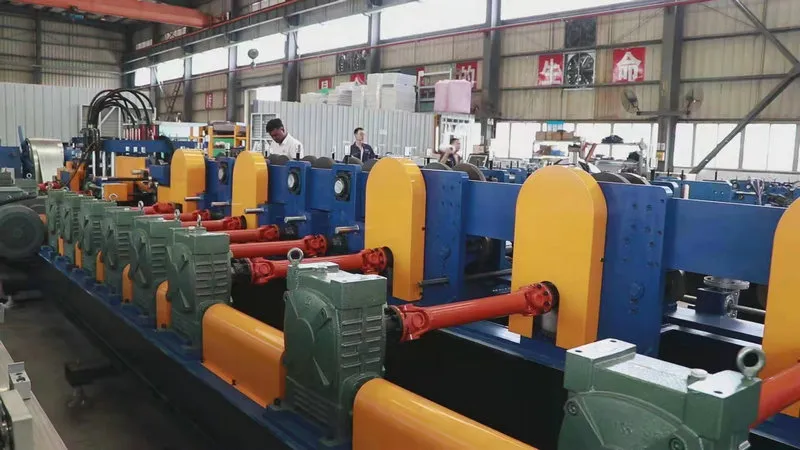

Roll Forming And Transmission Device

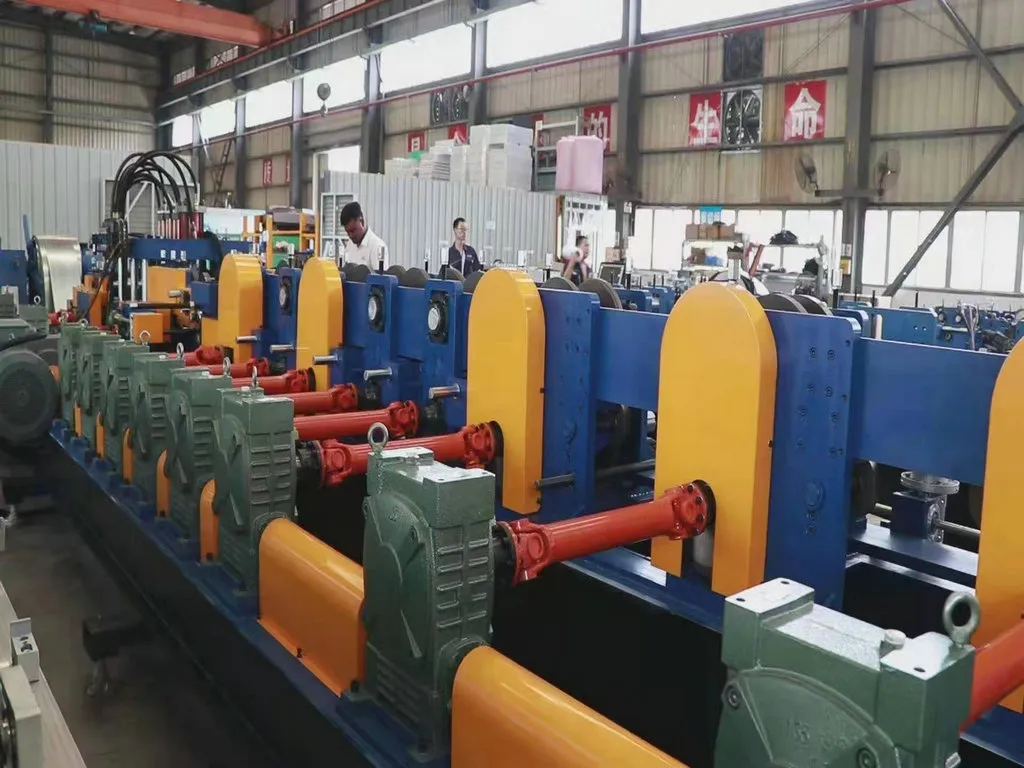

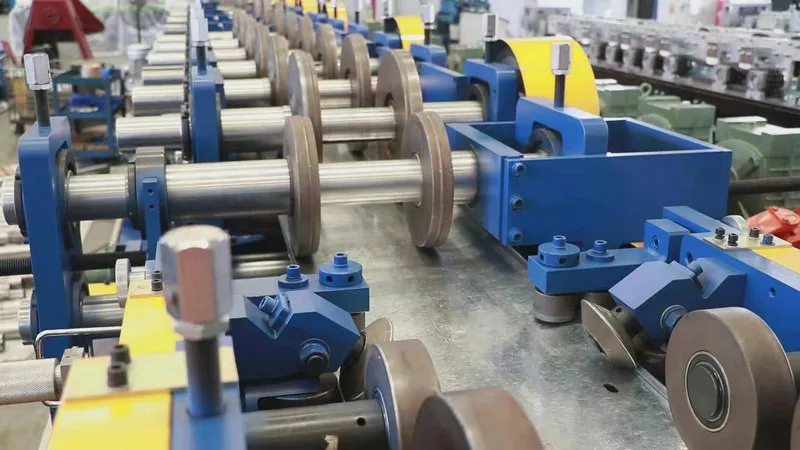

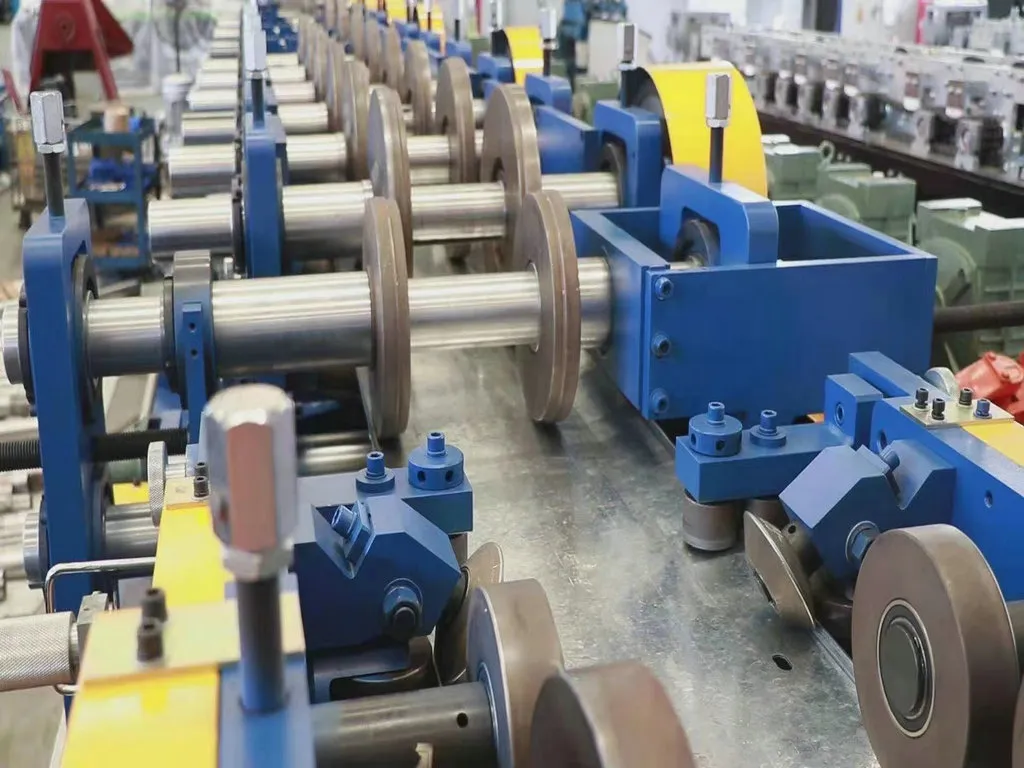

Rollers material: Cr12 CNC processing heat treatment to HRC: 58-60 ,finish turning Roller stations: 24 rows , 12 unit roller
stations for C and Z changing. Shaft material:Shaft material: 40 Cr CNC processing HRC 28-32 ,finish turning and electroplate Drive
by Heavy duty chains: 1.5 inch

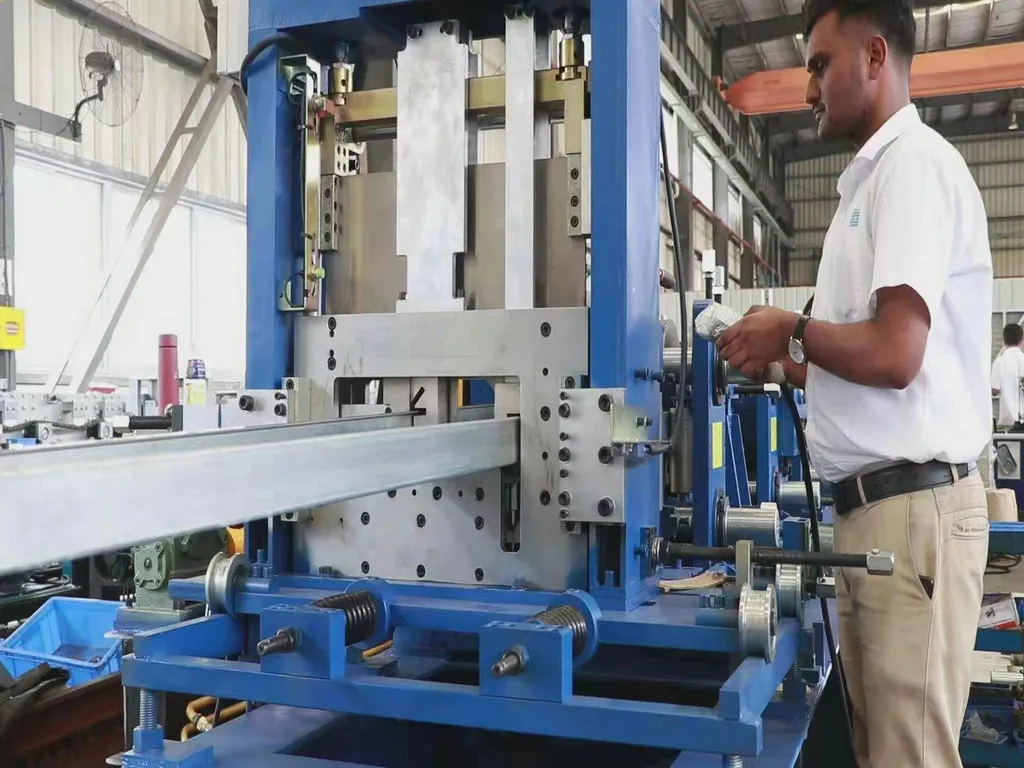

Hydraulic Cutting Device

Material of blade: Cr12mov quench treatment Length measuring: automatic encoder measuring,Tolerance of length is 3000mm+- 1.0mm You can manually adjust the cutter to cut different sizes of c/z purlin. You do not need to change new blade and this cutter is easy to operate.

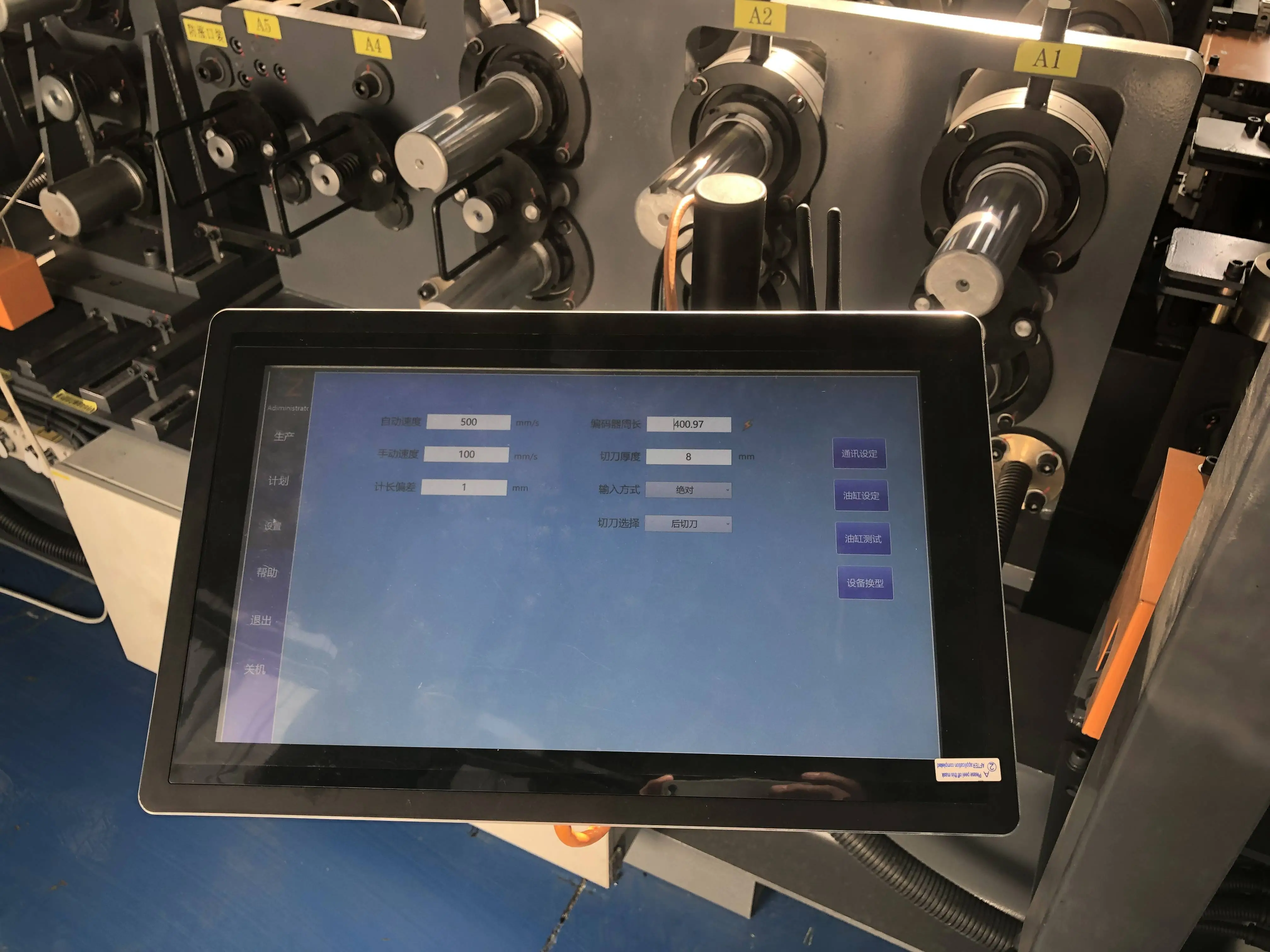

Laptop-Type Control System

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen ● Encoder brand:Omron ● Electrical components:Schneider ● Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

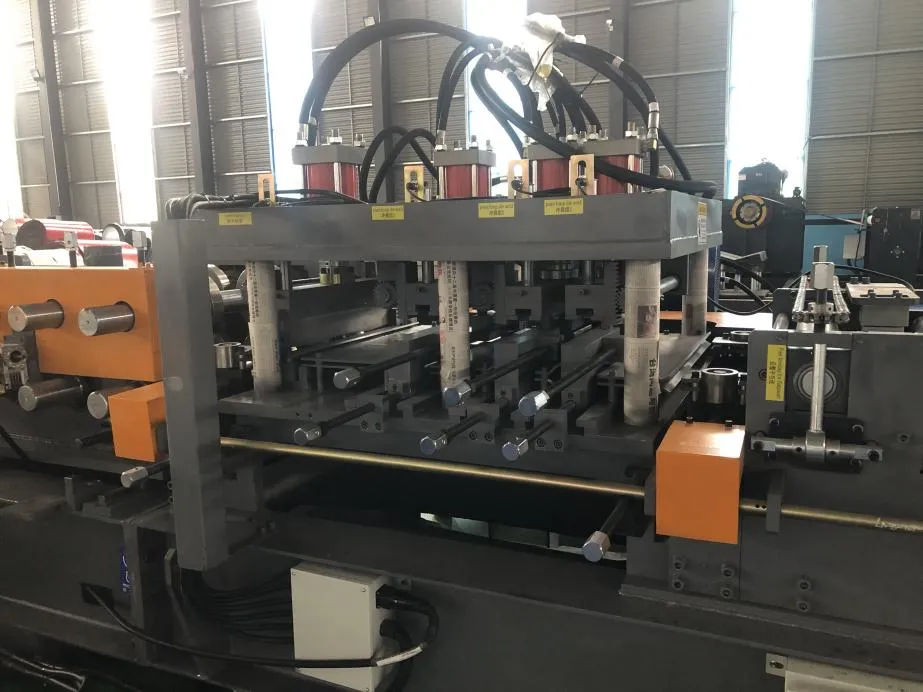

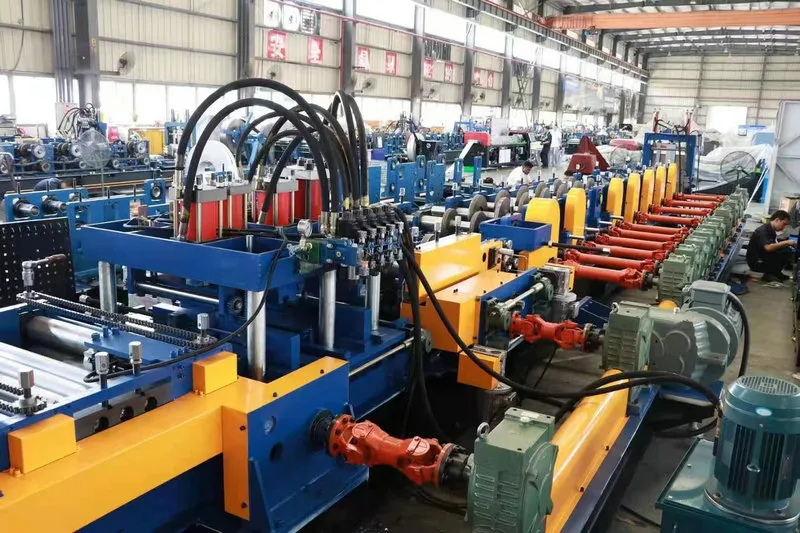

Puching Unit With Hydraulic System

Station 1: Pre-Hydraulic shearing Station 2: Bottom center holes punching Station 3: Bottom double side holes punching Station 4: Each side flag holes punching

1.Servo motor

Servo Motors are used throughout many industries and have the following advantages:
1. High efficiency
2. High output power relative to their size More constant torque at higher speed Closed-loop
3. control Quiet operation Highly reliable High ratio of toraue to inertia
4. High acceleration High-speed performance
5. Torque control
6. Smooth running
7. High accuracy
8. Well suited to varving load applications

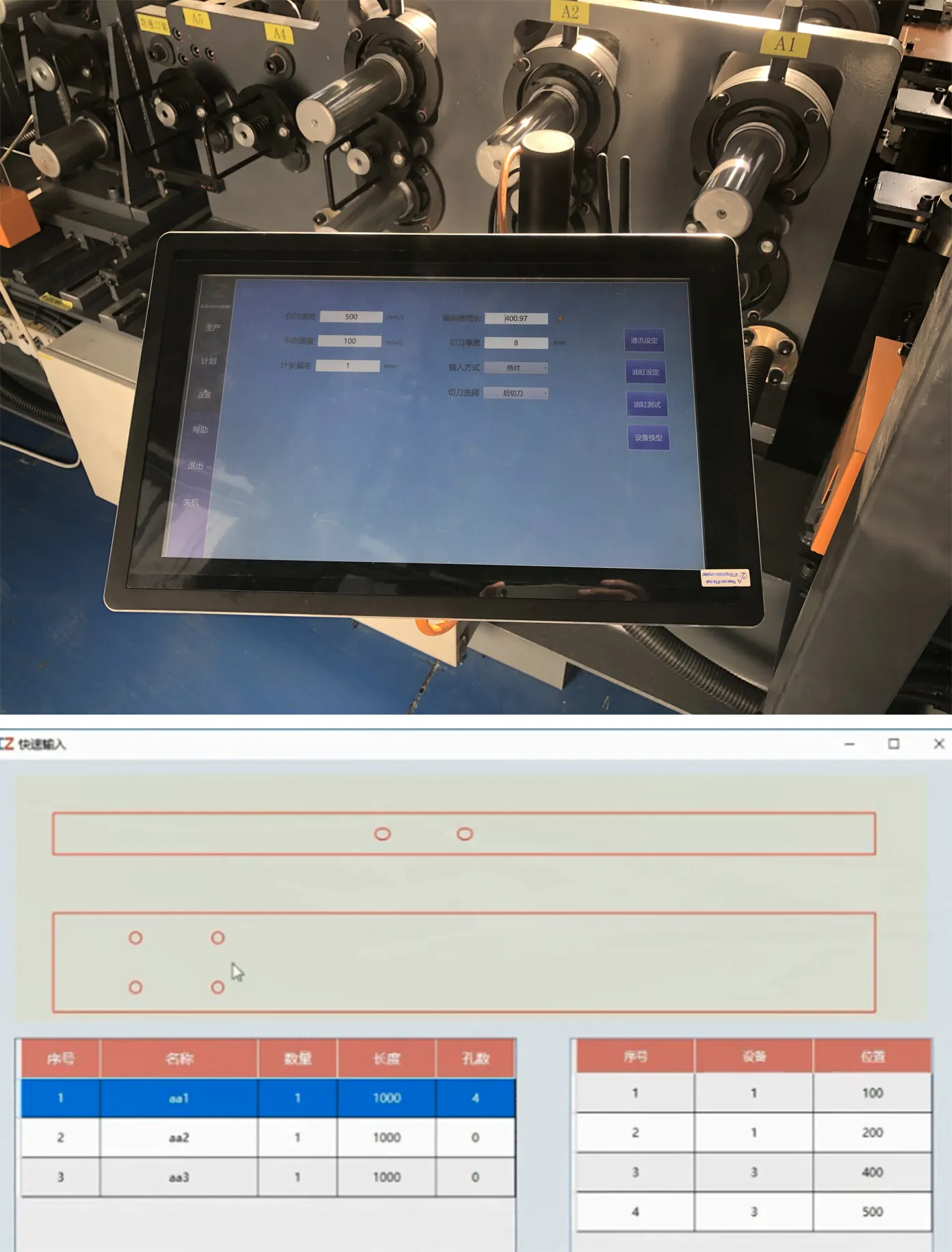

2.Laptop-type intelligent control system

1. Select domestic high-end leading servo motor brand series - quality, production efficiency, precision leap (production efficiency increased by more than 30%) 2. Upgrade the intelligent control system - more intelligent and superior 3. High-end portable laptop operation - high-end convenience, mobile office, production, more than one step ahead 4. The first self-developed intelligent fast input software in China - liberating tedious input, improving work efficiency, one step ahead, one step faster (saving about 1 hour of working time per day)

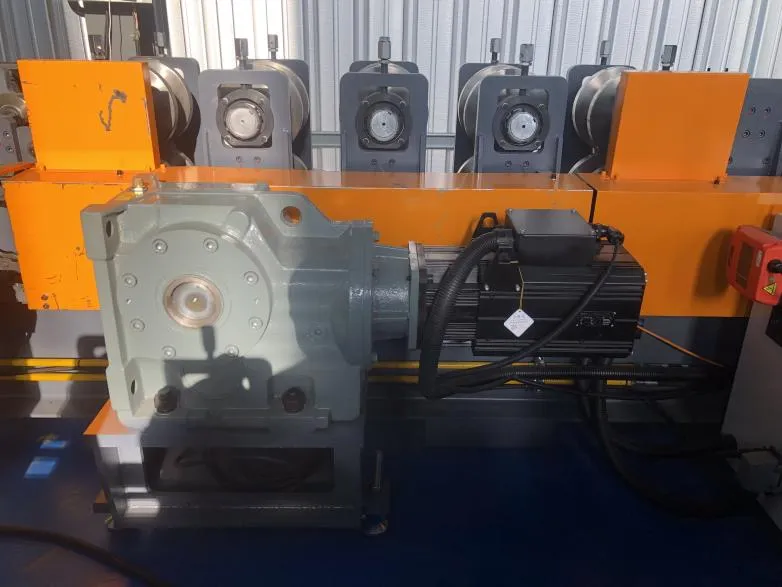

3. Gearboxes transmisson

The transmission of the gearbox is more stable, and the transmission ratio is 1:1, which is suitable for high-speed and heavy-duty equipment.

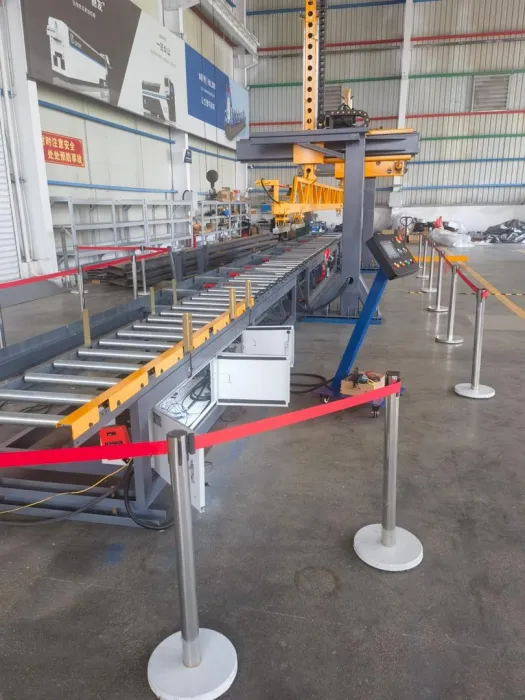

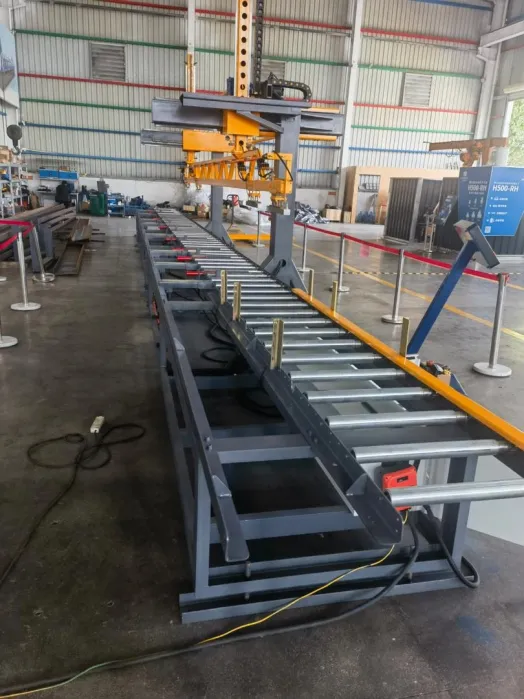

Automatic Stacker

Saving Labor Cost To Receive The Products

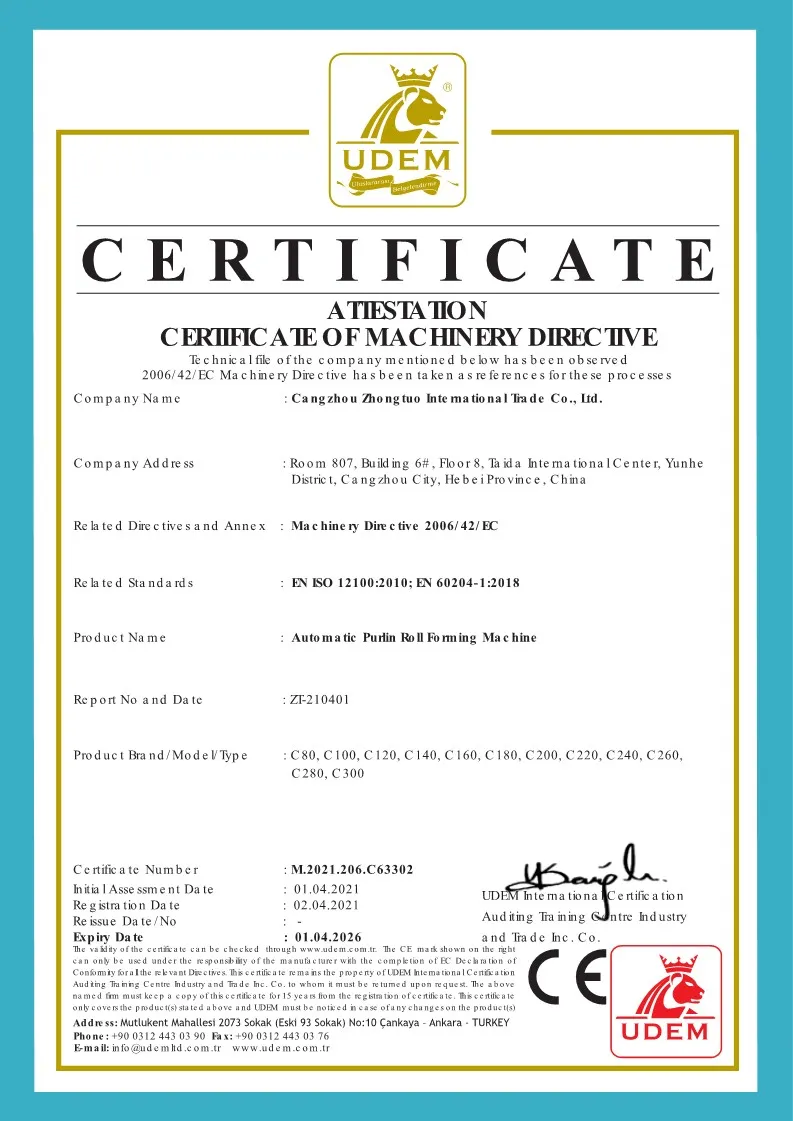

ZF-210401
