3mm Steel Coil Cut to Length Line Machine Coil Cutting Machine Steel Cut Machine 3mm*1250mm

3mm Steel coil cut to length line machine coil cutting machine steel cut machine

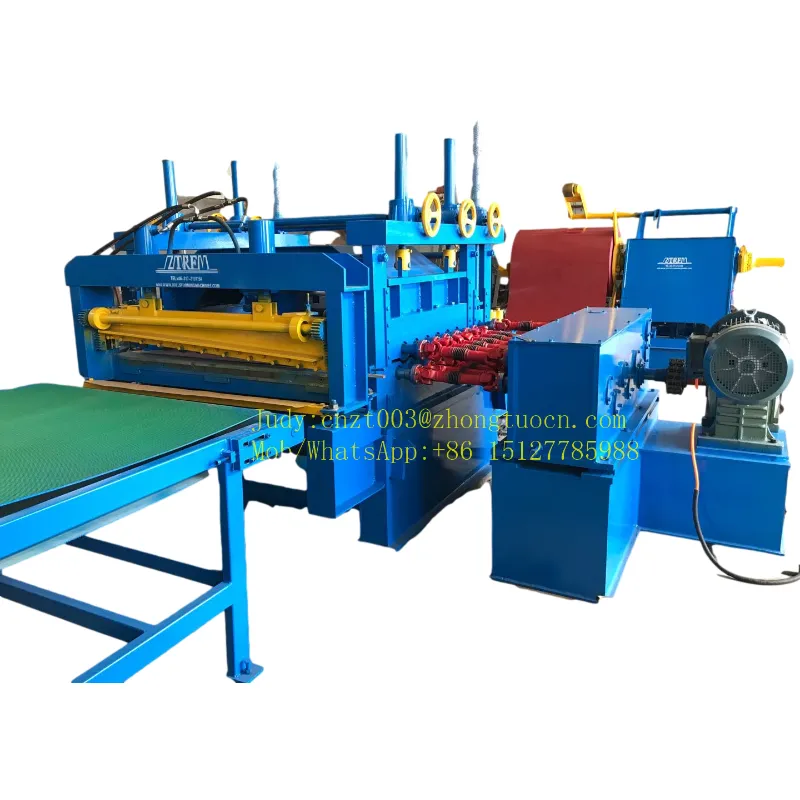

Steel coil cut to length line machine CTL production line





Steel coil cut to length line machine CTL production line

 Material Introduction



1.Raw material: Galvanized sheet,Hot rolled steel,carbon steel,etc

2.Material thickness:1-3mm (Also can as customers' request)

3.Material width:1250 mm,1500mm or as request





3mm Steel coil cut to length line machine coil cutting machine steel cut machine

Components

1.10T Hydraulic decoiler with loading car

2.Leveling and cutting device

3.Conveyor

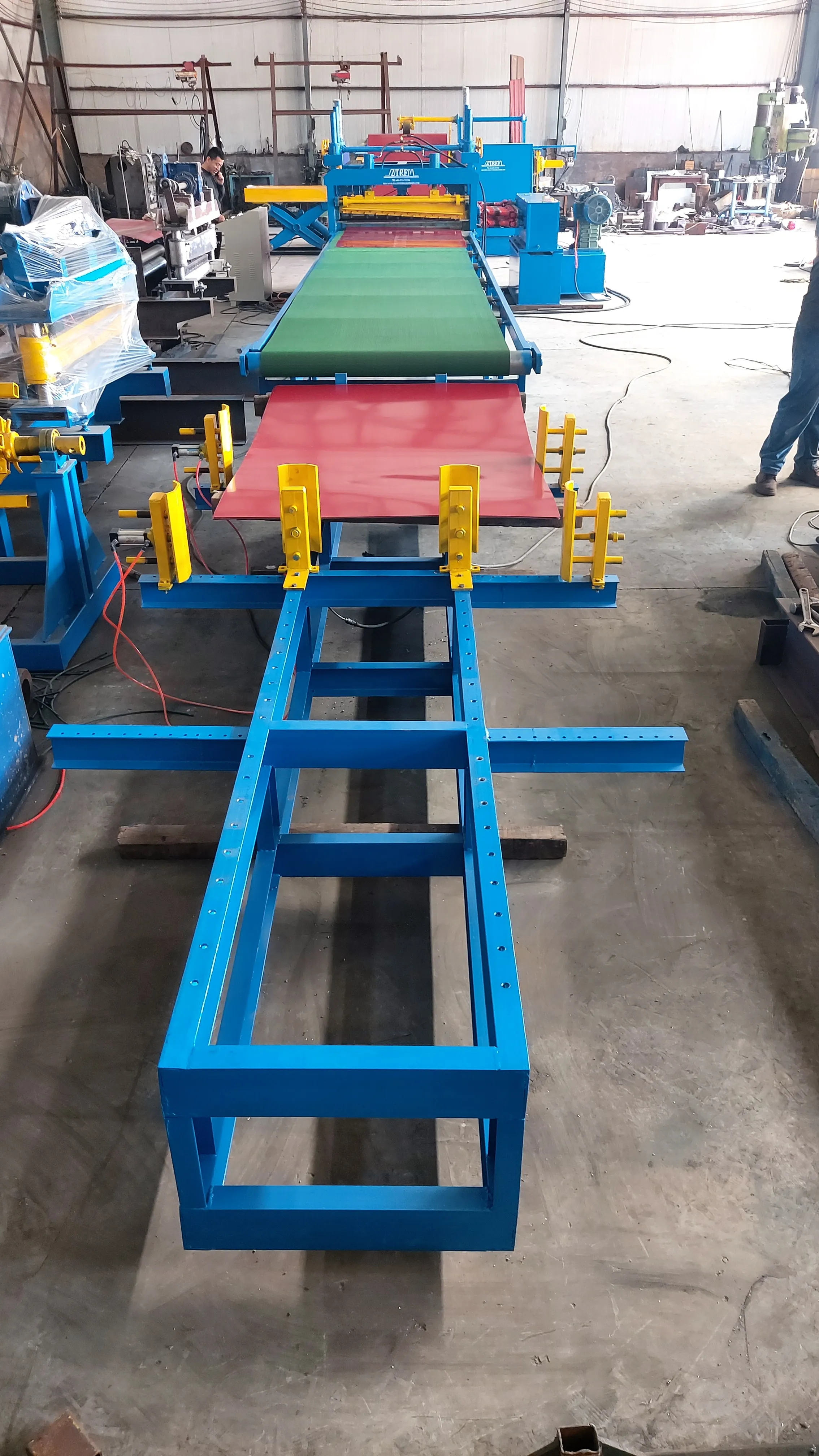

4.Simple auto stacker

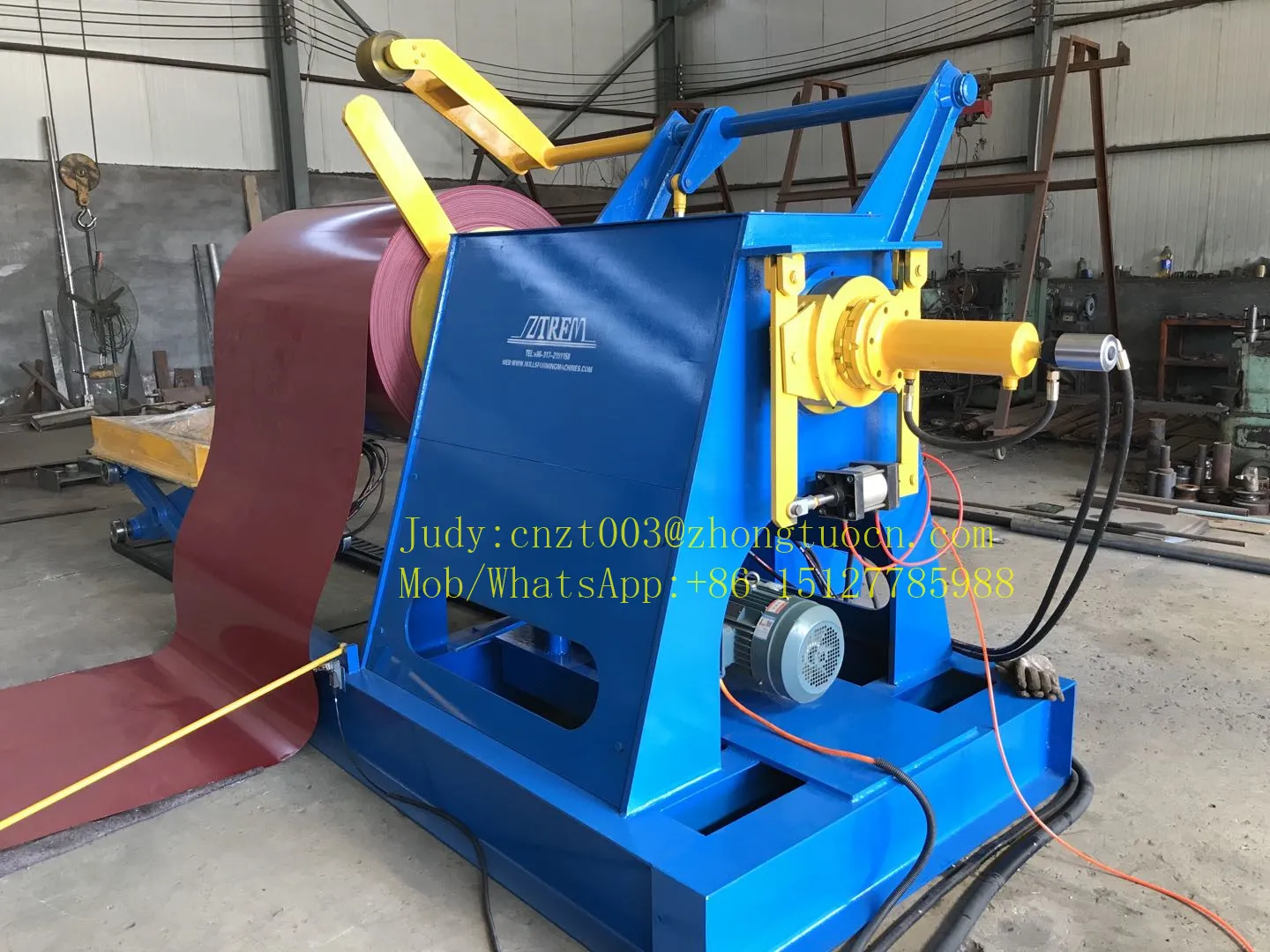

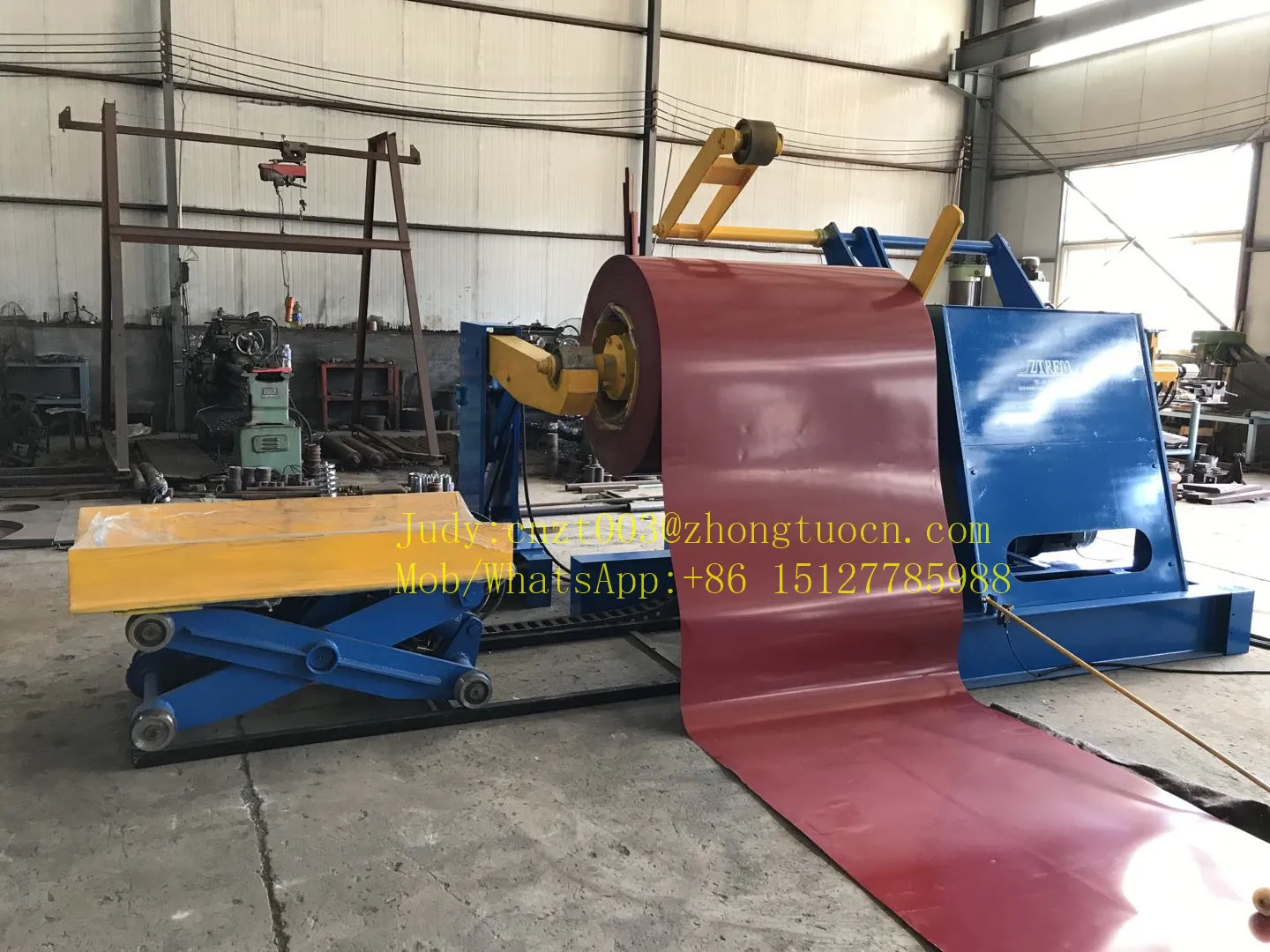

Hydraulic Decoiler with loading car of 3mm Steel coil cut to length line machine coil cutting machine steel cut machine

1.Load capacity: 10 Tons (as required)

2.Inner diameter: 500-800mm

3.Tensioning way: hydraulic extend and shrink

4.Design:(1)With arm to protect coil from loosing,pnumatic

               (2)With horizontal bar to protect coil

5.Button: Schneider

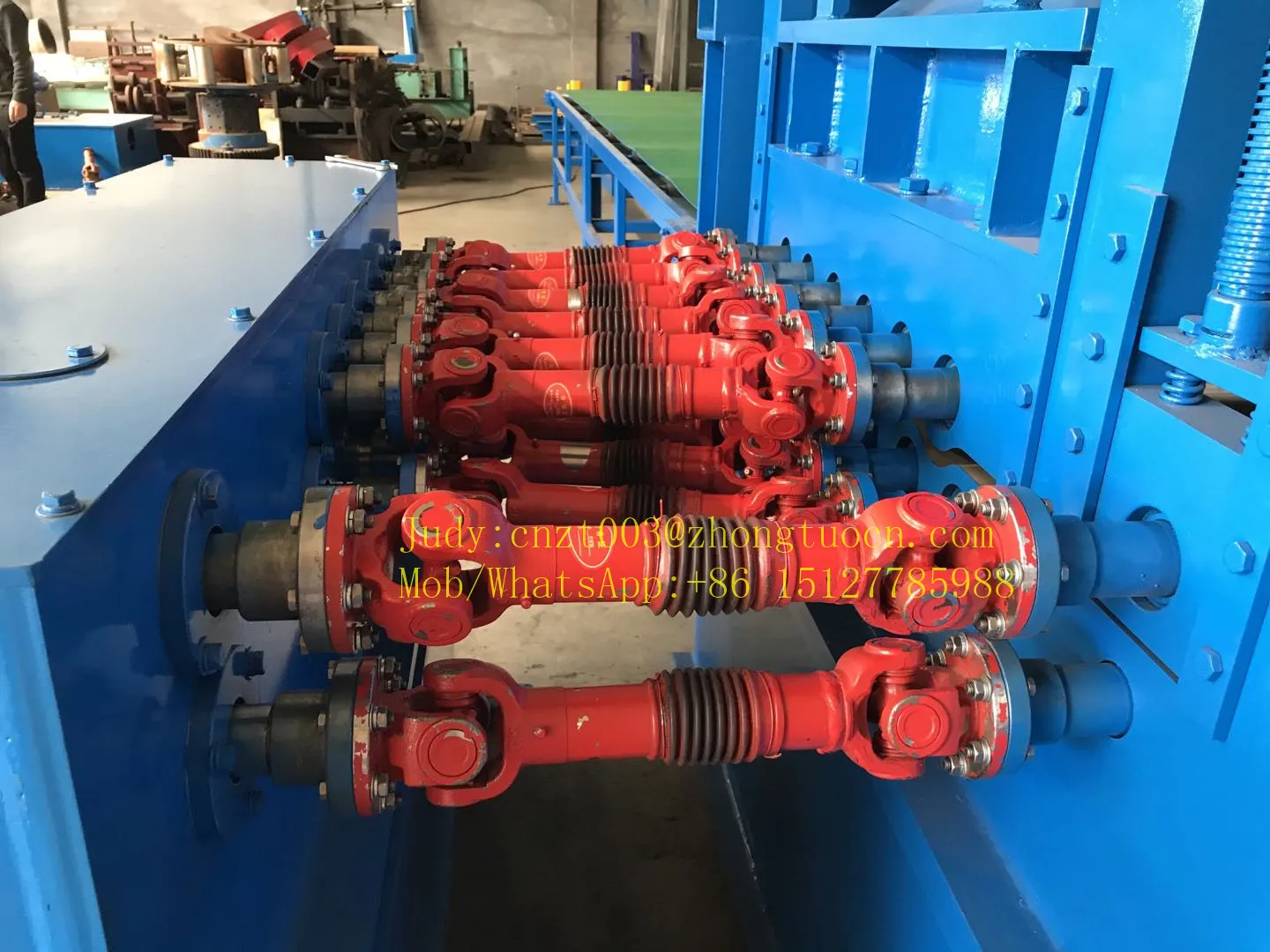

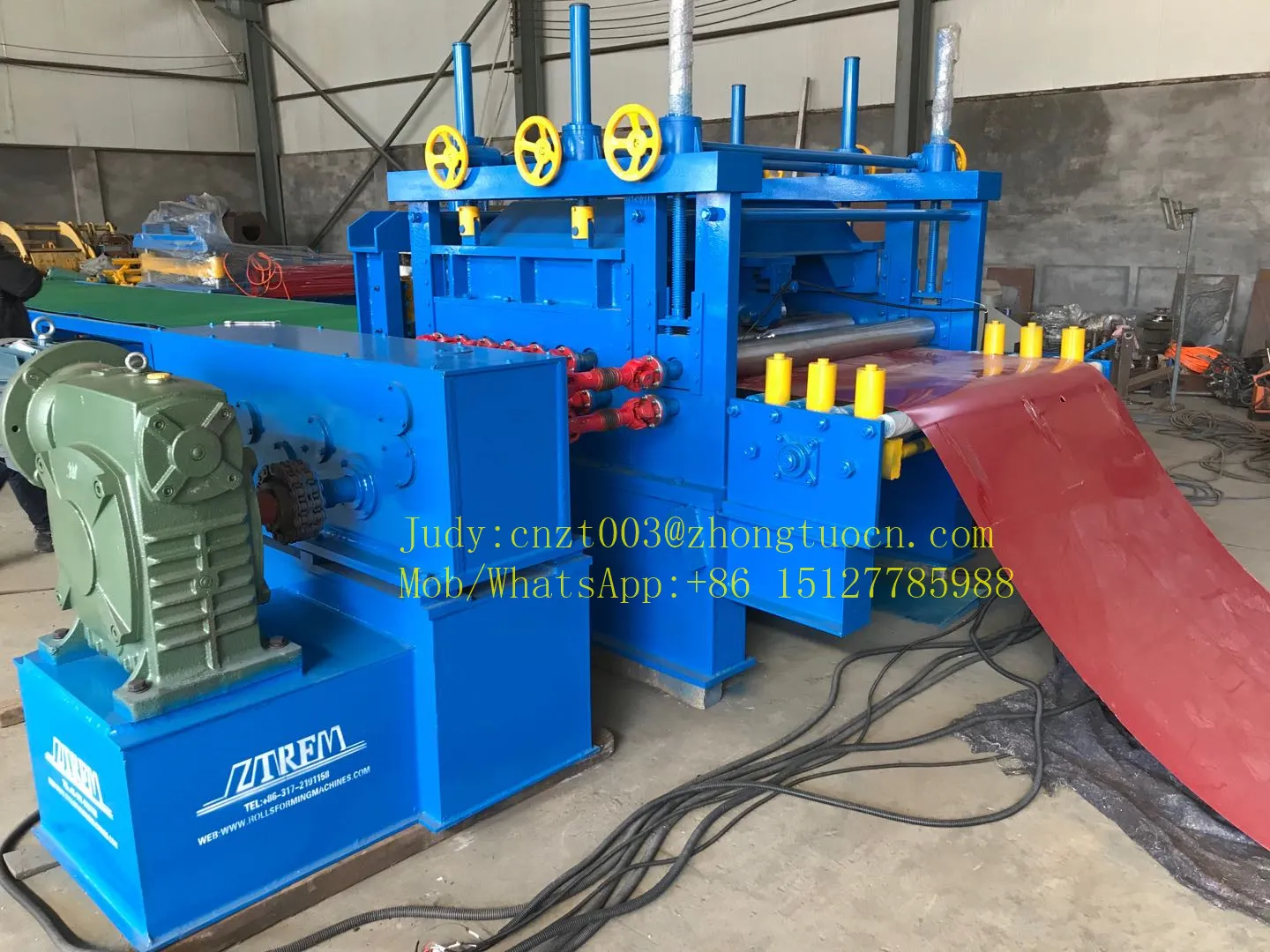

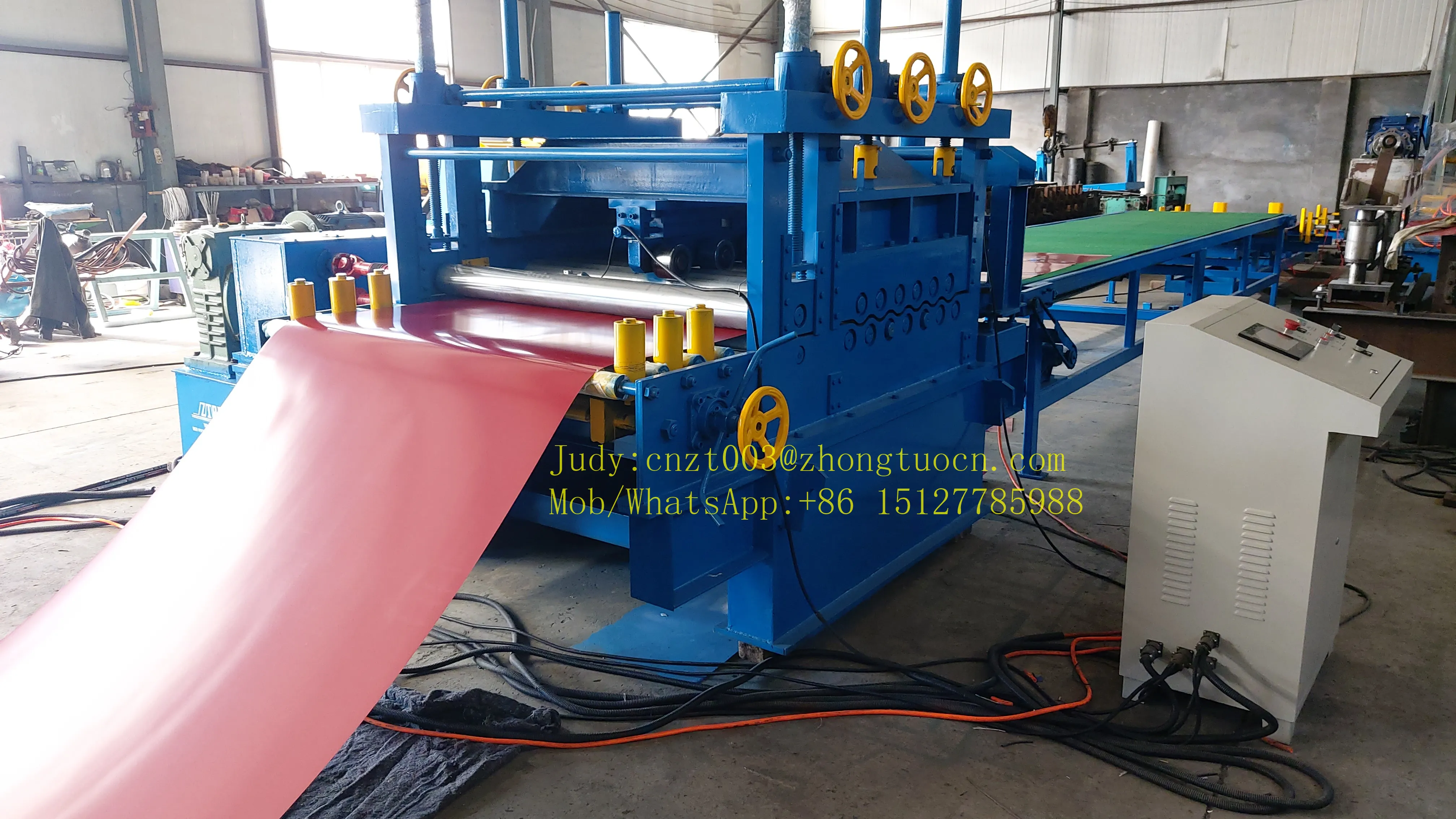

Leveling and cutting device of 3mm Steel coil cut to length line machine coil cutting machine steel cut machine

1.Leveling roller:13 rollers,up 6 down 7

2.Roller diameter:80mm

3.The gap between up and down rollers can be adjusted to fit with the material thickness.

4.Cutting type:hydraulic cutting

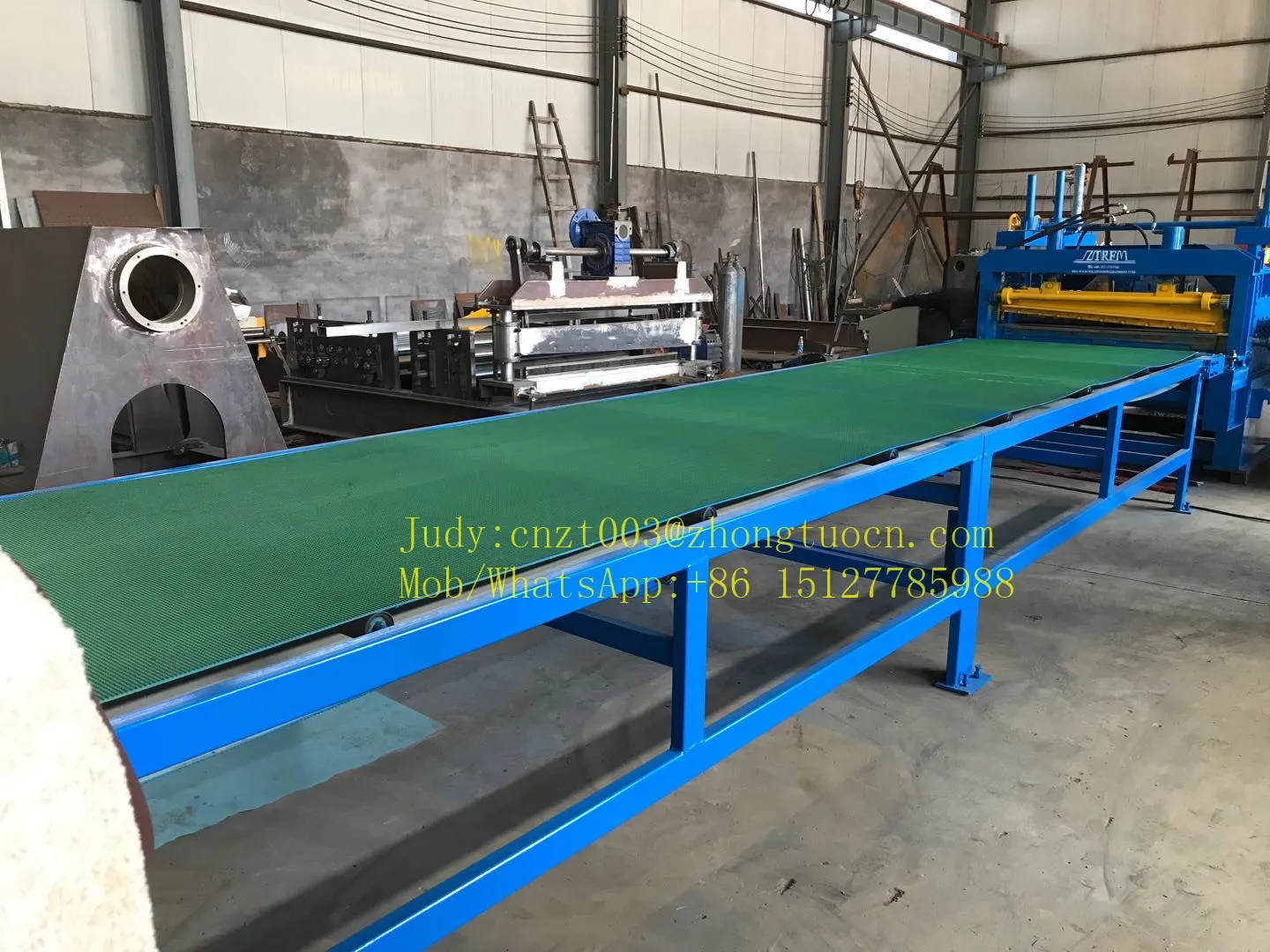

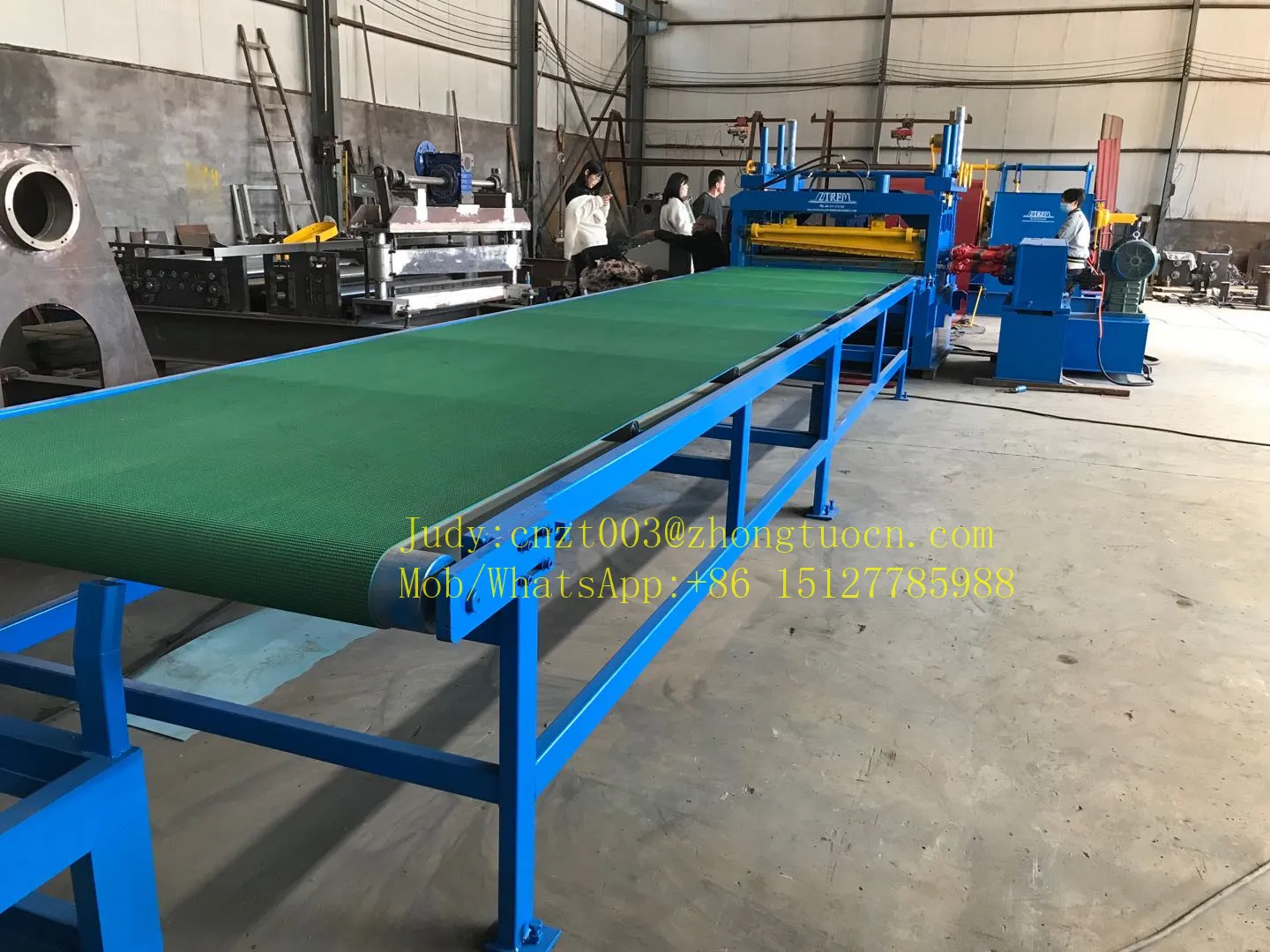

Conveyor of Steel coil cut to length line machine CTL production line

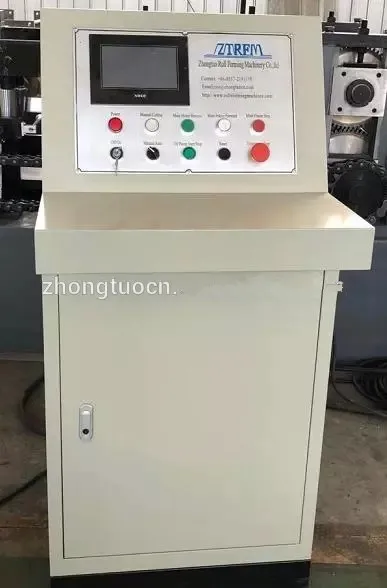

Control Cabinet of Galvanized steel HR slitting production line cut to length machine

1.PLC : Delta

2.Inverter:Delta

3.Touch Screen:Siemens

4.Encoder: Schneider/Mitsubishi

5.Plug: Aviation plug

6.Botton: Schneider

7.Cooling systerm: Fans

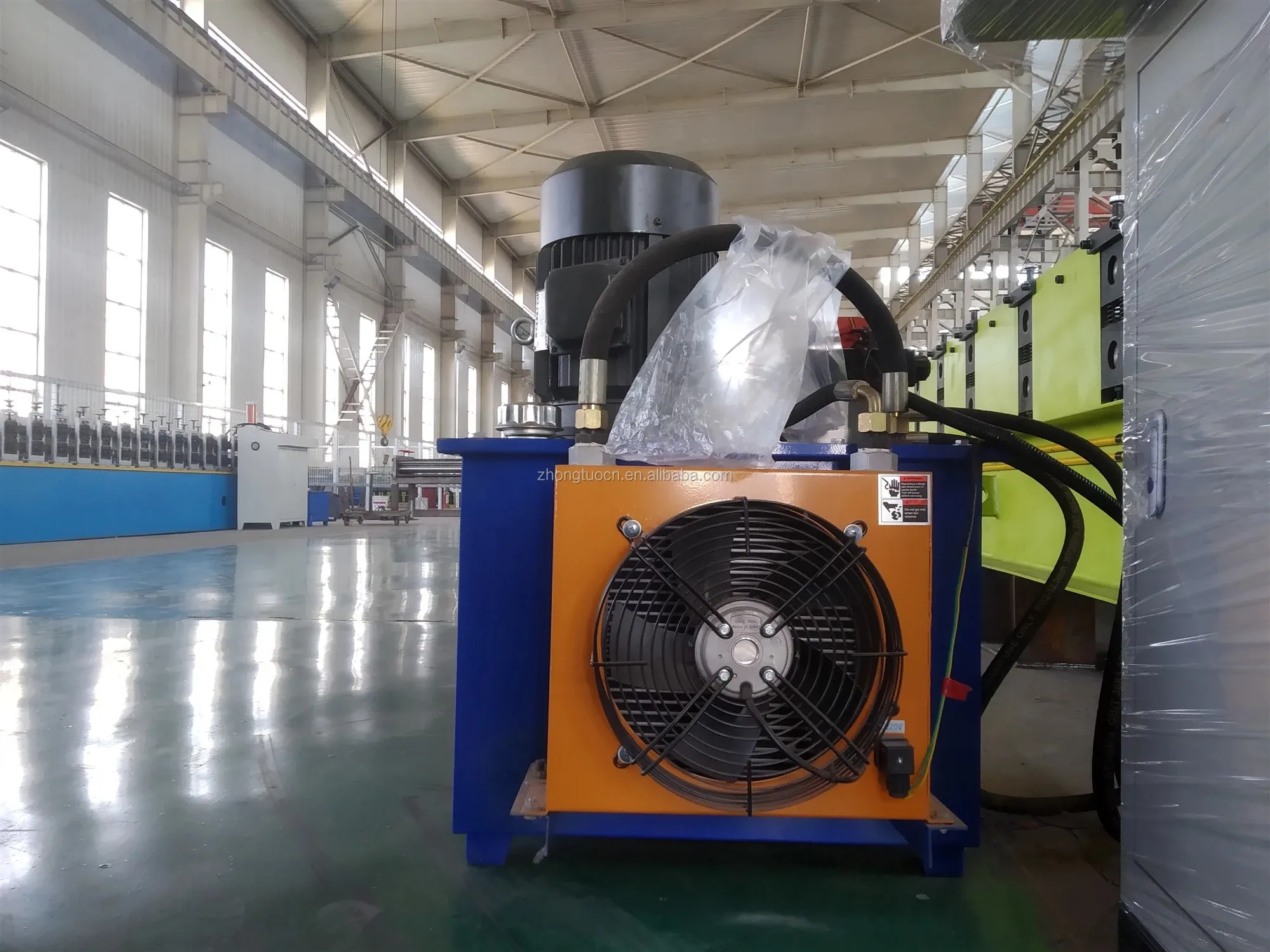

Hydraulic Station of Galvanized steel HR slitting production line cut to length machine

1.Oil tube: Standrad brand

2.Solenoid valve:Standrad brand

3.Cooling systerm: Fans

4.46# hydraulic oil







 More details of the whole production line,pls feel free to contact me,thank you!

Judy WhatsApp:+86 15127785988

Q: Are you factory or trade company?

A: We are factory and we have a professional engineer team which can design the machine as customers' request

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available. Our technicians will go to your factory to help you on time.

Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and rich experience about machines and global market. We boast of professional engineer team and  after-sale service team.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Which is your main market?

A: We supply machine to UK,USA, Austrila and South Korea. Besides, India is our main market, we have Indian sales manager and branch company in India.

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name.
