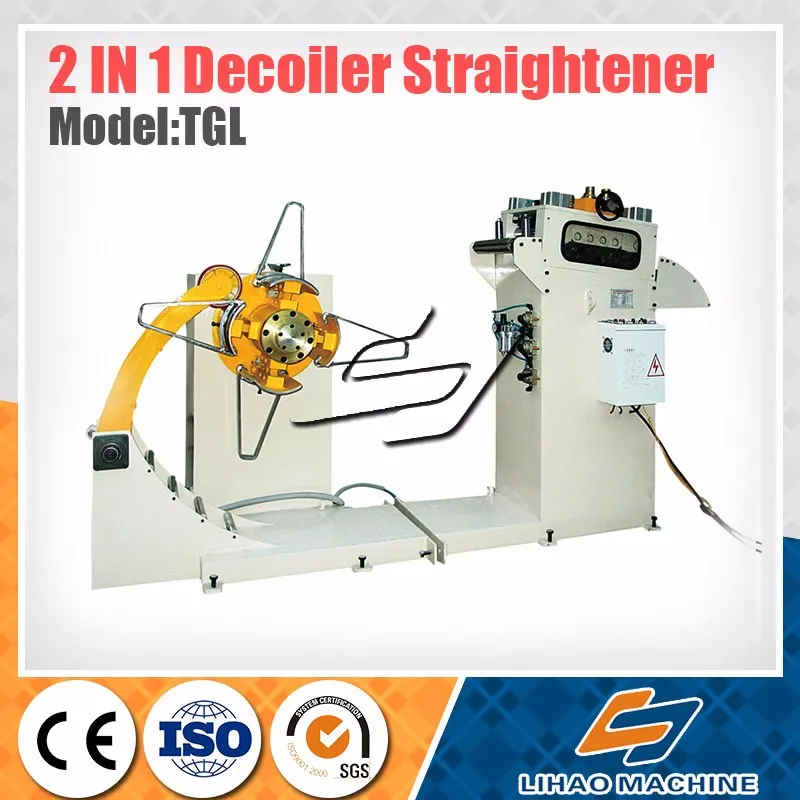

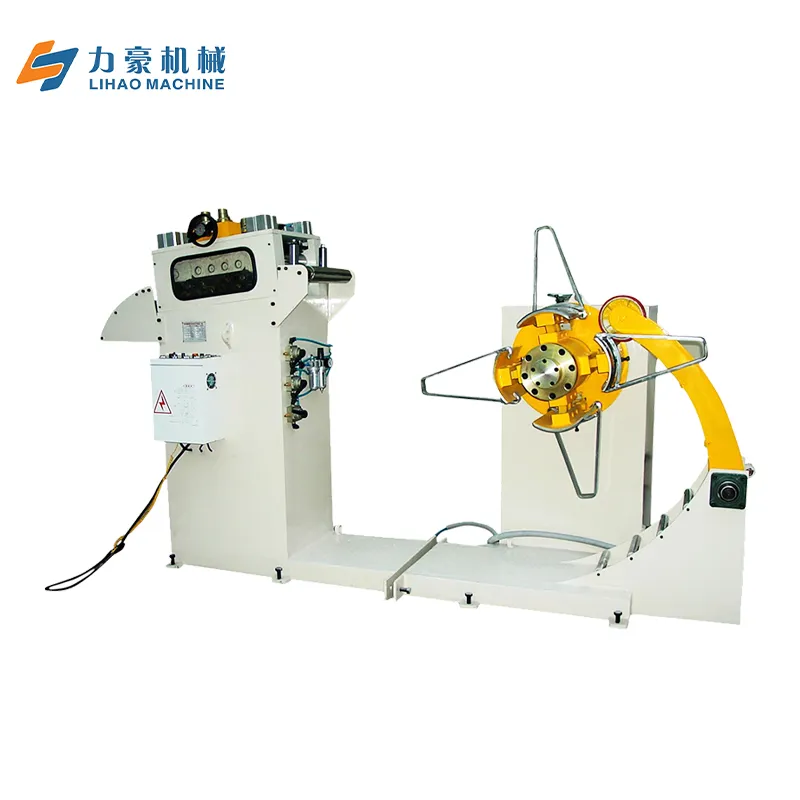

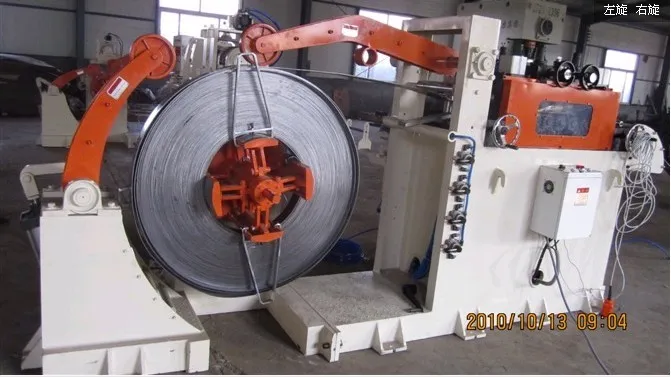

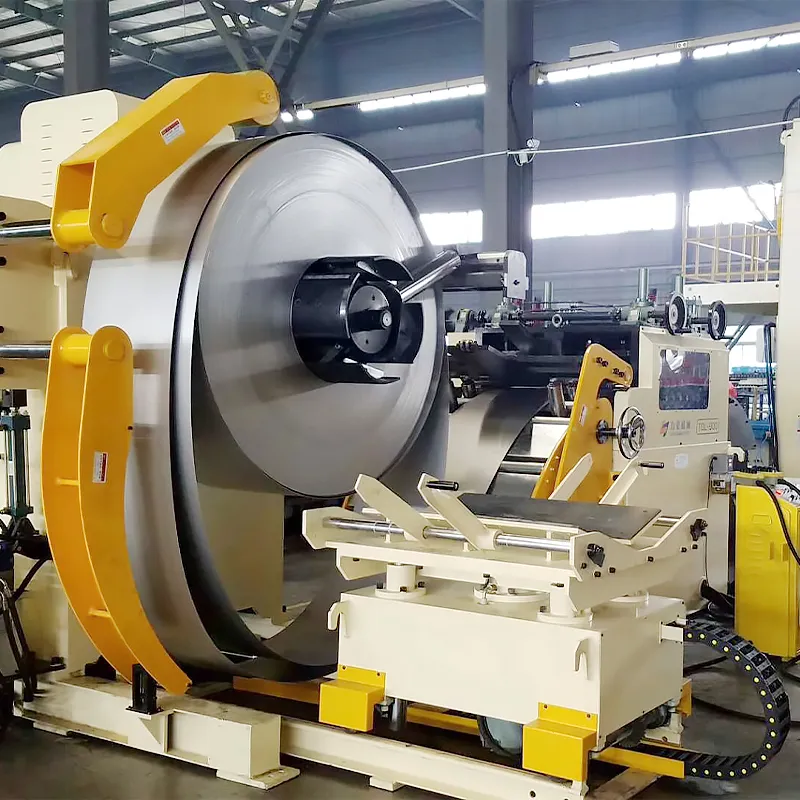

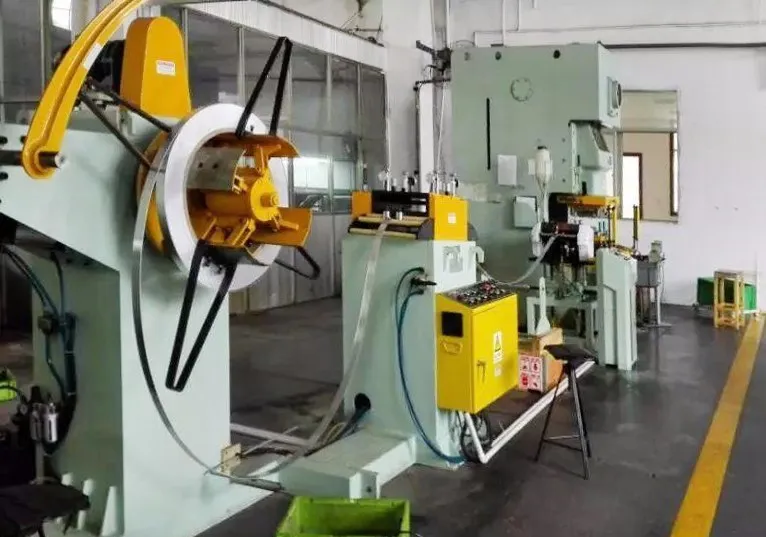

2 in 1 Uncoiler with Straightener Machine for Metal Steel Plate Straightening with Decoiler Sheet Uncoiling and Leveling Machine TGL-400

Shenzhen Lihao Machine Equipment Co., Ltd

2 in 1 Uncoiler with Straightener Machine for Metal Steel Plate Straightening with Decoiler Sheet Uncoiling and Leveling Machine TGL-400

Name: 2 in 1 Uncoiler with Straightener Machine for Metal Steel Plate Straightening with Decoiler Sheet Uncoiling and Leveling Machine TGL-400
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT74294022

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

model number:

TGL-400

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Voltage
380-440v, 220-380V
Power(W)
5
Feeding Speed
30 m/min, 20 M/Min

Product Description

Features:

1. Decoiler and straightener 2 in 1 machine, can improve the plant’s utilizable space.

2. The straightener adopts balance fine adjust device, suitable for process high precision products.

3. The rollers adopt the solid bearing steel and hard chrome plating treatment.

4. This equipment has three different types according to clients requirements: thin, medium and thick, can work with the related NC feeder to meet different punching requirements.

Size Information

Specification:

Model

Width

Thickness

Coil weight

Coil Inner dia.

Coil outer dia.

Motor

Expand type

TGL-300

300MM

0.5~3.2MM

2000kg

450~530mm

1200mm

1.5kw/4p

Manual/ Hydraulic

TGL-400

400MM

0.5~3.2MM

3000kg

450~530mm

1200mm

2.2kw/4p

Manual/ Hydraulic

TGL-500

500MM

0.5~3.2MM

3000kg

450~530mm

1200mm

2.2kw/4p

Manual/ Hydraulic

TGL-600

600MM

0.5~3.2MM

3000kg

450~530mm

1200mm

2.2kw/4p

Manual/ Hydraulic

TGL-700

700MM

0.5~3.2MM

4500kg

450~530mm

1200mm

3.7kw/4p

Manual/ Hydraulic

TGL-800

800MM

0.5~3.2MM

5000kg

450~530mm

1200mm

3.7kw/4p

Manual/ Hydraulic

TGL-300A

300MM

0.5~3.2MM

2000kg

450~530mm

1200mm

1.5kw/4p

Manual/ Hydraulic

TGL-400A

400MM

0.5~3.2MM

3000kg

450~530mm

1200mm

1.5kw/4p

Manual/ Hydraulic

TGL-500A

500MM

0.5~3.2MM

3000kg

450~530mm

1200mm

1.5kw/4p

Manual/ Hydraulic

TGL-600A

600MM

0.5~3.2MM

4500kg

450~530mm

1200mm

2.2kw/4p

Manual/ Hydraulic

TGL-700A

700MM

0.5~3.2MM

4500kg

450~530mm

1200mm

2.2kw/4p

Manual/ Hydraulic

TGL-800A

800MM

0.5~3.2MM

5000kg

450~530mm

1200mm

3.7kw/4p

Manual/ Hydraulic

Straightening capacity:
Thickness / model	TGL-300A	TGL-400A	TGL-500A	TGL-600A	TGL-700A	TGL-800A
2.5	300	400	500	600	700	800
3.0	300	400	500	600	700	800
3.5	300	400	500	500	550	600
4.0	300	400	400	400	400	420

Detailed Images

Straightener head

1. Adopt AirTAC cylinder, alloy cylinder body, hard oxidation, riveting air-tight solid aluminum, CNC precision machining, inner
wall grinding smoothly, no stuck, high efficiency and high intensity operation, durable, suitable for all kinds of working
conditions.
2. Adopt worm gear screw lifter, the box body is made of HT200 material, the bearing is made of famous brand, with stronger impact
bearing capacity and stronger durability.
3. Adopt cast iron handwheel, surface electroplated, It is the most traditional handwheel.

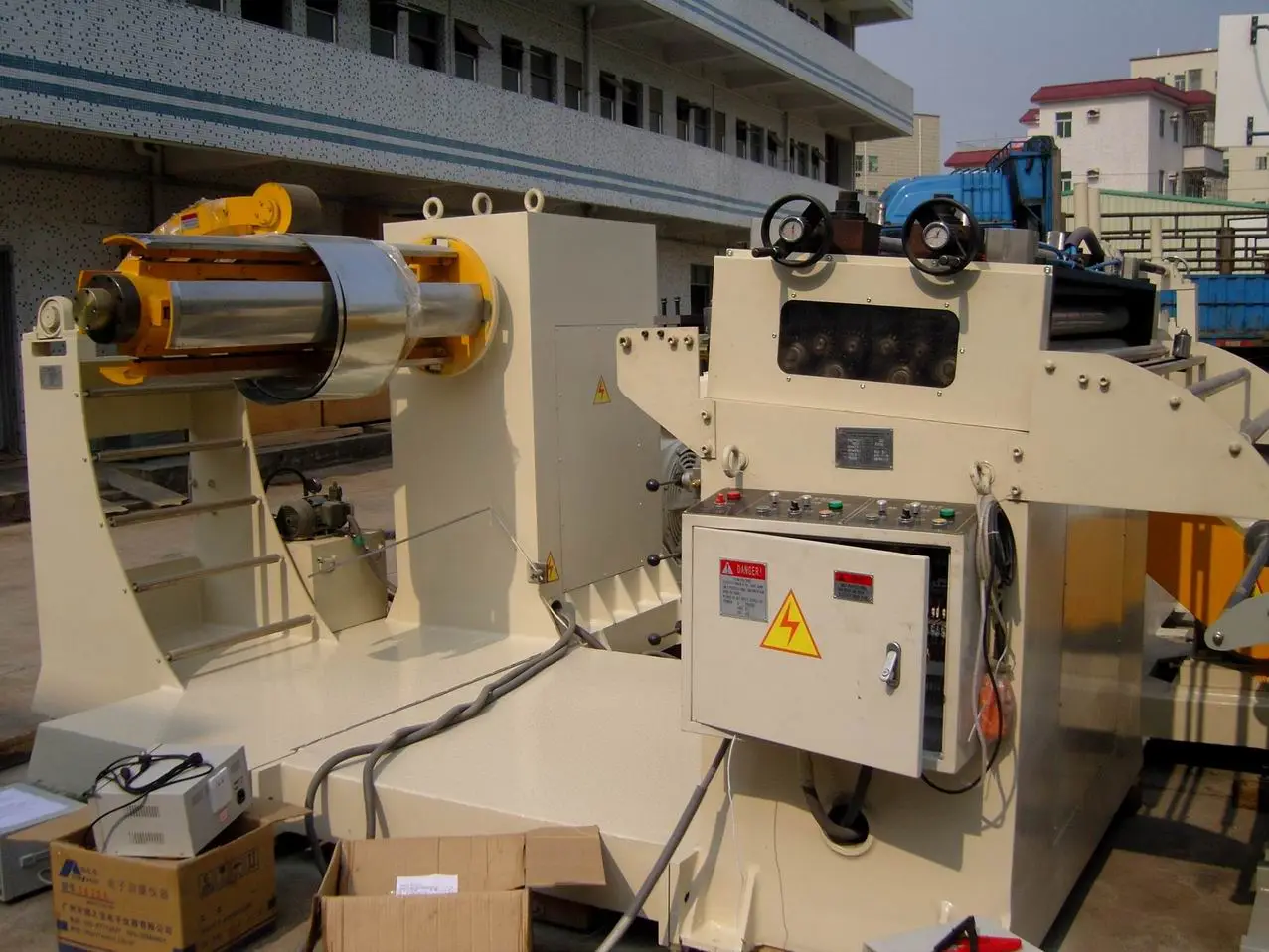

Frame part

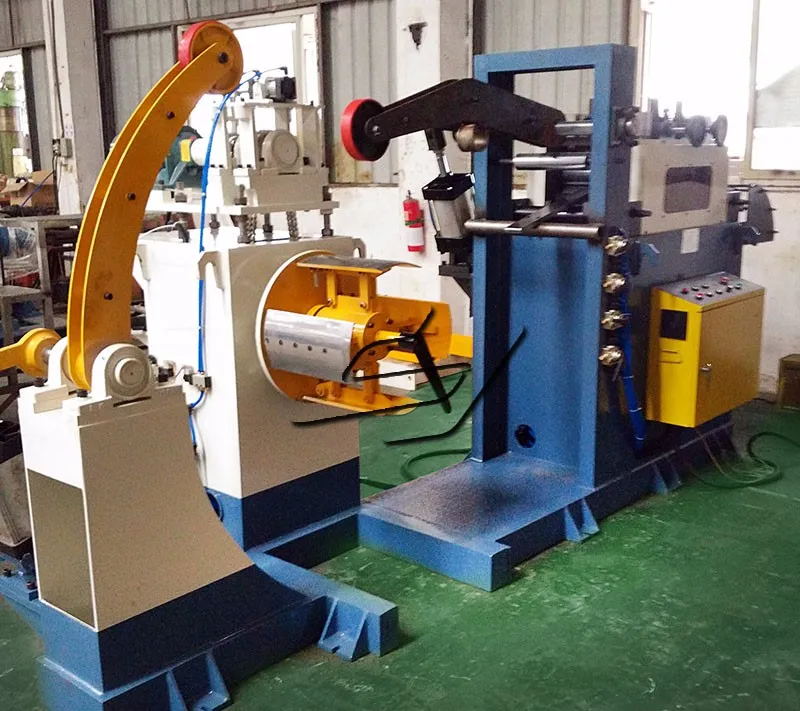

1. The equipment adopts the integrated design of decoiler and straightener, to improve the utilization rate of the site.
2. Decoiler adopt cantilever beam design, all plates of the decoiler are cut by laser plasma with high precision.
3. All parts are processed by numerical control and CNC, with good interchangeability.
4. The overall structure is simple, it is convenient for general technical workers to assemble and replace, can greatly reduces
the maintenance cost.

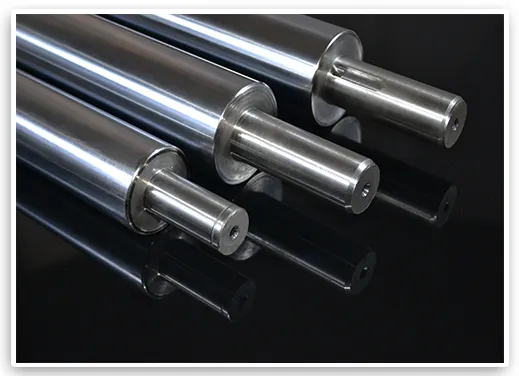

Straightening roller

1. The straightening rollers are made of solid bearing steel, thickening plating treatment after medium frequency, surface
hardness is not less than HRC58, to ensure material durability.
2. Adopt GCr15 forging round steel, after preheating treatment (spheroidal annealing), then turning, milling, intermediate
frequency treatment, rough grinding and cold stabilization, then fine grinding, finally electroplating. Maximized guarantee the
accuracy, concentricity, finish and hardness, and extended the using life of the rollers.

Drive gear

Gear processing includes the following processes: gear blank processing - gear surface machining - heat treatment - gear surface
fine grinding. Rough parts are mainly forging parts. Through normalizing treatment, improve the machining to facilitate cutting.
According to the gear design drawings, rough machining, and then semi-finishing processing, turning, rolling, gear shaping, to
make the gear basically formed. After the heat treatment to improve the mechanical properties. According to the design
requirements of the drawings, finally do the finishing, finishing the benchmark, finishing the tooth profile. After all above
treatments, our gear grade can reach to grade 6, with high wear resistance, high strength, long using life.

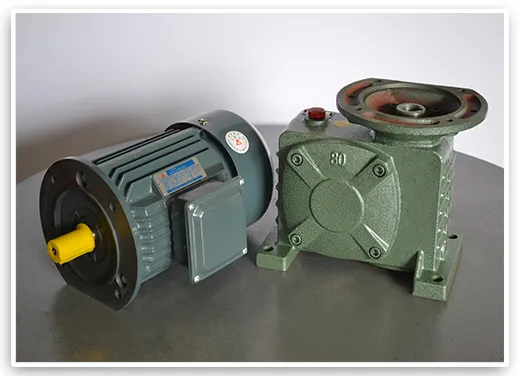

Power part

1. Adopt model 80 worm gear vertical reducer, use the speed converter of gear , reduce the rotation number of motor to desired
rotation number ,and get the mechanism with larger torque.
2. Adopt vertical motor, low vibration, low noise, stator rotor part adopt pure copper coil, life is 10 times of ordinary coil,
both ends are equipped with ball bearing, low friction, low temperature.

Electric control box

1. Adopt silver alloy relay, full copper coil, flame retardant safety base, long lasting and durable.
2. Adopt safety protection adjustment circuit time delay relay, silver alloy contact, satisfied different delay ranges.
3. The switch adopts sliding contact ,with self-cleaning function , normally open and normally closed contact adopts separate
bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket.
4. Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure.
The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1
million times.

Related Products

Company Introduction

Certifications

After Sales Service

Packing&Shipping

1. Warranty Policy

Warranty period one year free, support lifetime after-sales.

2. Technology Support
Available(online + offline). Operation & maintenance manual(English Version)available
3. Installation & Commissioning
Seller can arrange the techanicals to do the installation for buyer if it is necessary.
4. Can you supply the relevant documentation?
we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

Why Choose Us

Lihao Pre-sales Service 1. Solution Design: We create unique solutions tailored to your product processing needs, optimizing manufacturing efficiency and enhancing processing quality. Lihao After-sales Service 1. Training and Support: We provide English training videos and user manuals for installation, operation, maintenance, and troubleshooting. Technical support is available remotely via email, phone, or online chat for any issues related to installation, operation, or adjustments. 2. On-site Training: Customers can visit our factory for 2-5 days of professional training. 3. On-site Service: Our engineers will provide on-site guidance and training at your location. Assistance with visa arrangements, prepaid travel expenses, and accommodation during the service period is required.
